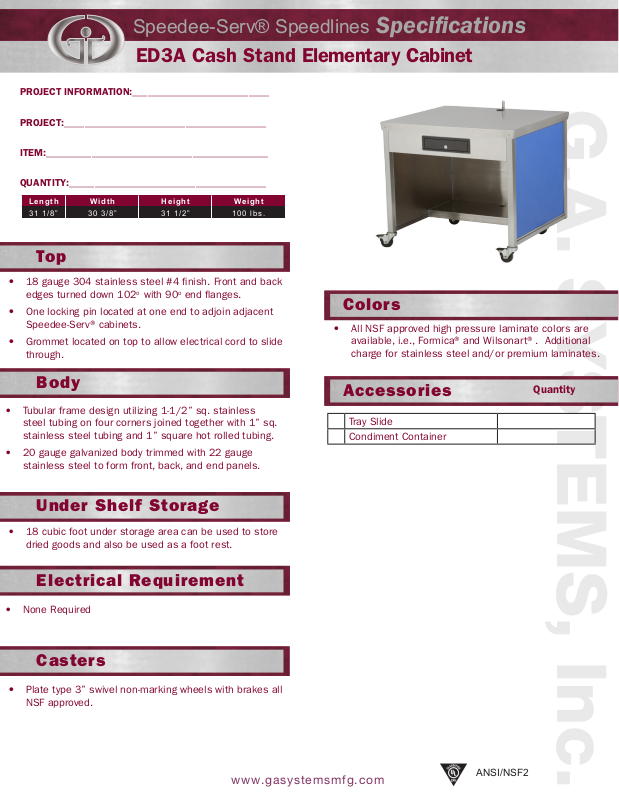

Ga Systems ED3A User Manual

G.A. SYSTEMS, Inc.

Speedee-Serv® Speedlines Specifications

ED3A Cash Stand Elementary Cabinet

PROJECT INFORMATION:___________________________

PROJECT:________________________________________

ITEM:____________________________________________

QUANTITY:_______________________________________

Length Width Height Weight

31 1/8” 30 3/8” 31 1/2” 100 lbs.

Top

• 18 gauge 304 stainless steel #4 nish. Front and back

edges turned down 102

• One locking pin located at one end to adjoin adjacent

Speedee-Serv® cabinets.

• Grommet located on top to allow electrical cord to slide

through.

o

with 90o end anges.

Body

• Tubular frame design utilizing 1-1/2” sq. stainless
steel tubing on four corners joined together with 1” sq.
stainless steel tubing and 1” square hot rolled tubing.

• 20 gauge galvanized body trimmed with 22 gauge
stainless steel to form front, back, and end panels.

Under Shelf Storage

• 18 cubic foot under storage area can be used to store
dried goods and also be used as a foot rest.

Colors

• All NSF approved high pressure laminate colors are

available, i.e., Formica® and Wilsonart®. Additional
charge for stainless steel and/or premium laminates.

Accessories

Tray Slide

Condiment Container

Quantity

Electrical Requirement

• None Required

Casters

• Plate type 3” swivel non-marking wheels with brakes all

NSF approved.

www.gasystemsmfg.com

ANSI/NSF2

Speedee-Serv® Speedlines

G.A. SYSTEMS, Inc.

ED3A Cash Stand Elementary Cabinet

Specifications

OPERATOR END VIEW END VIEW

TOP VIEW FRONT AND BACK VIEW

ELECTRICAL PLACEMENT SPECIAL INSTRUCTIONS

None required.

None required.

17872 Gothard Street • Huntington Beach, CA 92647 • www.gasystemsm fg.com
