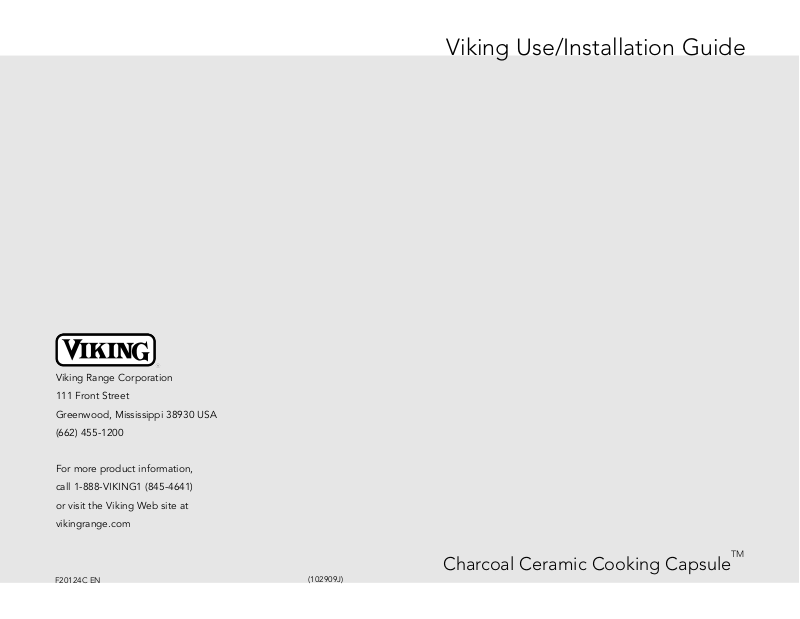

Viking Use/Installation Guide

F20124C EN

(102909J)

Charcoal Ceramic Cooking Capsule

TM

Viking Range Corporation

111 Front Street

Greenwood, Mississippi 38930 USA

[phone]

For more product information,

call 1-888-VIKING1 (845-4641)

or visit the Viking Web site at

vikingrange.com

32

Congratulations

Your purchase of this product attests to the importance you place upon
the quality and performance of the major appliances you use. With
minimal care, as outlined in this guide, this product is designed to
provide you with years of dependable service. Please take the few
minutes necessary to learn the proper and efficient use and care of this
quality product.

We appreciate your choosing a Viking Range Corporation product, and
hope that you will again select our products for your other major
appliance needs.

Table of Contents

Unpacking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2

Parts Included With Your Cooker . . . . . . . . . . . . . . . . . . . . . . . .3

Before Installing Your C4 Outdoor Cooker . . . . . . . . . . . . . . . . .4

Lighting Your Cooker . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5

Approximate Damper Adjustments . . . . . . . . . . . . . . . . . . . . . .6

Cleaning and Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8

Service Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9

Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10

Parts Included With Your Cooker

Unpacking

1. Remove cooker from box.

2. Remove all parts within the cooker in order to remove any styrofoam
or cardboard packaging. (See Figure 1)

3. After removing all packaging materials, replace parts inside unit as
shown on the next page, beginning at the bottom and going up.

NOTE: Upon first opening and examining your cooker, some hairline
cracks and powder residue may be found in the ceramic fire box.
These are common and normal characteristics of a ceramic product.

Cooking Rack

Fire Grate

Fire Box

Ash Tool

Figure 1
