GASTROBACK®
Operating Instructions
Design Espresso Plus
E.S.E.-pad-system suitable for espresso pads
Art.-No. 42606 Design Espresso Plus
Read all provided instructions before first use!
Model and attachments are subject to change!
For household use only!
Carefully read all provided instructions before you start running appliance and pay attention to the warnings mentioned in
these instructions.
Table of Contents |
|
Important Warning Notes................................................................................................... |
34 |
Knowing Your Design Espresso Plus..................................................................................... |
35 |
Important Safeguards......................................................................................................... |
36 |
General Safety Instructions............................................................................................. |
36 |
Important Safeguards for all Electrical Appliances............................................................. |
39 |
High Temperatures—Risk of Burns................................................................................... |
40 |
Technical Specifications...................................................................................................... |
41 |
Operation......................................................................................................................... |
41 |
Assembling the Appliance.............................................................................................. |
41 |
Preparing the Appliance for Operation............................................................................ |
42 |
Filling the Water Tank................................................................................................... |
43 |
Preparing Coffee.......................................................................................................... |
43 |
Tamping the Espresso.................................................................................................... |
44 |
Using Espresso Pads...................................................................................................... |
44 |
Flushing the Grouphead................................................................................................. |
44 |
Pre-Heating the Cups..................................................................................................... |
44 |
Inserting the Portafilter................................................................................................... |
44 |
Brewing the Espresso..................................................................................................... |
45 |
The Pre-Brew-Function.................................................................................................... |
45 |
Emptying the Portafilter.................................................................................................. |
46 |
Frothing Milk................................................................................................................ |
46 |
Removing the Attachment......................................................................................... |
46 |
Using the Steam Function......................................................................................... |
46 |
Frothing Milk.......................................................................................................... |
47 |
Hot Water ................................................................................................................... |
48 |
Useful Tips........................................................................................................................ |
49 |
The Coffee................................................................................................................... |
49 |
The Water.................................................................................................................... |
49 |
Information about Ground Coffe .................................................................................... |
49 |
Tamping the Coffe......................................................................................................... |
50 |
Care and Cleaning............................................................................................................ |
50 |
Cleaning the Steam Wand............................................................................................. |
51 |
Cleaning the Filters, the Portafilter and the Grouphead...................................................... |
51 |
Cleaning the Housing and the Warming Plate.................................................................. |
52 |
Cleaning the Drip Tray.................................................................................................. |
52 |
Assembling the Appliance.............................................................................................. |
52 |
Descaling the Water Tank.............................................................................................. |
52 |
Trouble Shooting................................................................................................................ |
54 |
Storage............................................................................................................................ |
56 |

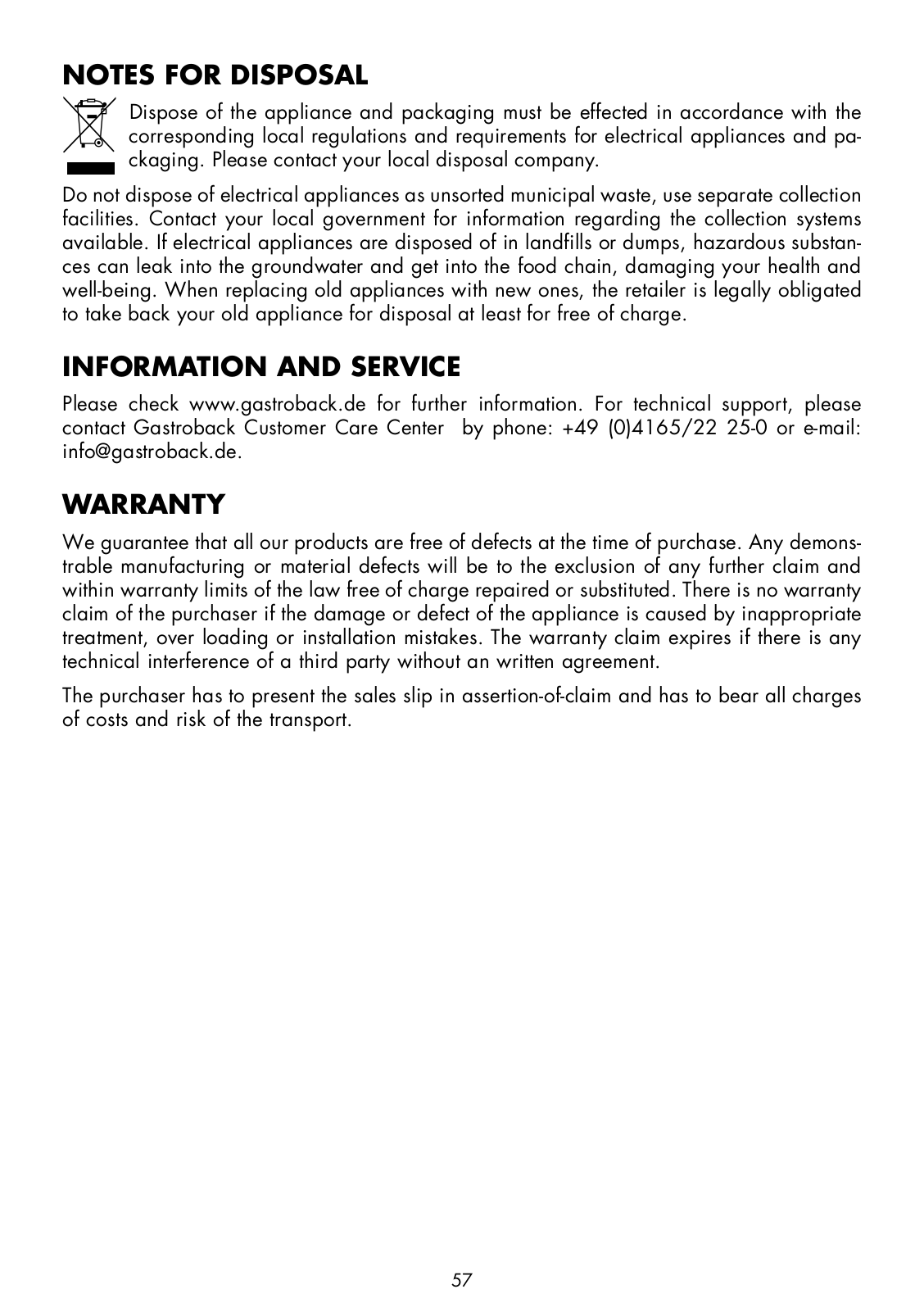

Notes for Disposal............................................................................................................. |
57 |
Information and Service...................................................................................................... |
57 |
Warranty.......................................................................................................................... |
57 |
Coffee-Recipes................................................................................................................... |
58 |
Dear Customer!
Congratulations on the purchase of your new Gastroback Design Espresso Plus.
The durable housing, the handy size and professional functionality, as well as an outstanding performance and easy handling of the Design Espresso Plus is ideal for getting started in the world of espresso.
A variety of specialty coffees such as latte macchiato, cappuccino and latte can be prepared easily. The required milk foam is provided through the integrated steam wand in a few seconds. The professional Ulka Espresso pump with 15 bar pressure always creates a perfect crema in the cup.
With its thermo-block heating system your Design Espresso Plus heats up to operating temperature quickly. The digital temperature control keeps the brewing temperature constant. The pre-brew function is a further guarantee of a great taste experience. For quick coffee indulgence the additional »Easy Serving Espresso-filter« can be also used with espresso pads.
A perfect combination of classy design and optimum functionality. The Design Espresso Plus is equipped with extensive accessories. Stainless steel doublefilter for one and two cups, ESE pad system filter, stainless steel milk jug, measuring spoon with tamper and cleaning set are included in delivery.
These instructions for use will inform you about the various functions and features, which make it easy to take pleasure in your new Gastroback Design Espresso Plus.
We hope that you will enjoy your new Gastroback Design Espresso Plus. Your Gastroback GmbH
33
Important warning Notes
•Never leave small children unsupervised with the appliance or the parts of the appliance!
Always make sure that the appliance is properly and fully assembled before you plug the power cord into the outlet and turn on the appliance.
•Do not remove the steam wand out of the milk, as long as steam escapes. Otherwise hot milk may splash out of the frothing jug. Turn the steam dial always back to the starting position (standby(O) position) before you remove the frothing jug from the steam wand. Several seconds after turning off the steam function a short burst of steam from the steam wand occurs. Be careful not to scald yourself on the hot steam.
•The metal parts of the portafilter will be very hot during and after operation. Grasp the hot portafilter only on the black handle. Cool the portafilter and the filter insert in cold water, before you touch the metal parts.
•The steam wand is very hot after use for some time. Always check first that the component has cooled down before touching the steam wand .
•Hot steam escapes from the steam wand. Never place your hands or other body parts onto or under the steam wand if the selection switch is in the steam position. Hold the frothing jug under the steam wand before you turn the selection switch to the steam position.
•Hot steam escapes from the steam wand. This component is very hot. Always be sure not to scald on the hot steam. During steam generation never grasp the steam wand. Touch the steam wand during operation only by the dark plastic handle.
•Never remove the steam wand from the milk, as long as steam escapes. Otherwise, hot milk may splash out of the frothing jug. Always turn the selection switch to the standby (O) position back, before removing the frothing jug from the steam wand.
•Always switch off before cleaning the the ppliance, disconnect the plug from the wall outlet and let the appliance cool down.
•The water tank should not be removed during descaling.
34
knowing your design espresso plus
Selection Switch
for espresso (right), steam & hot water (left), standby (middle/O)
Heating Indicator (HEATING)
lights red during preheating
and turns off when the appliance is ready for operation
Selection Switch steam or hot water
Power Indicator (POWER)
lights up red when the appliance is switched on
On-/Off Switch
Grouphead
Heavy Stainless Steel
Portafilter
can be inserted with a single movement; especially well crema by stainless steeldouble wallfilters
Performance 1.250 W
with thermo-block heating system for immediate use
Non-Slip Rubber Feet
prevents slippage and scratches on the table
Extensive Range of Accessories Included:
stainless steel double-wall filter for one and two cups, ESE pad system, stainless steel milk jug, measuring spoon with tamper, cleaning set
Cup-Preheating- Function
warming plate for cups
Water Tank removable 1.5 litre water tank, easy to fill
360° Swivel Steam Wand
with attachment; can be easily moved for frothing milk swirl into the right position
Automatic Depressurization System
Large Cups
extra space for large cups by additional clearance between the filter holder and drip tray
Removable
Drip Tray
with level indicator; removable grill and drip tray for easy cleaning
Filter
Pad Filter |
One Cup Filter |
Two Cup Filter |
E.S.E.-pad-system suitable for espresso pads
35
Important Safeguards
Carefully read all instructions before operating this appliance and save for further reference. Do not attempt to use this appliance for any other than the intended use described in these instructions. Any other use, especially misuse, can cause severe injuries or damage by electric shock, heat or fire, and moving parts. Any use for other purposes is prohibited by the manufacturer and must be avoided. For damages due to improper use, we assume no liability and are not responsible for recourse. Perform only operations with this appliance described in this manual. Do not leave the appliance unattended while in operation. The appliance meets guidelines that are mandatory for the CE marking.
These instructions are an essential part of the appliance. Do not pass the appliance without this booklet to third parties.
Any operation, repair and technical maintenance of the appliance or any part of it, other than described in these instructions may only be performed at an authorised service centre. Please contact your vendor.
General Safety Instructions
•Use and store the appliance in a clean, frost-free place where it is protected from moisture, dampness and excessive strain. This appliance is for household use only and not intended for use in moving vehicles. Do not operate or store the appliance in humid or wet areas or outdoors. Any use of accessories, attachments or spare parts not recommended by the manufacturer may result in damage and/or injuries to persons. Keep the appliance and all parts always in an inaccessible place for small children. Only suitable for indoor and domestic use.
•Check the entire appliance regularly for proper operation—especially the power cord.
Do not use the appliance if the non-stick coating is damaged in any way (e.g. scratched, or peeling off). Do not operate the appliance, when liquids are in the housing of the appliance or accumulate under the appliance or overflow. Do not operate the appliance, when the appliance or any part of it is likely to be damaged, to avoid risk of fire, electric shock or any other damage and/or injuries to persons. The appliance is likely to be damaged if the appliance was subject to inadmissible strain (e.g. overheating, mechanical or electric shock), or if there are any cracks, excessively frayed or melted parts, or distortions, or if the appliance is leaking or not working properly. In this case, immediately unplug the appliance and return the entire appliance (including all parts and accessories) to an authorised service centre for examination and repair.
•Use only components, tools, spare parts and accessories for the appliance provided and recommended by the manufacturer for this purpose. Damaged or unsuitable components may break during operation, damage the appliance and/or cause serious injury or property damage.
•Always ensure the appliance is properly assembled before connecting to power outlet and operating. Follow the instructions provided in this book. Before each use, ensure that the filter is properly and securely inserted in the grouphead, and the selection switch is positioned to standby (center). If the selector switch is positioned to the right (in brewing position), after preheating hot water emerges from the group head. If the selector switch is positioned to the left (steam/hot water), hot steam or hot water (depending on the setting) emerges from the steam wand. Make sure that the black folding switch is in the correct position: steam or hot water.
36
•During operation the appliance is under overpressure! Switch the appliance always first to the standby position before removing the filter.
•During operation keep the appliance in an appropriate distance of at least 15 cm on each side and 1 m above to furniture, walls, boards, curtains, and other objects. Do not operate the appliance beneath or below any heat-sensitive or moisture-sensitive materials, boards, or drop-lights to avoid damage caused by steam, heat, or condensate. Operate the appliance on a well accessible, stable, level, dry, heat-resistant, water-resistant and suitable large table or counter. Do not place the appliance over a power cord, or near the edge of the table or counter, or on wet or inclined surfaces, or where it can fall. Always keep the appliance and the table or counter clean and dry, and wipe off spilled liquids immediately.
•Do not place any clothes or tissue or other objects under or on the appliance during operation, to avoid risk of fire, electric shock and overheating. Before operation, always ensure that there are no foreign objects in or under the pot, and the appliance is assembled properly and not leaking with the lid and upper cover firmly in place. Solely use the appliance for processing edible food. Immediately unplug the appliance, if there is any kind of malfunction or problem (e.g. leaking, overheating).
•This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children must be supervised to ensure that they do not play with the appliance or any parts of the appliance or the packaging. Do not leave the appliance unattended, when it is in reach of young children. Always keep the appliance where it is dry and clean and where young children cannot reach it. Do not place any hard and/or heavy objects on the appliance or any part of it. Take care that no one will pull the appliance by the power cord.
•Remove and safely discard any packaging material and promotional labels or stickers before using Design Espresso Plus for the first time.
•Do not place the appliance near the edge of a bench or table during operation. Ensure the surface is level, clean and free of water and other substances. Do not use the appliance on a sink drain board. Do not place the appliance on or near a hot gas or electric burner, or where it could touch a heated oven.
•The appliance is not intended to be operated by means of an external timer or separate remote control system.
•Do not use attachments other than those provided with the appliance. The use of accessory attachments not recommended by Gastroback may result in fire, electric shock or injury to persons.
•Do not attempt to operate the appliance by any method other than those described in this book.
•Use only cold, tap water in the water tank. Do no use any other liquid. Do not use any harsh chemicals and descalers for descaling (see ›Care and Cleaning‹).
•Never use the appliance without water in the water tank. When inserting the filled water tank and when removing the drip tray full care not to spill the water contained. NOTE: Make sure when inserting the water tank, that the guide grooves on the back of the water tank are engaged in the recesses in the rear of the appliance. Press the water tank down so that the water valve opens in the bottom of the water tank.
37
•Ensure the portafilter is firmly inserted and secured into the grouphead before using the machine.
•Never remove the portafilter during the brewing operation as the machine is under pressure.
•Do not move the appliance whilst in operation.
•Do not leave any food dry on the appliance. Always clean the appliance after each use to prevent a build up of baked-on foods (See: ›Care and Cleaning‹). Always keep the appliance and the accessories clean.
•Do not use abrasive cleaners or cleaning pads (e.g. metal scouring pads) for cleaning.
Do not clean the appliance with any corrosive chemicals (e.g. bleach). Do not immerse the appliance or power cord in water or any other liquid. Do not spill or drip any liquids on the appliance or on the power cord to avoid risk of fire and electric shock. When liquids are spilled in the appliance, immediately switch off, unplug the power cord and wait for the appliance to cool down. Thereafter, clean and dry the appliance thoroughly (See: ›Care and Cleaning‹).
•Do not leave the appliance unattended when in use.
•Do not touch hot surfaces. Use handles or knobs. Allow the appliance to cool down before moving or cleaning any parts.
•Do not place anything, other than cups for warming, on top of the the appliance.
•Always switch off the appliance and unplug if appliance is to be left unattended, if not in use, before cleaning, before attempting to move the appliance, disassembling, assembling and when storing the appliance.
•Keep the appliance and accessories clean. Follow the cleaning instructions provided in this book.
•The appliance is heated by built-in electric heating elements. The appliance or power cord may never touch hot surfaces. Do not place the appliance or any part of it on or near hot surfaces (e.g. burner, heater or oven). Do not use any part of the appliance (e.g. pot, steamer) with any other device.
•The appliance is designed for brewing espresso and coffee. Therefore, some components, such as the grouphead, the portafilter and the steam wand become very hot during operation and hot water or steam escape.
•Do not operate the appliance with a damaged cord or plug or after the appliance malfunctions, or has been damaged in any manner. Immediately cease use and contact an authorised service center for examination, repair or adjustment.
•Do not apply any force during operation to prevent damage to the components.
•Do not place the appliance or power cord in an automatic dishwasher.
•After you have filled the correct quantity of ground coffee into the portafilter, you should press the ground coffee as evenly as possible. To do this, use the integrated tamper. The ground coffee should not be pressed too hard.
•Wipe carefully the rim of the portafilter of any spilled coffee. The rim should be completely clean so that the portafilter can seal at the brew head pressure-tight.
38
•The moisture content of the coffee grounds in the portafilter, which is due to the special brewing technology of the machine, represents not a malfunction of the appliance.
•Store packaging materials out of reach of children.
•This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
•Children shall not play with the appliance.
•Cleaning and user maintenance shall not be made by children without supervision. This appliance can be used by children aged from 8 years and above if they have been given supervision or instruction concerning use of the appliance in a safe way and if they understand the hazards involved. Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised. Keep the appliance and its cord out of reach of children aged less than 8 years
•Do not operate with carbonated water, but only in soft water (up to 4 ° dH = German hardness).
•This appliance is intended to be used in household and similar applications such as:
–staff kitchen areas in shops, offices and other working environments;
–farm houses;
–by clients in hotels, motels and other residential type environments;
–bed and breakfast type environments.
Important Safeguards for all Electrical Appliances
The appliance is heated electrically. Place the appliance near a suitable wall power socket to connect the appliance directly to a protected mains power supply with protective conductor (earth/ground) connected properly. Ensure that the voltage rating of your mains power supply corresponds to the voltage requirements of the appliance (220 - 240 V, 50 Hz, AC, rated for at least 8 A).
The installation of a residual current operated circuit breaker (r.c.c.b.) with a maximum rated residual operating current of 30 mA in the supplying electrical circuit is strongly recommended. If in doubt, contact your electrician for further information. In various foreign countries, the specifications for power supplies are subject to incompatible norms. Therefore it is possible that power supplies in foreign countries do not meet the requirements for safe operation of the appliance. Thus, before operating the appliance abroad, ensure that safe operation is possible.
•Do not to use any extension cords or multisocket outlets.
•Always handle the power cord with care. Always completely unwind the power cord before use. Do not place the appliance on a power cord. Power cords may never be knotted, twisted, pulled, strained or squeezed. Do not let the plug or power cord hang over the edge of the table or counter. The power cord may not touch hot surfaces. Ensure that no one will pull the appliance by the power cord. Take care not to entangle in the power cord. Always grasp the plug to disconnect the power cord. Do not touch the power plug with wet hands when the appliance is connected to the power supply.
•Unwind the power cord fully before use.
39
