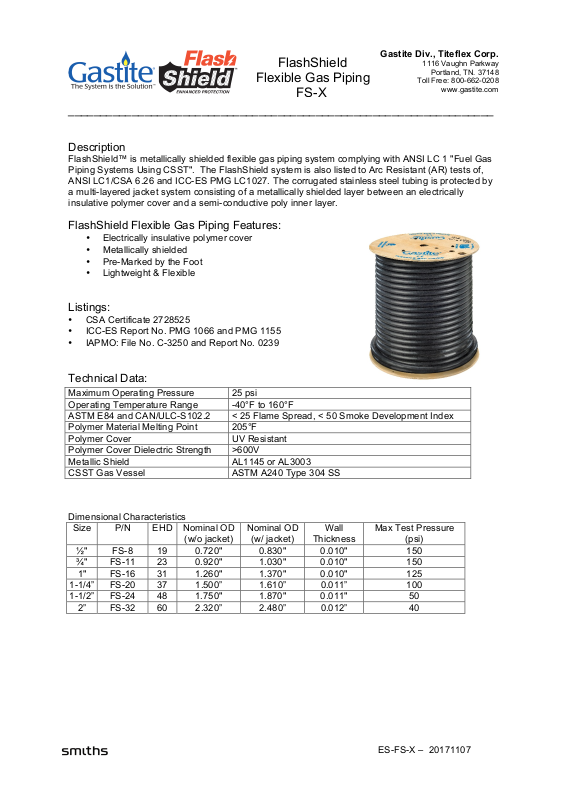

Gastite FS-X Operators Manual

Gastite Div., Titeflex Corp.

1116 Vaughn Parkway

Portland, TN. 37148

Toll Free: 800-662-0208

www.gastite.com

ES-FS-X – 20171107

FlashShield
Flexible Gas Piping

___________________________________________________________________

Description

FlashShield™ is metallically shielded flexible gas piping system complying with ANSI LC 1 "Fuel Gas
Piping Systems Using CSST". The FlashShield system is also listed to Arc Resistant (AR) tests of,
ANSI LC1/CSA 6.26 and ICC-ES PMG LC1027. The corrugated stainless steel tubing is protected by
a multi-layered jacket system consisting of a metallically shielded layer between an electrically
insulative polymer cover and a semi-conductive poly inner layer.

FlashShield Flexible Gas Piping Features:

• Electrically insulative polymer cover

• Metallically shielded

• Pre-Marked by the Foot

• Lightweight & Flexible

Listings:

• CSA Certificate 2728525

• ICC-ES Report No. PMG 1066 and PMG 1155

• IAPMO: File No. C-3250 and Report No. 0239

Technical Data:

Maximum Operating Pressure

25 psi

Operating Temperature Range

-40°F to 160°F

ASTM E84 and CAN/ULC-S102.2

< 25 Flame Spread, < 50 Smoke Development Index

Polymer Material Melting Point

205°F

Polymer Cover

UV Resistant

Polymer Cover Dielectric Strength

>600V

Metallic Shield

AL1145 or AL3003

CSST Gas Vessel

ASTM A240 Type 304 SS

Dimensional Characteristics

Size

P/N

EHD

Nominal OD

(w/o jacket)

Nominal OD

(w/ jacket)

Wall

Thickness

Max Test Pressure

(psi)

½"

FS-8

19

0.720"

0.830"

0.010"

150

¾"

FS-11

23

0.920"

1.030"

0.010"

150

1"

FS-16

31

1.260"

1.370"

0.010"

125

1-1/4”

FS-20

37

1.500”

1.610”

0.011”

100

1-1/2”

FS-24

48

1.750"

1.870"

0.011"

50

2”

FS-32

60

2.320”

2.480”

0.012”

40
