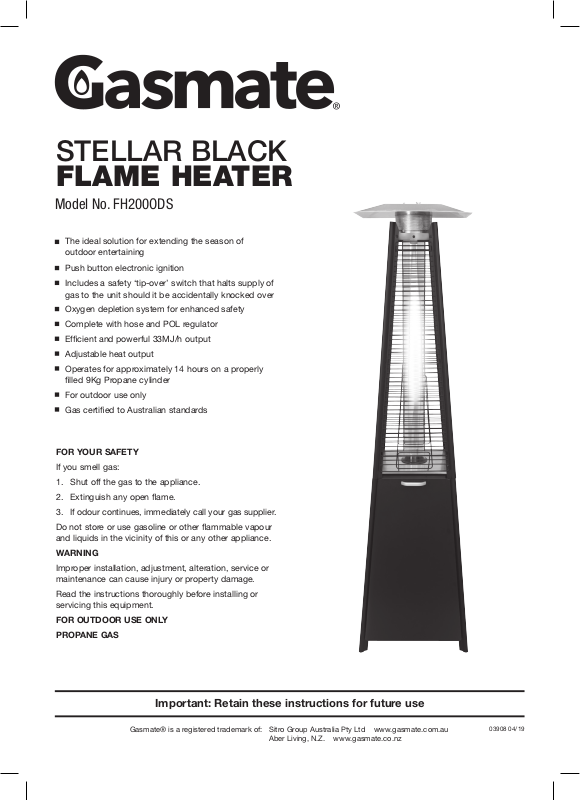

Gasmate FH200ODS User Manual
STELLAR BLACK
FLAME HEATER
Model No. FH200ODS
The ideal solution for extending the season of
outdoor entertaining
Push button electronic ignition
Includes a safety ‘tip-over’ switch that halts supply of
gas to the unit should it be accidentally knocked over
Oxygen depletion system for enhanced safety
Complete with hose and POL regulator
Efficient and powerful 33MJ/h output
Adjustable heat output
Operates for approximately 14 hours on a properly
filled 9Kg Propane cylinder
For outdoor use only
Gas certified to Australian standards
FOR YOUR SAFETY
If you smell gas:
1. Shut off the gas to the appliance.
2. Extinguish any open flame.
3. If odour continues, immediately call your gas supplier.
Do not store or use gasoline or other flammable vapour
and liquids in the vicinity of this or any other appliance.
WARNING
Improper installation, adjustment, alteration, service or
maintenance can cause injury or property damage.
Read the instructions thoroughly before installing or
servicing this equipment.
FOR OUTDOOR USE ONLY
PROPANE GAS
Important: Retain these instructions for future use
Gasmate® is a registered trademark of: Sitro Group Australia Pty Ltd www.gasmate.com.au
Aber Living, N.Z. www.gasmate.co.nz
03908 04/19
INSTALLATION, OPERATION & MAINTENANCE INSTRUCTIONS
Prior to assembling your appliance, the following must
IMPORTANT SAFETY RULES
This appliance must only be used in a well
ventilated area.
1. This appliance shall not be installed or used
indoors, in buildings, garages or any other
enclosed area.
2. DO NOT place articles on or against this
appliance.
3. DO NOT use or store flammable materials near
this appliance.
4. Children and adults should be alerted to the
hazards of high surface temperatures, burns
and clothing ignition.
5. Children should be carefully supervised when
they are in the area of the appliance.
6. NEVER hang anything including clothes or
other flammable items on the appliance.
7. DO NOT operate this appliance unless it is
fully assembled with burner guard in place.
8. DO NOT SPRAY AEROSOLS IN THE
VICINITY OF THIS APPLIANCE WHILE
IT IS IN OPERATION.
9. Installation and repair should be done by a
qualified service person. The appliance must
be inspected before use and at least annually
by a qualified service person. More frequent
cleaning may be required as necessary. It is
imperative that control compartment, burners
and circulating air passages of the heater and
light be kept clean.
For any queries or assistance call
Customer Service
Australia Only
1300 174 876
Hours of operation:
Monday to Friday 8am - 5pm EST
be reviewed. Compliance with the following should result
in satisfactory heater operation. This instruction manual
should be retained for future reference. The installation
must conform with local codes or authority having
jurisdiction.
1. The appliance is intended for heating residential and
non-residential outdoor spaces. The installation
must conform with local codes or, in the absence of
local codes, with the Australian Standard AS 5601.
2. Adequate clearance around air openings into the
combustion chamber, clearances from combustible
materials, provisions for accessibility and for
combustion and ventilating air supply must be
maintained at all times when the appliance is
operating.
3. Proper clearance from combustible materials must
be maintained at all times. The minimum clearances
are as follows:
Minimum Clearance from Combustibles
Side 650 mm Rear 650 mm
Ceiling 800 mm
Combustible materials are considered to be wood,
compressed paper, plant fibres, plastic, plexiglas or
other materials capable of being ignited and burned.
Such materials shall be considered combustible
even though flame proofed, fire-retardant treated or
plastered. Additional clearance may be required for
glass, painted surfaces and other materials which
may be damaged by radiant or convection heat.
4. Heaters must be placed on a level and adequate
footing and be readily accessible.
5. The gas manifold supply pressure must be regulated
at 2.75 kPa utilising an AGA approved regulator
(supplied with heater).
6. The appliance must be inspected before each use,
and at least annually by a qualified service person.
a. The appliance area must be kept clear and free of
combustible materials, gasoline and other flammable
vapours and liquids.
b. Gas orifices and burner must be kept clear of dirt
and cobwebs. Flow of combustion and ventilation air
through the perforated portions of the heater must
not be obstructed. Cleaning with a soft brush before
use and at least every six months is recommended.
c. After assembly and before use all gas connections
should be checked for leaks utilising a soap solution.
NEVER use a flame for this purpose.
Do not return to place of purchase.
2
d. The flame should be visually checked whenever
heater is operated. If flames extend beyond surface
of the chimney or black spot is accumulating on
the burner or glass, the heater should be turned off
immediately. The heater should not be operated again
until the unit is serviced and or repaired.
e. Any cleaning agent used on the appliance should be
of a non-combustible and non-corrosive nature.
7. The hose assembly should be properly located out
of pathways where people may trip over it. The hose
must be protected from contact with hot or sharp
surfaces both during use and while in storage. The
hose assembly should be visually inspected prior to
each use of the heater. If excessive abrasion or wear
is evident, or the hose is cut, it must be replaced
prior to operating the heater. The replacement hose
assembly may be obtained from the manufacturer.
8. DO NOT use any pressure regulator or hose
assembly other than those supplied with the
appliance. Replacement pressure regulator and hose
assembly must be those specified. Replacement
parts may be obtained from the manufacturer or your
local sales representative.
9. Installation and use of this appliance must conform
with local codes or, in the absence of local codes,
with the Standards of Storage and Handling of
Liquefied Petroleum Gases.
10. This appliance is designed to operate with a standard
9Kg propane cylinder with Approved Cylinder
Connection.
11. The valve outlet must be maintained in good
condition. When the cylinder is not in use, be sure
to cover it with a dust cap. A leak test should be
performed with soapy water whenever connecting a
new cylinder. NEVER use a match to test for leaks.
12. The propane cylinder must be turned off whenever
the heater is not in use. When the heater is to be
stored indoors, the propane cylinder and the heater
must be disconnected and the cylinder stored in
accordance with the Standard for Storage and
Handling of Liquefied Gases. (i.e.: Not indoors, but in
a dry and well ventilated area.)
13. The heater has been designed with several safety
features which include a tip over switch.
Any modification to the heater not described in the
installation instructions may compromise the safety of
this appliance. Special concern is as follows:
DO NOT bypass thermocouple safety;
Clothing or other flammable materials should not be hung
from the heater, or placed on or near the heater. The area
above may be extremely hot. Direct contact with these
metal surfaces should be avoided in order to prevent
burns or clothing ignition.
POL CYLINDER CONNECTION DEVICE
(Cylinder not included)
Screw the coupling nut of regulator into the cylinder
valve outlet.
Type of Gas Propane
Consumption 33 MJ/h
Operating Pressure 2.75 kPa
Injector Size 1.6 mm
Heater specifications can be found on the data label.
3
PARTS LIST
1. Middle Plate 1pc 2. Control Box
6. Upper Plate
1pc
11. Protection Guard
4pcs
16. Knob 1pc
1pc
7. Lower Plate 1pc
Pre-assembled in
Middle Plate
12. Guard Fixing
Bracket 4pcs
17. Chain 1pc
3. Bottom Panel
1pc
8. Glass Tube 1pc
13. Side Panel 3pcs 14. Front Panel 1pc 15. Screw 67pcs
18. AA Battery
1pc
4. Lower Support
Leg 4pcs
80cm Long
Rubber Foot
9. Radiant Head
1pc
Pre-assembled in
Upper Plate
5. Upper Support
Post 4pcs
10. Reflector 1pc
All pre-assembled in
relative parts
Pre-assembled in
the front knob
NOT INCLUDED
4
