Gasmate BQ1095, BQ1094, BQ1090BNG, BQ1090NG, BQ1090B Installation Guide

GALAXY

BBQ & MODULES

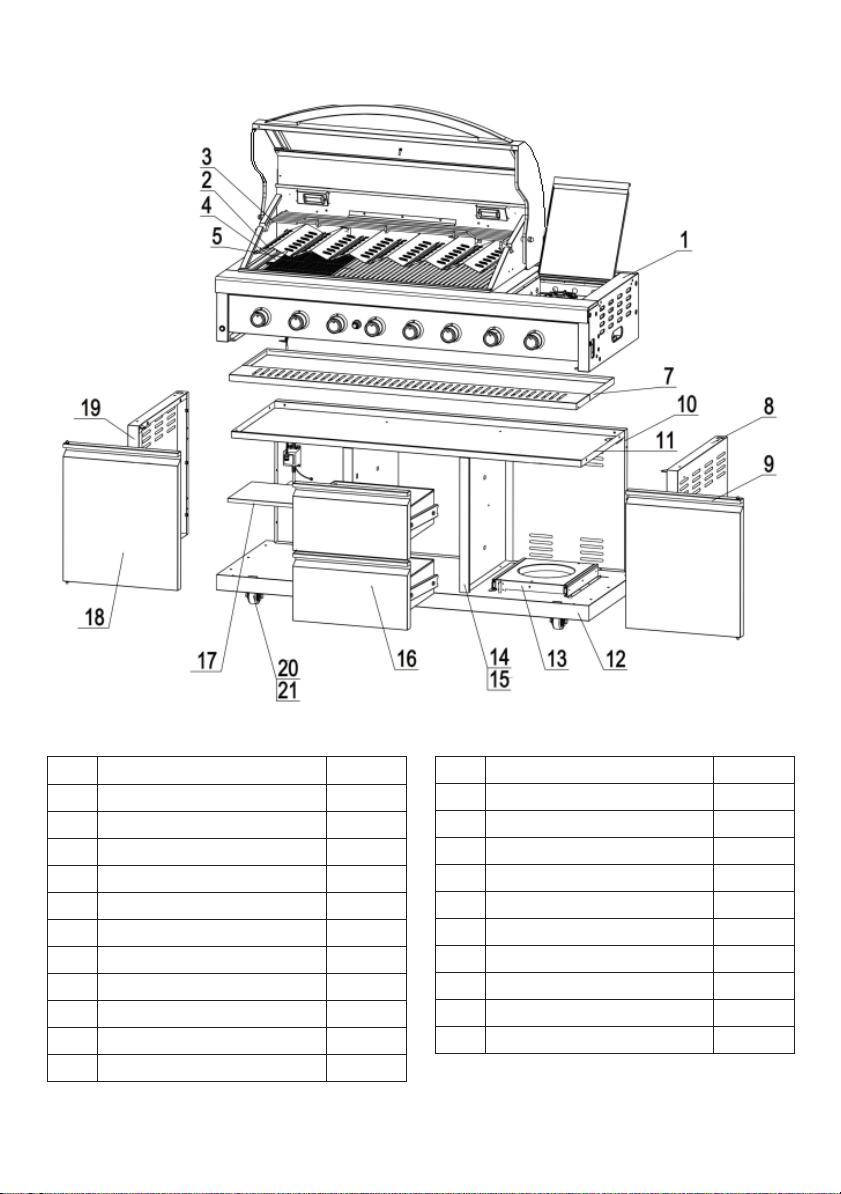

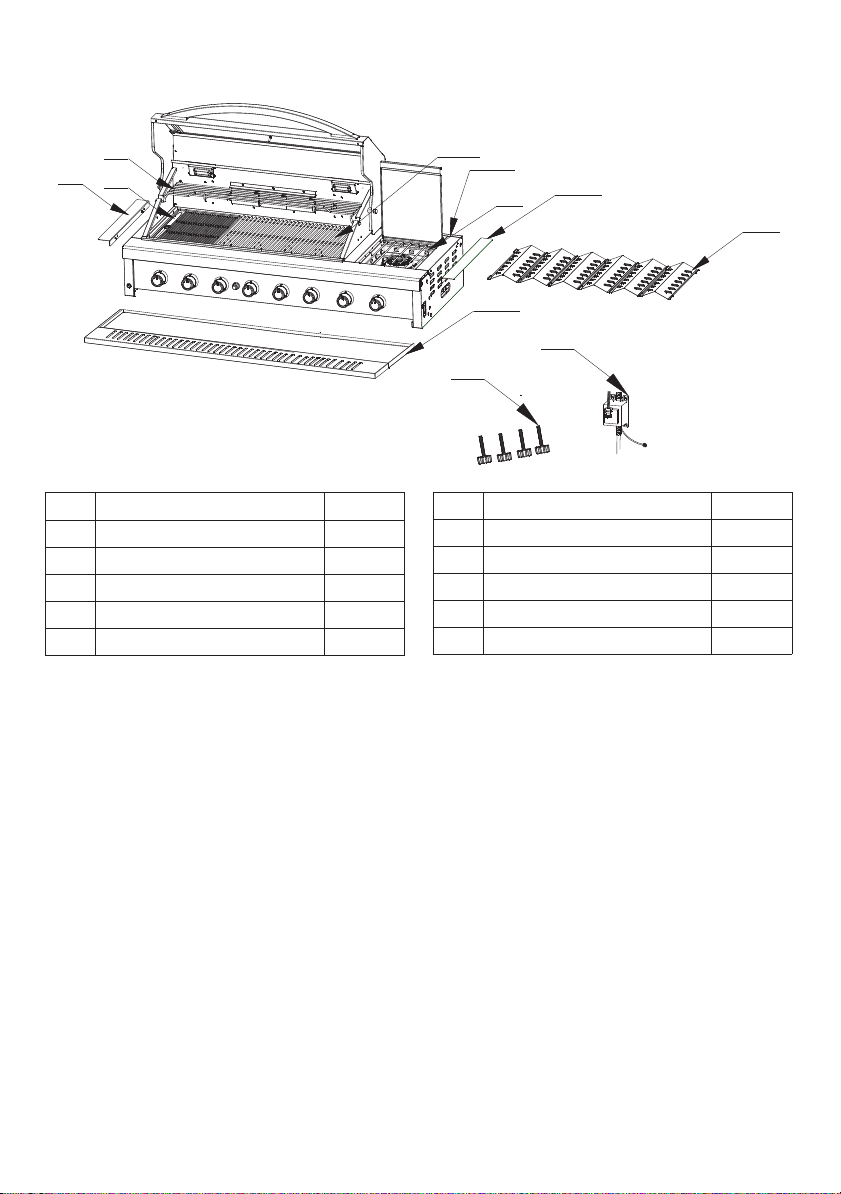

6 BURNER BBQ
Model No. BQ1090

1 DOOR FRIDGE TOP
Model No. BQ1094

2 DOOR FRIDGE TOP
Model No. BQ1095

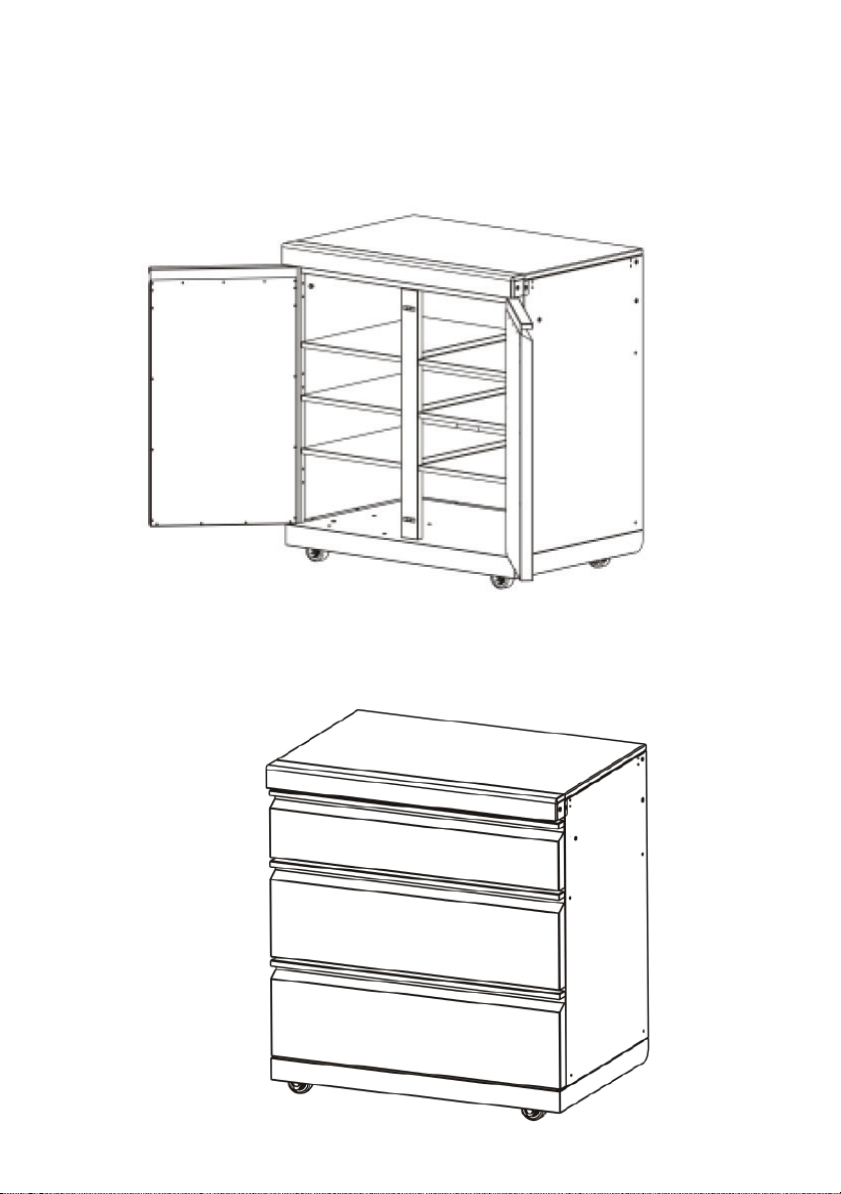

DRAWER MODULE
Model No. BQ1093

Gasmate® is a registered trademark of: Sitro Group Australia Pty Ltd www.gasmate.com.au

Aber Holdings Ltd - Hamilton, N.Z. www.gasmate.co.nz

STORAGE MODULE
Model No. BQ1092

Important: Retain these instructions for future use.

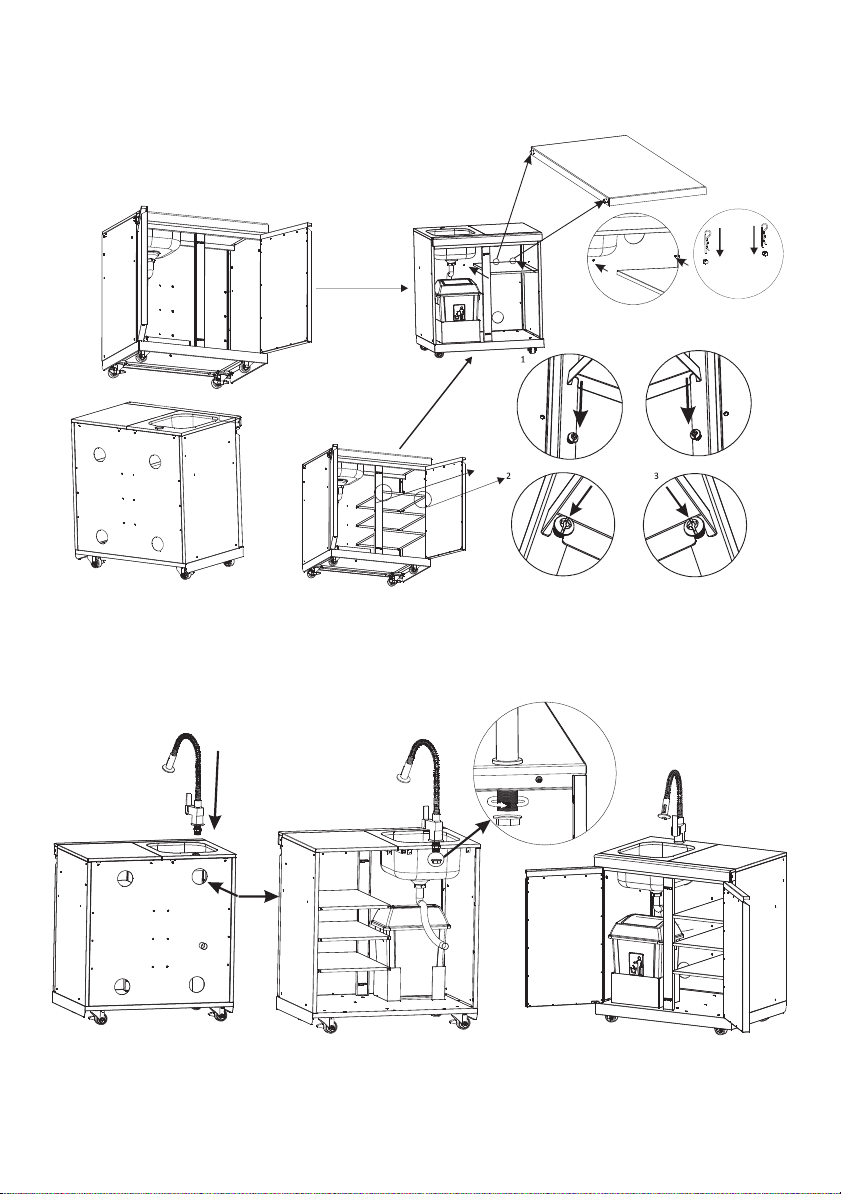

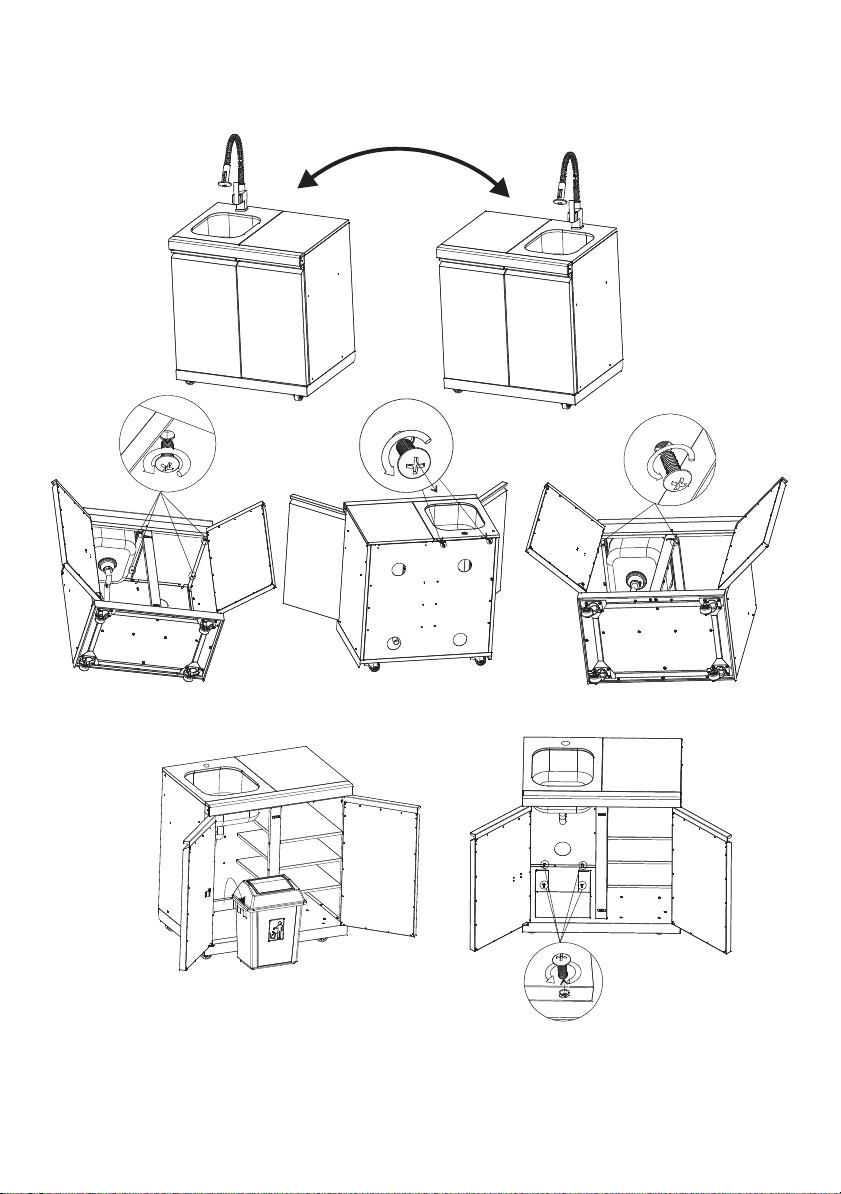

SINK MODULE
Model No. BQ1091

03497 10/16

READ ME FIRST

GAS LEAK TESTING

It is important that you leak test the BBQ before first use and every time the gas cylinder is refilled and
reconnected to the BBQ.

To Complete Leak Test

• Make sure all the control knobs are OFF.

• In a small container, mix up a solution of water and detergent/soap.

• Mix the solution well (about the same concentrate as washing up water).

• Turn the cylinder ON by rotating the knob anti-clockwise.

• Using a brush or spray bottle apply the soap solution to the gas line and each join in the gas line including:

- the gas connection at the inlet of the BBQ

- all gas hose connections

- the gas connection at the gas cylinder

• If bubbles appear, there is a gas leak.

• If the leak is at the hose connection, re-tighten and re-seal.

• If the leak is anywhere else or you cannot resolve the leak by tightening the connection DO NOT PROCEED.

• Turn the gas cylinder off clockwise.

FOR OUTDOOR USE ONLY

WARNING: Improper installation, adjustment,
alteration, service or maintenance can cause injury
or property damage.

Read the instructions thoroughly before installing or
servicing this equipment.

2

GENERAL INFORMATION

FOR YOUR SAFETY

Failure to comply with these instructions could
result in a fire or explosion which could cause
serious bodily injury, death or property damage.

CAUTION: Accessible parts may be very
hot.

Keep young children away.

Any modifications of this barbecue may be
dangerous.

DO NOT move this barbecue during use.

Turn off gas supply at the gas cylinder after use.

Parts sealed by the manufacturer or their agent
must not be manipulated by the user. This barbecue
is only to be used and stored outdoors.

• Never operate this barbecue without a regulator.

• Do not test for gas leaks with an open flame.

• If this information is not followed exactly a fire
causing death or serious injury may occur. Do not
store a spare gas cylinder under or near this
barbecue. This barbecue is only to be used and
stored outdoors.

• If there is a leak on your appliance (smell of
gas) immediately attempt to turn off the cylinder
valve. Remove the appliance to a well ventilated
location away from any ignition source. Only
check for leaks outdoors using soapy water. DO
NOT try to detect leaks using a flame.

• Check for leaks by brushing a soap and water
solution over all connections. If you are unable to
correct the leak by tightening the connections,
turn off the gas and contact customer service
immediately

• DO NOT replace the grill with an extra hotplate.
The warranty will be voided and it violates the gas
approval, the grill provides the ventilation needed
for the BBQ to operate safely. It is not designed
to be a solid hotplate device.

• Do not store or use petrol or other flammable

liquids in the vicinity of this or any other
appliance.

• Do not store empty or full spare gas cylinders
under or near this or any other appliance.

• Keep the gas hose away from hot surfaces and
protect from dripping grease. Avoid unnecessary
twisting of hose. Visually inspect the hose prior
to each use for cracks, excessive wear or other
damage. Replace the hose if necessary.

• Never test for gas leaks with a lit match or open

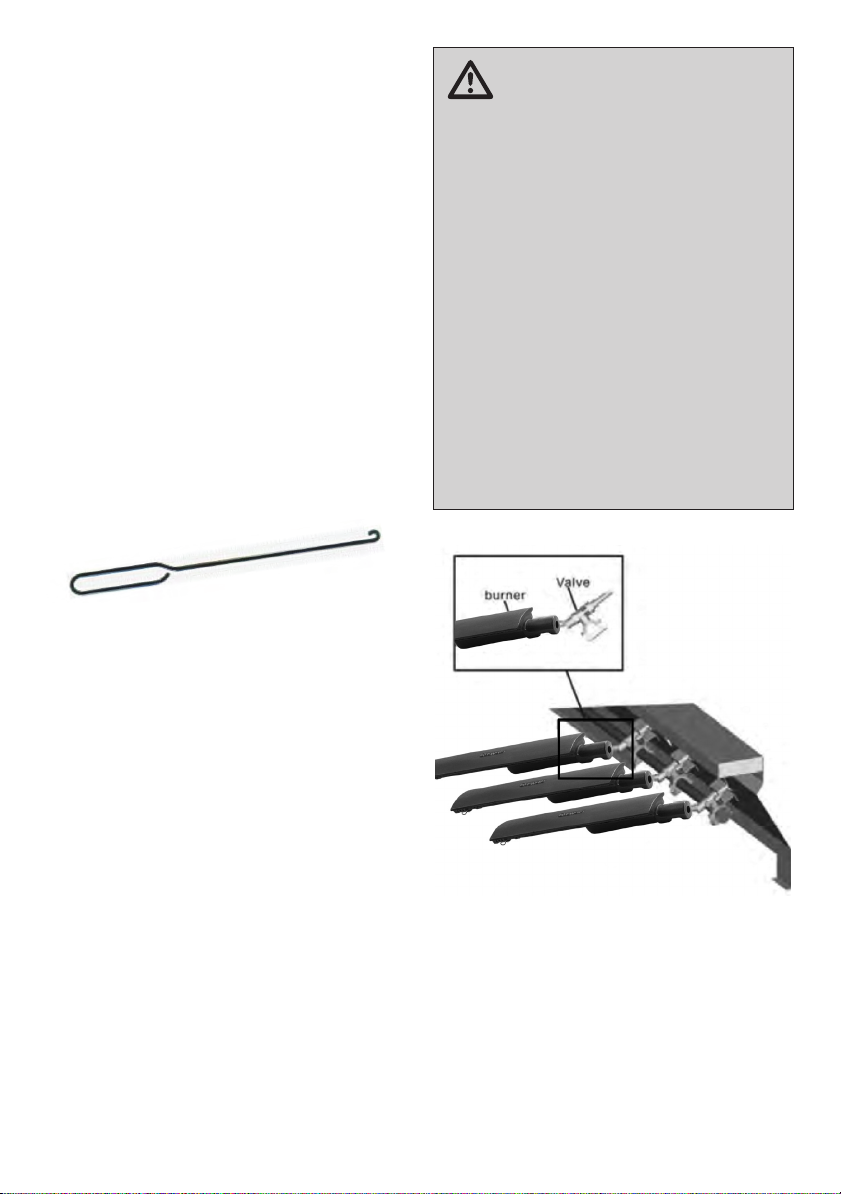

flame. Never light barbecue with hood closed or
before checking to ensure the burner tubes are
fully seated over gas valve orifices.

• Never lean over cooking surface when lighting.

• Never alter or modify the regulator or gas supply
assembly.

• This barbecue must not be used indoors.

• Only use in well ventilated areas.

• CARBON MONOXIDE HAZARD - USING THIS
APPLIANCE IN AN ENCLOSED SPACE MAY
CAUSE DEATH. DO NOT USE IN CARAVANS,
TENTS, MARINE CRAFT, CARS, MOBILE
HOMES OR SIMILAR LOCATIONS.

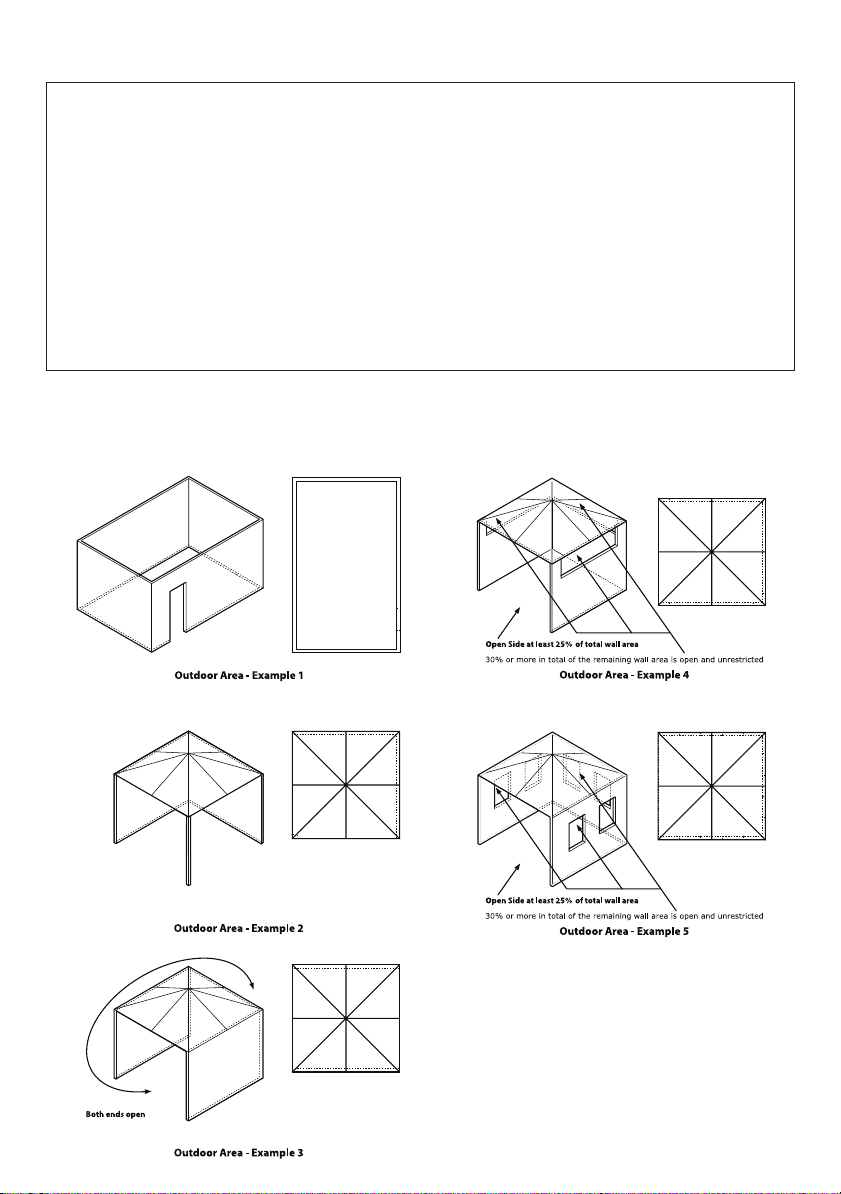

• This appliance shall only be used in an above
ground open-air situation with natural ventilation,
without stagnant areas, where gas leakage and
products of combustion are rapidly dispersed by
wind and natural convection.

• Ensure the barbecue is set up on a level and
stable surface.

• Do not move the barbecue while in use or when
hot. Remove the drip tray before moving.

IF THERE IS A LEAK

• Turn the cylinder off.

• Ventilate the area to disperse gas.

• Check all connections.

• If leak persists, keep the cylinder upright. Keep
skin away from any gas or liquid escaping from
the cylinder.

• Keep the cylinder at least 20 metres away from
any sparks or ignition sources, including electrical
equipment, camera flashes, engines and motors.

• Disperse gas by encouraging maximum
ventilation and spraying with a fine water spray.

IF THERE IS A FIRE

• If the fire is at the barbecue, turn the gas off at
the cylinder. Smother the flames with a wet cloth,
fire blanket or extinguish using a fire extinguisher.

• If the fire is at the cylinder, or you can not get
to the valve to turn the gas off, contact the fire
brigade immediately.

• Using a garden hose, direct the water to the
middle of the cylinder to keep it cool. Try not to
extinguish the flame. At least if the gas is burning,
it won’t be able to build up pressure and explode.

3

GENERAL INFORMATION

IMPORTANT

Read these instruction carefully prior to use.
Familiarise yourself with the appliance before
connecting it to it’s gas container. Keep these
instructions for future reference.

IF YOU SMELL GAS

1. Shut off gas to the barbecue at its source,
if possible.

2. Extinguish any open flame.

3. Open hood.

4. If odour continues immediately call your gas
supplier or fire department.

Gas Installation Codes

• Barbecues must be used in accordance with the
installation requirements of your gas supply authority,
or the Australian Standard AS 5601.

• Barbecues for use with bottled gas are labelled
‘propane gas’.

• Barbecues for use with natural gas are labelled
‘natural gas’ and must be installed by an authorised
person. Check the gas type sticker attached to the
barbecue.

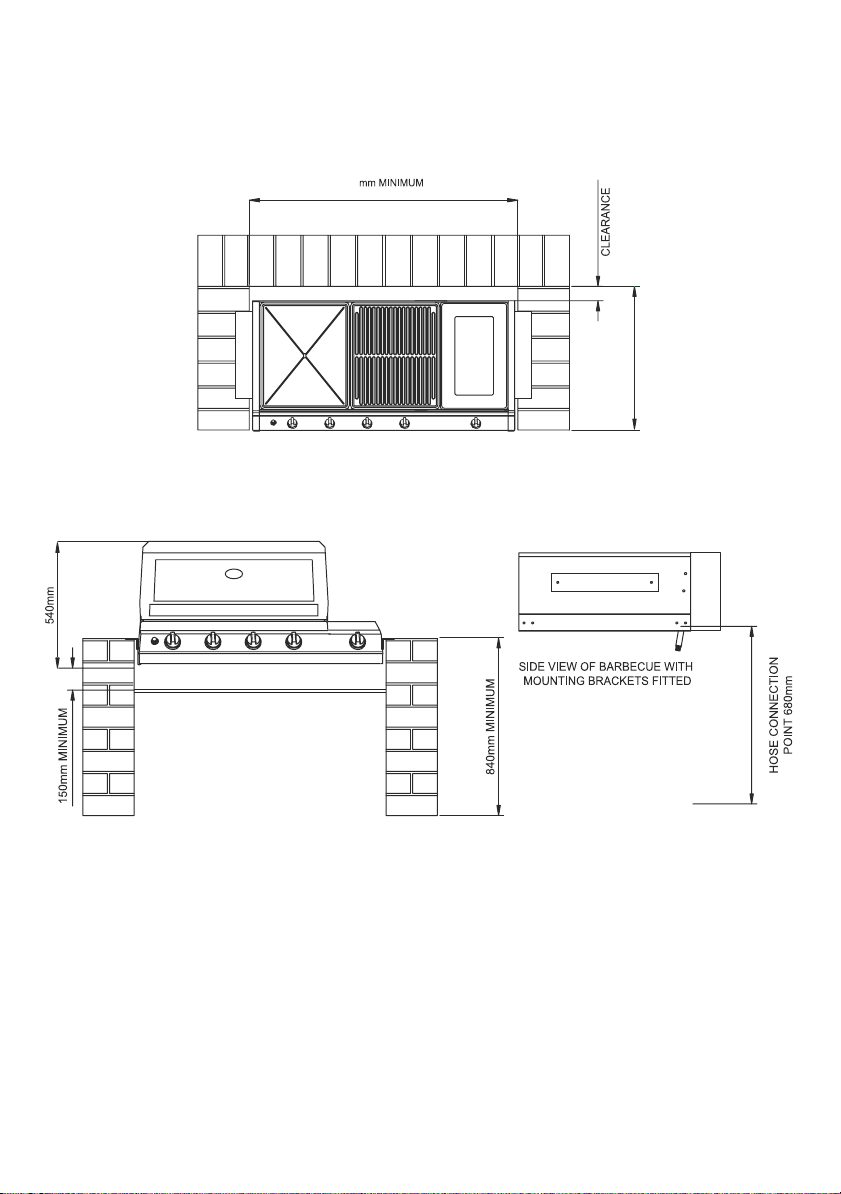

Clearances

Minimum Clearances from combustible materials
must be:
Rear - 150mm Sides - 50mm Above - 1000mm

Specifications

Barbecue specifications can be found on the data label
attached to the barbecue body.

Hose connection thread is 1/4” B.S.P.

Hose & Regulator Safety

The regulator and hose assembly supplied with the
barbecue are suitable for Propane Gas.

A gas regulator adjusted to have an outlet pressure of

2.75kPa is supplied for connection to the propane gas
cylinder. The pressure regulator and hose assembly
supplied with the barbecue must me used. Replacement
pressure regulators and hose assemblies must be those
specified by the barbecue manufacturer.

When connecting the hose and regulator assembly to the
gas cylinder, take care to avoid unnecessary twisting of
the flexible hose.

After the assembly has been secured, turn on the gas
and check for leaks by brushing a soap and water
solution over all connections.

If you are unable to correct the leak by tightening the
connections, turn off the gas and contact the supplier
immediately.

Always ensure the barbecue is kept away from flammable
materials and the gas cylinder clear of any heat source.

When changing over from an empty gas cylinder to a
full one make sure this procedure is carried out in a well
ventilated location, preferably outside, away from people
and away from any sources of ignition; such as naked
flames, pilot flames, electric heaters/equipment.

Gas Cylinder Use & Safety

This is a low pressure barbecue and must only be used
with the regulator supplied. Your barbecue is designed
for use with 4.5Kg or 9Kg propane gas cylinders certified
to AS 2469.

The gas cylinder should be filled by a reputable gas
supplier and visually inspected and re-qualified at each
filling.

Always keep cylinder in an upright position. Always close
the cylinder valve when the barbecue is not in use.

Do not subject gas cylinder to excessive heat.

NEVER STORE YOUR GAS CYLINDER
INDOORS.

If you store your barbecue indoors, ALWAYS disconnect
the gas cylinder first and store the cylinder safely outside.

Cylinders must be stored outdoors in a well ventilated
area out of reach of children, and must not be stored in a
building, garage or any other enclosed area.

4

ELECTRICAL INFORMATION

IMPORTANT SAFEGUARDS

READ THESE INSTRUCTIONS CAREFULLY
BEFORE USING THE PRODUCT. KEEP
THE INSTRUCTIONS HANDY FOR FUTURE
REFERENCE.

Important: Always operate the Product from a

power source of the same Voltage, Frequency and
Rating as indicated on the Product Identification
Plate.

• DO NOT operate any product which has been
or appears damaged in any manner or after the
Product malfunctions, or is dropped.

• Always arrange the Cord so that it cannot be
pulled or tripped over.

• DO NOT operate this Product immediately below
an electrical Socket Outlet.

• Avoid operating the Product on uneven surfaces.
Use only on flat, level and stable surfaces.

• DO NOT disconnect the Product from the Power
Supply by pulling on the Cord. Never move,
carry or hang the Product by the Cord.

• DO NOT operate this Product in the presence of
explosive and/or flammable liquid or fumes
such as where aerosol (spray) Products are being
used or where Oxygen is being administered.

• Switch OFF and UNPLUG from Power Outlet
when not in use, allow to cool before shifting the
Product from one location to another, and before
cleaning.

• DO NOT use the product during inclement
weather, rain or damp conditions.

To reduce the risk of personal injury or damage
to property, follow basic safety precautions
when using this product, including the
following:

• DO NOT use the Product for other than its intended
use as described in these instructions. This Product
is intended for Normal Domestic Household Use only.
The use of accessory attachments other than those
recommended by the manufacturer may cause safety
hazards.

• The power supply must be supplied through a
residual device (RCD) having a tripping current not
exceeding 30mA.

• Only connect this product to a socket-outlet having
an earthing contact.

• DO NOT operate the product with a damaged cord
or plug, or if it malfunctions, or has been damaged in
any manner.

• Never operate this product when your are tired,
drinking alcohol, taking drugs or if taking medication
that causes drowsiness.

• This product is not intended for use by persons
(including children) with reduced physical, sensory
or mental capabilities, or lack of experience and
knowledge, unless they have been given supervision
or instruction concerning use of the product by a
person responsible for their safety.

• Pets and animals must be kept away from the work
area so as to avoid tripping dangers.

• Never modify this Product as damage and injury may
occur, and this will void your warranty.

• Check for damaged parts before operating this
Product.

• Keep power cord away from heat, oil, solvents and
sharp edges.

• Check power cord for signs of damage before each
use. If damaged do not use.

• Power cord must only be replaced by an authorised
service facility.

• Use only a ‘3’ core (earth pin) extension cord with this
Product.

NOTE: This transformer must only be used with the lights
in your BBQ.

5

ELECTRICAL DATA

GENERAL ASSEMBLY

IMPORTANT

This product is fitted with a sealed electrical connection
plug that is compatible with the product, the mains
supply for Australia and meets the requirements of
international standards. This product must be connected
to a supply voltage that is equal to that stated on the
rating label. If the mains connection plug or power cord
becomes damaged it must be replaced with a complete
assembly that is identical to the original, and this must be
replaced by an authorised service centre. Always follow
the Australian requirements for connection to the mains
supply. If in doubt always consult a qualified electrician.

Technical Specification

Model No YOSAA12002000A

Voltage Input 220-240V AC 50Hz

Voltage Output 12V - 2000mA

LIGHT GLOBES

For replacement light globes please contact
Sitro Group Australia.

CONNECTING & DISCONNECTING TO THE
GAS SOURCE

Familiarise yourself with the general information and
safety guidelines located at the front of this manual.

Check

1. The cylinder is filled. A sloshing sound will be heard
when shaken.

2. The burner controls are in the ‘OFF’ position.

Connecting

1. Ensure cylinder valve is in its full off position.

2. Check for any damage to either the cylinder
connection or the hose. NEVER attempt to use
damaged equipment.

3. When connecting the hose to the cylinder tighten the
nut to a positive stop by hand or spanner.

4. Open cylinder valve fully. If a leak can be heard at
either end of the hose turn cylinder off and tighten
joint. Wait 5 minutes before re-testing and use a
soapy water solution to check the joint. If bubbles
appear, the connection will need to be re-tightened.

Disconnecting

1. Ensure the burner control is in the ‘OFF’ position.

2. Ensure cylinder valve is in the full off position.

For storage and cylinder exchange, disconnect hose
at the cylinder only, DO NOT disconnect hose from
appliance.

6

LIGHTING PROCEDURE

Burner Operation & Ignition System Check

1. Turn the control knobs clockwise to “OFF” position.

2. Connect the regulator to the gas bottle. Turn the gas
supply “ON” at the cylinder. Check with the use of
soapy water for any gas leakage between the bottle
and the regulator

3. Push down a control knob and keep pressing whilst
turning anti-clockwise to the “HIGH” position whilst
also pressing the ignition button (a clicking sound is
heard), this will light the burner. If the burner does not
light,repeat this process.

4. If the burner still does not light, turn the control knob
to ‘OFF’ wait 5 minutes and repeat step 3.

5. Adjust the heat by turning the knob to the High/Low
position.

IMPORTANT

• NOTE: If for some reason, ignitor fails to produce
a spark at the electrode, barbecue can be lit by
a long barbecue match. With hood open insert
lighted match into match lighting hole positioned
on the side of the BBQ body. Push and turn a
control knob to ‘HIGH’. Burner ignition can be
checked through this hole.

• Never use the side burner with the lid in the
closed position. Never attempt to the light the
side burner with a pot over the burner. Light
the burner first ,and then place the pot over the
burner.

• DO NOT USE THE ROTISSERIE BURNER WHEN
MAIN BURNERS ARE IN OPERATION.

• The hood must be in the open position for
lighting.

• Do not leave the barbecue unattended when
alight.

• Never use all burners on high at the same time
when cooking with the hood down.

6. To turn the barbecue ‘OFF’, turn the cylinder valve
to the ‘OFF’ position and then turn all of the control
knobs on the appliance clockwise to the ‘OFF’
position.

If the rotisserie back burner fails to remain alight or the
flame pattern is disturbed, ensure it is not facing into a
direct wind. Re-position the direction of the BBQ, wait 5
minutes, and try the lighting procedure again.

Before cooking for the first time, operate the barbecue for
about 15 minutes with the lid closed and the gas turned
on HIGH. This will “heat clean” the internal parts.

Ignition system check

Problem: Burner will not ignite

Possible Reason Solution

Valve on cylinder
is closed

Control knob is off Turn knob to high when

Igniter is faulty Use a long barbecue

Open valve on cylinder

lighting

match

7

OPERATING PROCEDURE

Burn-off

The cooking surface does not need any burn-off time
after first use.

Preheating

It is necessary to preheat the barbecue for at least 5
minutes before cooking certain foods, depending on the
type of food and the cooking temperature. Food that
requires a low cooking temperature, needs only a period
of 2-3 minutes preheating.

Cooking Temperatures

‘HIGH’ setting - Use this setting only for fast warm up, for
searing steaks and chops, and for burning food residue
from the grill plates after cooking is over. Rarely, if ever,
do you use the ‘HIGH’ setting for extended cooking.

‘MEDIUM’ setting (mid-way between ‘HIGH’ and ‘LOW’).
Use this setting for most grilling, and for cooking
hamburgers and vegetables.

‘LOW’ setting - Use this setting when cooking very lean
cuts such as fish.

These temperatures vary with outside temperature and
the amount of wind.

Roasting

For best results when roasting remove the hotplate and
centre the grill. The outer two burners should be used on
the low to medium setting.

Adjust the control knob to maintain the temperature
around the medium mark.

Approximate Cooking Time

The table below shows approximate cooking times with
the control set to ‘MEDIUM’ temperature.

Barbecue Roasts Minutes

Chicken & Rare Beef
(approx.)

Beef & Medium Lamb
(approx.)

Pork & Well Done Beef/
Lamb (approx.)

If the appliance has excessively yellow flames or cannot
be adjusted to perform correctly call 1300 174 876.

Burner operation

Problem Possible Reason Solution

Food is not cooking
or is taking too long

Burner has gone out Check that the gas bottle is not empty and

Cooking surface was not given enough time
to warm up before the food was applied

There is too much food on the cooking
surface

re-ignite the burner

Remove the food and give the burner time
to warm the cooking surface (5-10 minutes)

Cook smaller portions

45 minutes per Kg

60 minutes per Kg

75 minutes per Kg

Nominal Hourly Gas Consumption

BBQ
Model No

BQ1090

Gas Type

Propane

Natural
Gas

Number
of BBQ
Burners

6 Ø1.05mm Ø1.15mm Ø1.05mm

MJ/h each 12.0 MJ/h 15.0 MJ/h 13.0 MJ/h

6 Ø1.75mm Ø1.75mm Ø1.80mm

MJ/h each 14 MJ/h 14 MJ/h 14 MJ/h

Injector
Size Main
Burners

Injector
Size Side
Burner

8

Injector
Size Rear
Burner

Total Gas
Consumption
MJ/h

100 MJ/h 2.75 kPa

112 MJ/h 1.0 kPa

Gas
Pressure
kPa
