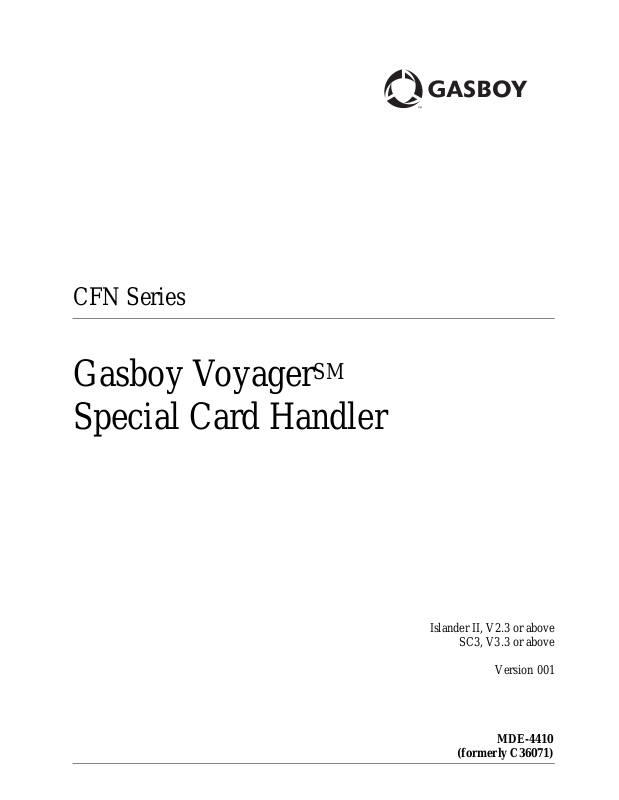

Gasboy Voyager Special Card Handler User Manual

CFN Series

Gasboy Voyager

SM

Special Card Handler

Islander II, V2.3 or above

SC3, V3.3 or above

Version 001

MDE-4410

(formerly C36071)

Computer Programs and Documentation

Federal Communications Commission (FCC) Warning

All Gasboy International Inc. computer programs (including software on diskettes and within memory chips) and documentation are copyrighted by, and shall remain the property
of, Gasboy International Inc. Such computer programs and documents may also contain trade secret information. The duplication, disclosure, modification, or unauthorized use of
computer programs or documentation is strictly prohibited, unless otherwise licensed by Gasboy International Inc.

This equipment has been tested and found to comply with the limits for a Class A digital device pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency
energy, and if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communic ations. Operation of this equipment in a
residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense. Changes or modifications not expressly
approved by the manufacturer could void the user’s authority to operate this equipment.

Approvals

Gasboy International, Gree nsboro , is an I SO 9001:2 000 r egist ered fa cil ity.
Underwriters Laboratories (UL):

UL File# Products listed with UL

MH4314

MH6418

MH7404
MH10581 Key con t ro l u n it , M od e l G K E- B S e ri e s

All dispensers and self-contained pumping
units

Power operated Transfer Pump Models 25,
25C, 26, 27, 28, 72, 72S, 72SP, 72X, 73 and
1820

Hand operated Transfer Pump Models 1230
Series, 1243 Series, 1520 and 1720 Series

Card reader terminals, Models 1000, 1000P
Site controller, Model 2000S CFN Series
Data entry terminals, Model TPK-900 Series
Fuel Point Reader System

New York City Fire Department (NYFD):

NYFD C of A # Produc t

4823 9100A, 9140A, 9152A, 9153A,

4997 9822A, 9823A
5046 9100Q, 9140Q, 9152Q, 9153Q,

9800A, 9840A, 9850A, 9852A,
9853A, 9140

9800Q, 9840Q, 9852Q, 9853Q

National Conference of Weights and Measures (NCWM) - Certificate of Compliance (CoC):

Gasboy pumps and dispensers are evaluated by NCWM under the National Type Evaluation Program (NTEP). NCWM has issued the following Certificates of Compliance (CoC):

CoC# Product Model # CoC# Product Model # CoC# Product Model #

95-179A2 Dispenser

95-136A5 Dispenser 9800 Series 91-057A3 Controller

9100 Retail Series, 8700
Series, 9700 Series

91-019A2 Dispenser

9100 Commercial
Series

1000 Series FMS,
2000S-CFN Series

California Air Resources Board (CARB):

Executive Order # Product

G-70-52-AM Balance Vapor Recovery
G-70-150-AE VaporVac

Patents

Gasboy products are manufactured or sold under one or more of the following US patents:

Dispensers

5,257,720

Point of Sale/Back Office Equipment

D335,673

Trademarks

Non-registered trademarks

Atlas™
Consola™
Infinity™

Registered trademarks

ASTRA

Fuel Point
Gasboy
Keytrol
Slimline

®

®

®

®

®

Additional US and foreign trademarks pending.

Other brand or product names shown may be
trademarks or registered trademarks of their
respective holders.

Additional US and foreign patents pending.

This document is subject to change without notice. · For information regarding Gasboy Literature, call [phone]
E-mail: [e-mail] · Internet: http://www.gasboy.com
 2005 Gasboy International Inc. · All Rights Reserved

Table of Contents

Table of Contents

1 – Introduction 1

Related Documents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

Overview 3

Club Card Details. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Setting up CFN for Voyager

System Setup. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

2 – Configuration 9

Restriction/Acceptance Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

SYS_PAR Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

3 – Appendix: Trademark Information A-1

SM

Club Functionality . . . . . . . . . . . . . . . . . . 4

Index Index-1

MDE-4410 Gasboy Voyager Special Card Handle r Version 001 · June 2005 Page i

Table of Contents

Page ii MDE-4410 Gasboy Voyager Special Card Handler Version 001 · June 2005

1 – Introduction

This special card handler can locally authorize VoyagerSM fleet cards with ISO number 7088.

Cards Affected: Voyager

Note: This special card handler requir es an I sl ande r I I, CFN I II , or CFN III PLUS to operate.

Related Documents

Site Controller - Versions 2.2+, 3.3, and 3.4 and higher

Introduction

Document
Number Title GOLD

C01918 SC II Installation Manual, version 2.3 Gasboy Fuel Management Products
C09159 SC II Pocket Reference, version 2.3 N/A
C09204 Check Point Reference Manual Gasboy Fuel Management Products
C35921 CFN III Pocket Reference, version 3.3 N/A
C35923 Point of Sale and Shift Change, version 003 Gasboy Fuel Management Products
MDE-4311 Site Controller II Manager’s Manual, version 2.2+ Gasboy Fuel Management Products

MDE-4312 Site Controller II Configuration Manual, version 2.3 Gasboy Fuel Management Products
MDE-4313 CFN III Manager’s Manual for Windows NT, version 3.3 Gasboy Fuel Management Products
MDE-4314 CFN III Configuration Manual for Windows NT, version 3.3 Gasboy Fuel Management Products
MDE-4315 CFN III Manager’s Manual for Windows NT, version 3.4 Gasboy Fuel Management Products
MDE-4316 CFN III Configuration Manual for Windows NT, version 3.4 Gasboy Fuel Management Products
MDE-4355 Profit Point Clerk’s Manual Gasboy Fuel Management Products
MDE-4356 Profit Point Reference Manual Gasboy Fuel Management Products

®

Library

Credit and Debit Card Networks

Document
Number Title GOLD Library

SM

C35901 Buypass
C35902 ADS-CITGO
C35903 Comdata™ Credit & Debit Networks Gasboy Fuel Management Products
C35904 EDS-CCIS Credit & Debit Networks Gasboy Fuel Management Products
C35905 FDR
C35906 ADS-FINA
C35907 Gascard Credit & Debit Networks Gasboy Fuel Management Products
C35908 PaymenTech™ Credit & Debit Networks (formerly Gensar) Gasboy Fuel Management Products
C35909 Generic Dial Credit & Debit Networks Gasboy Fuel Management Products
C35910 NaBANCO Credit & Debit Networks Gasboy Fuel Management Products

Credit & Debit Card Networks Gasboy Fuel Management Products

®

Credit & Debit Networks Gasboy Fuel Management Products

SM

Credit & Debit Networks Gasboy Fuel Management Products

®

Credit & Debit Networks Gasboy Fuel Management Products

MDE-4410 Gasboy Voyager Special Card Handler V ersion 001 · June 2005 Page 1

Introduction

Document
Number Title GOLD Library

C35911 NDC Credit & Debit Networks Gasboy Fuel Management Products

®

C35913 Sinclair

Credit & Debit Networks Gasboy Fuel Management Prod ucts
C35914 ADS-Chicago Credit & Debit Networks (formerly SPS/Phillips) Gasboy Fuel Management Products
C35915 T-Chek Credit & Debit Networks Gasboy Fuel Management Prod ucts
C35916 UFDA Credit & Debit Networks Gasboy Fuel Management Products
C35917 VDOT Credit & Debit Networks Gasboy Fuel Management Products

SM

C35918 VisaNet

Credit & Debit Card Networks Gasboy Fuel Management Products
C35919 ADS-ZION Gasboy Fuel Management Products
C35930 Gasboy Dial 001 Credit & Debit Networks Gasboy Fuel Management Products

®

C35931 Amoco

/DataCard Credit & Debit Networks Gasboy Fuel Management Products

Pump Interface

Document
Number Title GOLD Library

C01745 Gilbarco
C09146 Site Controller Pump Interface Manual Gasboy Fuel Management Products
C35849 SDI/Wayne
C35924 SDI/Unitec
C35933 Insight Interface Gasboy Fuel Management Products

®

Interface Unit Installation Manual Gasboy Fuel Management Products

®

CAT Interface Gasboy Fuel Management Products

®

Interface Gasboy Fuel Management Products

Remote Communications

n/a Title GOLD Library

C09137 CFN Series Site Controller Host Communications G asboy Fuel Ma nagement Products
C09141 PC/Site Control User’s Manual N/A

Technical Publications

Document
Number Title GOLD Library

C01759 CFN Diagnostic Manual Gasboy Fuel Management Products

Card Encoding and Miscellaneous

Document
Number Title GOLD Library

C01687 CFN Series Card Encoding Manual Gasboy Fuel Management Products
C09136 CFN Series Clubcard Format N/A

Page 2 MDE-4410 Gasboy Voyager Special Card Handler Version 001 · June 2005

Overview Introduction

Overview

All cards to be processed by the system are validated through the Voyager Special Card
Handler and the system fleet package. If the ca rd is validated as a Voyager Card with ISO
7088, the card will be processed as a local Gasboy Club Card. The restriction and
authorization codes are derived from the Voyager Card restrictions as displayed in the
following table

Restriction
Code (Note) Description

00 No prompts; no product restrictions
01 No prompts; fuel only
10 Prompt for ID; no product restrictions
11 Pr ompt fo r ID; fuel only
20 Prompt for odometer reading; no product restrictions
21 Prompt for odometer reading; fuel only
30 Prompt for ID and odometer reading; no product restrictions
31 Prompt for ID and odometer reading; fuel only

Note: See single-digit “Prompt Code” and single-digit “Fuel Restriction Code” in

Figure 1-1 for breakdown of two-digit Restriction Code.

Club Card Details

Voyager Card

Refer to the example shown in Figure 1-1 to review how the Voyager Card is created.

Figure 1-1: Breakdown of Sample Voyager Card Number

7088 86900826 8 00188 1 = 0909 31

Fuel Restriction Code
0 = no product restrictions
1 = fuel only

Prompt Code
0 = no prompts
1 = prompt for ID
2 = prompt for odometer reading
3 = prompt for ID and odometer reading

Expiration Date (MMYY)
Check Sum Validation Digit (not used by card)

Vehicle Number

Check Sum Validation Digit (not used by card)

Card Account Number

ISO Number

MDE-4410 Gasboy Voyager Special Card Handler V ersion 001 · June 2005 Page 3

Introduction Overview

Voyager Club Card

The Voyager Club Card is derived from the Voyager Card above and its fields are shown in

Figure 1-2.

Figure 1-2: Breakdown of Sample Voyager Club Card Number

86900826 00188 001234 = 0909 0101

Restriction Code
Price L evel
Authorization Code

Limitation Code

Expiration Date (MMYY)

Manually Entered ID Number

Vehicle Number

Card Account Number
It is located in the vygracct.dta file for valid
accounts.

Setting up CFN for Voyager Club Functionality

The Voyager hander requires two specialized files. They must be located on the E: or F: drive
for Islander II or on the R: drive for CFN III systems. The two files are voyager.dta and
vygracct.dta and have very specific functionality, as described below. They are used in
conjunction with the system’s positive and negative lockout files.

System Drives

Due to the size of the system lockout file and the possible large size of the negative voyager
file, the amount of free space on the drives will be a consideration. The system lockout file
will take around 125 KB of space. The voyager negative lockout file size will depend on the
number of records entered in the file.

CFN III System

The lockout files reside on the NT hard drive. Please verify there is enough room to hold at
least 125 KB of data on that drive. The R: drive will hold the two Voyager files. If the
Voyager lockout file is to hold thousands of records, it would be wise to make sure there is at
least 300 KB of free space.

Islander II System

The Islander II normally will come with one 2-MB PCMCIA card. It is very possible that a
second card will be required to support the system and Voyager lockout files. The system
lockout file will t ake 125 KB and must reside on the E: or F: dri v e. The Voyager Club lockout
file could use up to 1 56 KB or more, depending on how the f ile is use d, and can reside on drive
E: or F:. The first PCMCIA card is registered as drive E: and the second PCMCIA card is

Page 4 MDE-4410 Gasboy Voyager Special Card Handler Version 001 · June 2005
