Garz & Fricke Neso LT series User Manual

NESO LT 4.3" Open Frame Manual
For PCB revision 0.7 or for HW 1.1 or later
2
Content
1 Introduction 3 2 Safety Hints 4 3 Product Introduction 5
Product introduction 5 3.1 Type plate and device information 5 3.2 Related documents and online support 6 3.3
4 Product Description 7
Technical data 8 4.1 PCB design 10 4.2
5 Installation and start up 11
Connection Scheme 11 5.1
6 External interfaces and Schematics 12
Ethernet (X8) 12
6.1
Power/Digital out (X1) 12 6.2 RS-232/RS-485/CAN (X9) 13 6.3
6.3.1 Option: RS-232/RS-485 13
6.3.2 Option: RS-232/CAN 13
USB - Host (X12) 14 6.4 External USB - OTG (X14) 14 6.5 Speaker (X5) 14 6.6 Line out (X20) 15 6.7 S/PDIF (X7) 15 6.8 Keypad/SPI (X16) 16 6.9
6.9.1 Standard: Keypad/SPI 16
6.9.2 Option: Keypad/SPI/I²C 16
Battery-Holder (X2) 17 6.10
7 Document revision history 18 8 Technical support 18
Annex A: Assembly options and accessory 20
A-1 NESO LT 4.3” Open Frame Version M 20
Annex B: Hardware revision information 21 Annex C: Mechanical specifications 22
C-1 Mechanical Drawings 22
Annex D: Quality and Incoming Inspections 23
D-1 Display 23 D-2 Evaluation Criteria of standard display module 30
Annex E: Battery 31
E-1 Battery Specifications 31 E-2 Replacement of the internal battery 32
Annex F: Guidelines and Standards 33
F-1 EMC Pretests 33 F-2 RoHS Declaration 33
Annex G: Common documentation 34
G-1 Warranty hints 34 G-2 Application notes 35 G-3 Trademarks and service marks 35
NESO LT 4.3" Open Frame Manual
3
1 Introduction
Thank you very much for purchasing a Garz & Fricke product. Our products are dedicated to professional use and therefore we suppose extended technical knowledge and practice in working with such products.
The information in this manual is subject to technical changes, particularly as a result of continuous product upgrades. Thus this manual only reflects the technical status of the products at the time of printing. Before design-in the device into your or your customer’s product, please verify that this document and the therein described specification is the latest revision and matches to the PCB version. We highly recommend contacting our technical sales team prior to any activity of that kind.
The attached documentation does not entail any guarantee on the part of Garz & Fricke GmbH with respect to technical processes described in the manual or any product characteristics set out in the manual. We do not accept any liability for any printing errors or other inaccuracies in the manual unless it can be proven that we are aware of such errors or inaccuracies or that we are unaware of these as a result of gross negligence and Garz & Fricke has failed to eliminate these errors or inaccuracies for this reason. Garz & Fricke GmbH expressly informs that this manual only contains a general description of technical processes and instructions which may not be applicable in every individual case. In cases of doubt, please contact our technical sales team.
In no event, Garz & Fricke is liable for any direct, indirect, special, incidental or consequential damages arising out of use or resulting from non-compliancy of therein conditions and precautions, even if advised of the possibility of such damages.
Before using a device covered by this document, please carefully read
Annex G-1 Warranty hints Annex G-2 Application notes
Embedded systems are complex and sensitive electronic products. Please act carefully and ensure that only qualified personnel will handle and use the device at the stage of development. In the event of damage to the device caused by failure to observe the hints in this manual and on the device (especially the safety instructions), Garz & Fricke shall not be required to honour the warranty even during the warranty period and shall be exempted from the statutory accident liability obligation. Attempting to repair or modify the product also voids all warranty claims.
4
2 Safety Hints
Please read this section carefully and observe the instructions for your own safety and correct use of the device. Observe the warnings and instructions on the device and in the manual. Garz & Fricke embedded systems have been built and tested by us and left the company in a perfectly safe condition. In order to maintain this condition and ensure safe operation, the user must observe the instructions and warnings contained in this manual.
I. General handling
Don’t drop or strike the unit: The PCB, display and/or other parts might be damaged. Keep away from water and other liquids, the unit is not protected against. Operate the unit under electrical and environmental conditions according to the technical
specification.
The electrical installations in the room must correspond to the requirements of the local (country-
specific) regulations.
Take care that there are no cables, particularly power cables, in areas where persons can trip
over them. Do not place the device in direct sunlight, near heat sources or in a damp place. All plugs on the connection cables must be screwed or locked to the housing. Repairs may only be carried out by qualified specialist personnel authorized by Garz & Fricke
GmbH or their local distributors. Maintenance or repair on the open device may only be carried out by qualified personnel
authorized by Garz & Fricke GmbH which is aware of with the associated dangers.
II. LCD and touch handling
If equipped with, the soft surface of a resistive touch screen is not suitable for use with stencils
and/or other devices for touch operation. There are special plastics pens available in commercial
shops. A projective capacitive touch screen might be protected by a heat strengthened glass or
acrylic or polycarbonate cover lens. These are dedicated for use with finger tips. There are very
special pens available which might work with a PCT touch. Protect the LCD/touch/cover lens against scratches and sharp edges. The warranty does not
cover pixel failures resulting from non-compliant handling. Clean the LCD/touch/cover lens with a soft cotton cloth with alcohol. Don’t use organic solvents,
acid or alkali solutions. Water drops, finger fat or any similar fouling should be removed immediately from the LCD,
cover lens and metal frame to avoid any staining.
III. Electricity
The embedded systems may only be opened in accordance with the description in this user’s
manual for
replacing of the (rechargeable, where applicable) lithium battery and/or
configuration of interfaces, where applicable These procedures have to be carried-out only by qualified specialist personnel. When accessing internal components the device must be switched off and disconnected from the
power source.
When purchased core or basic versions without protecting back cover, don’t touch the PCB
directly with your fingers. Especially these products need to be handled very carefully.
Don’t operate or handle the unit without typical ESD protection measures, such as ground
earthing.
Operate the unit according to the technical specification only.
IV. Damage or permanent malfunction
It must be assumed that a safe operation is no longer possible, in case
the device has visible damage or
the display is dark or shows strange pattern for longer period
the device doesn’t react after a reset In these cases the device must be shut down and secured against further use
NESO LT 4.3" Open Frame Manual
5
3 Product Introduction
This document is applicable for hardware revisions 1.0 or later of the NESO LT SERIES and thereon based customized variants. Please note that customized variants might possibly not support all features listed herein.
Please find the hardware version grid in Annex B:
Product introduction 3.1
NESO LT is an Embedded System to be used as human machine interface (HMI) in various applications. Please refer to G-2 Application notes for further information. The system is equipped with a large number of industrial interfaces. A wide variety of options is available as well.
Type plate and device information 3.2
For service and later identification of the device, the type plate contains important information, such as article numbers (linked to the PCB rev.), the order code and model name (which is valid for all PCB rev.) and the serial number, that identifies the exact device.
(Exemplary illustration)
6
Related documents and online support 3.3
This document contains product specific information. Additional documentation is available for the use of embedded operating systems and the related tool chain and the RedBoot BIOS.
Title
Link to Garz & Fricke Website
Description
RedBoot User Manual
GF_RedBoot_User_Manual_V.0.7.pdf
Contains relevant information about BIOS, boot logo, display settings, etc.
Windows OS Manual
GF_WindowsCE_Manual_V1.3.1.pdf
Contains information about Windows Embedded CE, the tool chain, the development environment Visual Studio, Garz & Fricke tools, etc.
Linux PTX OS Manual
gf_linux_manual_neso-lt-1.42.0-0
Contains information about Linux BSP, the tool chain, Qt, etc.
Support for your Garz & Fricke embedded device is available on the Garz & Fricke website. You may find a list of the documents available, as well as their latest revision and updates for your system:
Product
Link to Garz & Fricke Website
NESO LT 4.3" Open Frame
http://www.garz-fricke.com/nesolt-openframe_en.html
NESO LT 4.3" Open Frame Manual
7

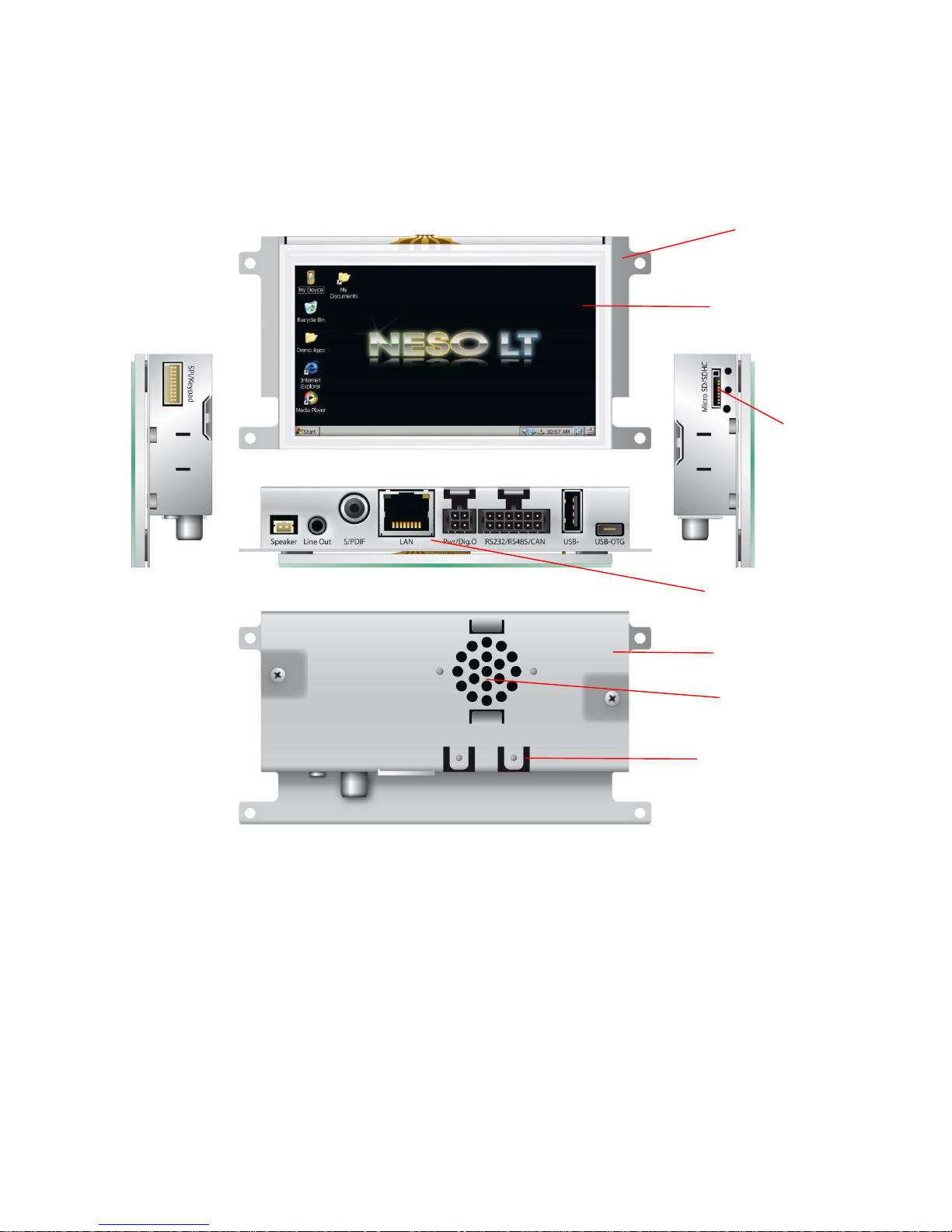

4 Product Description
This drawing is meant for your orientation. For drawing please refer to Annex C: Mechanical specifications You will get 3 D Modell (CAD) Drawings after signed a NDA contract.
(Exemplary illustration)
Installation frame
Display with resistive touch
Reset switch Micro SD­card slot Power LED
Connectors and interfaces
Back cover
Internal Speaker
6,3 mm male spade terminal
8
Technical data 4.1
CPU
Class
ARM9R ARM926EJ-S i.MX257
Type/Clock
400 MHz
RTC
Depending on ambient temperature Standard time´s deviation: +/- 30 ppm at 25°C
Memory
NAND Flash
256 MByte NAND Flash
RAM Standard
128 MByte DDR-SDRAM
Option
256 MByte DDR-SDRAM
Micro SD Card Slot
4 bit MicroSD(HC)
Interfaces External
Network
1x 10/100 Mbit/s Ethernet (RJ45)
Serial 1x RS-232 (Rx/Tx/RTS/CTS)
1x RS-485
CAN Fieldbus
CAN Option
1x CAN (ISO/DIS 11898) instead of RS-485
USB 2.0
1x 12 Mbit/s Full-Speed Host 1x 480 Mbit/s High-Speed OTG
Keypad/SPI/I²C multiplexed
Default
1x 7x7 Keypad, 1x I²C
Mode 1
1x 4x4 Keypad, 1x I²C, 1x SPI
Mode 2
1x 8x8 Keypad
Mode 3
1x 5x5 Keypad, 1x SPI
Speaker
1x speaker (connector), 1.5W RMS (8Ω)
Digital I/O
1x Digital Out (0.7 A)
Audio
S/PDIF, Line Out
LCD Display
Size [inch/mm]
4.3 / 109.3
Display Technology
TFT TN
Width x Height [pixel]
480 x 272
Colors [bit]
24 (16.7 M colors)
Backlight Unit
LED
Luminance1 [cd/m²]
280 (Min.) 320 (Typ.)
Active Area W x H [mm]
95.04 x 53.86
Viewing Angle
Typ. 70/ 70/ 60/ 65 (L/ R/ U/ D)
Condition CR>10
Resistive Touch
Type
4-wire analog resistive
Linearity
<=1.5%
Surface Treatment
antiglare
Power Supply and Consumption
Supply [V DC]
Nom. 12 Max. 9 ~ 16
Consumption [W]
Typ. 3.6
Internal Backup Battery Type
3 V lithium manganese dioxide Type CR1220
Lifetime (RTC only)
Approximately 8 years, depending on application
1
Luminance applies to the entire device.
NESO LT 4.3" Open Frame Manual
9
Housing
Back Cover
1.4016 high quality steel, polished, 0.8mm
Mounting Plate
ABS-PC, metallized
Approximate Dimensions
W x H x D [mm]
130.2 x 67.2 x 25.4
Weight [g]
190
Environment
Humidity [%]
5 ~ 90 (non condensating)
Operating Temperature [°C]
0 ~ +60
Storage Temperature [°C]
-20 ~ +70
Max. Operating Altitude [m]
3,000
Max. Storage/Transit Altitude [m]
10,000
Noise Level [db(A)] @ 1m
<<40 (fanless design)
Lifetime
Backlight Lifetime2 LCD Display [h]
30,000
Operating Lifetime Touch
100,000 (by pen), 1,000,000 (by finger)
MTBF3 [h]
≥ 50,000
2
Backlight lifetime is dictated by the LCD manufacture´s specification. Backlight lifetime is the approximate time at which
the brightness decreases to half of its original brightness. Reduction of brightness due to backlight lifetime is not considered as failure. It is a natural aging of all electronic components.
3
Electrical products use the industrial standard term Mean Time between Failure (MTBF) as a statistical prediction of the
elapsed time between failures in a large population of systems. The MTBF of all Garz & Fricke HMI products shall be 50,000 hours A failure is anything that causes the product not to function to its specifications Reduction in brightness due to backlight lifetime is not a failure If the LCD used in the system exceeds its pixel defect specification it is considered a failure
10
PCB design 4.2
As this manual describes an open frame version, only the external interfaces will be mentioned in the following chapter.
Pos.
Description
Pos.
Description
1
Ethernet (X8)
8
S/PDIF (X7)
2
Power/Digital out (X1)
9
Keypad/SPI (X16)
3
RS-232/RS-485/CAN (X9)
10
Reset
4
USB - Host (X12)
11
Clear all (Bootmode select)
5
External USB - OTG (X14)
12
Power LED
6
Speaker (X5)
13
SD card reader
7
Line out (X20)
NESO LT 4.3" Open Frame Manual
11
5 Installation and start up
The content of this document is limited to explain the device connectors and how to access NESO LT via FTP over your local area network (LAN) within a few seconds. For advanced hardware specifications and software support, please refer to chapter 3.3
Product
Link to Garz & Fricke Website
NESO LT 4.3" Open Frame
http://www.garz-fricke.com/nesolt-openframe_en.html

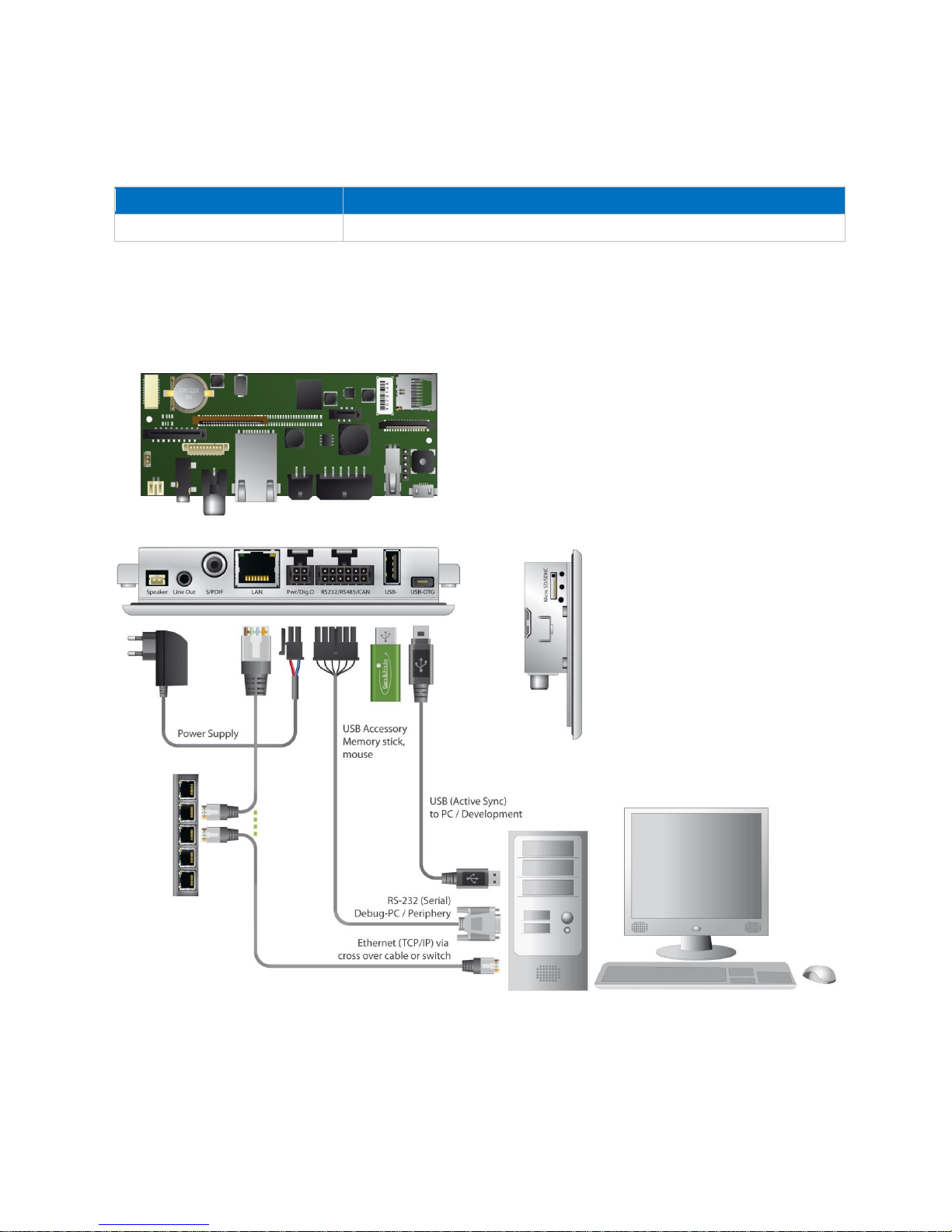

Connection Scheme 5.1
(Exemplary illustration)
12
6 External interfaces and Schematics
Ethernet (X8) 6.1
Pin
Name
Description
Level
1
Tx+ 2 Tx- 3 Rx+
4
SPARE1 5 6 Rx-
7
SPARE2 8 Header:
RJ45
Power/Digital out (X1) 6.2
Pin
Name
Description
Level
1
GND
Ground
2
GND
Ground
3 Vcc_In
Input voltage
9-16V
4
DIO_OUT
Digital Out
Vcc_In
Header:
Molex_43045-0400 Micro-Fit 4p
Plug:
Molex_43025-0400 Micro-Fit 4p, crimp contact Molex 43030-0007
NESO LT 4.3" Open Frame Manual
13
RS-232/RS-485/CAN (X9) 6.3
6.3.1 Option: RS-232/RS-485
Pin
Name
Description
Level
1
GND
Ground
2 RS232_TXD1
Port#1: Transmit data (Output)
3 RS232_RXD1
Port#1: Receive data (Input)
4 RS232_RTS1
Port#1: Request-to-send (Output)
5 RS232_CTS1
Port#1: Clear-to-send (Input)
6 Vref
Vref out
5V 7 GND
Ground
8 RS485_Y
TX+
9 RS485_Z
TX-
10
RS485_A
RX+ To enable Half-Duplex: bridge with RS485_Y
11
RS485_B
RX­To enable Half-Duplex: bridge with RS485_Z
12
RS485_TERM
To enable RS485-Termination: bridge with RS485_A
Header: Molex_43045-1200_Micro-Fit_12p Plug: Molex_43025-1200_Micro-Fit_12p, crimp contact Molex 43030-0007
6.3.2 Option: RS-232/CAN
Pin
Name
Description
Level
1-5
RS-232
Identical to RS-485 option (s. 4.3.1.)
6 Vref
Vref out
5V 7 GND
Ground
8 CAN1_H
CAN bus 1 high
9 CAN1_L
CAN bus 1 low
10
CAN1_TERM
To enable CAN1-Termination, bridge with CAN1_L
11
n.a.
12
n.a.
14
USB - Host (X12) 6.4
Pin
Name
Description
Level
1
Vcc
Power supply
5 V /500mA
2
D-
Data minus
3 D+
Data plus
4 GND
Ground
Header: USB Type A
External USB - OTG (X14) 6.5
Pin
Name
Description
Level
1
Vcc
Power supply
5 V /500mA
2
D-
Data minus
3
D+
Data plus
4 ID
Device ID
5 GND
Ground
+Header: Micro-USB Type AB
Speaker (X5) 6.6
Pin
Name
Description
Level
1
VO+
External speaker out +
Max. 1.5 W @ 8 Ω or 3 W @ 4 Ω
(X5 internally connected to X6)
2
VO-
External speaker out -
Header: JST S2B-PH-SM3-TB, side entry, RM = 2.0, 2-pin Plug: JST PHR-2, crimp contact BPH-002T-P0.5S
NESO LT 4.3" Open Frame Manual
15
Line out (X20) 6.7
Pin
Name
Description
Level
1
GND
Ground shielding
2 LINE_OUT_L
Line out, left channel
Max 1V RMS 3
LINE_OUT_R
Line out, right channel
S/PDIF (X7) 6.8
Pin
Name
Description
Level
1
GND
Ground shielding
2 TXOUT
Signal out
Max 1Vpp, R = 75Ohm
16
Keypad/SPI (X16) 6.9
6.9.1 Standard: Keypad/SPI
Pin
Name
Description
Level Standard mode
Multiplexed mode 1
1
GND
Ground
Ground
2 GND
Ground
Ground
3 KP_COL7_SS2
Keypad column 7
SPI 3 Slave Select 2
3,3V
4
KP_ROW7_SLK
Keypad row 7
SPI 3 Serial Clock
3,3V
5
KP_COL6_MOSI
Keypad column 6
SPI 3 Master out Slave in
3,3V
6
KP_ROW6_MISO
Keypad row 6
SPI 3 Master in Slave out
3,3V 7
KP_COL5_SS3
Keypad column 5
SPI 3 Slave Select 3
3,3V
8
KP_ROW5_DMA
Keypad row 5
SPI 3 Interrupt Request
3,3V
9
KP_COL4
Keypad column 4
Keypad column 4
3,3V
10
KP_ROW4
Keypad row 4
Keypad row 4
3,3V
11
KP_COL3
Keypad column 3
Keypad column 3
3,3V
12
KP_ROW3
Keypad row 3
Keypad row 3
3,3V
13
KP_COL2
Keypad column 2
Keypad column 2
3,3V
14
KP_ROW2
Keypad row 2
Keypad row 2
3,3V
15
KP_COL1
Keypad column 1
Keypad column 1
3,3V
16
KP_ROW1
Keypad row 1
Keypad row 1
3,3V
17
KP_COL0
Keypad column 0
Keypad column 0
3,3V
18
KP_ROW0
Keypad row 0
Keypad row 0
3,3V
19
GND
Ground
Ground
20
GND
Ground
Ground
Header: JST SM20B-SRDS-G-TF, side entry, RM = 1.00 Plug: JST SHDR-20V-S-B, crimp contact: SSH-003GA-P0.2
6.9.2 Option: Keypad/SPI/I²C
Pin
Name
Description
Level
Multiplexed mode 2
Multiplexed mode 3
1-10
Identical to standard (pls. see 4.9.1.)
11
KP_COL3
I²C SDA
I²C SDA
12
KP_ROW3
I²C SCL
I²C SCL
13
KP_COL2
Keypad column 2
Keypad column 2
14
KP_ROW2
Keypad row 2
Keypad row 2
15
KP_COL1
Keypad column 1
Keypad column 1
16
KP_ROW1
Keypad row 1
Keypad row 1
17
KP_COL0
Keypad column 0
Keypad column 0
18
KP_ROW0
Keypad row 0
Keypad row 0
19
GND
Ground
Ground
20
GND
Ground
Ground
NESO LT 4.3" Open Frame Manual
17
Battery-Holder (X2) 6.10
Pin
Name
Description
Level
1
VCC
Supply
3 V
2
GND
Ground
Header: Keystone 1056
Battery: CR1220
18
7 Document revision history
The information in this document is subject to change without prior notice in order to improve reliability, design and function and does not represent a commitment on the part of the manufacturer.
Revision
Date
Author
Description
V.1.0
27.01.2015
LK
Initial document release for PCB revision 1.1.b
8 Technical support
Before contacting the Garz & Fricke support team, please try to help yourself by the means of this manual or any other documentation provided by Garz & Fricke or the related websites. If this does not help at all, please feel free to contact us. Our technicans and engineers will be glad to support you. Please note that beyond the support hours included in the Starter Kit, various support packages are available. To keep the pure product cost at a reasonable level, we have to charge support and consulting services per effort.
Shipping adress:
Garz & Fricke GmbH Tempowerkring 2 21079 Hamburg Germany
Support contact: Phone: +49 (0) 40 / 791 899-30
Fax: +49 (0) 40 / 791 899-39 E-Mail: support@garz-fricke.com URL: www.garz-fricke.com
NESO LT 4.3" Open Frame Manual
19
Technical Appendix
For PCB revision 0.7 or for HW 1.1 or later
20
Annex A: Assembly options and accessory A-1 NESO LT 4.3” Open Frame Version M
NESO LT is also available as minor assembly version. For the details of the external connectors please use the main part on the pages 12.
Pos.
Description
Pos.
Description
1
Ethernet (X8)
11
Reset
2
Power/Digital out (X1)
12
Clear all (Bootmode select)
3
RS-232/RS-485/CAN (X9)
13
Power LED
4
USB - Host (X12)
14
SD card reader
5
External USB - OTG (X14)
15
NESO LT 4.3" Open Frame Manual
21
Annex B: Hardware revision information
This document is applicable for all products listed below. Please note that customized variants might possibly not support all features listed herein. Additional features are documented in specific attachments.
Platform
Article Number
Marking on PCB
NESO LT 4.3“ Open Frame RS-485
900-2326R
0371 NESO LT V1.1.b
NESO LT 4.3“ Open Frame CAN
900-2327R
0371 NESO LT V1.1.b
NESO LT 4.3“ Open Frame M
900-3002R
0371 NESO LT V1.1.b
22
Annex C: Mechanical specifications C-1 Mechanical Drawings
Tbd.
NESO LT 4.3" Open Frame Manual
23

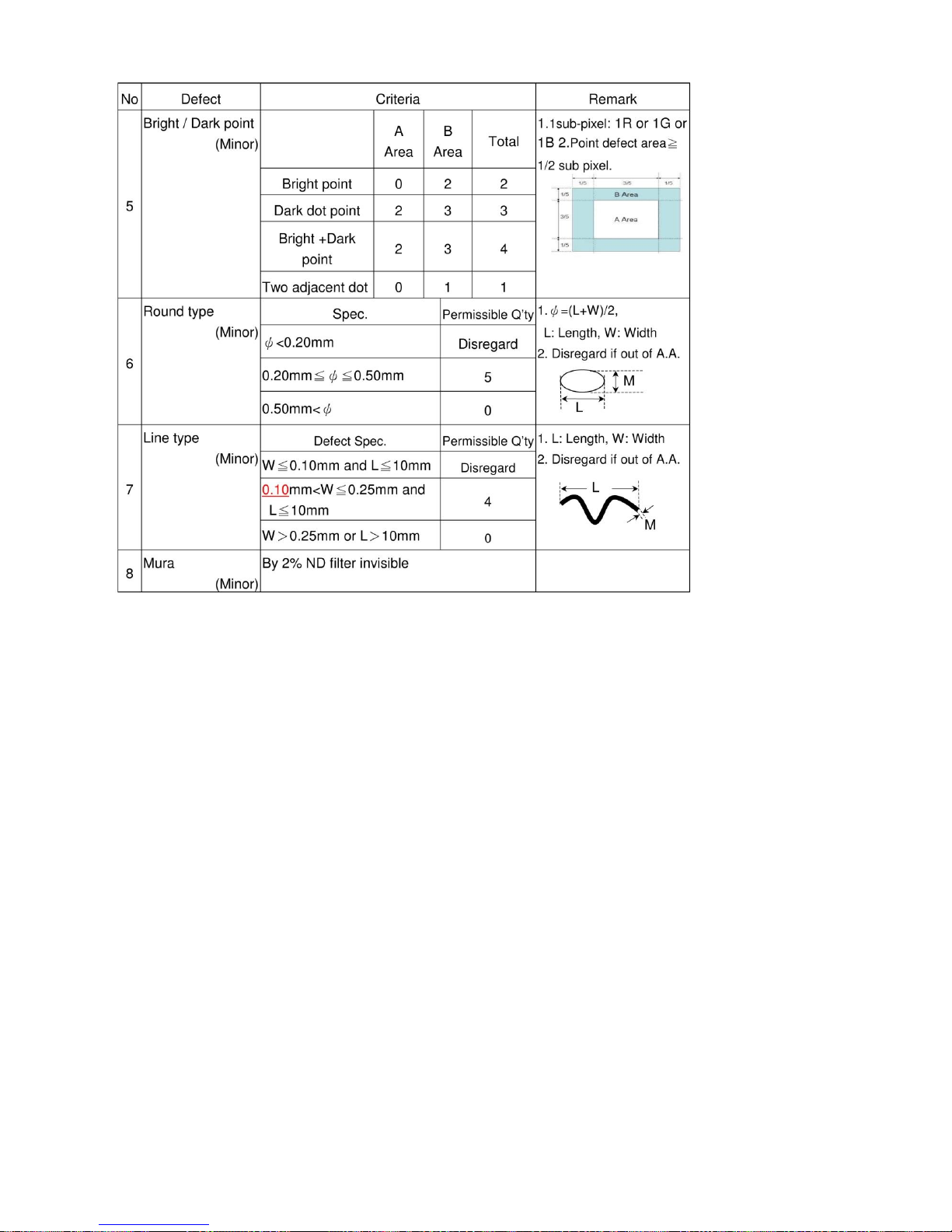

Annex D: Quality and Incoming Inspections D-1 Display
24
NESO LT 4.3" Open Frame Manual
25
26
NESO LT 4.3" Open Frame Manual
27
28
NESO LT 4.3" Open Frame Manual
29
30
D-2 Evaluation Criteria of standard display module
Evaluated Zone 1:
Areas in the immediate viewing area: dirt and dust enclosures / stains / striae / scratches from max. 500 µm (diameter) or 0.02 mm2 (surface), 5 pcs. per dm 2 are permitted, but no clustering.
Evaluated Zone 2:
Surfaces that are concealed after installation: Dirt and dust enclosures / stains / striae / scratches from max. 2 mm (diameter) or 3 mm2 (surface), 10 pcs per dm2 are permitted.
Assessor:
trained, normal-sighted person
Viewing angle:
90 degrees to test object, no reflection
Lighting condition:
1000 LUX on test object
Viewing time:
max. 10 sec / dm2
NESO LT 4.3" Open Frame Manual
31
Annex E: Battery E-1 Battery Specifications
The internal baseboard is equipped with a Primary Lithium battery (type CR1220), which has a typical lifetime of 8 years.
Type
Garz & Fricke Article Number
Battery type CR 1220
010-0059R
Manufacturer
Model
Camelion
CR1220
Renata
CR1220MFR
Danger of explosion when replaced with wrong type of battery. Replace the battery only with a Lithium battery that has the same or equivalent type recommended by Garz & Fricke GmbH.
Do not dispose of used batteries in domestic waste. Dispose of the battery according to the local regulations dealing with the disposal of these special materials (e. g. to the collecting points for disposal of batteries).
32
E-2 Replacement of the internal battery
The internal battery is placed as per figure below. For replacement, the SD-card and the back cover have to be removed. The device shall be opened by authorized and skilled personnel only.
Danger of electric hazard! First before opening, please make sure that the unit is completely disconnected from any power supply, direct or indirect. In order to remove the back cover all other connectors must be removed as well. Please make sure that the SD-card has been removed as it blocks the cover. Furthermore take care about the socket and connectors. Especially the micro-USB connector might be damaged easily.
(Exemplary illustration)
Position of the battery
2 screws of back cover
Please remove Micro SD card first!
NESO LT 4.3" Open Frame Manual
33
Annex F: Guidelines and Standards F-1 EMC Pretests
The Garz & Fricke open frame products are OEM-products, which are intended for the integration in customer housings. Therefore regulations and requirements are subjected to different markets. To help you with the EMC Certification we did pretests for radiated emissions with the open frame products. The results of the NESO LT 4.3open frame test are available on request.
F-2 RoHS Declaration
Devices comply with the requirements of Directive 2011/65/EU of the European Parliament and of the Council of 8th June 2011 on the restriction of the use of certain hazardous substances in electrical and electronic equipment.
34
Annex G: Common documentation G-1 Warranty hints
Garz & Fricke embedded systems are subject to manufacturer’s guarantee as long as the products are handled with adequate care and caution and in accordance to this manual. The period of guarantee starts from the date of shipment The products are warranted against defects in material, quality and functionality within the guaranteed period. During this period, the repair of the products is free of charge. Garz & Fricke will decide for repair or replacement at their own discretion. If the product has been returned with or without prior notice and no failure or malfunction can be detected or the failure or malfunction is caused by inappropriate handling or the device has been returned after expiry of warranty period, Garz & Fricke reserve the right to charge the user for repair or replacement.
The warranty does not cover defects caused by improper or inadequate installation, maintenance or handling by the user, unauthorized modification or misuse, operation outside the specification a non­compliance of this manual. In case of doubt, please contact the technical sales team prior to intended activity. The warranty does also not cover any defects or damages of other equipment connected to the Garz & Fricke product, faulty or not.
For warranty or repair service, please contact the technical sales team.
NESO LT 4.3" Open Frame Manual
35
G-2 Application notes
The products covered by this document are designed and manufactured for the following applications (I). If you intend to use these products in applications as quoted in (II) or (III) we highly recommend a personal contact with our consultants and/or technical sales team.
(I) Recommended application areas for Garz & Fricke embedded systems
Even for these applications, we recommend to get in contact with our technical sales team. We offer a wide range of support, even at an early stage of evaluation and/or design-in phase.
Vending machines and gastronomy devices Industrial controllers and HMI systems Home automation and facility management Audiovisual equipment Instrumentation and measuring equipment
(II) Advanced applications areas, prior consultation is recommended
These applications require a responsibility for fail-safe operation, redundancy and other measures for ensuring reliability and safety of the equipment and the overall system.
Gas leak detectors Rescue and security equipment Safety devices Control and safety devices for airplanes, trains, automobiles and other transportation
equipment Mainframe computers Traffic control systems
(III) Restricted application areas, prior consultation is mandatory
The following appliances demand extremely high performance in terms of functionality, reliability and/or accuracy. We do not recommend the products covered herein for the following:
Aerospace equipment Control equipment for nuclear power industry Medical equipment related to life support etc. Gasoline stations and oil raffineries
G-3 Trademarks and service marks
There are a number of proprietary logos, service marks, trademarks, slogans and product designations ("Marks") used in this document. By making the Marks available in this document, Garz & Fricke GmbH is not granting you a license to use them in any fashion.
The following Marks are the property of Garz & Fricke GmbH. This list is not comprehensive; the absence of a Mark from the list does not constitute a waiver of intellectual property rights established by Garz & Fricke GmbH in a Mark.
CUPID, FLASH N´GO, NESO LT, LIVIUS, VINCELL, VINCELL LT related XY Starter Kits and subversions (XY “core”, “open frame”, “boxed”) are registered trademarks or products of Garz & Fricke GmbH, Hamburg. All other product or service names are the property of their respective owners. © 2015 Garz & Fricke GmbH
Loading...
