CUPID 7.0" Open Frame Manual
For PCB revision 0.7 or for HW 1.1 or later
CUPID 7.0" Open Frame Manual
2
Content
1 Introduction 3
2 Safety Hints 4
3 Product Introduction 5
Product introduction 5 3.1
Type plate and device information 5 3.2
Related documents and online support 6 3.3
4 Product Description 7
Technical data 8 4.1
PCB design 10 4.2
5 Installation and start up 11
Connection Scheme 11 5.1
6 External interfaces and Schematics 12
Applies for all interfaces 12
6.1
Ethernet (X24) 13 6.2
Power (X1) 14 6.3
Digital I/O (X14) 15 6.4
CAN/RS-485 Interface (X39) 16 6.5
Speaker (X9) 17 6.6
Keypad/SPI (X21) 18 6.7
RS-232/MDB (X13) 20 6.8
USB - Host (X34) 21 6.9
USB - OTG (X20) 21 6.10
Battery 22 6.11
7 Document revision history 23
8 Technical support 23
Annex A: Assembly options and accessory 25
A-1 WIFI (USB) 25
A-2 Cupid Open Frame Version M 26
A-3 Sideways USB instead of SD-Card reader 27
Annex B: Hardware revision information 28
Annex C: Mechanical specifications 29
C-1 Mechanical Drawings 29
Annex D: Quality and Incoming Inspections 30
D-1 Display 30
D-2 Evaluation Criteria of standard display module 34
Annex E: Battery 35
E-1 Battery Specifications 35
E-2 Replacement of the internal battery 36
Annex F: Guidelines and Standards 37
F-1 EMC Pretests 37
F-2 RoHS Declaration 37
F-3 UL Certification 37
Annex G: Common documentation 38
G-1 Warranty hints 38
G-2 Application notes 39
G-3 Trademarks and service marks 39
CUPID 7.0" Open Frame Manual
3
1 Introduction
Thank you very much for purchasing a Garz & Fricke product. Our products are dedicated to professional use
and therefore we suppose extended technical knowledge and practice in working with such products.
The information in this manual is subject to technical changes, particularly as a result of continuous
product upgrades. Thus this manual only reflects the technical status of the products at the time of
printing. Before design-in the device into your or your customer’s product, please verify that this
document and the therein described specification is the latest revision and matches to the PCB
version. We highly recommend contacting our technical sales team prior to any activity of that kind.
The attached documentation does not entail any guarantee on the part of Garz & Fricke GmbH with
respect to technical processes described in the manual or any product characteristics set out in the
manual. We do not accept any liability for any printing errors or other inaccuracies in the manual
unless it can be proven that we are aware of such errors or inaccuracies or that we are unaware of
these as a result of gross negligence and Garz & Fricke has failed to eliminate these errors or
inaccuracies for this reason.
Garz & Fricke GmbH expressly informs that this manual only contains a general description of
technical processes and instructions which may not be applicable in every individual case. In cases of
doubt, please contact our technical sales team.
In no event, Garz & Fricke is liable for any direct, indirect, special, incidental or consequential
damages arising out of use or resulting from non-compliancy of therein conditions and precautions,
even if advised of the possibility of such damages.
Before using a device covered by this document, please carefully read
Annex G-1 Warranty hints
Annex G-2 Application notes
Embedded systems are complex and sensitive electronic products. Please act carefully and ensure
that only qualified personnel will handle and use the device at the stage of development. In the event
of damage to the device caused by failure to observe the hints in this manual and on the device
(especially the safety instructions), Garz & Fricke shall not be required to honour the warranty even
during the warranty period and shall be exempted from the statutory accident liability obligation.
Attempting to repair or modify the product also voids all warranty claims.
CUPID 7.0" Open Frame Manual
4
2 Safety Hints
Please read this section carefully and observe the instructions for your own safety and correct use of the
device. Observe the warnings and instructions on the device and in the manual. Garz & Fricke embedded
systems have been built and tested by us and left the company in a perfectly safe condition.
In order to maintain this condition and ensure safe operation, the user must observe the instructions and
warnings contained in this manual.
I. General handling
Don’t drop or strike the unit: The PCB, display and/or other parts might be damaged.
Keep away from water and other liquids, the unit is not protected against.
Operate the unit under electrical and environmental conditions according to the technical
specification.
The electrical installations in the room must correspond to the requirements of the local (country-
specific) regulations.
Take care that there are no cables, particularly power cables, in areas where persons can trip
over them.
Do not place the device in direct sunlight, near heat sources or in a damp place.
All plugs on the connection cables must be screwed or locked to the housing.
Repairs may only be carried out by qualified specialist personnel authorized by Garz & Fricke
GmbH or their local distributors.
Maintenance or repair on the open device may only be carried out by qualified personnel
authorized by Garz & Fricke GmbH which is aware of with the associated dangers.
II. LCD and touch handling
If equipped with, the soft surface of a resistive touch screen is not suitable for use with stencils
and/or other devices for touch operation. There are special plastics pens available in commercial
shops. A projective capacitive touch screen might be protected by a heat strengthened glass or
acrylic or polycarbonate cover lens. These are dedicated for use with finger tips. There are very
special pens available which might work with a PCT touch.
Protect the LCD/touch/cover lens against scratches and sharp edges. The warranty does not
cover pixel failures resulting from non-compliant handling.
Clean the LCD/touch/cover lens with a soft cotton cloth with alcohol. Don’t use organic solvents,
acid or alkali solutions.
Water drops, finger fat or any similar fouling should be removed immediately from the LCD,
cover lens and metal frame to avoid any staining.
III. Electricity
The embedded systems may only be opened in accordance with the description in this user’s
manual for
replacing of the (rechargeable, where applicable) lithium battery and/or
configuration of interfaces, where applicable
These procedures have to be carried-out only by qualified specialist personnel.
When accessing internal components the device must be switched off and disconnected from the
power source.
When purchased core or basic versions without protecting back cover, don’t touch the PCB
directly with your fingers. Especially these products need to be handled very carefully.
Don’t operate or handle the unit without typical ESD protection measures, such as ground
earthing.
Operate the unit according to the technical specification only.
IV. Damage or permanent malfunction
It must be assumed that a safe operation is no longer possible, in case
the device has visible damage or
the display is dark or shows strange pattern for longer period
the device doesn’t react after a reset
In these cases the device must be shut down and secured against further use
CUPID 7.0" Open Frame Manual
5
3 Product Introduction
This document is applicable for hardware revisions 1.0 or later of the CUPID SERIES and thereon based
customized variants. Please note that customized variants might possibly not support all features listed herein.
Please find the hardware version grid in Annex B:
Product introduction 3.1
CUPID is an Embedded System to be used as human machine interface (HMI) in various applications. Please
refer to G-2 Application notes for further information. The system is equipped with a large number of industrial
interfaces. A wide variety of options is available as well.
Type plate and device information 3.2
For service and later identification of the device, the type plate contains important information, such as article
numbers (linked to the PCB rev.), the order code and model name (which is valid for all PCB rev.) and the
serial number, that identifies the exact device.
(Exemplary illustration)
CUPID 7.0" Open Frame Manual
6
Related documents and online support 3.3
This document contains product specific information. Additional documentation is available for the use of
embedded operating systems and the related tool chain and the RedBoot BIOS.
Title
Link to Garz & Fricke Website
Description
RedBoot User Manual
GF_RedBoot_User_Manual_Rnn.pdf
Contains relevant information about
BIOS, boot logo, display settings, etc.
Windows OS Manual
GF_WindowsCE_Manual_Vn.n.pdf
Contains information about Windows
Embedded CE, the tool chain, the
development environment Visual
Studio, Garz & Fricke tools, etc.
Linux PTX OS Manual
GF_Linux_PTX_Manual_Vn.n.pdf
Contains information about Linux BSP,
the tool chain, Qt, etc.
Support for your Garz & Fricke embedded device is available on the Garz & Fricke website. You may find a list
of the documents available, as well as their latest revision and updates for your system:
Product
Link to Garz & Fricke Website
CUPID 7.0" Open Frame
http://www.garz-fricke.com/cupid-70-openframe_en.html?ptab=1
CUPID 7.0" Open Frame Manual
7
4 Product Description
This drawing is meant for your orientation. For drawing please refer to Annex C: Mechanical specifications
You will get 3 D Modell (CAD) Drawings after signed a NDA contract.
Installation frame
Display with resistive touch
Reset switch
SD-card slot
Power LED
Connectors and
interfaces
Back cover
Internal Speaker
6.3 mm male spade terminal
CUPID 7.0" Open Frame Manual
8
Technical data 4.1
CPU
Class
Freescale ARM11R ARM1136JF-S™ i.MX357
Type/Clock
532 MHz
Features
Integrated Vector Floating Point Unit;
VPU and openVG 1.1 GPU
RTC
Depending on ambient temperature
Standard time´s deviation: +/- 30 ppm at 25°C
Memory
NAND Flash
512 MB SLC
RAM
256 MB DDR SDRAM
SRAM
512 KB
SD Card Slot
4 bit MMC/SD(HC)
Interfaces External
Network
10/100 Mbit/s Ethernet (PoE)
Serial
2x RS-232 (RX/TX/CTS/RTS)
1x RS-485 (Half duplex) galvanic isolated
MDB1
1x MDB (Master / Slave optional)2 instead of 2nd external RS-232
High-Speed USB 2.0
1x 12 Mbit/s Host (Type A)
1x 480 Mbit/s OTG (Type Micro-AB)3
CAN Fieldbus
1x CAN (ISO/DIS 11898) galvanic isolated
CAN21
2nd CAN instead of RS-485
Keypad/SPI/I²C
multiplexed
Default
1x 7x7 Keypad, 1x I²C
Mode 1
1x 4x4 Keypad, 1x I²C, 1x SPI
Mode 2
1x 8x8 Keypad
Mode 3
1x 5x5 Keypad, 1x SPI
Speaker
1x external speaker (connector), 1.5 W RMS (8Ω)
Digital I/O
2x Input, 2x Output (0.7A)
LCD Display
Size [inch/mm]
7.0" (178.0)
Orientation
12 o´clock
Display Technology
TFT TN
Width x Height [pixel]
800 x 480
Colors [bit]
18 (262 K colors)
Backlight Unit
LED
Luminance4 [cd/m²]
400
Active Area W x H [mm]
152.4 x 91.4
Viewing Angle
Typ. 70 / 70 / 60 / 60 (L/ R/ U/ D)
Condition CR>10
Resistive Touch
Type
4-wire analog resistive
Linearity
<=1.5%
Surface Treatment
Antiglare, Hard-Coating (3H)
1
Option
2
The selection of a variant eliminates the other.
3
Mechanically the Micro-USB interface has not been designed for frequent contact operations. Please use an adapter cable
with a strain relief.
4
Luminance applies to the entire device.
CUPID 7.0" Open Frame Manual
9
Power Supply and Consumption
Supply [V DC]
Nom. 24 ± 15%
Max. 9 ~ 30
Consumption [W]
Typ. 4.5
Internal Backup Battery
(RTC)
Type
3 V Li-Ion Type CR2032
>10 years, depending on application
Housing
Back Cover
1.4016 high quality steel, polished, 0.8mm
Approximate Dimensions
W x H x D [mm]
183.5 x 104.0 x 27.0
Weight [g]
480
Environment
Humidity [%]
5 ~ 90 (non condensating)
Ingress Protection
IP 20
Operating Temperature [°C]
0 ~ +60
Storage Temperature [°C]
-20 ~ +70
Max. Operating Altitude [m]
3,000
Max. Storage/Transit
Altitude [m]
10,000
Noise Level [db(A)] @ 1m
<<40 (fanless design)
Lifetime
Backlight Lifetime5 LCD
Display [h]
30,000
Operating Lifetime Touch
100,000 (by pen), 1,000,000 (by finger)
MTBF6 [h]
≥ 50,000
5
Backlight lifetime is dictated by the LCD manufacture´s specification. Backlight lifetime is the approximate time at which
the brightness decreases to half of its original brightness. Reduction of brightness due to backlight lifetime is not
considered as failure. It is a natural aging of all electronic components.
6
Electrical products use the industrial standard term Mean Time between Failure (MTBF) as a statistical prediction of the
elapsed time between failures in a large population of systems.
The MTBF of all Garz & Fricke HMI products shall be 50,000 hours
A failure is anything that causes the product not to function to its specifications
Reduction in brightness due to backlight lifetime is not a failure
If the LCD used in the system exceeds its pixel defect specification it is considered a failure
CUPID 7.0" Open Frame Manual
10
PCB design 4.2
As this manual describes an open frame version, only the external interfaces will be mentioned in the following
chapter.
Pos.
Description
Pos.
Description
1
Ethernet (X24)
8
USB - Host (X34)
2
Power (X1)
9
USB - OTG (X20)
3
Digital I/O (X14)
10
SD card reader (X31)
4
CAN/RS-485 Interface (X39)
11
Reset Switch (SW1)
5
Speaker (X9)
12
Clear all Switch (SW2)
7
6
Keypad/SPI (X21)
13
Status LED (D30)
7
RS-232/MDB (X13)
7
For the function of this switch please refer to the RedBoot BIOS Manual – Part 5.2.7 Boot-mode settings“
CUPID 7.0" Open Frame Manual
11
5 Installation and start up
The content of this document is limited to explain the device connectors and how to access CUPID via FTP
over your local area network (LAN) within a few seconds. For advanced hardware specifications and software
support, please refer to chapter 3.3
Product
Link to Garz & Fricke Website
CUPID 7.0" Open Frame
http://www.garz-fricke.com/cupid-70-openframe_en.html?ptab=1
Connection Scheme 5.1
(Exemplary illustration)
CUPID 7.0" Open Frame Manual
12
6 External interfaces and Schematics
Applies for all interfaces 6.1
GPIO Characteristics
DC Electrical
Characteristics
Symbol
Test Condition
Min.
Typ.
Max.
Unit
High-level output
voltage
Voh
Ioh = –1 mA
Ioh = specified
drive
NVCC – 0.15
0.8 × NVCC
- - V
Low-level output
voltage
Vol
Iol = 1 mA
Iol = specified
drive
- - 0.15
0.2 × NVCC
V
High-level output
current for slow mode
(Voh = 0.8 × NVCC)
Ioh
Standard drive
High drive
Max. drive
–2.0
–4.0
–8.0
- - mA
High-level output
current for fast mode
(Voh = 0.8 × NVCC)
Ioh
Standard drive
High drive
Max. drive
–4.0
–6.0
–8.0
- - mA
Low-level output
current for slow mode
(Voh = 0.2 × NVCC)
Iol
Standard drive
High drive
Max. drive
2.0
4.0
8.0
- - mA
Low-level output
current for fast mode
(Voh = 0.2 × NVCC)
Iol
Standard drive
High drive
Max. drive
4.0
6.0
8.0
- - mA
High-level DC Input
Voltage with 1.8 V, 3.3
V NVCC (for digital
cells in input mode)
VIH - 0.7 × NVCC
-
NVCC
V
Low-level DC Input
Voltage with 1.8 V, 3.3
V NVCC (for digital
cells in input mode)
VIL - –0.3 V
-
0.3 × NVCC
V
Drive strength defined by operating system
CUPID 7.0" Open Frame Manual
13
Ethernet (X24) 6.2
Pin
Name
Description
Level
1
Tx+ 2 Tx- 3 Rx+ 4 SPARE1
Power Supply (PoE)
5 SPARE1
Power Supply (PoE)
6 Rx- 7 SPARE2
Power Supply (PoE)
8 SPARE2
Power Supply (PoE)
CUPID 7.0" Open Frame Manual
14
Power (X1) 6.3
Pin
Name
Description
Level
1
GND
Ground
0V
2
Vcc_In
Input voltage
Nom. 24 ± 15%
Max. 9 30
Header:
Molex 43045-0200 Micro-Fit 2p
Plug: Molex 43025-0200 Micro-Fit 2p,
crimp contact Molex 43030-0007
CUPID 7.0" Open Frame Manual
15
Digital I/O (X14) 6.4
Pin
Name
Description
Level
1
DIG_IN1
Input 1
0V
Low
Typ. 8.3
mA / 24 V
2
DIG_IN2
Input 2
3-36V
High 3 GND_DIO
Ground for digital IO group
4
GND
Common ground, can be
bridged with GND_DIO, when
galvanic isolation is not required
5
DIG_OUT1
Output 1
0V
Low
Max. 800
mA / 24 V
6
DIG_OUT2
Output 2
Vcc_DIO
High
7
Vcc_DIO
Supply input for digital IO
group
<36 V
8
Vcc
Supply output, can be bridged
with Vcc_DIO, when galvanic
isolation is not required
Vcc_In
Header:
Molex 43045-0800 Micro-Fit 8p
Plug: Molex 43025-0800 Micro-Fit 8p, crimp contact Molex 43030-0007
CUPID 7.0" Open Frame Manual
16
CAN/RS-485 Interface (X39) 6.5
Pin
Name
Description
Level
1
GND_CAN_RS485
Ground for CAN and RS485 group
2
CAN1_TERM
To enable CAN1-Termination, bridge
with CAN1_H
3
CAN1_H
CAN bus 1 high
-24…+24 V
4
CAN1_L
CAN bus 1 low
-24…+24 V
5
CAN1_TERM
To enable CAN1-Termination, bridge
with CAN1_L
6 RS485_TERM
To enable RS485-Termination: bridge
with RS485_A
7
GND_CAN_RS485
Ground for CAN and RS485 group
8 n.a. 9 RS485_Y
TX+
-7…+12 V
10
RS485_Z
TX-
-7…+12 V
11
RS485_A
RX+, to enable Half-Duplex: bridge with
RS485_Y
12
RS485_B
RX- , to enable Half-Duplex: bridge with
RS485_Z
Header:
Molex 43045-1200 Micro-Fit 12p
Plug: Molex 43025-1200 Micro-Fit 12p, crimp contact Molex 43030-0007
CAN1/CAN2 *
Pin
Name
Description
Level
1-5 Identical to standard
6 n.a. 7 GND_CAN_RS485
Ground for CAN group
8
CAN2_TERM
To enable CAN2-Termination, bridge
with CAN2_H
9
CAN2_H
CAN bus 2 high
-24…+24 V
10
CAN2_L
CAN bus 2 low
-24…+24 V
11
CAN2_TERM
To enable CAN2-Termination, bridge
with CAN2_L
12
n.a.
CUPID 7.0" Open Frame Manual
17
Speaker (X9)
6.6
Pin
Name
Description
Level
1
Speaker +
Parallel to internal speaker
Max. 1.5 W @ 8 Ω or 3 W @ 4 Ω
2
Speaker -
Header:
JST S2B-PH-SM3-TB, side entry, RM = 2.0, 2-pin
Plug:
JST PHR-2, crimp contact BPH-002T-P0.5S
CUPID 7.0" Open Frame Manual
18
Keypad/SPI (X21) 6.7
Pin
Name
Description
Level
Default mode
Mode 1
1
GND
Ground
Ground
2 GND
Ground
Ground
3 KP_ROW0
Keypad row 0
Keypad row 0
4 KP_COL0
Keypad column 0
Keypad column 0
5 KP_ROW1
Keypad row 1
Keypad row 1
6 KP_COL1
Keypad column 1
Keypad column 1
7 KP_ROW2
Keypad row 2
Keypad row 2
8 KP_COL2
Keypad column 2
Keypad column 2
9 KP_ROW3
Keypad row 3
Keypad row 3
10
KP_COL3
Keypad column 3
Keypad column 3
11
KP_ROW4
I²C2 SDA
I²C2 SDA
Without
internal
pullup
12
KP_COL4
I²C2 SCL
I²C2 SCL
Without
internal
pullup
13
KP_ROW5_DMA
Keypad row 5
SPI Interrupt Request
14
KP_COL5_SS1
Keypad column 5
SPI Slave Select 1
15
KP_ROW6_MISO
Keypad row 6
SPI Master in Slave out
16
KP_COL6_MOSI
Keypad column 6
SPI Master out Slave in
17
KP_ROW7_SLK
Keypad row 7
SPI Serial Clock
18
KP_COL7_SS0
Keypad column 7
SPI Slave Select 0
19
GND
Ground
Ground
20
GND
Ground
Ground
Header: JST SM20B-SRDS-G-TF, side entry, RM = 1.00
Plug: JST SHDR-20V-S-B, crimp contact: SSH-003GA-P0.2
CUPID 7.0" Open Frame Manual
19
Keypad/SPI/I²C, multiplexed 1*
Pin
Name
Description
Level
Mode 2
Mode 3
1-10
Identical to standard (pls. see 4.9.1.)
11
KP_ROW4
Keypad row 4
Keypad row 4
12
KP_COL4
Keypad column 4
Keypad column 4
13
KP_ROW5_DMA
Keypad row 5
SPI Interrupt Request
14
KP_COL5_SS1
Keypad column 5
SPI Slave Select 1
15
KP_ROW6_MISO
Keypad row 6
SPI Master in Slave out
16
KP_COL6_MOSI
Keypad column 6
SPI Master out Slave in
17
KP_ROW7_SLK
Keypad row 7
SPI Serial Clock
18
KP_COL7_SS0
Keypad column 7
SPI Slave Select 0
19
GND
Ground
Ground
20
GND
Ground
Ground
1 R214 and R215 will not be assembled
CUPID 7.0" Open Frame Manual
20
RS-232/MDB (X13) 6.8
RS-232/RS-232
Pin
Name
Description
Level
1
GND
Ground
2 RS232_TXD1
Port#1: Transmit data (Output)
3 RS232_RXD1
Port#1: Receive data (Input)
4 RS232_RTS1
Port#1: Request-to-send (Output)
5 RS232_CTS1
Port#1: Clear-to-send (Input)
6 GND
Ground
7 RS232_TXD2
Port#2: Transmit data (Output)
8 RS232_RXD2
Port#2: Receive data (Input)
9
RS232_RTS2
Port#2: Request-to-send (Output)
10
RS232_CTS2
Port#2: Clear-to-send (Input)
Header:
Molex 43045-1000 Micro-Fit 10p
Plug: Molex 43025-1000 Micro-Fit 10p,
crimp contact Molex 43030-0007
RS-232/MDB
Pin
Name
Description
Level
1-6 Identical to standard
7 MDB_TXD
MDB: Transmit data (Output)
8 MDB_RXD2
MDB: Receive data (Input)
9
MDB_WakeUp
MDB: WakeUp Signal (Output)
10 MDB: WakeUp PullUp VCC
0…5 V
CUPID 7.0" Open Frame Manual
21
USB - Host (X34)
6.9
Pin
Name
Description
Level
1
Vcc
Power supply
5 V/ Max 500 mA
2
D-
Data minus
3 D+
Data plus
4 GND
Ground
Header: USB Type A
USB - OTG (X20) 6.10
Pin
Name
Description
Level
1
Vcc
Power supply
5 V/ Max 500 mA
2
D-
Data minus
3 D+
Data plus
4
ID
Device ID
5 GND
Ground
Header: Micro-USB Type AB
CUPID 7.0" Open Frame Manual
22
Battery 6.11
Pin
Name
Description
Level
1
Supply
2
GND
Battery: CR 2032
CUPID 7.0" Open Frame Manual
23
7 Document revision history
The information in this document is subject to change without prior notice in order to improve reliability, design
and function and does not represent a commitment on the part of the manufacturer.
Revision
Date
Author
Description
V.1.0
08.01.2015
LK
For PCB revision 1.4
8 Technical support
Before contacting the Garz & Fricke support team, please try to help yourself by the means of this manual or
any other documentation provided by Garz & Fricke or the related websites.
If this does not help at all, please feel free to contact us.
Our technicans and engineers will be glad to support you. Please note that beyond the support hours included
in the Starter Kit, various support packages are availabe. To keep the pure product cost at a reasonable level,
we have to charge support and consulting services per effort.
Shipping adress:
Garz & Fricke GmbH
Tempowerkring 2
21079 Hamburg
Germany
Support contact:
Phone: +49 (0) 40 / 791 899-30
Fax: +49 (0) 40 / 791 899-39
E-Mail: support@garz-fricke.com
URL: www.garz-fricke.com
CUPID 7.0" Open Frame Manual
24
Technical Appendix
For PCB revision 0.7 or for HW 1.1 or later
CUPID 7.0" Open Frame Manual
25
Annex A: Assembly options and accessory
A-1 WIFI (USB)
Some appliances require a wireless network connectivity. To be more flexible in regard of upcoming WiFi
Standard and approbations, we decided not to place the functionality on board. Therefore we recommend an
external USB (WL250N). Drivers will be included into the related operating system.
Supports 2.4 GHz 802.11 g/b/n standards
Up to 150Mbps high-speed data rate
Supports 64/128-bit WEP Encrytion, WPA,
WPA2 and CISCO CCX security
Supports WMM (QoS) function
Software based WiFi-Protected Setup (WPS)
Supports USB 2.0/1.1 Interface
Portable and mini-size design
Type
Article Number
WLAN Modul USB WL250N
090-0408R
CUPID 7.0" Open Frame Manual
26

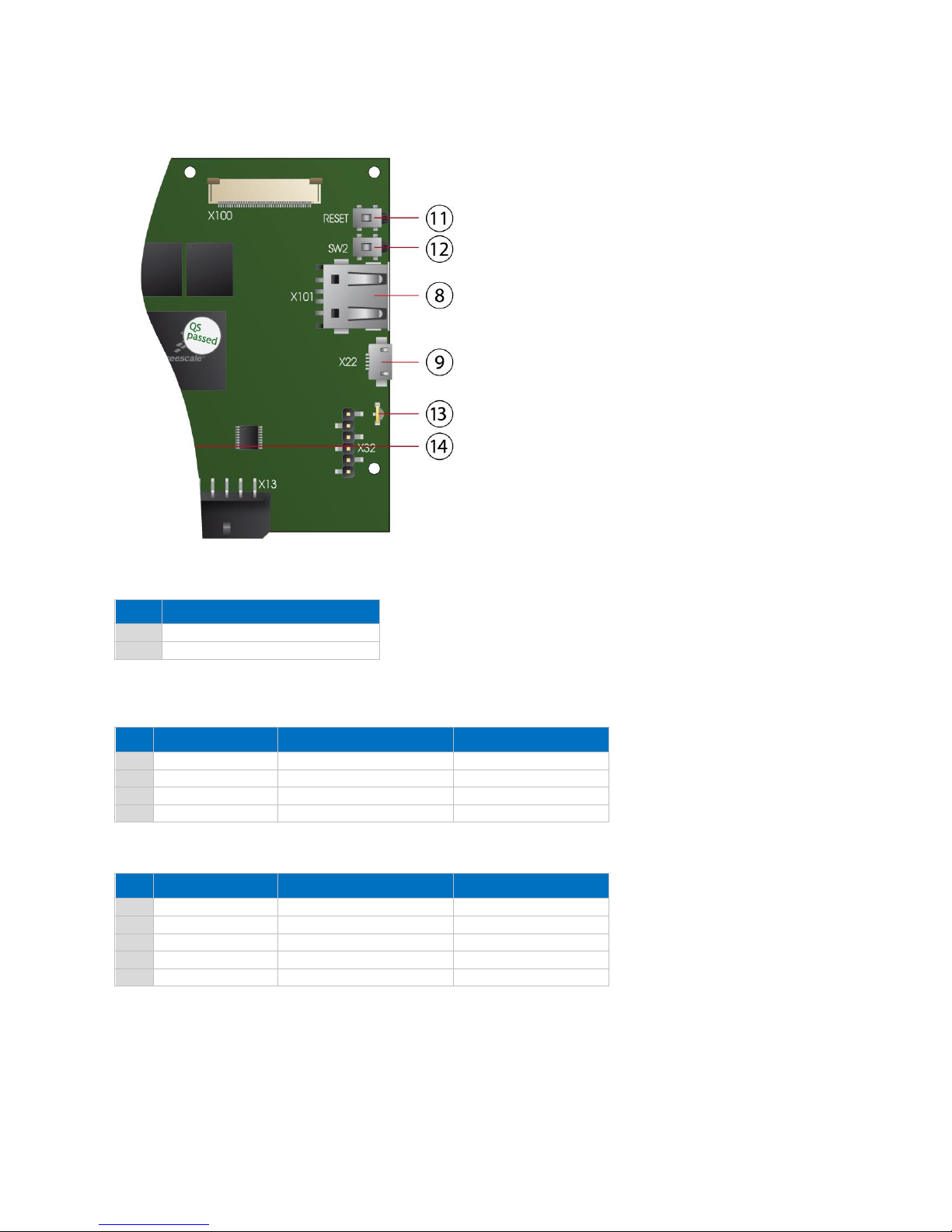

A-2 Cupid Open Frame Version M
Cupid is also available as minor assembly version.
For the details of the external connectors please use the main part on the pages 12.
Pos.
Description
1
Ethernet (X24)
2
Power (X1)
7
RS-232/MDB (X13)
8
USB - Host (X34)
9
USB - OTG (X20)
10
SD card reader (X31)
11
Reset Switch (SW1)
12
Clear all Switch (SW2)
13
Status LED
CUPID 7.0" Open Frame Manual
27
A-3 Sideways USB instead of SD-Card reader
Pos.
Description
8
USB-Host (X101)
9
USB-OTG (X22/32)
X 101
Pin
Name
Description
Level
1
Vcc
Power supply
5 V/ Max 500 mA
2
D-
Data minus
3 D+
Data plus
4 GND
Ground
X22
Pin
Name
Description
Level
1
Vcc
Power supply
5 V/ Max 500 mA
2
D-
Data minus
3
D+
Data plus
4
ID
Device ID
5
GND
Ground
Header: Micro-USB Type AB
CUPID 7.0" Open Frame Manual
28
Annex B: Hardware revision information
This document is applicable for all products listed below. Please note that customized variants might possibly
not support all features listed herein. Additional features are documented in specific attachments.
Platform
Article Number
Marking on PCB
CUPID 7.0” Open Frame
900-2924R
0356 CUPID V1.4
CUPID 7.0” Open Frame M
900-2928R
0356 CUPID V1.4
CUPID 7.0" Open Frame Manual
29
Annex C: Mechanical specifications
C-1 Mechanical Drawings
CUPID 7.0" Open Frame Manual
30
Annex D: Quality and Incoming Inspections
D-1 Display
CUPID 7.0" Open Frame Manual
31
CUPID 7.0" Open Frame Manual
32
CUPID 7.0" Open Frame Manual
33
CUPID 7.0" Open Frame Manual
34
D-2 Evaluation Criteria of standard display module
Evaluated Zone 1:
Areas in the immediate viewing area: dirt and dust
enclosures / stains / striae / scratches from max. 500 µm (diameter) or 0.02 mm2 (surface), 5 pcs. per dm 2 are
permitted, but no clustering.
Evaluated Zone 2:
Surfaces that are concealed after installation: Dirt and dust enclosures / stains / striae / scratches from max. 2
mm (diameter) or 3 mm2 (surface), 10 pcs per dm2 are permitted.
Assessor:
trained, normal-sighted person
Viewing angle:
90 degrees to test object, no reflection
Lighting condition:
1000 LUX on test object
Viewing time:
max. 10 sec / dm2
CUPID 7.0" Open Frame Manual
35
Annex E: Battery
E-1 Battery Specifications
The internal baseboard is equipped with a Lithium battery (CMOS battery, type CR2032), which has a typical
lifetime longer than 10 years.
Typically we assemble one of the following batteries:
Manufacturer
Model
Varta
CR2032B
Toshiba
CR2032
Panasonic
CR2032BE
Danger of explosion when replaced with wrong type of battery.
Replace the battery only with a Lithium battery that has the same or equivalent type recommended
by Garz & Fricke GmbH.
Do not dispose of used CMOS batteries in domestic waste.
Dispose of the battery according to the local regulations dealing with the disposal of these special
materials (e. g. to the collecting points for disposal of batteries).
CUPID 7.0" Open Frame Manual
36
E-2 Replacement of the internal battery
The internal battery is placed as per figure below.
For replacement, the SD-card and the back cover have to be removed.
The device shall be opened by authorized and skilled personnel only.
Danger of electric hazard! First before opening, please make sure that the unit is completely
disconnected from any power supply, direct or indirect. In order to remove the back cover all other
connectors must be removed as well. Please make sure that the SD-card has been removed as it
blocks the cover. Furthermore take care about the socket and connectors. Especially the micro-USB
connector might be damaged easily.
(Exemplary illustration)
Position of the battery
4 screws of back cover
Please remove SD card first!
CUPID 7.0" Open Frame Manual
37
Annex F: Guidelines and Standards
F-1 EMC Pretests
The Garz & Fricke open frame products are OEM-products, which are intended for the integration in
customer housings. Therefore regulations and requirements are subjected to different markets.
To help you with the EMC Certification we did pretests for radiated emissions with the open frame products.
The results of the CUPID 7.0” open frame test are available on request.
F-2 RoHS Declaration
Devices comply with the requirements of Directive 2011/65/EU of the European Parliament and of the Council
of 8th June 2011 on the restriction of the use of certain hazardous substances in electrical and electronic
equipment.
F-3 UL Certification
Customers of Garz & Fricke are attending on different markets. These markets are subjected to different
UL certifications. Therefore Garz & Fricke have no UL certification for their products.
To obtain UL certifications the product is designed to respect the following constraints:
All electronic printed circuit boards are conform to UL standard
Battery schematics meets the requirements of UL standard (please refer to chapter 0)
All wirings are designed with UL components
The selected components on the markets are UL
(List of UL relevant components is available at Garz & Fricke (on request))
Garz & Fricke do not guarantee to obtain UL certifications.
CUPID 7.0" Open Frame Manual
38
Annex G: Common documentation
G-1 Warranty hints
Garz & Fricke embedded systems are subject to manufacturer’s guarantee as long as the products
are handled with adequate care and caution and in accordance to this manual.
The period of guarantee starts from the date of shipment
The products are warranted against defects in material, quality and functionality within the
guaranteed period.
During this period, the repair of the products is free of charge.
Garz & Fricke will decide for repair or replacement at their own discretion.
If the product has been returned with or without prior notice and no failure or malfunction can be
detected or the failure or malfunction is caused by inappropriate handling or the device has been
returned after expiry of warranty period, Garz & Fricke reserve the right to charge the user for repair
or replacement.
The warranty does not cover defects caused by improper or inadequate installation, maintenance or
handling by the user, unauthorized modification or misuse, operation outside the specification a noncompliance of this manual. In case of doubt, please contact the technical sales team prior to
intended activity.
The warranty does also not cover any defects or damages of other equipment connected to the Garz
& Fricke product, faulty or not.
For warranty or repair service, please contact the technical sales team.
CUPID 7.0" Open Frame Manual
39
G-2 Application notes
The products covered by this document are designed and manufactured for the following applications (I). If you
intend to use these products in applications as quoted in (II) or (III) we highly recommend a personal contact
with our consultants and/or technical sales team.
(I) Recommended application areas for Garz & Fricke embedded systems
Even for these applications, we recommend to get in contact with our technical sales team. We
offer a wide range of support, even at an early stage of evaluation and/or design-in phase.
Vending machines and gastronomy devices
Industrial controllers and HMI systems
Home automation and facility management
Audiovisual equipment
Instrumentation and measuring equipment
(II) Advanced applications areas, prior consultation is recommended
These applications require a responsibility for fail-safe operation, redundancy and other
measures for ensuring reliability and safety of the equipment and the overall system.
Gas leak detectors
Rescue and security equipment
Safety devices
Control and safety devices for airplanes, trains, automobiles and other transportation
equipment
Mainframe computers
Traffic control systems
(III) Restricted application areas, prior consultation is mandatory
The following appliances demand extremely high performance in terms of functionality,
reliability and/or accuracy. We do not recommend the products covered herein for the
following:
Aerospace equipment
Control equipment for nuclear power industry
Medical equipment related to life support etc.
Gasoline stations and oil raffineries
G-3 Trademarks and service marks
There are a number of proprietary logos, service marks, trademarks, slogans and product designations
("Marks") used in this document. By making the Marks available in this document, Garz & Fricke GmbH is not
granting you a license to use them in any fashion.
The following Marks are the property of Garz & Fricke GmbH. This list is not comprehensive; the absence of a
Mark from the list does not constitute a waiver of intellectual property rights established by Garz & Fricke
GmbH in a Mark.
CUPID, FLASH N´GO, NESO LT, LIVIUS, VINCELL, VINCELL LT related XY Starter Kits and subversions (XY
“core”, “open frame”, “boxed”) are registered trademarks or products of Garz & Fricke GmbH, Hamburg.
All other product or service names are the property of their respective owners.
© 2015 Garz & Fricke GmbH
Loading...
