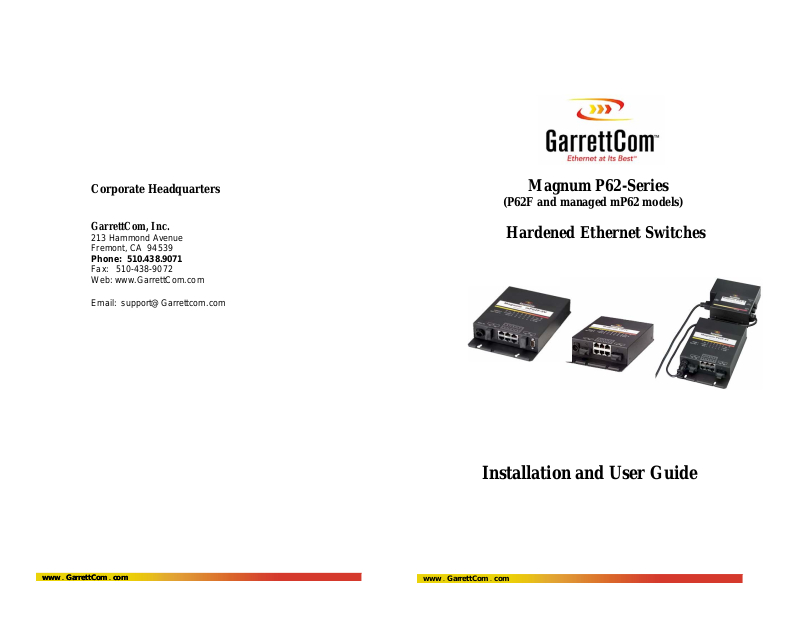

GarrettCom P62 User Manual

(P62F and managed mP62 models)

Hardened Ethernet Switches

Installation and User Guide

Magnum P62-Series

www GarrettCom com

..

Magnum P62-Series Hardened Switches Installation and User Guide (11/03)

Magnum

(P62F and managed mP62 models)

™ P62-Series

Hardened Ethernet Switches

Installation and User Guide

Part #: 84-00092, (Rev I 11/03)

Trademarks
Ethernet is a trademark of Xerox Corporation
NEBS is a trademark of Telcordia Technologies
UL is a registered trademark of Underwriters Laboratories
GarrettCom, Magnum, Personal Switch, S-Ring Redundancy Manager (pate nt pe ndi ng)

and Link-Loss-Learn (patent pending) are trademarks and Personal Hub is a registered
trademark of GarrettCom, Inc.

Important: The Magnum P62-Series Hardened Ethernet Switches contain no user
serviceable parts. Attempted service by unauthorized personnel shall render all
warranties null and void. If problems are experienced with a Magnum P62-Series
Hardened Switch product, consult Section 5, Troubleshooting, of this User Guide.

Copyright © 2003 GarrettCom, Inc. All rights reserved. No part
of this publication may be reproduced without prior written permission from
GarrettCom, Inc.

Printed in the United States of America.

www GarrettCom com

..

i

Magnum P62-Series Hardened Switches Installation and User Guide (11/03)

Contacting GarrettCom, Inc

Please use the mailing address, phone and fax numbers and email address listed below:

GarrettCom, Inc.

47823 Westinghouse Drive

Fremont, CA 94539

Phone [phone]

Fax [phone]

Website: http://www.GarrettCom.com

email [e-mail]

Federal Communications Commission

Radio Frequency Interference Statement

This equipment generates, uses and can radiate frequency energy and if not installed
and used properly, that is in strict accordance with the manufacturer's instructions, may cause
interference to radio communication. It has been tested and found to comply with the limits for
a Class A computing device in accordance with the specifications in Subpart J of Part 15 of
FCC rules, which are designed to provide reasonable protection against such interference
when operated in a commercial environment. Operation of this equipment in a residential area
is likely to cause interference, in which case the users at their own expense will be required to
take whatever measures may be required to correct the interference.

www GarrettCom com

..

ii

Magnum P62-Series Hardened Switches Installation and User Guide (11/03)

MAGNUM

ETHERNET CONNECTIVITY PRODUCTS

"DESIGNED AND MANUFACTURED IN THE USA"

Overview

GarrettCom, Inc. offers the Magnum line of Ethernet LAN connectivity products

with industry-standard functionality. Magnum products are heavy duty, feature

fiber-built-in ports, and have AC and DC power options to make them suitable for

a variety of Industrial and Carrier Class applications.

6K25 Managed Fiber Switches, Gigabit, 100 and 10 Mbps, fiber and copper ports, mix­and match. Features SFF fiber for up to 25 fiber ports in a 1U unit. Configurable .
4K-Series Switches, 100 and 10 Mbps copper ports with optional 100Mb fiber ports,
regular and Reverse rack-mount models, AC and DC power options, heavy duty specs.
Quad-Series Fiber Switches, 100 & 10Mbps, fiber and copper ports, mixed-speed and
mixed-media types, full switching performance, AC and DC power options.
P62-Series “Outdoor” Ethernet Switches, for temperature uncontrolled applications,

6 10/100 and 2 100Mb fiber ports, managed and unmanaged models, all fiber types.

Mixed-Media Fiber Hub, 16-port Stackable,10/100 auto-sensing, AC and DC power
Dual Speed 8-port and 16-port Stackables, 10/100 auto-sensing. AC and DC power
cPCI

Blade

12-port 10/100 “hub-on-a-card” for Compact PCI chassis rear I/O

ITS

Blade

8-port 10/100 “switch-on-a-card” for Model 2070 Traffic Controller Chassis

Stackable Hubs, SNMP Optional

10Mb series and 100Mb series, both w/ optional port modules, AC and DC power
Personal Switches, 10/100Mb

8 port dual speed, Auto-negotiable with fiber option
Personal Hubs, 100Mb or 10/100Mb

8-port, with two switched ports (1 fiber built in)
Personal Hubs, 10Mb series
8-port + AUI, stackable to 5 high, + optional BNC of fiber port

8 or 9-port and 4 or 5-Port Personal Hubs, w/ man. up-link sw.
Media Converters, 10Mb and 100Mb series, for offices and Hardened models for
industrial applications. All media combinations, incl. fiber ST, SC, mm., single mode

The “X-line” of configurable MiXed Media products:
Stackable Concentrators, SNMP optional, 13-Ports
Repeater Port Modules (RPMs), 6 types for Ethernet media
Bridge Port Modules (BPMs), 4 types, for segment isolation
Transceivers, 10Mb series Mini-Transceivers and Coax Models Nov, 03

www GarrettCom com

..

iii

Magnum P62-Series Hardened Switches Installation and User Guide (11/03)

TABLE OF CONTENTS PAGE

1.0

SPECIFICATIONS..............................................................................................2

1.1 Technical Specifications...................................................................................2

1.2 Ordering Information........................................................................................5

2.0 INTRODUCTION ...............................................................................................7

2.1 Inspecting the Package and Product..................................................................7

2.2

Product Description......................................................................................8

2.2.1 Magnum P62-Series chassis w/fiber SC (m.m. or s.m) connectors..........9

2.2.2 Managed mP62 chassis with fiber SC (m.m. or single-mode) ports ..10

2.2.3 Managed Network Software ( MNS-mP ) for Magnum mP62..............11

2.2.4 Connecting the Console Terminal to Magnum mP62 (Management)...12

2.2.5 RS-232 (DB-9) Console Com. port pin assignments.............................13

2.3 Fiber port, SC Connectors...............................................................................13

2.4 Frame Buffering and Latency.........................................................................14

2.5 Features and Benefits......................................................................................16

2.6 Applications....................................................................................................17

3.0 INSTALLATION...............................................................................................20

3.1 Locating Magnum P62F-Series 10/100Mb Ethernet Switches .......................20

3.1.1 Mounting position and materials............................................................20

3.1.2 Mounting dimensions.............................................................................20

3.2 Connecting Ethernet Media, and Special Strain-relief feature........................22

3.2.1 Connect Twist Pair (RJ-45, CAT 3 or CAT 5, Unshielded or Shield)..22

3.2.2 Connecting Fiber Optic SC-type, "Snap-In" ..........................................23

3.2.3 Connecting Fiber Optic ST-type, “Snap-In” (Optional).........................23

3.2.4 Connecting Single-Mode Fiber Optic ....................................................23

3.2.5 Power Budget Calculations for P62-Series Fiber Media........................24

3.2.6 Connections to NICs which support Auto-Negotiation, RJ-45 ports ....25

3.3 Powering the Magnum P62-Series Hardened Switch .....................................25

3.3.1 Power P62F and mP62 models, for –48V and 24V DC pwr input.........25

3.3.2 Power the P62-5V models w/Ext AC Power Supply (PSX-A)...............26

3.3.3 Power the P62-5V w/DC Pwr Supply (PSX-T) at 125/250 VDC .........27

3.4 Cable Strain Relief Feature on all P62-Series models ....................................28

3.5 DIN-Rail mounting option for mP62 Series ...................................................29

4.0 OPERATION.....................................................................................................30

4.1 Dual-Speed Functionality, and Switching.......................................................30

4.2 Auto-negotiation and Speed-sensing...............................................................31

4.3 LED’s for P62-Series Hardened Switch......................................................31

5.0 TROUBLESHOOTING....................................................................................32

5.1 Before Calling for Assistance.........................................................................32

5.2 When Calling for Assistance...........................................................................33

5.3 Return Material Authorization (RMA) Procedure..........................................33

5.4 Shipping and Packaging Information..............................................................34

APPENDIX A: WARRANTY INFORMATION........................................................34

Rev I 11/03
Rev H 08/03

Rev G 03/03 : This revision adds the DIN-RAIL mounting options & UL requirement for DC .
Rev F 11/02 : This revision adds the Managed mP62 models.

Rev E 06/02 : Changed Altitude spec, and added Mechanical mounting drawing in 3.1.2.
Rev D 01 / 02: This revision changes the installation proc. and operating Temp. range.

Rev C 11/01: This revision includes the magnum P62F-NOF, and metal mounting.

www GarrettCom com

Console port pin assignments added

The DC Power input range is corrected, from 20-70VDC to 20-60VDC

..

1

Magnum P62-Series Hardened Switches Installation and User Guide (11/03)

Rev B 08/01: This revision includes the update of additional power source
Rev A 04/01: This revision is the initial release of the P62F Hardened Switches user manual.

1.0 SPECIFICATIONS

1.1 Technical Specifications

Fiber, and when an auto-negotiating port is operating at 100Mbps:

Ports Performance

Data Rate: 100Mbps
When an RJ-45 auto-negotiating port is operating at 10 Mbps:
Data Rate: 10 Mbps
For mP62 models, RJ-45 ports are S/W controlled for speed and F/H

duplex, crossover (MDI – MDIX) is automatically handled

Network Standards

100Mb: Ethernet IEEE 802.3u, 100BASE-TX, 100BASE-FX
10 Mb: Ethernet IEEE 802.3, 10BASE-T
Auto-sensing for speed: IEEE 802.3u; 802.3x flow control
For managed mP62 models, IEEE 802.1p QoS and 802.1d Spanning Tree
For mP62 management software, see Section 2.2.3

Packet-Processing Between Domains is non-blocking
Filtering and Forwarding Rate from 100Mbps ports: 148,800 pps max

Filtering and Forwarding Rate from 10 Mbps ports: 14,880 pps max.
Processing type: Store and Forward

Auto-learning: 4K address table (16K on P62F), shared for all ports
Packet buffers: 256KB, dynamically shared on all domains

µ

Latency (not including packet time): 100 to 10 Mbps: 5
10 to 100Mbps: 5
Path Delay Value: 50 BT on all ports

Maximum Ethernet Segment (or Domain) Lengths

s

µ

s

10BASE-T (Unshielded twisted pair) - 100 m (328 ft)
100BASE-TX (CAT 5 UTP) - 100 m (328 ft)

100BASE-FX, full-duplex: (multi-mode) - 2.0 km (6,562 ft)
100BASE-FX, full-duplex: (single-mode) - 20.0 km (65,620 ft)
100BASE-FX, full-duplex: (single-mode, long) - 40.0 km (131,240 ft)

Operating Environment

(-40°C to 75°C for mP62, 70°C for P62F))
Cold start down to -20°C
Storage Temperature: -40° to 185°F (-40°C to 85°C)
Ambient Relative Humidity: 5% to 95% (non-condensing)

Altitude: -200 to 50,00 ft. (-60 to 15,000m)
“Plenum rated” for above-the-ceiling installation in office areas
IEC 529 rated IP51 (holds out dust, vertical water)

Ambient Temperature: -40°F to 170°F for mP62 (160°F for P62F)

www GarrettCom com

..

2

Magnum P62-Series Hardened Switches Installation and User Guide (11/03)

Operating Shock and Vibration: Meets Bellcore GR-63-CORE
Conformal coating (tropical humidity protection) optional, request quote

)

Power Supply (Internal

24VDC and -48VDC Power Supply

Power Input Voltage: 20 to 60 VDC (auto-ranging), “-, GND, +”
Power Consumption: 10 watts typical.

DC-DC Converter Rating: 5VDC, 2Amps

Power Supply (Ext.) 125VDC & 250VDC, (PSX-T) for P62-Series -5V only

Power Input Voltage: 100 to 275 VDC (nominal rating of 125, 250VDC)
Power Consumption: 15 watts typical.

DC-DC Converter Rating: 5VDC, 3Amps

)

Power Supply (External

AC Power Connector: IEC-type, male recessed at rear of Power Supply chassis
Input Voltage: 85 to 264 VAC (auto-ranging)
Input Frequency: 47 to 63 Hz (auto-ranging)
Power Consumption: 15 watts typical
Power Supply Rating: 3Amps at 5VDC

AC Power Supply (PSX-A) for P62F-5V and mP62-5V

Network Cable Connectors -6 RJ-45 shielded female ports and 2 fiber port

100Mbps: Category 5 UTP/STP, fiber (50/125, 62.5/125 mm, or single-mode at

9/125 micron)

10 Mbps: Category 3, 4, 5 UTP (Note: auto-sensing does not sense cable type)

Full-duplex / Half -duplex on copper (RJ-45) switched Po r t s # 2 to 7

All the RJ-45 ports support Full / Half duplex and 10/100 speed, each inde-

pendently auto-negotiating on P62F models; S/W controlled on mP62 models.

Fiber Ports # 1 and 8

The switched fiber ports # 1 & 8 are fixed at full-duplex only, 100Mb speed.
Mechanical
Enclosure: Rugged 18-gauge high-strength steel case. Metal mounting plate

included. Suitable for stand-alone, shelf, pedestal or wall mounting. The case also

serves as a heat sink. The metal mounting base is included, 13-guage steel.

(Without the base, the box size is only 7” high). Mounting holes in the base plate

are a rectangle that measures 3.35” x 7.92” (8.5 x 20.1 cm) center to center.
See Section 3.1.2 for additional mounting details.
Dimensions (wall mounted): 1.70 in D x 5.75 in W x 8.8 in H
(4.3 cm x 14.6 cm x 22.4 cm)
Weight: 3.5 lb. (1.6 kg.)
Cooling method: Convection, with case operating as a heat sink.
Note: Internal thermal materials and techniques (patent pending) conduct heat from

the electronic elements inside to the steel case which acts as a heat sink. Internal

chip temperatures are only about 10°C above case ambient at steady state

operation
LED Indicators
PWR: Steady ON when power applied
SPEED: (when LINK is ON): ON = 100Mbps; OFF = 10 Mbps
LINK/ACT: Steady ON for LINK with no traffic, blinking indicates port

www GarrettCom com

..

3

Magnum P62-Series Hardened Switches Installation and User Guide (11/03)

is transmitting / receiving.

F/H (RJ-45 ports only): ON = full-duplex, OFF = half-duplex

MTBF (Bellcore method)
Over 10 years MTBF. Email
Agency Approvals
UL Listed (UL 60950), cUL, CE Emissions meet FCC part 15, Class A.

NEBS L3 and ETSI compliant.
IEEE P1613 Environmental Standard for Electric Power Substations.
IEC61850 EMC and Operating Conditions Class C for Power Substations
NEMA TS-2 and TEES for traffic control equipment.

Warranty: Three years, return to factory Made in USA

[e-mail]

for details

www GarrettCom com

..

4

Magnum P62-Series Hardened Switches Installation and User Guide (11/03)

1.2 Ordering Information

Magnum P62-Series, 10/100 Ethernet Switch

Magnum P62F-AC-2MSC: P62F-AC Ethernet Switch with six 10/100 RJ-45 and two

100Mb FDX fiber multi-mode SC-type ports. Has 16KB address table and 1.0 MB packet
buffers. AC power input, 85-160vac 47-63Hz worldwide auto-ranging via PSX-A power
source Extended Temp ( a separate unit). Steel case used as a heat sink, designed for use
in environmentally challenged locations such as “outdoors” with extended temperatures.

Magnum P62F-AC-1MISSC: Same as P62F-AC-2MSC, except one fiber port is 20km

single-mode SC. (includes PSX-A unit)

Magnum P62F-AC-2SSC: Same as P62F-AC-2MSC, except both fiber ports are 20km

single-mode SC. (includes PSX-A unit)

Magnum P62F-AC-NOF: P62F-DC Ethernet Switch, six 10/100 RJ-45 and

ports. Has 16KB address table and 1.0MB packet buffers. AC power input 85­260vac 47-63Hz worldwide auto-ranging, via PSX-A Power Source Extended
Temp (a separate unit). Steel case used as a heat sink, designed for use in
environmentally auto-ranging. Steel case used as a heat sink, designed for use in
environmentally challenged locations such as “outdoors” with extended temperatures.

Magnum P62F-2MSC: 8-port Ethernet Switch with two 100Mbps full-duplex switched

fiber ports (multi-mode SC-type connector), and six half- or full-duplex switched
RJ-45 10/100 auto-negotiating ports. Includes store-and-forward switching that
filters and forwards data moving between the ports. The internal switch has 16K
nodes address table and 1MB packet buffers. DC power input,20-60VDC auto­ranging. Steel case acts as a heat sink. Rated for extended temperature.

Magnum P62F-1M1SSC: Same as P62F-2MSC, but with one multi-mode SC-type and

one 20Km single mode SC fiber connectors.

Magnum P62F-2SSC: Same as P62F but with two 20Km sgl-mode SC-type fiber ports
Magnum P62F-NOF: P62F-DC Ethernet Switch, six 10/100 RJ-45 and

Has 16KB address table and 1.0MB packet buffers. DC power input, 18-60VDC
auto-ranging. Steel case used as a heat sink, designed for use in environmentally
challenged locations such as “outdoors” with extended temperatures.

Parts

Magnum P62F-5V-2MSC: Same as P62F-2MSC, except with 5VDC input using

military-type-screw-lock connector.

Magnum P62F-5V-1M1SSC: Same as P62F-1,1SSC, except with 5VDC input using

military-type-screw-lock connector.

Magnum P62F-5V-2SSC: Same as P62F-2SSC, except with 5VDC input using

military-type-screw-lock connector.

Magnum P62F-5V-NOF: Same as P62F-NOF, except with 5VFC input via PSX-A

using military-type screw lock connectors.

Magnum PSX-5V-CBL (spare): 2-ft power cord with military type screw-lock

connector, spare for PSX to P62F-5V power cord.

Magnum PSX-A: P62F-5V Power Source for Extended Temperature, nominal AC

input 115-240vac at 47-63HZ auto-ranging, 15 watts, 5VDC output at 3Amps.
Steel case used as a heat sink. Extended temperature rated. Output power cord
has military-style screw-lock plug. Mounts as a separate unit adjacent to a

no fiber

no fiber ports.

www GarrettCom com

..

5

Magnum P62-Series Hardened Switches Installation and User Guide (11/03)

Magnum Model P62F-5V Switch.

Magnum PSX-T: Same as PSX-A , except 125VDC to 250VDC input, terminal lugs for

“+”, “-“, and GND

Managed P62-Series (mP62) Hardened Switches

Magnum mP62-AC-2MSC: mP62-AC Managed Switch with six10/100 RJ-45 and two

100Mb FDX fiber multi-mode SC-type ports. Software includes menu-driven user
interface for ease of use, SNMP, QoS, Telnet, Security, STP, VLAN, BootP/DHCP. Has
4Knodes address table and 256K packet buffers. AC power input, 85-260vac 47-63Hz
worldwide auto-ranging, via PSX-A Power Source Extended Temp (a separate unit). Steel
case used a s a heat sink, designed for use in environmentally challenged location such as
“outdoors” with extended temperatures.

Magnum mP62-AC -1MISSC: Same as mP62-AC-2MSC, except one fiber port is 20km

single-mode SC. (includes PSX-A)

Magnum mP62-AC -2SSC: Same as mP62-AC-2MSC, except both fiber ports are 20km

single-mode SC. (includes PSX-A)

Magnum mP62-AC -NOF: mP62 –AC Ethernet Switch w/ six 10/100 RJ-45s,
Magnum mP62-2MSC: mP62-DC Ethernet Switch, six 10/100 RJ-45 and two 100Mb FDX

fiber multi-mode SC-type ports. Software and buffers same as mP62-AC-2MSC. Dc
power input,20-60VDC auto-ranging

Magnum mP62-1MISSC: Same as mP62-2MSC, except one fiber port is 20km single-mode

SC. (No PSX unit required)

Magnum mP62-2SSC: Same as mP62-2MSC, except both fiber ports are 20km single-

mode SC. (No PSX unit required)

Parts

Magnum mP62-5V-2MSC*: Same as mP62-2MSC, except with 5VDC input using military-

type screw-lock connector

Magnum mP62-5V –1M1SSC*: Same as mP62-1M1SSC, except w/ 5VDC input using

military-type screw-lock connector

Magnum mP62-5V –2SSC*: Same as mP62-2SSC, except w/ 5VDC input using military-

type screw-lock connector

Magnum mP62-5V-NOF: Same as mP62-NOF, except w/ 5VDC input using military-type

screw-lock connector

Magnum PSX-5V-CBL (spare): 2ft. power cord with military –type screw-lock connector,

spare for PSX to mP62-5V power cord.

MST Conversion: Special Item, convert one standard P62-2MSC w/two MSC fiber ports to

two MST fiber ports.

*PSX unit or equal required to supply 5VDC input. For more information, see the PSX datasheet.
Magnum P62 models with other fiber connector types and combinations available, request quote.

GarrettCom, Inc. reserves the right to change specifications, performance characteristics and /

or model offerings without notice.

no fiber ports

www GarrettCom com

..

6
