GarrettCom Magnum 1016, Magnum 1008, Magnum 1024 Installation And User Manual

www GarrettCom com

Magnum Workgroup Hubs

“Ten Series”

Models 1008, 1016 and 1024

Installation and User Guide

Magnum 1000 Workgroup Hubs Installation and User Guide (04/02)

www GarrettCom com

Magnum 1008, 1016 and 1024

and optional 48VDC, 24VDC &125VDC-powered models

Workgroup Hubs

Installation and User Guide

Part #: 84-00030 Rev 04/02

Trademarks

Ethernet is a trademark of Xerox Corporation

NEBS is a trademark of Telcordia Technologies

UL is a registered trademark of Underwriters Laboratories

GarrettCom, Magnum and Personal Switch are trademarks and Personal Hub is a

registered trademark of GarrettCom, Inc.

Important: The Magnum 1000 series workgroup hub family

contains no user

serviceable parts. Attempted service by unauthorized personnel shall render

all warranties null and void. If problems are experienced with Magnum 1000

series workgroup hub products, consult Section 5, Troubleshooting, of this

User Guide.

of this publication may be reproduced without prior written permission from

GarrettCom, Inc.

Printed in the United States of America.

Magnum 1000 Workgroup Hubs Installation and User Guide (04/02)

www GarrettCom com

Contacting GarrettCom, Inc

Please use the mailing address, phone and fax numbers and email address listed below:

GarrettCom, Inc.

47823 Westinghouse Drive

Fremont, CA 94539

Phone (510) 438-9071

Fax (510) 438-9072

Website: http://www.GarrettCom.com

email support@garrettcom.com

Federal Communications Commission

Radio Frequency Interference Statement

This equipment generates, uses and can radiate frequency energy and if not

installed and used properly, that is in strict accordance with the manufacturer's

instructions, may cause interference to radio communication. It has been tested and

found to comply with the limits for a Class A computing device in accordance with the

specifications in Subpart J of Part 15 of FCC rules, which are designed to provide

reasonable protection against such interference when operated in a commercial

environment. Operation of this equipment in a residential area is likely to cause

interference, in which case the user at his own expense will be required to take whatever

measures may be required to correct the interference.

Magnum 1000 Workgroup Hubs Installation and User Guide (04/02)

iii

www GarrettCom com

TABLE OF CONTENTS Page

1.0 SPECIFICATIONS ......................................................................................................1

1.1 Technical Specifications......................................................................................1

1.2 Specifications - Repeater Port Module (RPM) ..................................................2

1.3 Specifications - Bridge Port Module (BPM)

......................................................2

1.4 Ordering Inform

ation...........................................................................................3

2.0 INTRODUCTION

........................................................................................................4

2.1 Inspecting the Package and Product ....................................................................

2.2 Product Description - Magnum

1000 Workgroup Hubs .....................................4

2.2.1 Magnum 1008 W

orkgroup Hub ..............................................................5

2.2.2 Magnum 1016 and 1024 W

orkgroup Hubs.............................................6

2.3 Basic AUI Port and Port Module Internal Connections

.......................................8

2.4 Bonus Port Configuration Options - RPMs and BPMs

........................................9

2.4.1 RPM-BNC ...............................................................................................................11

2.4.2 RPM-AUI ................................................................................................................11

2.4.3 RPM-DTE................................................................................................................12

2.4.4 RPM-FST (Fiber ST, Twist-lo

ck Connector) .......................................................13

2.4.5 RPM-FSC (Fiber SC, Sn

ap-in Connector) **....................................................... 13

2.4.6 RPM-SMF (Single Mode Fiber)............................ Error! Book

mark not defined.

2.4.7 RPM-TP (Twisted Pair)......................................................................................15

2.4.8 BPM-BNC ...............................................................................................................16

2.4.9 BPM-AUI ................................................................................................................16

2.4.10 BPM-FST............................................................................................................... 17

2.4.11 BPM-TP................................................................................................................. 17

2.4.12 Special Option -- Second Bonus Port (Models 1016 and 1024)...........................

2.5 Features and Benefits.........................................................................................19

2.6 Applications

.................................................. ERROR! BOOKMARK NOT DEFINED.

3.0 INSTALLA

TION.......................................................................................................22

3.1 Table-Top or Rack-Mount

.................................................................................22

3.2 Powering the Magnum 1000 W

orkgroup Hubs .................................................22

3.3 Ethernet Media Connections

..............................................................................23

3.3.1 Connecting Twisted Pair (RJ-45, U

nshielded or Shielded)....................23

3.3.2 Connecting ThickNet 10BA

SE5 (AUI) ................................................24

3.3.3 Connecting ThinNet 10BA

SE2 (BNC).................................................25

3.3.4 Connecting Drop Cable 10BA

SE5 (DTE) ............................................25

3.3.5 Connecting Fiber Optic (S

T-type, "Twist-Lock")..................................25

3.3.6 Connecting Fiber Optic (S

MA-type, "Screw-on") .................................26

3.3.7 Connecting Single Mode F

iber Optic (SMF).........................................26

3.3.8 Power Budget Calculations for Magnum

1000s.....................................27

3.3.9 Rack M

ounting ......................................................................................27

4.0 OPERATIO

N .............................................................................................................28

4.1 Magnum 1000 Repeater Functionality

..............................................................28

4.2 Magnum 1000 BPM Local Bridge Functionality

..............................................30

4.3 Power Requirem

ents..........................................................................................32

5.0 TROUBLESHOOTING .............................................................................................

5.1 Before Calling for A

ssistance............................................................................33

5.2 When Calling for A

ssistance .............................................................................34

5.3 Return Material Authorization (RM

A) Procedure .............................................34

5.4 Shipping and Packaging Information.................................................................

PPENDIX A: WARRANTY INFORMATION ..........................................................................35

APPENDIX B: OPTIONAL 48V POWER SUPPLY, ADDENDUM***..........36

Magnum 1000 Workgroup Hubs Installation and User Guide (04/02)

www GarrettCom com

Revisions

Rev D 04/02 : Included Power Budget calculation and Rack mounting as well as updated Appendix B with 24VDC & 125VDC option.

Rev C 04/01 : Change the com

pany name to GarrettCom, Inc. (Formerly it was Garrett Communications). There are no changes to the content of the material at this time

Rev B 06/99: Thi

s revision changed the company address to the new location

and added the 48V Appendix B.

Rev A 06/95 : This revision is the initial release of the Magnum 1000 user manual

Magnum 1000 Workgroup Hubs Installation and User Guide (04/02)

www GarrettCom com

The Magnum Line

ETHERNET CONNECTIVITY PRODUCTS

"DESIGNED AND MANUFACTURED IN THE USA"

OVERVIEW

GarrettCom, Inc.offers the premium-quality Magnum line of Ethernet LAN connectivity products with industry-standard functionality and built-in fiber configurability. Magnum products are designed for use in demanding Carrier Class, Industrial Grade and OEM applications where reliability is a primary consideration.

4K-Series Switches, 100 & 10Mbps, copper ports with optional fiber

port, with auto-negotiating full switching performance Quad-Series Fiber Switches, 100 & 10Mbps, fiber and copper ports,mixed-speed and mixed-media types, full switching Performance

“Outdoor” Ethernet Switch, for temperature uncontrolled locations

6 10/100 and 2 100Mb fiber ports, can be connected in strings

Mixed-Media Fiber Hub, 16-port Stackable, 10/100 auto-sensing

Dual Speed 8-port and 16-port Stackables, 10/100 auto-sensing

Stackable Hubs, SNMP Optional

10Mb series and 100Mb series, both w/ optional port modules

Personal Switches, 10/100Mb

8 port dual speed, Auto-negotiable with fiber option

Personal Hubs, 100Mb or 10/100Mb

8-port, with two switched ports (1 fiber built in)

Personal Hubs, 10Mb series

8-port + AUI, stackable to 5 high, + optional BNC of fiber port

8 or 9-port and 4 or 5-Port Personal Hubs, w/ man. up-link sw.

Media Converters, 10Mb and 100Mb series

All media combinations, incl. fiber ST, SC, mm., single mode

The “X-line” of configurable MiXed Media products:

Stackable Concentrators, SNMP optional, 13-Ports

Mini-Concentrators, 7 Ports, Repeaters, 2-Ports

Repeater Port Modules (RPMs), 6 types for Ethernet media

Bridge Port Modules (BPMs), 4 types, for segment isolation Fan-Outs, 10Mb series

2, 4 and 8 Port Models Transceivers, 10Mb and 100Mb series 10Mb Mini-Transceivers and Coax Models, All Types - Apr, 02

Magnum 1000 Workgroup Hubs Installation and User Guide (04/02)

www GarrettCom com

1.0 SPECIFICATIONS

1.1 Technical Specifications

Performance

Data Rate: 10Mbits / sec Partitioning: Enforced after 32 consecutive collisions. Reconnect: Occurs after 512 bits of error-free transmission.

Network Standards

Ethernet V1.0/V2.0 IEEE 802.3: 10BASE-T, 10BASE5

, 10BASE2,

10BASE-FL & FOIRL.

(Magnum Workgroup Hubs are physical lay

er standard Ethernet products,

and operate independently of all software.)

Maximum Ethernet Segment Lengths

DTE (AUI Drop Cable) - 50 m (164 ft) 10BASE-T (twisted pair) - 100 m (328 ft) Shielded twisted pair

- 150m (492 ft) 10BASE2 ThinNet (BNC) - 185 m (607 ft) 10BASE5 ThickNet - 500 m (1,640 ft) FOIRL multi-mode Fiber optic - 1 km (3,281 ft) 10BASE-FL multi-mode Fiber optic - 2 km (6,562 ft) Single-mode Fiber optic

- 10 km (32,810 ft)

Connectors

TP : RJ-45 shielded, female AUI: D-sub 15-pin female with slide lock Other Media: via Port Modules AC Power: IEC recessed male

Switches

Port 1, up-link switch for repeater-to-repeater connections.

LEDs

PWR (AC power on), ACT (common activity

indicator), LINK (per port)

Operating Environment

Ambient Temperature: 32° to 120° F (0° to 50°C)

Storage Temperature: -5° to 140°F (-20°to 60°C)

Ambient Relative Humidity: 10% to 95% (non-condensing)

Packaging

Enclosure: High strength metal. Suitable for wiring closet shelf,

desktop, or rack-mounting.

Dimensions: 1008: [8.5 x 7.75 x 1.75] in, [21.6 x 19.7 x 4.5] cm

1016

& 1024:[17.0 x 7.5 x 1.75] in, [43.2 x 19.1 x 4.5] cm

Weight: 1008: 3.4 lbs, 1.6 kg

1016: 3.1 lbs, 1.4 kg 1024: 3.3 lbs, 1.5 kg

Cooling method: Convection

Magnum 1000 Workgroup Hubs Installation and User Guide (04/02)

www GarrettCom com

Power Supply (Internal)

AC Power Connector: IEC-type, male recessed, rear of chassis Input Voltage: 90 to 260 VAC (auto-ranging) Input Frequency: 47 to 63 Hz (auto-ranging) Power Consumption: 10 watts typical, 20 watts m

ax. P.S. rating

(For 48VDC power input option, see Appendix B).

Agency

Approvals

UL Listed (UL 1950), cUL, CE Emissions meet FCC Part 15 Class A

Warranty

Three years, return to factory Made in USA

1.2 Specifications - Repeater Port Modules (RPMs)

RPM Type : BNC AUI DTE Fiber-mm Fiber-sgl.m TP*

Front Access yes yes yes yes yes yes

Connector Type BNC-f DB-15 f DB-15 m Fiber-ST Fiber-ST RJ-45

Partition (PART)LED yes yes yes yes yes yes

Receive (RX) LED yes yes yes yes yes yes

LINK LED n.a. n.a. n.a. yes yes yes

Switch on Face Plate yes** n.a. n.a. n.a. n.a.

es***

“Fiber-mm” is multi-mode cable, normally used for 10BASE-FL installations, up to

0Km.

“Fiber-sgl.m” is single-mode cable, used for

distant installations, up to 10.0Km.

* The RJ-45 connector is shielded; it accepts RJ-45 eight-pin plugs f

or unshielded and shielded twisted pair wiring. ** Internal termination switch for

BNC, no "T" connector is required. *** MDI-X (Media Dependent Interface - Crossover) switch for RJ-45 up-link, no cr

ossover cable is required.

1.3 Specifications - Bridge Port Modules (BPMs)

BPM Type : BNC AUI Fiber TP*

Connector Type BNC(f) DB-15(f) ST RJ-45

Switch on FP yes** n.a. n.a. yes***

FWD-I LED yes yes yes yes

FWD-X LED yes yes yes yes

LINK LED n.a. n.a. yes yes

* The RJ-45 connector is shielded; it accepts RJ-45 eight-pin plugs f

or unshielded and shielded twisted pair wiring. ** Internal termination switch for

BNC, no "T" connector is required. *** MDI-X (Media Dependent Interface - Crossover) switch for RJ-45 up-link, no cr

ossover cable is required.

Magnum 1000 Workgroup Hubs Installation and User Guide (04/02)

www GarrettCom com

1.4 Ordering Information

Magnum 1000 Workgroup Hubs

Magnum 1008 Eight port 10BASE-T Hub with shielded RJ-45

connectors and front-mounted LEDs. Includes a basic AUI port in the rear; may optionally be ordered instead with an RPM or BPM in the rear port slot. Internal universal power supply, up-link switch on port 1. Stand-alone package, rack-mount brackets optional.

Magnum 1016 16 port 10BASE-T Hub with shielded RJ-45

connectors and front-mounted LEDs. Includes a basic AUI port in the rear and one rear bonus slot for an optional RPM or BPM to be configured. Internal universal power supply, uplink switch on port 1. Stand-alone or rackmount; brackets (ears) included.

Magnum 1024 24 port 10BASE-T Hub with shielded RJ-45

Magnum 10xx-pm Designates a port module (RPM or BPM) to be

factory installed in the applicable rear-mounted bonus slot. (Note that the designated port module option, an RPM or a BPM, must also be purchased as a line item.)

Magnum 10xx-48V Designates optional 48VDC power supply to be

factory installed in the chassis, see Appendix B.

GarrettCom, Inc. reserves the right to change specifications, performance

characteristics and/or model offerings without notice.

Magnum 1000 Workgroup Hubs Installation and User Guide (04/02)

www GarrettCom com

2.0 INTRODUCTION

2.1 Inspecting the Package and Product

Examine the shipping container for obvious damage prior to installing this

product; notify the carrier of any damage which you believe occurred during shipment

or delivery. Inspect the contents of this package for any signs of damage and ensure that

the items listed below are included.

This package should contain:

1 Magnum 1008, 1016 or 1024 Workgroup Hub

1 Set of metal “ears” for optional rack-mounting (Models 1016, 1024 only)

1 AC Power Cord (U.S. and other 115 VAC only)

1 Installation and User Guide

1 Product Registration Card

Remove the items from the shipping container. Be sure to keep the shipping

container should you need to ship the unit at a later date. To validate the product

warranty please complete and return the enclosed Product Registration Card to

GarrettCom, Inc. as soon as possible.

In the event there are items missing or damaged, contact the party from whom

you purchased the product. If the unit needs to be returned, please use the original

shipping container if possible. Refer to Section 5, Troubleshooting, for specific return

procedures.

2.2 Product Description - Magnum 1000-series Workgroup Hubs

Magnum 1000 Workgroup Hubs are full-featured 10BASE-T Ethernet hubs.

Magnum 1000 Hubs provide a low cost, flexible solution for networking a small

workgroup or for adding additional nodes to an existing network via twisted pair

cabling. Magnum 1000 Hubs are well suited for small- to medium-size facilities

requiring an independent Ethernet network, and will operate as self-sufficient devices to

provide 10BASE-T Ethernet connectivity for all local users and devices. Small

independent networks built using Magnum 1000 Hubs are easily expanded by

cascading, adding hubs of the same or similar types to grow the network.

Magnum 1000 Workgroup Hubs Installation and User Guide (04/02)

www GarrettCom com

The family of Magnum 1000 Workgroup Hubs is comprised of Models 1008

(pronounced “ten oh-eight”), 1016 (“ten sixteen”) and 1024 (“ten twenty-four”). These

models are equipped with 8, 16 or 24 front-mounted, shielded RJ-45 ports, respectively.

Magnum 1000 Workgroup Hubs support full Ethernet segment lengths and operate in

compliance with the IEEE 802.3 specification for repeater functionality to perform

signal amplification, re-timing, and regeneration of preamble bits for each packet

received. Consistent with IEEE 802.3 specifications, Magnum 1000 Hubs will detect

collisions, generate jam signals, extend collision fragments, and automatically partition

and re-connect individual ports.

For models with optional 48V DC power supply built in, see Appendix B.

2.2.1 Magnum 1008 Workgroup Hub

The Magnum 1008 Workgroup Hub, shown in Figure 2.2.1a, has eight front-

mounted, shielded RJ-45 ports and one rear-mounted AUI port. The left-most RJ-45

port (port 1) is equipped with a slide switch to allow cascading or an up-link without a

crossover cable. Refer to section 3.3.1 for details about the up-link switch.

Figure 2.2.1a: Front view - Magnum 1008 Workgroup Hub

Status LEDs are located on the front panel of the Magnum 1008 for

convenient monitoring of PWR, ACT (Activity

) and LINK (per port). Magnum 1008s

have an auto-ranging internal power supply, and are suitable for table-top-, wall-, or

rack-mounting. Optional rack-mount brackets may be ordered, part number 1008-RMB.

Figure 2.2.1b shows the rear-mounted AUI port. This is the base or default

configuration for the Magnum 1008. The basic AUI (standard female) port may be used

for a direct connection with an AUI drop cable or for connection to any media type via

an external mini-transceiver.

When using standard AUI cabling to connect to other Ethernet devices, it is

portant to consider the AUI segment length, including any cascading. Refer to

Section 3.3.2 for detailed information on the AUI port, connector pins and standard

cable length requirements.

GARRETT

Magnum 1008

Workgroup Hub

Magnum 1000 Workgroup Hubs Installation and User Guide (04/02)

www GarrettCom com

Figure 2.2.1b: Rear view - Magnum 1008 Workgroup Hub with the basic AUI port

As an alternative to the basic AUI port, it is possible (at the time of initial

order) to replace the basic AUI rear port with any Magnum Port Module (PM). (See

Figure 2.2.1c). This option gives the Magnum 1008 great flexibility to easily conform

to any standard Ethernet media environment. When configured with a Repeater Port

Module (RPM), the rear port can be used for direct connection to any standard Ethernet

media. With a Bridge Port Module (BPM), the rear port is used to bridge-isolate the

Magnum 1008 from the rest of the network, increasing bandwidth for both the local

users and the rest of the network. Refer to Section 2.4 for Magnum Port Module

information. (NOTE: The Magnum 1008’s basic AUI port is NOT an RPM-AUI, it is

simply an AUI port without any

LEDs).

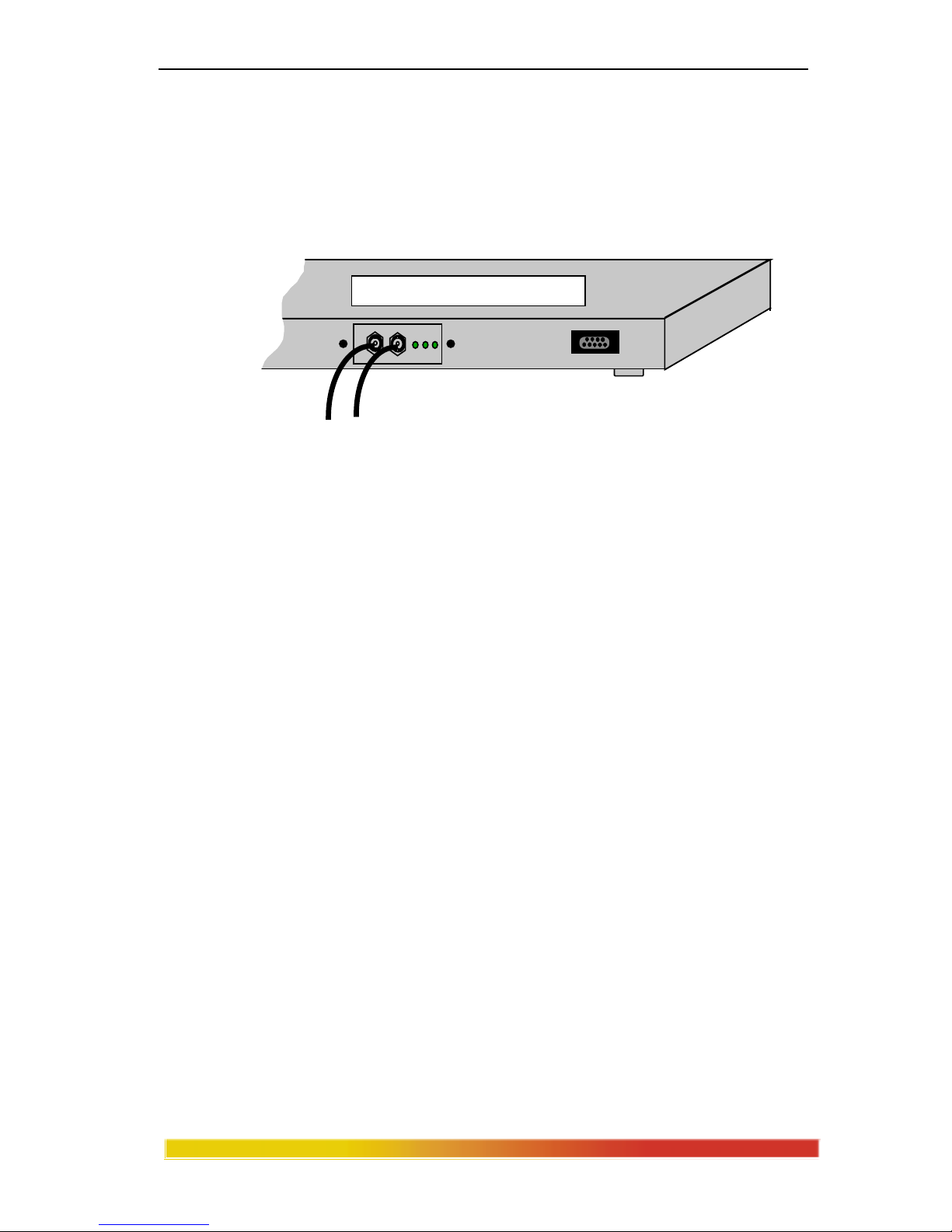

Figure 2.2.1c: Rear view - Magnum 1008 Workgroup Hub configured w

ith PM

2.2.2 Magnum 1016 and 1024 Workgroup Hubs

The Magnum 1016 Workgroup Hub is equipped with 16 front-mounted,

shielded RJ-45 ports, 1 rear-mounted basic AUI port and 1 rear Bonus Port slot (see

Figure 2.2.2a). The left-most front RJ-45 port (port 1) is equipped with a slide switch to

allow cascading or an up-link without a crossover cable.

Figure 2.2.2a: Front view - Magnum 1016 Workgroup Hub

The Magnum 1024 Workgroup Hub is equipped with 24 front-mounted,

shielded RJ-45 ports, 1 rear-mounted AUI port and 1 rear Bonus Port slot (see Figure

2.2.2b).

Basic AUI Port

AC Power

115 - 230 VAC

Port Module

(RPM-FST shown)

AC Power

115 - 230 VAC

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16

GARRETT

Magnum 1016

Workgroup Hub

Magnum 1000 Workgroup Hubs Installation and User Guide (04/02)

www GarrettCom com

Figure 2.2.2b: Front view - Magnum 1024 Workgroup Hub

In the rear, the basic AUI (standard female) port, shown in Figure 2.2.2c, may

be used for a direct connection with an AUI drop cable or for connection to any media

type via an external mini-transceiver. When using standard AUI cabling to connect to

other Ethernet devices, it is important to consider the AUI segment length, including any

cascading. Refer to Section 3.3.2 for detailed information on the basic AUI port,

connector pins and standard cable length requirements. (NOTE: The basic AUI port is

NOT an RPM-AUI, it is simply an AUI port without any LEDs.)

Figure 2.2.2c: Rear view - Magnum 1016 and 1024 Workgroup Hubs

The Bonus Port slot of a Magnum 1016 or 1024, shown in Figure 2.2.2c, may

be optionally configured with any Magnum Port Module (PM). This option gives the

Magnum 1016s and 1024s great flexibility to easily conform to any standard Ethernet

media environment. When configured with a Repeater Port Module (RPM), the rear

port can be used for direct connection to any standard Ethernet media. With a Bridge

Port Module (BPM), the rear port is used to bridge-isolate the Magnum hub from the

rest of the network, increasing bandwidth for both the local users and the rest of the

network. Refer to Section 2.4 for Magnum Port Module information.

Status LEDs are located on the front panel of both the 1016 and 1024 for

convenient monitoring of PWR, ACT and LINK (per port). Magnum 1016 and 1024

hubs have auto-ranging internal power supplies, are suitable for table-top-, wall-, or

rack-mounting. Rack-mount “ears” are supplied with both the Magnum 1016 and

Magnum 1024 Workgroup Hubs.

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24

GARRETT

Magnum 1024

Workgroup Hub

AC Power

115 - 230 VAC

Basic AUI Port

Configurable Bonus Port

(RPM-FST Shown)

Magnum 1000 Workgroup Hubs Installation and User Guide (04/02)

www GarrettCom com

2.3 Internal Connections, basic AUI Port and Port Modules

Figure 2.3a shows the internal layout of the Magnum 1008 for each of the two

rear port configuration options (see section 2.2.1). Unless otherwise specified at the

time of order, the Magnum 1008 is shipped with a basic AUI port. For greater

application flexibility, any of the Magnum PMs may be specified at the time of order for

factory configuration. It is also possible for the rear port to be re-configured in the field

by a trained technician to exchange or add Port Modules.

NOTE: When changing from the basic AUI port to a Port Module option in the field, it is necessary

to have a Port Module connector cable (part number CBL-PM available as a

spare part from GCI) in addition to the desired PM.

Figure 2.3a: Model 1008 Internal Connections, Basic AUI port and Port Module

Figure 2.3b shows the internal layout of the Magnum 1016 and 1024

Workgroup Hubs. (The Model 1024 is shown in the figure, but all rear port connections

are identical for the Model 1016). One rear port alway

s has the basic AUI port in it.

The bonus port slot, in the center of the chassis rear, is available for configuring any

PM. For application flexibility, any of the Magnum PMs may be specified on an order

for factory configuration in the bonus port slot. It is also possible for the bonus port to

be re-configured in the field by a trained technician to exchange or add Port Modules.

NOTE: When adding a Port Module option to the Bonus Port slot in the field, it is necessary

to have a Port Module connector cable (part # CBL-PM available as a spare

part from GCI) in addition to the desired PM. See also Section 2.4.12, Special Option.

Optional PM card

(BPM shown)

Basic AUI port

PM Ribbon cable with 16 pin headers.

(Included only when PM is factory installed. May be ordered separately as part # CBL-PM)

NOTE:

Use P1 for Basic AUI port

Use P1-RPM for PM

P1-RPM P1

P1-RPM

+ 30 hidden pages

GarrettCom Magnum 1016, Magnum 1008, Magnum 1024 Installation And User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
