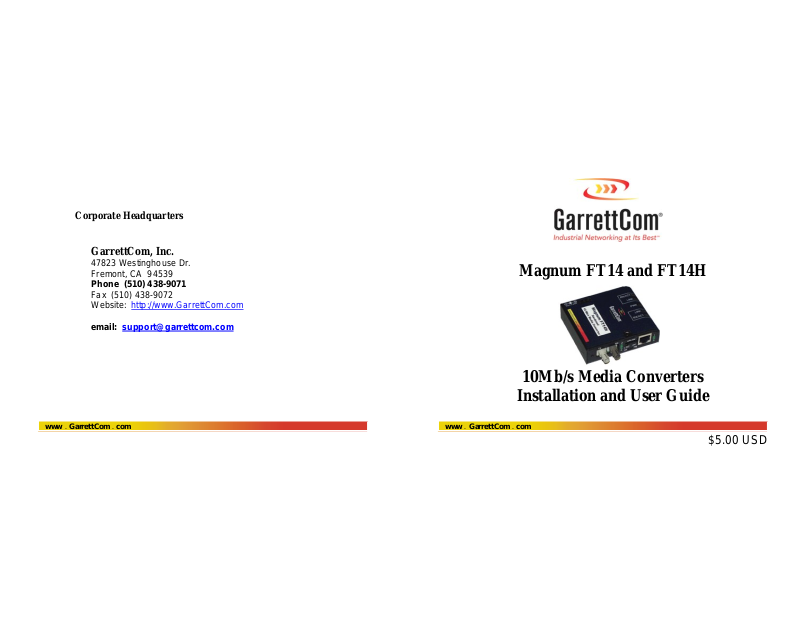

GarrettCom FT14 User Manual
Magnum FT14 and FT14H
Installation and User Guide
www GarrettCom com
..
10Mb/s Media Converters
$5.00 USD
FT14 and FT14H 10Mb Media Converters Installation and User Guide (09/09)
Magnum™ FT14 and FT14H 10Mb/s Media Converters
Installation and User Guide
Part #: 84-00134Z Rev. B
Trademarks
GarrettCom is a registered trademark and Magnum, Dymec, DynaStar, Personal
Switch, Link-Loss-Learn, S-Ring, Convenient Switch and Converter Switch
are trademarks of GarrettCom, Inc.
Ethernet is a trademark of Xerox Corporation
NEBS is a trademark of Telcordia Technologies
UL is a registered trademark of Underwriters Laboratories
www GarrettCom com
i
..
FT14 and FT14H 10Mb Media Converters Installation and User Guide (09/09)
Important: The Magnum FT14 and FT14H 10 Mb/s Media Converters
contains no user serviceable parts. Attempted service by unauthorized
personnel shall render all warranties null and void. If problems are
experienced with Magnum FT14/FT14H 10 Mb/s Media Converters products,
consult Section 5, Troubleshooting, of this User Guide.
Copyright © 2003 GarrettCom, Inc. All rights reserved. No part of this publication may
be reproduced without prior written permission from GarrettCom, Inc.
Printed in the United States of America
GarrettCom, Inc. reserves the right to change specifications, performance characteristics
and/or model offerings without notice.
www GarrettCom com
..
ii
FT14 and FT14H 10Mb Media Converters Installation and User Guide (09/09)
Federal Communications Commission
Radio Frequency Interference Statement
This equipment generates, uses and can radiate frequency energy and if not
installed and used properly, that is in strict accordance with the manufacturer's
instructions, may cause interference to radio communication. It has been tested and
found to comply with the limits for a Class A computing device in accordance with the
specifications in Subpart J of Part 15 of FCC rules, which are designed to provide
reasonable protection against such interference when operated in a commercial
environment. Operation of this equipment in a residential area is likely to cause
interference, in which case the user at his own expense will be required to take whatever
measures may be required to correct the interference.
www GarrettCom com
..
iii
FT14 and FT14H 10Mb Media Converters Installation and User Guide (09/09)
Electrical Safety requirements:
1. This product is to be installed Only in Restricted Access Areas
(Dedicated Equipment Rooms, Electrical Closets, or the like).
2. 48VDC products shall be installed with a readily accessible disconnect
device in the building installation supply circuit to the product.
3. This product shall be provided with a maximum 10A DC Listed fuse or
circuit breaker in the supply circuit when connected to a 48V
centralized source.
4. The external power supply for DC units shall be Listed, Direct Plug In
power unit, marked Class 2, or listed ITE Power Supply, marked LPS,
which has suitably rated output voltage (i.e. 24VDC or 48VDC) and suitable
rated output current.
5. Product does not contain user replaceable fuses. Any internal fuses can
ONLY be replaced by GarrettCom personnel through the RMA process.
www GarrettCom com
..
iv
FT14 and FT14H 10Mb Media Converters Installation and User Guide (09/09)
Contacting GarrettCom, Inc
Please use the mailing address, phone and fax numbers and email address listed below:
GarrettCom, Inc.
47823 Westinghouse Dr.
Fremont, CA 94539
Phone (510) 438-9071
Fax (510) 438-9072
Website: http://www.GarrettCom.com
Email: support@garrettcom.com
www GarrettCom com
..
v
FT14 and FT14H 10Mb Media Converters Installation and User Guide (09/09)
TABLE OF CONTENTS Page
1.0 SPECIFICATIONS ............................................................................... 1
1.1 Technical Specifications ...................................................................... 1
1.2 Summary of models and descriptions: ................................................. 7
2.0 INTRODUCTION ................................................................................. 8
2.1 Inspecting the Package and the Product ............................................... 8
2.2 Product Description ............................................................................. 9
2.3 Features and Benefits ......................................................................... 15
2.4 Applications for FT14’s and hardened FT14H’s ............................... 18
2.5 Full / Half-duplex capability .............................................................. 20
2.6 Link Pass-through, features and options. ........................................... 20
3.0 INSTALLATION ................................................................................. 23
3.1 Locating the Media Converter Unit ................................................... 23
3.2 MC14-TRAY for Rack Mounting of FT14 Series Converters ......... 25
3.3 MC14-TR+PS9 & MC14-TR+PS9X2 for Rack Mounting ............... 26
3.4 DIN-Rail mounting option ................................................................. 28
3.5 Calculating Overall Segment Distance .............................................. 29
www GarrettCom com
..
vi
FT14 and FT14H 10Mb Media Converters Installation and User Guide (09/09)
3.6 Connecting Ethernet Media ............................................................... 33
3.6.1 Connecting Twisted Pair (RJ-45 ports) ...................................... 33
3.6.2 Connecting Fiber Optic multi-mode, single mode ..................... 34
3.6.3 Power Budget Calculations for Fiber Media .............................. 36
4.0 OPERATION ....................................................................................... 37
4.1 Power Requirements, Power Supply Types for FT14 and FT14H .... 38
4.2 Powering the FT14H (DC Direct) with 9V, 24V or –48V DC
power input ........................................................................................ 39
4.3 FT14H, DC-powered, -48VDC, 24VDC and 9VDC Installation ..... 41
4.4 Dual LEDs, front-panel and side-panel ............................................. 43
4.5 Up-Link (Cross-over) Switch ............................................................ 44
5.0 TROUBLESHOOTING ...................................................................... 45
5.1 Before Calling for Assistance ............................................................ 46
5.2 When Calling for Assistance ............................................................. 48
5.3 Return Material Authorization (RMA) Procedure ............................. 49
5.4 Shipping and Packaging Information ................................................. 51
APPENDIX A: WARRANTY INFORMATION ......................................... 52
www GarrettCom com
..
vii
FT14 and FT14H 10Mb Media Converters Installation and User Guide (09/09)
Revisions
Rev B 09/09: updated DIN rail mount (pg. 28)
Rev A 09/04: Minor updates on UL Requirements, power supplies
Rev A 06/04: Minor updates on Agency approvals and power supplies
Rev A 05/03: Initial release of this user manual for FT14 and FT14H
www GarrettCom com
..
viii
FT14 and FT14H 10Mb Media Converters Installation and User Guide (09/09)
1.0 SPECIFICATIONS
1.1 Technical Specifications
Model FT14, FT14H multi-mode and single-mode
Performance:
Data Rate: 10 Mbps (IEEE 802.3), half duplex mode
Network Standards:
Ethernet: Ethernet V1.0/2.0 IEEE 802.3: 10BASE-T, 10BASE-FL IEEE
(Magnum Media Converters are physical layer standard Ethernet products,
Number of Media Converters in series:
802.3,
and operate independently of all software.)
Experience shows that up to three units can be used in series between repeaters.
For 4 or more in series, noise build-up will typically preclude proper operation.
www GarrettCom com
..
1
FT14 and FT14H 10Mb Media Converters Installation and User Guide (09/09)
Maximum Standard Ethernet Segment Lengths:
10BASE-T (twisted pair): 100 m (328 ft)
10BASE-FL Fiber optic : 2.0 km (6,562 ft)
10BASE-FL Single-mode Fiber optic: 10.0 km (32,810ft)
Note for single-mode: HDX collision domain limits may restrict distances to about 5km.
Note: Magnum Media Converters DO NOT support full length Ethernet segments. See
Section 3.2 of this manual for media lengths and segment distance calculations.
Operating Environment:
Ambient Temperature: (0ºC to 50ºC) FT14-Hd,-Hi, FT14S-Hd, Hi
(-40ºC to 55ºC) FT14H-Hd,-Hi, FT14SH-Hd,Hi
(-40ºC to 75ºC) FT14H-9VDC, FT14SH-9VDC, FT14H-
24VDC, FT14SH-24VDC
FT14H-48VDC, FT14SH-48VDC
Cold start down to -25ºC
Storage Temperature: -40ºC to 100ºC (-40ºF to 212ºF)
www GarrettCom com
..
2
FT14 and FT14H 10Mb Media Converters Installation and User Guide (09/09)
Ambient Relative Humidity: 5% to 95% (non-condensing)
UL 2043 tested for above-the –ceiling (plenum) installation
Conformal coating (humidity protection) option, request quote.
Designed for NEBS compliance, including vibration, shock, and altitude
Power Supply
These products are intended to be supplied by a Listed, Direct Plug-In power unit,
marked “Class 2”, or a Listed ITE Power Supply, marked “LPS”, which has suitably
rated output voltage (i.e. 9vdc, 24vdc, 48vdc), and suitably rated output current (i.e.
100mA to 500mA).When connected to a 48 V centralized dc source these products shall
be provided with a Listed 10 A DC fuse in the supply circuit.
UL listed Class II Power Supply ( AC-DC Adapter):
100-240V AC at 50-60Hz, for “-Hd” high temp. with built-in IEC320 connector
Power input 9V DC jack is 2.5mm center +ve jack, with 6ft. cord
“Hd” North American models
www GarrettCom com
..
3
FT14 and FT14H 10Mb Media Converters Installation and User Guide (09/09)
100-240V AC at 50-60Hz, for high temp. with built-in
IEC320 connector for “-Hi” DC to unit:
“Hi” international model
9V DC, 2.5mm jack, center +ve, 6ft. cord
Power Supply ( DC Direct): built-in terminal
block for +, -, ground. The 9V DC jack is also present.
9V DC internal (range of 7.5 to 15V DC)
24V DC internal (range of 18 to 36V DC)
-48V DC internal (range of 36 to 60V DC)
Power Consumption: 1.5 watts typical and 2 watts max. for all models
www GarrettCom com
..
4
FT14 and FT14H 10Mb Media Converters Installation and User Guide (09/09)
Connectors, for Media:
RJ-45 Port: Modular 8-Pin female, with “cross-over” up-link switch
Fiber Port: Fiber optic (standard ST type)
Packaging:
Enclosure: Rugged sheet metal (Steel).
Dimensions, Media Converter unit: Height x Width x Depth
FT14 and FT14H: 3.5 in H x 3.0 in W x 1.0 in D (8.9 cm x 7.6 cm x 2.5 cm)
Weight: all FT14 and FT14H mm and sgl.mode models: 4.6 oz. (130g);
power supply –Hd, and =Hi: 3 oz (85g)
Cooling Method: Convection, plus the case is used as a heat sink on “H” models
Media Converter LED Indicators:
LED
FT14 FT14S Description
PWR unit unit Steady ON when power applied.
Link(per port) TP, Fiber TP, Fiber * Steady ON when both attached cable
segments are operational at the other end
RX/Act TP, Fiber TP, Fiber Indicates port is receiving packets.
www GarrettCom com
..
5
FT14 and FT14H 10Mb Media Converters Installation and User Guide (09/09)
Metal Mounting clips for panel mounting : included
DIN-Rail mounting option: Model # DIN-RAIL MC2 (see Section 3.4)
Rack-mount option: MC14-TRAY, see
http://www.garrettcom.com/mc_tray.htm
Mean Tine Between Failure (MTBF
) – 15+ years, Telcordia (Bellcore) Method
Agency Approvals and Standard Compliance:
UL LISTED (UL 60950), CUL, CE Emissions meet FCC Part 15, Class A
NEBS L3 and ETSI compliant
H Model:
IEEE P1613 Env. Std for Electric Power Substations
H Model: NEMA TS-2 and TEES for traffic control equipment
H Model: designed for UL 2043 above-the-ceiling installation
IEC61850 EMC and Operating Conditions Class C for Power Substations
Warranty: Three years, return to factory Made in USA
www GarrettCom com
..
6
FT14 and FT14H 10Mb Media Converters Installation and User Guide (09/09)
1.2 Summary of models and descriptions:
FT14-Hd = TP to 10Mb mm Fiber ST, external 115 60Hz AC power supply , for 0 to 50`C
FT14-Hi = TP to 10Mb mm Fiber ST, external 230 50Hz AC power supply , for 0 to 50`C
FT14H-Hd = TP to 10Mb mm Fiber ST, external 115 60Hz AC power supply, for - 40 to 55`C
FT14H-Hi = TP to 10Mb mm Fiber ST, external 230 50Hz AC power supply , for -40 to 55`C
FT14H-9V DC = TP to 10Mb mm Fiber ST, 12V DC Internal power supply, -40 to 75`C
FT14H-24V DC = TP to 10Mb mm Fiber ST, 24V DC Internal power supply , -40 to 75`C
FT14HR-24V DC = TP to mm Fiber, 24V DC Internal pwr supply, -40 to 75`C, includes DIN-Rail
FT14H-48V DC = TP to 10Mb mm Fiber ST, 24V DC Internal power supply , -40 to 75`C
For a Single-mode
MC14-TRAY = 19” Rack-mount tray for 14-series Media Converters, up to 16 units
DIN-RAIL-MC2 = Metal DIN-Rail mounting bracket for one FT14-Series Media
Converter
www GarrettCom com
..
10Mb Fiber ST model, insert “S” after the number “14” in each line above.
7
FT14 and FT14H 10Mb Media Converters Installation and User Guide (09/09)
2.0 INTRODUCTION
This section describes the FT14 and FT14H models, including appearance,
features and typical applications.
2.1 Inspecting the Package and the Product
Examine the shipping container for obvious damage prior to installing this
product; notify the carrier immediately of any damage which you believe occurred
during shipment or delivery. Inspect the contents of this package for any signs of
damage and ensure that the items listed below are included.
This package should contain:
1 Magnum FT14 or FT14H mm or single-mode Media Converter Unit
1 External Power Supply, (except for internal DC power supply models)
1 set Metal panel mounting clips and screws, 2 each
1 User Guide, i.e., this manual
www GarrettCom com
..
(continued next page)
8
FT14 and FT14H 10Mb Media Converters Installation and User Guide (09/09)
Remove the Magnum Media Converter from the shipping container. Be sure to
keep the shipping container should you need to ship the unit at a later date.
In the event there are items missing or damaged contact your supplier. If you need to
return the unit use the original shipping container. Refer to Section 5 Troubleshooting,
for specific return procedures.
2.2 Product Description
Rugged packaging, a selection of extended temperature models, choice of AC
and DC power types, ease-of-use features, and energy-efficiency are the primary
characteristics of the Magnum 10Mb FT14 and FT14H Media Converters. All models
offer a graceful way to convert and transmit data between twisted pair and Fiber network
cables for media flexibility in new or expanded 10Mb Ethernet networks. The future
proof fiber comes as ST connector with Multi or Single Mode options. They provide
standard collision detection and indication, and comply with the Ethernet V1.0 / 2.0
specifications and the IEEE 802.3 standards. Power consumed in use is 1.5 to 2 watts.
The FT14 regular-package units are for office and wiring closet environments
www GarrettCom com
..
9
FT14 and FT14H 10Mb Media Converters Installation and User Guide (09/09)
est
X
X
and use an external AC power supply. A metal case with convection cooling is featured.
R
X
/
A
GarrettCom
Ethernet at its
B
10 Mb/s
Magnum
10Mb/s Media
=
X
R
T
R
X/
A
C
COPPE
GarrettCom
Ethernet at its
Best
Magnum
10Mb/s Media
www. GarrettCom .com
Hardened
9VDC
FIBE
10 Mb/s
A
=
X
=
R
T
Magnum FT14 Magnum FT14H
Operation may be in 0° to 50°C ambient temperature. The units can be mounted securely
on a closet wall or metal cabinet, or by using the metal panel mounting clips included.
www GarrettCom com
..
10
Loading...
