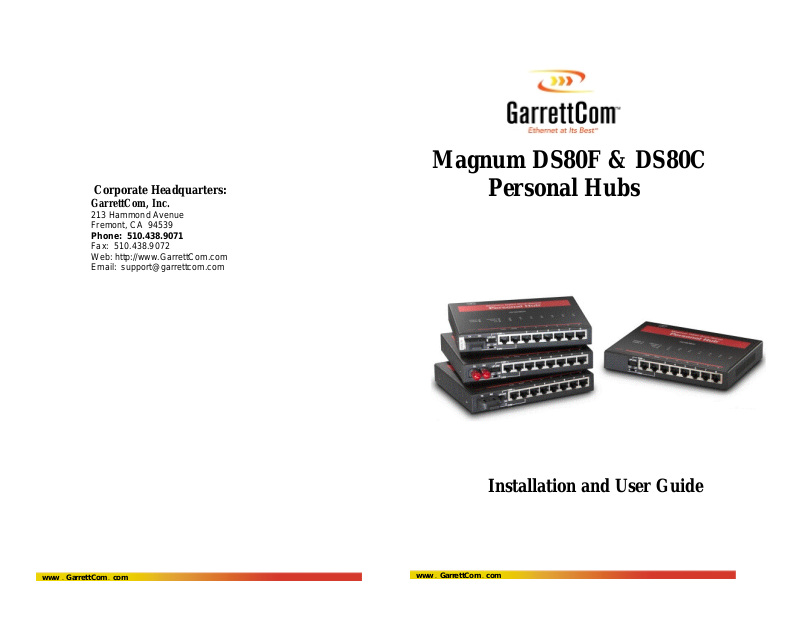

GarrettCom DS80F, DS80C User Manual
Magnum DS80F & DS80C
Personal Hubs
Installation and User Guide
www GarrettCom com
..
Magnum DS80F & DS80C Dual-speed Stackable Hubs Installation and User Guide (012/01)
Magnum
DS80F & DS80C P ersonal Hub
Installation and User Guide
Part #: 84-00064, (Rev D 12/01)
Trademarks
Ethernet is a trademark of Xerox Co rporation
NEBS is a trademark of Telcordia Technologies
UL is a registered trademark of Underwriters Laboratories
GarrettCom, Magnum and Personal Switch are trademarks and Personal Hub is a registered
trademark of GarrettCom, Inc.
Important: Magnum DS80F and DS80C Dual-Speed Hubs contains no user
serviceable parts. Attempted service by unauthorized personnel shall render any and
all warranties null and void. If problems are experienced with a Magnum DS80F or
DS80C, consult Section 5, Troubleshooting, of this User Guide.
Copyright 2001 GarrettCom, Inc. All rights reserved. No part of this publication may be
reproduced without prior written permission from GarrettCom, Inc.
Printed in the United States of America.
www GarrettCom com
..
i
Magnum DS80F & DS80C Dual-speed Stackable Hubs Installation and User Guide (12/01)
Contacting GarrettCom, Inc.
Please use the following mailing address, phone and fax numbers or Internet address.
GarrettCom, Inc.
213 Hammond Avenue
Fremont, CA 94539
Phone: 510.438.9071
Fax: 510.438.9072
Web: http://www.GarrettCom.com
Email: support@garrettcom.com
Federal Communications Commission
Radio Frequency Interference Statement
This equipment generates, uses and can radiate frequency energy and if not installed
and used properly, that is in strict accordance with the manufacturer's instructions, may cause
interference to radio communication. It has been tested and found to comply with the limits for
a Class A computing device in accordance with the specifications in Subpart J of Part 15 of
FCC rules, which are designed to provide reasonable protection against such interference when
operated in a commercial environment. Operation of this equipment in a residential area is
likely to cause interference, in which case the user at his own expense will be required to take
whatever measures may be req uired to correct the interference.
www GarrettCom com
..
ii
Magnum DS80F & DS80C Dual-speed Stackable Hubs Installation and User Guide (12/01)
The Magnum Line
ETHERNET CONNECTIVITY PRODUCTS
"DESIGNED AND MANUFACTURED IN THE USA"
OVERVIEW
GarrettCom, Inc.offers the premium-quality Magnum line of Ethernet LAN connectivity
products with industry-standard functionality and built-in fiber configurability. Magnum
products are designed for use in demanding Carrier Class, Industrial Grade and OEM
applications where reliability is a primary consideration.
4K-Series Switches, 100 & 10Mbps, copper ports with optional fiber port,
with auto-negotiating full switching performance.
Quad-Series Fiber Switches, 100 & 10Mbps, fiber and copper ports,
mixed-speed and mixed-media types, full switching performance.
“Outdoor” Ethernet Switch, for temperature uncontrolled locations
6 10/100 and 2 100Mb fiber ports, can be connected in strings
Mixed-Media Fiber Hub, 16-port Stackable, 10/100 auto-sensing
Dual Speed 8-port and 16-port Stackables, 10/100 auto-sensing
Stackable Hubs, SNMP Optional
10Mb series and 100Mb series, both w/ optional port modules
Personal Switches, 10/100Mb
8 port dual speed, Auto-negotiable with fiber option
Personal Hubs, 100Mb or 10/100Mb
8-port, with two switched ports (1 fiber built in)
Personal Hubs, 10Mb series
8-port + AUI, stackable to 5 high, + optional BNC of fiber port
8 or 9-port and 4 or 5-Port Personal Hubs, w/ man. up-link sw.
Media Converters, 10Mb and 100Mb series
All media combinations, incl. fiber ST, SC, mm., single mode
The “X-line” of configurable MiXed Media products:
Stackable Concentrators, SNMP optional, 13-Ports
Mini-Concentrators, 7 Ports, Repeaters, 2-Ports
Repeater Port Modules (RPMs), 6 types for Ethernet media
Bridge Port Modules (BPMs), 4 types, for segment isolation
Fan-Outs, 10Mb series
2, 4 and 8 Port Model
Transceivers, 10Mb and 100Mb series 10Mb Mini-Transceivers
and Coax Models, All Types - Dec, 01
www GarrettCom com
..
iii
Magnum DS80F & DS80C Dual-speed Stackable Hubs Installation and User Guide (12/01)
TABLE OF CONTENTS PAGE
1.0 SPECIFICATIONS........................................................................................1
1.1 Technical Specifications......................................................................................1
1.2 Ordering Information...........................................................................................3
2.0 INTRODUCTION .........................................................................................4
2.1 Inspecting the Package and Product ....................................................................4
2.2 Product Description.............................................................................................5
2.2.1 Magnum DS80F Chassis..........................................................................6
2.2.2 Magnum DS80C Chassis.........................................................................6
2.2.3 10 / 100 Speed Auto-sensing...................................................................7
2.3 Up-link on Port # 1SW for Cascading...............................................................7
2.4 100Mbps Fiber port, ST or SC Connector for DS80F........................................7
2.5 Features and Benefits...........................................................................................8
2.6 Applications (DS80F & DS80C).........................................................................9
3.0 INSTALLATION.........................................................................................12
3.1 Locating Magnum DS80F & DS80C Dual-Speed Hubs....................................12
3.1.1 Table-Top or Shelf Mounting ................................................................12
3.1.2 Wall (or Vertical Surface) Mounting .....................................................12
3.2 Connecting Ethernet Media.............................................................................13
3.2.1 Connecting Twisted Pair (RJ-45, Cat-3, CAT-5)...................................13
3.2.2 Connecting Fiber Optic SC-type, “Twist-lock” .....................................14
3.2.3 Connecting Fiber Optic ST-Type, “Snap-In”.........................................14
3.2.4 Connecting Fiber Optic Single-mode.....................................................14
3.2.5 Power budget Calculation for DS80F Fiber media................................14
3.2.6 Connecting to NICs which support Auto-Negotiation...........................15
3.3 Powering the Magnum DS80F & DS80C.........................................................15
4.0 OPERATION...............................................................................................17
4.1 Dual-Speed Functionality ..................................................................................17
4.2 Auto-negotiation and speed-sensing .................................................................18
4.3 Full or Half duplex, manual selection for DS80F Models.................................18
4.4 Full or Half duplex, manual selection for DS80C.............................................18
4.5 LEDs .................................................................................................................19
4.6 Up-link Port, 1SW.............................................................................................19
4.7 Use with media converters.................................................................................20
5.0 TROUBLESHOOTING...............................................................................20
5.1 Before Calling for Assistance............................................................................20
5.2 When Calling for Assistance .............................................................................21
5.3 Return Material Authorization (RMA) Procedure.............................................21
5.4 Shipping and Packaging Information ................................................................22
APPENDIX A: WARRANTY INFORMATION ...........................................................22
Revisions
Rev D 12/01 : Updated the Manual switch F-H and FF-A support to SW1 and SW2
Rev C 09/01 :
Communications). There are no changes to the content of the material at this time
Change the company name to GarrettCom, Inc. (Formerly it was Garrett
Rev B 04/00: Added long reach (40km) fiber connector information.
Rev A 10/99 : This revision is the initial release of the 4K8 Switches user manual.
www GarrettCom com
..
iv
Magnum DS80F & DS80C Dual-speed Stackable Hubs Installation and User Guide (12/01)
1.0 SPECIFICATIONS
1.1 Technical Specifications
Performance of Dual-Speed Ports
When a port is operating at 100Mbps:
Data Rate: 100Mbps
When a port is operating at 10Mbps:
Data Rate: 10Mbps
Partitioning: Enforced after 63 consecutive collisions
Auto-reconnect: Occurs after one packet of error-free reception
Network Standards
100Mb: Ethernet IEEE 802.3u, 100BASE-TX, 100BASE-FX
10Mb: Ethernet IEEE 802.3, 10BASE-T
Auto-sensing for speed: IEEE 802.3u
Packet-Processing Between Domains
Filtering and Forwarding Rate from 100Mbps ports: 148,800 pps max
Filtering and Forwarding Rate from 10Mbps ports: 14,880 pps max.
Processing type: Store and Forward
Auto-learning: 8K address table, shared for all traffic domains
Packet buffers: 512KB, dynamically shared on all domains
Latency (not including packet time): 100 to 10Mbps: 5µs
10 to 100Mbps: 5µs
Path Delay Value: 50 BT on all ports
Maximum Ethernet Segment (or Domain) Lengths
10BASE-T (Unshielded twisted pair) - 100 m (328 ft)
100BASE-TX (CAT 5 UTP) - 100 m (328 ft)
100BASE-FX, half-duplex: (multi-mode) - 412 m (1350 ft)
100BASE-FX, full-duplex: (multi-mode) - 2.0 km (6,562 ft)
100BASE-FX, half-duplex: (single-mode) - 412 m (1350 ft)
100BASE-FX, full-duplex: (single-mode) - 20.0 km (65,620 ft)
100BASE-FX, full-duplex: (single-mode, long) - 40.0 km (131,240 ft)
Operating Environment
Ambient Temperature: 32ºF to 104ºF (0ºC to 40ºC)
Storage Temperature: -5 ºC to 160ºF (-20ºC to 70ºC)
Ambient Relative Humidity: 10% to 95% (non-condensing)
Power Supply (External
Input: 95-125 vac at 60Hz for “-d” Models
200-250 vac at 50Hz for “-i” Models, which have IEC
power cable connector in the external power unit.
Output: 5VDC, 2Amps
Polarity: center positive, shell negative
Power Consumption: 8 watts typical, 10 watts max.
External - 48VDC Power Suppl y (Optional)
www GarrettCom com
..
)
1
Magnum DS80F & DS80C Dual-speed Stackable Hubs Installation and User Guide (12/01)
Power Input Voltage: 36 to 70 VDC (auto ranging), “-, GND, +”
Power Consumption: 8 watts typical, 10 watts max.
Network Cable Connectors - for eight RJ-45 shielded female ports and 1 fiber port
100Mbps: Category 5 UTP/STP, fiber (50/125, 62.5/125, 9/125 micron)
10Mbps: Category 3, 4, 5 UTP (Note: auto-sensing does not sense cable type)
Maximum Load per port: 60 mA
Up-Link, Port # 1 SW
Port 1SW (switched RJ-45) has a manual crossover (MDIX up-link) switch for
connection to a central switch or to another DS80F, DS80C (or equal) unit.
Manual Switch
DS80C: “FF” or “A” switch
Port 2SW (a switched port) has a “FF-A” manual switch. In the “FF” position, it
fixes port 2 at Full 100Mb. In the “A” position, port 2 is set at auto-negotiation
DS80F: “F” or “H” switch
Ports 1SW and 2SW (the switched ports) have a common “F-H” manual switch.
In the “F” position, it causes full-duplex mode to be advertised for the standard
802.3u auto-negotiation session on port 1SW. For fiber, it forces full-duplex
mode at 100Mb. In the “H” position, it causes half-duplex mode to be advertised
for auto-negotiation, and for fiber it forces half-duplex mode.
See Section 4.3 for details.
Packaging
Enclosure: Rugged high-strength sheet metal. Metal mounting clips
included. Suitable for wiring closet shelf, wall or desktop mounting.
Dimensions: 1.25 in H x 6.75 in W x 5.0 in D (3.2 cm x 17.1 cm x 12.7 cm)
Weight (of hub unit): 1.0 lb. (455 g.)
Weight (of power supply unit): 1.0 lb. (455 g.)
Cooling method: Convection
LED Indicators
PWR: Steady On when power applied
ERROR: Self-test at power up failed
SPEED (with LINK ON): ON = 100Mbps; OFF = 10Mbps
LINK/ACT: Steady On for LINK with no traffic, blinking indicates port
is transmitting / receiving.
F/H (for port 1SW and 2SW only): ON = full-duplex, OFF = half-duplex
Agency Approvals
UL Listed (UL 1950), cUL, CE
Emissions: meets FCC Part 15, Class A
Warranty: Three years, return to factory Made in USA
www GarrettCom com
..
2
Magnum DS80F & DS80C Dual-speed Stackable Hubs Installation and User Guide (12/01)
1.2 Ordering Information
Magnum DS80F -10/100 Dual-Speed Personal Hubs
with a 100Mb Fiber Port
Magnum DS80F-MSC-d, or -i: 8-port Dual-Speed Personal Hub with one full-
duplex 100Mbps switched fiber port (multi-mode SC-type connector), one
“N-way” switched RJ-45 port, and six half-duplex 10/100 auto-negotiat i ng
ports. Includes store-and-forward switching that filters and forwards data
moving between the two switched ports, among the 10/100 user ports.
The internal switch has 8K nodes addres s table and 512KB packet
buffers. External 115vac 60Hz power supply.
Magnum DS80F-MST-d, or -i: Same as DS80F but with multi-mode ST- type
fiber connector.
Magnum DS80F-SSC-d, or -i: Same as DS80F but with si ngle-mode SC-type
fiber connector.
Magnum DS80F-MTRJ-d, or -i: Same as DS80F but with multi-mode MTRJ-
type fiber connector.
Magnum DS80C -10/100 Dual-Speed Personal Hubs
with all copper ports
Magnum DS80C-d, or -i: Dual Speed 10/100 8-port “copper” office hub with two
10/100 N-way switched ports and six half-duplex 10/100 auto-negotiat i ng
ports. Includes store-and-forward switching that filters and forwards data
moving between the two switched ports, and among the 10/100 user ports.
The internal switch has 8K node address es and 512KB packet buffers.
External power supply.
Use “-d” suffix for ex t ernal power supply at 115vac 60Hz; use “-i” suffix f or external at
230vac 50Hz.
GarrettCom, Inc. reserves the right to change specifications, performance
characteristics and / or model offerings without notice.
www GarrettCom com
..
3
Magnum DS80F & DS80C Dual-speed Stackable Hubs Installation and User Guide (12/01)
2.0 INTRODUCTION
2.1 Inspecting the Package and Product
Examine the shipping container for obvious damage prior to installing this product;
notify the carrier of any damage that you believe occurred during shipment or delivery. Inspect
the contents of th is package for any signs of damage and ensure that the items list ed below are
included.
This package should contain:
1 Magnum DS80F Dual-Speed Hub with a Fiber Port or DS80C with all copper
ports.
1 External Power Supply, 5VDC from either 115v 60Hz or 230v 50Hz
1 Set of metal clips and screws for secure shelf or wall-mounting
1 Installation and User Guide
1 Product Registration Card
Remove the Magnum DS80F or DS80C Dual-Speed Hub from the shipping container.
Be sure to keep the shipping container should you need to ship the unit at a later date. To
validate the product warranty, please complete and return the enclosed Product Registration Card
to Garrett Communications as soon as possible.
In the event there are items missing or damaged, contact your supplier. If you need to
return the unit, use the original shipping container. Refer to Chapter 5, Troubleshooting, for
specific return procedur es.
www GarrettCom com
..
4
Loading...
