GarrettCom DS60s, DS50 User Manual
Magnum DS50 / DS60s
Dual Speed Hubs Plus
www GarrettCom com
..
Installation and User Guide
Magnum DS50 / DS60s Dual Speed Hubs Installation and User Guide (06/02)
Magnum™ DS50 / DS60s
Dual Speed Ethernet Hubs Plus
Installation and User Guide
Part #: 84-00055 (Rev C 10/01)
Trademarks
Ethernet is a trademark of Xerox Corporation
NEBS is a trademark of Telcordia Technologies
UL is a registered trademark of Underwriters Laboratories
GarrettCom, Magnum and Personal Switch are trademarks and Personal Hub is a
registered trademark of GarrettCom, Inc.
Important: The Magnum DS50 / DS60 Dual-speed Hubs Plus contain no user
serviceable parts. Attempted service by unauthorized personnel shall render
any and all warranties null and void. If problems are experienced with a
Magnum DS50 / DS60, consult Section 5, Troubleshooting, of this User Guide.
Copyright © 2002 GarrettCom, Inc. All rights reserved. No part
of this publication may be reproduced without prior written permission from
GarrettCom, Inc.
Printed in the United States of America.
www Garret tCom com
..
i
Magnum DS50 / DS60s Dual Speed Hubs Installation and User Guide (06/02)
Contacting GarrettCom, Inc
Please use the mailing address, phone and fax numbers and email address listed below:
GarrettCom, Inc.
47823 Westinghouse Dr..
Fremont, CA 94539
Phone (510) 438-9071
Fax (510) 438-9072
Website: http://www.GarrettCom.com
email support@garrettcom.com
Federal Communications Commission
Radio Frequency Interference Statement
Warning: Changes or modifications to this unit not expressly approved by the party
responsible for compliance could void the user’s authority to operate the equipment.
NOTE: This equipment has been tested and found to comply with the limits for a class
B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses, and can radiate radio frequency energy
and, if not installed and used in accordance with the instructions, may cause harmful
interference in a residential installation. This equipment generates, uses, and can
radiate frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interfernce to radio communications. However, there
is no guarantee that interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this equipment
does cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to
correct the interference by one or more of the following measures.
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into n outlet on a ccircuit different from that to
which the receiver is connected.
- Consult the dealer or an experienced radio TV technician for help.
This Class B digital apparatus meets all requirements of the Canadian
Interference-Causing Equipment Regulations.
Cet appareil respecte toutes les exigences du Réglement sur le matériel du
Canada. Cet appareil est Classe B.
TABLE OF CONTENTS PAGE
www Garret tCom com
..
Canadian Emission
ii
Magnum DS50 / DS60s Dual Speed Hubs Installation and User Guide (06/02)
1.0 SPECIFICATIONS.........................................................................................................................2
1.1 Technical Specifications..............................................................................................................2
1.2 Ordering Information.................................................................................................................4
2.0 INTRODUCTION...........................................................................................................................5
2.1 Inspecting the Package and Product .........................................................................................5
2.2 Product Description....................................................................................................................6
2.2.1 Magnum DS60F DS Hubs Plus, with Fiber Switched Port...........................................7
2.2.2 Fiber port, SC Connector for Model DS60F ..................................................................8
2.2.3 Magnum DS60C DS Hubs Plus with Copper port, Chassis .........................................8
2.2.4 Port #6: Switched 10/100 Mb/s Port for DS60C only....................................................9
2.2.5 Magnum DS50 Dual-speed Hubs Chassis.......................................................................9
2.2.6 Ports 1-5: 10/100 Mb/s Shared Ports for DS50 / DS60................................................10
2.2.7 10 / 100 Speed Auto-sensing...........................................................................................10
2.2.8 Bridge logic between the 10 Mbps and 100Mbps Domains........................................11
2.2.9 Up-link Switch for Cascading........................................................................................11
2.3 Frame Buffering and Latency..................................................................................................12
2.4 Features and Benefits................................................................................................................14
2.5 Applications................................................................................................................................15
3.0 INSTALLATION..........................................................................................................................18
3.1 Locating the Magnum DS50 / DS60 Dual-speed Hubs Plus..................................................18
3.1.1 Table-Top or Shelf Mounting ........................................................................................18
3.1.2 Optional mounting methods, DIN-rail and E-Stand ...................................................19
3.2 Ethernet Media, connections and Specifications....................................................................19
3.2.2 Connecting Fiber Optic
3.2.3 Connecting
3.2.4 Power Budget Calculations for DS60F Fiber Media...................................................21
3.2.5 Connection to NICs which support Auto-Neg, RJ-45 ports .......................................22
3.2.6 Collision Domain Diameter............................................................................................22
3.3 Powering the Magnum DS50 / DS60 .......................................................................................25
4.0 OPERATION.................................................................................................................................26
4.1 Dual-Speed Functionality .........................................................................................................26
4.2 Auto-negotiation and speed-sensing ........................................................................................28
4.3 Switching Functionality for port # 6 (DS60s Only)................................................................28
4.4 LEDs ...........................................................................................................................................29
4.5 (FF-A) Manual Switch, Port 6 for DS60C ..............................................................................29
4.6 (F-H) Manual Switch, Port 6 for DS60F .................................................................................30
4.7 Up-link Switch, Port 1..............................................................................................................30
5.0 TROUBLESHOOTING ...............................................................................................................31
5.1 Before Calling for Assistance...................................................................................................31
5.2 When Calling for Assistance ....................................................................................................32
5.3 Return Material Authorization (RMA) Procedure................................................................32
5.4 Shipping and Packaging Information .....................................................................................33
APPENDIX A: WARRANTY INFORMATION........................................................................33
APPENDIX B : Optional 24VDC or -48VDC Power Supply ....................................................34
Single-Mode Fiber Optic............................................................................21
SC-type, "Snap-In"...............................................................20
REVISIONS
Rev D 06/02: Add 24VDC power option in Appendix B
Rev C 11/01: Change the company name to GarrettCom, Inc. (Formerly it was Garrett
Communications). Add Fiber models to DS60s, add DIN- r a il mounting option.
Rev B 09/01
Rev A 08/01
: Addition of warnings in French language. Fiber information added.
: This is the initial release of the DS50 / DS60 hub user manual.
www Garret tCom com
..
iii
Magnum DS50 & DS60s Dual Speed Hubs Installation and User Guide (06/02)
The Magnum Line
ETHERNET CONNECTIVITY PRODUCTS
"DESIGNED AND MANUFACTURED IN THE USA"
OVERVIEW
GarrettCom offers the Magnum line of Ethernet LAN connectivity products with
industry-standard functionality. Magnum products are available worldwide
through OEMs, integrators, representatives, retailers and international
distributors.
6K25 Managed Fiber Switches, Gigabit, 100 and 10 Mbps, fiber and copper ports, mixand match. Features SFF fiber for up to 25 fiber ports in a 1U unit.
4K-Series Switches, 100 and 10 Mbps, copper ports with optional fiber port, with autonegotiating full switching performance.
Quad-Series Fiber Switches, 100 & 10Mbps, fiber and copper ports, mixed-speed and
mixed-media types, full switching performance.
“Outdoor” Ethernet Switch, for temperature uncontrolled locations
6 10/100 and 2 100Mb fiber ports, can be connected in strings
Mixed-Media Fiber Hub, 16-port Stackable,10/100 auto-sensing
Dual Speed 8-port and 16-port Stackables, 10/100 auto-sensing
Stackable Hubs, SNMP Optional
10Mb series and 100Mb series, both w/ optional port modules
Personal Switches, 10/100Mb
8 port dual speed, Auto-negotiable with fiber option
Personal Hubs, 100Mb or 10/100Mb
8-port, with two switched ports (1 fiber built in)
Personal Hubs, 10Mb series
8-port + AUI, stackable to 5 high, + optional BNC of fiber port
8 or 9-port and 4 or 5-Port Personal Hubs, w/ man. up-link sw.
Media Converters, 10Mb and 100Mb series
All media combinations, incl. fiber ST, SC, mm., single mode
The “X-line” of configurable MiXed Media products:
Stackable Concentrators, SNMP optional, 13-Ports
Mini-Concentrators, 7 Ports, Repeaters, 2-Ports
Repeater Port Modules (RPMs), 6 types for Ethernet media
Bridge Port Modules (BPMs), 4 types, for segment isolation
Transceivers, 10Mb series Mini-Transceivers and Coax Models June, 02
www GarrettCom com
..
1
Magnum DS50 / DS60s Dual Speed Hubs Installation and User Guide (06/02)
1.0 SPECIFICATIONS
1.1 Technical Specifications
Performance
Port 1-5: Repeater Ports, with bridge between
Data Rate: 10/100 Mbps (Dual-Speed)
PDV (Path Delay Value): 80BT
Port 6: Switched Port (DS60C only)
10/100Mbps (Dual-Speed)
When set to “FF”:
Data Rate: 100 Mbps Full Duplex
PDV (Path Delay Value): 50BT (end node)
When set to “A”
Date Rate: 10Mbps or 100Mbps (Depends upon the connected
speed on the other side; if the connected unit supports autonegotiate then run on full-duplex otherwise half-duplex)
Packet Processing on Switched Port, port 6
Processing type: Store and Forward
Filtering and Forwarding Rate: Switch = “10”, 14,880 pps max.
Switch = “100”, 148,800 pps max
Auto-learning: 8K addresses
Packet buffers: 1MB dynamically allocated
Latency (not including packet time): 5µs
Packet Processing on Repeater Port, ports #1-5 bridged
Processing type: advertising and sharing
Auto-learning: 2K addresses
Packet buffers: 256 dynamically allocated and shared on ports #1-5
Latency (not including packet time): 5µs
Maximum Ethernet Segment Lengths
10BASE-T (unshielded twisted pair, 10Mb) - 100 m (328 ft)
100BASE-TX (Cat. 5 twisted pair, 100Mb) - 100 m (328 ft)
100BASE-FX, half-duplex: (multi-mode) - 412 m (1350 ft)
100BASE-FX, full-duplex: (multi-mode) - 2.0 km (6,562 ft)
100BASE-FX, half-duplex: (single-mode) - 412 m (1350 ft)
100BASE-FX, full-duplex: (single-mode) - 20.0 km (65,620 ft)
100BASE-FX, full-duplex: (single-mode, long)- 40.0 km (131,240 ft)
Network Standards
Ethernet IEEE 802.3u: 100BASE-TX
IEEE 802.3: 10BASE-T
Operating Environment
Ambient Temperature: 32ºF to 122ºF (0ºC to 55ºC)
Storage Temperature: -5ºF to 160ºF (-20ºC to 70ºC)
Ambient Relative Humidity: 5 % to 95 % (non-condensing)
www Garret tCom com
..
2
Magnum DS50 / DS60s Dual Speed Hubs Installation and User Guide (06/02)
Power Supply (Internal) AC
AC Power connector: IEC-type, male recessed, rear of chassis
Power Input Voltage: 100 to 240 VAC (auto-ranging)
Power Input Frequency: 47-63 Hz
Power Consumption: typical 6 watts, 10 watts max.
Power Supply (Internal), Optional 24VDC and -48VDC
-48VDC Power Input Voltage : 36 to 72 VDC
24VDC Power Input Voltage : 20 to 36VDC
Std. Terminal Block : “ -, GND, + ”
Power Consumption: same as for AC models, see above
DC-DC Converter Rating: 5VDC, 2Amps
Manual Switches

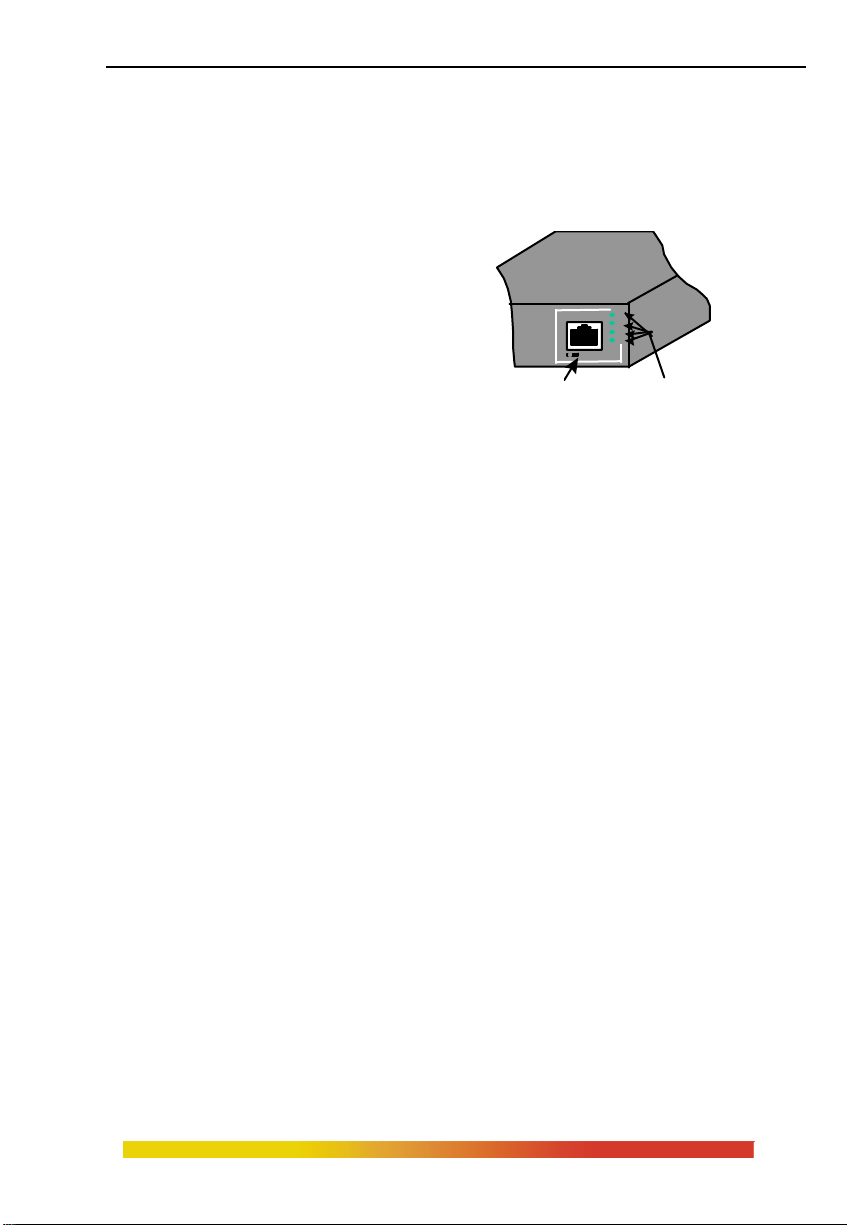

Port 1 only, UP-LINK: MDI-X thumb-operated slide switch, converts RJ-45
port from a regular (= position) user segment port to a crossover (X position)
Port 6 only (DS60C): Thumb-operated slide switch FF-A, The port #6 switched
port can be set on “FF” (Full-duplex, Fixed 100Mbps) or at “A”(Autonegotiation) to support auto-negotiate.
Port 6 only (DS60F): Thumb-operated slide switch FDX-HDX, The port #6
switched Fiber port can be set on “Fdx” (Full-duplex, Fixed 100Mbps) or at
Hdx (Half Duplex) to provide better secure distance.
Packaging
Enclosure: High strength sheet metal.
Suitable for wiring closet shelf, wall or desktop mounting.
Dimensions: 9.1 in. D x 6.1 in. W x 1.3 in. H (23.0 cm x 15.5 cm x 3.3 cm)
Weight: 1.55 lb. (0.7 Kg)
Cooling method: Fan cooled, internal @ 7 cfm
LED Indicators on Chassis
PWR : Steady On when power applied
COL 100 (port1-5): Collision, flashing when collision occurs on
ports 1-5 in the 100Mb collision domain.
COL 10 (port1-5): Collision, flashing when collision occurs on
ports 1-5 in the 10 Mb collision domain.
LK/RX (port 1-5): Steady On when twisted-pair link is operational,
flashing when port is receiving data
100 (port 6): Speed is at 100Mbps
FDX (port 6): Port is at Full duplex
Agency Approvals (Under Test)
UL Listed (UL 1950), cUL, CE
Emissions: meets FCC Part 15, Cla ss A
Warranty
Three years, return to factory Made in USA
www Garret tCom com
..
3
Magnum DS50 / DS60s Dual Speed Hubs Installation and User Guide (06/02)
1.2 Ordering Information
Magnum DS50 / DS60 Dual-speed Hubs Plus
Models
Magnum DS60C
Magnum DS60F-MSC
Magnum DS60F-SSC
fiber port, single-mode SC, supports 20Km distance
Magnum DS60F-SSC
fiber port, single-mode SC, Long reach 40Km distance
Six dual speed ports, five 10/100 Dual-speed shared “hub”
ports plus one 10/100 switched port, with shielded RJ-45
connectors and front-mounted LED’s. The port #6 switched
port is a separate collision domain with wire-speed (10/100)
filtering and forwarding of traffic, 1Mb dynamically allocated
packet buffers and 8K-entry self-learning address table. The
selection of Full Fixed and Auto-negotiation for port #6 can
be set through manual switch. Internal universal power
supply, up-link switch or port #1. Optionally available with
24VDC and -48VDC internal power supply.
Same as DS60C except 6th port is switched
fiber port, multi-mode SC, can be set as Full duplex (by
default) or Half-duplex by manual switch underneath.
Same as DS60C except 6th port is switched
Same as DS60C except 6th port is switched
Magnum DS50
MST Conversion Special order item, convert fiber SC port to ST-type connector.
GarrettCom reserves the right to change specifications, performance
characteristics, and/or model offerings without notice.
www Garret tCom com
..
Same as Magnum DS60C, but without the switched port # 6,
has only the 5 repeater ports with dual speed (10/100)
capability.
4
Magnum DS50 / DS60s Dual Speed Hubs Installation and User Guide (06/02)
2.0 INTRODUCTION
2.1 Inspecting the Package and Product
Examine the shipping container for obvious damage prior to installing this product;
notify the carrier of any damage that you believe occurred during shipment or delivery. Inspect
the contents of this package for any signs of damage and ensure that the items listed below are
included.
This package should contain:
1 Magnum DS50 or DS60s Dual-speed Hub Plus unit
1 AC Power Cord (U.S. and other 115 vac locations only)
2 Metal mounting brackets for optional vertical mounting
2 Mounting screws for use with the metal mounting brackets
1 Installation and User Guide
1 Product Registration Card
Remove the Magnum DS50 / DS60 Dual-speed Hub Plus from the shipping
container. Be sure to keep the shipping container should you need to ship the unit at a later
date. To validate the product warranty, please complete and return the enclosed Product
Registration Card to GarrettCom as soon as possible.
In the event there are items missing or damaged, contact your supplier. If you need
to return the unit, use the original shipping container. Refer to Chapter 5, Troubleshooting, for
specific return procedures.
www Garret tCom com
..
5
Magnum DS50 / DS60s Dual Speed Hubs Installation and User Guide (06/02)
2.2 Product Description
The Magnum DS60C Dual-speed Hub Plus is an easy to install, cost-effective Dualspeed hub. It has five 10/100Mb repeater shared ports along with a 10/100 Mbps switched port
that can be configured to provide “auto-negotiating” or “Full fixed” connectivity between a
100Mb segment and a 10Mb segment; or between two 100Mb segments at full duplex
capability. The Magnum DS60F belongs to the same DS60’s family except the sixth port is a
switched Fiber port at 100Mbps and can be set at Full-duplex or Half-duplex to support any
connectivity with Hubs or switches. The “future-proof” fiber port provides a secure
longer distance advantage and eliminates the need for a media converter,
The Magnum DS50 dual-speed hub has only the five 10/100 Mb repeater ports. Each
port can independently identify (via IEEE 802.3u auto sensing) and accept either 100Mbps or
10Mbps Ethernet signals, adapting to match the best speed of the connected device. Each unit
has its own internal power supply. The Magnum DS50 / DS60 Dual-speed Hub Plus has two
internal traffic domains . . . one for the 100 Mb domain and one for the 10Mbps domain. The
100Mbps users share the 100Mbps domain’s bandwidth and the 10 Mbps users share the
10Mbps domain’s bandwidth.
10Mbps Hub 100Mbps Hub
Magnum
GARRETT
1 2 3 45 6 7 89 1 0 11 12
PWR
1 2 3 4 5 6 7 8
PWR
Stackable
8000E
Hub
GARRETT
G
A
PWR
LINK 100 LINK 100LINK 100 LINK 100LINK 100
UPLINK
100
= x
10
9 10 11 12
COL
Personal Hub Plus
E
R
R
T
T
12345
10/100 Mb/s
Magnum DS60
RX
LK
100
FDX
6
FF-A
Fig. 2.2.1 Magnum DS50 / DS60 is functionally both a 10Mbps and 100Mbps in one
The Magnum DS60s, because of their dual-speed capability and switched ports, are
ideally suited for adding a Fast Ethernet workgroup to an existing 10Mb or 100Mb network. A
small 10/100Mb workgroup connects to the five “hub” ports while another workgroup or an
existing network segment . . . a separate collision domain of 10Mb or 100Mb units . . . connects
to port 6. For expansion of the five 10/100Mb ports, an additional 100Mbps or 10Mb hub can
be cascaded from port 1. Each domain can have its own local servers and other local traffic.
Thus, the DS60s can bridge-isolate one collision domain from the other, separating the local
traffic between each workgroup’s users and servers from the rest of the network. The Magnum
DS60s will filter and forward the packets to / from port 6 and the other ports, thereby giving
more bandwidth to each domain for maximum network performance.
The Magnum DS50 / DS60s are available with an internal AC Power supply with
auto-ranging power voltage (100 - 240 VAC). The 24VDC and -48VDC Power supply option
enables this product to be used in the industrial and telecom markets. The Magnum DS50 /
www Garret tCom com
..
6
Magnum DS50 / DS60s Dual Speed Hubs Installation and User Guide (06/02)
DS60s are “plug and play” units enclosed in a lightweight, compact, rugged metal enclosure
suitable for office, lab and industrial sites. The DS50 / DS60s are available for horizontal or
vertical mounting (see Section 3.1).
2.2.1 Magnum DS60F Dual-speed Hubs Plus, with Fiber Switched Port
The Magnum DS60F chassis houses one main board equipped with five
hub ports and a switched fiber port. The switched fiber port is available with an SC connector
and options of multi-mode,
single-mode and long reach. It
has an internal power supply and
a small cooling fan in the bottom,
extending ambient operation to
55C. The port side of the chassis
consists of five shared 10/100Mb
RJ-45 ports and one 100Mb
switched SC fiber port. There is
an up-link (UPLINK) switch next
to Port 1, which allows this port
to be used for cascading to a hub
or switch. There is a manual switch “F-H” underneath the switched port #6 which provides
“Full-duplex” and “Half-duplex” capability to the switched port
The Magnum DS60F has power (PWR) and collision (COL) LED’s and 10 and
100 LEDs for the unit. It also has link (LINK) and receive (RX) activity LEDs for each of the
five shared ports and for Port 6. The port #6 has a Full-duplex (FDX) and a speed (100) LED
also. Rubber feet on the bottom provide a sturdy grip and clearance for the exhaust of the
cooling fan.
The internal power supply is an auto ranging AC power supply for input of 115-230
vac, 50/60 Hz. Optionally available are 24VDC and -48VDC for the industrial and telecom
markets. The recessed male IEC power connector is located at the right-rear. Two mounting
brackets for optional wall mounting are supplied with each unit. An optional “edge- stand” is
available (See “Spare Parts Price List”) and is used for floor-mounting on carpeted surfaces.
www Garret tCom com
..
7
Magnum DS50 / DS60s Dual Speed Hubs Installation and User Guide (06/02)
2.2.2 Fiber port, SC Connector for Model DS60F
SC type (single-mode or multi-mode)
The Fast Ethernet fiber
switched port on the Magnum DS60F is
set to operate at fixed 100Mb speed for
guaranteed high performance. The
DS60F’s fiber port is factory-built and
available either as a multi-mode SC, or
a single-mode or long-reach SC connector. The 100Mb fiber port will run at 100Mbs speed at
all times with manually selected full- and half-duplex capability. The 100Mbps fiber port is a
switched port and performs as a separate traffic domain, providing a high bandwidth backbone
connection (no media converter is required !) and supporting long (up to 40km) fiber cable
distances for installation versatility.
Port 6 (the fiber port) has an “F - H” user-selectable manual switch. When set in the
“F” position, it forces full-duplex mode. When set in the “H” position, it forces half-duplex
mode, still at 100Mbps speed.
On Magnum DS60F units, there are three LED’s for the switched ports. One (LK) is
steady ON to indicate LINK is operational. The speed (100) LED is ON for 100Mbps and OFF
for 10Mbps (when LINK is made). The F/H indicates full-duplex when ON. When it is OFF,
operation is half-duplex.
A fiber cable must be connected to the 100Mb port and a proper link (LK light) must be made
with the device at the other end of the cable in order for these LEDs to provide valid indications
of operating conditions.
2.2.3 Magnum DS60C Dual-speed Hubs Plus with Copper port, Chassis
The Magnum DS60C chassis
houses one main board for the five hub ports
Magnum DS60
and for the switched port. It has an internal
power supply and a small cooling fan in the
bottom. The front side of chassis consists of
Magnum DS60C Dual-speed Hubs Plus
www Garret tCom com
..
8
A
G
PWR
LINK 100 LINK 100LINK 100 LINK 100LIN K 100
UPLINK
100
10
= x
COL
Personal Hub Plus
R
R
T
E
T
12345
10/100 Mb/s
RX
LK
100
FDX
6
FF-A
Loading...
