Garland RTCSmp Installation Manual

Induction Designer Series

RTCSmp® Compact Line Dual/Quad Cook-Tops

Installation, Operation and Maintenance Manual

This manual is updated as new information and models are released. Visit our website for the latest manual.

Part Number 4532879 1/15

Safety Notices

Safety Notices

DEFINITIONS

DANGER

Indicates a hazardous situation that, if not avoided, will
result in death or serious injury. This applies to the most
extreme situations.

Warning

n

Indicates a hazardous situation that, if not avoided,
could result in death or serious injury.

Caution

,

Indicates a hazardous situation that, if not avoided,
could result in minor or moderate injury.

Notice

Indicates information considered important, but not
hazard-related (e.g. messages relating to property
damage).

NOTE: Indicates useful, extra information about the
procedure you are performing.

DESCRIPTIONS OF SAFETY SYMBOLS AND WARNINGS ON UNIT

This symbol alerts you to a hazardous situation
that WILL or COULD cause serious bodily harm
or death. Be alert and implement relevant safety
precautions.

DANGER - HIGH VOLTAGE

This dangerous voltage warning symbol
indicates a risk of electric shock and hazards
from dangerous voltage.

Electromagnetic Field

Warning

RISK OF FIRE OR ELECTRIC SHOCK! DO NOT OPEN!

To reduce the risk of fire or electric shock, do not remove or

open cover. No user serviceable parts inside.

Refer servicing to qualified personnel.

CAUTION ATTENTION

DISCONNECT FROM SUPPLY CIRCUIT BEFORE OPENING

DISCLAIMERS

DANGER

Disregarding any safety instructions may cause harm to
people, the surroundings, and the equipment. Garland
is not responsible for any damages or personal injury
caused by failure to observe any safety requirements.
Risks involved when disregarding safety precautions
include, but not limiting to:

• Death or injury caused by electric shock.

• Burn injury caused by contacting overheated cooking
surface, cookware, or oil and grease.

• Damage to the equipment caused by using
unsuitable cookware.

DANGER

This product has been certified as commercial cooking
equipment and must be installed by professional
personnel as specified.

DANGER

Do not install or operate equipment that has been
misused, abused, neglected, damaged, or altered/
modified from that of original manufactured
specifications.

DANGER

Contact Manitowoc Foodservice if you intend to make
any changes on the equipment. For safety reasons,
always use genuine parts and accessories approved by
Manitowoc. Refer to the warranty documents for your
equipment.

DANGER

Owners and operators are cautioned that maintenance
and repairs must be performed by an authorized service
agent using only genuine Garland replacement parts.
Garland will have no obligation with respect to any
product that has been improperly installed, adjusted,
operated or not maintained in accordance with national
and local codes and/or installation instructions provided
with the product or any product that has its serial
number defaced, obliterated or removed, and/or which
has been modified or repaired using unauthorized parts
or by unauthorized service agents.

3

Safety Notices

DANGER

Improper installation, adjustment, alteration, service,
or maintenance of this appliance or installation of
a damaged appliance can result in DEATH, INJURY,
EQUIPMENT DAMAGE, and void the warranty. NEVER
install damaged appliances, equipment, or accessories.

ALWAYS have installation and service performed by
trained and authorized personnel.

DANGER

All utility connections and fixtures must be maintained
in accordance with local and national codes.

Warning

n

Do Not Store Or Use Gasoline Or Other Flammable
Vapors Or Liquids In The Vicinity Of This Or Any Other
Appliance. Never use flammable oil soaked cloths or
combustible cleaning solutions, for cleaning.

Warning

n

Warning labels mounted directly on the equipment
must be observed at all times and kept in a fully legible
condition.

Warning

n

Read this manual thoroughly before operating, installing
or performing maintenance on the equipment. Failure
to follow instructions in this manual can cause property
damage, injury or death.

This manual must always be available for reference at
the place of operation.

Warning

n

This product contains chemicals known to the State
of California to cause cancer and/or birth defects or
other reproductive harm. Operation, installation, and
servicing of this product could expose you to airborne
particles of glass-wool or ceramic fibers, crystalline
silica, and/or carbon monoxide. Inhalation of airborne
particles of glass-wool or ceramic fibers is known to the
State of California to cause cancer. Inhalation of carbon
monoxide is known to the State of California to cause
birth defects or other reproductive harm.

Notice

Routine adjustments and maintenance procedures
outlined in this manual are not covered by the warranty.

NOTE: Proper installation, care and maintenance are
essential for maximum performance and trouble-free
operation of your equipment. Visit our website
www.mtwkitchencare.com for manual updates,
translations, or contact information for service agents in
your area.

NOTE: Throughout this manual, the induction unit type
indicated on the front cover is referred to as “induction unit”
or “unit” or "equipment".

Warning

n

This appliance is not intended for use by persons
(including children) with reduced physical, sensory or
mental capabilities, or lack of experience and knowledge,
unless they have been given supervision concerning
use of the appliance by a person responsible for their
safety. Do not allow children to play with this appliance.

4

Safety Notices

CODE

Warning

n

Authorized Service Representatives are obligated to
follow industry standard safety procedures, including,
but not limited to, local/national regulations for
disconnection / lock out / tag out procedures for all
utilities including electric, gas, water and steam.

PERSONAL PROTECTION

DANGER

All utilities (gas, electric, water and steam) must be OFF
to all equipment and locked out of operation according
to national/regional, as well as company approved
practices during servicing. Always allow unit to cool.

DANGER

Use appropriate safety equipment during installation
and servicing.

DANGER

Never stand on the unit! They are not designed to
hold the weight of an adult, and may collapse or tip if
misused in this manner.

CORRECT DISPOSAL OF THIS PRODUCT

This marking shown on the product
indicates that the product should not be
disposed as household waste or regular
commercial waste. Instead it shall be

handed over to the applicable collection
point for the recycling of electrical and electronic
equipment. By ensuring this product is disposed correctly,
you will help prevent potential harm to the environment
or human health, which could otherwise be caused by
inappropriate waste handling of this product.

For more detailed information regarding recycling of the
product, please contact your local city office or your waste
disposal service.

DANGER

Induction units, sent for disposal, can be brought back
into operation and their use must be avoided.

NOTE: The unit is built with common electrical,
electromechanical, and electronic parts. No batteries are
used.

NOTE: The owner and operator are responsible for the
proper and safe disposal of the unit.

DANGER

Keep power cord AWAY from HEATED surfaces. DO NOT
immerse power cord or plug in water. DO NOT let power
cord hang over edge of table or counter.

DANGER

To avoid cardiac pacemaker malfunction, consult
physician or pacemaker manufacture about effects of
electromagnetic field on pacemaker.

Warning

n

Use caution when handling metal surface edges of all
equipment.

Warning

n

Risk of burns from high temperatures. You may get
burnt if you touch any of the parts during cooking.
Surfaces close to the cooking surface including side
panels may get hot enough to burn skin. Use extreme
caution to avoid coming in contact with hot surfaces
or hot grease. Wear personal protective equipment.

5

THIS PAGE INTENTIONALLY LEFT BLANK

Safety Notices

Table of Contents
Section 1

General Information

Section 2
Installation

Table of Contents

Definitions.................................................................................................................................................3

Descriptions of safety symbols and Warnings on Unit .............................................................3

Disclaimers ................................................................................................................................................3

Code ............................................................................................................................................................5

Personal Protection ...............................................................................................................................5

Correct Disposal of This Product .......................................................................................................5

Nomenclature and Model Numbers .................................................................................9

Warranty Information ........................................................................................................ 9

Packing Slip ........................................................................................................................9

Serial Plate Location ..........................................................................................................9

Compliances .......................................................................................................................9

Components .....................................................................................................................12

Overview: Critical Information on Design and Installation ..........................................12

Critical Requirements ......................................................................................................13

Summary of Operating Conditions ............................................................................................... 13

Electrical compartment .................................................................................................................... 13

Installation Clearance ........................................................................................................................ 14

Location Requirements ..................................................................................................................... 16

Ventilation Requirements.................................................................................................................16

Mounting Structure Design and Installation .................................................................17

Two Methods of Installation ............................................................................................................ 17

General Design Criteria ..................................................................................................................... 18

Critical Dimension for Compression ............................................................................................. 19

Dimensions: SH/DU/IN/CL, Version 555 ...................................................................................... 20

Dimensions: SH/DU/IN/CL, Version 610 ...................................................................................... 21

Dimensions: SH/DU/IN/CL, Version 655 ...................................................................................... 22

Glass Installation Guidelines and Instructions .............................................................. 23

Glass Installation Guidelines ........................................................................................................... 23

Countertop Cut-out Dimensions ................................................................................................... 23

Glass Installation Instructions ......................................................................................................... 24

Operating Unit Installation .............................................................................................25

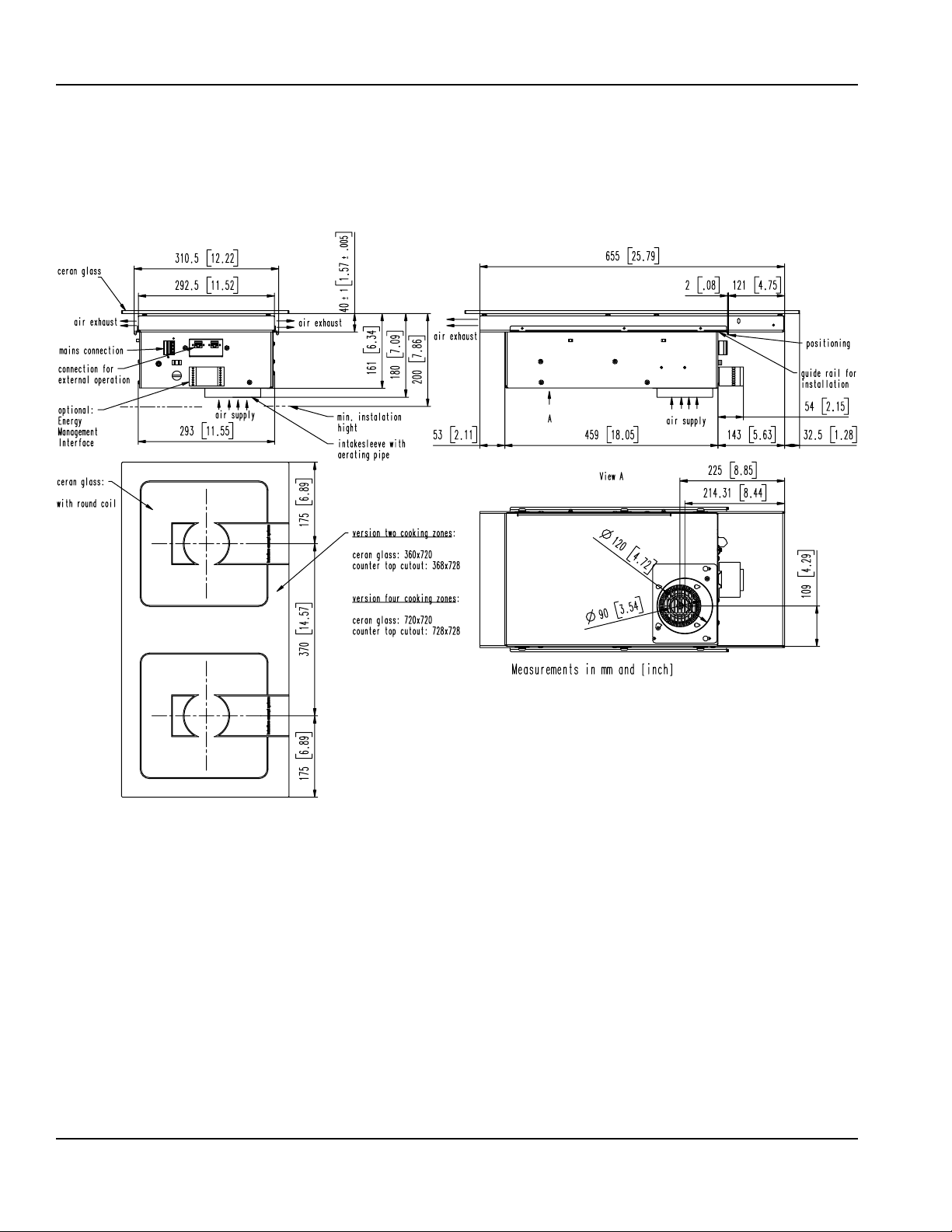

Dimensions: Operating Unit RTCSmp Built-In Compact Line ........................................... 25

Air Intake Kit (P/N 95000085) ..........................................................................................26

Components ......................................................................................................................................... 26

installing the air intake kit ................................................................................................................ 26

Electrical Installation .......................................................................................................27

Electrical Specifications..................................................................................................................... 28

Connecting the Components ......................................................................................................... 29

Function Test .................................................................................................................... 30

7

Part Number 4532879 1/15

Section 3
Operation

Section 4
Maintenance

Section 5
Troubleshooting

Table of Contents (continued)

Proper Induction Cookware ............................................................................................32

Condition Of Cookware .................................................................................................................... 32

Material of Cookware ......................................................................................................................... 32

BOIL TEST: Performance of Cookware ..........................................................................................32

Size of Cookware ................................................................................................................................. 33

Proper Placement of Cookware on Dual/Quad Cook-Tops ...........................................33

Power Control ...................................................................................................................34

Power Diagram ..................................................................................................................................... 34

No Pan No Heat .................................................................................................................34

When Unit Is Idle ..............................................................................................................34

Important Rules on Maintenance ...................................................................................36

Daily Cleaning and Maintenance ....................................................................................36

Weekly Cleaning and Maintenance ................................................................................37

Yearly Maintenance .......................................................................................................... 37

Common Causes for Induction Unit Failure ...................................................................39

Symptoms .........................................................................................................................39

Boil Test: Performance of Cookware ............................................................................... 39

Troubleshooting Chart Without Error Code / Indicator Lamp Flash Code ...................40

Troubleshooting Chart With Error Code / Indicator Lamp Flash Code .........................41

Wearable Parts List ...........................................................................................................42

8 Part Number 4532879 1/15

Section 1

General Information

Nomenclature and Model Numbers

Series Style Built-In Function Power (Watt) Length (mm) Coil Style Model Number**

SH =

Slim Hob

* A quad unit consists of two dual units underneath one piece of glass, for a total of four cook-tops.
** A “3500” dual unit consists of two 3500Watts coils; a “5000” dual unit consists of two 5000Watts coils.

DU = Dual IN CL=

Compact Line
Quad*
(Two dual
units)

7000 (2x 3500)
10000 (2x 5000)

555
610
655

RU =

Round Coil

SH/DU/IN/CL 3500-555 RU
SH/DU/IN/CL 3500-610 RU
SH/DU/IN/CL 3500-655 RU
SH/DU/IN/CL 5000-555 RU
SH/DU/IN/CL 5000-610 RU
SH/DU/IN/CL 5000-655 RU

Warranty Information

Visit www.garland-group.com to view and download a copy
of your warranty.

Packing Slip

The packing slip attached to the shipment contains detailed
information on all components. Please retain this packing
slip for future reference.

Serial Plate Location

The serial plate is affixed to the side of the housing, near the
electrical connectors at the front. Important information
such as the unit’s model number, serial number, and
electrical specifications can be found on the serial plate.

Compliances

• North American models:

ETL recognized* in compliance with UL 197, CSA C22.2
No.109, NSF-4. Complies with FCC part 18, ICES-001

*see section “Installation” on page 11

• CE models comply with the latest European Norms:

EN 60335-1, EN 60335-2-36, EN 62233 (EMC/EMV)

Part Number 4532879 1/15 9

THIS PAGE INTENTIONALLY LEFT BLANK

Section 2

Installation

Warning

n

Safety and Electrical Requirements

This appliance component requires additional features and components to comply with appliance
and electrical standards.

It is the responsibility of the customer and installer to interpret and comply with all applicable
national and regional health codes, safety and electrical standards in your jurisdiction.

This product requires the addition of:

• A suitable non-flammable electrical enclosure; a means to conceal and protect components
and wiring.

• Grounding and bonding to the enclosure.

• An appliance rating plate that includes end manufacturer information.

• Investigation by local electrical authority. Warning, caution labels and other markings

required by electrical and safety standards could be provided by local authority.

Depending on the application and configuration of this product(s), consider the addition of:

• Field supply connection terminals (terminal block).

• Branch circuit protection (breakers).

• Fans, ventilation or cooling systems and controls.

Warning

n

Installation must be carried out by registered installation
contractors only. The contractors are responsible for
interpreting all instructions correctly and performing
the installation in compliance with national and local
regulations. The warning signs and serial plates on the
equipment must strictly be followed.

Warning

n

The unit is designed for custom built counter or island
suite. Customers are responsible to provide proper
installation mounting for the components.

Read ALL SECTIONS carefully, comply with all
requirements listed and ensure inspection is done by
qualified personnel.

Warning

n

To avoid instability the installation area must be capable
of supporting the combined weight of the equipment
and product.

The equipment must be level side to side and front to
back.

Warning

n

This equipment is intended for indoor use only. Do not
install or operate this equipment in outdoor areas.

Caution

,

This equipment must only be operated under an
approved hood system in accordance with local
regulations in force.

Notice

Induction equipment that is not installed correctly will
have warranty voided.

NOTE: Always maintain enough space between and around
the equipment in the cabinet for maintenance and service.

Part Number 4532879 1/15 11

Installation Section 2

Components

RTCSmp Compact-Line Generator (with Coils and Sensors)

x1 for dual model
x2 for quad model

Three Versions (lengths):
555mm, 610mm, 655mm.

Operation Unit

x2 for dual model
x4 for quad model

Plastic knob, LED lamp and
cable are pre-assembled.

Glass Cook-Top

Dual version, two cook zones.
Quad version, four cook zones.

Silicone gasket (not shown) is
included for installation.

Air Intake Kit for Compact-Line Unit

Kit Part Number 95000085
x1 for dual model
x2 for quad model

Silicone sealant is provided in
the kit for glass installation.

Overview: Critical Information on Design and Installation

Warning

n

The unit is designed for custom built counter or island
suite. Customers are responsible to provide proper
installation mounting for the components.

Read ALL SECTIONS carefully, comply with all
requirements listed and ensure inspection is done by
qualified personnel.

Refer to “Mounting Structure Design and Installation” on page

17

Install

Procedure

Component to

Typical Installation

Step 1Glass-Top “Two Methods of Installation” on page 17

Step 2Compact

Line

Generator

Step 3Operation

Unit

Step 4Air Intake

Kit

Step 5Electrical “Electrical compartment” on page 13

Step 6Test “Function Test” on page 30

Refer to the

requirements

sections below for

“Countertop Cut-out Dimensions” on page
23

Orientation of Glass-top for Quad Model,
and Thickness of Glass (final installed
dimension), refer to “Glass Installation

Guidelines” on page 23

“Glass Installation Instructions” on page 24

“Electrical compartment” on page 13

“Location Requirements” on page 16

“Ventilation Requirements” on page 16

“Installation Clearance” on page 14

“Mounting Structure Design and Installation”
on page 17

Technical drawings page 20

“Critical Dimension for Compression” on page
19

“Installation Clearance – Components” on
page 14

“Operating Unit Installation” on page 25

“Air Intake Kit (P/N 95000085)” on page 26

“Electrical Specifications” on page 28

“Electrical Installation” on page 27

12 Part Number 4532879 1/15

Section 2 Installation

Critical Requirements

SUMMARY OF OPERATING CONDITIONS

Max. Tolerance of Nominal
Supply Voltage

Supply frequency 50/60 Hz

Ingress Protection class IP X0 (Protection by customer is

Minimal Diameter of
Induction Pan

Maximum Ambient
Temperature

Maximum Relative Air
Humidity

Clearance from Materials Min. 1.18” / 30mm

Maximum Air Flow 70.63cfm/120m

D

+6 /-10 %

required.)

5” (12cm)

In Storage > -4°F to +158°F
(-20°C to +70°C)

In Operation >+ 41°F to +104°F
(+5°C to +40°C)

In Storage > 10% to 90%

In Operation > 30% to 90%

3

per hour

Minimum opening: total sum of

10.075in

FRONT

2

/6500mm2 is required.

D

ELECTRICAL COMPARTMENT

To protect the induction unit and wiring, we recommend
isolating the generator, the coil carrier sheets, and the wires
in separate electrical compartments inside the cabinet
(Figure B, below).

The illustration below shows a simplified representation of
an installation.

Notice

To ensure reliability of the induction unit, the custom
built counter / island suite / compartments must have
sufficient ventilation for the exhaust.

The in-take air and exhaust air must not mix. Depending
on the air path and the amount of natural air movement,
it is highly recommended to install a fan or fans on the
cabinet to pull hot exhaust air away from the electronic
equipment, or to provide a separate exhaust air plenum.

Failure to provide adequate ventilation will cause
the induction unit to overheat, to reduce power, or to
shutdown.

Figure BFigure A

D

FRONT

D

E

G

C

I

HF

A. (Figure A)

All components are installed inside one single
compartment and the wires are exposed.

B. (Figure B)

The interior space of the cabinet is divided. The
unit and wiring are protected inside the upper
compartment. Extra storage space can also be
created.

C. Fresh air intake (Air intake kit provided).

D. Hot air exhaust openings.

I

E

E

G

C

HF

E

E. Air exhaust vents/fans installed on the cabinet.

NOTE: Additional fans and cooling controls are the
responsibility of the customer and installer.

F. Clearance. See section “Installation Clearance” on

page 14

G. Built-In Compact Line induction generator.

H. Power switch cable (x2), length= 1m / 39.4inch, to

connect the operation unit (power switch) to the
induction generator.

I. Main power cable (not provided).

Part Number 4532879 1/15 13

Installation Section 2

INSTALLATION CLEARANCE

DANGER

Risk of fire/shock/equipment failure. All minimum
clearances must be maintained. Do not obstruct vents
or openings.

Installation Clearance – Components

b

d

b

d

c

Compact Line

a

Cable Bend /

Connection

Clearance

(minimum)

73mm / 2.88” 30mm / 1.18” 200mm / 7.88”

b

Air Vents

Clearance

(minimum)

Induction

Module

c

Clearance

(minimum)

(measured from

below glass;

glass shown)

b

d

Clearance

(minimum)

40±1mm /

1.58±0.005”

(from below

glass to

underside of

coil carrier,

glass shown)

a

Operation Unit 63.5mm / 2.5“ - - -

a

Installation Clearance – Quad Models

The gap required between two dual compact units is restricted by the glass size. This gap can be measured from center to
center of coils, or simply from edge of one unit to the next as shown in the illustration.

y

Unit Length Glass Size Distance “y”

555mm 600 x 600mm

(23.62” x 23.62”)

y

610mm 650 x 650mm

(25.60” x 25.60”)

y

655mm 720 x 720

y

(28.35” x 28.35”)

320mm

(12.60”)

320mm

(12.60”)

360mm

(14.17”)

14 Part Number 4532879 1/15

Section 2 Installation

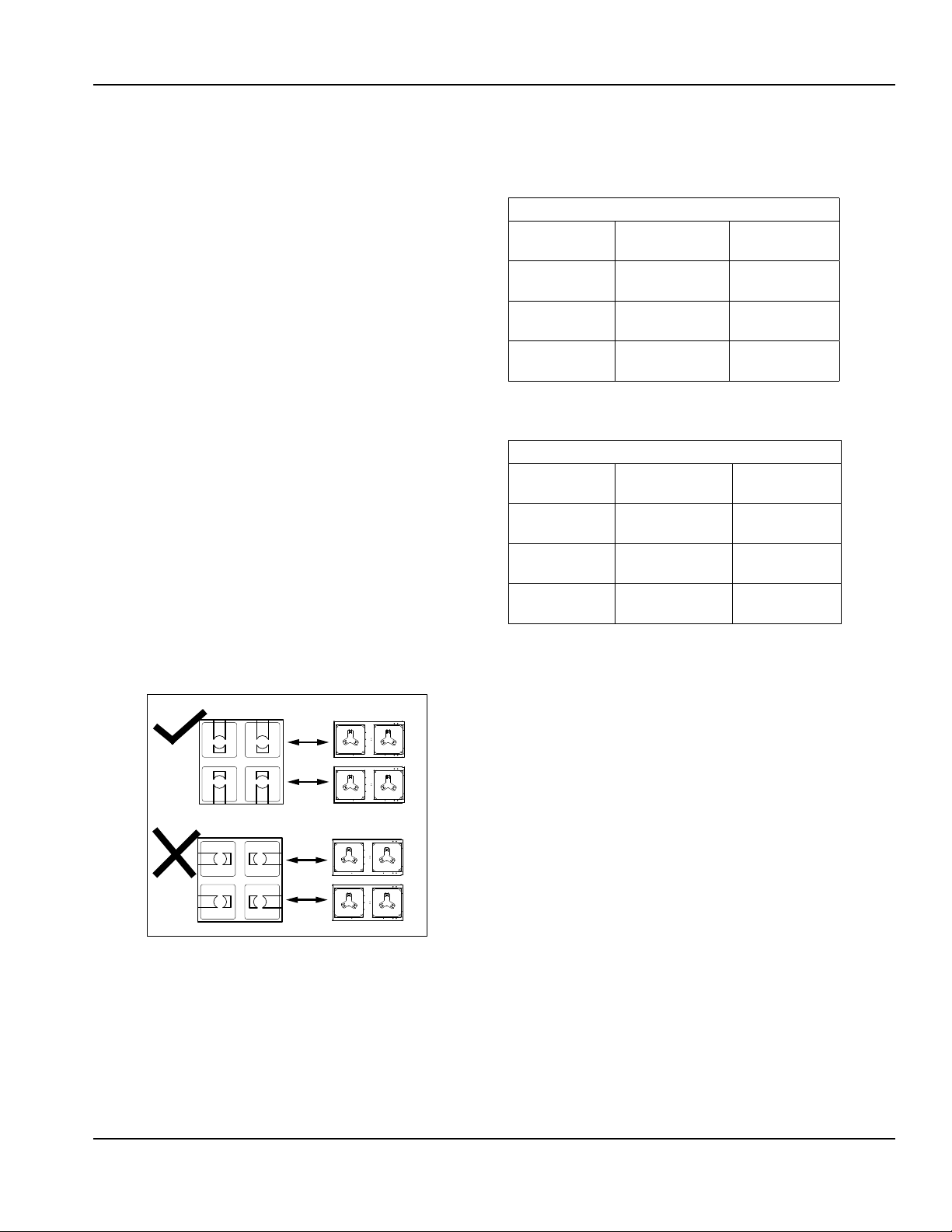

In-Line Installation of Dual Models

For in-line installation of multiple dual SH/DU/IN/CL units, a minimum gap of “z” = 100mm or 4 inches (“z”, illustrations
below) between the units must be maintained. This minimum distance prevents any electrical interference between two
units.

NOTE: The orientation of each unit in an in-line configuration will affect the ventilation requirements.

* * * * *

*

“*” denotes the front, where the connectors are located.

(i)
Front to Front

In this configuration, the wirings can be
managed together and the air intake
apparatus (ducts, air filters) would be close
together.

z = minimum 100mm [4 inches]

z z w

i

(ii)
Front to Back

Strong exhaust from the back of one
unit will blow into the other. A proper
ventilation system is necessary to
maintain proper ambient operating
temperature to below 40

o

C / 104°F.

ii

(iii)
Back to Back

This configuration is not recommended
unless the distance “w” in between the units
is large enough for proper air circulation
or an appropriate ventilation system is
installed.
Operating temperature below 40

z = minimum 100mm [4 inches]

104°F must be maintained. Otherwise, hot
exhaust air from both units in proximity may
accumulate quickly, causing the units to
reduce power or to switch-off.

o

iii

C /

Part Number 4532879 1/15 15

Installation Section 2

LOCATION REQUIREMENTS

Caution

,

Do not position the air intake vent near steam or heat
exhaust of another appliance.

• The induction unit must be installed securely in a
suitable non-flammable electrical enclosure (closed
counters).

• Allow easy access to the unit, the air intake filter, and the
cable connections for maintenance and service.

• The unit must be level.

• Protect the induction unit from heat, steam and grease
generated by other equipment, such as oven, deep
fryer, pasta cooker, steamers, and water bath.

• Allow easy access to the control knobs and ensure the
LED lights are not obstructed.

• Keep the induction unit away from combustible
materials, vapors or liquids.

VENTILATION REQUIREMENTS

Proper cool air intake and ventilation is essential to the
reliability and functioning of the induction unit. Please
ensure all requirements listed below are met.

Notice

To ensure reliability of the induction unit, the custom
built counter / island suite / compartments must have
sufficient ventilation for the exhaust.

The in-take air and exhaust air must not mix. Depending
on the air path and the amount of natural air movement,
it is highly recommended to install a fan or fans on the
cabinet to pull hot exhaust air away from the electronic
equipment, or to provide a separate exhaust air plenum.

Failure to provide adequate ventilation will cause the
induction unit to overheat, to reduce power, or to
shutdown.

Notice

The maximum ambient temperature for the induction
unit to operate must not exceed 104°F (40°C).

Notice

To allow hot exhaust air to escape, install in the cabinet
an air exhaust vent that must be at least 1.5 times or
greater than the air intake opening.

NOTE: Additional fans and cooling controls are the
responsibility of the customer and installer.

• Meet all requirements listed in:

“Summary of Operating Conditions” on page 13 and
“Installation Clearance” on page 14

• An optimal fresh air intake must not be restricted by the
installation.

• Ensure the induction unit does not take in hot ambient
air or steam from another appliance, especially when
the unit is installed close to heat generating equipment
such as fryers or ovens.

16 Part Number 4532879 1/15

Section 2 Installation

Mounting Structure Design and Installation

A custom-built support structure or mounting frame is required to mount the glass-top to the counter surface and to install
the induction compact line module. This section provides the main design criteria.

NOTE: Please contact Garland if you would require assistance on designing a proper mounting frame.

TWO METHODS OF INSTALLATION

Method 1: Install the unit from under the counter.

• The mounting frame is to be stud-mounted to the
underside of the counter-top.

• The glass-top can be installed either:

• from the top onto the same mounting frame for
the compact-line generator, or

• onto a separate support structure.

• This method allows the removal of the unit for service
and maintenance below the counter-top.

Method 2: Install the unit from above the counter.

• This method is suitable for custom built suite with
removable counter-top.

• The mounting frame is attached to the cabinet. The
compact-line generator can then be installed onto the
mounting frame from above.

• With a separate mounting frame for the glass-top, the
glass-top is installed onto the counter top.

• The whole counter top can then be placed onto the
body of the cabinet.

• Example of a custom designed mounting frame for
quad model:

Part Number 4532879 1/15 17

Installation Section 2

GENERAL DESIGN CRITERIA

Notice

Components of the structure made from steel in the
vicinity of the coils must not be magnetic.

If two coil carriers are installed in the same frame, a
partitioning plate made from non-magnetic steel must
be installed between the coil carriers.

• For all critical information regarding glass-top
dimensions and installation, refer to section “Glass

Installation Guidelines and Instructions” on page 23

• The generators should be accessible and removable
for service and maintenance. Note that all electrical
connectors are located on the front panel of the
generator.

• Features on the induction unit designed for installation:

A. Support Rails: There are support rails on each long

side of the unit. To install the unit, support these
rails on a mounting structure.

B. Locating Tabs: There are locating tabs at front of

the support rails for positioning the unit. In your
design, include slots or holes to insert these tabs.
Refer to the technical drawings of the compact line
generators for the exact locations of these tabs.

• It is desirable to include height-adjustable feature to
level the unit during installation.

• Use 10- to 14-gauge non-magnetic metal (typical12­gauge) for the mounting frame.

• The mounting frame should not interfere with the air
intake duct (provided in the air intake kit) or block the
air vents on the unit.

• Depending on the thickness and material of the
counter-top, additional reinforcement structure may
be required. Consult your counter-top supplier for
information.

A

B

• Illustration below shows a quad configuration with a
support frame.

A

B

18 Part Number 4532879 1/15

Section 2 Installation

CRITICAL DIMENSION FOR COMPRESSION

The RTCSmp sensors (“E”, illustration below) monitor the
cook-zone temperature constantly to ensure an accurate
and safe operating temperature. For the sensors to function
properly, they have to be compressed against the glass-top
constantly and evenly. The springs “D” supporting the coils
and sensors will allow this compression to occur during
installation.

Notice

Critical Dimension

After installation, the distance from the guard rail to the
glass, 40+/-1mm, must be obtained to get the correct
compression.

E

(i)

164.8mm

(ii)

161 +/-1mm

(mounting frame for the compact line generator not shown)

A. Counter-top

B. Custom-built frame to

mount the glass-top

C. Glass cook-top

D. Compression Springs

inside the unit. The
springs support the
coils and the sensors.

E. RTCSmp Sensors

(i)
The glass-top has to be fixed
onto the counter-top first
before installing the induction
generator. See section “Glass

Installation Guidelines and
Instructions” on page 23

(ii)
To ensure proper contact with
the glass-top, the sensors and
coils must be compressed
evenly.

C

D

A

B

40 +/-1mm

Part Number 4532879 1/15 19

Installation Section 2

DIMENSIONS: SH/DU/IN/CL, VERSION 555

NOTE: Diameter of each induction coil = 220mm [8.66inch]

NOTE: A quad unit consists of two dual units underneath one piece of glass, for a total of four cook-tops.

NOTE: Dimensions shown are the dimensions after installation.

20 Part Number 4532879 1/15

Section 2 Installation

DIMENSIONS: SH/DU/IN/CL, VERSION 610

NOTE: Diameter of each induction coil = 270mm [10.6inch]

NOTE: A quad unit consists of two dual units underneath one piece of glass, for a total of four cook-tops.

NOTE: Dimensions shown are the dimensions after installation.

Part Number 4532879 1/15 21

Installation Section 2

DIMENSIONS: SH/DU/IN/CL, VERSION 655

NOTE: Diameter of each induction coil = 270mm [10.6inch]

NOTE: A quad unit consists of two dual units underneath one piece of glass, for a total of four cook-tops.

NOTE: Dimensions shown are the dimensions after installation.

22 Part Number 4532879 1/15

Section 2 Installation

Glass Installation Guidelines and Instructions

GLASS INSTALLATION GUIDELINES

• The glass-top should be installed first before installing
the compact-line induction module.

• To allow the temperature sensors to work properly,
the induction module is to be compressed against the
underside of the glass-top after installation. See section

“Critical Dimension for Compression” on page 19

• The glass-top should be installed flush with the counter­top and bonded using silicone sealant (included in the
Air Intake Kit).

• The glass-top must not be adhered to the support
surface directly. Silicone gasket is provided for glass
installation. See procedure in “Glass Installation

Instructions” on page 24

• NOTE: Final installed thickness:

Thickness of glass + silicone gasket + silicone seal =
6mm + 3mm + approx. 0.5mm = total approx. 9.5mm.

• The glass perimeter should be sealed with silicone to
prevent penetration of any liquid into the interior. For
a typical installation, we recommend to leave a gap of

4.0mm / 0.16” between the glass and the counter-top to
be filled with silicone.

• To match the edged pattern on the glass and the
centers of the induction coils, the glass-top should only
be oriented in one direction as shown:

COUNTERTOP CUTOUT DIMENSIONS

Dual Model (2-Cooktops)

Dual Model (2-Cooktops)

Unit Length

(mm)

555 300 x 600

610 375 x 650

650 360 x 720

*Added 4mm width for silicone sealant on each side.

Glass Size mm

(inch)

(11.81 x 23.62)

(14.76 x 25.6)

(14.17 x 28.35)

Cut-Out Size*

mm (inch)

308 x 608

(12.13 x 23.94)

383 x 658

(15.08 x 25.91)

368 x 728

(14.49 x 28.66)

Quad Model (4-Cooktops)

Quad Model (4-Cooktops)

Unit Length

(mm)

555 600 x 600

610 650 x 650

650 720 x 720

*Added 4mm width for silicone sealant on each side.

Glass Size mm

(inch)

(23.62 x 23.62)

(25.60 x 25.60)

(28.35 x 28.35)

Cut-Out Size*

mm (inch)

608 x 608

(23.94 x 23.94)

658 x 658

(25.91 x 25.91)

728 x 728

(28.66 x 28.66)

Part Number 4532879 1/15 23

Installation Section 2

GLASS INSTALLATION INSTRUCTIONS

Notice

To protect the induction unit from water penetration,
you must apply and bond the silicone adhesive properly
to create a water-tight seal.

Before you begin the installation, it is very important to
use isopropyl alcohol (minimum 70%) or equivalent to
clean any surface areas where the silicone adhesive will
be applied.

1. A custom designed support structure for the glass-top
is required.

(1A)

For countertop thickness of 1.5mm to 3mm (16- to
10-gauge), a typical installation frame is shown. The
frame is installed to the underside of the countertop.

(1B)

For countertop thickness of 20 to 30 mm or 1-inch, the
example shows a flange is created on the counter-top
for placing the glass.

1A

x

4

5

7

2. The glass-top should not be adhered to the support
surface directly. First, apply silicone adhesive PACTAN
to the support surface. PACTAN is provided in the Air
Intake Kit.

3. Place the silicone stripes (provided).

4. Apply silicone adhesive again on top of the silicone
stripes.

5. Carefully lower the glass-top onto the support
structure.

6. In the example in (1A), machine screws are used to
adjust and level the glass-top.

7. For a watertight seal, apply silicone adhesive to fill the
gap completely. Carefully wipe up any excess silicone.
Let the silicone adhesive cure for at least 24 hours or
per recommendations from the manufacturer.

NOTE: Dimension of gap between glass and countertop, “x”
= 4.0mm or 0.16”.

NOTE: Dimension of the final installed height of glass-top
plus silicone, “y” = approximately 9.5mm or 0.37”

1B

5

x

4

7

y

3

2

6

1A

y

3

2

1B

24 Part Number 4532879 1/15

Section 2 Installation

Operating Unit Installation

• There is one operating unit for each cook-zone.

• The RJ-45 cable for each operating unit is 1 meter or

39.4 inches long.

NOTE: Install the operating unit in an UPRIGHT position.

NOTE: The maximum thickness of the mounting panel for
the operating unit must not exceed 3.0mm or 12 gauge.
This restriction ensures a proper grip on the knob and the
LED lamp will not be obstructed.

DIMENSIONS: OPERATING UNIT RTCSmp BUILTIN COMPACT LINE

To mount the operating unit:

1. Use the dimensions provided in the drawing below
as a guide, create the required holes on the mounting
panel.

2. Remove the plastic knob from the operating unit and
fasten the switch to the panel with two (2) screws.

NOTE: These two screws prevent the switch from
rotating. See “holes for switch” in the drawing.

Part Number 4532879 1/15 25

Installation Section 2

Air Intake Kit (P/N 95000085)

Notice

• The maximum length of the air duct must not exceed
96”(244cm).

• The Air Intake Filter should be in visible view, easily
accessible, and labeled. Operators have to inspect
and clean the air filter(s) regularly. A blocked filter can
cause electronic damage to the induction unit.

• Ensure to meet all ventilation requirements in

“Ventilation Requirements” on page 16

INSTALLING THE AIR INTAKE KIT

1. Use the air duct flange as a template to mark on
the cabinet the location of screw holes and air duct
opening.

NOTE: PACTAN silicone adhesive and caulking gun are
included in the air intake kit for glass installation.

NOTE: One air intake kit is provided for each generator.

COMPONENTS

(per Air Intake Kit)

A. Air Duct Flange

B. Flex Aluminum Air Duct

C. Air Filter Holder

D. Air Intake Filter

E. Hose Clamps (x2)

2. Cut out an opening with diameter of 90mm (3.5inches)
for the air duct.

3. Fasten each of the air duct flanges with three (3) screws.
Use M4 screws with either countersunk or flat heads.

4. Use rivets (diameter 3.3mm or 1/8-inch) to fasten the
air filter holder “C” to the cabinet.

5. Attach the air duct to the air duct flanges with the hose
clamps.

6. Insert the air intake filters and label the location of the
filters for the kitchen staff. Frequent inspection and
cleaning of the filters are required.

A

B

E

+

A

C

D

26 Part Number 4532879 1/15

Section 2 Installation

Electrical Installation

DANGER

All electrical connections must be carried out by a
certified electrical contractor, who is responsible for the
correct rating and installation of the induction unit. The
contractor has to comply with all legal safety regulations
and all applicable national and local electrical codes.

Warning

n

This appliance must be grounded and all field wiring
must conform to all applicable local and national
codes. Refer to rating plate for proper voltage. It is the
responsibility of the end user to provide the disconnect
means to satisfy the authority having jurisdiction.

Warning

n

This equipment must be positioned so that the plug is
accessible unless other means for disconnection from
the power supply (e.g. circuit breaker or disconnect
switch) is provided.

Warning

n

Observe all safety and warning signs and markings on
the unit.

Notice

All cables must be routed, protected and tension free.

Notice

The electrician must equip the generator with a mains
cable in accordance with the applicable regulations.
Ensure the mains cable connection is absolutely correct.

Warning

n

When residual current circuit breakers are used, it
has to be taken into account, that by switching on an
induction generator to a three phase power supply
system, leakage current can be caused for a short period
due to the asymmetry. This leakage current can activate
the residual current circuit breakers. While choosing
residual current circuit breakers, please note that the
generator generates direct as well as alternating current
in high frequency areas of approximately 20 kHz.
Our recommendation is to choose a residual current
circuit breaker suitable for these requirements. If the
residual current circuit breakers are used as protection
for personnel, the breakers must be in compliance to
the specific national and local regulations for personal
safety devices.

Notice

Ensure the supply voltage and the line current match
the specifications given on the serial plate affixed to the
unit. A stable mains supply must be provided.

Wrong voltage will damage the induction unit. Follow
strictly the specifications on the serial plate on the unit.

Part Number 4532879 1/15 27

Installation Section 2

ELECTRICAL SPECIFICATIONS

Notice

Due to continuous improvement, this information is for
reference only. Always refer to the serial plate on the
unit to verity the electrical data. Serial plate information
overrides information listed on this page.

Dual Cook-Top Model (One Generator)

Power Voltage Number

of Circuits

7000W (2x 3500W) / 22A 208 V AC / 3Ph / 60Hz 1

7000W (2x 3500W) / 11A 400 V AC / 3Ph / 50Hz 1

7000W (2x 3500W) / 10A 440 V AC / 3Ph / 50Hz 1

10000W (2x 5000W) / 30A 208 V AC / 3Ph / 60Hz 1

10000W (2x 5000W) / 16A 400 V AC / 3Ph / 50Hz 1

10000W (2x 5000W) / 15A 440 V AC / 3Ph / 50Hz 1

Quad Cook-Top Model (Two Generators)

Power (per generator) Voltage Number

of Circuits

7000W (2x 3500W) / 22A 208 V AC / 3Ph / 60Hz 2

7000W (2x 3500W) / 11A 400 V AC / 3Ph / 50Hz 2

7000W (2x 3500W) / 10A 440 V AC / 3Ph / 50Hz 2

10000W (2x 5000W) / 30A 208 V AC / 3Ph / 60Hz 2

10000W (2x 5000W) / 16A 400 V AC / 3Ph / 50Hz 2

10000W (2x 5000W) / 15A 440 V AC / 3Ph / 50Hz 2

Operating Conditions

Max. Tolerance of Nominal
Supply Voltage

Supply frequency 50/60 Hz

+6 /-10 %

28 Part Number 4532879 1/15

Section 2 Installation

CONNECTING THE COMPONENTS

1.

Warning

n

3. To connect the components:

Ensure the control knobs are in the 0 (OFF) position
BEFORE connecting the unit to the electrical supply.

C

ON-Position

Any position
other than
“0” is pointing
to the LED
indicator
light. The LED
is on.

OFF-Position

“0” is pointing
to the LED
indicator
light. The LED
is off.

2. Remove all objects from the glass-top and check that
the glass-top is neither cracked nor broken.

Caution

,

Do not continue if the glass-top is cracked or
broken. Contact an authorized service agency for
assistance.

B

FRONT

D

E

F

A. Use the RJ-45 cables provided to connect the

operation units to the built-in compact-line
module.

B. The control unit connected to the LEFT connector

will control the FRONT heating zone, as indicated
by the black solid circle on the sticker.

FRONT

A

C. The control unit connected to the RIGHT connector

will control the REAR heating zone, as indicated by
the black solid circle on the sticker.

D. Connect a proper mains cable (not provided) to:

• L1,L2,L3: 3-Pole terminal block for 208V;

• L1,L2,L3,PE: 4-Pole terminal block for 400/440V.

E. Ground connection for voltage version 208V. Use

M6 screw.

F. Cable tie anchor. Tension relief for the mains cable.

4. Connect the mains cable from “D” to power supply.

5. To ensure the unit is working, follow instructions in
Function Test

Part Number 4532879 1/15 29

Installation Section 2

Function Test

Warning

n

Before you start, read carefully and understand all
safety and operational requirements in sections “Safety
Notices” on page 3 and “Operation” on page 31 .

Warning

n

Never Leave An Empty Pan On Cook-Top

Induction units heat up empty pans very quickly.

Never operate the unit with an empty pan on a cook­top; always put food products, water or oil into the pan
before turning the unit on. Failure to do so will result in
irreparable damage.

Notice

You must use induction suitable cookware, having a
bottom diameter of at least 12cm or 5-inch.

1. Put some water in an induction cooking pan and place
it in the center of the cook zone.

2. Turn the control knob to a position between 1 and 12.
The LED lamp illuminates and the water is heated.

ON-Position

Any position
other than “0”
is pointing
to the LED
indicator light.
The LED is on.

3. Remove the pan away from the cook zone.

NOTE: When power transmission to the pan bottom
stops, the indicator lamp blinks.

4. Place the pan back on the cook zone. The heating
process resumes.

NOTE: The LED lamp illuminates continuously again
when energy is being transferred to the pan.

5. Turn the control knob to the OFF/“0”-position. The
heating process stops; the indicator lamp goes off.

If the induction unit does not function as expected
despite using quality induction pans, refer to section

“Troubleshooting” on page 39

To test if the pan is suitable for induction cooking, refer to
section “Troubleshooting” on page 39

OFF-Position

“0” is pointing
to the LED
indicator light.
The LED is off.

30 Part Number 4532879 1/15

Section 3

Operation

DISCLAIMER

DANGER

The on-site supervisor is responsible for ensuring that
operators are made aware of the inherent dangers of
operating this equipment.

DANGEROUS ELECTRICAL VOLTAGE

DANGER

If any part of the unit is cracked or broken, Stop and
Immediately Turn Off the unit. Only if it is possible and

safe, disconnect the unit from main power supply. Do
not touch any parts inside the unit.

Failure to disconnect the power at the main power
supply disconnect could result in serious injury or death.
The power switch DOES NOT disconnect all incoming
power.

Contact an authorized service agency for assistance.

DANGER

Do not operate any appliance with a damaged cord
or plug. All repairs must be performed by a qualified
service company.

Warning

n

All covers and access panels (of cabinet) must be in place
and properly secured, before operating this equipment.

PERSONAL AND EQUIPMENT PROTECTION

Notice

Induction units are more powerful, heat up pans
quicker, and cook food faster than conventional cooking
equipment. Your induction unit will require different use
and care than other conventional equipment.

Do not operate the equipment without reading this
manual and understanding all safety requirements.

Warning

n

Never Leave An Empty Pan On Cook-Top

Induction units heat up empty pans very quickly.

Never operate the unit with an empty pan; always put
food products, water or oil into the pan before turning
the unit on. Failure to do so will result in irreparable
damage.

Warning

n

Short Cook Time

Induction unit offers short cooking time. To avoid
overheating and burning, check the cooking process
frequently. Never leave the unit unattended during
operation.

Notice

Broil-Dry Protection

Each cook zone is monitored by multiple temperature
sensors. The sensors can detect overheating at the base
of a cooking pan. When an overheated pan (overheated
oil, empty pan) is detected, the unit stops energy transfer
to the pan immediately. You must turn the unit off and
let it cool down before re-starting the unit.

Caution

,

Do Not Touch Overheated Unit

To avoid burn injuries, do not touch the unit when a pan
is overheated and take all the necessary precautions
when removing the overheated pan.

DANGER

To avoid cardiac pacemaker malfunction, consult
physician or pacemaker manufacture about effects of
electromagnetic field on pacemaker.

Notice

Use Only Induction Suitable Cookware

Use only induction suitable cookware with proper sizes
and made of proper material. The induction suitable
cookware must be in good condition without any
uneven, arched or partially detached bottoms.

Using unsuitable cookware on the induction unit can
cause the unit to fail prematurely, void your warranty, or
incur high service costs.

Caution

,

Do Not Touch Cook-Top During Operation

During operation, the cookware will heat up the glass­top. To avoid burn injuries, do not touch the glass-top
during operation.

Part Number 4532879 1/15 31

Operation Section 3

Notice

The reliability of the unit can only be guaranteed when
it is used properly. The unit must always be operated
within the limits / operating conditions provided in this
manual.

Caution

,

Metallic objects are heated up very quickly when placed
on the unit when the unit is in use. To avoid injury,
DO NOT place any objects such as closed cans, aluminum
objects (aluminum foils), cutlery, jewelry, or watches on
the unit.

DO NOT place any object such as paper, cardboard, or
cloth in between the cookware and the cooking surface,
as this creates a fire hazard.

DO NOT place credit cards, phone cards, tapes, or any
objects sensitive to magnetism on the unit.

DO NOT use the unit for storage. DO NOT place any
paper products, cooking utensils, cutlery, plastic vessels
or food on the unit when not in use.

Warning

n

This equipment is intended for indoor use only. Do not
install or operate this equipment in outdoor areas.

Warning

n

Steam can cause serious burns. Always wear some type
of protective covering on your hands and arms when
removing lids or pans from the unit. Lift the lid or pan
in a way that will direct escaping steam away from your
face and body.

Proper Induction Cookware

CONDITION OF COOKWARE

Pans with layer separation (outward and inward bubbles),
arching or partially detached bottoms must be replaced.
When these pans are used, the sensors under the glass­top cannot detect temperature correctly. These pans
will overheat the sensors and eventually will damage
the sensors and the generator. Illustration below shows
examples of good and bad pans in cross-sections.

MATERIAL OF COOKWARE

Use cookware made of conductive and
magnetic materials. If the pan bottom attracts a
magnet, the pan is suitable for induction
cooking. Look for cookware that is labeled
“suitable for induction” or with an induction
compatible symbol.

BOIL TEST: PERFORMANCE OF COOKWARE

For procedure and guideline, refer to “Boil Test: Performance
of Cookware” on page 39

32 Part Number 4532879 1/15

Section 3 Operation

Proper Placement of Cookware on Dual/Quad

SIZE OF COOKWARE

A. Minimum size: The bottom of the cookware

must have a diameter of at least 5” (12cm). This is
indicated by dotted line circle A.

B. Optimal size: The bottom of the pan fits the edged

perimeter on the glass as shown. This is indicated
by dotted line circle B.

Cook-Tops

The RTCSmp Built-In Compact-Line model has two cook
zones for dual models and four cook zones for quad models.
Each cook-zone is equipped with the latest RTCSmp sensor
technology that enables temperature controls in realtime.

NOTE: To obtain the optimal results from the sensors, you
must always place the pan in the center of the cook zone,
which is indicated by the markings on the glass.

C. When the bottom of pan has a diameter less than

5” (12cm), the sensors will not detect the pan
properly and the pan will not be heated.

D. Oversized pans:

Notice

Do not use oversized pans on the induction
unit. The bottom of the pan must fit the glass.

When a hot, oversized pan covers the silicone joint
underneath, the heat from the pan may dry out the
silicone overtime and cause this water tight seal to
break. The induction unit may fail eventually due to
penetration of liquid through the cracked seal.

B

C

A

Notice

Pans and pots must not cover more than one cook zone.
Otherwise, electronic components of the induction unit
can be damaged.

A

C

B

D

(A): DO NOT place one
pan over two cook­zones.

(B): DO NOT place
multiple pans on a
single cook-zone.

(C) and (D):
DO place one pan on
each cook zone.
DO place pan in the
center of the cook
zone.

D

( A quad cook-top with round coils shown as an example.)

Part Number 4532879 1/15 33

Operation Section 3

Power Control

Set the desired power level by turning the control knob and
the unit is immediately ready for operation. When the green
indicator lamp lights up continuously, energy is being
transferred to the cookware.

ON-Position

Any position
other than “0”
is pointing
to the LED
indicator
light. The LED
is on.

Set and adjust the power level by turning the control knob:

• Position (1) indicates minimum power.

• Position (12) indicates maximum power.

POWER DIAGRAM

The following Power Diagram shows the difference in
power output between two higher power levels is much
larger than that between two lower power levels.

The settings from (1) to (9) span the lower 50% of the total
Power Output; the settings from (10) to (12) cover the 50%
to 100% output range.

This power level and output relationship provides a fine
simmer-rate control in the low power range, and instant
response in the high power range.

POWER
OUTPUT

100%

90%

80%

70%

60%

50%

40%

30%

20%

10%

0123456789 10 11 12

P O W E R D I A G R A M

OFF-Position

“0” is pointing
to the LED
indicator
light. The LED
is off.

P O W E R LEVEL

No Pan No Heat

When a temperature is chosen, the induction unit only
transmits energy when a pan is placed in the heating
zone. If you remove the pan from the heating zone, power
transfer to the pan stops immediately. If the pan is put back
in the heating zone, power is transferred to the pan again.

Note the signals given by the green indicator lamp:

• The green indicator lamp flashes when the unit is ON
but without any pan placed on the hob; the unit is in
pan detection mode.

• As soon as a pan is put on the hob, the heating process
is engaged and the indicator lamp stops flashing and
remains bright. However, the indicator lamp will keep
flashing if the unit is unable to detect the pan or an
unsuitable pan is placed on the glass-top.

NOTE: Pan with a bottom diameter smaller than 5”(12 cm) is
not detected by the system.

When Unit Is Idle

Best Practice:

If the induction unit is not in use, ensure the control knob is
in the 0 (OFF) position.

Notice

Switch the unit OFF if you take the cookware away for
a while. This will prevent the heating process to start
automatically and unintentionally when a pan is placed
back on the heating area. If any person needs to use
the induction unit, he/she will have to turn the unit ON
intentionally.

34 Part Number 4532879 1/15

Section 4

Maintenance

DISCLAIMER

DANGER

It is the responsibility of the equipment owner to
perform a Personal Protective Equipment Hazard
Assessment to ensure adequate protection during
maintenance procedures.

DANGEROUS ELECTRICAL VOLTAGE

DANGER

Do not open the unit. Maintenance and servicing work
other than cleaning as described in this manual must be
done by an authorized service personnel.

DANGER

If any part of the unit is cracked or broken, Stop and
Immediately Turn Off the unit. Only if it is possible and

safe, disconnect the unit from main power supply. Do
not touch any parts inside the unit.

Failure to disconnect the power at the main power
supply disconnect could result in serious injury or death.
The power switch DOES NOT disconnect all incoming
power.

Contact an authorized service agency for assistance.

PERSONAL PROTECTION

Warning

n

Allow heated equipment to cool down before
attempting to clean, service or move. Unit must be cool
to touch and disconnected from power source.

Caution

,

Ensure to remove all residues of cleaning agents from
the cooking surfaces. Use a clean moist cloth to wipe off
any such surfaces.

DANGER

NEVER use a high-pressure water jet for cleaning or hose
down or flood interior or exterior of units with water.
DO NOT allow any liquid to penetrate inside the unit.

CLEANING AND MAINTENANCE

Warning

n

A good maintenance of the unit requires regular
cleaning, care and servicing. The site-supervisor and the
operator must ensure all components relevant to safety
are in perfect working order at all times.

Caution

,

Do not use caustic cleaners on any part of the
equipment. Use mild, non abrasive soaps or detergents,
applied with a sponge or soft cloth.

Part Number 4532879 1/15 35

Maintenance Section 4

Important Rules on Maintenance

Notice

Follow these rules to ensure reliable and repeatable
performance of your induction unit:

• Keep kitchen temperature below 105°F (40°C).

• Never place your induction units next to any grease
generating or heat generating equipment.

• Clean the intake filter at least once a week or as often
as required.

• Use only pans that fits the glass, do not use oversized
pans.

• Never pre-heat the pan. Place the pan on the cooking
area only when you are ready to cook.

• Do not use dented pans; it will cause damages to the
electronics.

Daily Cleaning and Maintenance

Glass Cleaning

NOTE: The cleaning of Ceran glass is identical to cleaning
other similar glass surfaces. You may use any regular glass
cleaning products available from a hardware store.

NOTE: Cleaning tools and supplies are not provided.

1. You may use a razor blade scraper or a non-scratching
sponge to remove all residues on the glass.

When scraping, ensure you angle your razor blade
scraper at about 20o to 30o from the glass.

o

20o - 30

2. Wipe the glass clean with a damp cloth.

Stainless Steel Housing

1. For unit with stainless steel housing/rim, clean the
stainless steel surface using a soft cloth with a mild
detergent and/or a food-safe liquid cleaner designed to
clean stainless steel.

2. Wipe dry with a soft clean cloth.

Visual Inspection of Silicone Seal

Inspect the silicone seal around the glass perimeter or the
joint between the unit and the counter surface. Call for
service as soon as possible if you notice:

• Cracks on silicone seal.

• The silicone seal comes away from the glass/housing or
moves when you press down on the seal.

When the silicone seal is broken, water penetration can
cause the unit to fail, and any malfunction may cause
personal harm.

36 Part Number 4532879 1/15

Section 4 Maintenance

Weekly Cleaning and Maintenance

Notice

Inspect and Clean Air Intake Filter

A dirty, blocked air intake filter blocks the air vent and
will cause damages to the electronic components.
Ensure to clean the filter at least once a week or as often
as required.

The filter is inserted into the Air Filter Holder mounted onto
the cabinet. Simply slid out the filer for cleaning. Garland’s
Air Intake Filter is dishwasher-safe. Wipe the filter dry before
inserting it back into the Filter Holder.

Air Intake Filter

Yearly Maintenance

Best Practice: Have the induction unit examined once a

year by an authorized technician.

Filter Holder

Part Number 4532879 1/15 37

THIS PAGE INTENTIONALLY LEFT BLANK

Section 5

Troubleshooting

DANGEROUS ELECTRICAL VOLTAGE

DANGER

Disconnect electric power at the main power disconnect
for all equipment being serviced.

Failure to disconnect the power at the main power
supply disconnect could result in serious injury or death.
The power switch DOES NOT disconnect all incoming
power.

DANGER

Do not open the unit. Maintenance and servicing work
other than cleaning as described in this manual must be
done by an authorized service personnel.

PERSONAL PROTECTION

Warning

n

Allow heated equipment to cool down before
attempting to clean, service or move. Unit must be cool
to touch and disconnected from power source.

Symptoms

• When a malfunction occurs, the induction unit may be
in one of the following states:

• The induction unit stops working immediately.

• The induction unit continues to work in a power
reduction mode.

• The induction unit continues to work as usual.

• For any unit equipped with an indicator lamp or a digital
display, see section Troubleshooting Chart With Error

Code / Indicator Lamp Flash Code

• For any unit without an indicator lamp or a digital
display, see section Troubleshooting Chart Without Error

Code / Indicator Lamp Flash Code

• NOTE:

The cooling fan starts when the ambient temperature
in the control area exceeds 130ºF/55ºC.

At heat sink temperature higher than 160ºF/70ºC, the
controller automatically reduces power to keep the unit
in normal operating conditions. The cooker runs in a
non-continuous mode. This mode can be heard.

Common Causes for Induction Unit Failure

One or more of the following conditions may affect the
function or contribute to the failure of an induction unit:

• Using unsuitable cookware such as non-induction pans,
oversized pans, or damaged pans.

• High ambient temperature.

• Inadequate ventilation causing hot air to re-enter
through the air intake slots.

• Dirty air intake filter.

• Empty pan is left on the hob when the unit is ON.

Boil Test: Performance of Cookware

(Test for 3.5kW or 5.0kW Coil)

Perform a boil test to verify the performance of a pan for
induction cooking.

• Add one liter of cold water into the pan (optimal when
use pan with bottom diameter of 24cm) and bring it to
boil. Compare the total boil time to the guideline below:

• 3.5kW Coil, approx. 140 seconds

• 5.0kW Coil, approx. 85 seconds

If time to boil exceeds the above guideline, then the pan is
not suitable for achieving optimal efficiency. Please contact
your supplier to purchase suitable induction pans.

If the induction unit does not function as expected despite
using quality induction pans, refer to the troubleshooting
charts.

Part Number 4532879 1/15 39

Troubleshooting Section 5

NOTE: If a problem arises during operation of your induction unit, follow the chart below before calling service. Routine
adjustments and maintenance procedures are not covered by the warranty.

Troubleshooting Chart Without Error Code / Indicator Lamp Flash Code

Symptom Possible Cause Corrective Action

Pan does not heat up,
LED lamp is OFF (dark).

Pan does not heat, green LED lamp
blinks continuously.
If LED lamp blinks at intervals, see next
section.

Poor heating, green LED lamp is ON Air-cooling system is obstructed. Verify that air inlet and outlet are not

Unit does not react to control knob
positions

Power/heating level seems to be
reduced, fan is working

Power/heating level seems to be
reduced, fan does not work

After a long period of continuous
operating time, Power/heating level
seems to be reduced

Small metallic objects (e.g. spoon) are
heated up on the cooking area.

No power supply. Check incoming power supply, e.g. power

cable plugged into the wall socket.
Control knob is in OFF-position. Turn control knob to an ON-position.
Defective induction unit. Ensure knob is in OFF-position and if possible

and safe, disconnect the unit from the power

supply. Contact your authorized service

agency.
Pan is too small. Use a suitable pan with bottom diameter

larger than 5” (12cm).
Pan is not placed in the center of the hob; pan
is not detected by sensor.
Unsuitable pan. Select proper cookware for induction cooking.
Defective induction unit. Ensure knob is in OFF-position and if possible

Unsuitable pan. Select proper cookware for induction cooking.

Ambient temperature is too high; the cooling
system is not able to keep the induction unit in
normal operating conditions.

One phase is missing (for units with three
phase supply only).
Defective induction unit. Ensure knob is in OFF-position and if possible

Defective control switch. Ensure knob is in OFF-position and if possible

Air-cooling system is blocked. Internal fan is
dirty.

Defective fan or fan control. Ensure knob is in OFF-position and if possible

Overheated induction coil; cooking area is too
hot.
Overheated oil in pan.
Pan is empty.
Pan detection circuit is defective. Ensure knob is in OFF-position and if possible

Move the pan to the center of the hob.

and safe, disconnect the unit from the power

supply. Contact your authorized service

agency.

obstructed. Ensure the Intake Air Filter is clean.

Then compare the results.

Verify that no hot air is sucked in by the fan.

Reduce the ambient temperature. The intake

air temperature must be lower than 104°F

(40°C).

Check incoming power supply, e.g. power

cable plugged into the wall socket.

and safe, disconnect the unit from the power

supply. Contact your authorized service

agency.

and safe, disconnect the unit from the power

supply. Contact your authorized service

agency.

Verify that air inlet and outlet are not

obstructed. Ensure the Intake Air Filter is clean.

Contact your authorized service agency.

and safe, disconnect the unit from the power

supply. Contact your authorized service

agency.

Switch the unit off. Safely remove pan. Wait

until the heating zone has cooled down before

turning the unit ON again.

and safe, disconnect the unit from the power

supply. Contact your authorized service

agency.

40 Part Number 4532879 1/15

Section 5 Troubleshooting

Troubleshooting Chart With Error Code / Indicator Lamp Flash Code

• Unit equipped with an indicator lamp:

The indicator lamp flashes to signal a specific problem area. Counting the number of short flashes after each long flash
will give the possible cause. Example: “— …. — ….” The LED lamp gives a long flash for 0.6 seconds. Then it gives 4 short
flashes (indicated by the dots in the example). The sequence repeats unit the error is canceled.

• Unit equipped with a digital display:

The display may show an error code such as E04.

Number of Flashes

(Unit with Indicator Lamp)

..... Normal Operation. Normal Operation.

— . — . — . “ E01

1 “

2 “

— .. — .. — .. “

3 “— ... — ... — ... “

4 “

— .... — .... — .... “

5 “

— ..... — ..... — ..... “

6 “

— ...... — ...... — ...... “

7 “

— ....... — ....... — ....... “

8 “— ........ — ........ — ........ “

10 “— .......... — .......... — .......... “

no flash code E12 Warning of high heat sink temperature.

no flash code E20 Warning of high internal temperature. (2)

Error Code
( Unit with

Digital Display)

Unsuitable induction cooking pan.
Cooking pan is not placed in the center
of the heating zone. Internal wiring/coil
connection malfunction. (3)

E02 Unsuitable induction cooking pan.

Internal software overcurrent. (3)

E03 Air-cooling system obstructed. Internal

heat sink overheated. (1)
E04 /
E41 / E42 / E43 /
E44 / E45 / E46
E05 Error on rotary power switch. (1) Contact your authorized service agency.
E06 / E30 Ambient temperature too high (the

E29 Warning from cooking empty sensor or

E21 / E24 Sensor error, internal board or heat sink.

E10 Internal electronic failure. (1) or (2) Contact your authorized service agency.

Overheated cooking zone. Sensor unit

failure. (1)

Overheated or defective sensor. (1)

cooling system is not able to keep the

induction unit in normal operating

conditions). Internal component

overheated. (1)

coil connection failed. (1)

(1)

Fan failure. (2)

Possible Cause Corrective Action

Check pan material.
Check pan placement on cooking area.
Contact your authorized service agency.

Check pan material.
Contact your authorized service agency.
Let unit cool down.
Verify that air vents are not obstructed.
Check and clean air filter.
Contact your authorized service agency.

Let unit cool down.
Verify that air vents are not block. Check
and clean air filter.
Verified that no hot air is sucked
in by the fan. Reduce the ambient
temperature. The intake air temperature
must be lower than 104°F (40°C).
Contact your authorized service agency.
Check food in the pan or empty pan.
Contact your authorized service agency.
Contact your authorized service agency.

Let unit cool down.
Verify that air vents are not obstructed.
Check and clean air filter.
Verified that no hot air is sucked in by
the fan. Reduce ambient temperature.
The intake air temperature must be
lower than 104°F (40°C).
Contact your authorized service agency.

(1) The induction unit stops working immediately.

(2) The induction unit continues to work in power reduction mode.

(3) The induction unit continues to work as usual.

Part Number 4532879 1/15 41

Troubleshooting Section 5

Wearable Parts List

Photo Part Number Description

70000015 Silicone Seal PACTAN 7076, 310ml. For installation and water-

tight seal.

42 Part Number 4532879 1/15

GARLAND

1177 KAMATO ROAD, MISSISSAUGA, ONTARIO, CANADA, L4W1X4

888-442-7526

WWW.GARLAND-GROUP.COM

Every new piece of Manitowoc Foodservice equipment comes with KitchenCare™ and you choose the level of service that meets
your operational needs from one restaurant to multiple locations.

StarCare – Warranty & lifetime service, certied OEM parts, global parts inventory, performance audited

ExtraCare – CareCode, 24/7 Support, online/mobile product information

LifeCare – Install & equipment orientation, planned maintenance, KitchenConnect™, MenuConnect

Talk with KitchenCare™ • 1-844-724-CARE • www.mtwkitchencare.com

To learn how Manitowoc Foodservice and its leading brands can equip you, visit our global web site at
www.manitowocfoodservice.com, then discover the regional or local resources available to you.

©2014 Manitowoc Foodservice except where explicitly stated otherwise. All rights reserved. Continuing product improvement may necessitate change of specications without notice.
