INDUCTION SKILLET WARMER
RTCS TECHNOLOGY
(REAL TIME TEMPERATURE CONTROL SYSTEM)
3.5 Kw RTCS Fajita Induction Skillet Warmer (Rev 05)
3.5 kW MODEL
Toll Free Fax, (US & Canada): (800) 361-7745
http://www.garland-group.com
3.5 Kw RTCS Fajita Induction Skillet Warmer (Rev 05)
3.5kW - RTCS Fajita Induction Skillet Warmer
Page 3
3.5 Kw RTCS Fajita Induction Skillet Warmer (Rev 05)
DESCRIPTION PAGE
SH/BA 3500 FH-3.5kW 208V 1/Phase 50/60Hz Fajita Counter Top Warmer 4
Repair Accessories 6
Revision History 7
`
GARLAND
Page 4
3.5 Kw RTCS Fajita Induction Skillet Warmer (Rev 05)
RTCS FAJITA INDUCTION SKILLET WARMER
(FAJITA COUNTER MANUAL CONTROL)
SH/BA 3500 FH-3.5kW, 208Volts, 1/phase 50/60Hz
208V 3.5kW Fajita Counter
#
Y

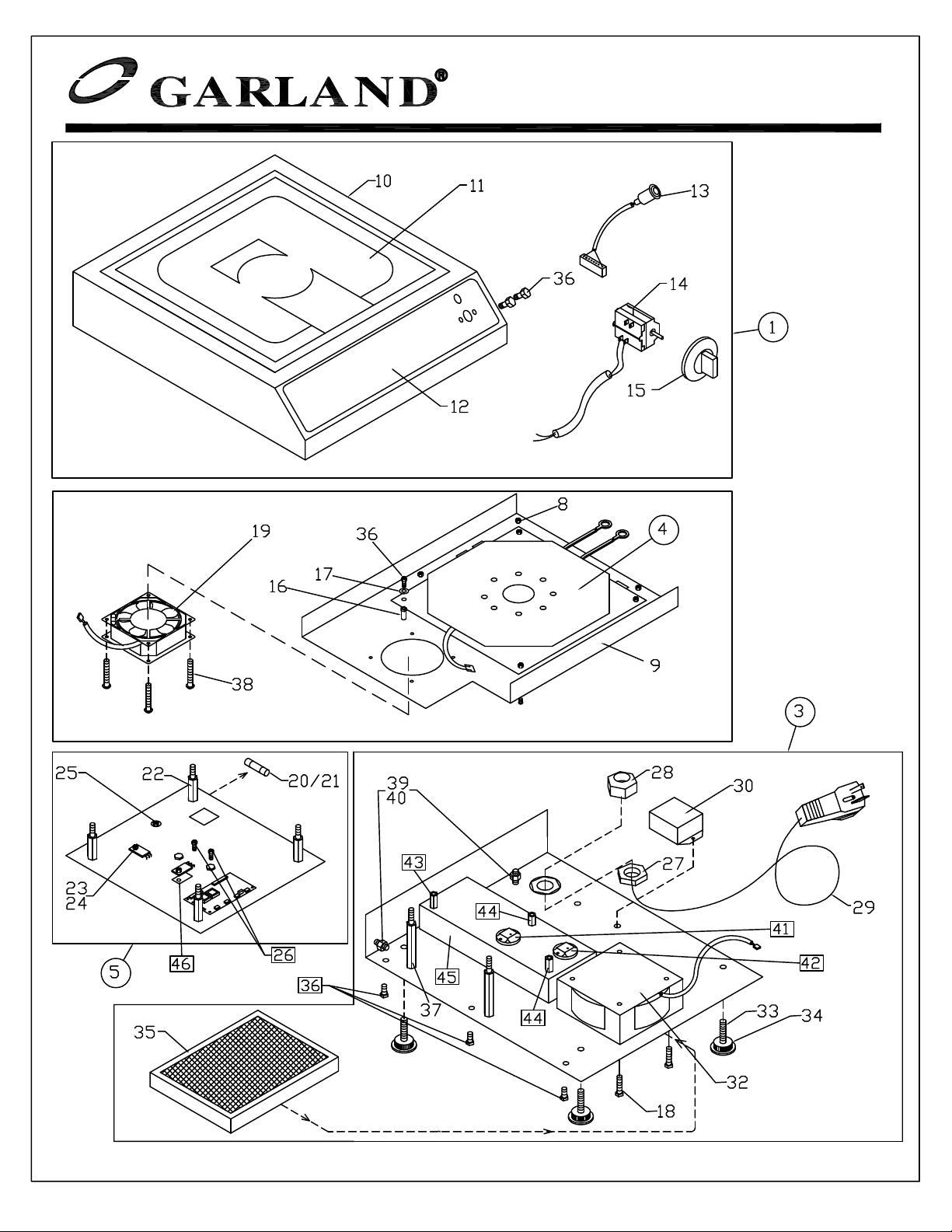

GARLAND PART IDENTIFICATION
Page 5
3.5 Kw RTCS Fajita Induction Skillet Warmer (Rev 05)
SH/BA 3500 FH-3.5kW 208V 1/PH 50/60HZ FAJITA INDUCTION SKILLET WARMER
ITEM
1 98300044 Upper Case Assembly "SH/BA" FA - Item Includes: 10,11,12,13,14,15,36 1
4 93029050 Induction Coil #29.05 with Sensor 1
8 60136501 Coil Carrier Nut 3
9 98102901 Coil Carrier Fajita 1
10 72140130 Upper Case "SH/BA" 1
11 77322001 Ceran Glass 320x320mm 1
12 4522396 Induction Overlay 1
13 35624001 Front Indicator Lamp 24V LED Green 1
14 94900070 Control Switch 1
15 39400004 Plastic Knob 1
16 64070017 Bolt (M4x12) 4
17 60056701 Plain Large Washer 4
18 60099401 Pen Head Tapping Screw 3
19 94090001 Axial Fan 24V DC 1
20 34120159 Fuse SUT 15 Amp, 250V - 6.3x32 2
21 34110019 Fuse T1.0A 1
22 60332103 Distance Piece 6KT M4-30 4
23 60485003 Transistor Torx Screw T-10H 2
24 60080600 Transistor Spring Washer (9 washers per transistor)
25 60143508 Rectifier Screw - Philips 1
26 60595001 M4x6 Coil Wire Screws 2
27 39500001 Screw Nut PG 13.5 1
28 39500007 Screwed Cable Gland PG 13.5 1
29 38614035 Power Cord USA Typ 6/20A 1
30 39311602 Main Line Filter 16A 1
32 94090011 Radial Fan 24V DC 1
33 71000006 Foot 40x40 M8 4
34 61421201 Knurled Nut, Height Adjustable Foot 4
35 71000003 Air Intake Grease Filter 1
36 60595002 M4X8 Screw 12
37 64070019 Distance Piece 6KT M4-38 4
38 60143507 Screws - Cooling Fan for Coil Carrier 4
39 60016102 Nut M4 - Grounding 2
40 60078102 Lock Washer 2
41 94040020 Aluminum Block W/Temperature Sensor IGBT 1
42 33144630 Aluminum Block IGBT 1
43 64070002 Distance Bolt - Ground Connection 1
44 64070017 Distance Bolt 2
45 33141761 Aluminum Heat-Sink 1
46 70100002 Ceramic Insulator - IGBTS 2
PART
982000273 1
980217065 1
Important Notice Regarding Item 5
using IR adapter tool P/N 98990001. Please refer to service manual for detailed instructions.
Base Assembly - Item Includes: 18,27,28,29,30,32,33,34,35,37,39 &40
Note: item# 36,41,42,43,44,45 not included
Power Board - Item Includes: 20,21,23,24,25
Note: item# 26,46 not included
: If component is exchanged, all parameters must be reset
DESCRIPTION
QT
* NOT ILLUSTRATED
RECOMMENDED STOCK PARTS
ITEM
PART #
DESCRIPTION
QTY
GARLAND PART IDENTIFICATION
Page 6
3.5 Kw RTCS Fajita Induction Skillet Warmer (Rev 05)
Repair Accessories
1 98990001 IR Box 1
2 70000020 Heat Conducting Paste P12 1
5 39800001 USB- RS232 Adapter 1
* NOT ILLUSTRATED
RECOMMENDED STOCK PARTS
ITEM # 1
ITEM # 5
ITEM # 2
#
GARLAND PARTS IDENTIFICATION
y
Page 7
3.5 Kw RTCS Fajita Induction Skillet Warmer (Rev 05)
Revision Histor
REV. # PAGE
0 Book Released April 4/07
1 5,6 All the hardware added & Items numbers re-arrange. May 15/07
2 July 11/07
3 5 26 New part number - was 60595002 (M4x8 Coil Wire Screws) Aug 20/07
4 5 5 New part number - was 98011704 Jan 21/10
5 5 20 New part number - was 34120109 (Fuse T10A) Nov 24/10
4 New drawing
5 New part number added - Items # 41,42,43,44,45,46
ITEM # NOTE DATE
NOTES
