Garland M100R Parts List

Master Series

Heavy Duty Gas Fryer
Models: M35,M35SS

76

Master Series

2 1816401

LP BG Back 17"AZ

1 1

6 G0562

-2-

6 Heat Shield

1 1

9A F8090171

Thumb Screw

1/4" x 1-3/8" 2 2

14 1550200

Rear Heat Shield RT

1 1

18 F806-7541 Thermostat Hi

-

Limit 1 1

20 2208002

End Enclosure RT

1 1

22 G7075

1-1/4"

NPT Union

1 1

Heavy Duty Gas Fryer

Models: M35, M35SS

ITEM PART NO. DESCRIPTION M35 M35SS

1 1790601 LP BG Flue Cap 17" 1 1

1816402 LP BG Back 17-S/S 1 1
3 1817301 LP Front Panel 17" 1 1
4 1768599 LP BG Upright Assy 2 2
5 2429199 Flue Riser Extension Assy 1 1

1749999 Flue Riser Assy 17" BG 1 1
7 G0549-3-7 Back Guard Radiation Shield 1 1

8 1480600 Fry Pot Back-Splash 1 1
9 F826-1015 Basket Hanger Kit 1 1

10 F042-1 Twin Basket 2 2

F045-1 Large Single Basket 1 1

11 1600996 Fry Pot Assy Complete LP CRS 1

1600997 Fry Pot Assy Complete Nat CRS 1

1600998 Fry Pot Assy Complete LP S/S

1600999 Fry Pot Assy Complete Nat S/S

2566102 Fry Tank Assy CE (G20) Nat S/S

2566103 Fry Tank Assy CE (G31) LP S/S

2566104 Fry Pot - XJ2X - CE (G20/G25) FRA

2566105 Fry Pot - XJ2X - CE (G31) FRA

12 2584400 Front Rail Support Brkt 2 2
13 2429700 Back Top Cover Plate 1 1

1
1

1550201 Rear Heat Shield LT 1 1

15 F823-1363 Drain Valve 1-1/4"x1" 1 1

F810-0662 Handle Drain Valve c/w Lock Pin 1 1
16 F12-1227 Drain Extension 1" 1 1
17 F806-0184 Thermostat Opening 1 1

19 F803-0032 Basket Support Rack 1 1

2208003 End Enclosure LT 1 1

20A 2582800 End Enclosure Support Brkt RT 1 1

2582801 End Enclosure Support Brkt LT 1 1

21 2445699 Manifold Assy 1 1

21A 2445696 Manifold Assy 3/4" NPT Rear Gas 1 1

2445695 Manifold Assy 1-1/4" NPT Rear Gas 1 1

23 G01475-1 1/2" NPT Street Elbow 2 2
24 G01517-1 Valve-Swing Type Shut Off Gas 1 1
25 G01896-1 Nipple 1/2" NPT x 3" 1 1

25A 076029-190 Nipple 3/4" NPT x 15" 1 1

076029-195 Nipple 1-1/4" NPT x16" 1 1

77

Master Series

26 G01

739-1 1/2"

NPT Union

1 1

31 F810-0615 Pilot Burner

1 1

F810-0148 Pilot Orifice LP

1 1

44 1824100

Burner Box Side RT CRS

1 1

48 2580700

Burner Box Back

1 1

50 2524802

Main Back M35

1 1

Heavy Duty Gas Fryer - Page 2

Models: M35, M35SS

ITEM PART NO. DESCRIPTION M35 M35SS

25B 076029-192 Nipple 3/4" NPT x 29" 1 1

076029-196 Nipple 1-/14" NPT x 27" 1 1

27 G01477-10 Nipple 1/2" NPT x 1-1/2" 1 1

28(1) F807-2427 Valve Robertshaw Unitrol 1/2" Nat 1 1

(2) F807-2424 Valve Robertshaw Unitrol 1/2" LP 1 1
(3) 2577399 Honeywell Valve (G20) Nat
(4) 2577398 Honeywell Valve (G31) LP

28A F810-0187 Regulator Nat for Item 28(1) 1 1

F810-0099 Regulator LP for Item 28(2) 1 1
F807-1849 Regulator Nat for Item 23(3)
F807-1846 Regulator LP for Item 28(4)

28B F810-0109 Knob Gas Valve for Item 28(1 &2) 1 1

29 G01896-2 Nipple 1/2" NPT x 3-1/2" 1 1
30 G01474-2 Elbow 1/2" NPT 90° 1 1

30A G01474-5 Elbow 3/4" NPT 90° 2 2

2536300 Elbow 1-1/4" NPT 90° 2 2

31A F810-0149 Pilot Orifice Nat 1 1

32 33

42A GM308 1/4" Pilot Tubing x 6"

F806-4720 F810-

0152

34 F810-0129 Orifice Main Burner Nat 51 F 1.70 mm 9 9

F810-0134 Orifice Main Burner LP 59F 1.05 mm 9 9
35 F823-0106 Manifold Weld Assy 1 1
36 G02251-1 Pressure Test Spigot 1 1
37 G01916-1 3/4" to 1/2" Reducing Street Elbow 1 1
38 F810-0617-1 Thermopile (2 wire Lead) 1 1
39 F900-1032 Pilot Mounting Brkt 1 1

40 G02569-1 1/4" Compression Tee
41 F810-0162 Thermopile (Third In)
42 GM308 1/4" Pilot Tubing x 6"

43 F810-0703 1/4" Pilot Tubing x 17-1/2" 1 1

1824101 Burner Box Side LT CRS 1 1
1824102 Burner Box Side RT S/S 1 1

1824100 Burner Box Side LT S/S 1 1
45 24302299 Front Rail Assy 1 1
46 2429600 Back Top 1 1
47 1768399 Shelf Mounting Brkt LT 1 1

1768398 Shelf Mounting Brkt RT 1 1

2580701 Burner Box Back S/S 1 1
49 2429299 Flue Assembly 1 1

Deflector Single Deflector Brkt 9 9 9 9

78

2524803 Main Back S/S M35 1 1

Master Series

61 2515301

Main Bottom

1 1

64 2530002

Corner Column LT

1 1

67 G066-5-8 Drive Chain

#25 1 1

72 2561905

Valve Panel

M35 1 1

Heavy Duty Gas Fryer - Page 3

Models: M35, M35SS

ITEM PART NO. DESCRIPTION M35 M35SS

51 2575900 Inner Side RH M35 1 1

2575901 Inner Side LH M35 1 1
52 2514697 Front Frame Assy 17" 1 1
53 1574400 Body Side Patch S/S 2 2

1574401 Body Side Patch CRS 2 2
54 2575800 Body Side LT CRS M35 1 1

2575801 Body Side LT S/S M35 1 1

2575802 Body Side RT CRS M35 1 1

2575803 Body Side RT S/S M35 1 1
55 216770 Base Corner 4 4
56 1027600 Leg Retainer Plated 4 4
57 1150502 Bullet Legs 4 4
48 2529900 Magnet Support Brkt 1 1

078174-1 Magnetic Door Catch 1 1
59 2525800 Piezo Mounting Brkt 1 1
60 1309201 Piezo Ignitor 1 1

62 1290203 Shield Side RT/LT 2 2
63 2194598 Door Hinge Assy LT 1 1

2194599 Door Hinge Assy RT 1 1
2530003 Corner Column RT 1 1

65 2193500 Panel Door 1 1

65A 2193900 Door Liner Cabinet 1 1

66 2192900 Handle Storage Door 1 1
68 G0963-1-7 Connecting Rod Support 1 1

69 G02426-1 Gear (Boston) 2 2
70 1805199 Connecting Rod Assy 1 1
71 G0965-1-8 Dial Plate Support 1 1

73 G03151-2 Piezo Electrode 1 1
74 2522105 Knob Fryer Thermostat F° 1 1

2522112 Knob Fryer Thermostat C° 1 1
75 G02973-1 Hole Plug 1/2" 2 2
76 2546500 Lower Front Channel Moulding 1 1
77 2327100 Door Stop Bumper 1 1
78 1290204 Shield Rear 1 1
79 1027800 Casters Less Brake 2 2

1027801 Casters c/w Brake 2 2

79

Master Series

Heavy Duty Gas Fryer

Model: M70SS

80

Master Series

Heavy Duty Gas Fryer

Model: M70SS

ITEM PART NUMBER DESCRIPTION M70SS

1 1790603 LPBG Flue Cap 24" 1
2 1816403 LPBG Back 24" AZ 1

1816404 LPBG Back 24" S/S 1
3 1817302 LP Front Panel 24" 1
4 1768599 LPBG Upright Assy 2
5 2430600 Flue Riser Stop 1
6 G02402-1-6 Spacer 1
7 G02409-01-6 Rear Enclosure Assy 1
8 2430799 Flue Riser Assy 1
9 G02400-1-6 Heat Shield 1

10 G0549-2-7 Back Guard Radiation Shield 1
11 F910-6470 Heat Shield 1
12 F043-1 Fryer Basket 2

F046-1 Fryer Basket Large 1
13 F803-0029 Basket Hanger 1
14 G02418-01 Fry Pot Assy Complete Nat 1

G02418-02 Fry Pot Assy Complete LP 1

2575400 Fry Pot Assy Complete (G20) Nat
2575401 Fry Pot Assy Complete (G31) LP
2575402 Fry Pot Assy Complete (G25) Nat FRA

2575403 Fry Pot Assy Complete (G31) LP FRA
15 F809-0171 Brasket Hanger Mount Screws 2
16 G02411-1-62 Outer Side End LT 1

G02411-1-61 Outer Side End RT 1
17 F26-0861 Fry Pot Insulation Kit 1
18 G02410-1-6 Inner Side End RT/LT 2
19 F810-0204 Drain Valve 1

20 F813-0188 Drain Pipe 1
21 F826-1177 Thermostat Hi-Limit 1
22 F806-0813 Thermostat Operating 1
23 F803-0137 Basket Support Rack 1
24 2431899 Manifold Assy 1
25 2208002 End Enclosure RT 1

2208003 End Enclosure LT 1

25A 2582800 End Enclosure Support Brkt RT 1

2582801 End Enclosure Support Brkt LT 1
26 G7075 1-1/4" NPT Union 1
27 G02419-1 3/4" NPT 45 ° Elbow 1
28 G01738-5 Nipple 3/4" NPT X 6-1/2 1
29 G01518-1 Valve Swing Type Shut-off Gas 1
30 G01538-8 Nipple 3/4" NPT X 1-1/2" Close 1
31 G01475-2 Elbow Street 3/4" NPT 90 ° 2
32 G01963-1 Union 3/4" NPT 2

33 G01738-11 Nipple 3/4" NPT X 3-1/2" 2

81

Master Series

2575901

Inner Side LH

1

Heavy Duty Gas Fryer - Page 2

Model: M70SS

ITEM PART NUMBER DESCRIPTION M70SS

34 F807-2428 Robertshaw Gas Valve Nat 1

F807-2425 Robertshaw Gas Valve LP 1

2577499 Honeywell Gas Valve (G20) Nat
2574498 Honeywell Gas Valve (G31) LP

35 2584400 Front Rail Support Brkt 1
36 G01474-5 Elbow 3/4" NPT 90 ° 1
37 G01738-5 Nipple 3/4" NPTX 6-1/2" 1

38 F810-0426 Pilot Burner Nat 1

F810-0427 Pilot Burner LP 1

38A F810-0149 Pilot Orifice Nat 1

F810-0148 Pilot Orifice LP 1

39 F814-0034 Ceramic Target (Side Target) 10

F810-0424 Ceramic Target (Wide Rear) 1

40 F910-0226 Deflector Brkt (Side) 10

F910-1465 Deflector Brkt (Rear) 1

41 F810-0343 Orifice 1.24mm Nat 21

F810-0340 Orifice 0.86mm LP 21

F810-330 Orifice (G20) Nat

F810-0906 Orifice (G31) LP

42 F823-0289 Burner Manifold 1
43 F823-0330 Burner Suspended Heat Shield 1
44 G02251-1 Pressure Test Spigot 1
45 F810-0162 Pilot Generator (Robertshaw) 1

F810-0617-1 Pilot Generator (2 wire lead)
46 F900-1032 Pilot Mounting Brkt
47 F807-0699 Thermocouple.20"
48 G02569-1 1/4" Compression Tee
49 F810-0700 1/4" Pilot Tubing X 8.75"

49A F810-0700 1/4" Pilot Tubing X 8.75

50 F810-0704 1/4" Pilot Tubing X 19-1/2" 1
51 2430399 Front Rail Assy 1
52 1335604 Burner Box Side CRS RT 1

1335604 Burner Box Side CRS LT 1
1335604 Burner Box Side S/S RT 1

1335604 Burner Box Side S/S LT 1
53 2431100 Back Top 1
54 G02399-1-6 Pilot Entrance Cover 1
55 2584699 Shelf Mounting Bracket Assy LH 1

2584698 Shelf Mounting Bracket Assy RH 1
56 2586000 Burner Box Back M70 1

2586001 Burner Box Back S/S M70 1
57 G02407-1-6 Rear Burner Tile Enclosure 1
58 2424802 Main Back 24" 1

2524804 Main Back S/S M70 1
59 2575900 Inner Side RH 1

60 2514699 Front Frame Assy 24" 1

82

Master Series

Heavy Duty Gas Fryer - Page 3

Model: M70SS

ITEM PART NUMBER DESCRIPTION M70SS

61 1574400 Body Side Patch S/S 1

1574401 Body Side Patch CRS 1

62 2575800 Body Side LT CRS 1

2575801 Body Side LT S/S 1
2575802 Body Side RT CRS 1

2575803 Body Side RT S/S 1
63 2167700 Base Corner 4
64 1027600 Leg Retainer Plated 4

65 1150502 Bullet Legs 4
66 1027800 Caster Less Brake 2

1027801 Caster C/W Brake 2
67 078174-1 Magnetic Door Catch 1
68 2529900 Magnet Support Brkt 1
69 2525800 Piezo Support Brkt 1
70 1309201 Piezo Igniter 1
71 G02414-1-6 Main Bottom M70SS 1
72 2546500 Lower Front Channel Moulding 1
73 2194598 Door Hinge Assy LT 1

2194599 Door Hinge Assy RT 1
74 2530102 Corner Column LT 1

2530103 Corner Column RT 1
75 2327100 Door Stop Bumper 1
76 2431200 Door Panel 1
77 2431300 Door Lining 1
78 2192900 Storage Door Handle 1
79 G02973-1 Hole Plug 1/2" 2
80 G066-5-8 Drive Chain #25 1
81 G0963-1-7 Connecting Rod Support 1
82 G02426-1 Gear Boston 2
83 1805199 Connecting Rod Assy 1
84 G0965-1-7 Dial Plate Support 1
85 2431701 Valve Panel 1
86 2522105 Knob Fryer Thermostat F° 1

2522112 Knob Fryer Thermostat C° 1

83

Master Series

Heavy Duty Filter-Quick
Model: MFMA-17ES

84

Master Series

5 1600799

Power Shower

1

10 1578300

Transformer 120V/24V

2

13 1574100

Control Box Back

1

15 1573600

Control Box Bottom

1

22 076029

-

171 Elbow 1"NPT

1

24A 2530698

Manifold Rear Gas

1

26 2546709

Burner Box Back

1

28 1132806

Burner Box Side L/H Black

1

Heavy Duty Filter-Quick

Model: MFMA17-ES

ITEM PART NUMBER DESCRIPTION QUANTITY

1 1651099 Heat Lamp Mounting Bracket W/A 1
2 1651001 Heat Lamp Veneer 1
3 G01487-2 Heyco Bushing 1
4 1651400 Merco Heat Lamp 1

6 1651301 1" Pan Insert 1
7 1651300 2-1/2" Pan 1
8 1330402 Main Top S/S 1
9 2433100 Main Top Back 1

9A 2446800 Back Top 1

1578301 Transformer 240V/24V 2
11 G01497-1 BX Connector Straight 3
12 1028801 Snap Bushing 1

14 1578400 Pump Motor Relay 1
16 1579300 16 Pin Terminal Block 1

17 1579200 12 Pin Terminal Block 1
18 1573700 Control Box Front 1
19 1028806 Heyco Bushing 1
20 2542801 17" Spreader Top 1
21 1340521 Pipe Rear Gas 1"NPT 1

076029-182 Pipe Rear Gas 3/4" NPT 1

GO1474-3 Elbow-Reducer 1"- 3/4" NPT 1
23 G02335-1 1-1/4" NPT Pipe Cap 1
24 2530699 Manifold 17" Spreader 1

25 2426899 Front Rail Assembly 1

2546710 Burner Box Back Rear Gas 1

27 1768399 Shelf Mounting Bracket LT 1

1768398 Shelf Mounting Bracket RT 1
1132807 Burner Box Side L/H S/S 1

1132804 Burner Box Side R/H Black 1

1132805 Burner Box Side R/H S/S 1
29 1059501 Burner Box Bottom 1
30 2208003 End Enclosure L/H 1

2208002 End Enclosure R/H 1

30A 2207900 End Enclosure Bracket 2

31 1827501 Valve Panel 1
32 1578800 Switch Heater On/Off 1
33 2583200 Support Front Frame 1
34 1574400 Body Side Patch S/S 1

1574401 Body Side Patch CRS 1
35 2575800 Body Side L/H Black 1

2575801 Body Side L/H S/S 1

2575802 Body Side R/H Black 1

2575803 Body Side R/H S/S 1
36 2524807 Main Back 1

85

Master Series

38 1640600

Contactor Block

1

41 1575100

Base Channel

1

44 1150503

Bullet Foot

2

46 1574600

Filter Slide LT

1

52 G2840

-

1 Power Cord Set

1

56 2530102

Corner Column LT

1

74 1580000

Vibration Mounts

4

Heavy Duty Filter-Quick - Page 2

Model: MFMA17-ES

ITEM PART NUMBER DESCRIPTION QUANTITY

37 1574600 Contactor Support Bracket 1
39 1640500 Contactor 2

40 1574700 Pump Support 1
42 1575000 Base Reinforcement 1

43 1027603 Leg Retainer 2
45 1575900 Lifting Angle LT 1

1575901 Lifting Angle RT 1

1574601 Filter Slide RT 1
47 2583300 Leg 2
48 1575200 Leg Veneer LT 1

2575201 Leg Veneer RT 1
49 1236100 Leg Stud 2
50 1579700 Junction Box 1

51 2529900 Magnetic Support Bracket 1

078174-1 Magnetic Door Catch 1

53 G02983-26 Romex 3/8 x 40" LG 3
54 2583499 Front Frame Assembly 1
55 2194599 Door Hinge Assembly RT 2

2194598 Door Hinge Assembly LT 2

2530103 Corner Column RT 1
57 2193500 Door Panel RT 1
58 2193900 Door Panel Lining 1
59 2192900 Storage Door Handle 1
60 1004606 Nipple 1/8" NPY x 4" 1
61 1578500 Solenoid Vent Valve 1
62 1004600 Close Nipple 1/8" NPT 2
63 1026700 Elbow 90° 1/8" NPT 2
64 1004606 Nipple 1/8" NPT x 4" 1
65 G01474-2 TEE 1/2" NPT 1/Fryer+1
66 G01747-4 Pipe Plug 1/2" NPT 2
67 G01896-1 Nipple 1/2" NPT x 3" 1/Fryer
68 G01475-1 90°Street Elbow 1/2" NPT 1/Fryer
69 1578100 Valve 1/2" NPT Ball 1/Fryer
70 G01736-1 Close Nipple 1/2" NPT 1/Fryer
71 2593700 Handle Valve 1/Fryer
72 1673400 Red Plastisol Handle 1/Fryer

73 2599200 Electric Pump Motor 120V 1

2599201 Electric Pump Motor 230V 1
75 2599100 Pump 1

76 G01739-1 Union 1/2" NPT 1/Fryer
77 G0147704 Nipple 1/2" NPT x 2-1/2" 1/Fryer
78 G01477-1 Nipple 1/2" NPT x 12-3/4" 1/Fryer +1
79 G01474-2 Elbow 90° 1/2" NPT 2
80 G01477-3 Nipple 1/2" NPT x 2" 1
81 G01474-2 Elbow 90° 1/2" NPT 2

82 G01477-2 Nipple 1/2" NPT x 4-1/8" 1
83 F516 5/16"-18 x 4-1/2" Hex Hd Bolt Gr 8 4

86

Master Series

89 2600100

Cover, Microswitch

2/Fryer

94 1601797

Filter Foot

1

Heavy Duty Filter-Quick - Page 3

Model: MFMA17-ES

ITEM PART NUMBER DESCRIPTION QUANTITY

84 Q01477-4 Nipple 1/2"NPTx 2-1/2" 1
85 G01474-2 Elbow 90° 1/2" NPT 1
86 1576200 Male Disconnect 1
87 2599400 0-Ring 2
88 1028806 Heyco Bushing 2/Fryer

90 2600000 Bracket, Microswitch 2/Fryer
91 2600300 Shield, Microswitch 2/Fryer
92 1578600 Microswitch 2/Fryer
93 1574000 Handle (Some Units) 1

95 1601799 Drain Pan Assembly 1
96 1601798 Crumb Screen 1
97 2599999 Elbow, Drain W/A LT 1

2599998 Elbow, Drain W/A RT 1

98 1576599 Drain Tube W/A 16" 1/Fryer

98A 1576699 Drain Tube W/A 12" 1/Fryer

99 1580700 Gasket Drain Clean Out 1/Fryer
100 1580800 Cover Drain Clean Out 1/Fryer
101 1580100 Gasket, Drain 1/Fryer+ 2
102 1580200 Cover, Drain End 1 or 2
103 1580900 Clamp, Drain Gasket 2/Fryer + 2
104 1580300 Nut, Retainer 1/Fryer
105 1580400 Washer, Retainer 1/Fryer
106 1580500 Gasket, Drain 1/Fryer
107 1580600 Close Nipple 1" 1/Fryer
108 2600200 Handle, Drain 1/Fryer

87

Master Series

Heavy Duty Gas Infra-Red Broiler

Models: M105R,RC,S,T

88

Master Series

4 16492

01 Flue Riser Box S/S

1

8 1472305

Insulation

2

15 1647703

Corne

r Column RT

1

18 1646300

Heat Shield

1

20 1835002

Hold Down Bracket

8

23 1806101

Burner Box Back

1

28 1832101

Valve Panel

1

30 1831101

Grease Pan Front

1

34 1647300

M40 HD Broiler Rack

2

36 1031301

Broiler Rack Roller Pin

2

Heavy Duty Gas Infra -Red Broiler

Models: M105R,RC,S,T

ITEM PART No DESCRIPTION QTY

1 1647800 Main Back 1
2 1647200 Lower Back Insul. Lining 1

3 1146199 Oven Flue Riser Assy 1
5 1149101 Flue Riser Front Panel 1

6 1649301 Main Top S/S 1
7 1648899 Upper Broiler Insul Lining 1

9 1134700 Main Back Channel Brace 2

10 1472305 Insulation 2
11 1649000 Broiler Body Side LT CRS 1

1649002 Broiler Body Side RT CRS 1
1649001 Broiler Body Side LT S/S 1

1649003 Broiler Body Side RT S/S 1
12 1648799 Aeration Sheild 2
13 1649100 Lower Side Lining RT 1

1649101 Lower Side Lining LT 1
14 1148901 Upper Main Front 1

1647702 Corner Column LT 1
16 1832801 Burner Hanger Bracket 2

17 1646600 Front Burner Support 1

1647000 Top Burner Shield 1
19 1832801 Burner Hanger Brkt 4

21 1132806 Burner Box Side LT CRS 1

1132804 Burner Box Side RT CRS 1

1132805 Burner Box Side RT S/S 1

1132807 Burner Box Side LT S/S 1
22 1555699 Broiler Support Brkt W/A 2

1806105 Burner Box Back , Rear Gas 1
24 1134200 Grease Hopper 1

25 1144699 Oven Flue Collector Box Assy 1
26 2576800 Drip Tray Guide 2
27 2585199 Front Rail Assy 1

29 1831501 Grease Tray 1
31 2192900 Storage Door Handle 1

32 1009500 Carriage Support Angle 2
33 1134998 Broiler Rack Raising Arm 1

35 1176898 Inner Rack Frame Assy 1
37 1035400 Double Row Unground Bearing 2

38 1031302 Rack Roller Wire Spacer 2
39 F78 3/8"-16 UNC Nut 4

89

Master Series

44 F111 1/4" Flat Washer

2

50 1648597

Outer Rack Frame W/A

1

62 2522114

Knob 4

75 1647400

Pilot Burner Nat

2

Heavy Duty Gas Infra-Red Broiler - Page 2

Models: M105R,RC,S,T

ITEM PART No DESCRIPTION QTY

40 F112 3/8" Flat Washer 4
41 G01247-3 Broiler Roller Bearing 2

42 G01244-1 Bearing 4
43 G6424 Leveling Bolt 2

45 F76 1/4"-20 UNC Nut 2
46 G6424 Leveling Bolt 2

47 G01247-3 Broiler Roller Bearing 2
48 1134996 Lower Broiler Raising Arm Assy 1
49 1647999 Broiler Rack Raising Arm W/A 1

51 1648100 Rack Front Piece 1
52 2580600 Door Handle End Insert 2
53 2559100 Door Handle End RT 1

2559101 Door Handle End LT 1

54 2193101 Extruded Handle 18.347" 1

1799401 Gray GARLAND Overlay 1

55 1655000 Rack Handle Index Plate 1
56 1039602 Ball Knob 1-1/8" Gray 1

57 1151800 Broiler Rack Drip Shield 1
58 1134100 Rack Carriage Spring Support RT 1

1134101 Rack Carriage Spring Support LT 1
59 1139001 Spring Hook 2
60 1005800 Broiler Spring 2
61 G03145-048 F.D.Control Assy 1

62A 2522107 Knob F.D. Oven 1

62B 2522101 Knob Oven Valve 1

63 1139995 M40 Hi-Med-Lo Valve Nat 4

1139996 M40 Hi-Med-Lo Valve LP 4
64 2513399 F.S.D. Oven Valve Assy 1
65 G4523 Valve Adapter 4
66 GM309 7/16 Tubing x 18" 1
67 2575299 Manifold Assy 1

67A 2575298 Manifold Assy Rear Gas 1

68 G01447-1 1/8" Standard Black Sq Head Plug 1
69 1150096 Pilot Filter Assy 2
70 GM308 1/4" Pilot Tubing x 60" 2

70A GM308 1/4" Pilot Tubing x30" 2

71 GM309 7/16" Tubing x 60" 4
72 076029-183 1-1/4 Coupling 1
73 076029-184 Nipple 1-1/4 NPT 1
74 076050-89 Compression Union 3/16 Tube 2

76 1647401 Pilot Burner LP 2
77 1646200 Pilot Mounting Brkt 2

90

Master Series

82 1145800

Orifice Holder Stabilizer

4

87 1147901

Rear Ori

fice Shield

1

Heavy Duty Gas Infra-Red Broiler - Page 3

Models: M105R,RC,S,T

ITEM PART No DESCRIPTION QTY

78 1647100 IR Burner 4
79 1145113 Venturi Enclosure Plate 4

80 1041000 Venturi Gasket 4
81 - Venturi Assy (part of 1647100) 4

83 1647148 Orifice Fitting #48 Nat 4

1647155 Orifice Fitting # 55 LP 4
84 ~ Orifice Holder (part of 1647100) 4
85 G01243-1 Tubing to NPT Connector 4
86 1646400 Orifice Holder Support 1

91

Master Series

Heavy Duty Gas Infra -Red Broiler

Models: M100R,RC,S,T

92

Master Series

4 1134600

Flue Closure GG

2

6 1002406

Broiler Front

1

9 1134700

Main Back Channel Brace

2

13 1648799

Aeration Shield

2

26 1080719

Oven Door Panel S/S

1

29 1136000

Broiler Front Burner Shield RT

1

32 1732804

Burner Box Side RT CRS

1

34 1806105

Burner Box Back

1

Heavy Duty Gas Infra -Red Broiler

Models: M100R,RC,S,T

ITEM PART NUMBER DESCRIPTION QTY

1 1651900 Broiler Main Back 1
2 1650298 Lower Back Insulation Lining 1

2A 1145600 Upper Back Insulation Lining 1

3 1146199 Oven Flue Riser Assembly 1
5 1650900 Main Top CR 1
7 1651800 Broiler Body Side Black 2

1651801 Broiler Body Side S/S 2

8 1651600 Broiler Insulation Lining LT 1

1651601 Broiler Insulation Lining RT 1

10 1472305 Insulation 4
11 1651102 Broiler Front Column RT 1

1651103 Broiler Front Column LT 1

12 1651700 Lower Insulation Lining 2
14 1002501 Cover Center Section 1

15 1650099 Flue Spacer S/W 1
16 1117499 Upper Back Lining Assembly CR 2
17 G6344-01-81E Oven Side Lining Assy RT 1

G6344-01-82E Oven Side Lining Assy RT 1

18 G01030-01-81 E Oven Door Support RH 1

G01030-01-82E Oven Door Support LH 1
19 2580300 Oven Bottom Upper Broiler 1
20 1023801 Window Hold Down Strap (Door Stop) 2
21 G6152-40 Oven Rack Chrome 1
22 1136302 Door Counter Weight RT 1

1136303 Door Counter Weight LT 1
23 G6036-01-8 Door Hinge Assembly 2
24 1439796 Oven Door Lining Enameled 1
25 1138399 Boiler Insert Box Assy 1

27 1831299 Warming Oven Door Handle W/A 1
28 1039602 Ball Knob 1-1/8 Gray 2

1136001 Broiler Front Burner Shield LT 1
30 1650601 Front Filler Strip 1
31 1646400 Front Burner Mounting Bracket 2

31A 1651501 Front Burner Mounting Bracket LT 1

1651502 Front Burner Mounting Bracket RT 1

1132806 Burner Box Side LT CRS 1

1132805 Burner Box Side RT S/S 1

1132807 Burner Box Side LT S/S 1
33 1555699 Broiler Support Bracket W/A 2

35 1134200 Grease Hopper 1

93

Master Series

39 1832101

Valve Panel

1

45 1647300

H/D Broiler Rack

2

55 F76 1/4-20

Nut UNC

2

66 1655000

Rack Handle Index Plate

1

72 2522114

Knob-IR Burner

4

Heavy Duty Gas Infra-Red Broiler - Page 2

Models: M100R,RC,S,T

ITEM PART NUMBER DESCRIPTION QTY

36 1144699 Oven Flue Collector Box Assembly 1
37 2576800 Drip Tray Guide 2
38 2585199 Front Top Rail W/A 1

40 1831501 Grease Tray 1
41 1831101 Grease Pan Front 1

42 2192900 Storage Door Handle 1
43 1009500 Carriage Support Angle 2
44 1134998 Upper Broiler Rack Raising Arm 1

46 1648597 Outer Rack Frame W/A 1
47 1031301 Broiler Rack Roller Pin 2
48 1035400 Double Row Unground Bearing 2
49 1031302 Rack Roller Wire Spacer 2
50 F78 3/8-16 Nut UNC 4
51 F112 3/8 Flat Washer 4
52 G01247-3 Broiler Roller Bearing 4
53 G01244-1 Bearing 4
54 G6424 Leveling Bolt 2

56 F111 1/4 Flat Washer 2
57 G6424 Leveling Bolt 2
58 G01247-3 Broiler Roller Bearing 2
59 1134996 Lower BR Rack Raising Arm Assy 1

60 1647999 Broiler Rack Raising Arm 1
61 1648597 Outer Rack Frame W/A 1

62 1648100 Rack Front Piece 1
63 2580600 Door Handle End Insert 2
64 2559101 Door Handle End LT 1

2559101 Door Handle End RT 1

65 2193101 Extruded Handle 18.347 1

65A 1799401 Gray GARLAND Overlay

67 1151800 Broiler Rack Drip Shield 1
68 G01245-1 Broiler Spring 2
69 1139001 Spring Hook 2
70 1134101 Carriage Spring Support Arm LT 1

1134100 Carriage Spring Support Arm RT 1

71 G03145-048 F.D. Control Assembly 1

72A 2522107 Knob FD Oven F 1
72A 2522103 Knob FD Oven C 1

72B 2522101 Knob-Oven Valve 1

73 1139995 M40 Hi-Med-Lo Valve Nat 4

1139996 M40 Hi-Med-Lo Valve LP 4
74 2513399 F.S.D. Oven Valve Assembly 1
75 G4523 Valve Adapter 4
76 2572600 .437 Oven Tube 1

94

Master Series

85 1647400

Pilot Burner Nat

2

88 1647100

IR Burner

4

Heavy Duty Gas Infra-Red Broiler - Page 3

Models: M100R,RC,S,T

ITEM PART NUMBER DESCRIPTION QTY

77 1086597 Gum Valve - 3/16 Pilot 2

77A 2189100 Valve Connector Fitting 12mm 1

78 G01747-1 1/8 Std Black Head Sq Plug 1
79 2575299 Manifold Assembly M100 1

79A 2575298 Manifold Assembly M100 Rear Gas 1

80 076029-183 1-1/4 NPT Coupling Black 1
81 076029-184 Nipple 1-1/4 NPT x 29" Long Black 1
82 GM308 Pilot Tubing 1/4" (2 Req'd.) 30"

82A GM308 Pilot Tubing 1/4" (2 Req'd.) 30"

83 1151900 Valve to Orifice Tubing 1

1151901 Valve to Orifice Tubing 1
1152000 Valve to Orifice Tubing 1
1152001 Valve to Orifice Tubing 1

84 076050-89 Compression Union 3/16 Tube 2
86 1647401 Pilot Burner LP 2

87 1646200 Pilot Mounting Bracket 2
89 1145113 Venturi Enclosure Plate 4

90 1041000 Venturi Gasket 4
91 - Venturi Assembly (Part of 1647100 IR Burner) 4
92 1647148 Orifice Fitting #48 Nat 4

1647155 Orifice Fitting #55 LP 4
93 - Orifice Holder (Part of 1647100 IR Burner) 4
94 G01243-1 Tubing to NPT Connector 4
95 1646400 Orifice Holder Support 1
96 1147901 Rear Orifice Shield 2
97 1145800 Orifice Holder Stabilizer 4

95

Master Series

Heavy Duty Gas Double Infra -Red Broiler

Model: M11O

96

Master Series

4 1653700

Lower Main Back

1

7 1134700

Main Back Channel Brace

4

11 1472305

Insulation

8

25 1663600

Incline Grease Pan S/S

1

30 1659002

Lower Front Cover

1

32 1002602

Grease Container S/S

1

Heavy Duty Gas Double Infra-Red Broiler

Model: M110

ITEM PART No DESCRIPTION QTY

1 1663899 Flue Raiser Collar S/W 1
2 1658199 Flue Raiser S/W 1
3 1653500 Upper Main Back 1

5 1654398 Upper Back Liner 1
6 1002202 Top Front 1

8 1658702 Upper Front Cover 1
9 1653801 Upper Side Lining LT 1

1653800 Upper Side Lining RT 1

10 1149400 Body Side RT 1

1149401 Body Side LT 1
1149402 Body Side RT S/S 1
1149403 Body Side LT S/S 1

12 1659800 Corner Column RT S/S 1

1659802 Corner Column LT S/S 1
13 1134800 Back Lining Insulation Body 1
14 1654000 Lower Side Lining RT 1

1654001 Lower Side Lining LT 1
15 1135400 Aeration Shield 4

16 10015001 Back Cabinet Base S/S 1

10015000 Back Cabinet Base 1
17 1009200 Inner Rear Support LT/RT Painted 2
18 1001400 Cabinet Base Body Side R/T 1

1001401 Cabinet Base Body Side L/T 1
1001402 Cabinet Base Body Side RT-S/S 1

1001403 Cabinet Base Body Side LT-S/S 1
19 1653400 Front Burner Support Bracket 8
20 1832801 Burner Hanger Bracket 4
21 1646600 Front Burner Support 2
22 1151001 Maintop Stiffner GG 2

23 1654600 Maintop 1
24 1654200 Upper Broiler Top Insulation Lining 1

26 1654599 Upper Broiler Bottom Deck GCE 1
27 1351300 Insulation Pan Spacer 1
28 1654700 Lower Broiler Top Insulation Lining 1
29 1835301 Front Panel Support Bracket Infra-Red 2

31 1151700 Grease Container Support S/S 1
33 1001204 Grease Drawer Guide 2

34 1134200 Grease Hopper 1
35 1001099 Main Bottom Assembly 1

97

Master Series

38 1001604

Valve Panel

1

40 1831101

Grease Pan Front

1

43 1151501

Bell Crank Link LT

1

48 F76 Nut 1/4"

-

20 UNC

4

53 1031301

Broiler Rack Roller Pin

4

56 F78 3/8-16

Nut UNC

8

61 F76 1/4 -20

Nut UNC

4

67 1648597

Outer Rack Frame W/A

2

72 1655000

Rack Handle Index Plate

2

Heavy Duty Gas Double Infra-Red Broiler - Page 2

Model: MHO

ITEM

36 1001102 Rear Grease Guide Support 2
37 1001699 Cab Base Front Panel Assembly S/S 1

39 1831501 Grease Tray 1
41 2192900 Storage Door Handle 1

42 1151499 Bell Crank Assembly 2

44 1082200 Bell Crank Bolt 2
45 1150900 Bell Crank & Spring Support LT/RT 2
46 1005800 Broiler Spring 2
47 1139001 Spring Hook 2

49 1009500 Carriage Support Angle 4
50 1134995 Upper Broiler Rack Raising Arm 1

51 1647300 M40 H/D Broiler Rack 4
52 1176898 Inner Rack Frame Assembly 2

54 1035400 Double Row Unground Bearing 4
55 1031302 Rack Roller Wire Spacer 4

57 F112 3/8 Flat Washer 8
58 G01247-3 Broiler Roller Bearing 4
59 G01244-1 Bearing 8
60 G6424 Leveling Bolt 4

PART No DESCRIPTION QTY

1151500 Bell Crank Link RT 1

1134998 Broiler Rack Raising Arm 2

62 F111 1/4 Washer 4
63 G6424 Leveling Bolt 4
64 G01247-3 Broiler Roller Bearing 4
65 1134996 Lower Broiler Raising Arm Assembly 1
66 1647999 Broiler Rack Raising W/A 2

68 1648100 Rack Front Piece 2
69 2580600 Door Handle End Insert 4
70 2559101 Door Handle End LT 2

2559100 Door Handle End RT 2

71 2193101 Extruded Handle 18.347" 2

71 A

73 1039602 Ball Knob 1-1/8 Gray 2
74 1151800 Broiler Rack Drip Shield 2

1799401 Gray GARLAND Overlay 2

98

Master Series

78 1835002

Hold Down Brkt

16

86 076050

-

87 1/4"

CC Union

2

89 2206400

Pilot Burner Nat

2

96 1145800

Orifice Holder Stabilizer

8

101 1147901

Rear Orifice Shield

1

105 1001802

Corner Gusset

2

108 1027800

Swivel Caster Less Brake

2

Heavy Duty Gas Double Infra-Red Broiler - Page 3

Model: M11O

ITEM PART No DESCRIPTION QTY

75 1005800 Broiler Spring 2
76 1139001 Spring Hook 2
77 1134102 Rack Carriage Spring Support RT 1

1134103 Rack Carriage Spring Support LT 1

79 2522114 Knob 4
80 1095197 Nat Hi-Med-Lo Valve 4

1095196 LP Hi-Med-Lo Valve 4
81 2591500 Adapter-Valve 2
82 1510402 3/16 x 3/16 Y Pilot Adjust Valve 2
83 G01747-1 1/8 Standard Black Head Sq Plug 1
84 1001988 Manifold Assembly 1
85 2127503 Regulator Natural 1

2127500 Regulator Propane 1
87 GM308 1/4" Pilot Tubing (2 Req'd.) 60" Lg.

87A GM308 1/4" Pilot Tubing (2 Req'd.) 30" Lg.

88 GM309 7/16" Tube-Valve to Orifice (2 Req'd) 60" Lg.

GM309 7/16" Tube-Valve to Orifice (2 Req'd) 84" Lg.

2206401 Pilot Burner LP 2
90 G01243-1 1/4 CC X 1/4" NPT Connect 4
91 1646200 Pilot Bracket 4

92 1647100 IR Burner 8
93 1145113 Venturi Enclosure Plate 8
94 1041000 Venturi Gasket 8
95 ~ Venturi (Part of 1647100) 8

97 1647149 Orifice Nat 8

1647156 Orifice Lp 8
98 ~ Orifice Holder (Part of 1647100) 8
99 G01243-1 7/16" CCX 3/8" NPT Fitting 8

100 1649400 Orifice Holder Support 1
102 1001003 Base Channel 2

1001004 Base Channel S/S 2

103 1001904 Manifold Support 1
104 1001302 Front Upright RT 1

1001301 Front Upright LT 1

106 1150502 Bullet Legs 4
107 1027600 Leg Retainer Plated 6" 4

1027801 Swivel Caster C/W Brake 2

99

Master Series

Heavy Duty Gas Ceramic Broiler
With Upper Finishing Oven

Models: M60R,RC,S,T

100

Master Series

4 1134600

Flue Closure GG

2

6 1002406

Broiler Front

1

9 1134700

Main Back Channel Brace

2

13 1135400

Aeration Shield

-

Raw 2

26 1080719

Oven Door Panel S/S

1

29 1136000

Broiler Front Burner Shield RT

1

34 1806105

Burner Box Back

1

Heavy Duty Gas Ceramic Broiler w/Upper Finishing Oven

Models: M60R,RC,S,T

ITEM PART NUMBER DESCRIPTION OTY

1 1134400 Main Back Broiler 1
2 1134800 Back Lining Insulation Body 2
3 1139599 Flue Riser Assembly 1

5 1650900 Main Top CR 1
7 1651800 Broiler Body Side CRS 2

1651801 Broiler Side Lining S/S 2

8 1135702 Broiler Insulation Lining LT 2

1135703 Broiler Insulation Lining RT 2

10 1472305 Insulation 4
11 1651102 Broiler Front Column RT 1

1651103 Broiler Front Column LT 1

12 1832601 Lower Insulation Lining 2
14 1002501 Cover Center Section 1

15 1832398 Back Oven Liner S/W 1
16 1832501 Ceramic Supt Mounting Bracket 2
17 G6344-01-81E Oven Side Lining Assembly RT 1

G6344-01-82E Oven Side Lining Assembly LT 1

18 G01030-01-81 Oven Door Support RH 1

G01030-01-82 Oven Door Support LH 1
19 2580300 Oven Bottom Upper Broiler 1
20 1832401 Warming Oven Stop Bracket 2
21 G6152-40 Oven Rack Chrome 1
22 1136302 Door Counter Weight RT 1

1136303 Door Counter Weight LT 1
23 G6036-01-8 Door Hinge Assembly 2
24 1439796 Oven Door Lining Enameled 1
25 1138399 Boiler Insert Box Assy 1

27 1831299 Warming Oven Door Handle W/A 1
28 1039602 Ball Knob 1-1/8 Gray 1

1136001 Broiler Front Burner Shield LT 1
30 1650601 Front Filler Strip 1
31 1138100 Broiler Burner Shield 1

32 1732804 Burner Box Side RT CRS 1

1132806 Burner Box Side LT CRS 1

1132805 Burner Box Side Rt S/S 1

1132807 Burner Box Side LT S/S 1
33 1555699 Broiler Support Bracket W/A 2

35 1134200 Grease Hopper 1

101

Master Series

2

39 1832103

Valve Panel

1

41 1831101

Grease Pan Front

1

45 1647300

H/D Broiler Rack

2

50 F78 3/8-16 Nut UNC

4

55 F76 1/4-20

Nut UNC

2

61 1648597

Outer Rack Frame W/

A 1

72 2522115

Knob M60 Burner

2

Heavy Duty Gas Ceramic Broiler w/Upper Finishing Oven - Page

Models: M60R,RC,S,T

ITEM PART NUMBER DESCRIPTION QTY

36 1139598 Lower Oven Flue Box 1
37 2576800 Drip Tray Guide 2
38 2585199 Front Top Rail W/A 1

40 1831501 Grease Tray 1
42 2192900 Storage Door Handle 1

43 1009500 Carriage Support Angle 2
44 1134998 Upper Broiler Rack Raising Arm 1

46 1648597 Outer Rack Frame W/A 1
47 1031301 Broiler Rack Roller Pin 2
48 1035400 Double Row Unground Bearing 2
49 1031302 Rack Roller Wire Spacer 2

51 F112 3/8 Flat Washer 4
52 G01247-3 Broiler Roller Bearing 4
53 G01244-1 Bearing 4

54 G6424 Leveling Bolt 2
56 F111 1/4 Flat Washer 2

57 G6424 Leveling Bolt 2
58 G01247-3 Broiler Roller Bearing 2
59 1134996 Lower BR Rack Raising Arm Assy 1
60 1647999 Broiler Rack Raising Arm 1

62 1648100 Rack Front Piece 1
63 2580600 Door Handle End Insert 2
64 2559101 Door Handle End LT 1

2559101 Door Handle End RT 1

65 2193101 Extruded Handle 18.347 1

65A 1799401 Gray GARLAND Overlay 1

66 1655000 Rack Handle Index Plate 1
67 1151800 Broiler Rack Drip Shield 1
68 G01245-1 Broiler Spring 2

69 1139001 Spring Hook 2
70 1134101 Carriage Spring Support Arm LT 1

1134100 Carriage Spring Support Arm RT 1

71 G03145-048 F.D. Control Assembly 1

72A 2522103 Knob FD Oven C 1
72A 2522107 Knob FD Oven F 1
72B 2522101 Knob Oven Valve 1

73 GM293 Oven Pilot Tubing 3/16" 1

73A GM309 Tubing-Oven to T'stat. 7/16" 1

74 2513399 F.S.D. Oven Valve Assembly 1
75 2200601 Thermocouple 1
76 1086597 Gum Valve-3/16 Pilot 2

102

Master Series

3

79 G01

747-1 1/8

Std Black Head Sq Plug

1 80 -

Ferrule and Nut (Part of

2513399)

1

82A 2572598

Manifold Assy Rear Gas

1 83

G07175

1-1/4"

NPT Pipe Union

1

86A 1134001

Tubing from Valve to Orifice

1

89 18055

01 Washer

1-5/16

OD x

3/4

ID S/S

2

93 G6093

Broiler Burner Air Shutter

4

96 G01358

-1-

6 Pilot Bracket

2

99 G6771

-02-

9 Ceramic Support Assembly

1

Heavy Duty Gas Ceramic Broiler w/Upper Finishing Oven - Page

Models: M60R,RC,S,T

ITEM PART NUMBER DESCRIPTION QTY

77 G4416-2 Valve Oven Burner 2
78 G4523 Adapt DV Valve 3/8 mx 9/16 -27NS 2

81
82

84 076029-183 Nipple 1-1/4" NPT Coupling Black 1
85 076029-184 Nipple 1-1/4" NPT x 29" Black 1
86 1134000 Tubing from Valve to Orifice 1

87 GM308 Pilot Tubing 1/4" (2 Req'd) 36"
88 - 7/16 Tubing Ferrule and Nut (Part of Item 92) 2

90 1137500 Orifice Support 2
91 1805501 Washer 1 5/16 OD x 3/4 ID S/S 2
92 G5420-35F Orifice Fitting Natural 2

94 G6023R Broiler Burner R/H 1
95 1415300 2C-2 Pilot Burner Natural 2

97 G6015-1 Broiler Burner Shield 2
98 G5054 Broiler Burner Hanger 4

100 G6030 Ceramic 6

2189100 Valve Connector Fitting 12mm 1
2572599 Mainfold Assy 1

G5420-48F Orifice Fitting Propane 2

G6023L Broiler Burner L/H 1

1415301 2C-2 Pilot Burner Propane 2

103

Master Series
Heavy Duty Gas Double Ceramic Broiler

Model: M66

104

Master Series

3A 1653700

Lower Main Back

1

5 1835202

Main Back Patch

2

7 1134700

Main Back Channel Brace

4

15 1135400

Aeration Shield

4

19 1136001

Broiler Front Burner Shield LT

1

25 1663600

Incline Grease Pan S/S

1

Heavy Duty Gas Double Ceramic Broiler

Model: M66

ITEM

1 1663899 Flue Raiser Collar S/W 1
2 1658199 Flue Raiser S/W 1
3 1653500 Upper Main Back 1

4 1835199 Ceramic Filler PCS Assy 2
6 1002202 Top Front 1
8 1134800 Back Lining Insulation Body 1

9 1653800 Upper Side Lining LT 1

9A 1654000 Lower Side Lining RT 1

10 1149400 Body Side RT 1

11 GMCS19 Insulation
12 1659800 Corner Column RT S/S 1

13 1134800 Back Lining Insulation Body 1
14 1658702 Upper Front Cover 1

16 10015001 Back Cabinet Base S/S 1
17 1009200 Inner Rear Support LT/RT Painted 2

18 1001400 Cabinet Base Body Side R/T 1

PART No DESCRIPTION QTY

1653801 Upper Side Lining RT 1
1654001 Lower Side Lining LT 1
1149401 Body Side LT 1

1149402 Body Side RT S/S 1
1149403 Body Side LT S/S 1

1659802 Corner Column LT S/S 1

10015000 Back Cabinet Base 1

1001401 Cabinet Base Body Side L/T 1
1001402 Cabinet Base Body Side RT-S/S 1
1001403 Cabinet Base Body Side LT-S/S 1

1136000 Broiler Front Burner Shield RT 1
20 1650600 Front Filler Strip 2
21 1138100 Broiler Burner Shield 2
22 1151001 Maintop Stiffener 2
23 1654600 Maintop 1
24 1654200 Upper Broiler Top Insulation Lining 1

26 1654599 Upper Broiler Bottom Deck GCE 1
27 1351300 Insulation Pan Spacer 1
28 1654700 Lower Broiler Top Insulation Lining 1

105

Master Series

30 1659002

Lower Front Cover

1

32 1002602

Grease Container S/S

1

36 1001204

Grease Drawer Guide

2

38 1001604

Valve Panel

1

43 1151501

Bell Crank Link LT

1

48 F76 Nut 1/4"

-

20 UNC

4

51 1647300

M40 H/D Broiler Rack

4

53 1031301

Broiler Rack Roller Pin

4

56 F78 3/8-16

Nut UNC

8

61 F76 1/4 -20

Nut UNC

4

67 1648597

Outer Rack Fra

me W/A

2

Heavy Duty Gas Double Ceramic Broiler - Page 2

Model: M66

ITEM PART No DESCRIPTION OTY

29 1835301 Front Panel Support Bracket Infra-Red 4
31 1151700 Grease Container Support S/S 1
33 1001102 Rear Grease Guide Support 1

34 1134201 Grease Hopper M66 1
35 1001099 Main Bottom Assembly 1

37 1001699 Cabinet Base Front Panel Assembly S/S 1
39 1831501 Grease Tray 1

40 1831101 Grease Pan Front 1
41 2192900 Storage Door Handle 1
42 1151499 Bell Crank Assembly 2

1151500 Bell Crank Link RT 1

44 1082200 Bell Crank Bolt 2
45 1150900 Bell Crank & Spring Support LT/RT 2
46 1005800 Broiler Spring 2
47 1139001 Spring Hook 2

49 1009500 Carriage Support Angle 4
50 1134995 Upper Broiler Rack Raising Arm 1

1134998 Broiler Rack Raising Arm 2
52 1176898 Inner Rack Frame Assy 2
54 1035400 Double Row Unground Bearing 4

55 1031302 Rack Roller Wire Spacer 4
57 F112 3/8 Flat Washer 8

58 G01247-3 Broiler Roller Bearing 4
59 G01244-1 Bearing 8
60 G6424 Leveling Bolt 4

62 F111 1/4 Washer 4
63 G6424 Leveling Bolt 4
64 G01247-3 Broiler Roller Bearing 4
65 1134996 Lower Broiler Raising Arm Assembly 1
66 1647999 Broiler Rack Raising W/A 2

68 1648100 Rack Front Piece 2
69 2580600 Door Handle End Insert 4

70 2559101 Door Handle End LT 2

2559100 Door Handle End RT 2

106

Master Series

72 1655000

Rack Handle Index Plate

2

87 1805501

Washer

1-5/6

OD x

3/4

ID S/S

2

91 G6093

Broiler Burner Air Shutter

8

94 1415300

2C-2 Pilot Natural

4

95 G01358

-1-

6 Pilot Bracket

4

102 1001003

Base Channel

2

105 1001802

Corner Gusset

2

108 1027800

Swivel Caster Less Brake

2

Heavy Duty Gas Double Ceramic Broiler - Page 3

Model: M66

ITEM

71 2193101 Extruded Handle 18.347" 2

73 1039602 Ball Knob 1 1/8 Gray 2
74 1151800 Broiler Rack Drip Shield 2
75 1005800 Broiler Spring 2
76 1139001 Spring Hook 2
77 1134102 Rack Carriage Spring Supt RT 1

78 2127503 Regulator Nat 1
79 2522114 Knob 4

80 G4416-2 Valve Open Burner 4
81 2591500 Adapter,Valve 4
82 1510402 3/16 x 3/16 Y Pilot Adjust Valve 2
83 G01747-1 1/8 Standard Black Headed Square Plug 1
84 1001988 Mainfold Assy 1
85 GM309 Valve to Orifice Tubing (6 Req'd) 60"
86

88 1137501 Lower Office Support 2
89 1805501 Washer 1-5/6 OD x 3/4 ID S/S 2

90 G5420-35F Orifice Fitting 4

PART No DESCRIPTION QTY

1799401 Gray GARLAND Overlay

1134103 Rack Carriage Spring Supt LT 1

2127500 Regulator LP 1

Ferrule and Tube Nut(lncluded with Item 90) 4

1137500 Orifice Support 2

G5420-48F Orifice Fitting 4

92 G6023R Broiler Burner R/H 2

G6023L Broiler Burner L/H 2

93 GM308 Pilot Tubing 4

1415301 2C-2 Pilot Propane 4

96 G6015-1 Broiler Burner Shield 4
97 G5054 Burner Hanger 8
98 G6295-1 Ceramic Support 2

99 G6030 Ceramic 12
100 G677-02-9 Ceramic Support Assembly 2
101 2593400 Bracket Centre Support 2

1001004 Base Channel S/S 2
103 1001904 Manifold Support 1
104 1001302 Front Upright RT 1

1001301 Front Upright LT 1
106 1150502 Bullet Legs 4

107 1027600 Leg Retainer Plated 6" 4

1027801 Swivel Caster C/W Brake 2

107

Master Series

Heavy Duty Gas Infra -Red, (top)/
Ceramic, (bottom) Double Broiler

Model:M67

108

Master Series

Red, (top)/Ceramic,(bottom) Double Broiler

4 1653700

Lower Main Back

1

7 1134700

Main Back Channel Brace

4

13 1472305

Insulation

8

19 10015001

Back Cabinet Base S/S

1

24 1

001204

Grease Drawer Guide

2

26 1001604

Valve Panel

1

28 1831101

Grease Pan Front

1

30 1136001

Broiler Front Burner Shield LT

1

Heavy Duty Gas Infra-

Model: M67

ITEM PART No DESCRIPTION QTY

1 1663899 Flue Raiser Collar S/W 1
2 1658199 Flue Raiser S/W 1
3 1653500 Upper Main Back 1

5 1654398 Upper Back Liner 1
6 1835199 Ceramic Filler PCS Assy 1

8 1835202 Main Back Patch 1
9 1002202 Top Front 1

10 1653801 Upper Side Lining LT 1

1653800 Upper Side Lining RT 1

11 1149400 Body Side RT 1

1149401 Body Side LT 1
1149402 Body Side RT S/S 1
1149403 Body Side LT S/S 1

12 1658702 Upper Front Cover 1
14 1659800 Comer Column RT S/S 1

1659802 Corner Column LT S/S 1
15 1134800 Back Lining Insulation Body 1
16 1654000 Lower Side Lining RT 1

1654001 Lower Side Lining LT 1
17 1135400 Aeration Shield 4

18 1134200 Grease Hopper 1

10015000 Back Cabinet Base 1
20 1009200 Inner Rear Support LT/RT Painted 2
21 1001400 Cabinet Base Body Side R/T 1

1001401 Cabinet Base Body Side L/T 1
1001402 Cabinet Base Body Side RT-S/S 1

1001403 Cabinet Base Body Side LT-S/S 1
22 1001102 Rear Grease Guide Support 1
23 1001099 Main Bottom Assembly 1

25 1001699 Cab Base Front Panel Assembly S/S 1
27 1831501 Grease Tray 1
29 2192900 Storage Door Handle 1

1136000 Broiler Front Burner Shield RT 1
31 1138100 Broiler Burner Shield 1

32 1650600 Front Filler Strip 1

109

Master Series

2

35 1659002

Lower Front Cover

1

43 1663600

Incline Grease Pan S/S

1

48 1151501

Bell Crank Link LT

1

53 F76 Nut 1/4"

-

20 UNC

4

56 1647300

M40 H/D Broiler Rack

4

58 1031301

Broiler Rack Roller Pin

4

66 F76 1/4-20

Nut UNC

4

72 1648597

Outer Rack Frame W/A

2

Heavy Duty Gas Infra-Red, (top) /Ceramic, (bottom) Double Broiler - Page

Model: M67

ITEM PART No DESCRIPTION QTY

33 1002602 Grease Container S/S 1
34 1151700 Grease Container Support S/S 1

36 1835301 Front Panel Supt Bracket Infra-Red 2

36A 1835300 Front Panel Supt Bracket 2

37 1653400 Front Burner Support Bracket 4
38 1832801 Burner Hanger Bracket 2
39 1646600 Front Burner Support 1
40 1151001 Maintop Stiffner GG 2
41 1654600 Maintop 1
42 1654200 Upper Broiler Top Insulation Lining 1

44 1654599 Upper Broiler Bottom Deck GCE 1
45 1351300 Insulation Pan Spacer 1
46 1654700 Lower Broiler Top Insulation Lining 1
47 1151499 Bell Crank Assembly 2

1151500 Bell Crank Link RT 1
49 1082200 Bell Crank Bolt 2
50 1150900 Bell Crank & Spring Support LT/RT 2
51 1005800 Broiler Spring 2
52 1139001 Spring Hook 2

54 1009500 Carriage Support Angle 4
55 1134995 Upper Broiler Rack Raising Arm 1

1134998 Broiler Rack Raising Arm 2
57 1176898 Inner Rack Frame Assembly 2
59 1035400 Double Row Unground Bearing 4

60 1031302 Rack Roller Wire Spacer 4
61 F78 3/8-16 Nut UNC 8
62 F112 3/8 Flat Washer 8
63 G01247-3 Broiler Roller Bearing 4
64 G01244-1 Bearing 8
65 G6424 Leveling Bolt 4

67 F111 1/4 Washer 4
68 G6424 Leveling Bolt 4
69 G01247-3 Broiler Roller Bearing 4
70 1134996 Lower Broiler Raising Arm Assy 1

71 1647999 Broiler Rack Raising W/A 2
73 1648100 Rack Front Piece 2

74 2580600 Door Handle End Insert 4
75 2559101 Door Handle End LT 2

2559100 Door Handle End RT 2

110

Master Series

3

77 1

655000

Rack Handle Index Plate

2

83 2522114

Knob 4

93 1805501

Washer

1-5/6

OD x

3/4

ID S/S

2

98A G01358

-1-

6 Pilot Bracket

2

107 2206400

Pilot Burner Nat

2

109 1646200

Pilot B

racket

2

Heavy Duty Gas Infra-Red, (top)/Ceramic, (bottom) Double Broiler - Page

Model: M67

ITEM PART No DESCRIPTION QTY

76 2193101 Extruded Handle 18.347" 2

1799401 Gray GARLAND Overlay 2
78 1039602 Ball Knob 1-1/8 Gray 2

79 1151800 Broiler Rack Drip Shield 2
80 1005800 Broiler Spring 2

81 1139001 Spring Hook 2
82 1134102 Rack Carriage Spring Support RT 1

1134103 Rack Carriage Spring Support LT 1
84 1095197 Nat Hi-Med-Lo Valve 2

1095196 LP Hi-Med-Lo Valve 2
85 1510402 3/16 x 3/16 Y Pilot Adjust Valve 2
86 G4416-2 Valve, Open Burner 2

86A 2591500 Adapter,Valve 2

87 G01747-1 1/8 Std Black Head Sq Plug 1
88 1001988 Manifold Assembly 1
89
90
91 1805501 Washer 1-5/6 OD x 3/4 ID S/S 2
92 1137500 Orifice Support 2

7/16" Valve to Orifice Tubing 2
7/16" Tube Fitting 2

94 G5420-35F Orifice Fitting Natural 2

G5420-48F Orifice Fitting Propane 2
95 G6093 Broiler Burner Air Shutter 4
96 G6023R Broiler Burner R/H 1

G6023L Broiler Burner L/H 1

97 1415300 2C-2 Pilot Natural 1

1415301 2C-2 Pilot Propane 1

98 GM308 Pilot Tubing 1/4" (2 Req'd.) 60"
99 G5054 Burner Hanger 4

100 G6015-1 Broiler Burner Shield 2
101 G6030 Ceramic 6
102 2593400 Bracket Centre Support 1

102A G6295-1 Ceramic Support 1

102B G677-02-9 Ceramic Support Assembly 1

103 2127503 Regulator Nat 1

2127500 Regulator LP 1
104 GM308 Pilot Tubing 1/4" (2 Req'd.) 60"
105 GM309 7/16 Tubing Valve-IR Orifice Holder(4 Req'd) 60"
106 076050-88 Straight Connector 4

2206401 Pilot Burner LP 2
108 G01243-1 Tubing to NPT Connector 4

110 1835002 Hold Down Bracket 8

111

Master Series

4

121 1001302

Front Upright Rt

1

124 1150502

Bullet Legs

4

Heavy Duty Gas Infra-Red, (top)/Ceramic, (bottom) Double Broiler - Page

Model: M67

ITEM PART No DESCRIPTION QTY

111 1647100 IR Burner 4
112 1145113 Venturi Enclosure Plate 4
113 1041000 Venturi Gasket 4
114
115 1145800 Orifice Holder Stabilizer 4
116 1647149 Orifice Nat 4

1647156 Orifice Lp 4
117
118 1649400 Orifice Holder Support 1
119 1147901 Rear Orifice Shield 1

120 1001904 Manifold Support 1

1001301 Front Upright Lt 1
122 1001802 Corner Gusset 2
123 1001003 Base Channel 2

1001004 Base Channel SS 2
125 1027600 Leg Retainer Plated 6" 4

126 1027800 Swivel Caster Less Brake 2

1027801 Swivel Caster C/W Brake 2

Venturi (Part of 1647100) 4

Orifice Holder (Part of 1647100) 4

112

Master Series

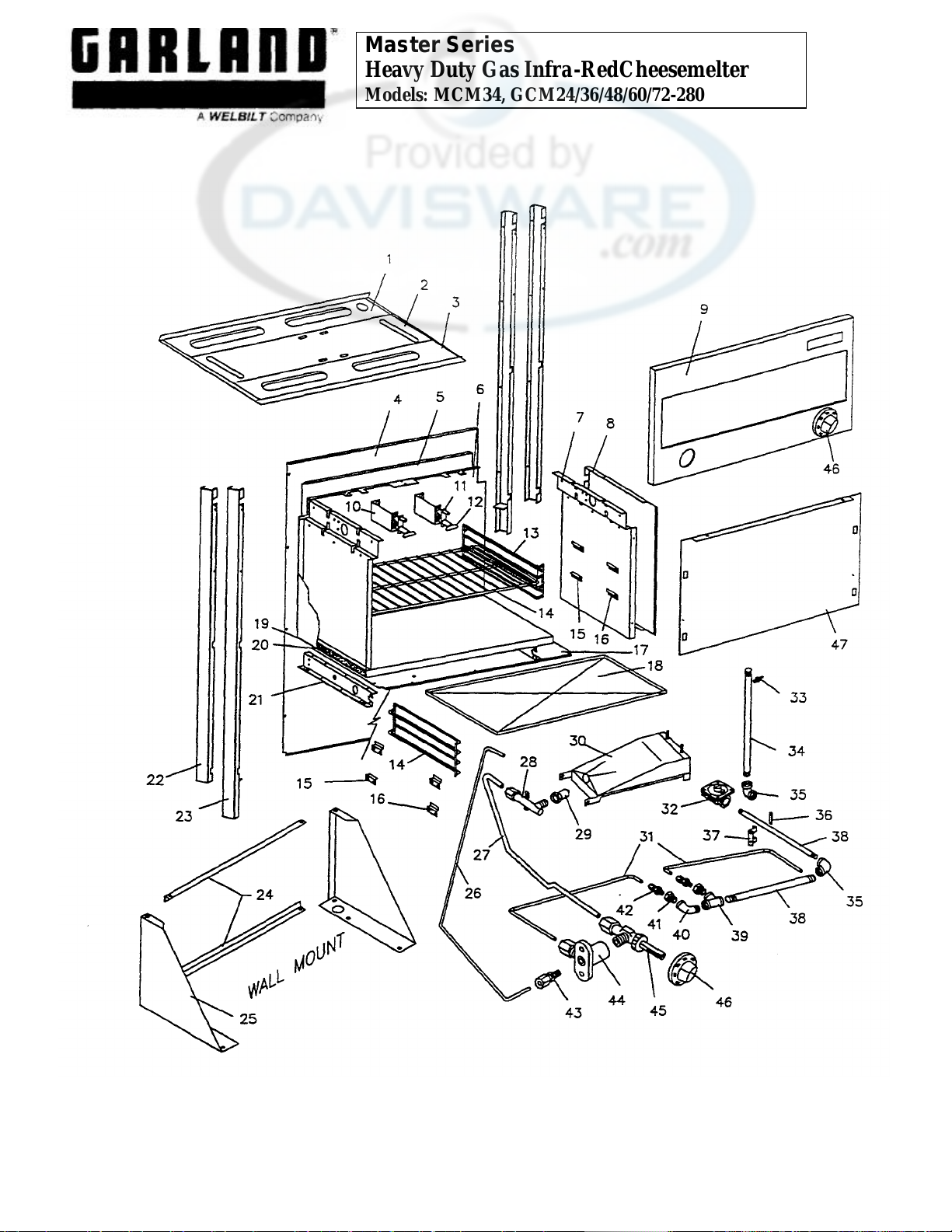

Heavy Duty Gas Infra -RedCheesemelter

Models: MCM34, GCM24/36/48/60/72-280

113

Master Series

Heavy Duty Gas Cheesemelter
Backguard & Shelf

for Models: MCM34, GCM24/36/48/60/72-280

114

Master Series

1 1

1 1

1

1 1

1 1

1 1

1 1

1 1

4 1831801

Back Panel AZ

1

1 1

1 1

1

1

1

1 1

1

1 1

1

1 1

1

11 G0554

-

1 3C-2 Pilot Natural Gas

2 1 2 1 2 2

1 1

1

1 1

Heavy Duty Gas Infra-Red Cheesemelters

Models: MCM34, GCM24/36/48/60/72-280

ITEM PART# DESCRIPTION MCM34

1 G01377-1-6 Main Top Back 1

G01377-1-9 Main Top Back

1376205 Main Top Back

2 G01376-1-6 Main Top Center 1

G01376-1-9 Main Top Center

13762004 Main Top Center

3 G01375-1-6 Main Top Front 1

G01375-1-9 Main Top Front

1376200 Main Top Front 24"AZ
1376201 Main Top Front 24" S/S

1831802 Back Panel S/S 1
1377400 Backguard Back AZ
1377405 Backguard Back S/S
1377402 Backguard Back AZ
1377407 Backguard Back S/S

5 1375900 Back Shield 24"

1375901 Back Shield 34" 1

6 1375297 Bottom Back Liner S/W 24"

1375298 Bottom Back Liner S/W 34" 1

7 1375697 Side Liner 24" RT S/W

1375698 Side Liner RT S/W 1
1375699 Side Liner LT S/W 1 1 1 1 1 1

8 1376700 Side Panel RT/ LT GG

1376701 Side Panel RT/ LT S/S 2 2 2 2 2 2

9 1375900 Front Panel 24"

1375901 Front Panel 34" 1

10 1376100 Pilot Mounting Brkt 2 1 2 1 2 2

GCM24-

280

1

2 2 2 2 2

GCM36-

280

1

GCM48-

280

1

GCM60-

280

1 1

1 1
1 1

1 1
1 1

1 1

1 1

GCM72-

280

1

12 G0554-2 3C-2 Pilot LP 2 1 2 1 2 2
13 9004000 Rack Guide RT/LT 2 2 2 2 2 2
14 9003900 Rack Cheesemelter 24"

9003901 Rack Cheesemelter 34" 1

15 1317601 Rack Guide Hold Down 6 6 6 6 6 6

Bracket
16 1317600 Rack Guide Bracket 2 2 2 2 2 2
17 1375100 Main Bottom 24"

1375101 Main Bottom 34" 1

1

1 1

1 1

115

Master Series

1

19 1375000

Bottom Insulation Panel

24" 1 1

1

1

1 1

1

1 1

1

1 1

1

2

1 1

1

Heavy Duty Gas Infra-Red Cheesemelters - Page 2

Models: MCM34, GCM24/36/48/60/72-280

ITEM PART# DESCRIPTION

18 1376400 Crumb Tray 21"

1376401 Crumb Tray 31" 1

1375001 Bottom Insulation Panel 34" 1
20 GM2 Insulation
21 1378198 Main Support Brkt RT S/W 1 1 1 1 1 1

1378199 Main Support Brkt LT S/W 1 1 1 1 1 1
22 1378300 Veneer Support Brkt RT 24"

1378301 Veneer Support Brkt RT 36"

1378103 Veneer Support Brkt LT 24"

1378104 Veneer Support Brkt LT 34"

1831701 Veneer Support Brkt RT 1

1831702 Veneer Support Brkt LT 1
23 1377500 Support Brkt RT 24" GG

1377501 Support Brkt RT 36" GG

1377503 Support Brkt LT 24" GG

1377504 Support Brkt LT 36" GG

1831698 Support Brkt RT W/A 1

1831699 Support Brkt LT W/A 1
24 G01467-1-5 Angle Brkt 2
25 G01400-1-91 Bracket RH 1

G01400-1-92 Bracket LH 1
26 1028737 1/4" Pilot Tubing X 37" 2 1 2 1 2 1
27 1377201 Valve to Orifice Tubing 2 1 2 1 2 2

28 G01411-50F Orifice Fitting Nat.-N.America 2 1 2 1 2 2

G01411-56F Orifice Fitting Prop.-N.America 2 1 2 1 2 1

G01411-XX Orifice Fitting (less hood) 2 1 2 1 2 1
29
30 1035103 Burner 2 1 2 1 2 2

31 1377200 Feed Tubing 2

1377202 Feed Tubing

32 2127500 Regulator LP 1 1 1 1 1 1

2127503 Regulator Natural 1 1 1 1 1 1

G01918-5 Bushing 3/4" to 1/2" NPT 1 1 1 1 1 1
33 1007300 1/8' NPT Pipe Plug 1 1 1 1 1 1
34 G01477-6 Nipple 1/2"NPT X 20" 1 1 1 1 1 1
35 G01474-2 Elbow 1/2" NPT 90° 2 2 2 2 2 2
36 1375701 Pipe Retainer 1 1 1 1 1 1
37 1375700 Pipe Support Bracket 1 1 1 1 1 1
38 G01477-1 Nipple 1/2"NPTX 12-3/4" 2 2 2 2 2 2
39 G01476-1 Tee 1/2" NPT 1

Orifice Hood-Special(Gas/Dest) 2 1 2 1 2 2

MCM

34

GCM24-

280

1

1

GCM36-

280

GCM48-

280

1

1

GCM60-

280

1 1
1 1

1 1
1 1

1 1
1 1

2 2

1 1

GCM72-

280

116

Master Series

ITEM

PART#

DESCRIPTION

MCM34

GCM24

- GCM36

- GCM48

- GCM60

- GCM72

-

2

43 G6809

Valve, Pilot

2 1 2 1 2 2

45 G01410

-

1 Valve Hi

-

Lo 1/4"NPT

7/1

6"C C

2 1 2 1 2 2

1555200

Dial Insert

1 2 1 2 2

1

1

1

1

1

1

1386615

Fron

t Panel

72"

S/S 1

51 1390500

SDHS Back AZ

1 1

1

1390502

SDHS Back S/S

1

1

Heavy Duty Gas Infra-Red Cheesemelters - Page 3

Models: MCM34, GCM24/36/48/60/72-280

280 280 280 280 280

40 G01475-1 Street Elbow 1/2" NPT 1
41 G01569-1 Reducer Bushing 2
42 G01243-1 Straight Fitting 1/2 NPT x 7/16 2 1 2 1 2 2

44 1037901 Flanged Elbow 2 1 2 1 2 2

1

1 1
2 2

46 G02716-2 Dial (Universal) Med. Shaft

1800604 M40 Gray Left IR Sal Knob 1
1800606 M40 Gray Right IR Sal Knob 1

47 2567800 MSR16 Front Panel 1

1376005 Bottom Front Panel 24"
1376007 Bottom Front Panel 34"
1386601 Front Panel (GCM48-280)S/S
1386613 Front Panel (281/285) S/S
1386611 Front Panel (282/283) S/S
1386613 Front Panel (284/287) S/S

48 1390100 Upright RT/LT GG

1390101 Upright RT/LT S/S

49 1364900 Shelf Support LT GG

1364902 Shelf Support LT S/S

50 1364901 Shelf Support RT GG

1364903 Shelf Support RT S/S
1390501 High Shelf Back 36"
1390503 High Shelf Back S/S

52 1364700 Shelf Top 24" S/S

1390201 Shelf Top 36" S/S

53 1500602 Shelf Bottom 24" S/S

1500603 Shelf Bottom 36" S/S

54 1561800 Shelf Bracket GG

1561801 Shelf Bracket S/S

1 2 1 2 2

2 2 2
2 2 2
1 1 1
1 1 1
1 1 1
1 1 1

1 1
1 1

1

1
1
1

117

Master Series

Heavy Duty Gas Infra -Red Salamander Broiler

Model: MIR34L

118

Master Series

2 G01376

-1-

6 Main Back Centre

1

4 G01391

-1-

6 Front Brace

1

8 2584100

Side Liner R/H

1

13 G01400

-1-

91 Bracket R/H

1

16 1031301

Broiler Rack Roller Pin

4

19 F76 1/4-20

UNC Nut

4

24 F78 3/8"-16Nut

4

26 1

819101

Rack Handle Front

1

29 2580600

Door Handle End Insert

2

34 F76 1/4-20

Nuts 4

Heavy Duty Gas Infra-Red Salamander Broiler

Model: MIR-34L

ITEM

1 G01377-1-6 Main Top Back 1
3 G01375-1-6 Main Top Front 1
5 G6704-34-7 Main Back 34" 1

6 2584000 Flue Back 1
7 G01372-1-6 Orifice Fitting Cover 2

9 G01392-1-91 Main Side R/H 1

10 G01378-01-61 R/H Bottom Assembly 1
11 2540800 Bottom Cover 1

12 G01467-1-5 Angle Bracket 2

14 1347200 Salamander Rack 1
15 1387200 Protecting Rod 2

17 1031302 Rack Roller Wire Spacer 4
18 1035400 Double Row Unground Bearing 4

20 G01244-1 Bearing 4
21 F112 3/8" Flat Washer 4

22 G6424 Leveling Bolt 4
23 G01247-3 Rear Bushing 4

PART NO DESCRIPTION QTY

2584101 Side Liner L/H 1

G01392-1-92 Main Side L/H 1

G01378-01-62 L/H Bottom Assembly 1

G01400-1-92 Bracket L/H 1

25 1037286 Rack Frame Weld Assy 1
27 2559100 Door Handle End RT 1

2559101 Door Handle End LT 1

28 2193100 Door Handle Bar 1

28A 1592007 Handle Overlay 1

30 1342596 Rack Frame Assy 1
31 F40 1/4-20 x 3/4" LG.Hex Bolt 4

32 F111 1/4" Flat Washer 4
33 G01247-3 Rear Bushing 4

35 1342099 Upper Arm Assembly 2
36 1031300 Broiler Rock Roller Bushing 4

37 1342499 Lever Assy 1
38 9004701 Oven Door Spring Hook 1
39 1005803 Springs 1
40 1342198 Handle Assy N/C Plate 1

119

Master Series

47 G01410

-

1 Valve Hi

-Lo 1/4

NPT to

7/16

CC 2

53 G6809

Valve Pilot

2

55 G01476

-

1 1/2"

NPT Tee

1

59 1815601

Pilot Bracket R/H

1

Heavy Duty Gas Infra-Red Salamander Broiler - Page 2

Model: MIR-34L

ITEM

41 1341800 Face Plate 1
42 1039603 Gray Ball Knob 1
43 2540700 Grease Tray Front 1
44 G01383-1-8 Grease Tray 1
45 1800606 M40 Gray Right l/R-Sal Knob 1

46 G01435-1 Elbow Flanged 2
48 G01471-1-8 7/16 Steel Tubing x 8.937" 1

49 G01471-1-8 7/16 Steel Tubing x 8.937" 1
50 G01473-1-81 7/16 Steel Tubing x16.312" 1

51 G01472-1-82 7/16 Steel Tubing x 16.312" 1
52 G01243-1 Fitting 2

54 GM320 1/4 Aluminum Tubing x 18" 2
56 G01569-1 1/2" to 1/4" NPT Reducer 2

57 G01474-2 1/2" NPT Elbow 1
58 G01412-01-8 Mainfold Assembly 1

60 1806601 NAT NAT IR SAL Pilot Burner Assy 2

61 G01475-1 Elbow-Street 1/2" NPT 90 DEG 1
62 G01411-XX Orifice Fitting Holder 2

63 G01411-48 Orifice Fitting #48 Nat 2
64 CK117 Burner Assembly 2

65 G01477-1 Nipple 1/2" NPT x12 3/4" Raw
66 2127503 Regulator Nat 1

67 1038704 Main Front S/S MIR34L 1
68 2567800 MSR16 Front Panel 1
69 G01384-01-61 Valve Housing R/H Assembly 1

70 1819001 Salamander Grease Shield 1
71 2582398 Bracket Upright Assy L/H 1

72 2584500 Upright Veneer MIR-34L 2
73 2588601 Strip Filler R/H 1
74 2588600 Strip Filler L/H 1
75 G01918-5 Bushing 3/4 to 1/2 NPT Brass 1

PART NO DESCRIPTION QTY

1800604 M40 Gray Left I/R SAL Knob 1

1815602 Pilot Bracket L/H 1

1806602 LP LP IR SAL Pilot Burner Assy 2

G01411-55 Orifice Fitting #55 Lp 2

2127500 Regulator LP 1

G01384-01-62 Valve Housing L/H Assembly 1

2582399 Bracket Upright Assy R/H 1

120

Master Series

Heavy Duty Gas Infra -Red Salamander Broiler

Models: MSRC,MSR16

122

Master Series

4 2572100

Infra Red Burner

2 2

13 2580200

Front Brace

1 1

23 *2564400

Front Frame

1 1

32A G02468

-01-

5 Half Round Rack

2 2

Heavy Duty Gas Infra-Red Salamander Broiler

Models: MSRC,MSR16

Item Part# Description MSRC MSR 16

1 G01377-1-6 Main Top Back

G01377-1-9 Main Top Back 1 1(0pt)

2 G01376-1-6 Main Top Centre

G01376-1-9 Main Top Centre 1 1(0pt)

3 G01375-1-9 Main Top Front 1 1
5 2564200 Flue Back 1 1

6 G01372-1-6 Orifice Fitting Cover 2 2
7 G01247-2 Front Bearing 2 2
8 G01247-1-8 Washer Bearing 2 2
9 *2540398 Valve Housing Assy LH 1 1

*2540399 Valve Housing Assy RH 1 1

2592798 Valve Housing Assy LH 1 1

2592799 Valve Housing Assy RH 1 1
10 2576200 Valve Housing Retainer 2 2
11 2541998 Manifold Housing Bottom LH 1 1

2541999 Manifold Housing Bottom RH 1 1
12 2540800 Bottom Cover 1(0pt) 1 (Opt)

1 Std)

1 (Std)

14 2203400 Cnt. Sunk 1/8" NPT Hex. Plug 2 2
15 G02251-1 Pressure Test Spigot 1 1
16 2541799 Manifold Assembly 1 1
17 G01477-9 Nipple 1/2"NPT x 18" Long 1 1
18 2567999 Sub-Manifold Assembly 1 1
19 2582600 Wall Mount Bracket RH (Black) 1(0pt)

2582602 Wall Mount Bracket RH (Stainless Steel) 1(0pt)

2582601 Wall Mount Bracket LH (Black) 1(0pt)

2582603 Wall Mount Bracket LH (Stainless Steel) 1(0pt)
20 G01467-1-5 Angle Bracket 2
21 G01474-2 Elbow - 1/2 NPT 1 1
22 G01477-10 Nipple 1/2" NPT x 1-1/2" Long 1(0pt) 1

2593100 Front Frame 1 1
24 2522116 Knob 2 2
25 *2193100 Door Handle 1 1

2193101 Door Handle 1 1
26 2559101 Door Handle End LT 1 1

2559100 Door Handle End RT 1 1
27 2580600 Door Handle End Insert 2 2
28 *2547600 Rack Veneer 1 1

2592600 Rack Veneer 1 1
29 *2540600 Grease Tray 1 1

2601300 Grease Tray 1 1
30 2540700 Grease Tray Front 1 1

31 G01244-1 Bearing 4 4
32 *2540199 Rack Frame & Grease Chute Assy 1 1

2593099 Rack Frame & Grease Chute Assy 1 1

* = Used up to September 18, 1996

33 G01247-3 Rear Bushing 2 2

123

Master Series

36 2554600

Cover Plate

2 2

39 G02649

-1-

6 Pilot Bracket

2 2

41 G01411

-

XX Side Liner RH

1 1

43 256

7303 Tee 1/2"

NPT 1 1

1

1

48 2567800

Front Panel

1

52 G01410

-

1 Valve Hi

-Lo

2 2

58 2567500

Main Back

1

Heavy Duty Gas Infra-Red Salamander Broiler - Page 2

Models: MSRC,MSR16

Item Part# Description MSRC MSR16

34 G02469-01-81 Roller Guide Assembly RH 1 1

G 02469-01-82 Roller Guide Assembly LH 1 1

35 G01477-2 Nipple 1/2" NPT x 4-1/8" Long 1
37 2554800 Orifice Fitting Shim 2 2

38 G01267-5 Pilot Burner 2 2

38A G01267-2 Pilot Orifice(Natural) 2 2

G01267-3 PilotOrifice(Propane) 2 2

40 G01411-55 Orifice Fitting-Natural(N.America) 2 2

G01411- Orifice Fitting-Propane(N.America) 2 2

1.2mm Orifice Fitting-Natural(Export) 2 2
G01411-XX Orifice Fitting-Propane(Export) 2 2
G01411-XX Orifice Fitting-Special(Gas/Destination) 2 2

2542100 Side Liner LH 1 1

42 2542101 Main Side RH (Black) 1 (Std) 1 (Std)

2567300 Main Side RH (Stainless) 1 (Opt) 1 (Opt)
2567302 Main Side LH (Black) 1 (Std) 1 (Std)
2567301 Main Side LH (Stainless) 1 (Opt) 1 (Opt)

44 G01476-1 Post Bearing 1/2" Dia. X 1/2" Long 4 4

G01989-1-8

45 * 1592007 Handle Overlay 1 1

1799401 Handle Overlay 1 1

46 2567701 Upright Veneer LH

2567700 Upright Veneer RH

47 2567698 Upright Assy LH

2567699 Upright Assy RH

49 2580500 Veneer Back (Opt.)
50 2586200 7/16 Dia. Tubing Valve - Orifice LT 1 1
51 2558500 1/4 X 1/8 NPT Adaptor 2 2

53 2586100 7/16 Dia. Tubing Valve - Orifice RT 1 1
54 2586500 1/4 Dia. Tubing Pilot - G. Valve LT 1 1
55 2586600 1/4 Dia. Tubing Pilot - G. Valve RT 1 1
56 G6809 Valve - Pilot 2 2
57 2527600 Spring - Knob 2 2

59 2567200 Main Back (Black) 1 (Std)

2567201 Main Back (Stainless) 1 (0pt)

60 2567198 Support Bracket Assy (Stainless) 2 (Std)

2567199 Support Bracket Assy (Black) 2 (Opt)

* = Used up to September 18, 1996

124

1
1
1

Master Series

Gas Infra -Red Salamander Broiler

Model: MSR16-280

126

Master Series

4 2572100

Infra Red Burner

2

13 2580200

Front Brace

1

19 G01474

-

2 Elbow

-

1/2

NPT 1

34 2554600

Cover Plate

2

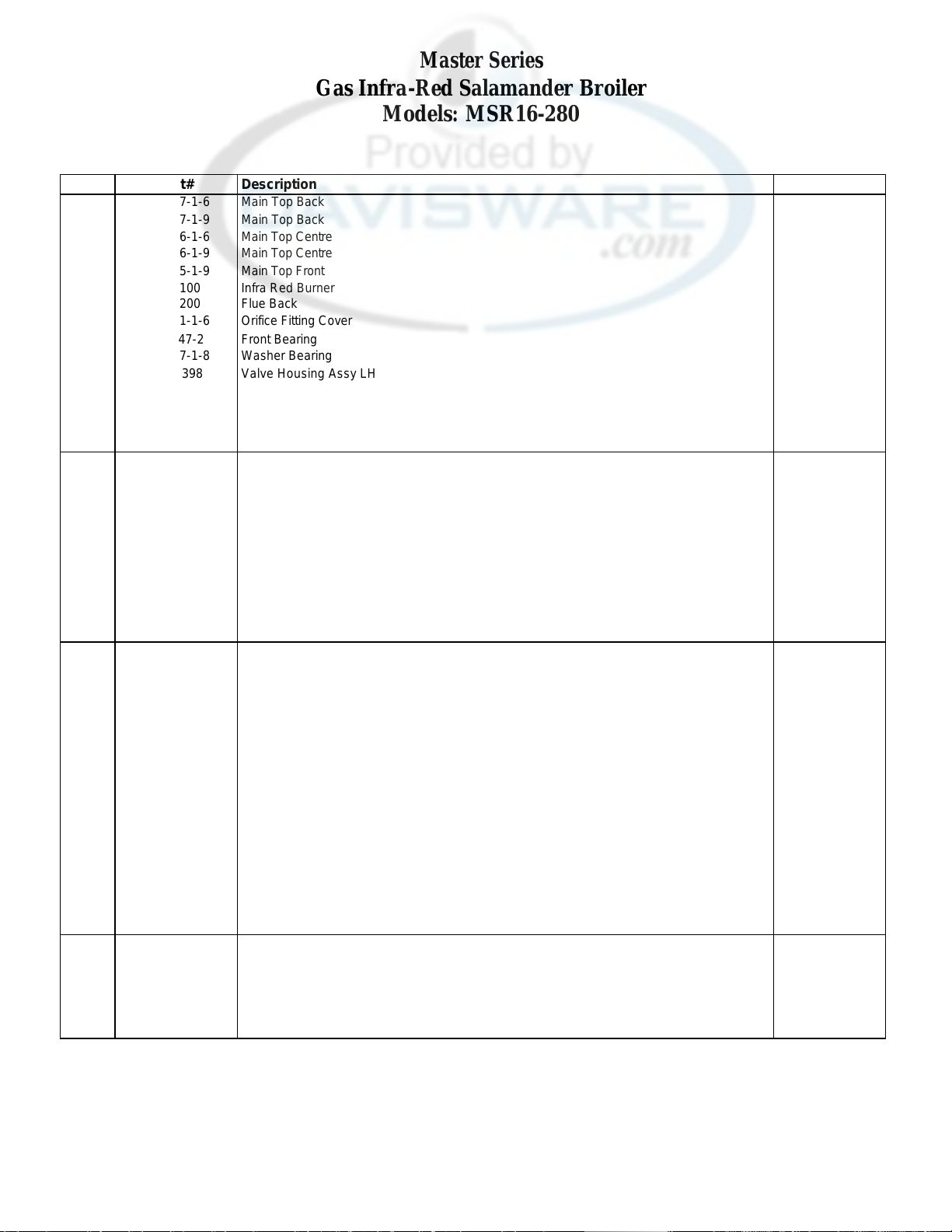

Gas Infra -Red Salamander Broiler

Models: MSR16-280

Item Part# Description Qty.

1 G01377-1-6 Main Top Back 1 (Std)

G01377-1-9 Main Top Back 1 (Opt)

2 G01376-1-6 Main Top Centre 1 (Std)

G01376-1-9 Main Top Centre 1 (Opt)

3 G01375-1-9 Main Top Front 1
5 2564200 Flue Back 1

6 G01371-1-6 Orifice Fitting Cover 2
7 G01247-2 Front Bearing 2

8 G01247-1-8 Washer Bearing 2
9 *2540398 Valve Housing Assy LH 1

*2540399 Valve Housing Assy RH 1

2592798 Valve Housing Assy LH 1

2592799 Valve Housing Assy RH 1
10 2576200 Valve Housing Retainer 2
11 2541998 Manifold Housing Bottom LH 1

2541999 Manifold Housing Bottom RH 1
12 2540800 Bottom Cover 1 (Opt)

14 2203400 Cnt. Sunk 1/8" NPT Hex Plug 2
15 G02251-1 Pressure Test Spigot 1
16 2541799 Manifold Assembly 1

17 G01477-9 Nipple 1/2" NPT x 18" Long 1
18 2567999 Sub-Manifold Assembly 1

20 G01477-10 Nipple 1/2" NPT x 1-1/2" Long 1
21 *2564400 Front Frame 1

2593100 Front Frame 1
22 2522116 Knob 2
23 *2193100 Door Handle 1

2193101 Door Handle 1
24 2559101 Door Handle End LT 1

2559100 Door Handle End RT 1
25 2580600 Door Handle End Insert 2
26 *2547600 Rack Veneer 1

2592600 Rack Veneer 1
27 *2540600 Grease Tray 1

2601300 Grease Tray 1
28 2540700 Greast Tray Front 1
29 G01244-1 Bearing 4
30 *2540199 Rack Frame & Grease Chute Assy 1

2593099 Rack Frame & Grease Chute Assy 1

30A G02468-01-5 Half Round Rack 2

31 G01247-3 Rear Bushing 2
32 G02469-01-81 Roller Guide Assembly RH 1

G01469-01-82 Roller Guide Assembly LH 1

33 G01477-2 Nipple 1/2" NPT x 4-1/8" Long
35 2554800 Orifice Fitting Shim 2

* = Used up to September 18, 1996

127

Master Series

39 G01411

-

XX Side Liner RH

1

41 2567303

Tee

1/2"

NPT 1

49 G01410

-

1 Valve Hi

-

Lo 2

53 G6809

Valve

- Pilot 2

Gas Infra-Red Salamander Broiler - Page 2

Models: MSR16-280

Item Part# Description Qty.

36 G01267-5 Pilot Burner 2

36A G01267-2 Pilot Orifice(Natural) 2

G01267-3 Pilot Orifice(Propane) 2

37 G02649-1-6 Pilot Bracket 2
38 G01411-55 Orifice Fitting- Natural(N. America) 2

G01411- Orifice Fitting-Propane(N.America) 2

1.2mm Orifice Fitting- Natural(Export) 2
G01411-XX Orifice Fitting-Propane(Export) 2
G01411-XX Orifice Fitting-Special(Gas/Destination) 2

2542100 Side Liner LH 1

40 2542101 Main Side RH (Black) 1 (Std)

2567300 Main Side RH (Stainless) 1 (Opt)
2567302 Main Side LH (Black) 1 (Std)
2567301 Main Side LH (Stainless 1 (Opt)

42 G01476-1 Post Bearing 1/2" Dia. x 1/2" Long 4
43 G01989-1-9 Handle Overlay 1

* 1592007 Handle Overlay 1

44 1799401 Bracket - SR Salamander (Black) 2 (Std)

2567400 Bracket - SR Salamander (Stainless) 2 (Opt)

45 2567401 Front Panel (Black) 1 (Std)

2571800 Front Panel (Stainless) 1 (Opt)
2571801

46 2571900 Main Back 1 (Std)

2571901 Main Back (Stainless) 1 (Opt)
47 2586200 7/16 Dia. Tubing Valve - Orifice LT 1
48 2558500 1/4x1/8 NPT Adapter 2

50 2586100 7/16 Dia. Tubing Valve - Orifice RT 1
51 2586500 1/4 Dia. Tubing Pilot - G. Valve LT 1
52 2586600 1/4 Dia. Tubing Pilot - G. Valve RT 2

54 2527600 Spring - Knob 2

* = Used up to September 18, 1996

128

Master Series

Gas Infra -Red Salamander Broiler

Model: MSR16-288

130

Master Series

4 2572100

Infra Red Burner

2

13 2580200

Front Brace

1

19 G01474

-

2 Elbow

-

1/2"

NPT 1

34 2554600

Cover Plate

2

Gas Infra-Red Salamander Broiler

Models: MSR16-288

Item Part # Description Qty.

1 G01377-1-6 Main Top Back 1 (Std)

G01377-1-9 Main Top Back 1 (Opt)

2 G01376-1-6 Main Top Centre 1 (Std)

G01376-1-9 Main Top Centre 1 (Opt)

3 G01375-1-9 Main Top Front 1
5 2564200 Flue Back 1

6 G01371-1-6 Orifice Fitting Cover 2
7 G01247-2 Front Bearing 2
8 G01247-1-8 Washer Bearing 2
9 *2540398 Valve Housing Assy LH 1

*2540399 Valve Housing Assy RH 1

2592798 Valve Housing Assy LH 1

2592799 Valve Housing Assy RH 1
10 2576200 Valve Housing Retainer 2
11 2541998 Manifold Housing Bottom LH 1

2541999 Manifold Housing Bottom RH 1
12 2540800 Bottom Cover 1 (Opt)

14 2203400 Cnt. Sunk 1/8" NPT Hex. Plug 2
15 G02251-1 Pressure Test Spigot 1
16 2541799 Manifold Assembly 1
17 G01477-9 Nipple 1/2" NPT x 18" Long 1
18 2567999 Sub-Manifold Assembly 1

20 G01477-10 Nipple 1/2" NPT x 1-1/2" Long 1
21 *2564400 Front Frame 1

2593100 Front Frame 1
22 2522116 Knob 2
23 *2193100 Door Handle 1

2193101 Door Handle 1
24 2559101 Door Handle End LT 1

2559100 Door Handle End RT 1
25 2580600 Door Handle End Insert 2
26 *2547600 Rack Veneer 1

2592600 Rack Veneer 1
27 *2540600 Grease Tray 1

2601300 Grease Tray 1
28 2540700 Grease Tray Front 1
29 G01244-1 Bearing 4
30 *2540199 Rack Frame & Grease Chute Assy 1

2593099 Rack Frame & Grease Chute Assy 1

30A G02468-01-5 Half Round Rack 2

31 G01247-3 Rear Bushing 2
32 G02469-01-81 Roller Guide Assembly RH 1

G02469-01-82 Roller Guide Assembly LH 1

33 G01477-2 Nipple 1/2" NPT x 4-1/8" Long

* = Used up to September 18, 1996

35 2554800 Orifice Fitting Shim 2

131

Master Series

Gas Infra -Red Salamander Broiler - Page 2

37 G02649

-1-

6 Pilot Bracket

2

Tee

1/2" NPT

49 G01410

-

1 Valve Hi

-

Lo 2

1/4" Dia. Tubing Pilot

- G. Valve RT

53 G6

809 Valve

- Pilot 2

Models: MSR16-288

Item Part# Description Qty.

36 G01267-5 Pilot Burner 2

36A G01267-2 Pilot Orifice(Natural) 2

G01267-3 Pilot Orifice(Propane) 2

38 G01411-55 Orifice Fitting-Natural (N. America) 2

G01411- Orifice Fitting-Propane (N.America) 2

1.2mm Orifice Fitting-Natural (Export) 2
G01411-XX Orifice Fitting-Propane (Export) 2
G01411-XX Orifice Fitting-Special(Gas/Destination) 2

39 G01411-XX Side Liner RH 1

2542100 Side Liner LH 1

40 2542101 Main Side RH (Black) 1 (Std)

2567300 Main Side LH (Stainless) 1 (Opt)
2567302 Main Side RH (Black) 1 (Std)
2567301 Main Side LH (Stainless) 1 (Opt)

41 2567303
42 G01476-1

43 G01989-1-8 Handle Overlay 1

* 1592007 Handle Overlay 1

44 1799401 Left Bracket - Painted 1 (Std)

2571503 Lett Bracket - Stainless 1 (Opt)
2571502 Right Bracket - Stainless 1 (Std)
2571500 Right Bracket - Painted 1 (Opt)

45 2751501 Front Panel - Painted 1 (Std)

2571600 Front Panel - Stainless 1 (Opt)
2571601

46 2571700 Main Back 1 (Std)

2571701 Main Back - Stainless 1 (Opt)
47 2586200 7/16" Dia. Tubing Valve - Orifice LT 1
48 2558500 1/4 x 1/8 NPT Adapter 2

Post Bearing 1/2" Dia x 1/2" Long

1
4

50 2586100 7/16" Dia. Tubing Valve - Orifice RT 1
51 2586500

52 2586600
54 2527600 Spring - Knob 2

1/4" Dia. Tubing Pilot - G. Valve LT

* = Used up to September 18, 1996

132

1
1
