H/P-280 SERIES RANGES

Contents:

SECTION ONE (Covers units with the serial numbers that have four digits on the end of the serial number i.e. 9904GR5432)

Standard Oven ....................................................................................Page 4

RC Oven Section ..................................................................................Page 8

Open Top Section ................................................................................Page 12

Hot Top Section ..................................................................................Page 14

Raised Griddle/Broiler Section ....................................................................Page 16

Valve Control Griddle Section .....................................................................Page 20

Thermostatically Controlled Griddle Section ......................................................Page 22

Exterior Finish ....................................................................................Page 24

Backguard & Hi Shelf Section .....................................................................Page 26

Appendix ........................................................................................Page 28

SECTION TWO (Covers units with the serial numbers ending with three digits and a “R” on the end of the serial number i.e. 9904GR543R)

H280 Series Oven Section.........................................................................Page 30

H280 Series Surface Plate Section .................................................................Page 34

Raised Griddle/Broiler Section ....................................................................Page 38

Drip Pan and Drip Pan Handles....................................................................Page 41

H280 Motor, RC Oven Parts Up to Serial Number 0204RG121R .....................................Page 42

H280 Motor, RC Oven Parts From Serial Number 0204RG121R .....................................Page 43

Baso Oven Safety Valve Components..............................................................Page 44

Photos ...........................................................................................Page 45

Revision History ..................................................................................Page 50

HP280 (USA & Canadian) REV 24 Page 3

HP280 STANDARD OVEN

HP280 Standard Oven.dwg

HP280 (USA & Canadian) REV 24Page 4

GARLAND PARTS IDENTIFICATION

Standard Oven

HP-280 Series Parts

QUANTITY

ITEM PART # DESCRIPTION

1028197

2298300

1028299

1415300

4 GM293

9 1082198 L/H Bell Crank Assembly 1

11 1005800 Door Spring 1 2 C

13A 1082802 Oven Door Hinge Link RT 1 2 C 13B 1082803 Oven Door Hinge Link LT C

14 GF299 1/4-20 x 1/2 Shoulder Bolt 1 2 C

* NOT ILLUSTRATED ^ PHOTO AT END

RECOMMENDED STOCK PARTS

1028298

1415301

1028206 Pilot Orice Natural (.021) 1 1 C 1028207 Pilot Orice Propane (.011) 1 1 C

1019418

4518817 Thermocouple 18” (Slip In Type) 1 1 C

1415703 Hi-Temp Valve Baso 1 1 C 1027000 Auto Safety Valve 1 1 C 1088286 Orice Fitting Natural 1 C

M9-35 Large Orice 35 Size 1 C

1088298 Orice Propane 1 C

M9-52 Large Orice 52 Size 1 C

1028983 Orice Fitting Assembly Natural 1 C

M9-42 Large Orice 42 Size 1 C

14155XX Oven Orice Fitting W/O Hood 1 C

M9-55 Large Orice 55 Size 1 C

1361000 Orice Bracket 1 1374200 Orice Bracket 24” Oven 1

1391600

2298500

1082199 R/H Bell Crank Assembly 1 1082196 Oven Door Bell Crank 24” 1

9004700 J Bolt 2 C 9004701 Oven Door Spring Hook 1 2 C

Steel Burner Assembly Tubular burner Shape Up to Nov./97 Steel U Burner H280 March 94/Canada Only (U Burner Shape) Pilot Burner Assembly Natural Used Up To Nov. 1/97 2C-2 Pilot Natural Used From Nov. 1/97 Pilot Burner Assembly LP Used Up To Nov. 1/97 2C-2 Pilot Propane Used From Nov. 1/97

Thermocouple 18” Long (Screw In Type) Used Until Nov. 1/97

3/16” Aluminum Tubing Sold By The Foot

Oven Burner Rest Support Used Up To Nov. 1/97 (Tubular Burner Shape) Oven Burner Rest Support H280 Used From Nov. 1/97 (U Burner Shape)

SPACE SAVER

20” 26”

1 1 C

1 1

STD

CRITICAL

HP280 (USA & Canadian) REV 24 Page 5

GARLAND PARTS IDENTIFICATION

Standard Oven

HP-280 Series Parts

QUANTITY

ITEM PART # DESCRIPTION

9002200 Oven Rack Chrome 1

17 1392500 7/17 Tube Safety To Orice 1 1 18 1082001 Lower Front Plate 1 19 2297700 Oven Rack Slide Assembly RH - NLA 1 1 20 2297701 Oven Rack Slide Assembly LH - NLA 1 1

Order Part # 4519545 Oven Rack Guide Kit which includes both racks (Rt & Lt). Mounting method is the same.

20A 451945

20B 4518127

21 1005399 Flue Body Assembly 1 1

31 1594300 1/4-20X1 1/4 HEX WSH RLL SCRW 2 2 32 1082700 Trunion Support 2 2 33 1082700 Harness Ring 7 GA 34 1082500 Oven Door Trunion 2 2 35 1027600 Leg Retainer 6” (Std.) 4 4 36 1150502 Bullet Legs 4 4

* NOT ILLUSTRATED ^ PHOTO AT END

RECOMMENDED STOCK PARTS

2117000 Oven Rack Chrome Before 3/7/94 1 2301200 Oven Rack Assembly After 3/7/94 1 1438496 Oven Bottom Assembly - H280/Sentry 1 1369398 Oven Bottom Liner GCE 1

IMPORTANT NOTES FOR THE OVEN RACK GUIDE

Both 3 position rack guides will have to be replaced, when changing to the new 4 position rack guide.

Oven Rack Slide Assy LT/RT Kit (2 Racks Included) From Serial # 0410100109744, Implementation Date Nov. 05/04 Ove Rack Slide Assy LT/RT, From Serial # 0410100109744, Implementation Date Nov. 05/04

1019010 Pressure Regulator Natural 1 1 C 2127500 Gas Regulator Propane 10” 1 1 C

CK137A Oven Door Assembly Kit H286 1

CK137C Oven Door Assembly Kit H28 1

1439796 Oven Door Lining Enamelled 1 1439795 Oven Door Lining Enamelled 1

G03984-03-8

G03984-04-8

1080714 Oven Door Panel - SS 1

1439902 Oven Door Panel 1

9003701 Handle L/H 1 1 C

G3814-60L Oven Door Handle End 1 1 C

9003700 Handle R/H 1 1 C

G3814-60R Oven Door Handle End 1 1

1589100 Extruded Handle Bar 24-3/8” 1

1589101 Extruded Handle Bar 18.375 1 1016700 Oven Door Handle Chrome 1 1592000 Handle Overlay 24-3/8” x 1/21/64 1 1592001 Handle Overlay 18-3/8 x 1-21/64 1

Oven Door Insert Assembly Until Feb 27/01 Oven Door Insert Assembly From Feb 27/01

SPACE SAVER

20” 26”

1 1

1 Each

Side

STD

1 Each

Side

CRITICAL

HP280 (USA & Canadian) REV 24Page 6

GARLAND PARTS IDENTIFICATION

Standard Oven

HP-280 Series Parts

QUANTITY

ITEM PART # DESCRIPTION

38 1439300 Oven Tubing Left 1 1 39 1439500 Oven Tubing Right 1 1 40 F22 Screw – 10-24 x 9/16 41 F84 Nut – 10-24 x 9/16 42 F158 Washer – 11/16 OD x 13/16 ID x 1/16 FLA 43 1095499 Straight Connector 68-7C 44 F521 Screw - 1/4-20 x 1” FLT HD

54*

* NOT ILLUSTRATED ^ PHOTO AT END

RECOMMENDED STOCK PARTS

1027800 Swivel Caster Less Brake 2 2 1027801 Swivel Caster C/W Brake 2 2

1005598

1438494

Oven Bottom USE 1438494 Used Up to Nov./97 Oven Bottom Assembly - GCE Used From Nov./97

SPACE SAVER

20” 26”

STD

CRITICAL

HP280 (USA & Canadian) REV 24 Page 7

RC OVEN SECTION

HP 280 SERIES

HP280-Oven Section.dwg

HP280 (USA & Canadian) REV 24Page 8

GARLAND PARTS IDENTIFICATION

RC Oven Section

HP-280 Series Parts

ITEM PART # DESCRIPTION QUANTITY CRITICAL

1028197

2298300

2A^

2B^

3^ 4518817 Thermocouple 18”(Slip-In type) 1 C

5a 1095499 Straight Connector 68-7C 2 5b 1392500 7/16 Tube Safety To Orice 1

10 1082199 R/H Bell Crank Assembly 1 11 1005800 Door Spring 2 C 12 9004701 Oven Door Spring Hook 2 C 13 1082802 Oven Door Hinge Link RT 2 C 14 GF299 1/4-20 x 1/2 Shoulder Bolt 2 15 2301200 Oven Rack Assembly 3 17 1357700 Fire Plate 1 18 1311100 Rack Guide Assembly LT RC 1 19 1311101 Rack Guide Assembly RT RC 1

19A 1356600 Rack Guide Clip 4

20 1270301 Inner Blower Wheel (Steel) 1

20A 1313098 Air Bae C/C 1

21 1025360 Motor Blower Wheel 1 C

23 1361299 Air Bae Support Assembly 2 24 1311398 Motor Mount Assembly - CC 1 25 1321000 Motor Mount Bracket 1

28 1413899 Flue Rise Assembly 1 29 1413900 Flue Box 1 30 1027600 Leg Retainer 6” (Std.) 4 31 1150502 Bullet Legs 4

33 CK137 G280/10/40 Ser Oven Door Assy Kit 1

* NOT ILLUSTRATED ^ PHOTO AT END

RECOMMENDED STOCK PARTS

078239-10 Oven Pilot Burner Assembly (Natural) 1 C 078239-11 Oven Pilot Burner Assembly (Propane) 1 C

1028206 Pilot Orice Natural (.021) 1 C 1028207 Pilot Orice Propane (.011) 1 C

4 GM293 3/16” Aluminum Tubing 1

7 1361000 Orice Bracket 1 8 1391600 Oven Burner Rest Support 1 9 1082198 L/H Bell Crank Assembly 1

1415703 Hi-Temp Baso Valve 1 C 1027000 Auto Safety Valve 1 C

1415536F Orice Fitting Assembly #36 1

M9-36 Large Orice 36 Size 1 C

1515550F Orice Fitting Propane 1

M9-50 Large Orice 50 Size 1 C

1003031 Motor 115V 60 HZ 1 C 1003021 Motor 115V 71637996 JB2R061N 1 C

1019010 Pressure Regulator Natural 1 2127500 Gas Regulator Propane 10” 1 1729100 3 Position Switch MCGILL. (W/Light) 1 1358900 Power Switch /ON/OFF/ON (Wo.Light) 1

1027800 Swivel Caster Less Brake 2 1027800 Swivel Caster C/W Brake 2

Steel Burner Assembly Tubular burner Shape Up to Nov./97

Steel U Burner H280 March 94/Canada Only (U Burner Shape)

1 C

HP280 (USA & Canadian) REV 24 Page 9

GARLAND PARTS IDENTIFICATION

RC Oven Section

HP-280 Series Parts

ITEM PART # DESCRIPTION QUANTITY CRITICAL

34 1439796 Oven Door Lining Enamelled 1 35 G03984-03-8 Oven Door Insert Assembly 1 36 1080714 Oven Door Panel - SS 1

40 1592000 Handle Overlay 24-3/8” x 1-21/64” 1 41 1594300 1/4-21X1 1/4 HEX WSH RLL SCRW 2 42 1083001 Trunion Support 2

42a F22 Screw 10-24 x 9/16 42b F158 Washer - 11/16 OD x 13/64 ID x 1/16 FLA 42c F84 Nut - 10-24 Hex Two Way Lock

43 1082700 Harness Ring 7 2 44 1802500 Oven Door Trunion 2

44a F521 Screw 1/4 - 30 x 1” Flat Head

46 2396600 Motor Mount Pocket 1 47 1309072 Cera Insul. USE 1669100 1 48 1669100 Motor Pocket Insulation Board 1 49 2396700 Motor Mount Plate GCE 1 50 G02952-01P Blower Wheel Assembly Plated 1 51 2395999 Air Bae Assembly GCE 1 52 1361299 Air Bae Support Assembly 2 53 1031901 Thumb Screw 2 54 1014500 Blower Inlet Cover 1 55 G03151-1 Piezo Electrode 16” 1 C 56 1309201 Piezo Igniter #1244-41 1 C 57 1413200 Support Bracket 1 58 1391100 Roll Out Shield Support 1 59 1390701 Right Roll Out Shield 1 60 1391000 Left Roll Out Shield 1 61 1386100 Bell Crank Support 2 62 1019603 Micro Switch 1 C 63 1019604 Actuator 1 C 64 1386001 Bracket (CK1386001 1 65 4523398 Power Cord 6Ft 3/14Ga - 15Amp SJ00W 1

* NOT ILLUSTRATED ^ PHOTO AT END

RECOMMENDED STOCK PARTS

9003701 Handle L.H 1 C

G3814060L Oven Door Handle End 1 C

9003700 Handle R/H 1 C

G3814-6R Oven Door Handle End 1 C

1589100 Extruded Handle Bar 24 3/8” 1 C

G3837-1-8p Handle Bar (Plated) 1 C

2485801 Motor PSC 1/3 HP 115V 60 HZ 1 C

CK2485801

Fan Motor 115V (RC H/P280 Series) (Includes items 45, 46, 47, 48, 49, 50)

HP280 (USA & Canadian) REV 24Page 10

NOTES

HP280 (USA & Canadian) REV 24 Page 11

OPEN TOP SECTION

HP-280 STARFIRE

HP280-Oven Top.dwg

HP280 (USA & Canadian) REV 24Page 12

GARLAND PARTS IDENTIFICATION

Open Top Section

HP-280 Series Parts

ITEM PART # DESCRIPTION

3 2217301 Rear Burner 20K 1 C 4 2217300 Front Burner 20K 1 C 5 1028002 Air Shutter 2 C 6 G7804-280 Lighter Assembly 1 C 7 1731501 Top Lighter Support 1 8 1032617 Top Lighter Tube 1/8 OD x 17 1 C 9 1086199 Gum Valve 1/8 1 C

10 1510403 Gum Valve (Double) 1/8 x 3/16 As Required C

13 1085999 Valve - Oven Burner 1 Per Oven C 14 1089101 Knob (Oven) 1 Per Oven C

17 1090311 Tubing For Thermostat Manifold 1 Per Oven

19 1731601 Burner Rest Support

22* 1089775 Steel Tubing 7/16 x 75-1/4 1

23 GF138 Capillary Bulb Clamp 1

* NOT ILLUSTRATED

RECOMMENDED STOCK PARTS

1726301 Cast Iron Top Grate 1 2298999 Top Grate Assembly Enamelled 1

G6214 Top Ring Grate (No Pins) Cast Iron 2 C

1361606 Ring Grate 20K – Porcelain 2 C

26878XX Valve Assembly Less Hood LML-15 1

M8-42 Small Orice 42 Size 1 M8-55 Small Orice 55 Size 1

G02716-2 Dial - (Universal) Medium Shaft 2 C

G02725-21 Dial Insert (Blank) 2 C

G03145-048 FD Control Assembly 1 Per Oven C

1017504 Tube Nuts 2

G02716-3 Dial - (Universal) Large Shaft 1 C

G02725-16 Dial Insert (150°F/500°F) 1 C

1664401 Burner Rest 24” 1664402 Burner Rest 36” 1664403 Burner Rest 60”

1396500 Burner Box Back 24” 1396501 Burner Box Back 36” 1396502 Burner Box Back 60” 1734512 Drip Angle 12” 1734524 Drip Angle 24” 1734536 Drip Angle 36” 1734548 Drip Angle 48” 1734560 Drip Angle 60” 1734572 Drip Angle 72”

QUANTITY

Per 12” Section

CRITICAL

HP280 (USA & Canadian) REV 24 Page 13

F158

F43

HOT TOP SECTION

HP-280 STARFIRE

HP280-Hot Top.dwg

Rev. 0

FASTENERS

HP280 (USA & Canadian) REV 24Page 14

GARLAND PARTS IDENTIFICATION

Hot Top Section

HP-280 Series Parts

ITEM PART # DESCRIPTION

1 1728299 Hot Top Assembly 12” 1 2 1014900 Griddle H Burner 1 C 3 1028002 Air Shutter 1 C

5 2203400 Counter Sunk Hex Pipe Plug 1/8” NPT 1 6 1028308 3/16 Aluminum Tubing 1 7 1086597 3/16 Pilot Adjusting Valve 1

* NOT ILLUSTRATED

RECOMMENDED STOCK PARTS

1092098 Inset Burner Box Assembly 1 1728398 12” Insert Burner Box Assembly 1

26878XX Valve Assembly Less Hood LML-15 1 C

M8-46 Orice 46 Size 1 C

26878XX Valve Assembly Less Hood LML-15 1 C

M8-55 Small Orice 55 Size 1 C

G02716-2 Dial - (Universal) Medium Shaft 1 C

G02725-21 Dial Insert Blank C

1415300 2C-2 Pilot Natural 1 C 1028206 Pilot Orice Natural (.021) 1 C 1415301 2C-2 Pilot Propane 1 C 1028207 Pilot Orice (0.11) 1 C

QUANTITY

Per 12” Oven

CRITICAL

HP280 (USA & Canadian) REV 24 Page 15

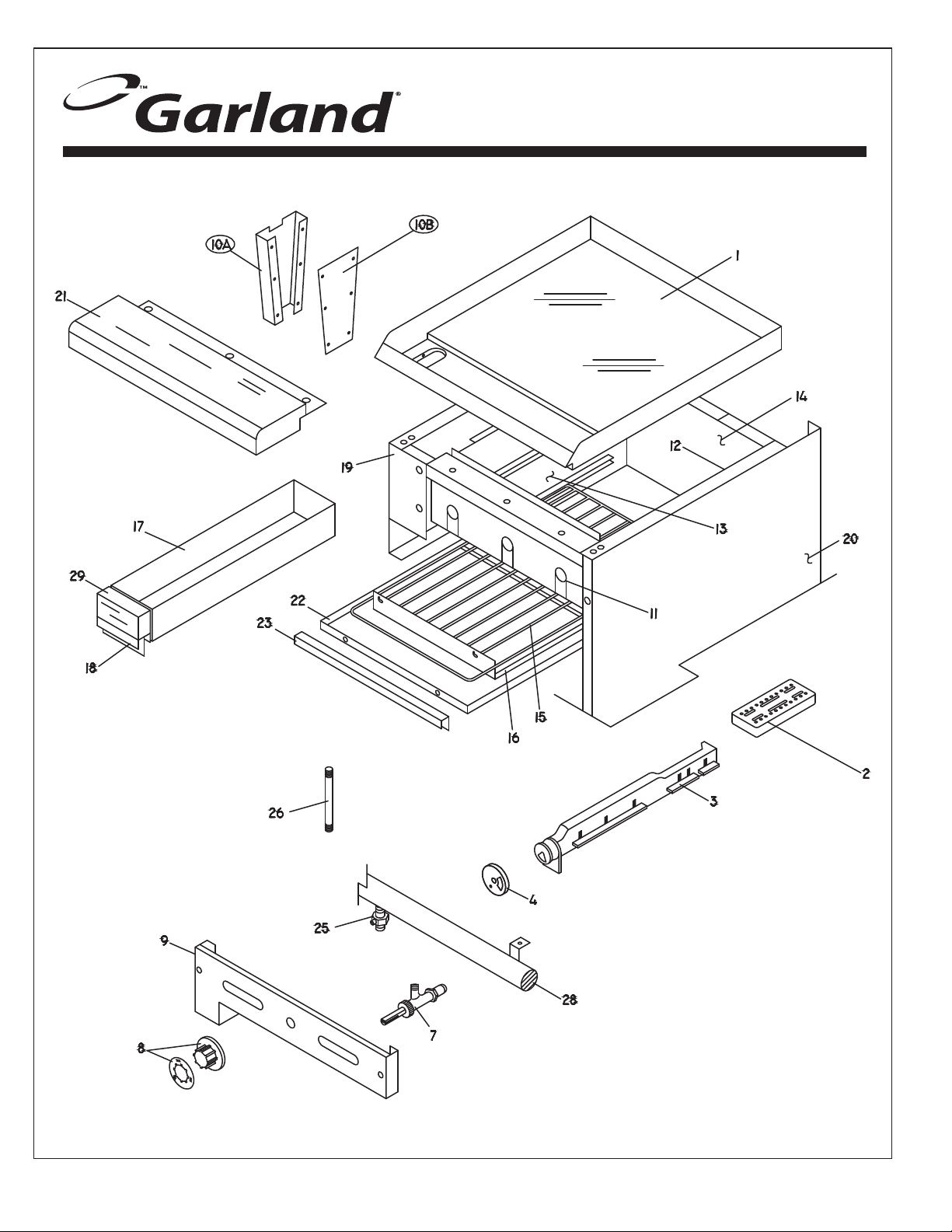

RAISED GRIDDLE/BROILER SECTION

HP-280 SERIES

HP280-Raised Griddle.dwg

REV. 0

HP280 (USA & Canadian) REV 24Page 16

GARLAND PARTS IDENTIFICATION

Raised Griddle/Broiler Section

HP-280 Series Parts

ITEM PART # DESCRIPTION

2 1091000 Ceramic Radiant 8 8 C

4 1028002 Air Shutter 3 4

12 1081999 Griddle Right Side Liner Assembly 1 1 13 1081998 Griddle Left Side Liner Assembly 1 1 14 1511200 Griddle Back Lining 1 1

22 1050507 (283) Lighter Tube 17-5/8 1 1 C 23 1050271 Pilot Tube Orice Fitting Propane 1 1 24 1004801 Pipe Coupling 1 1

* NOT ILLUSTRATED

RECOMMENDED STOCK PARTS

1727596 Griddle Assembly 24” H283 SS 1

1727897 Griddle RT 36” 285 1

1090500 Griddle Burner 3 3 C 1014901 Griddle H Burner 1 C

1728397 Insert Burner Box Assembly 1

CK1144 Conversion Kit RGB-NAT 1 1 CK1145 Conversion Kit RGB LP 1 1

1415300 2C-2 Pilot Natural 1 C 1028206 Pilot Orice Natural (.021) 1 C 1415301 2C-2 Pilot Propane 1 C 1028207 Pilot Orice Propane (.011) 1 C 26878XX Valve Assembly Less Hood LML-15 3 3 C

M8-50 Small Hood Propane 3 3 C

1087696 Gas Valve 3 3 C

M8-57 Small Orice 57 Size Natural 3 3 C

1086580 Natural #48 W/EXT. 1 C

M8-48 Small Orice 48 Size Natural 1 C

1086579 LP #55F W/EXT 1 C

M8-55 Small Orice 55 Size 1

1028308 3/16 Aluminum Tubing 1

G02716-2 Dial - (Universal) Medium Shaft 3 4 C

G02725-21 Dial Insert (Blank) 3 4 C

1731803 Valve Panel Raised Grid H283 1 1730103 Valve Panel Raised Grid 1 2404300 Grease Chute Front H283 1 2404400 Grease Chute Back 1 2681600 Grease Chute Front 1 2681700 Grease Chute Back 1 1087000 Griddle Valve Shield 1 1 1085700 Griddle Burner Rest 1 1

1090798 Rack-1090797/1090600 1 1

1090600 Broiler Rack Chrome 1 1 1090797 Broil Rack Drip Shield 1 1 2354699 Grease Drawer Assembly 1 1728802 Grease Drawer Handle 1 1729501 Grease Drawer 283 1 2363300 Handle Griddle Drawer F/H283 1 2355801 Grease Drawer Handle 1 1726801 Grease Drawer H2850 4-3/8” 1084707 Broiler Box Left Side 1 1 1085401 Broiler Side Veneer 1 1 1605001 Broiler / Body Side RT CR 1 1 1605003 Broiler Body Right Side 1 1 1728602 Front Rail H283 1 1 1728603 Front Rail 285 RGB 1 1

QUANTITY 24” 36”

CRITICAL

HP280 (USA & Canadian) REV 24 Page 17

GARLAND PARTS IDENTIFICATION

Raised Griddle/Broiler Section

HP-280 Series Parts

ITEM PART # DESCRIPTION

25 1026730 Elbow Street 1/8” 90 Degree 1 1 26 1004604 Nipple 1 1 27 1781801 Pilot Bracket 1 1

29*

* NOT ILLUSTRATED

RECOMMENDED STOCK PARTS

2202999 Manifold Assembly 1

2202899 Manifold Assembly 1

1281998 Griddle Splash 24” 1281997 Griddle Splash 36”

QUANTITY 24” 36”

CRITICAL

HP280 (USA & Canadian) REV 24Page 18

NOTES

HP280 (USA & Canadian) REV 24 Page 19

VALVE CONTROL GRIDDLE SECTION

HP-280 STARFIRE SERIES

HP280 Valve Control.drw

HP280 (USA & Canadian) REV 24Page 20

GARLAND PARTS IDENTIFICATION

Valve Control Griddle Section

HP-280 Series Parts

QUANTITY

ITEM PART # DESCRIPTION

2 1102000 Drain Tube 5” 1 1 1 1 3 1014901 Griddle H Burner 1 2 3 4 C 4 1028002 Air Shutter 1 2 3 4 C 5 2203400 Counter Sunk Hex Pipe Plug 1/8” NPT 1 2 3 4 6 1086000 1/8 NPT Adapter 1 2 3 4

8 1086597 3/16 Pilot Adjusting Valve 1 2 3 4 C

13*

15 2430400 Valve Extension

* NOT ILLUSTRATED

RECOMMENDED STOCK PARTS

1728398 12” Insert Burner Box Assembly 1 1 1728399 24” Insert Burner Box Assembly W/A 1 1 2

1259514

1028312

1415301 2C-2 Pilot Propane 1 2 3 4 C 1028207 Pilot Orice Propane (.011) 1 2 3 4 C 1415300 2C-2 Pilot Natural 1 2 3 4 C 1028206 Pilot Orice Natural (.021) 1 2 3 4 C 1086579 LP #55F W/Ext. 1 2 3 4 C

M8-55 Small Orice 55 Size C

1086580 Natural #48 W/EXT 1 2 3 4 C

M8-48 Small Orice 48 Size Natural C G02716-2 Dial - (Universal) Medium Shaft 1 2 3 4 C G02725-2 Dial Insert (OFF/MAX/MIN) 1 2 3 4 C

2494899 Griddle Assembly 12” 1 2494898 Griddle Assembly 24” 1 2494897 Griddle Assembly 36” 1 2494896 Griddle Assembly 36” LT 1

2411395 48” Griddle Assembly REF:1728099 1 1281999 Griddle Front Splash Assembly 12” 1 1281998 Griddle Front Splash Assembly 24” 1 1281997 Griddle Front Splash Assembly 36” 1 1281996 Griddle Front Splash Assembly 48” 1 2354699 Grease Drawer Assembly 1 1 2 2355801 Grease Drawer Handle 1 1 2

3/16 Steel Tubing x 14” Used Up To Nov./97 3/16 Aluminum Tubing Used From Nov./97

MODEL

12” 24” 36” 48”

1 2 3 4

CRITICAL

HP280 (USA & Canadian) REV 24 Page 21

THERMOSTATICALLY CONTROLLED GRIDDLE SECTION

HP-280 STARFIRE SERIES

HP28-Thermostat Ctrld Top.dwg

HP280 (USA & Canadian) REV 24Page 22

GARLAND PARTS IDENTIFICATION

Thermostatically Controlled Griddle Section

HP-280 Series Parts

QUANTITY

ITEM PART # DESCRIPTION

2a 2398900 Grease Shoot Back H/S/ST280 1 1 1 1 2b 2399000 Grease Shoot Front H/S/ST280 1 1 1 1

3 1014901 Griddle H Burner 1 2 3 4 C 4 1028003 Top Air Shutter 1 2 3 4 C 5 2203400 Counter Sunk Hex Pipe Plug 1/8” NPT 1 2 3 4 6 1086000 1/8 NPT Adapter 1 2 3 4 7 1028312 3/16 Aluminum Tubing 1 2 3 4 8 1086597 3/16 Pilot Adjusting Valve 1 2 3 4 C

10 1360200 Thermostat 1 2 3 4 C 11 1224504 Dial 1 2 3 4 C

13*

15 G02352-1 Elbow 3/8 NPT to 7/16CC 69-7-C 1 2 3 4 16 1729302 Orice Tubing 1 2 3 4

18 1729301 Orice Fitting 1 2 3 4

* NOT ILLUSTRATED

RECOMMENDED STOCK PARTS

1728398 12” Insert Burner Box Assembly 1 1 1728399 24” Insert Burner Assembly W/A 1 1 2

1415301 2C-2 Pilot Propane 1 2 3 4 C 1028207 Pilot Orice LP (.011) C 1415300 2C-2 Pilot Natural 1 2 3 4 C 1028206 Pilot Orice Natural (.021) 1 2 3 4 C

2494899 Griddle Assembly 12” 1 2494898 Griddle Assembly 24” 1 2493897 Griddle Assembly 36” 1 2494896 Griddle Assembly 36” LT 1

1028988 Orice Fitting Assembly (Propane) 1 2 3 4 C

1028987 Orice Fitting Assembly (Natural) 1 2 3 4 C

M8-55 Small Orice 55 Size 1 2 3 4 C M8-48 Small Orice 48 Size Natural 1 2 3 4 C

MODEL

12” 24” 36” 48”

CRITICAL

HP280 (USA & Canadian) REV 24 Page 23

7 6 5

GARLAND

EXTERIOR FINISH HP-280 STARFIRE

HP280-Exterior Finish.dwg

HP280 (USA & Canadian) REV 24Page 24

GARLAND PARTS IDENTIFICATION

Exterior Finish

HP-280 Series Parts

Standard Finish

ITEM PART # DESCRIPTION

1731302 Body Side RT CR 1 1 1

ITEM PART# DESCRIPTION

9 See Page #28 11 1364200 Main Back Stiener 12 1759701 Body Side Gusset

* NOT ILLUSTRATED

RECOMMENDED STOCK PARTS

1731202 Body Side RT CR 1 1 1605001 Broiler/Body Sdie RT CR 1081106 Body Side L/H H284/7 1 1 1 1731201 Body Side LT CR 1 1 1374000 Kick Panel Upper 24” 1 1374003 Kick Panel Upper S/S 30” 1

1374004 Kick Panel Upper 48” 1

1374007 Kick Panel Upper 60” 1

1374008 Kick Panel Upper G289 72” 1

1374100 Kick Panel Lower 24” F/G28 1 1374102 Kick Panel 1 1374104 Kick Panel Lower 48” 1 1374106 Kick Panel Lower 60” 1 1374108 Kick Panel Lower G289 72” 1 1081505 Centre Column 1 1 1370103 Centre Column S/S 1

Stainless Steel

1731304 Body Side RT S/S 1 1 1

1731204 Body Side RT S/S 1 1 1605003 Broiler Body Right Side 1731303 Body Side LT S/S 1 1 1 1731203 Body Side LT S/S 1 1 1374001 Kick Panel Upper 24” S/S 1 1374003 Kick Panel Upper S/S 30” 1 1374005 Kick Panel Upper 48” 1 1374007 Kick Panel Upper 60” 1 1374009 Kick Panel Upper S/S G289 1 1374101 Kick Panel Lower 24” S/S 1 1374103 Kick Panel Lower S/S 30” 1 1374105 Kick Panel Lower 48” 1 1374107 Kick Panel Lower 60”Stainless 1 1374109 Kick Panel Lower S/S G289 1

1730801 Valve Panel H28 1

1729701 Valve Panel H286 (US Version) 1 1729707 Vlave Panel H288 1 1729759 Valve Panel 288 RT 1 1731101 Valve Panel H/P289 1

QUANTITY

MODEL

24” 36” 48” 60” 72”

QUANTITY

MODEL

24” 36” 48” 60” 72”

HP280 (USA & Canadian) REV 24 Page 25

1 5 1

HI-SHELF

BACKGUARD

BACKGUARD & HI SHELF SECTION

REV. 0

HP280-Hi Shelf.dwg

HP280 (USA & Canadian) REV 24Page 26

GARLAND PARTS IDENTIFICATION

Backguard & Section

HP-280 Series Parts

QUANTITY

ITEM PART # DESCRIPTION

24” 36” 48” 60” 72”

1 1390101 Upright R/H L/H SS 2 2 2 2 2

2 1364902 Shelf Support L/H 1 1 1 1 1

3 1364903 Shelf Support 1 1 1 1 1

1390200 SDHS Top 24” S/S 1 1390201 SDHS Top 36” S/S 1

* NOT ILLUSTRATED

RECOMMENDED STOCK PARTS

1390202 SDHS Top 48” S/S 1 1390203 SDHS Top 60” S/S 1 1390204 SDHS Top 72” S/S 1 1390301 SDHS Front Panel 24” S/S 1 1390303 SDHS Panel 36” S/S 1 1390305 SDHS Front Panel 48” S/S 1 1390309 SDHS Front Panel 60” S/S 1 1390307 SDHS Front Panel 72” S/S 1 1390311 SDHS Front Panel 60” S/S/G283

1390313 SDHS Front Panel 60” S/S/G285

1390500 SDHS Backguard Back 24” STD 1 1390502 High Shelf Back 36” 1 1390504 SDHS Backguard Back 48” Std 1

1390506 SDHS Backguard Back 48” AZ

1390508 SDHS Back 60” 1 1390510 SDHS Backguard Back 72” Std 1 1390401 Backguard Front Panel 24” S/S 1 1390403 Backguard Front Panel S/S 36” 1 1390405 Backguard Front Panel 48” S/S 1 1390409 Backguard Front Panel S/S 60” 1 1390407 Backguard Front Panel 72” S/S 1 1390411 Backguard Front Panel S/S 60” G283

1390413 Backguard Front Panel 60” S/S/G285

1390600 Backguard Back Standard 24” 1 1390602 Backguard Back Standard 36” 1 1390604 Backguard 48” Standard 1 1390608 Backguard Back Standard 60” 1 1390610 Backguard Back 72” Standard 1

MODEL

HP280 (USA & Canadian) REV 24 Page 27

GARLAND PARTS IDENTIFICATION

Appendix

HP-280 Series Parts

PART # DESCRIPTION WHERE USED

1728501 24” Front Rail H28, 281, 285 27-Apr-94 1728551 24” Front Rail H28, 281, 285 27-Apr-94 1728503 36” Front Rail H286,282, 283 27-Apr-94 1728553 36” Front Rail H286,282, 283 27-Apr-94 1728505 48” Front Rail H288 27-Apr-94 1728555 48” Front Rail H288 27-Apr-94 1728507 60” Front Rail H284, 287 27-Apr-94 1728557 60” Front Rail H284, 287 27-Apr-94

1728598 36” Front Rail RC H282RC, 283RC 1728597 36” Front Rail RC H286RC 1728593 48” Front Rail RC H288SRC 1728599 60” Front Rail RC H284RC (1 oven RC only)

1728591 24” Front Rail RC2 H281 / H285RC

1728594 36” Front Rail RC2 H283RC2

1728592 60” Front Rail RC2 H284RC2 - (2 ovens RC)

1728595 60” Front Rail RC2 H284RC2

UP TO

DATE

FROM

DATE

1728602 24” Front Rail (Special Notch) 282, 283 Griddle Rail & RC, RC2 1728603 36” Front Rail (Special Notch) 281, 285 Griddle Rail & RC, RC2

1728590 24” Front Rail H285RC2

1728512 72” Front Rail H289, H289S 2471699 72” Front Rail H289RC, H289SRC

2471698 72” Front Rail H289RC2

HP280 (USA & Canadian) REV 24Page 28

SECTION TWO

Covers units with the serial numbers ending with three digits and an “R” on the end of the

serial number i.e. 9905GR543R. This section also covers recent currant ranges manufactured.

HP280 (USA & Canadian) REV 24 Page 29

H280 OVEN SECTION

H280 SERIES

H280 Oven Section.dwg

HP280 (USA & Canadian) REV 24Page 30

GARLAND PARTS IDENTIFICATION

H280 Series Oven Section

QUANTITY

ITEM PART # DESCRIPTION

H280 H288 H286 H289

2157098 Oven Bottom 1 2

5 1364200 Main Back Stiener 2 2 2 2 2 2

8A 4519545

8B 4518127

9 1081300 Side Rear Brace 2 2 2 2 2 2

10 2298500 Oven Burner Rest Support 1 2 1 2 2 2

11* 1391300 Tubing Shield 1 2 1 2 2 2

13A

13B^ 4519723 6” S/S Adjustable Leg (Optional) 4 4 4 4 4 4

14 2298300 Steel U Burner H280 1 2 1 2 2 2 15 2354900 Pilot Bracket 1 2 1 2 2 2

16A^

16B 1415302 2C-2 Pilot Manufactured Used in Std Oven 1 2 1 2 2 2

* NOT ILLUSTRATED ^ PHOTO AT THE END

RECOMMENDED STOCK PARTS

1438494 Oven Bottom Assembly Up to Oct 31/02 1 2 2 2 1438496 Oven Bottom Assembly From Oct 31/02 1 2 2 2 2301200 Oven Rack Assembly 2 4 4 4 2301201 Oven Rack 2 4 1005399 Flue Body Assembly 1 2 1 2 2 2 1080915 Burner Box Bottom 1 2 1368700 Burner Box Bottom 1 2 1392200 Burner Box Bottom 2 2

1731303 Body Side Left S/S (Up to May 2000) 1 1 1 1 1081108 Body Side Left S/S (From May 2000) 1 1 1 1 1731203 Body Side Left S/S (Up to May 2000) 1 1 1081109 Body Side Left S/S (From May 2000) 1 1

1731304 Body Side Right S/S (Up to May 2000) 1 1 1

1081113 Body Side Right S/S (From May 2000) 1 1 1 1731204 Body Side Right S/S (Up to May 2000) 1 1 1081104 Body Side Right S/S (From May 2000) 1 1 1605003 Broiler Body Right Side 2297700 Oven Rack Slide Assy RH - NLA 1 2 1 2 2 2 2297701 Oven Rack Slide Assy LH - NLA 1 2 1 2 2 2

IMPORTANT NOTES FOR THE OVEN RACK GUIDE

Both 3 position rack guides will have to be replaced, when changing to the new 4 position rack guide.

Order Part # 4519545. Oven Rack Guide Kit which includes both racks (Rt & Lt). Mounting method is the same.

Oven Rack Slide Assy LT/RT Kit (2 Racks Included) From Serial # 0410100109744, Implementation Date: Nov 05/04 Oven Rack Slide Assy LT/RT From Serial #0410100109744, Implementation Date: Nov 05/04

1081506 Centre Column 1 1 1 1370101 Center Column 1 1027600 Leg Retainer 6” (Std.) 4 4 4 4 4 4 2093800 Leg Retainer 4” (Opt.) 4 4 4 4 4 4 1150502 Bullet Legs 4 4 4 4 4 4 1027800 Swivel Caster Less Brake (Up T0 Dec. 10. 2004) 2 2 2 2 2 2 4519432 Swivel Caster (From Dec. 10, 2004) 2 2 2 2 2 2 1027801 Swivel Caster C/W Brake (Up T0 Dec. 10. 2004) 2 2 2 2 2 2 4519433 Swivel Caster With Brake (From Dec 10, 2004) 2 2 2 2 2 2

F445 Leg Screw #14 12 12 12 12 12 12

1415300 2C-2 Pilot Natural – Used in Std Oven 1 2 1 2 2 2 1415301 2C-2 Pilot Propane – Used in Std Oven 1 2 1 2 2 2

1082802 Oven Door Hinge Link RT 1 2 1 2 2 2 1082803 Oven Door Hinge Link LT 1 2 1 2 2 2

1 2 1 2 2 2

MODELS

1 Each Side

H283/ H285

H284

HP280 (USA & Canadian) REV 24 Page 31

GARLAND PARTS IDENTIFICATION

H280 Series Oven Section

QUANTITY

ITEM PART # DESCRIPTION

H280 H288 H286 H289

20 1083001 Trunion Support 2 4 2 4 4 4 21 1082700 Harness Ring 7 GA 2 4 2 4 4 4 22 1082500 Oven Door Trunion 2 4 2 4 4 4

24*

26 3010000 Handle Spacer (Insert) 2 4 2 4 4 4

32 G01246-1-8 Spring Hook 1 2 33 GF299 1/4-20 x 1/2 Shoulder Bolt 1 2 2 4 4 4

34* 1028382 3/16 Alum Tubing 82.00” 1 22 4 4 4 4

35 G02352-1 Elbow 3/8 NPT To 7/16CC 69-7C 1 2 1 2 2 2 36 G03699-1-6 Safety Valve Bracket H280 1 2 1 2 2 2

37A^ G01479-01 TS11J Safety Valve (Refer to Photo - Page 45) 1 2 1 2 2 2

37C^

37D*^ 4518817

38 1095499 Straight Connector 3/8 x 7/16CC 1 2 1 2 2 2

38A 141553F Oven Orice Fitting Nat. 1 2 2 2

39*

40*

* NOT ILLUSTRATED ^ PHOTO AT THE END

RECOMMENDED STOCK PARTS

1439796 Oven Door Lining Enamelled 1 2 2 2 1439795 Oven Door Lining Enamelled 1 2

G03984-03-8 Oven Door Insert Assembly 1 2 2 2

G03984-04-8 Oven Door Insert Assembly 1 2

1592000 Handle Overlay 24 3/8” x 1 21/64 1 2 2 2 1592001 Handle Overlay 18 3/8” x 1 21/64 1 2

1902918 Name Plate - GARLAND 7 3/4 1 1 1 1 1 1

1080714 Oven Door Panel-SS 1 1 1 1080723 Oven Door Panel 1 1 1 1 1439903 H288 LT Door Panel 1 1

1439901 Oven Door Panel 1 1

3007300 Handle End LH & RH From Jun 1/00 2 4 2 4 4 4 9003701 Handle L/H Up To Jun 1/00 1 2 1 2 2 2 9003700 Handle R/H Up To Jun 1/00 1 2 1 2 2 2

3017000 Door Handle 1 2 2 2

3017001 Door Handle 1 2

1589100 Extruded Handle Bar 24 3/8” 1 2 2 2

1589101 Extruded Handle Bar 18.375 1 2 1361000 Orice Bracket 1 2 2 2 2330800 Orice Bracket 1 2 1082196 Oven Door Bell Crank 24” 1 2 1082198 L/H Bell Crank Assembly 1 2 2 2 1082199 R/H Bell Crank Assembly 1 2 2 2

1005800 Door Spring 1 2 2 4 4 4 9004701 Oven Door Spring Hook 2 4 4 4

1415703 High Temp Baso Valve (Refer to Photo- Page 45) 1 2 1 2 2 2

See Page 44 For Complete List Of Fittings/Tubing Used With Baso Valve

Thermocouple 18” (Slip in Type) Used with T11 & Baso Valve

2298600 Front Air Shield 1 2 2 2 2331100 Left Air Shield 1 2 2331200 Right Air Shield 1 2 2376703 Kick Panel H288 1 2 2376702 Kick Panel From 9909RG329R 1 2 2 2 2376702 Lower Kick Panel H284 Eective 9909RG330R 2376703 Lower Kick Panel H288 Eective 9909RG330R

1 2 1 2 2 2

MODELS

H283/ H285

H284

HP280 (USA & Canadian) REV 24Page 32

GARLAND PARTS IDENTIFICATION

H280 Series Oven Section

QUANTITY

ITEM PART # DESCRIPTION

H280 H288 H286 H289

1374003 Kick Panel Upper S/S 30” 1 1374001 Kick Panel Upper 24” S/S 1

41*

44* 1067801 Body Side Support 45* 1090311 Tubing for Thermostat Manifold 1 2 1 2 1 2 46* 1392500 7/16 Tube Safety To Orice 1 2 1 2 2 2 47* G0742-1 1/4 Aluminum Tubing x 12.0” 1 2 1 2 2 2

48*

49 1085999 Oven Valve 2 2 1 2 2 2

54*

* NOT ILLUSTRATED ^ PHOTO AT THE END

RECOMMENDED STOCK PARTS

1374005 Kick Panel Upper 48” 1 1374007 Kick Panel Upper 60” 1 1 1374009 Kick Panel Upper S/S G289 1 1374111 Kick Panel Lower 30” 1 1374121 Kick Panel Lower 24” SS Blank 1 1374125 Kick Panel Lower 48” SS Blank 1 1374113 Kick Panel Lower 1 1

1374129 Kick Panel Lower 72” SS Blank 1

1082001 Lower Front Plate 1 2 2 2 1368500 Lower Front Plate 1 2

1369700 Oven Tubing 1 2 1439300 Oven Tubing Left 1 1 1 1 1439500 Oven Tubing Right 1 1 1

1005598 Oven Bottom USE 1438494 Used Up to Nov./97 1438494 Oven Bottom Assembly Used From Nov./97

Kits Available

CK137A Complete Door Assembly (Round) CAN/US

4512222A H280 Door C/W SS Liner GCR

MODELS

H283/ H285

H284

GARLAND PARTS IDENTIFICATION

H280 Series RC Oven Section

QUANTITY

ITEM PART # DESCRIPTION

H280 H288 H286 H289

1* 2298300 Steel U Burner H280

3^ 4518817 Thermocouple 18” Long

4* 1019600 Door Micro Switch

5* CK2485801

6* 4515043

7* G2840-1 Cord & Plug-Set 3/14 Wire 15A 8* 1357702 Fire Plate

17 4523398 Power Cord 3/14Ga - 15 Amp SJ00W 1 1 1 1 1 1

* NOT ILLUSTRATED ^ PHOTO AT THE END

RECOMMENDED STOCK PARTS

078239-10 Oven Pilot Burner Assembly (Natural) 078239-11 Oven Pilot Burner Assembly (Propane)

Fan Motor 115V (RC H/P280 Series)

Motor From Serial # 9904GR543R Up To Serial # 0204RG121R More details on Page 42

New RC Motor Kit 115V

Used From April 1, 2002 or Serial # 0204RG121R More details on Page 43

MODELS

H283/ H285

H284

HP280 (USA & Canadian) REV 24 Page 33

TOP SECTION GRIDDLE HOT TOP & OPEN

BURNER MODEL H280

H280 Top Section.dwg

HP280 (USA & Canadian) REV 24Page 34

GARLAND PARTS IDENTIFICATION

H280 Series Surface Plate Section

HP-280 Series Parts

QUANTITY

ITEM PART # DESCRIPTION

12” 24” 36” 48” 60”

Hot Top Section

1 2395099 Hot Top Assembly 12” 1 2 3 4 5 2 1014901 Griddle H Burner 1 2 3 4 5

1028002 Air Shutter 1 2 3 4 5

5 2205399 Burner Box 12” S280 1 2 3 4 5 6 1028308 3/16 Aluminum Tubing 1 2 3 4 5 7 26878XX Valve Assembly Less Hood LML-15 1 2 3 4 5 8 1086597 3/16 Pilot Adjusting Valve 1 2 3 4 5 9 2397199 1-1/4” Valve Extension

10A G02716-2 Dial - (Universal) Medium Shaft 1 2 3 4 5

10B

13 G7804-280 Lighter Assembly 1 2 3 4 5 14 2271100 Top Lighter Bracket 20K 1 2 3 4 5 15 2217300 Front Burner 20K 1 2 3 4 5 16 2217301 Rear Burner 20K 1 2 3 4 5 17 1032617 Top Lighter Tube 1/8 OD X 17

18*

19 1086199 Gum Valve 1/8

22 2355900 Stabilizer Bracket 1 2 3 4 5

24 2354699 Grease Drawer Assembly 1 2 3 4 5 25 2355801 Grease Drawer Handle

* NOT ILLUSTRATED

RECOMMENDED STOCK PARTS

2519200 Air Shutter 1 2 3 4 5 1028003 Top Air Shutter 1 2 3 4 5 1415300 2C-2 Pilot Natural 1 2 3 4 5 1415301 2C-2 Pilot Propane 1 2 3 4 5

G02725-2 Dial Insert (OFF/MAX/MIN) 1 2 3 4 5

G02725-21 Dial Insert (Blank)

Open Burner Section

1726301 Cast Iron Top Grate 1 2 3 4 5 2298999 Top Grate Assembly Enamelled 1 2 3 4 5

G6214 Top Ring Grate (No Pins) Cast Iron 2 4 6 8 10

1361606 Ring Grate 20K - Porcelain 2 4 6 8 10

M8-42 Small Orice 42 Size 2 4 6 8 10 M8-47 Small Orice 47 Size 2 4 6 8 10 M8-55 Small Orice 55 Size 2 4 6 8 10

Griddle Section - Valve HI-Low

2411399 12” Griddle Assembly REF:1728199 1 2411398 24” Griddle Assembly REF:1727599 1

2411297 36” Griddle RH Assembly REF:1727899 1

2411396 36” Griddle LH Assembly REF:1727898 1 1 2411395 48” Griddle Assembly REF:1728099 1 1 2 1728398 12” Insert Burner Box Assembly 1 2 3 4 5 1728399 24” Insert Burner Box Assembly 1 2 3 4 5

1086579 LP # 55F W/Ext. 1 2 3 4 5

1086583 Hi-Low Valve Natural #47 W/Ext. 1 2 3 4 5

2631505 Grease Deector 12” 1

2631504 Grease Deector 72”

2631503 Grease Deector 60” 1 2631502 Grease Deector 48” 1 2631501 Grease Deector 24” 1 2631500 Grease Deector 36” 1

MODEL

HP280 (USA & Canadian) REV 24 Page 35

GARLAND PARTS IDENTIFICATION

H280 Series Surface Plate Section

HP-280 Series Parts

ITEM PART # DESCRIPTION

Griddle Section Thermostat

29 1729301 Orice Holder

31 1729302 Orice Tubing 32 1473499 Bulb Clamp & Shield 33 1510403 Gum Valve (Double) 1/8 x 3/16

36 1090003 Drip Pan Large 21x25 37 1090103 Drip Tray Small 10x25

45 1084200 Burner Rest Support

46* 1414600 Burner Box Back Support

48 G03145-048 F.D. Control Assembly 49 1439800 FD Control Bracket

* NOT ILLUSTRATED

RECOMMENDED STOCK PARTS

1360200 Thermostat 1224504 Dial

M9-47 Large Orice 47 Size M9-55 Large Orice 55 Size

1730851 Vale Panel - H28 STD 1729751 Valve Panel - H286 STD 1729753 Valve Panel - H286-24/36 RT 1730951 Valve Panel - H284 STD 1730953 Valve Panel - H284-24/36 RT 2471700 Valve Panel H289 STD 2471800 Valve Panel H289-24/36 RT 1730853 Valve Panel - H28-24

1728551 Front Rail 24” - H28 1728553 Front Rail 35” - H286 1728555 Front Rail 48” - H288 1728557 Front Rail 60” - H284 2471600 Front Rail 72” - H289

1728803 Pan Handle 23-9/16 H286/H284 1728806 Drip Pan Handle 24-13/16 -H284 1728807 Drip Pan Handle 23-13/16 - H28 2518600 Handle 12-13/16 H286 2518500 Handle 11-1/4 - H284 2354700 Drip Pan Guide (Sides) 1414700 Drip Pan Guide

2127500 Gas Regulator Propane 10” 2127502 Gas Regulator Natural 4.5”

1729601 Front Channel 24” - H28 1085000 Front Channel H286 - 36” 1085100 Front Channel H284 - 60” 2356800 Burner Rest 24” - H28 2354500 Burner Rest - H286 2354500 Burner Rest - H284

1396500 Burner Box Back 24” 1396504 Burner Box Back - H286 1396505 Burner Box Back - H284

2202699 Manifold -H28 2202799 Manifold - H288 1085898 Manifold - H286 1087197 Manifold - H284 9002599 Manifold - H289

QUANTITY

MODEL

12” 24” 36” 48” 60”

HP280 (USA & Canadian) REV 24Page 36

GARLAND PARTS IDENTIFICATION

H280 Series Surface Plate Section

HP-280 Series Parts

ITEM PART # DESCRIPTION

51* 2629200 Bracket - Inlet Manifold 52* 1085200 Burner Box Front Channel Support 53* 1439200 Center Burner Rest Support

* NOT ILLUSTRATED

RECOMMENDED STOCK PARTS

QUANTITY

MODEL

12” 24” 36” 48” 60”

HP280 (USA & Canadian) REV 24 Page 37

RAISED GRIDDLE/BROILER SECTION MODEL:

H283 & H285

H280 SERIES

H283-Raised Griddle Broiler Section.dwg

HP280 (USA & Canadian) REV 24Page 38

GARLAND PARTS IDENTIFICATION

Raised Griddle/Broiler Section

HP-280 Series Parts

MODEL

ITEM PART # DESCRIPTION

2 1091000 Ceramic Radiant 8 8

4 1028002 Air Shutter 3 4

5* 1085700 Griddle Burner Rest 1 1

10A

10B

11 1414901 Broiler Valve Shield 1 1 12 1081999 Griddle Right Side Liner Assembly 1 1 13 1081997 Broiler Left Side Liner - H283 1 1 14 1511200 Griddle Back Lining 1 1 15 1090600 Broil Rack Chrome 1 1 16 1090797 Broiler Rack Dip Shield 1 1

18 1728802 Grease Drawer Handle 1 19 1084704 Broiler Box Left Side 1 1 20 1605003 Broiler Box Right Side 1 1

22 1728810 Drip Pan H283/285 1 1 23 1728809 Drip Pan Handle - H283 1 1

24*

* NOT ILLUSTRATED

RECOMMENDED STOCK PARTS

1727596 Griddle Assembly 24” H283 SS 1 1727890 Griddle 36” - H285 1

1090500 Griddle Burner 3 3 1014901 Griddle H Burner 1

1728307 Insert Burner Box Assembly 1

1473700 Broiler Pilot Natural - H283 3 3 1473701 Broiler Pilot Propane - H283 3 3 1415300 2C-2 Pilot Natural 1 1086000 2C-2 Pilot Propane 1

1086586 Hi-Low Valve Natural #51F -H283 3 3 1086581 Hi-Low Valve Propane #56F-H283 3 3

1086583 Hi-Low Valve Natural #47 W/EXT 1 1086579 LP #55 W/EXT 1

G02716-2 Dial- (Universal) Medium shaft 3 4 G02725-2 Dial Insert (OFF/MAX/MIN) 3 4

1731801 Valve Panel H283 1

1730103 Valve Panel Raised Grid 1 2404300 Grease Chute Front H283 1 2681600 Grease Chute Front 1 2404400 Grease Chute Back 1 2681700 Grease Chute Back 1

Note: Grease chute not available as a complete assembly. Both the grease chute

front and rear components would be required, for a complete chute assembly.

1729501 Grease Drawer 283 1 2354699 Grease Drawer Assembly 1

1728602 Front Rail H283 1 1728603 Front Rail 285 RGB 1 1728503 Front Rail 36” - H283 1728501 Front Rail 24” - H285

1281998 Griddle Front Splash Assembly 24” 1

12181997 Griddle Front Splash Assembly 36” 1

QUANTITY

H283 H285

HP280 (USA & Canadian) REV 24 Page 39

GARLAND PARTS IDENTIFICATION

Raised Griddle/Broiler Section

HP-280 Series Parts

MODEL

ITEM PART # DESCRIPTION

25 1086597 3/16 Pilot Adjusting Valve 3 4 26 1208304 3/16 Aluminum Tubing 4.500” 3 3

27* 1415100 Broiler Pilot Bracket - H283 3 3

30* 1473701 Broiler Pilot Propane-H283

* NOT ILLUSTRATED

RECOMMENDED STOCK PARTS

2202999 Manifold Assembly Flame 1

2202899 Manifold Assembly Flame 1

2363300 Handle Griddle Drawer F/H283 1 2355801 Grease Drawer Handle 1

QUANTITY

H283 H285

HP280 (USA & Canadian) REV 24Page 40

H280 Drip Pans and Handles

Drip Pan

The most accurate way to determine the right drip pan and drip pan handle is to get the dimensions from the customer. In this list we have provided all the part numbers and dimensions of the pans and handles.

Length

Width

Handle

Drip Pans

1090003 25 ½" x 21 ¾" 1090103 25 ½" x 10" 1728810 25 ½" x 20 ¼"

Drip Pan Handle

1728807 23 ⁄" 1728806 24 ⁄"

1728823 29 ⁄"

1728803 23 9/16" 2518500 11 ¼" 1728809 21" 2518600 12 ⁄"

Fake Handle (no drip pan, just a cover) 1728808

Please note that in the H280 series we used only Stainless Steel drip pan handles

HP280 (USA & Canadian) REV 24 Page 41

H280 MOTOR RC OVEN PARTS

H280 CONVECTION OVEN MOTOR FROM SERIAL # 9904GR54R TO SERIAL # 0204RG121R

H280.dwg



























ITEM PART # DESCRIPTION

2 2396600 Motor Mount Pocket 3 1669101 Pocket Insulation Board 4 2396700 Motor Mounting Plate 5 G02952-01P Blower Wheel 6 2520100 Fan Protector Screen 7 2395999 Air Bae Assembly 8 2519799 Motor Guard Assembly 9 2396800 Casing Back

10 2397000 Main Back RC

11 CK2485801

12 1361298 Air Bae Support Assembly (Qty of 2 per Oven)

13* F542

14* F543

15 G01503-3 Weldnut 1/4-20 (Qty. 8)

* NOT ILLUSTRATED

RECOMMENDED STOCK PARTS

2485801 Motor 115V 1/3 hp 2485800 Motor 209.240V. 1/3 hp

Fan Motor Assembly 115 Volts Included Item# 1, 2, 3, 4, 5, 15

Washer #10 Padded Aluminum (Qty of 2 Required For Mounting Air Bae Assembly) #10-24 S/S Wing Screw (Qty. of 2 Required for Mounting Air Bae Assembly)

HP280 (USA & Canadian) REV 24Page 42

H280 MOTOR RC OVEN PARTS

H280 CONVECTION OVEN MOTOR SECTION USED FROM SERIAL NUMBER

0204RG121R, FROM APRIL 1, 2002

H280.dwg



























ITEM PART # DESCRIPTION

2 3013301 Motor Mount Pocket 3 1669101 Pocket Insulation Board 4 30130401 Motor Mounting Plate 5 G02952-01P Blower Wheel 6 2520100 Fan Protector Screen 7 2395999 Air Bae Assembly 8 2519799 Motor Guard Assembly 9 3019601 Casing Back

10 3013900 Main Back RC

11 4515043

12 1361298 Air Bae Support Assembly (Qty of 2 per Oven)

13* F542

14* F543

15 G01503-3 Weldnut 1/4-20 (Qty. 8)

* NOT ILLUSTRATED

RECOMMENDED STOCK PARTS

2485801 Motor 115V 1/3 hp 2485800 Motor 209.240V. 1/3 hp

New Style Motor Kit 115 Volts (Used From April 1, 2002 After Serial # 0204RG121R) Kit Includes Item# 1, 2, 3, 4, 5, 15

Washer #10 Padded Aluminum (Qty of 2 Required For Mounting Air Bae Assembly) #10-24 S/S Wing Screw (Qty. of 2 Required for Mounting Air Bae Assembly)

Please Note: This kit is not interchangeable with the old kit and will not install into equipment manufactured before serial number 0204RG121R, or date of April 1, 2002

HP280 (USA & Canadian) REV 24 Page 43

BASO SAFETY VALVE COMPONENTS

Baso Valve

GARLAND IDENTIFICATION

H280 Series Ranges

Baso Valve

ITEM PART # DESCRIPTION QTY

1 1415703 Hi Temp Safety Baso Valve 1 2 M225 1/4 Tube Comp Nut 1 3 M231 3/16 Tube Comp Nut 1 4 1313800 7/16cc x 7/16cc 90 Deg Elbow 1 5 076050-89 3/16cc x 3/16cc Comp Union 1 6 4518708 7/16 Tubing Safety Valve To Oven Orice 1 7 4518716 3/16 Tubing Comp Union To Safety Valve Inlet 1 8 1095499 7/16cc x 3/8 NPT Straight Connector 1

9 4518715 7/16 Tubing Elbow to Straight Connector 1 10 1391500 Safety Valve Bracket 1 11 M126 3/16 Tubing Ferrule 1 12 M124 1/4 Tubing Ferrule 1 13 F60 #10A x 5/8 Sheetmetal Screw 1 14 F16 #10-24 x 2.5 RD HD Machine Screw 1 15 F312 #10-24 Locknut 1 16 M122 7/16 Tubing Ferrule 1 17 M123 7/16 Comp Nut 1 18 G62R-43 1/4cc x 16cc Comp Union 1

^ 4518689 Include All Item Numbers 1 through 18

^ NOT ILLUSTRATED

RECOMMENDED STOCK PARTS

HP280 (USA & Canadian) REV 24Page 44

1415703 High Temp Baso Valve

(Page 32 Item 37C)

4518817 Thermocouple 18” Long

(Slip-in Type) Used with TS11 & Baso

Valve

(Page 32 Item 37D)

(Page 9 Item 3)

G01479-01 TS11J Safety Valve

(Page 32 Item 37A)

HP280 (USA & Canadian) REV 24 Page 45

4519723 S/S Adjustable Leg (Opt)

HP280 (USA & Canadian) REV 24Page 46

Convection Oven Pilot Burners

078239-10 Oven Pilot Burner Assembly (Natural)

078239-11 Oven Pilot Burner Assembly (Propane)

Assembly shown with thermocouple (4518817) slip-in type into any of the above pilots.

HP280 (USA & Canadian) REV 24 Page 47

Standard Oven Pilot Burners

1028298 Oven Pilot Burner Assembly (Propane)

Black & Red Marker Indicates Propane Gas

1028299 Oven Pilot Burner Assembly (Natural)

Black Marker Indicates Natural Gas

Assembly shown with thermocouple (1019418) screw-in type into any of the above pilots.

HP280 (USA & Canadian) REV 24Page 48

Standard Oven Pilot Burners

1415301 Oven Pilot Burner Assembly (Propane)

Red Marker Indicates Propane Gas

1415300 Oven Pilot Burner Assembly (Natural)

Black Marker Indicates Natural Gas

Assembly shown with thermocouple (4518817) slip-in type into any of

the above pilots.

HP280 (USA & Canadian) REV 24 Page 49

GARLAND PARTS IDENTIFICATION

Revision History

REV. # PAGE # ITEM # NOTE DATE

5 2,3 Photo At The End Footnote Added

20 49 Part # Were Switched – Correction Made Jan 03/05

30 New Drawing

47, 48, 49 New Photos

10 45 33 5

5 3

9 30 New Drawing 31 17 Removed – Was Duplicate

33 3

45, 47, 49 Photos updated

31 13A Part Number 4519432 & 4519433 Added

31,32,33 Entire Table Reformatted

42 43

38 New Drawing – Item 10A & 10B

39 10A, 10B

8,30 New Drawing

10 65 New Part Number Added

33 17 New Part Number Added

2A New Part # – Error In Manual – Was 078239-4 & -5

3 Error in Manual – Was 1019418

16A Error In Manual – New Part Numbers Added

17 New Part Number Added

Description Changed Jun 28/05

Part # 1415000 replaced by 4518817 – Totally interchangeable

24 Asterisk Added 29 Asterisk Removed

37B

43 Asterisk Removed

7 Thru 10

19 Part Number M8-43 Replaced by M8-42

28 Items 1589100 & 1589101 Added omitted in error

38A Item Added Omitted in error

5, 6 Description Changed

8 New Part Number Added

Part# 1415000 Deleted – Replaced by 4518817 Totally Interchangeable

Updated Drawing Item Numbers Changed

New Drawing

Letters A & B Added on the Item Number – Note Added Under Description

Critical Column Added

Apr 27/05

Jul 29/05

Aug 26/05

Feb 27/06

Apr 3/08

Jul 07/08

Aug 01/08

HP280 (USA & Canadian) REV 24Page 50

NOTES

HP280 (USA & Canadian) REV 24 Page 51

Garland HP-280 Parts Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
