Garland API Parts List

GARLAND MODEL

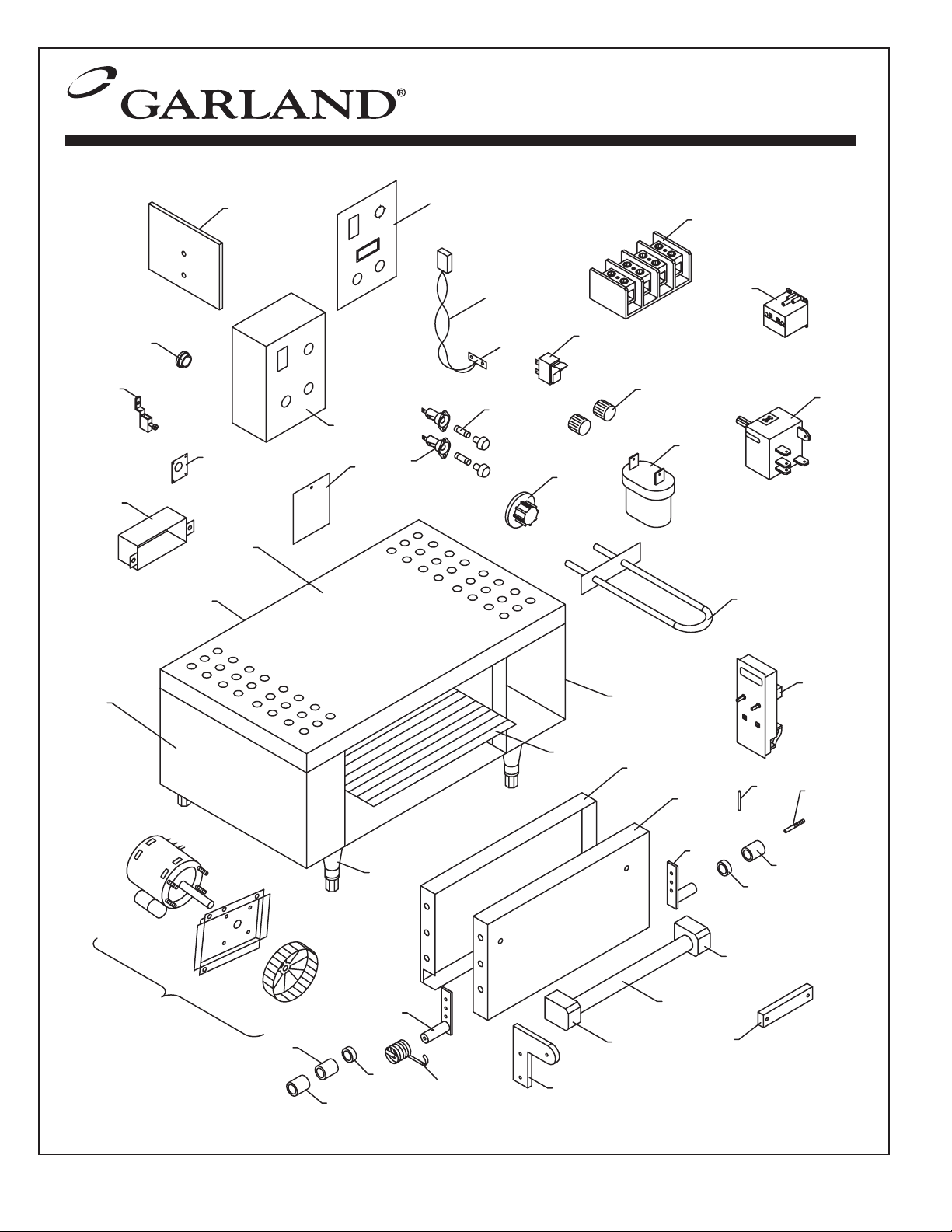

API, APA, AP4 ELECTRIC

APO COUNTER DECK OVEN

Toll Free Phone, (US & Canada): [phone]

Toll Free Fax, (US & Canada): [phone]

http://www.garland-group.com

FORM # APOparts (02/2001) REV. 1

Page 2 FORM # APOparts (02/2001) REV. 1FORM # APOparts (02/2001) REV. 1

GARLAND MODEL

API, APA, AP4 ELECTRIC

APO COUNTER DECK OVEN

Contents:

API, APA, AP4 Electric APO Counter Deck Oven ...................................................................... Page 4

Page 3FORM # APOparts (02/2001) REV. 1

G

AR

L

A

N

D

40

2

3

4

5

9A

10

12

13

14B

14A

16A

17

23

21

22

23

29

30A

31

32

33

34

35A

38B

39

41

43

6

7

8

1

15

16C

30B

38A

27

25

20

35B

20

28

24

API, APA, AP4 ELECTRIC

APO COUNTER DECK OVEN

APO Electric.dwg

REV. 0

11A

Page 4 FORM # APOparts (02/2001) REV. 1

GARLAND PARTS IDENTIFICATION

API, APA, AP4 Electric APO Counter Deck Oven

MODEL

ITEM PART # DESCRIPTION

QUANTITY

APO FROM UP TO

Section A: Control, Components- Right Side

1
2

3
4
5
6 1130106 Fuse Holder 2
7
8 9005400 Mercury Contactor 1

9A 1636501 Capacitor 5 MFD 1
9B* 1730702 Capacitor Bracket 1
9C* 1730703 Capacitor Termination Boot 1

10 1233901 Terminal Block #H 4-Pole 1

11A

11B* 1101402 Thermostat Bulb Clips 4

12 1714002 Access Door 1

1517710 Controller
1639701 Master Power Switch (Amber)

1101300 Infinite Switch 240 Volt
1717801 Heat Dial
1720501 Time/Temp Knob

1130107 Fuse 10 Amp

9006800 Senor Probe (Side Mount)

1
1

1
1
2

2

1

Section B: Door System

1589101 Extruded Handle Bar 18.375 1 30-Aug-00

13

14A 9003701 Handle L/H 1 30-Aug-00
14B 9003700 Handle R/H 1 30-Aug-00

15 1634500 Door Handle End Cap (RH or LH) 2 30-Aug-00

16A

16B* 1309056 Cerawool 7-3/8” x 20-3/4” x 1/2” Thick 2

16C 1902919 Garland Nameplate 4” 1 30-Aug-00

17 1700501 Back Panel 1
18* 1700699 Inner Back Plug 1

19*

20 1011201 Steel Tubing Chrome Spacer 2

21 1689398 Door Arm Left W/A 1

22 1689399 Door Arm Right W/A 1

23 1054330 Bronze Bearing 2

24

25 1725602 Sleeve Bearing Left Side Only 1
26* 8002108 Smscr-Th-Stl-Phil-A 10-32x3/4 1

27 1720201 Dowel Pin S/S 1

28 8003802 Set Screw 1

1592001 Handle Overlay 18 3/8x1 21/64 1 30-Aug-00
1635500 Door Handle 1 30-Aug-00

1715802 Door Front SS 1
1700401 Front Panel 1 30-Aug-00

1689002 Spacer 1/2” 2
1702601 Socket Head Screw 4

1632601 Door Spring 1 Apr-94
1688701 Door Spring 1 Apr-94

Section C: Back ( Motor, Elements)

29 1714001 Access Door 1

30A 1032500 Knock Out Plate 1
30B 1028402 Ground Lug 1

31 1028800 Snap Bushing 1” Dia. #315-734 3

* NOT ILLUSTRATED

RECOMMENDED STOCK PARTS

DATE

Page 5FORM # APOparts (02/2001) REV. 1

GARLAND PARTS IDENTIFICATION

API, APA, AP4 Electric APO Counter Deck Oven

MODEL

ITEM PART # DESCRIPTION

1616800 208V Element

32

1616803 Element APO 208V
1616801 240V Element
1616804 Element APO 240V

33 1724601 Spark Guard 4

34

1636599

Motor Assembly
Available as Assembly Only

Section D: Body Exterior

35A 1715403 Left Side Panel 1
35B 1714703 Cover Right SS 1

36* 1714402 Column Cover Left 1

37* 1715703 Spring Block 1
38A 1715302 Touch Pad (APO 1-208) Overlay 1
38B 1714503 Control Panel 1

39 1714601 Cover Back 1
40 1717401 Top Cover 1
41 1631796 Bottom Jet Plate 1

42*

43 1196302 Leg 4 Metal” 4

* NOT ILLUSTRATED

1709002 Rack 1
1709099 Perforated Rack 1

RECOMMENDED STOCK PARTS

QUANTITY

APO FROM UP TO

4 Mar-94
4 Mar-94
4 Mar-94
4 Mar-94

1

DATE

Page 6 FORM # APOparts (02/2001) REV. 1
