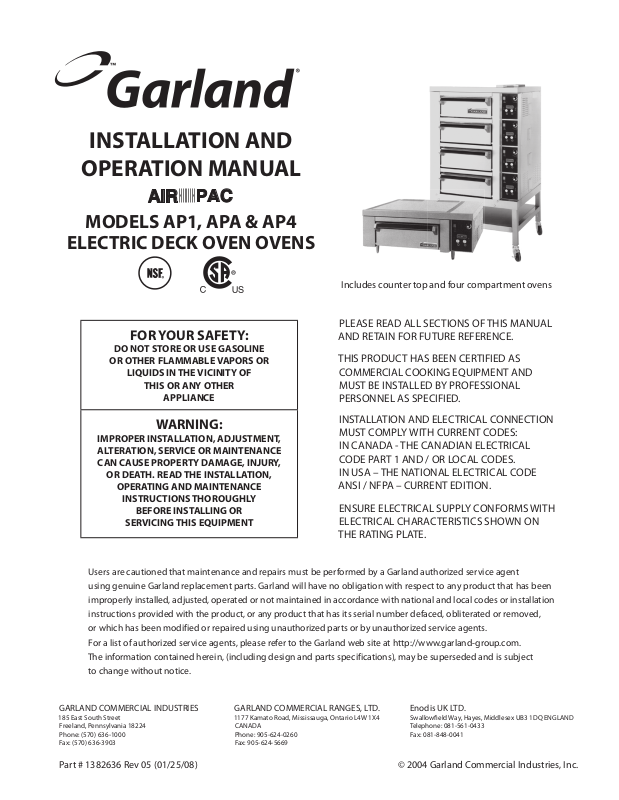

Garland AP1 Installation Manual

INSTALLATION AND

AIR

PAC

OPERATION MANUAL

MODELS AP1, APA & AP4

ELECTRIC DECK OVEN OVENS

FOR YOUR SAFETY:

DO NOT STORE OR USE GASOLINE

OR OTHER FLAMMABLE VAPORS OR

LIQUIDS IN THE VICINITY OF

THIS OR ANY OTHER

APPLIANCE

Includes counter top and four compartment ovens

PLEASE READ ALL SECTIONS OF THIS MANUAL

AND RETAIN FOR FUTURE REFERENCE.

THIS PRODUCT HAS BEEN CERTIFIED AS
COMMERCIAL COOKING EQUIPMENT AND
MUST BE INSTALLED BY PROFESSIONAL

PERSONNEL AS SPECIFIED.

WARNING:

IMPROPER INSTALLATION, ADJUSTMENT,
ALTERATION, SERVICE OR MAINTENANCE
CAN CAUSE PROPERTY DAMAGE, INJURY,

OR DEATH. READ THE INSTALLATION,

OPERATING AND MAINTENANCE

INSTRUCTIONS THOROUGHLY

BEFORE INSTALLING OR

SERVICING THIS EQUIPMENT

INSTALLATION AND ELECTRICAL CONNECTION

MUST COMPLY WITH CURRENT CODES:

IN CANADA - THE CANADIAN ELECTRICAL

CODE PART 1 AND / OR LOCAL CODES.

IN USA – THE NATIONAL ELECTRICAL CODE

ANSI / NFPA – CURRENT EDITION.

ENSURE ELECTRICAL SUPPLY CONFORMS WITH
ELECTRICAL CHARACTERISTICS SHOWN ON

THE RATING PLATE.

Users are cautioned that maintenance and repairs must be performed by a Garland authorized service agent

using genuine Garland replacement parts. Garland will have no obligation with respect to any product that has been

improperly installed, adjusted, operated or not maintained in accordance with national and local codes or installation

instructions provided with the product, or any product that has its serial number defaced, obliterated or removed,

or which has been modified or repaired using unauthorized parts or by unauthorized service agents.

For a list of authorized service agents, please refer to the Garland web site at http://www.garland-group.com.

The information contained herein, (including design and parts specifications), may be superseded and is subject

to change without notice.

GARLAND COMMERCIAL INDUSTRIES

185 East South Street
Freeland, Pennsylvania 18224
Phone: [phone]
Fax: [phone]

GARLAND COMMERCIAL RANGES, LTD.

1177 Kamato Road, Mississauga, Ontario L4W 1X4
CANADA
Phone: [phone]
Fax: [phone]

Enodis UK LTD.

Swallow eld Way, Hayes, Middlesex UB3 1DQ ENGLAND
Telephone: [phone]
Fax: [phone]

Part # 1382636 Rev 05 (01/25/08) © 2004 Garland Commercial Industries, Inc.

Part # 1382636 Rev 5 (01/25/08) Page 1

IMPORTANT INFORMATION

WARNING:
This product contains chemicals known to the state of california to cause cancer and/or birth defects
or other reproductive harm. Installation and servicing of this product could expose you to airborne
particles of glass wool/ceramic fibers. Inhalation of airborne particles of glass wool/ceramic fibers
is known to the state of California to cause cancer.

Part # 1382636 Rev 5 (01/25/08)Page 2

TABLE OF CONTENTS

IMPORTANT INFORMATION. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

DIMENSIONS AND SPECIFICATIONS, MODELS AP1 & AP-A . . . . . . . . . . . . . 4

DIMENSIONS AND SPECIFICATIONS, MODEL AP4. . . . . . . . . . . . . . . . . . . . . . 5

INTRODUCTION. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Rating Plate . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6

INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Clearances . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6

Location . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6

Installation for Ovens Equipped with Legs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6

Installation for Ovens Equipped with Casters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6

Stacking Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Ventilation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7

Electrical Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7

OPERATION. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Break-In Period . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8

Start Up Procedure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8

CONCEPT OF AIR IMPINGEMENT COOKING . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

COOKING CHART . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Part # 1382636 Rev 5 (01/25/08) Page 3

DIMENSIONS AND SPECIFICATIONS, MODELS AP1 & AP-A

36-1/2"

[927mm]

27"

[686mm]

2"

[51mm]

34-1/4"

[870mm]

3"

[76mm]

20-3/4"

[527mm]

26-3/4"

[679mm]

40-1/4"

[1022mm]

DOOR OPEN

3"

[76mm]

12"

[305mm]

REAR

CABLE

ENTRANCE

4-1/2"

[114mm]

6-1/4"

[159mm]

AIR

PAC

Oven Interior Dimensions* Exterior Dimensions Shipping Weight Lbs./Kg

Width Height Depth Width Height Depth Crated Uncrated

19-1/4”

(489mm)

4-3/4”

(121mm)

*With rack in place Two xed rack positions: 1-1/8” (28mm) and 1-5/8”(41mm)

17-3/4”

(451mm)

Combustible Wall Clearance Entry Clearance

Left Right Rear Crated

0” (0mm) 6” (152mm) 6” (152mm) 32” (813mm)

36-1/2”

(927mm)

Instillation Notes

16-1/2”

(419mm)

34-1/4”

(870mm)

230/104 140/64

Electrical

Requirements

Total kW 208V 240V X Y Z X Y Z

5.2 25 21.7 17 10 17 15 9 15

208 VAC = 197 VAC to 219 VAC 240 VAC = 220 VAC to 252 VAC

Single Phase 208V/3 Phase 240V/3 Phase

Nominal Amperes Per Line

Part # 1382636 Rev 5 (01/25/08)Page 4
