Repair Parts Sheet

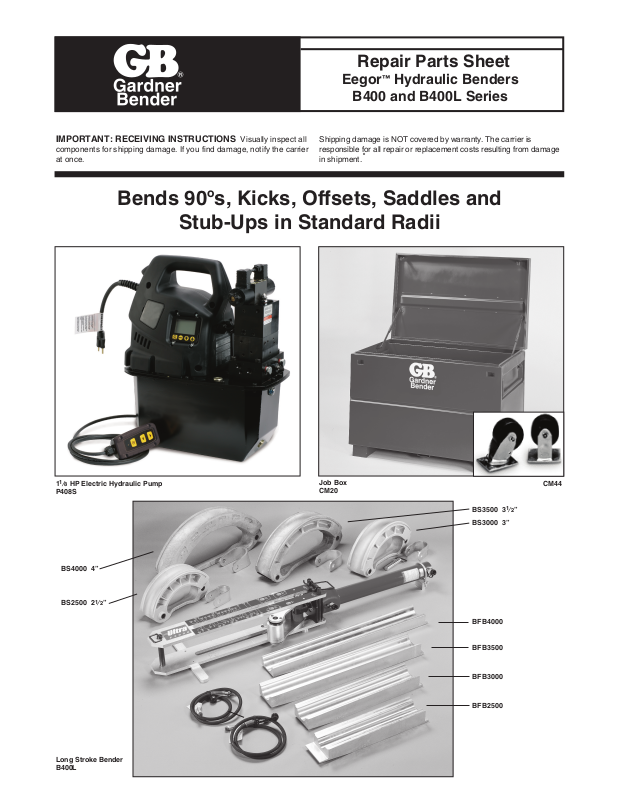

Eegor™ Hydraulic Benders
B400 and B400L Series
IMPORTANT: RECEIVING INSTRUCTIONS Visually inspect all
components for shipping damage. If you find damage, notify the carrier
at once.
Bends 90os, Kicks, Offsets, Saddles and
Stub-Ups in Standard Radii
Shipping damage is NOT covered by warranty. The carrier is
responsible for all repair or replacement costs resulting from damage
in shipment.
˚
11⁄8 HP Electric Hydraulic Pump
P408S
BS4000 4”
1
BS2500 2
Long Stroke Bender
B400L
⁄2”
Job Box
CM20
CM44
BS3500 31⁄2”
BS3000 3”
BFB4000
BFB3500
BFB3000
BFB2500
Page 2
Page 3
Notes:
1. Before assembly, degrease items 5 and 9, and apply Locktite #242 Master Bond
Adhesive to threads; then tighten. Note that item 9 has left-hand threads. Openings in
items 2 and 4 must be aligned to freely permit through assembly of a 1.255 diameter pin.
2. Degrease 6, 7, 8, 9 and 12 and apply molykote 321R and molykote paste #G-N lubricant
all over the bearing surfaces (unless previously lubricated), and allow to dry. Coat the
surfaces. Do not rely on bearing operation to distribute the lube.
3. Assemble item 8 over item 9.
Repair Kits Available
1. BZ730 Cam Roller Kit —
Includes items 3, 4, 5, 11, 12, 13
2. BZ732 Bushing Roller Kit —
Includes items 6 & 14
3. BZ734 Single Roller Kit —
includes items 8, 9, & 15
Replacement Parts
Qty
Item Part # Needed Description
1 ZCF858101 1 Plate Assembly (Top)
2 ZCF857101 1 Plate Assembly (Bottom)
3 CF859489 1 Retaining Collar (NSS)
4 CF860013 1 Pilot Keyway (NSS)
5 CH204028 4 Button Head Cap Screw
.312”-18-3A Thrd (NSS)
6 CF862281 2 Roller (Short) (NSS)
7 CF861108 2 Roller Bushing (Short)
8 CK579281 1 Roller (NSS)
Repair Parts
*BZ74: Double Anchor Frame Pin
*BZ76: U-Strap Pin
*BZ78: Bend Shoe Pin
Qty
Item Part # Needed Description
9 CF863104 1 Roller Axle (NSS)
10 CM191044 1 Retaining Ring
11 ZCM192281 1 Roller Assembly (NSS)
12 CM193350 1 Roller Cam
13 B1021028 1 Roller Cam Cap Screw
.250”-20UNC 2B Thrd x 2
Allen Hd (NSS)
14 CH819044 1 Wire, Retaining
15 CH951044 1 Ring, Retaining
1
⁄4” Lg.
Items Noted “(NSS)” are not sold separately, only available in kits shown above.
*Not Shown
Page 4
Model BZ70 (shown)
Replacement Parts
Qty
Item Part # Needed Description
1 ZDC405* 1 Decal, Bend Angle
2 ZCA892103LH 2 Load Arm (Top & Bottom)
3 CA914061 1 Pivot Pin
4 CA915132 1 Rod Eye
5 CB610028 1 Soc. Set Screw
6 CH177132 1 Cylinder Yoke
*Not Shown
REPAIR AND SERVICE INSTRUCTIONS: For repair service and parts contact your nearest Gardner Bender
Service Center. The Gardner Bender Service Center will provide complete and prompt service on all Gardner
Bender products.
PARTS AND SERVICE: For quality workmanship and
genuine Gardner Bender parts, select an Authorized
GB Service Center for your repair needs. Only
repairs performed by an Authorized Service Center
displaying the official GB Authorized sign are backed
with full factory warranty. Contact Gardner Bender
(414)352-4160 for the name of the nearest GB
Authorized Service Center.
3
⁄8-161⁄2”
WARRANTY: Gardner Bender warrants its product
against defects in workmanship and materials for
1 year from date of delivery to user. Chain is not
warranted. Warranty does not cover ordinary wear
and tear, abuse, misuse, overloading, altered products
or use of improper fluid.
Qty
Item Part # Needed Description
7 CB779046 1 Pad
8 CB830817 1 Catch
9 CH577028 2 F.H. Cap Screw
10 CB846046 2 Rest Pad
11 CF390028 4 Hex. Hd. Cap Screw
1
⁄2-13x11⁄4”
12 CF102145 1 Stablizer Bar
WARRANTY RETURN PROCEDURE: When question
of warranty claim arises, send the unit to the nearest GB
Authorized Service Center for inspection, transportation
prepaid. Furnish evidence of purchase date. If the claim
comes under the terms of our warranty the Authorized
Service Center will REPAIR OR REPLACE PARTS
AFFECTED and return the unit prepaid.
5
⁄8NC-1.25
