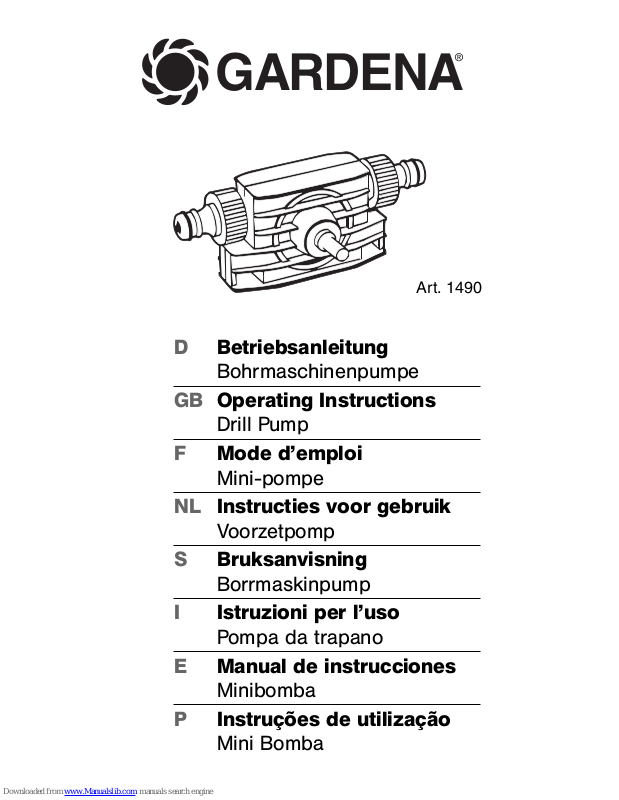

Gardena Drill Pump, 1490 Operating Instructions Manual

GARDENA

®

D Betriebsanleitung

Bohrmaschinenpumpe

GB Operating Instructions

Drill Pump

F Mode d’emploi

Mini-pompe

NL Instructies voor gebruik

Voorzetpomp

S Bruksanvisning

Borrmaskinpump

I Istruzioni per l’uso

Pompa da trapano

E Manual de instrucciones

Minibomba

P Instruções de utilização

Mini Bomba

Art. 1490

5

G

GARDENA Drill Pump

1. Applications and Media to be Pumped

The GARDENA Drill Pump is designed for private
use in the house and garden. This includes draining
of small containers, such as aquariums, paddling
pools, defective washing machines, as well as
pumping fuel oil, and temporary aeration of small
garden pools.

A

Acids, easy combustible or explosive

substances like petrol, kerosene, nitro,
or food must not be pumped.The temperature
of the liquid must not exceed 40°C.

In case of doubt, please contact your GARDENA
GARDENA Service Department.

2. Use of Operating Instructions

Translation of the original instructions from German.
Read the operating instructions carefully.

A

For safety reasons, people who are not

familiar with the operating instructions
must not operate the pump. Children under
16 years must not operate the pump and have
to be kept away from plugged-in unit. Persons
with reduced physical or mental abilities may
use the product only if they are supervised or
instructed by a responsible person.

3. Operation and Maintenance

For intermittent or short time use a drill rated
450 Watt minimum is required. For runs of 30 minu­tes or more a rating of 600 Watt is needed.
Fit the drive shaft (8 mm ∅) to the drill chuck.

A

Make sure that the pump cannot twist,

wobble or tilt.

Connect suction and pressure hoses (using
GARDENA hose fittings). The direction of flow
is shown by the white arrows on the pump top.

6

Connect suction and pressure hoses (using
GARDENA hose fittings). The direction of flow
is shown by the white arrows on the pump top.

Check that the drill rotates clockwise, correspond-
ing with the direction shown by the arrows on the
pump side.

The suction hose should not be more than 3 m
(9 ft.) long. Please make certain that it is leak proof
when connected. The hose should be of non­collapsing type (hose with woven reinforcement,

e.g. GARDENA Flex Hose or Cord Hose).
Place the suction hose inlet into fluid to be pumped.

Prime pump at max. drill speed. The outlet side
should be open during priming. Pump output can
be regulated by drill speed.

The pump is self-priming. If it does not start

pumping within 12 seconds, switch off at once

and locate the cause (probably a leaking, blocked or
collapsed inlet hose). The pump should not operate
against a closed outlet side for too long a period.

When liquid no longer flows switch off the
electric drill immediately.

After use, or after pumping of fuel oil, clean the
pump out thoroughly with clean water.

4. Technical data

Max. performance
with 13 mm (½” ) hose 1.7 m

3

/h

(6.24g.p.m.)

with 19 mm (¾” ) hose 2.4 m

3

/h
(8.81g.p.m.)
Max. pressure approx. 3 bar

(42 p.s.i.)

Max. pumping height approx. 30 m

(98.43 ft.)
Max.suction height approx. 3 m (9ft.)
Max. permissible r.p.m. 3,400 r.p.m.
Max. permissible temperature
of the liquid to be pumped 40 °C
Drive shaft ∅ 8 mm
Max. dry running time 12 seconds

7

We expressly point out that, in accordance with
the product liability law, we are not liable for any
damage caused by our units if it is due to impro­per repair or if parts exchanged are not original
GARDENA parts or parts approved by us, and if
the repairs were not carried out by a GARDENA
Service Centre or an authorised electrician. The
same applies to spare parts and accessories.

EU Certificate of Conformity

The undersigned,
GARDENA Manufacturing GmbH
Hans-Lorenser-Str. 40
D-89079 Ulm

hereby certifies that, when leaving our factory, the
unit indicated below is in accordance with the har­monised EU guidelines, EU standards of safety and
product specific standards.

This certificate becomes void if the unit is modified
without our approval.

Description of the unit: Drill Pump
Art. no.: 1494
EU directives: Machinery Directive

98/37/ EC : 1998
2006/42 / EC : 2006

Year of CE marking: 1994

Ulm, 01.12.1998 Thomas Heinl
