GARDENA

®

D Gebrauchsanweisung

UVC-Nachrüstsatz

GB Operating Instructions

UVC Retrofitting Kit

F Mode d’emploi

Dispositif UV-C

NL Gebruiksaanwijzing

UVC-set

S Bruksanvisning

UVC-ljus

I Istruzioni per l’uso

Lampada a raggi UVC

E Manual de instrucciones

Kit reequipamiento UVC

P Instruções de utilização

Conjunto adaptador de lâmpada-UVC

DK Brugsanvisning

UVC monteringssæt

Art. 7903

8

GB

Purpose

Please note

GARDENA UVC Retrofitting Kit

Welcome to GARDENA aquamotion...

Please read these operating instructions carefully and follow
the instructions. Use these instructions to get to know the UVC
Retrofitting Kit, using it correctly and the safety information.

For safety reasons, children and young people under 16 years
of age and people who are not acquainted with these operating
instructions should not use this UVC Retrofitting Kit.

v Please keep these operating instructions in a safe place.

1. Range of Uses for Your GARDENA UVC Retrofitting Kit

. . . . . . . 8

2. For Your Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

3. Initial Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

4. Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

5. Trouble-Shooting

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

6. Storage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

7. Technical Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

8. Service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

1. Range of Uses for Your GARDENA UVC Retrofitting Kit

The GARDENA UVC Retrofitting Kit should only be used in com­bination with one of the GARDENA pressure filters (art. 7901/

7902). It is only intended for domestic outdoor use for intensive
cleaning of pond water in garden ponds with and without fish.

The GARDENA UVC Retrofitting Kit should not be used with
any other pressure filters apart from GARDENA pressure filters
(art. 7901/ 7902) nor should it be used for industrial purposes
or in combination with chemicals, food, easily combustible and
explosive substances.

Contents

2. For Your Safety

Caution! Ultraviolet radiation.
This radiation is harmful to eyes and skin.
➔ Never operate the lamp without its casing!

Please note that the light does not work until assembly of the
filter has been completed because of a built-in safety switch.

v Switch the pump on first before you plug the UVC-light into

a 230 V AC mains socket.

The maximum permissible operating pressure (P

max

) is 0.2 bar.

The UVC-light must be operated via a fault current circuit­breaker (FI-switch) with a nominal fault current ≤ 30 mA
(DIN VDE 0100-702 and 0100-738).

v Please ask an electrician.
The data on the type plate must match the data for the power

circuit.

Caution!
Protect eyes
from flash

Mains connection

9

GB

v Unplug for winter storage, when not in use and before

maintenance!

The main connection lead can only be exchanged by the
GARDENA Service Centre.

Main connection leads should not have a smaller cross-section
than rubber hose leads with the coding H05 RNF. Extension
leads must comply with DIN VDE 0620.

Do not use extension leads, connection leads or adapters with­out a protective contact.

Do not carry the UVC-light by the cable and do not use the
cable to pull the plug out of the socket.

Please protect the cable from heat, oil and sharp edges.
Make sure that connection points remain dry.

In Austria power cables should correspond to ÖVE-EM 42,
T 2 (2000) /1979 § 22 according to § 2022.1. According to this
standard units used in swimming pools and ponds should
only be operated via an isolating transformer. Please contact
your electrician.

In Switzerland mobile appliances which are used outdoors,
must be connected via a residual-current device.

v Inspect the equipment before use to ensure that the UVC-

light, especially the mains cable and plug, is not damaged.

Do not use a damaged light. If damaged, have the UVC-light
checked by GARDENA Service or an approved electrician.

Plug the pump into the mains before using the UVC-light.
Do not use the light if the connection lead, glass tube or the

housing of the UVC-light appear to be defective.
Never operate the UVC-light without water throughput.

v Position the pressure filter in a safe place where it cannot

flood and at a distance of at least 2 m from the pond
(the filter must be protected from falling in the pond) – or –
bury the pressure filter at a distance of at least 2 m from
the pond (in accordance with the operating instructions
for the pressure filter).

A built-in temperature monitor switches the UVC-light off if
over-heating occurs. It switches on again after cooling down.

For Austria

For Switzerland

Inspection

Set up pressure filter
with UVC-light:

Temperature monitor

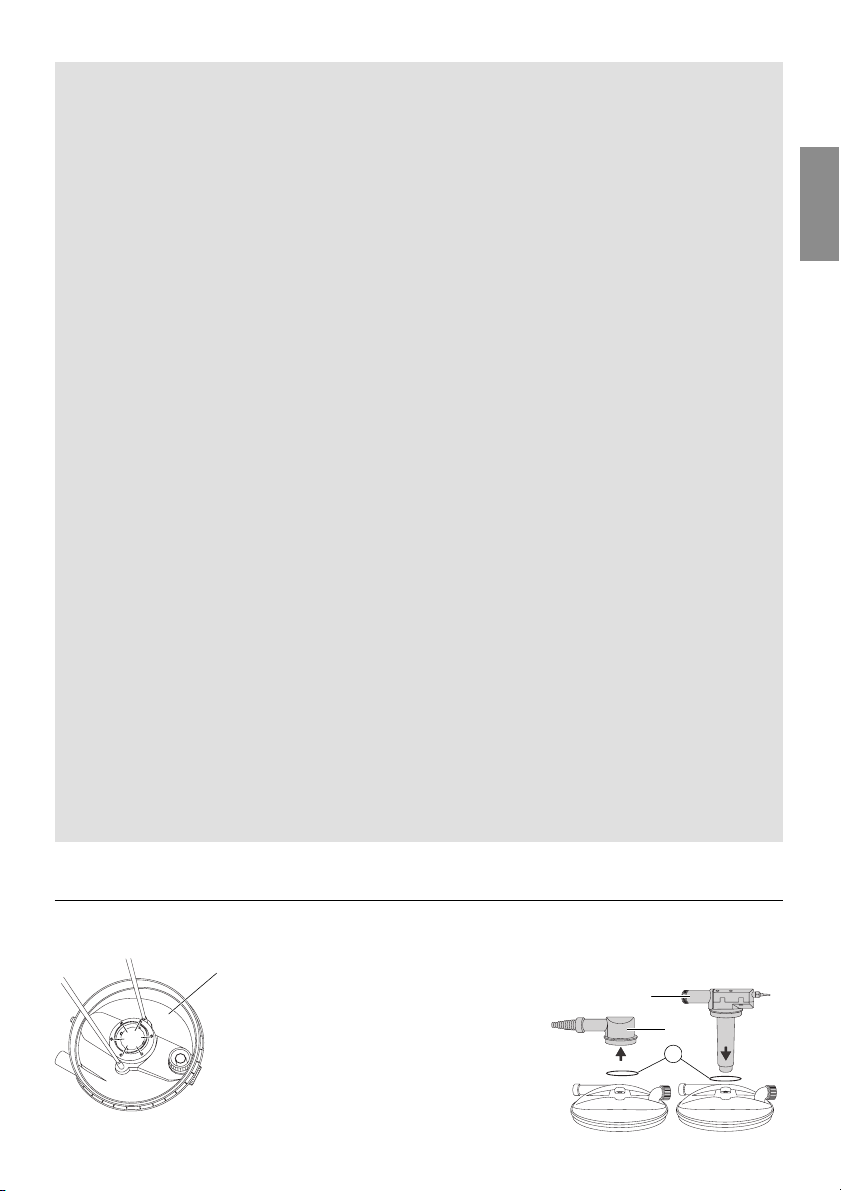

3. Initial Operation

1. Remove the cover of the pressure filter 1in accordance with
the operating instructions for the pressure filter and remove
the foam filters and the foam supports.

2. Insert the bulb

9

as de­scribed in “5. Trouble­Shooting,

Changing the

bulb

”.

3. Unscrew the 6 screws

2

and remove the water
outlet 3of the pressure
filter.

Insert UVC-light and start up :

4

3

D

1

2

10

GB

4. Screw the UVC-retrofitting kit 4firmly in place with the sealing
ring and the 6 screws 2on the pressure filter cover 1.

5. Refit the pressure filter in accordance with the operating
instructions for the pressure filter.

6. Switch on the pump.

7. Plug the mains plug of the UVC-light into a 230 V AC mains
socket.

The pilot light Alights up blue.

Do not operate the UVC-light without water flowing through the
pressure filter.

4. Maintenance

1. Unplug the UVC-light from the mains and switch off the pump.

2. Unscrew the 4 screws 5on the upper side of the UVC-light.

3. (only for pressure filter PF 11000):
Pull up cleaning handle 6of the pressure filter.

4. Remove the light unit 7of the UVC-light carefully.

5. Clean glass tube 8e.g. with a glass cleaner.

6. Reassemble the light unit in reverse order.

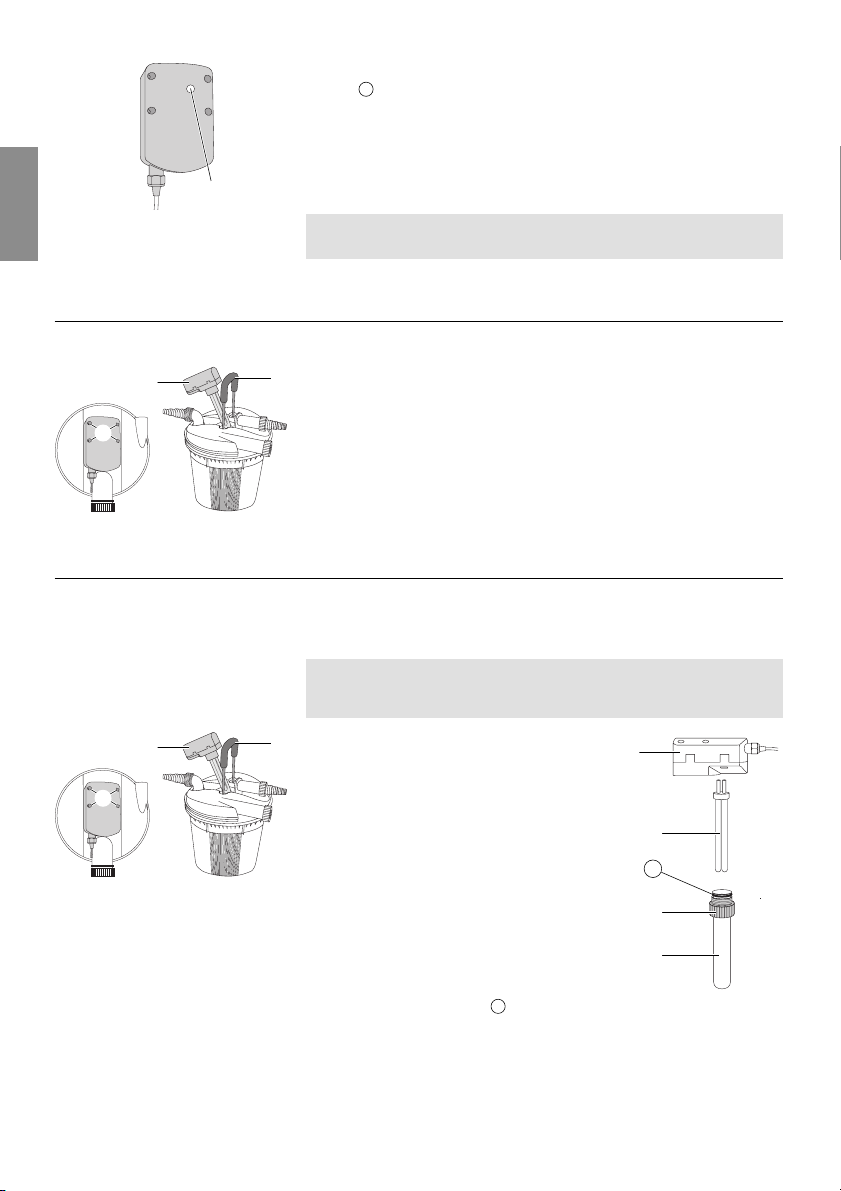

5. Trouble-Shooting

The UVC-bulb should be changed after approximately 8000 oper­ating hours because the UVC power decreases sharply after this
or if the pilot light Adoes not light up any longer.

Only bulbs of type 11 W TC-S (UV-C) should be used
(e. g. Radium: Puritec NSE 11-270, Philips: TUV PL-S 11 W or
Sylvania: G11 LYNX-S GERMICIDAL).

1. Unplug the UVC-light from the mains
and switch off the pump.

2. Unscrew the 4 screws

5

on the top

of the UVC-light.

3. (only for pressure filter PF 11000):
Pull cleaning lever 6of the pressure
filter upwards.

4. Take the lighting unit

7

of the UVC-light

carefully from the pressure filter 0.

5. Unscrew the collar of the glass tube

8

carefully.

6. Replace bulb 9with a new bulb.

7. Reassemble the light in reverse order.

Ensure that the O-ring is fitted on the glass tube.

Cleaning the light:

Changing the bulb:

5

7

6

5

7

6

D

A

7

9

8

0

E

E

11

GB

Over-wintering:

Fault Possible cause Remedy

The pilot light is not on. Bulb defective. v Change bulb.

Connections defective. v Check electrical connec-

tions.

The water is not clear. The light unit of the UVC- v Clean light unit

light is dirty. (see 4. Maintenance).

Wrong pump, leaves in the v Please read the operating
pond, pond too rich in nutrients instructions for the pressure
or too many fish in the pond. filter (Art. 7901/7902) on

this subject.

If any other faults occur, please contact GARDENA Service.

6. Storage

1. Clean UVC-light thoroughly and dry it.

2. Store UVC-light in a dry, frost-free place.

The product must not be added to normal household waste. It
must be disposed of properly.

7. Technical Data

Art. No.: 7903
Bulb: type 11 W TC-S (UV-C)

(e. g. Radium: Puritec NSE 11-270, Philips: TUV PL-S 11 W or
Sylvania: G11 LYNX-S GERMICIDAL)

Mains voltage / mains
frequency: 230 V / 50 Hz

8. Service

GARDENA guarantees this product for 2 years (from date of
purchase). This guarantee covers all serious defects of the unit
that can be proved to be material or manufacturing faults. Under
warranty we will either replace the unit or repair it free of charge
if the following conditions apply:

• The unit must have been handled properly and in keeping

with the requirements of the operating instructions.

• Neither the purchaser or a non-authorised third party have

attempted to repair the unit.

The wearing part, bulb (type 11 W TC-S (UV-C)), is excluded from
the warranty.

This manufacturer’s guarantee does not affect the user’s existing
warranty claims against the dealer/seller.

Disposal:

(in accordance with
RL2002/96 /EC)

Warranty

12

GB

EU Certificate of Conformity

The undersigned
GARDENA Manufacturing GmbH · Hans-Lorenser-Str. 40 · D-89079 Ulm
hereby certifies that, when leaving our factory, the unit indicated below is in accordance with the

harmonised EU guidelines, EU standards of safety and product specific standards.
This certificate becomes void if the unit is modified without our approval.

Description of the unit: UVC Retrofitting Kit
Art. No.: 7903
EU directives: Low Voltage Directive 73/23/EC

Electromagnetic Compatibility 89/336/EC
Directive 93/68/EC

Year of CE marking: 2002 Ulm, 27.03.2002

Thomas Heinl
Technical Dept. Manager

We expressly point out that, in accordance with the product
liability law, we are not liable for any damage caused by our units
if it is due to improper repair or if parts exchanged are not original
GARDENA parts or parts approved by us, and, if the repairs were
not carried out by a GARDENA Service Centre or an authorised
specialist. The same applies to spare parts and accessories.

Product Liability

If you have any problems with your pump, please contact our
Customer Service or return the defective unit together with
a short description of the problem directly to one of the
GARDENA Service Centres listed on the back of this leaflet.
