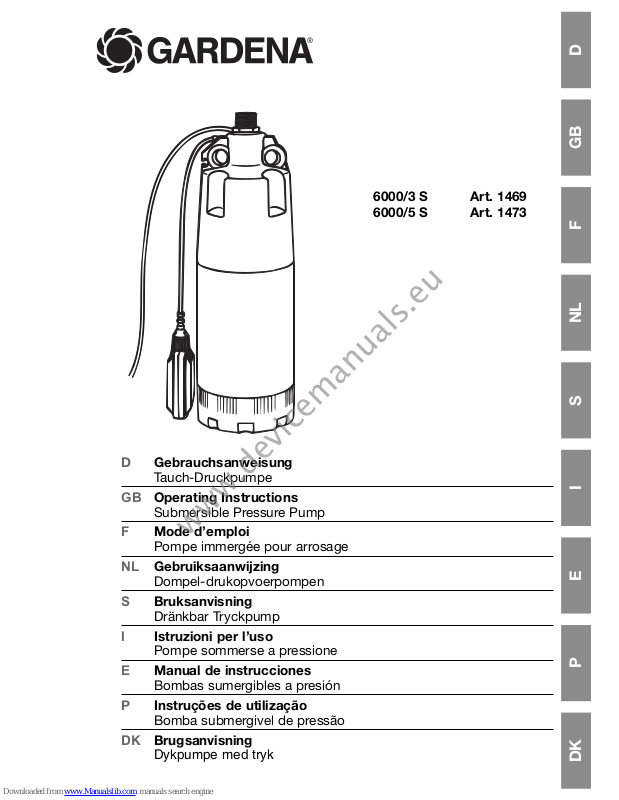

Gardena 6000/3 S, 6000/5 S Operating Instructions Manual [en, nl, de, pt]

Download

Page 1

6000/3 S Art. 1469 6000/5 S Art. 1473

D Gebrauchsanweisung

Tauch-Druckpumpe

GB Operating Instructions

Submersible Pressure Pump

F Mode d’emploi

Pompe immergée pour arrosage

NL Gebruiksaanwijzing

Dompel-drukopvoerpompen

S Bruksanvisning

Dränkbar Tryckpump

I Istruzioni per l’uso

Pompe sommerse a pressione

E Manual de instrucciones

Bombas sumergibles a presión

P Instruções de utilização

Bomba submergivel de pressão

DK Brugsanvisning

Dykpumpe med tryk

DGBFNLSIE

Page 2

Please read these operating instructions carefully. Follow the information given. Use the operating instructions to get acquainted with the proper use of your Submersible Pressure Pump.

For safety reasons, people who are not familiar with these operating instructions should not use this Submersible Pressure Pump. Following the operating instructions supplied by the manufacturer is a prerequisite for the proper use of the pump.

➔ Please keep these instructions in a safe place.

Contens: 1. Where to use your GARDENA Submersible Pressure Pump . 8

2. Safety Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

3. Initial Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

4. Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

5. Trouble-Shooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

6. After Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

7. Technical Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

8. Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

1. Where to use your GARDENA Submersible Pressure Pump

Correct use: GARDENA Submersible Pressure Pumps have been designed

for private use around your house and garden. Submersible Pressure Pumps are predominantly used for taking clean freshwater from wells, shafts and other water reservoirs or for operating irrigation accessories and systems.

The pumps are fully submersible (waterproof sealed) and can be submerged (max. submersion depth, see point 7).

The pumps are equipped with built-in back-flow preventer which avoids automatic draining of the suction hose after stopping the pump.

Pump only clean water with the GARDENA Submersible Pressure Pumps.

Please note: Salt water, muddy water, corrosive, easily combustible or

explosive substances (e.g. gasoline, petroleum, nitro thinner), fats, oils and food must not be pumped.

Water temperature should not exceed 35 °C.

GARDENA Submersible Pressure Pump 6000/3 S, 6000/5 S

Welcome to the Garden of GARDENA ...

2. Safety Instructions

VDE (German Electrical Engineers’ Association) 0100, using Submersible Pressure Pumps in swimming pools, garden ponds, and fountains is only permissible if the pump is operated via

For safety reasons the Submersible Pressure Pump should always be operated via a ground fault circuit safety switch (Fl switch). According to

Page 3

a circuit breaker safety switch with rated fault current of ≤ 30 mA. Furthermore, installation regulations according to DIN VDE 0100-702 have to be observed.

➔ Please contact your electrician. In Austria, according to ÖVE B/EN 60 555 part

1 to 3, pumps which are used in swimming pools and garden ponds, and equipped with firm power cable should be fed via an ÖVE approved isolating transformer – rated voltage must not exceed 230 V.

Power cables must not have a smaller diameter than rubber sheathed cables described with letter symbols H07 RNF according to DIN VDE 0620. Length should be 10 metres.

When connecting the pump to the water supply system, the country-specific sanitary regulations must be observed to prevent water not of drinking water quality being drawn back in.

➔ Please consult a specialist for sanitary

installations.

The power cable of the Submersible Pressure Pump must be connected to a socket which is positioned at a height of max. 1.10 m (measured from ground). Take care that the power cable leads downwards.

Always check the pump (above all power cable and plug) before each operation. A damaged pump must not be used. It’s imperative to have the damaged pump checked by one of the listed GARDENA Service Centres.

Take care that the electrical connections are made within dry area, protected from flooding.

Protect plug and power cable from heat, oil and sharp edges.

Check line voltage. Data Indicated on the type plate must match technical data of the mains supply.

Children under the age of 16 are not allowed to operate the pump. Keep them away from the connected unit.

Before use, first clear the outlet line (e.g. open the nozzle).

Observe max. delivery height (see point 7).

Dry-running operation absolutely must be avoided, i.e. the pump should only be started in the water.

The pump must be immediately switched off when water fails to flow. Please observe that the pump always have to be submerged at least 20 cm in water during operation.

The pump is automatically switched off on overheating by the integrated thermal motor protector. After having cooled down, the motor switches on again automatically.

In order to unplug, pull the plug shell not the power cable.

The power cable must not be used for mounting or relocating the pump. For submerging or lifting/securing the pump, please use the supplied fastening rope.

Sand and other abrasive material cause increased wear and reduce the pump’s output.

Avoid running the pump for more than 10 min. against closed delivery side.

쏹

쏹햷

햸

쏹햳

쏹햴

쏹햵

쏹햶

쏹햲

3. Initial Operation

Hose Connection: ➔ Screw the supplied pump fitting햲onto the outlet of the pump

and tighten it manually until the washer fits closely..

If necessary the 33.3 mm (G1) female thread at the output of the pump can be converted to a male thread by attaching the GARDENA Pump Fitting햲, Art. 1745 supplied with the pump. The pump can then be connected to the GARDENA hose

connection system and the GARDENA Suction Hose Fitting Art. 1723 / 1724.

Best results in delivery capacity of the pump are achieved when using 19 mm (3/4”) hoses in conjunction with GARDENA “Profi” Maxi-Flow System fittings (e.g. Art. 1752) or 25 mm (1”) hoses with fittings available at your sanitary dealer.

When connecting simultaneously several hoses/accessories, we recommend to use either our GARDENA Twin-Tap Connector or our Four Channel Water Distributor (Art. 1210/1194) which can be directly screwed onto the pump fitting 햲.

Page 4

4. Maintenance

Care, Storage Caution! First always unplug the pump before working on it!

The GARDENA Submersible Pressure Pumps are virtually maintenance-free. To avoid reduction of the pump’s output, it is advisable

to check regularly the intake sieve at the suction base햵on contamination and clean it, if necessary. In case of contamina-

tion, the suction base can be taken off by unscrewing the 8 cross recessed head screws. Thus, the turbine space or the intake sieve at the suction base can be cleaned.

For safety reasons, any other parts of the pump may only be disassembled by the GARDENA Service Centre.

Application: 1. Fasten the supplied rope to the loop for fastening rope 햴.

2. Always submerge the pump carefully in the well or other water reservoirs, using the supplied fastening rope (min. submersion depth 20 cm).

In order to avoid contaminations, the pump should not be placed directly on the ground. It must hang freely min. 30 cm above ground, secured to the fastening rope.

The fastening rope must be secured. When using the pump in deep wells and shafts (of more than

approx. 5 m), the power cable 햸is to be guided by means of clamps alongside the fastening rope.

Float Switch Adjustment: The float switch 햶automatically switches on the pump at a water

height of approx. 63 cm (model 6000/3 S) / 70 cm (model 6000/5 S) and automatically switches off at a water height of approx. 5 cm (model 6000/3 S) / 9 cm (model 6000/5 S). By fixing the float switch cable to the float switch lock 햷, the cut-in/cut-out height can be adjusted individually.

Manual Operation: In case of manual operation the Submersible Pressure Pump

starts when the power cable has been connected and the float switch has been lifted.

Automatic Operation: After having connected the power cable, the pump is switched on

automatically at a definite water height (cut-in height) and switches off as soon as the water level drops down to a definite water height (cut-out height).

쏹

쏹햷

햸

쏹햳

쏹햴

쏹햵

쏹햶

쏹햲

Page 5

5. Trouble-Shooting

Problem Probable cause Remedy

Pump is running, Air cannot escape, since Open pressure line (e.g. kinked but doesn’t deliver. pressure line is closed. pressure pipe).

Air locks in suction base. Wait for max. 60 seconds

until the pump deaerates automatically over the vent valve.

Suction base 햵clogged. Clean suction base (see

point 4).

When starting the pump, Submerge pump deeper the water level faIls be- (see min. submersion depth, low the min. water level. point 7).

Pump doesn’t start or Thermal overload switch Disconnect plug and clean suddenly stops during has switched the pump turbine (see point 4). Observe operation. off due to overheating. max. liquid temperature (35 °C).

No power. Check fuses and electric

connections.

Pump runs, but output Suction base clogged. Clean suction base (see suddenly decreases. point 4).

If any other faults occur, please contact GARDENA Service.

6. After Operation

Putting into Storage: ➔ To protect the pump from frost damage, store the pump in a

dry place.

Disposal: Unit may not be disposed of with normal household waste but

(in accordance with must be disposed of in accordance with environmental directive 20002/96/EC)

regulations.

Page 6

7. Technical Data

Typ 6000/3 S 6000/5 S

Rated power 800 W 1100 W Max. delivery capacity 6.0 m3/h 6.0 m3/h Max. pressure 3.3 bar 4.5 bar Max. delivery head 33 m 45 m Max. submersion depth 8 m 8 m Power Cable 15 m H07 RNF 15 m H07 RNF Pump fitting 33.3 mm (G 1”) 33.3 mm (G 1”) Weight approx. 9.0 kg 9.5 kg Min. submersion depth during operation 20 cm 20 cm Max. water temperature 35 °C 35 °C Voltage / Frequency 230 V / 50 Hz 230 V / 50 Hz Noise level L

61 dB (A) 64 dB (A)

Measuring method according to EN 60335-1

8. Warranty

GARDENA honours the guarantee legally required for this product (starting from the date of purchase). This guarantee covers all serious defects of the unit that can be proved to be material or manufacturing faults. Under warranty we will either replace the unit or repair it free of charge if the following conditions apply:

• The unit must have been handled properly and in keeping with

the requirements of the operating instructions.

• Neither the purchaser or a non-authorised third party have

attempted to repair the unit.

The impeller is a wearing part and is therefore not covered by the guarantee.

This manufacturer’s guarantee does not affect the user’s existing warranty claims against the dealer/ seller.

If you have any problems with your pump, please contact our Customer Service or return the defective unit together with a short description of the problem directly to one of the GARDENA Service Centres listed on the back of this leaflet.

Page 7

Produkthaftung Wir weisen ausdrücklich darauf hin, dass wir nach dem Produkthaftungs-

gesetz nicht für durch unsere Geräte hervorgerufene Schäden einzustehen haben, sofern diese durch unsachgemäße Reparatur verursacht oder bei einem Teileaustausch nicht unsere originale GARDENA Teile oder von uns freigegebene Teile verwendet wurden und die Reparatur nicht vom GARDENA Service oder dem autorisierten Fachmann durchgeführt wird. Entsprechendes gilt für Ergänzungsteile und Zubehör.

Product Liability We expressly point out that, in accordance with the product liability law,

we are not liable for any damage caused by our units if it is due to improper repair or if parts exchanged are not original GARDENA parts or parts approved by us, and, if the repairs were not carried out by a GARDENA Service Centre or an authorised specialist. The same applies to spare parts and accessories.

Responsabilité Nous vous signalons expressément que GARDENA n’est pas respon-

sable des dommages causés par ses appareils, dans la mesure où ces dommages seraient causés suite à une réparation non conforme, dans la mesure où, lors d’un échange de pièces, les pièces d’origine GARDENA n’auraient pas été utilisées, ou si la réparation n’a pas été effectuée par le Service Après-Vente GARDENA ou l’un des Centres SAV agréés GARDENA. Ceci est également valable pour tout ajout de pièces et d’accessoires autres que ceux préconisés par GARDENA.

Productaansprakelijkheid Wij wijzen er nadrukkelijk op, dat wij op grond van de wet aansprakelijk-

heid voor producten niet aansprakelijk zijn voor schade ontstaan door onze apparaten, indien deze door onvakkundige reparatie veroorzaakt zijn, of er bij het uitwisselen van onderdelen geen gebruik gemaakt werd van onze originele GARDENA onderdelen of door ons vrijgegeven onderdelen en de reparatie niet door de GARDENA technische dienst of de bevoegde vakman uitgevoerd werd. Ditzelfde geldt voor extra-onderdelen en accessoires.

Produktansvar Tillverkaren är inte ansvarig för skada som orsakats av produkten om

skadan beror på att produkten har reparerats felaktigt eller om, vid reparation eller utbyte, andra än Original GARDENA reservdelar har använts. Samma sak gäller för kompletteringsdelar och tillbehör.

Responsabilità Si rende espressamente noto che, conformemente alla legislazione sulla del prodotto responsabilità del prodotto, non si risponde di danni causati da nostri arti-

coli se originati da riparazioni eseguite non correttamente o da sostituzioni di parti effettuate con materiale non originale GARDENA o comunque da noi non approvato e, in ogni caso, qualora l’intervento non venga eseguito da un centro assistenza GARDENA o da personale specializzato autorizzato. Lo stesso vale per le parti complementari e gli accessori.

Responsabilidad Advertimos que conforme a la ley de responsabilidad de productos no nos de productos responsabilizamos de daños causados por nuestros aparatos, siempre y

cuando dichos daños hayan sido originados por arreglos o reparaciones indebidas, por recambios con piezas que no sean piezas originales GARDENA o bien piezas no autorizadas por nosotros, así como en aquellos casos en que la reparación no haya sido efectuada por un Servicio Técnico GARDENA o por un técnico autorizado. Lo mismo es aplicable para las piezas complementarias y accesorios.

Responsabilidade Queremos salientar que segundo a lei da responsabilidade do fabricante, sobre o produto nós não nos responsabilizaremos por danos causados pelo nosso equipa-

mento, quando estes ocorram em decorrência de reparações inadequadas ou da substituição de peças por peças não originais da GARDENA, ou peças não autorizadas. A responsabilidade tornar-se-à nula também depois de reparações realizadas por oficinas não autorizadas pela GARDENA. Esta restrição valerá também para peças adicionais e acessórios.

Produktansvar Vi gør udtrykkeligt opmærksom på at i henhold til produktansvarsloven

er vi ikke ansvarlige for skader forårsaget af vores udstyr, hvis det er på grund af uautoriserede reparationer eller hvis dele er skiftet ud og der ikke er anvendt originale GARDENA dele eller dele godkendt af os, eller hvis reparationerne ikke er udført af GARDENA-service eller en autoriseret fagmand. Det samme gælder for ekstra udstyr og tilbehør.

Page 8

EU-Konformitätserklärung

MaschinenVerordnung (9. GSGVO) / EMVG / Niedersp.RL

Der Unterzeichnete GARDENA Manufacturing GmbH · Hans-Lorenser-Straße 40 · D-89079 Ulm bestätigt, dass die nachfolgend bezeichneten Geräte in der von uns in Verkehr gebrachten Ausführung die Anforderungen der harmonisierten EU-Richtlinien, EU-Sicherheitsstandards und produktspezifischen Standards erfüllen. Bei einer nicht mit uns abgestimmten Änderung der Geräte verliert diese Erklärung ihre Gültigkeit.

EU Certificate of Conformity

The undersigned GARDENA Manufacturing GmbH · Hans-Lorenser-Str. 40 · D-89079 Ulm hereby certifies that, when leaving our factory, the units indicated below are in accordance with the harmonised EU guidelines, EU standards of safety and product specific standards. This certificate becomes void if the units are modified without our approval.

Certificat de conformité aux directives européennes

Le constructeur, soussigné : GARDENA Manufacturing GmbH · Hans-LorenserStr. 40 · D-89079 Ulm déclare qu’à la sortie de ses usines le matériel neuf désigné ci-dessous était conforme aux prescriptions des directives européennes énoncées ci-après et conforme aux règles de sécurité et autres règles qui lui sont applicables dans le cadre de l’Union européenne. Toute modification portée sur ce produit sans l’accord express de GARDENA supprime la validité de ce certificat.

EU-overeenstemmingsverklaring

Ondergetekende GARDENA Manufacturing GmbH · Hans-Lorenser-Str. 40 · D-89079 Ulm bevestigt, dat de volgende genoemde apparaten in de door ons in de handel gebrachte uitvoering voldoen aan de eis van, en in overeenstemming zijn met de EU-richtlijnen, de EU-veiligheidsstandaard en de voor het product specifieke standaard. Bij een niet met ons afgestemde verandering aan de apparaten verliest deze verklaring haar geldigheid.

EU Tillverkarintyg

Undertecknad firma GARDENA Manufacturing GmbH · Hans-Lorenser-Straße 40 · D-89079 Ulm intygar härmed att nedan nämnda produkter överensstämmer med EU:s direktiv, EU:s säkerhetsstandard och produktspecifikation. Detta intyg upphör att gälla om produkten ändras utan vårt tillstånd.

Dichiarazione di conformità alle norme UE

La sottoscritta GARDENA Manufacturing GmbH · Hans-Lorenser-Str. 40 · D-89079 Ulm certifica che il prodotto qui di seguito indicato, nei modelli da noi commercializzati, è conforme alle direttive armonizzate UE nonché agli standard di sicurezza e agli standard specifici di prodotto. Qualunque modifica apportata al prodotto senza nostra specifica autorizzazione invalida la presente dichiarazione.

Declaración de conformidad de la UE

El que subscribe GARDENA Manufacturing GmbH · Hans-Lorenser-Str. 40 · D-89079 Ulm declara que la presente mercancía, objeto de la presente declaración, cumple con todas las normas de la UE, en lo que a normas técnicas, de homologación y de seguridad se refiere. En caso de realizar cualquier modificación en la presente mercancía sin nuestra previa autorización, esta declaración pierde su validez.

Certificado de conformidade da UE

Os abaixo mencionados GARDENA Manufacturing GmbH · Hans-Lorenser-Str. 40 · D-89079 Ulm Por este meio certificam que ao sair da fábrica os aparelhos abaixo mencionados estão de acordo com as directrizes harmonizadas da UE, padrões de segurança e de produtos específicos. Este certificado ficará nulo se as unidades forem modificadas sem a nossa aprovação.

EU Overensstemmelse certificat

Undertegnede GARDENA Manufacturing GmbH · Hans-Lorenser-Str. 40 · D-89079 Ulm bekræfter hermed, at enheder listet herunder, ved afsendelse fra fabrikken, er i overensstemmelse med harmoniserede EU retningslinier, EU sikkerheds standarder og produkt specifikations standarder. Dette certifikat træder ud af kraft hvis enhederne er ændret uden vor godkendelse.

Bezeichnung des Gerätes: Tiefbrunnenpumpe Description of the unit: Submersible Pressure Pump Désignation du matériel : Pompe immergée pour arrosage Omschrijving van het apparaat: Dompeldrukopvoerpompen Produktbeskrivning: Dränkbar Tryckpump Descrizione del prodotto: Pompe sommerse a pressione Descripción de la mercancía: Bomba sumergibles a presión Descrição do aparelho: Bomba submergivel de pressão Beskrivelse af enhederne: Dykpumpe med tryk

Typ: Art.-Nr.: Type: Art. No.: Type : Référence : Typ:

6000/3 S Art. nr.: 1469

Typ: 6000/5 S

Art. nr.: 1474

Modello: Art.: Tipo: Art. N

Tipo: Art. N

Type: Varenr.:

EU-Richtlinien: EU directives: Directives européennes : EU-richtlijnen: EU direktiv: Direttive UE: Normativa UE: Directrizes da UE: EU Retningslinier:

Anbringungsjahr der CE-Kennzeichnung: Year of CE marking: Date d’apposition du marquage CE : Installatiejaar van de CE-aanduiding: CE-Märkningsår:

1995

Anno di rilascio della certificazione CE: Colocación del distintivo CE: Ano de marcação pela CE: CE-Mærkningsår:

Peter Lameli

Ulm, den 14.11.1996 Technische Leitung

Ulm, 14.11.1996 Technical Dept. Manager Fait à Ulm, le 14.11.1996 Direction technique Ulm, 14.11.1996 Hoofd technische dienst Ulm, 1996.11.14 Technical Director Ulm, 14.11.1996 Direzione Tecnica Ulm, 14.11.1996 Dirección Técnica Ulm, 14.11.1996 Director Técnico Ulm, 14.11.1996 Teknisk direktør

98/392/EG 91/368/EG 73/23/EG 89/336/EG 93/68/EG

Harmonisierte EN: EN ISO 12100-1 EN ISO 12100-2 EN 60335-1 EN 60335-2-41

Page 9

Pumpen-Kennlinie:

Performance characteristics

Courbes de performance

Prestatiegrafiek

Kapacitetskurva

Curva di rendimento

Curva característica de la bomba

Características de performance

Ydelses karakteristika

0 1000 2000 3000 4000 5000 6000 l/h

bar

6000/3 S

6000/5 S

Page 10

Deutschland/Germany

GARDENA Manufacturing GmbH Service Center Hans-Lorenser-Straße 40 D-89079 Ulm Produktfragen: (+49) 731 490-123 Reparaturen: (+49) 731 490-290 [email protected]

Argentina

Argensem S.A. Calle Colonia Japonesa s/n - (1625) Loma Verde, Escobar, Buenos Aires Phone: (+54) 34 88 49 40 40 [email protected]

Australia

Nylex Consumer Products 50-70 Stanley Drive Somerton, Victoria, 3062 Phone: 1800 658 276 [email protected]

Austria/Österreich

GARDENA Österreich Ges.m.b.H. Stettnerweg 11-15 2100 Korneuburg Tel.: (+43) 22 62 745 45-36 od. -30 [email protected]

Belgium

GARDENA Belgium NV/SA Sterrebeekstraat 163 1930 Zaventem Phone: (+32) 27 20 921 2 [email protected]

Brazil

Palash Comércio e Importação Ltda. Rua Américo Brasiliense, 2414 - Chácara Sto Antonio São Paulo - SP - Brasil CEP 04715-005 fone: 55 11 5181-0909 fax: 55 11 5181-2020

Bulgaria

Sofia 1404 Bulgaria 2 Luis Ahalier Str. 7th floor, DENEX LTD.

Phone: (+359) 2 9581821 [email protected]

Canada

GARDENA Canada Ltd. 100, Summerlea Road Brampton, Ontario, L6T 4X3 Phone: (+1) 905 792 93 30 [email protected]

Chile

Antonio Martinic Y CIA. LTDA. Gilberto Fuenzalida 185 Loc. Las Condes, Santiago de Chile Phone: (+56) 2 20 10 708 [email protected]

Costa Rica

Compania Exim Euroiberoamericana S.A. Los Colegios, Moravia, 200 metros al Sur del Colegio Saint Francis, San José, Costa Rica. Phone: (+506) 297 68 83 [email protected]

Croatia

KLIS d.o.o., Stančičeva 79 10419 Vukovina Phone: (+385) 1 622 777 0 [email protected]

Cyprus

FARMOKIPIKI LTD P.O. Box 7098 74, Digeni Akrita Ave. 1641 Nicosia Phone: (+357) 22 75 47 62 [email protected]

Czech Republic

GARDENA spol. s.r.o. ¤ípská 20a, ã.p. 1153 62700 Brno Phone: (+420) 800 100 425 (Hotline) [email protected]

Denmark

GARDENA Norden AB Box 9003, 200 39 Malmö, Sverige [email protected]

Finland

Habitec Oy, Martinkyläntie 52 01720 Vantaa

France

GARDENA France Service Après-Vente BP 50080 95948 ROISSY CDG Cedex Tél.: (+33) 0826 101 455 [email protected]

Great Britain

GARDENA UK Ltd. 27-28 Brenkley Way Blezard Business Park Seaton Burn Newcastle upon Tyne NE13 6DS [email protected]

Greece

Agrokip - Psomadopoulos S.A. Ifaistou 33A - Ind. Area Koropi, 194 00 Athens Greece V.A.T. EL093474846 Phone: (+30) 210 66 20 225 [email protected]

Hungary

GARDENA Magyarország Kft. Késmárk utca 22 1158 Budapest Phone: (+36) 80 20 40 33 (Hotline) [email protected]

Iceland

Ó. Johnson & Kaaber Tunguhalsi 1 110 Reykjavik

Ireland

Michael McLoughlin & Sons Hardware Limited, Long Mile Road Dublin 12

Italy

GARDENA Italia S.p.A. Via Donizetti 22, 20020 Lainate (Mi) Phone: 02.93.94.79.1 [email protected]

Japan

KAKUICHI Co. Ltd. Yamato Bldg. 5-3-1 Kojimachi Chiyoda-ku. Tokyo 102-0083 Phone: (+81)-(0)3-3264-4721 [email protected]

Luxembourg

Magasins Jules Neuberg Boîte postale 12 L-2010 Luxembourg, rue Gluck L-2549 Luxembourg-Gasperich Phone. (+352) - 401 401 [email protected]

Netherlands

GARDENA Nederland BV Postbus 50176 1305 AD ALMERE Phone: (+31) 36 521 00 00 [email protected]

Neth. Antilles

Jonka Enterprises N.V. Sta. Rosa Weg 196 P.O. Box 8200, Curaçao Phone: (+599) 9 767 66 55 [email protected]

New Zealand

NYLEX New Zealand Ltd. Building 2 118 Savill Drive Mangere, Auckland Phone: (+64) 9 270 1806 [email protected]

Norway

GARDENA Norden AB Karihaugveien 89, 1086 Oslo

Poland

GARDENA Polska Sp. z o.o. Szymanów 9d 05-532 Baniocha Phone: (+48) 22 727 56 90 [email protected]

Portugal

GARDENA, Lda. Recta da Granja do Marquês Edif. GARDENA Algueirão, 2725-596 Mem Martins Phone: 219228530 [email protected]

Romania

MADEX INTERNATIONAL SRL Soseaua Odaii 117-123, sector 1 Bucuresti, RO 013603 Phone: (+40) 21 352 760 3/4/5/6 [email protected]

Russia/Россия

АO AMИДА ТТЦ ул. Мосфилмовская 66 117330 Москва Phone: (+7) 095 956 99 00 [email protected]

Singapore

Hy-Ray Private Limited 40 JALAN PEMIMPIN #02-08 Tat Ann Building Singapore 577 185 Phone: (65) 6253 2277 [email protected]

Slovak Republic

GARDENA Slovensko, s. r. o. Panónska cesta 17 851 04 Bratislava Phone: (+421) 263 453 722 [email protected]

Slovenia

GARDENA d.o.o., Brodišče 15, 1236 Trzin

Phone: (+386) 1 580 93 32 [email protected]

South Africa

GARDENA South Africa (Pty.) Ltd. P.O. Box 11534, Vorna Valley 1686 Phone: (+27) 11 315 02 23 [email protected]

Spain

GARDENA IBÉRICA S.L. C/Basauri, n

6 La Florida, 28023 Madrid Phone: (+34) 91 708 05 00 (4 líneas) [email protected]

Sweden

GARDENA Norden AB Box 9003, 20039 Malmö [email protected]

Switzerland/Schweiz

GARDENA Schweiz AG Bitziberg 1

, 8184 Bachenbülach Tel.: (+41)-848 800 464 [email protected]

Turkey

GARDENA/Dost Diș Ticaret Mümessillik A.Ș. Sanayi Çad. Adil Sokak No. 1 Kartal - Istanbul

Ukraine

ALTSEST JSC 4 Petropavlivska Street Petropavlivska Borschahivka Town Kyivo Svyatoshyn Region 08130 Ukraine Phone: +380 44 4595703

[email protected]

USA

Melnor, 3085 Shawnee Drive Winchester, VA 22604 Phone: (540) 722-9080 [email protected]
