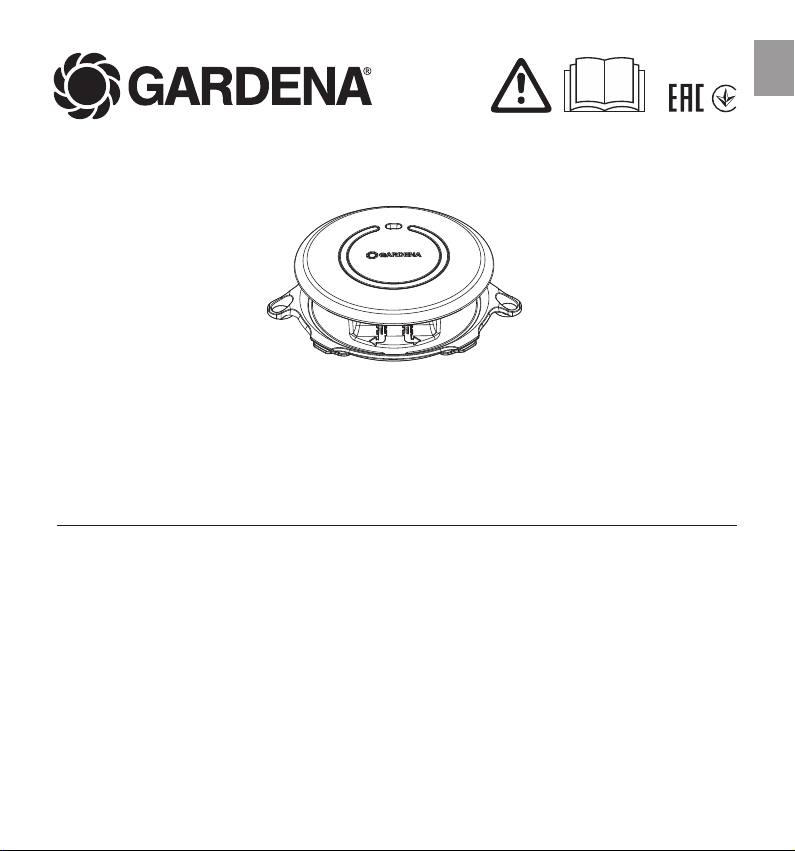

Gardena 15021,ZoneProtect Operators manual [en, hu, sv]

ZoneProtect Art. 15021

en Operator’s Manual

en

I1

2

35 cm

60 cm

60 cm

35 cm

3

7

66

2

I2

I3 I4

4 5

2

O1

3

9

X

O2

-

8

1

5

1

en GARDENA ZoneProtect

Translation of the original instructions.

This product may be used under supervision,
orif instruction regarding the safe use of the
product has been provided and the resulting
dangers have been understood, by persons
withphysical, sensory or mental disabilities or
alack of experience and knowledge. Children
must not play with the product.

Intended use:

The GARDENA ZoneProtect is intended for
separating a zone in which the robotic lawn­mower (SILENO minimo, (smart) SILENO city
and (smart) SILENO life) should not mow, in
domestic gardens and allotments.

The zone must be within the working area
(delimited by the boundary wire) of the robotic
lawnmower.

en

9

The GARDENA ZoneProtect must not be
used in public places, parks, sport arenas, or

en

inagriculture or forestry.

1. SAFETY

IMPORTANT!
Read the operator’s manual carefully before
use and keep for future reference.

It is recommended to use a third party power supply
with the following specifications:

– Frequency: 50 to 60 Hz, single-phase
– Mains voltage: 100 to 240 V AC
– Output voltage/current: 5 V DC / 1 A
– Minimum output power: 5 W
– Output connector: USB-C
v Before using the third-party USB power supply,

check that it complies with national and inter­national safety standards for safety extra low
voltage (SELV).

Battery safety

If used incorrectly or if the batteries are damaged,
flammable liquid may be ejected from the batteries.
Contact with this liquid should be avoided. If contact
accidentally occurs, rinse off with water. If the liquid
comes into contact with your eyes, seek additional
medical attention.

Only charge the battery at ambient temperatures
between + 4 °C and + 30 °C. The full charging power
isavailable from 15 °C.

Only charge the product in dry indoor areas.
If the temperature of the battery is outside the per-

missible charging temperature range, the battery
cannot be charged. As soon as the permitted tem­perature range is reached, the battery is charged.

Do not use the product and its peripherals in bad
weather conditions, especially when there is a risk
oflightning.

Do not detach the battery!
If the product has not been used for a long time,

charge it to more than 60 % before use. It should
be charged to 60 % at least every 3 months.

Children are not allowed to be unsupervised in the
protected area.

When the battery is empty or if the ZoneProtect has
overheated, the zone is no longer protected.

The same specifications apply to the installation
of the zone wire as for the boundary wire (see the
Operator’s Manual for the robotic lawnmower).

A USB power supply is not included with this
product.

10

DANGER! Cardiac arrest!

This product makes an electromagnetic field
while it operates. This field may under some
conditions interfere with active or passive med­ical implants. To decrease the risk of conditions
that can possibly injure or kill, we recommend
persons with medical implants to speak with
their physician and the medical implant manu­facturer before you operate the product.

DANGER! Risk of suffocation!

Small parts can be easily swallowed. There is
also a risk that the polybag can suffocate tod­dlers. Keep toddlers away when you assemble
the product.

DANGER! Risk of physical injury!
Risk of injury and risk of damage to the product.
v Do not clean the product with water or

with a water jet (in particular high-pressure
water jet).

v Do not clean with chemicals including petrol

or solvents. Some can destroy critical plas­tic parts.

Disposal:

(in accordance with RL2012/19/EC / S.I. 2013 No. 3113)

The product must not be disposed of to nor­mal household waste. It must be disposed
of in line with local environmental regulations.

IMPORTANT!

Li-ion

v Dispose of the product through or via your

municipal recycling collection centre.

Disposal of the battery:

The battery contains lithium-ion cells
that should not be disposed of with
normal household waste at the end
of its life.

IMPORTANT!

The battery may only be removed by qualified per­sonnel.

1. If you have any questions regarding the removal
of the battery, please contact the GARDENA
Service.

2. Dispose of the batteries through or via your
municipal recycling collection centre.

2. INSTALLATION

Preparation:

• Charge the battery (see 3. OPERATION).

• You can use the accessories of your
robotic lawn mower for the zone cable,
ground hooks and connection clamps.
Alternatively, you can also obtain these
from the GARDENA dealer.

• The robotic lawnmower must not be in
ECO Mode during installation
(see ECO Mode in the Operator’s Manual
for the robotic lawnmower).

• Update the mower‘s firmware
(via www.gardena.com):
SILENO minimo from 5995762-03
SILENO city from 5908253-11
SILENO life from 5939856-06

• To find out if an update is required, you can
check which firmware is currently installed
on your mower:
SILENO city & SILENO life:
Open the quick info menu (see the
Operator’s Manual of the robotic
lawn mower).
SILENO minimo: You will find the infor­mation in the GARDENA Bluetooth App.

• Enable the Zone Generator function of your
robotic lawn mower menu / app. Refer to
the Operator’s Manual of the robotic lawn­mower.

Conditions for the installation:

• Lay the wire as described in the instructions
for the robotic lawnmower
(chapter: To examine where to put the
boundary wire ).

• The zone must be completely within the
mowing area of the boundary cable 6.

• The distance from the zone wire 2 to the
boundary wire 6 must be at least 60 cm.

• The zone should not cover the guide
wire7, otherwise the robotic lawnmower
may not find the charging station. If you
donot remember where the guide wire is,
start the robotic lawnmower at the end
ofthe guide cable and let it return to the
charging station (see Operator’s manual
of the robotic lawnmower).

• The distance from zone wire 2 to guide
wire 7 should be at least 60 cm.

• The ZoneProtect and all objects inside
must be at least 35 cm inside the zone
[ Fig. I3 ].

• Do not lay the cable on slopes > 10 %.

en

11

• When using several ZoneProtects, the
distance from zone wire to zone wire

en

must be at least 60 cm.

• The zone cable must not cross [ Fig. I4 ].

• The maximum length of the zone wire
is 15 m.

robotic lawnmower points forward to the
stay-out zone.

4. Start the robotic lawnmower and make sure
that it stops by the zone boundary wire.
If it enters the stay-out zone, check the con­ditions for the installation.

To connect the zone cable
[ Fig. I1 / I2 ]:

The zone cable 2, the ground hooks 3 and
theconnection clamps 4 are not included in
the scope of delivery.

1. Place the zone cable 2 around the desired
zone.

2. Cut both ends of the zone cable 2 to
length at the point where you want to set
up the ZoneProtect.

3. Attach one connection clamp 4 to each
end of the zone cable 2.

4. Attach the connection clamps 4 to the
connections 5 of the ZoneProtect.

5. Secure the ZoneProtect and the zone cable
with the ground hooks 3.

6. Activate the Zone Generator option in
your robotic lawnmower (see Operator’s
manual of the robotic lawnmower).

To test the installation:

1. Set the product to ON and make sure that
the LED indicator is green.

2. Make sure that ECO mode of the robotic
lawn mower is disabled.
Refer to ECO Mode in the Operator’s
Manual for the robotic lawnmower.

3. Put the robotic lawn mower 1 – 2 m in front
of the stay-out zone. Make sure that the

12

3. OPERATION

To charge the battery [ Fig. O1 / O2 ]:

The 5 V power supply unit with USB-A socket
is not included.

The battery is delivered partially charged.
To ensure the full performance of the battery,
fully charge the battery before the first use.

The ZoneProtect cannot be used during
charging.

1. Remove the cover 9.

2. Fold open the sealing cap 1.

3. Plug the USB-C plug of the supplied charg­ing cable into the charging socket X.

4. Plug the USB-A plug of the charging cable
into the power supply unit.

5. Connect the power supply unit into a mains
socket.

The battery is charging and the LED ­blinks orange.

When the battery is fully charged, the LED ­illuminates orange. When the battery is
fully charged, the ZoneProtect works for
approx. 31 days.

LED indicators [ Fig. O2 ]:

By briefly pushing the button 8 the status of
ZoneProtect is displayed for 5 seconds.

illuminates green Activated and battery capacity

blinks green Activated and battery capacity

flashes green Activated and battery capacity

illuminates orange Battery is fully charged

blinks orange Battery is charging

illuminates blue Zone cable is not connected or

blinks blue Zone cable is not connected or

flashes blue Zone cable is not connected or

illuminates purple Mower is in ECO Mode, boundary

blinks purple Mower is in ECO Mode, boundary

flashes purple Mower is in ECO Mode, boundary

illuminates red Error and battery capacity > 30 %

blinks red Error and battery capacity < 30 %

flashes red Error and battery capacity < 10 %

flashes white
5 times every
10 sec

blinks white ZoneProtect switches off

> 30 %

< 30 %

< 10 %

cut and battery capacity > 30 %

cut and battery capacity < 30 %

cut and battery capacity < 10 %

cable is not detected or invalid
zone range and battery capacity
> 30 %

cable is not detected or invalid
zone range and battery capacity
< 30 %

cable is not detected or invalid
zone range and battery capacity
< 10 %

(see 6. TROUBLESHOOTING)

(see 6. TROUBLESHOOTING)

(see 6. TROUBLESHOOTING)
Push the button

status is displayed

so that the

8

In order to achieve the maximum runtime of
the ZoneProtect, the mower must be operated
in Eco mode (see Operator’s manual of the
robotic lawnmower).

To switch on the ZoneProtect
[ Fig. O2 ]:

v Push the button

The ZoneProtect is switched on and
the LED - illuminiates / blinks green
(depending on the battery capacity).

for 2 seconds.

8

To switch off the ZoneProtect
[ Fig.O2 ]:

v Push the button

The ZoneProtect is switched off and
the LED - blinks white.

for 2 seconds.

8

4. MAINTENANCE

v Clean the ZoneProtect with a damp cloth.

5. STORAGE

To put into storage:

The product must be stored away from
children.

1. Charge the battery.

2. Clean the ZoneProtect
(see 4. MAINTENANCE).

3. Store the ZoneProtect in a dry, enclosed
and frost-free place.

en

13

6. TROUBLESHOOTING

en

Problem Possible Cause Remedy

illuminates /

-

blinks / flashes
blue

illuminates /

-

blinks / flashes
purple and the
mower is not in
ECO mode

illuminates /

-

blinks / flashes
red

flashes

-

white 5 times
every 10 sec

Robotic lawn­mower crosses
the zone cable

Robotic lawn­mower stops
(Zone
Generator
Problem)

Zone cable is
not connected
or cut.

Boundary cable
isnot detected
orcut.

ZoneProtect
overtemperature.
Permanent error.

Battery is empty
or there is an
error or the zone
cable is broken /
unplugged.

Software transfer
error.

Zone Generator
function is not
enabled in the
mower menu /
app.

Battery is empty. v Charge the

ZoneProtect
overtemperature.

v Connect the

zone cable.

v Check the

boundary
cable.

v Put the Zone-

Protect in the
shade and let
it cool down.
Contact the
GARDENA
Service.

v Charge the

battery or
check the
zone cable.

v Press and hold

the button
for 15 seconds.

v Enable the

Zone Generator
function in the
mower menu /
app.

battery.

v Put the Zone-

Protect in the
shade and let it
cool down.

8

7. TECHNICAL DATA

ZoneProtect Unit Value
Battery operation time (approx.) d 31
Battery charging voltage V 5
Battery charging current A 1
Battery charging time h 6
IP Protection class IPx4
Operating temperature range °C 0 – 40

Operating Frequency Band Hz

1)

Max. radio-frequency power

1)

Maximum active output power to antennas in the fre-

quency band in which the radio equipment operates.

mW < 25

8. ACCESSORIES

GARDENA
Boundary wire

GARDENA
Ground hooks

GARDENA
Con nectors
+ Connection
clamps

50 m /
150 m

100 pieces Art 4090-20

6 connectors
+ 3 connection
clamps

9. SERVICE

Please contact the address on the back page.

100 –
80000

Art 4058-60 /
Art 4088-60

Art. 4089-20

14

de Produkthaftung

Wir weisen ausdrücklich darauf hin, dass wir in Übereinstimmung mit dem Produkthaftungsgesetz nicht für Schäden haften, die durch unsere
Produkte entstehen, wenn diese unsachgemäß und nicht durch einen von uns autorisierten Servicepartner repariert wurden oder wenn keine
Original GARDENA Teile oder von uns zugelassene Teile verwendet wurden.

en Product liability

In accordance with the German Product Liability Act, we hereby expressly declare that we accept no liability for damage incurred from our products
where said products have not been properly repaired by a GARDENA-approved service partner orwhere original GARDENA parts or parts authorised
by GARDENA were not used.

fr Responsabilité

Conformément à la loi relative à la responsabilité du fait des produits défectueux, nous déclarons expressément par la présente que nous déclinons
toute responsabilité pour les dommages résultant de nos produits, si lesdits produits n’ont pas été cor rectement réparés par un partenaire d’entre­tien agréé GARDENA ou si des pièces d’origine GARDENA ou des pièces agréées GARDENA n‘ont pas été utilisées.

nl Productaansprakelijkheid

Conform de Duitse wet inzake productaansprakelijkheid verklaren wij hierbij uitdrukkelijk dat wij geen aansprakelijkheid aanvaarden voor schade
ontstaan uit onze producten waarbij deze producten niet zijn gerepareerd door een GARDENA-erkende servicepartner of waarbij geen originele
GARDENA-onderdelen of onderdelen die door GARDENA zijn goedgekeurd zijn gebruikt.

sv Produktansvar

I enlighet med tyska produktansvarslagar förklarar vi härmed uttryckligen att vi inte åtar oss något ansvar för skador som orsakas av våra produkter
där produkterna inte har genomgått korrekt reparation från en GARDENA-godkänd servicepartner eller där originaldelar från GARDENA eller delar
godkända av GARDENA inte använts.

da Produktansvar

I overensstemmelse med den tyske produktansvarslov erklærer vi hermed udtrykkeligt, at vi ikke påtager os noget ansvar for skader på vores pro­dukter, hvis de pågældende produkter ikke er blevet repareret korrekt af en GARDENA-godkendt servicepartner, eller hvor der ikke er brugt originale
GARDENA-reservedele eller godkendte reservedele fra GARDENA.

fi Tuotevastuu

Saksan tuotevastuulain mukaisesti emme ole vastuussa laitteiden vaurioista, jos korjauksia ei ole tehnyt GARDENAn hyväksymä huoltoliike tai jos
niiden syynä on muiden kuin alkuperäisten GARDENA-varaosien tai GARDENAn hyväksymien varaosien käyttö.

it Responsabilità del prodotto

In conformità con la Legge tedesca sulla responsabilità del prodotto, con la presente dichiariamo espressamente che decliniamo qualsiasi responsa­bilità per danni causati dai nostri prodotti qualora non siano stati correttamente riparati presso un partner di assistenza approvato GARDENA o lad­dove non siano stati utilizzati ricambi originali o autorizzati GARDENA.

es Responsabilidad sobre el producto

De acuerdo con la Ley de responsabilidad sobre productos alemana, por la presente declaramos expresamente que no acep tamos ningún tipo de
responsabilidad por los daños ocasionados por nuestros productos si dichos productos no han sido r eparados por un socio de mantenimiento apro­bado por GARDENA o si no se han utilizado piezas originales GARDENA o piezas autorizadas por GARDENA.

pt Responsabilidade pelo produto

De acordo com a lei alemã de responsabilidade pelo produto, declaramos que não nos responsabilizamos por danos causadospelos nossos pro­dutos, caso os tais produtos não tenham sido devidamente reparados por um parceiro de assistência GARDENA aprovado ou se não tiverem sido
utilizadas peças GARDENA originais ou peças autorizadas pela GARDENA.

pl Odpowiedzialność za produkt

Zgodnie z niemiecką ustawą o odpowiedzialności za produkt, niniejszym wyraźnie oświadczamy, że nie ponosimy żadnej odpowiedzialności za szko­dy poniesione na skutek użytkowania naszych produktów, w przypadku gdy naprawa tych produktów nie była odpowiednio przeprowadzana przez
zatwierdzonego przez firmę GARDENA partnera serwisowego lub nie stosowano oryginalnych części GARDENA albo części autoryzowanych przez tę
firmę.

158

hu Termékszavatosság

A németországi termékszavatossági törvénnyel összhangban ezennel nyomatékosan kijelentjük, hogy nem vállalunk felelősséget a termékeinkben
keletkezett olyan károkért, amelyek valamely GARDENA által jóváhagyott szervizpartner által nem megfelelően végzett javításból adódtak, vagy
amely során nem eredeti GARDENA alkatrészeket vagy a GARDENA által jóváhagyott alkatrészeket használtak fel.

cs Odpovědnost za výrobek

Upozorňujeme na to, že v souladu se zákonem o odpovědnosti za škodu způsobenou vadným výrobkem neručíme za škody, které způsobily naše
produkty, pokud byly opraveny neodborně a ne námi autorizovaným servisním partnerem nebo pokud nebyly použity originální díly GARDENA nebo
námi schválené díly.

sk Zodpovednosť za produkt

V súlade s nemeckými právnymi predpismi upravujúcimi zodpovednosť za výrobok týmto výslovne prehlasujeme, že nenesieme žiadnu zodpovednosť
za škody spôsobené našimi výrobkami, v prípade ktorých neboli náležité opravy vykonané servisným partnerom schváleným spoločnosťou GARDENA
alebo neboli použité diely spoločnosti GARDENA alebo diely schválené spoločnosťou GARDENA.

el Ευθύνη προϊόντος

Σύμφωνα με τον γερμανικό νόμο περί Ευθύνης για τα Προϊόντα, με το παρόν δηλώνουμε ρητώς ότι δεν αποδεχόμαστε καμία ευθύνη για τυχόν ζημίες
που προκύπτουν από τα προϊόντα μας εάν αυτά δεν έχουν επισκευαστεί σωστά από κάποιον εγκεκριμένο συνεργάτη επισκευών της GARDENA ή εάν
δεν έχουν χρησιμοποιηθεί αυθεντικά εξαρτήματα GARDENA ή εξαρτήματα εγκεκριμένα από την GARDENA.

sl Odgovornost proizvajalca

V skladu z nemškimi zakoni o odgovornosti za izdelke,izrecno izjavljajo, da ne sprejemamo nobene odgovornosti za škodo, ki jo povzročijo naši
izdelki, če teh niso ustrezno popravili GARDENINI odobreni servisni partnerji ali pri tem niso bili uporabljeni originalni GARDENINI nadomestni deli
ali GARDENINIMI homologiranimi nadomestnimi deli.

hr Pouzdanost proizvoda

Sukladno njemačkom zakonu o pouzdanosti proizvoda, ovime izričito izjavljujemo kako ne prihvaćamo nikakvu odgovornost za oštećenja na
našim proizvodima nastala uslijed neispravnog popravka od strane servisnog partnera kojeg odobrava GARDENA ili uslijed nekorištenja originalnih
GARDENA dijelova ili dijelova koje odobrava GARDENA.

ro Răspunderea pentru produs

În conformitate cu Legea germană privind răspunderea pentru produs, declarăm în mod expres prin prezentul document că nu acceptăm nicio
răspundere pentru defecţiunile suferite de produsele noastre atunci când acestea nu au fost reparate în mod corect de un atelier de service parte­ner, aprobat de GARDENA, sau când nu au fost utilizate piese GARDENA originale sau piese autorizate de GARDENA.

bg Отговорност за вреди, причинени от стоки

Съгласно германския Закон за отговорността за вреди, причинени от стоки, с настоящото изрично декларираме, че не носим отговорност
за щети, причинени от нашите продукти, ако те не са били правилно ремонтирани от одобрен от GARDENA сервиз или ако не са използвани
оригинални части на GARDENA или части, одобрени от GARDENA.

et Tootevastutus

Vastavalt Saksamaa tootevastutusseadusele deklareerime käesolevaga selgesõnaliselt, et me ei kanna mingisugust vastutust meie toodetest tingitud
kahjude eest, kui need tooted ei ole korrektselt parandatud GARDENA heakskii detud hoolduspartneri poolt või kui parandamisel ei ole kasutatud
GARDENA originaalosi või GARDENA volitatud osi.

lt Gaminio patikimumas

Mes aiškiai pareiškiame, kad, atsižvelgiant į Vokietijos gaminių patikimumo įstatymą, neprisiimame atsakomybės dėl bet kokios žalos, patirtos dėl
mūsų gaminių, jeigu jie buvo netinkamai taisomi arba jų dalys buvo pakeistos neoriginaliomis GARDENA dalimis ar nepatvirtintomis dalimis, arba
jeigu remonto darbai buvo atliekami ne GARDENA techninės priežiūros centro specialistų.

lv Atbildība par produkcijas kvalitāti

Saskaņā ar Vācijas likumu par atbildību par produkcijas kvalitāti ar šo mēs paziņojam, ka neuzņemamies atbildību par bojājumiem, kas radušies,
lietojot mūsu izstrādājumus, kuru remontu nav veicis uzņēmuma GARDENA apstiprināts apkopes partneris vai kuru remontam netika izmantotas
oriģinālās GARDENA detaļas vai detaļas, kuru lietošanu apstiprinājis uzņēmums GARDENA.

159

de EU / UKCA-Konformitätserklärung

Hiermit erklärt die GARDENA Manufacturing GmbH, dass der Funkanlagentyp (Art. 15021) der Richtlinie 2014/53/EU entspricht.
Der vollständige Text der EU / UKCA-Konformitätserklärung ist unter folgender Internetadresse verfügbar:

http://www.gardena.com/int/support/safety-regulations

en EC / UKCA Declaration of Conformity

Hereby, GARDENA Manufacturing GmbH declares that the radio equipment type (Art. 15021) is in compliance with directive
2014/53/EU. The full text of the EC / UKCA declaration of conformity is available at the following internet address:

http://www.gardena.com/int/support/safety-regulations

fr Déclaration de conformité CE / UKCA

Par la présente, GARDENA Manufacturing GmbH déclare que le type d’installation radioélectrique (réf. 15021) est conforme
à la directive 2014/53/UE. Le texte intégral de la déclaration de conformité européenne / UKCA est disponible sur Internet
à l’adresse suivante : http://www.gardena.com/int/support/safety-regulations

nl EU / UKCA-conformiteitsverklaring

Hiermee verklaart GARDENA Manufacturing GmbH, dat het type radioapparatuur (Art. 15021) voldoet aan de richtlijn
2014/53/EU. De volledige tekst van de EU / UKCA-conformiteitsverklaring is beschikbaar op het volgende internetadres:

http://www.gardena.com/int/support/safety-regulations

sv EU / UKCA-försäkran om överensstämmelse

Härmed försäkrar GARDENA Manufacturing GmbH, att signalutrustningstypen (Art. 15021) uppfyller direktiv 2014/53/EU.
Den kompletta texten för EU / UKCA-försäkran om överensstämmelse finns på följande webbadress:

http://www.gardena.com/int/support/safety-regulations

da EU / UKCA-overensstemmelseserklæring

Hermed erklærer GARDENA Manufacturing GmbH, at det trådløse anlæg (varenr. 15021) er i overensstemmelse med direktivet
2014/53/EU. EU / UKCA-overensstemmelseserklæringens tekst findes i sin helhed på følgende internetadresse:

http://www.gardena.com/int/support/safety-regulations

fi EY / UKCA-vaatimustenmukaisuusvakuutus

GARDENA Manufacturing GmbH vakuuttaa täten, että radiolaitteistotyyppi (tuotenro 15021) vastaa direktiiviä 2014/53/EU.
EY / UKCA-vaatimustenmukaisuusvakuutuksen täydellinen teksti on saatavilla seuraavasta osoitteesta internetissä:

http://www.gardena.com/int/support/safety-regulations

it Dichiarazione di conformità UE / UKCA

GARDENA Manufacturing GmbH dichiara con la presente che la tipologia di apparecchiatura radio (art. 15021) è conforme alla
Direttiva 2014/53/UE. Il testo completo della dichiarazione di conformità UE / UKCA è disponibile al seguente indirizzo web:

http://www.gardena.com/int/support/safety-regulations

es Declaración de conformidad de la UE / UKCA

Con la presente, GARDENA Manufacturing GmbH declara que el tipo de equipo radioeléctrico (ref. 15021) corresponde a la
directiva 2014/53/UE. El texto completo de la Declaración de Conformidad de la UE / UKCA se puede consultar en la siguiente
dirección de Internet: http://www.gardena.com/int/support/safety-regulations

pt Declaração CE / UKCA de Conformidade

A GARDENA Manufacturing GmbH declara, por este meio, que o tipo de equipamento de rádio (n.º ref.15021) cumpre
a Diretiva 2014/53/UE. O texto na íntegra da declaração de conformidade UE / UKCA está disponível no seguinte endereço
na Internet: http://www.gardena.com/int/support/safety-regulations

pl Deklaracja zgodności UE / UKCA

GARDENA Manufacturing GmbH oświadcza, że typ urządzenia radiowego (art. 15021) jest zgodny z Dyrektywą 2014/53/UE.
Kompletny tekst deklaracji zgodności UE / UKCA jest dostępny pod adresem:

http://www.gardena.com/int/support/safety-regulations

160

hu EU / UKCA megfelelőségi nyilatkozat

A GARDENA Manufacturing GmbH ezennel kijelenti, hogy a rádióberendezés (cikksz. 15021) típusa megfelel a 2014/53/EU
irányelv előírásainak. Az EU / UKCA szabvány-megfelelési nyilatkozat teljes szövege a következő internet címen áll rendelkezésre:

http://www.gardena.com/int/support/safety-regulations

cs EU / UKCA prohlášení o shodě

Tímto prohlašuje GARDENA Manufacturing GmbH, že rádiová zařízení (č.v. 15021) odpovídají směrnici 2014/53/EU. Úplný text
EU / UKCA prohlášení o shodě je k dispozici na následující adrese:

http://www.gardena.com/int/support/safety-regulations

sk EÚ / UKCA vyhlásenie o zhode

Spoločnosť GARDENA Manufacturing GmbH týmto vyhlasuje, že typ rádiového zariadenia (č.v. 15021) je ve zhode so smerni­cou 2014/53/EÚ. Celý text EÚ / UKCA vyhlásenia o zhode nájdete na tejto internetovej adrese:

http://www.gardena.com/int/support/safety-regulations

el Δήλωση συμμόρφωσης ΕΕ / UKCA

Με το παρόν η GARDENA Manufacturing GmbH δηλώνει ότι ο τύπος του συστήματος ραδιοσυχνοτήτων (Κωδ. 15021)
πληροί τις απαιτήσεις της οδηγίας 2014/53/EΕ. Το πλήρες κείμενο της δήλωσης συμμόρφωσης ΕΕ / UKCA διατίθεται
στην παρακάτω ηλεκτρονική διεύθυνση: http://www.gardena.com/int/support/safety-regulations

sl Izjava EU / UKCA o skladnosti

Podjetje GARDENA Manufacturing GmbH izjavlja, da tip radijske naprave (art.-št.15021) ustreza Direktivi 2014/53/EU.
Celotno besedilo EU / UKCA-izjave o skladnosti je na voljo na naslednjem spletnem naslovu:

http://www.gardena.com/int/support/safety-regulations

hr EU / UKCA izjava o sukladnosti

Ovime tvrtka GARDENA Manufacturing GmbH izjavljuje da tip radijskog sustava (br. art. 15021) odgovara Direktivi 2014/53/EU.
Kompletan tekst EU / UKCA izjave o sukladnosti dostupan je na sljedećoj internetskoj stranici:

http://www.gardena.com/int/support/safety-regulations

ro Declaraţie de conformitate UE / UKCA

Prin prezenta GARDENA Manufacturing GmbH declară că tipul de echipament hertzian (art. 15021) corespunde
Directivei 2014/53/UE. Textul complet al Declaraţiei de conformitate UE / UKCA este disponibil la următoarea adresă de
Internet: http://www.gardena.com/int/support/safety-regulations

bg ЕС / UKCA-Декларация за съответствие

GARDENA Manufacturing GmbH декларира с настоящото, че типът радиооборудване (Арт. 15021) отговаря на
Директива 2014/53/ЕС. Пълният текст на ЕС / UKCA Декларацията за съответствие е на разположение на следния
интернет-адрес: http://www.gardena.com/int/support/safety-regulations

et EL / UKCA-i vastavusdeklaratsioon

Käesolevaga kinnitab GARDENA Manufacturing GmbH, et raadioseadmete tüüp (art 15021) vastab direktiivile 2014/53/EL.
EL / UKCA-i vastavusdeklaratsiooni täielik tekst on saadaval järgmiselt internetiaadressilt:

http://www.gardena.com/int/support/safety-regulations

lt ES / UKCA atitikties deklaracija

GARDENA Manufacturing GmbH patvirtina, kad radijo ryšio įrenginių tipas (gaminys 15021) atitinka Direktyvą 2014/53/ES.
Visą ES / UKCA atitikties deklaracijos tekstą galite rasti šiuo interneto adresu:

http://www.gardena.com/int/support/safety-regulations

lv ES / UKCA atbilstības deklarācija

Ar šo uzņēmums GARDENA Manufacturing GmbH deklarē, ka radioiekārtas tips (preces nr. 15021) atbilst Direktīvas 2014/53/ES
prasībām. ES / UKCA atbilstības deklarācijas teksta pilna versija ir pieejama šādā tīmekļa vietnē:

http://www.gardena.com/int/support/safety-regulations

161

Deutschland / Germany

GARDENA Manufacturing GmbH
Central Service
Hans-Lorenser-Straße 40
D-89079 Ulm
Produktfragen:
([phone]
Reparaturen:
([phone]
[email protected]
http://www.gardena.com

Albania

KRAFT SHPK
Autostrada Tirane-Durres
Km 7
1051 Tirane
Phone: [phone]
[email protected]

Argentina

ROBERTO C. RUMBO S.R.L.
Predio Norlog
Lote 7
Benavidez. ZC: 1621
Buenos Aires
[email protected]

Armenia

AES Systems LLC
Marshal Babajanyan Avenue 56/2
0022 Yerevan
Phone: [phone]
[email protected]

Australia

Husqvarna Australia Pty. Ltd.
Locked Bag 5
Central Coast BC
NSW 2252
Phone: (+ 61) (0) 2 4352 7400
[email protected]

Austria / Österreich

Husqvarna Austria GmbH
Industriezeile 36
4010 Linz
Tel.: [phone]
[email protected]

Azerbaijan

Proqres Xüsusi Firması
Aliyar Aliyev 212, Baku, Azerbaijan
Sales: [phone]
Aftersales: [phone]
www.progress-garden.az
[email protected]

164

Bahrain

M.H. Al-Mahroos
BUILDING 208, BLOCK 356,
ROAD 328
Salhiya
Phone: [phone]
[email protected]

Belarus / Беларусь

ООО «Мастер Гарден»
220118, г. Минск,
улица Шаранговича, дом 7а
Тел. [phone]
[email protected]

Belgium

Husqvarna Belgium nv
Gardena Division
Leuvensesteenweg 542
Planet II E
1930 Zaventem
België

Bosnia / Herzegovina

Silk Trade d.o.o.
Poslovna Zona Vila Br. 20
Phone: [phone]
[email protected]

Brazil

Nordtech Maquinas e Motores Ltd.
Avenida Juscelino Kubitschek de Oliveira
Curitiba
3003 Brazil
Phone: [phone]
[email protected]
www.nordtech.com.br

Bulgaria

AGROLAND България АД
бул. 8 Декември, № 13
Офис 5
1700 Студентски град
София
Тел.: [phone]
[email protected]

Canada / USA

GARDENA Canada Ltd.
100 Summerlea Road
Brampton, Ontario L6T 4X3
Phone: [phone]
[email protected]

Chile

REPRESENTACIONES JCE S.A.
2286 Avenida General Oscar Bonilla
Concepcion
Phone: (+ 56) 2 2414 2600
[email protected]

China

Husqvarna (Shanghai)
Management Co., Ltd.

富世华（上海）管理有限公司

3F, Benq Square B,
No207, Song Hong Rd.,
Chang Ning District,
Shanghai, PRC. 200335

上海市长宁区淞虹路207号明
基广场B座3楼, 邮编: 200335

Colombia

Equipos de Toyama Colombia SAS

o

Cra. 68 D N

25 B 86 Of. 618
Edificio Torre Central
Bogota
Phone: [phone]
[phone]
[email protected]
www.toyama.com.co

Costa Rica

Exim CIA Costa Rica
Calle 25A, B°. Montealegre
Zapote
San José
Costa Rica
Phone: [phone]
([phone]
[email protected]

Croatia

Husqvarna Austria GmbH
Industriezeile 36
4010 Linz
Phone: [phone]
[email protected]

Cyprus

Pantelis Papadopoulos S.A.
92 Athinon Avenue
Athens
10442 Greece
Phone: [phone]
[email protected]

Czech Republic

Gardena
Service Center Vrbno
c/o Husqvarna
Manufacturing CZ s.r.o.
Jesenická 146
79326 Vrbno pod Pradedem
Phone: [phone]
[email protected]

Denmark

GARDENA DANMARK
Lejrvej 19, st.
3500 Værløse
Tlf.: ([phone]
[email protected]
www.gardena.com / dk

Dominican Republic

BOSQUESA, S.R.L
Carretera Santiago Licey
Km. 5 ½
Esquina Copal II.
Santiago De Los Caballeros
51000 Dominican Republic
Phone: [phone]
[email protected]

Egypt

Universal Agencies Co
26, Abdel Hamid Lotfy St.
Giza
Phone: [phone]
https://gardeningegypt.com/
[email protected]

Estonia

Husqvarna Eesti OÜ
Valdeku 132
EE-11216 Tallinn
[email protected]

Finland

Oy Husqvarna Ab
Gardena Division
Lautatarhankatu 8 B / PL 3
00581 HELSINKI
www.gardena.fi

France

Husqvarna France
9/11 Allée des pierres mayettes
92635 Gennevilliers Cedex
France
http://www.gardena.com/fr
N° AZUR: 0 810 00 78 23
(Prix d’un appel local)

Georgia

Transporter LLC
#70, Beliashvili street
0159 Tbilisi, Georgia
Number: ([phone]
[email protected]
www.transporter.com.ge

Service Address and
Importer to Great Britain

Husqvarna UK Ltd
Preston Road
Aycliffe Industrial Park
Newton Aycliffe
County Durham
DL5 6UP
Phone: (+44) (0) 344 844 4558
[email protected]

Greece

Π.ΠΑΠΑΔΟΠΟΥΛΟΣ ΑΕΒΕ
Λεωφ. Αθηνών 92
Αθήνα
Τ.Κ.104 42
Ελλάδα
Τηλ. ([phone]
[email protected]

Hong Kong

Tung Tai Company
151-153 Hoi Bun Road
Kwun Tong, Kowloon
Hong Kong
Phone: [phone]
[email protected]

Hungary

Husqvarna Magyarország Kft.
Ezred u. 1 – 3
1044 Budapest
Phone: [phone]
[email protected]

Iceland

BYKO ehf.
Skemmuvegi 2a
200 Kópavogur
Phone: [phone]
[email protected]

MHG Verslun ehf
Víkurhvarf 8
203 Kópavogur
Phone: [phone]

India

B K RAMAN AND CO
Plot No. 185, Industrial Area,
Phase-2, Ram Darbar
Chandigarh
160002 India
Phone: [phone]
[email protected]

Iraq

Alshiemal Alakhdar Company
Al-Faysalieah, Near Estate Bank
Mosul
Phone: [phone]

Ireland

Liffey Distributors Ltd.
309 NW Business Park, Ballycoolen
15 Dublin
Phone: [phone]
[email protected]

Israel

HAGARIN LTD.
2 Nahal Harif St.
8122201 Yavne
[email protected]
Phone: [phone]

Italy

Husqvarna Italia S.p.A.
Via Santa Vecchia 15
23868 VALMADRERA (LC)
Phone: [phone]
[email protected]

Japan

Husqvarna Zenoah Co. Ltd. Japan
1-9 Minamidai, Kawagoe
350-1165 Saitama
Japan
[email protected]

Kazakhstan

ТОО „Ламэд“

Russian

Адрес: Казахстан, г. Алматы,
ул. Тажибаевой, 155/1
Тел.: (+7) (727) 355 64 00
(+7) (700) 355 64 00
[email protected]

Kazakh

Мекен-жайы: Қазақстан,
Алматы қ.,
көш. Тәжібаевой, 155/1
Тел.: (+7) (727) 355 64 00
(+7) (700) 355 64 00
[email protected]

Korea

Kyung Jin Trading Co., Ltd
107-4, Sunduk Bld, Yangjae-Dong
Seocho-Gu
137-891 Seoul
Phone: [phone]
[email protected]

Kuwait

Palms Agro Production Co
Al Rai- Fourth Ring Road – Block 56.
P.O Box: 1976 Safat
13020 Al-Rai
Phone: [phone]
[email protected]

Kyrgyzstan

OOsO Alye Maki
Av. Moladaya Guardia 83
720014 Bishkek
Phone: [phone]

Latvia

Husqvarna Latvija SIA
Ulbrokas 19A
LV-1021 Rīga
[email protected]

Lebanon

Technomec
Safra Highway (Beirut – Tripoli) Center
622 Mezher Bldg.
P.O.Box 215
Jounieh
Phone: [phone]
([phone]
[email protected]

Lithuania

UAB Husqvarna Lietuva
Ateities pl. 77C
LT-52104 Kaunas
[email protected]

Luxembourg

Magasins Jules Neuberg
39, rue Jacques Stas
Luxembourg-Gasperich 2549
Case Postale No. 12
Luxembourg 2010
Phone: [phone]
[email protected]

Malaysia

Glomedic International Sdn Bhd
Jalan Ruang No. 30
Shah Alam, Selangor
40150 Malaysia
Phone: [phone]
[email protected]

Malta

I.V. Portelli & Sons Ltd.
85, 86, Triq San Pawl
Rabat - RBT 1240
Phone: [phone]

Mauritius

Espace Maison Ltée
La City Trianon, St Jean
Quatre Bornes
Phone: [phone]
[email protected]

Mexico

AFOSA
Av. Lopez Mateos Sur # 5019
Col. La Calma 45070
Zapopan, Jalisco, Mexico
Phone: [phone]
[email protected]

Moldova

Convel SRL
Republica Moldova,
mun. Chisinau,
sos. Muncesti 284
Phone: [phone]
www.convel.md

Mongolia

Soyolj Gardening Shop
Narnii Rd
Ulaanbaatar
14230 Mongolia
Phone: [phone]
[email protected]

Morocco

Proekip
64 Rue de la Participation
Casablanca-Roches Noires
20303 Morocco
Phone: [phone]
[email protected]

Netherlands

Husqvarna Nederland B.V.
GARDENA Division
Postbus 50131
1305 AC ALMERE
Phone: [phone]
[email protected]

Neth. Antilles

Jonka Enterprises N.V.
Sta. Rosa Weg 196
P.O. Box 8200
Curaçao
Phone: [phone]
[email protected]

New Zealand

Husqvarna New Zealand Ltd.
PO Box 76-437
Manukau City 2241
Phone: (+64) (0) 9 9202410
[email protected]

North Macedonia

Sinpeks d.o.o.
Ul. Kravarski Pat Bb
7000 Bitola
Phone: [phone]
[email protected]

Norway

Husqvarna Norge AS
Gardena Division
Trøskenveien 36
1708 Sarpsborg
[email protected]

Northern Cyprus

Mediterranean Home & Garden
No 150 Alsancak, Karaoğlanoğlu
Caddesi
Girne
Phone: [phone]
[email protected]

165

Oman

General Development Services
PO 1475, PC - 111
Seeb
111 Oman
Phone: [phone]
[email protected]

Paraguay

Agrofield SRL
AV. CHOFERES DEL CHACO
1449 C / 25 DE MAYO
Asuncion
Phone: [phone]
[email protected]

Peru

Sierras y Herramientas
Forestal SAC
Av. Las Gaviotas 833, Chorrillos
Lima
Phone: [phone]
[email protected]
www.siersac.com

Philippines

Royal Dragon Traders Inc
10 Linaw Street, Barangay
Saint Peter
Quezon City
1114 Philippines
Phone: [phone]
[email protected]

Poland

Gardena Service Center Vrbno
c/o Husqvarna Manufacturing
CZ s.r.o.
Jesenická 146
79326 Vrbno pod Pradedem
Czech Republic
Phone: [phone]
[email protected]

Portugal

Husqvarna Portugal, SA
Lagoa - Albarraque
2635 - 595 Rio de Mouro
Phone: [phone]
Fax : [phone]
[email protected]

Romania

Madex International Srl
Soseaua Odaii 117 - 123,
RO 013603 Bucureşti, S1
Phone: [phone]
[email protected]

166

Russia / Россия

ООО „Хускварна“
141400, Московская обл.,
г. Химки,
улица Ленинградская,
владение 39, стр.6
Бизнес Центр
„Химки Бизнес Парк“,
помещение ОВ02_04
http://www.gardena.ru

Saudi Arabia

SACO
Takhassusi Main Road P.O.
Box: 86387
Riyadh 12863
40011 Saudi Arabia
Phone: [phone]
[email protected]

Serbia

Domel d.o.o.
Slobodana Đurića 21
11000 Belgrade
Phone: [phone]
[email protected]

Singapore

Hy-Ray PRIVATE LIMITED
40 Jalan Pemimpin
#02-08 Tat Ann Building
Singapore 577185
Phone: [phone]
[email protected]

Slovak Republic

Gardena
Service Center Vrbno
c/o Husqvarna
Manufacturing CZ s.r.o.
Jesenická 146
79326 Vrbno pod Pradedem
Phone: [phone]
[email protected]

Slovenia

Husqvarna Austria GmbH
Industriezeile 36
4010 Linz
Phone: [phone]
service.gardena@husqvarna­group.com

South Africa

Husqvarna South Africa (Pty) Ltd
Lifestyle Business Park – Ground
Floor Block A
Cnr Beyers Naude Drive and
Ysterhout Road
Randpark Ridge, Randburg
Phone: [phone]
[email protected]

Spain

Husqvarna España S.A.
Calle de Rivas nº 10
28052 Madrid
Phone: [phone]
[email protected]

Sri Lanka

Hunter & Company Ltd.
130 Front Street
Colombo
Phone: [phone]
[email protected]

Suriname

Deto Handelmaatschappij N.V.
Kernkampweg 72-74
P.O. Box: 12782
Paramaribo
Suriname
Phone: [phone]
[email protected]

Sweden

Husqvarna AB /
GARDENA Sverige
Drottninggatan 2
561 82 Huskvarna
Sverige
Phone: (+46) (0) 36-14 60 02
[email protected]

Switzerland / Schweiz

Husqvarna Schweiz AG
Consumer Products
Industriestrasse 10
5506 Mägenwil
Phone: (+ 41) (0) 62 887 37 90
[email protected]

Taiwan

Hong Ying Trading Co.,Ltd.
No. 46 Wu-Kun-Wu Road
New Taipei City
Phone: (+886) [phone]
[email protected]

Tajikistan

ARIERS JV LLC
39, Ayni Street, 734024
Dushanbe, Tajikistan

Thailand

Spica Co. Ltd
243/2 Onnuch Rd., Prawat
Bangkok
10250 Thailand
Phone: (+66) (0)2721 7373
[email protected]

Tunisia

Société du matériel agricole et
maritime
Nouveau port de peche de
Sfax Bp 33
Sfax 3065, Tunisia
www.smamtunisia.com
Soulaymen Majdoub
[email protected]

Turkey

Dost Bahçe
Yunus Mah. Adil Sk. No:3
Kartal
Istanbul
34873 Turkey
Phone: [phone]
[email protected]
www.dostbahce.com.tr

Turkmenistan

I.E. Orazmuhammedov
Nurmuhammet
80 Ataturk, BERKARAR Shopping
Center,
Ground floor, A77b,
Ashgabat 744000
TURKMENISTAN
Phone: [phone]
Mob: [phone]
[email protected] /
[email protected]
www.jayhyzmat.com

UAE

Al-Futtaim ACE Company
L.L.C Building, Al Rebat Street
Festival City, Dubai
7880 UAE
Phone: [phone]
[email protected]

Ukraine / Україна

АТ «Альцест»
вул Петропавлівська 4
08130, Київська обл. Києво­Святошинський
р-н. с. Петропавлівська
Борщагівка
Україна
Тел.: [phone]

Uruguay

FELI SA
Entre Ríos 1083
11800 Montevideo
Phone: [phone]
[email protected]

Uzbekistan

AGROHOUSE MChJ
O’zbekiston, 111112
Toshkent viloyati
Toshkent tumani
Hasanboy QFY, THAY yoqasida
Phone:

([phone]
([phone]
[email protected]
www.agro.house

Vietnam

Vision Joint Stock Company
No. 09, Lot E2/D21, Ton That
Thuyet Street, Dich Vong Hau
Commune
Cau Giay District, Hanoi
Phone: [phone]
[email protected]

Zimbabwe

Cutting Edge
159 Citroen Rd, Msasa
Harare
Phone: [phone]
[email protected]

15021-20.960.04/1122
© GARDENA Manufacturing GmbH
D-89079 Ulm
http://www.gardena.com
