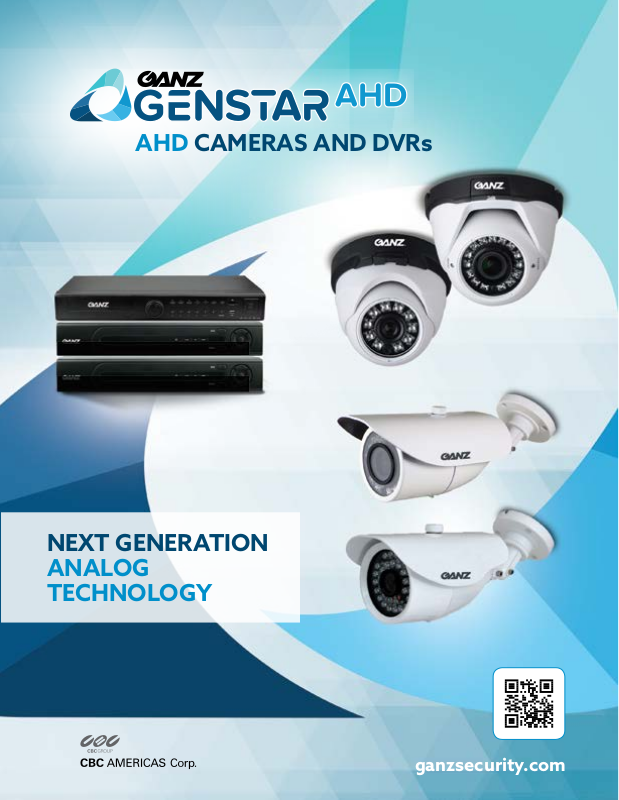

AHD CAMERAS AND DVRs
NEXT GENERATION
ANALOG
TECHNOLOGY
ganzsecurity.com
HIGH DEFINITION.
LOWER COST OF OWNERSHIP.
The Ganz GENSTAR AHD Series is a full line of
AHD cameras and recording devices that includes
compact bullet and dome cameras. GENSTAR
AHD high-definition cameras use coax cable
AHD DVRs
Features:
>
AHD 1080p recording
>
Supports 960H analog, AHD
access
>
VGA and HDMI Full HD output
>
P2P Alarm event push
for HD video to DVRs for 1080p recording. They
are as simple to install and maintain as traditional
analog solutions. They are capable of delivering
1080p HD video – capturing more than 4x the
resolution of the most powerful analog cameras.
The GENSTAR AHD DVRs are available in 4, 8 and
16 channels with up to 4TB of internal storage.
AHD Cameras
Features:
>
1080p HD resolution: True Day/Night,
Defog, Digital WDR, Advanced signal
>
Supports 12 languages
>
Web CMS
>
HDD options available up to
4TB (8 and 16 Channel)
filtering, 3D noise reduction
>
Long range transmission distance: max.
300 meters over traditional 75-5
coaxial cable
>
No video latency: Uncompressed video,
real time transmitting
>
Easy to install: Support OSD menu,
easy to operate and install
Z8-N4NFN4AN
1080p Outdoor IR Bullet,
3.6mm lens,
30 IR LEDs
DRH8-4M41-A
DRH8-8M41-A
DRH8-16M44-A
1080p AHD
4 Channel DVR
1080p AHD
8 Channel DVR
1080p AHD
16 Channel DVR
Z8-N4NVF56AN
1080p Outdoor IR Bullet,
2.8-12mm lens,
36 IR LEDs
Z8-M4NTFN4LAN
1080p Outdoor IR Dome,
3.6mm lens,
24 IR LEDs
Z8-D4NTVF56LAN
1080p Outdoor IR Dome,
w/2.8-12mm lens,
36 IR LEDs
Camera
Specifications
Indoor / Outdoor Outdoor 3.6mm Bullet Outdoor 2.8-12mm Bullet Outdoor 3.6mm IR D ome Outdoor 2.8-12mm IR Dome
WDR Performance Defog DWDR Defog DWDR
Day / Night True Day Night True Day Night
Image Sensor 1/3" Sony CMOS 1/3" Sony CMOS
Effective Pixels 1920 (H) x 1080 (V) 1920 (H) x 1080 (V)
Horizontal Resolution 1080p 1080p
Minimum Illumination 0.001 Lux (Color, F1.2, AGC on), 0 Lux (IR on) 0.001 Lux (Color, F1.2, AGC on), 0 Lux
TV System NTSC NTSC
Video Output 1 Ch HDVI HD 1 Ch HDVI HD
S/N Ratio More than 48db (AGC Off) More than 48db (AGC Off)
Sync System Internal Internal
Len s /FoV 3.6mm, 75° FoV 2.8mm - 12mm, 89° - 35° FoV 3.6mm, 75° FoV 2.8mm - 12mm, 89° - 35° FoV
IR Illumination 30 IR LEDs - 66‘ / 20m range
Interfaces BNC BNC
DNR 2/3DNR 2/3DNR
Angle of V iew 75° FoV 89° - 35° FoV 75° FoV 89° - 35° FoV
Electronic Shutter 1/25s ~ 1/500,000s 1/25s ~ 1/500,000s
BLC (Backlight Compensation) BLC/HLC /OFF BLC/HLC/OFF
White Balance ATW/AWC-SET/Indoor/Outdoor/MANUAL ATW/AWC-SET/Indoor/Outdoor/MANUAL
Power Supply 12 VDC 12 VDC
Power Cons umptio n 335mA max. 375mA max. 375mA max. 335mA max.
Operating Temperature 14° F - 131° F / -10° C - 55° C 14°F - 131° F / -10° C - 55° C
IP Rating IP66 IP66
External Dimensions
Weigh t 0.8 lbs / 350g 1.2 lbs / 550g 0.7 lbs / 300g 1.2 lbs / 550g
Max. Distance Video 984‘ / 300m (75-5 Coa xial cable) 984‘ / 300m (75-5 Coax ial cab le)
Housing Aluminium Aluminium
Certifications IP66, CE, FCC, RoHS, WEEE IP66, CE, FCC, RoHS, WEEE
Z8-N4NFN4AN Z8-N4NVF56AN Z8-M4NTFN4LAN Z8-D4NTVF56LAN
36 IR LEDs - 82-115‘ / 25 -35m range
2.7 x 2.6 x 6.7 (in) / 69 x 65 x 170 3.8 x 3.3 x 9.0 (in) / 97 x 84 x 228
24 IR LEDs - 49‘ / 15m ra nge 36 IR LEDs - 82-115‘ / 25 -35m range
4.2 (Ø) x 3.8 x 3.1 (in) / 106 (Ø) × 96 × 78
5.2 (Ø) x 5.7 x 4.0 (in) / 133 (Ø) x 145 x 102
DVR
Specifications
Video standard
Compression format
Video input
Monitor output
Audio input
Audio output
Alarm input
Alarm output
Operating system
Hard disk quantity
Recording format
Recording rate
Playback
Events
Movement sensor
Interfaces
Access authorization
Operating voltage
Operating Temperature
Dimensions (W × H × D)
DRH8 -4M41-A DRH8-8M41-A DRH8-16M44 -A
NTSC
H.264
4 x BNC 8 x BNC 16 x BNC
HDMI / VGA
4 x RCA 16 x RCA
1
- 16
- 4
Linux
1 (max. 4TB/HDD, optional) 4 (max. 4TB/HDD,
Continous / Motion / Alarm
12fps @ 1080p
Up to 4 Channels simultanous Up to 8 Channels simultanous Up to 8 Channels
Motion / Video loss / External Alarm
Yes
1 x 10/100 BaseT, 2 x USB 1 x 10/100 BaseT, 2 x USB, RS485/232
Configurable
12VDC / 4A 12VDC / 6A
32° F - 104° F / -0° C - 40° C
13.8“ x 11.6“ x 1.8“ 17.3“ x 15.8“ x 2.4“
optional)
simultanous
32° F - 104° F / -0° C - 40° C
Corporate Headquarters
Tel: +1-919-230-8700
West Coast Office
Tel: +1-310-222-8600
Mexico City Office
Tel: +52 55 5280 4660
ganzsecurity.com ©2017 CBC AMERICAS Corp. All Rights Reserved 03/17
