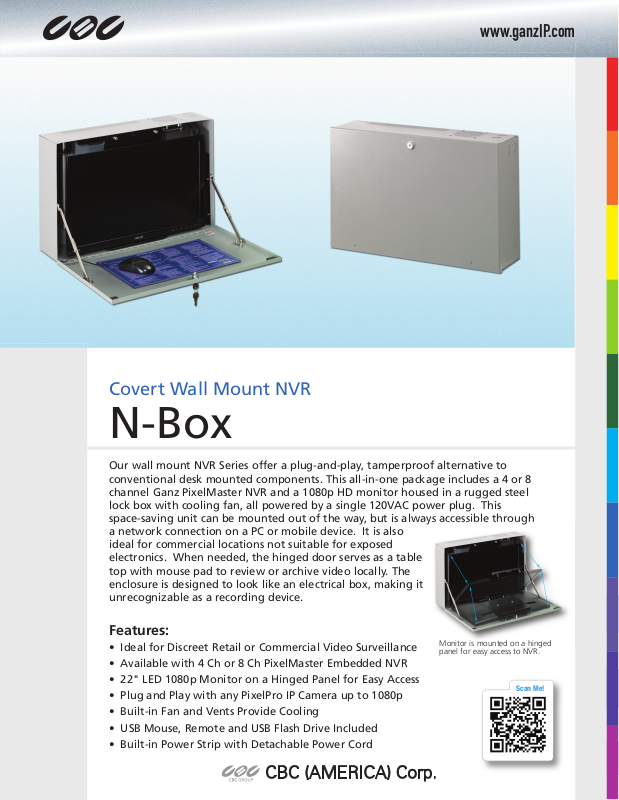

Ganz N8LWM-2TB Specsheet

www.ganzIP.com

Covert Wall Mount NVR

N-Box

Our wall mount NVR Series offer a plug-and-play, tamperproof alternative to
conventional desk mounted components. This all-in-one package includes a 4 or 8
channel Ganz PixelMaster NVR and a 1080p HD monitor housed in a rugged steel
lock box with cooling fan, all powered by a single 120VAC power plug. This
space-saving unit can be mounted out of the way, but is always accessible through
a network connection on a PC or mobile device. It is also
ideal for commercial locations not suitable for exposed
electronics. When needed, the hinged door serves as a table
top with mouse pad to review or archive video locally. The
enclosure is designed to look like an electrical box, making it
unrecognizable as a recording device.

Features:

• Ideal for Discreet Retail or Commercial Video Surveillance

• Available with 4 Ch or 8 Ch PixelMaster Embedded NVR

• 22" LED 1080p Monitor on a Hinged Panel for Easy Access

• Plug and Play with any PixelPro IP Camera up to 1080p

• Built-in Fan and Vents Provide Cooling

• USB Mouse, Remote and USB Flash Drive Included

• Built-in Power Strip with Detachable Power Cord

Monitor is mounted on a hinged
panel for easy access to NVR.

Scan Me!

www.ganzIP.com

N- Box Covert Wall Mount NVR

4 Ch or 8 Ch Ganz PixelMaster
Embedded NVR

Cooling Fans

Pre-drilled holes for wall

mounting (16” width)
Easy archiving with
USB Port Extemder

Single 120VAC power connection

with on/off switch

Hinged door with key lock

 N-Box Models

N-Box Model N4LWM-2TB N8LWM-2TB
Embedded NVR 4 Ch NVR 8 Ch NVR
HDD (1 additional HDD can be added) 2TB 2TB
Fans 115V
Power Strip 120VAC (Single unit powers all internal components)
Lock Box Construction Steel with powder coat finish
Mounting 4 Pre-drilled holes for wall mounting (16” width for stud mounting)
Dimensions 23.5”x 15” x 15.8”
Weight 37 lbs (42 lbs with packing)

It is recommended the NVR be wall mounted at either a desk or counter height so that the monitor can be viewed at eye level with comfortable

operation of the USB mouse from a sitting or standing position. The components inside the unit are finished products and are easily interchangeable if needed.

 Embedded NVR Specifications

• 1080p recording, efficient H.264 compression

• Video access via web & mobile devices

• Built-in PoE switching HUB

• Automatic router port forwarding

• Full HD GUI

• Monitoring for fan failure & temperature

• HDD failure notification

• Plug & Play PixelPro IP cameras with no configuration required

N-Box Model N4LWM-2TB N8LWM-2TB

Ganz PixelMaster NR4HL-2TB NR8HL-2TB

Channels / HDD 4 channel, 2TB HDD 8 channel, 2TB HDD
Display HD 1080p 120 FPS HD 1080p 240 FPS

Embedded NVR

Input 4 IP Camera (max 1080p) 8 IP Camera (max 1080p)
Recording Speed up to 30 FPS at 1080p
Recording Resolution 1080p, 720p, 704x480, 352x240
Power 12V Adaptor for NVR, 48V Adaptor for PoE
Power Consumption 20W (without HDD)

See the Ganz PixelMaster Embedded NVR specifications for more detailed product information.

 Monitor Specifications

N-Box Model N4LWM-2TB N8LWM-2TB

Monitor Model LED-22
Size 22”

1080p LED Monitor

Resolution 1920 X 1080 @ 60Hz
Inputs HDMI, DVI, AV Audio (HDMI)
Power 12VDC/100-240VAC, 50/60Hz
Power Consumption Power on < 36W / Power Saving Mode < 0.5W

See the LED-22 specifications for more detailed product information.

All specifications are subject to change without notice
