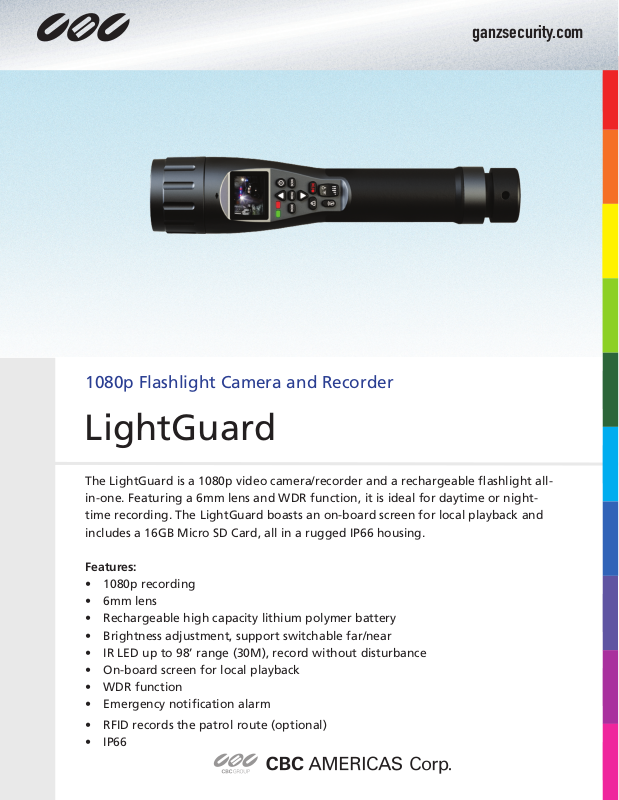

1080p Flashlight Camera and Recorder

LightGuard

The LightGuard is a 1080p video camera/recorder and a rechargeable fl ashlight all­in-one. Featuring a 6mm lens and WDR function, it is ideal for daytime or night­time recording. The LightGuard boasts an on-board screen for local playback and
includes a 16GB Micro SD Card, all in a rugged IP66 housing.

Features:

• 1080p recording

• 6mm lens

• Rechargeable high capacity lithium polymer battery

• Brightness adjustment, support switchable far/near

• IR LED up to 98’ range (30M), record without disturbance

• On-board screen for local playback

Devices

Network Video

• WDR function

• Emergency notifi cation alarm

• RFID records the patrol route (optional)

• IP66

ganzsecurity.com

LightGuard 1080p Flashlight Camera and Recorder

Model HS-DV3200

Sensor

Display

Lens

Illuminance

Audio Microphone Yes

Recording

Interface

Image Sensor CMOS

Effective Pixels 2034 x 1296 Pixels

Panel Size 1.5” TFT-LCD Color View Screen with Ploycarbonate Lens

Panel Resolution 320 x 240 Pixels

Zoom control 1 ~ 4X; can be applied to photos & to video clips “on the fly” during recording.

Lens Angle 60°

Working Distance 2.4”(60mm) to infinity

Lens Type 6 mm

Illuminance 0 LUX

LED Lighting LED x 2 (Used separately or illuminate camera’s field of view)

IR Lighting IR LED x 1

Brightness 950 and 1,500 lumens at 60%, and 100% power @ 1M distance

Video Format MOV (1 hour = 5.8GB File Size)

Picture Format / Compression jpg / H.264

Time-stamped Photos and video clips

Video Resolution HD - 1920 x 1080 / 1280 x 720 pixels or 848 x 480 / 640 x 480 pixels @ 30FPS

12M (4032 x 3024), 10M (3648 x 2736), 8M (3264 x 2448), 5M (2592 x 1944),

Image Size

Playback Instant Playback

AV OUT Interface ø3.5mm Phone jack

USB Interface Micro USB (Easy transfer of data to PC)

Storage Maximum 32GB TF card supported

Alarm Buzzer

RFID Reader 125KHz (Optional)

3M (2048 x 1536), 2MHD (1920 x 1080), 1.3M (1280 x 720),

or VGA (640 x 480)

Languages Supported

Environment Temperature 32° ~ 104°F (0° ~ 40°C) operating / 32° ~ 104°F (0° ~ 40°C) storage

Battery 3.7V 5000mAh Lithium ion battery (charger not included)

Electrical

Physical

Battery Life

Dimensions

Weight 1.4 lbs (630g) with battery

Material

Weatherproof Entire unit is IP66 waterproof

Drop Tested 1m

Includes Battery, USB Cable, 16GB Micro SD Memory Card

Anodized military-grade aerospace aluminum housing, with knurled non-slip grip

English, Spanish, Portuguese, French, German, Italian, Russian,

Traditional Chinese, Simplified Chinese, Japanese

2 hours @ 1,500 lumens, 4 hours @ 950 lumens while recording,

5 hours recording only

ø) x 11.1” (L) / 60.5mm (ø) x 283mm (L)

2.3” (

and rubber overmold

Specifications are subject to change without notice.
