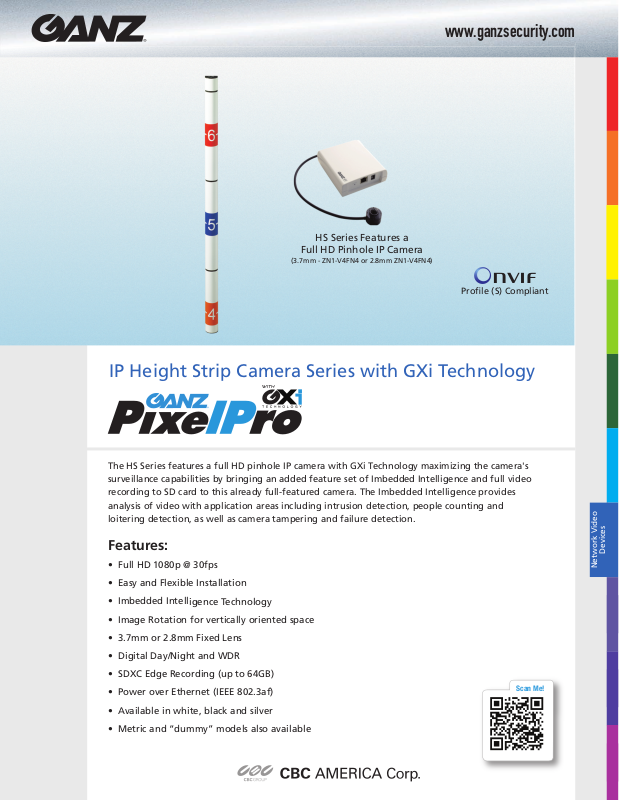

Ganz HSB-MD Specsheet
HS Series Features a
Full HD Pinhole IP Camera
(3.7mm - ZN1-V4FN4 or 2.8mm ZN1-V4FN4)
www.ganzsecurity.com
Profile (S) Compliant
IP Height Strip Camera Series with GXi Technology
The HS Series features a full HD pinhole IP camera with GXi Technology maximizing the camera's
surveillance capabilities by bringing an added feature set of Imbedded Intelligence and full video
recording to SD card to this already full-featured camera. The Imbedded Intelligence provides
analysis of video with application areas including intrusion detection, people counting and
loitering detection, a
Features:
• Full HD 1080p @ 30fps
• Easy and Flexible Installation
• Imbedded Intelligence Technology
• Image Rotation for vertically oriented space
• 3.7mm or 2.8mm Fixed Lens
• Digital Day/Night and WDR
s well as camera tampering and failure detection.
Devices
Network Video
• SDXC Edge Recording (up to 64GB)
• Power over Ethernet (IEEE 802.3af)
• Available in white, black and silver
• Metric and “dummy” models a
lso available
Scan Me!
www.ganzsecurity.com
MODEL HSW-H 28-4 HSW-H 37-4
Pinehole
Camera Module
Image Sensor 1/3” 10 80p CMOS
Effective Pixels 1920 x 1080
Scanning System Progressive scanning
AGC control Auto
Minimum Illumination Color: 1.0 lux / BW: 0.007 lux (DSS ON) Color: 1.4 lux / BW: 0.01 lux (DSS ON)
Lens 2.8mm , F2. 0 3.7mm , F2.5
Field of View
Horizontal: Approx. 82°
Vertical: Approx. 43°
Horizontal: Approx. 63°
Vertical: Approx. 33°
Day & Night Performance Digital Day & Night
WDR Digital WDR
DNR (Digital Noise Reduction) Supported
DSS (Digital Slow Shutter) 2X ~ 16X
White Balance ATW / Manual
BLC On (possible to designate zone) / Off
DC auto Iris
Supported
IR LEDs -
Video
Compression Format H.264 Baseline, Main, High profile (MPEG-4 Part 10 / AVC ), MJPEG (Motion JPEG)
Number of Streams
D
ual Stream, Configurable streams in H.264, MJPEG
H.264: Controllable frame rate, bandwidth (VBR/CBR)
MJPEG: Controllable frame rate, JPEG quality
Resolutions 1920 x 1080, 1280 x 720, 1120 x 630, 960 x 540, 800 x 450, 640 x 360, 480 x 270, 320 x 18 0
Frame rate
H.264: Max 30fps in all resolution
MJPEG: Max 30fps in all resolution
Motion Detection Supported
Text Overlay -
Analog Output Time stamp and text caption overlay
Audio
Input -
Output -
Compression Format -
Function
DI 1 Channel
DO 1 Channel
RS-485 -
Network 10 / 100 Base-T
Protocol
QoS Layer 3 DiffSer v, TCP/IP, UDP/IP, HTTP, HTTPS, RTSP, RTCP, RTP/UDP, RTP/TCP, mDNS,
UPnP™, SMTP, DHCP, DNS, D ynDNS, NTP, SNMPv1/v2c/v3(MIBII), IGMP, ICMP, SSLv2/v3, TL Sv1
USB 2.0 -
SD Memory Card Slot microSD slot (up to 6 4GB)
Electrical
Power Source 12VDC , PoE
Power Over Ethernet Supported (IEEE 802.3af)
Power Consumption
(Approx.)3W @ 12VDC
Environmental
Operating Tem perature
(Not including cold start)
0°C ~ 40°C (32°F ~ 122°F )
Operating Humidity Humidity up to 90% RH (non-condensing)
Mechanical
Dimensions
1.7” W x 1.4” D x 34.1” H
Weight (approx)
2 lbs. / 907g
Certifications
OnVIF Compliant (Profile S), FCC, CE
Colors Standard color white (HSW-Hxx). Also available in black (HSB-Hxx) and silver (HSS-Hxx)
Additional models
Metric models - HSx-Mxx-4, Dummy models - HSx-MD (x=color, xx=lens)
IP Height Strip Camera with GXi Technology
Specifications
All specifications are subject to change without notice
www.ganzsecurity.com © 2014 CBC (AMERICA) Corp. All Rights Reserved. 07/14
