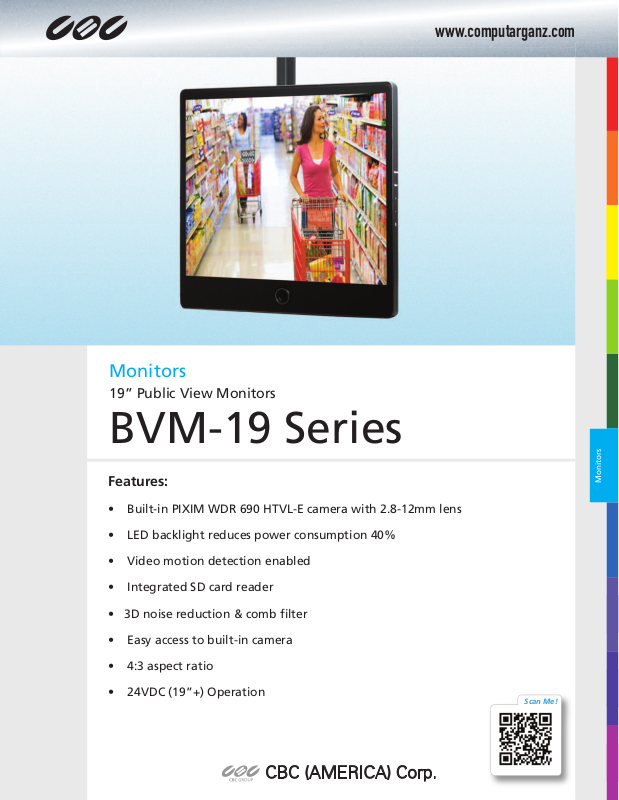

Ganz BVM-19W-B Specsheet
www.computarganz.com
Monitors
19” Public View Monitors
BVM-19 Series
Features:
• Built-in PIXIM WDR 690 HTVL-E camera with 2.8-12mm lens
• LED backlight reduces power consumption 40%
• Video motion detection enabled
• Integrated SD card reader
• 3D noise reduction & comb filter
• Easy access to built-in camera
Monitors
• 4:3 aspect ratio
• 24VDC (19”+) Operation
Scan Me!
www.computarganz.com
BVM-19 Series
Input Panel (Cover Removed)
Input Panel (Cover Removed)
Camera Compartment (Door Open)
19” Public View Monitors
Specifications
Models: BVM-19W-B (Black) BVM-19W-W (White)
Screen Size 19"LED
Resolution 1280 x 1024
Brightness 300 cd / m2
Contrast 1000:1
Aspect Ratio 4:3
Viewing Angle (H/V) 170º / 170º
Response Time 5ms
Video System NTSC / PAL auto detection & OSD control
Inputs 1 BNC, VGA, HDMI, S-Video, Audio (3.5mm), SD Card
Outputs 2 BNC (loop out, camera out), Audio (RCA R/L)
3D Noise Reduction Yes
3D Comb Filter Yes
Onboard Speakers 2 x 3W
PIP / POP Option Included
Mounting VESA 100 x 100mm
Power / Consumption 24VDC / <25W
Weight 10.5lbs (4.75kg)
Dimensions 15.0"H x 15.9"W x 1.8"D (382mm H x 404mm W x 46mm D)
Camera: PIXIM WDR
Sensor 1/3” DPS Sensor
Focal Length 2.8-12mm
Resolution 690 HTVL-E
Minimum Illumination 0.1 lux
S/N Ratio >50 dB (AGC Off)
WDR Control Normal, Low, Medium, High
BLC On / Off
AGC Normal, Low, High
White Balance AWB (2200-10000K)
SYNC Mode Internal
All specifications are subject to change without notice
www.ganzsecurity.com © 2014 CBC (AMERICA) Corp. All Rights Reserved. 09/14
