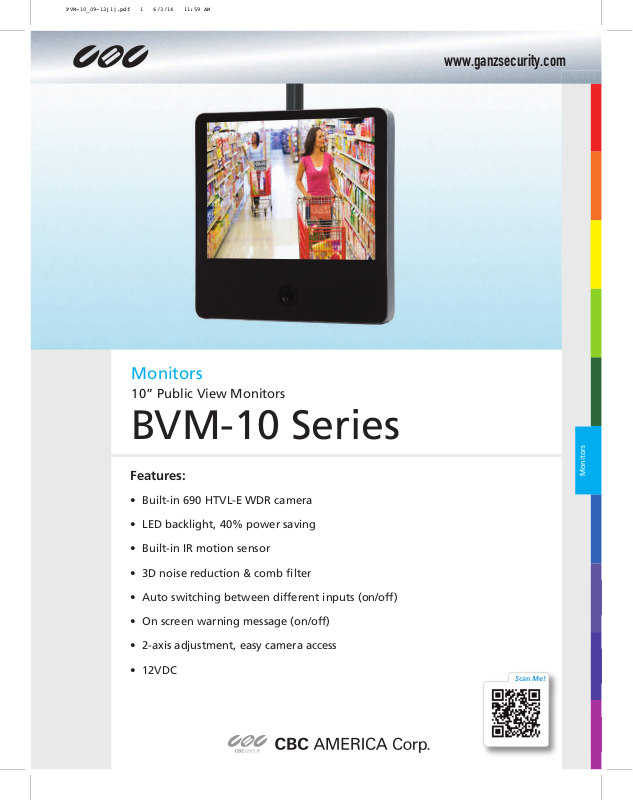

Ganz BVM-10W-B Specsheet

www.ganzsecurity.com

Monitors

10” Public View Monitors

BVM-10 Series

Features:

• Built-in 690 HTVL-E WDR camera

• LED backlight, 40% power saving

• Built-in IR motion sensor

• 3D noise reduction & comb filter

• Auto switching between different inputs (on/off)

• On screen warning message (on/off)

Monitors

• 2-axis adjustment, easy camera access

• 12VDC

Scan Me!

www.ganzsecurity.com

BVM-10 Series

Shown with tilt/swivel mount

(sold separately)

10” Public View Monitors

Monitor Back

Specifications

Models: BVM-10W-B (Black) BVM-10W-W (White) BVM-10W-S (Silver)

Screen Size 10.4"LED

Resolution 800 x 600

Brightness 300 cd / m2

Contrast 500:1

Aspect Ratio 4:3

Viewing Angle (H/V) 140º / 130º

Response Time 8ms

Video System NTSC / PAL auto detection & OSD control

Inputs VGA, SD Card

Outputs 1 BNC (camera)

3D Noise Reduction Yes

3D Comb Filter Yes

Onboard Speakers 1 x 2W

PIP / POP Option Included

Mounting VESA 75 x 75mm

Power / Consumption 12VDC / <15W

Weight 4.2lbs (1.9kg)

Dimensions 9.5"H x 9.5"W x 1.6"D (242mm H x 242mm W x 40mm D)

Camera: PIXIM WDR

Sensor 1/3” DPS Sensor

Focal Length 2.8-12mm

Resolution 690 HTVL-E

Minimum Illumination 0.1 lux

S/N Ratio >50 dB (AGC Off)

WDR Control Normal, Low, Medium, High

BLC On / Off

AGC Normal, Low, High

White Balance AWB (2200-10000K)

SYNC Mode Internal

All specifications are subject to change without notice
