Gamma Chu-Chu-Train Instruction Manual
INSTRUCTION MANUAL
ИНСТРУКЦИЯ ПОЛЬЗОВАТЕЛЯ
ІНСТРУКЦІЯ КОРИСТУВАЧА
COMPRESSOR NEBULIZER SYSTEM
модель Chu-Chu-Train
2
www.gamma-medica.com.ua3www.gamma-medica.com.ua
NEBULIZER
Aerosol Therapy System
INSTRU CTION MANUAL
Thank you for choosing our Nebulizer Gamma® designed to carry out aerosol therapy of acute and
chronic diseases of upper and lower respiratory passages. This device allows for easy and eective
transportation of big medicine doses directly to the disease centre.
We are sure that having appraised worthily the high quality and reliability of this device you will
become a regular user of the products of Gamma Trade Mark.
Before starting to use the nebulizer system please study the instruction manual carefully. The instruction manual oers all information you need to correctly carry out aerosol therapy.
ATTENTION
Please use only those medicines that were prescribed to you by your doctor, DO NOT execute selftreatment and DO NOT change the methods prescribed without consulting your doctor.
CONTENT
1. COMPONE NTS AND DESC RIPTION OF YOUR NE BULIZER SYST EM
MODEL C HUCHUTR AIN
2. GETT ING READY FOR U SAGE
2.1. ASSEM BLING THE DEVI CE
2.2. REPLAC EMENT OF FILTER
3. CARRYI NG OUT AEROSO L THE RAPY
4. CLEAN ING AND DISI NFECTION
5. POSSI BLE PROBLEM S AND HOW TO SOLVE THEM
6. TECHNIC AL SPECIFIC ATIONS
7. WARRANTEE
8. WHAT IS NEBUL IZING THERAPY
4
www.gamma-medica.com.ua5www.gamma-medica.com.ua
1. COMPONE NTS AND DESC RIPTION OF YOUR NE BULIZER MOD EL CHUCHU TRAIN
Your nebulizer sytem includes compressor unit Chu-Chu-Train, power cord, PVC tubing, mouthpiece, jet nebulizer, 3 air lters, adult mask, pediatric mask, Instruction Book, guarantee card, packing.

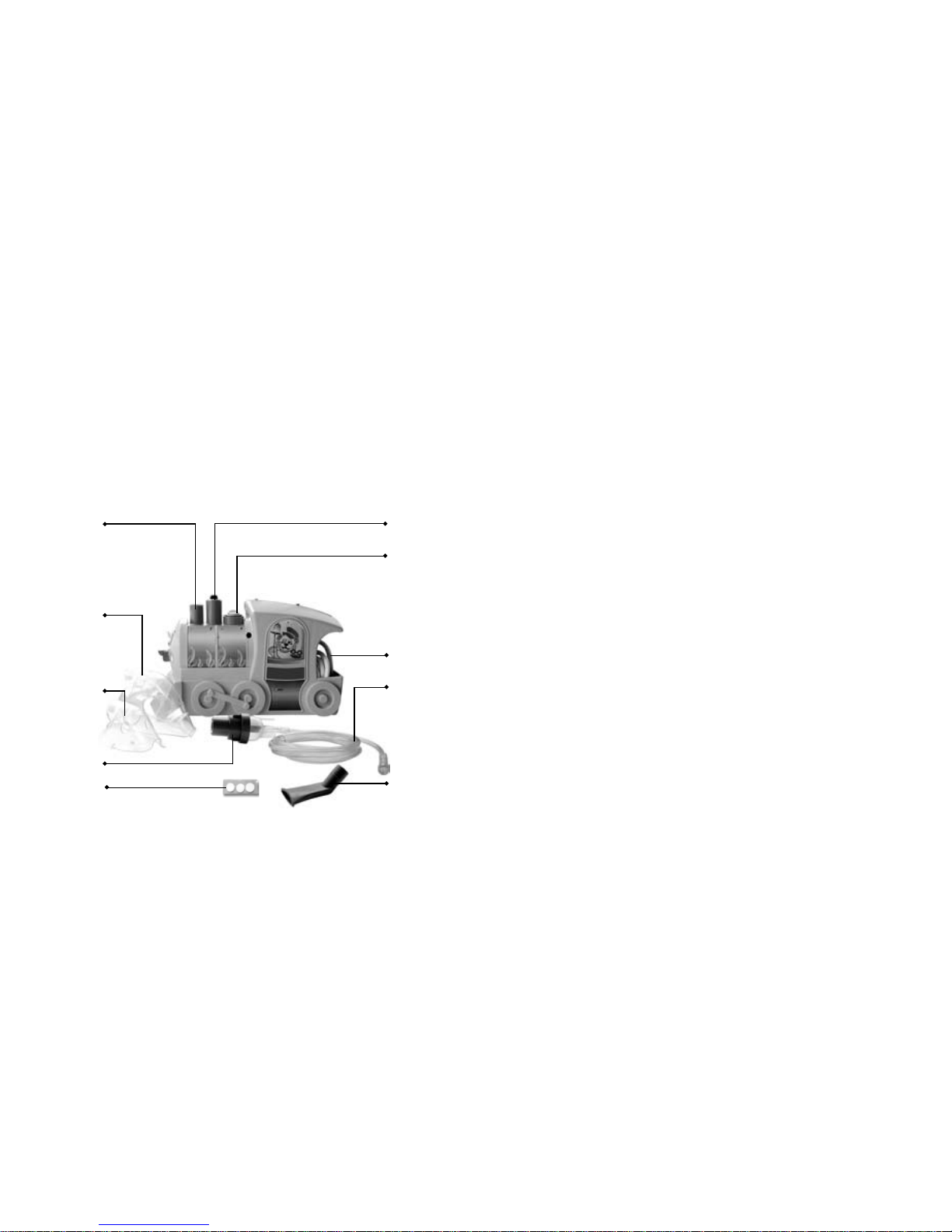

The picture shows nebulizer model Chu-Chu-Train
ATTENTION:
Read the manual carefully before using the device and keep it in case you need further information
in the future.
This nebulizer must be used only for the specic cause it was created for: the aerosoltherapy. Any
other use will be considered unsuitable and thus dangerous; the manufacturer can not be considered responsible for the damages caused by unsuitable, incorrect or irrational use, or if the unit has
been used in electrical installations not in accordance with the standing safety standards.
• When using any electrical appliance certain important safety measures must always be observed,
including the following:
• The unit is not protected from liquid penetration.
• The nebulizer system must not be touched with wet or soaked hands.
• Do not use the device in presence of inammable anesthetic mix in contact with the air, oxygen
or nitrogen protoxide.
• Do not block the air ventilation holes.
• Unplug the unit before cleaning or maintaining it.
• Disconnect the nebulizer system when it is not in use.
- Do not untwist the jet nebulizer when the unit is operating.
- Do not leave medication inside the jet nebulizer when it is not in use.
- Do not pour more than 10 ml in the jet nebulizer.
- Use the unit on stable surfaces. Never use it while sleepy or drowsy.
- Use the unit intermittently. Maximum operating period: 30 minutes. It must stand unused for 30
minutes.
- The mask and the mouth piece are for personal use, and they have not to be shared in order to
avoid any infection or contagion.
- Stop the nebulization if you feel any indisposition.
- Children will use this unit only under adult supervision.
- This unit have to be repaired only by authorized service centres.
NOTE: this unit employs a thermal limiter that will shut o the entire product
should the motor overheat.
Pediatric mask
Adult mask
Mouth piece
Jet nebulizer
PVC tubing
Air outlet
Filter Chamber
ON/OFF Switch
Power cord
Air lter
6
www.gamma-medica.com.ua7www.gamma-medica.com.ua
2. GETT ING READY FOR U SAGE
2.1. ASSEM BLING THE DEVI CE

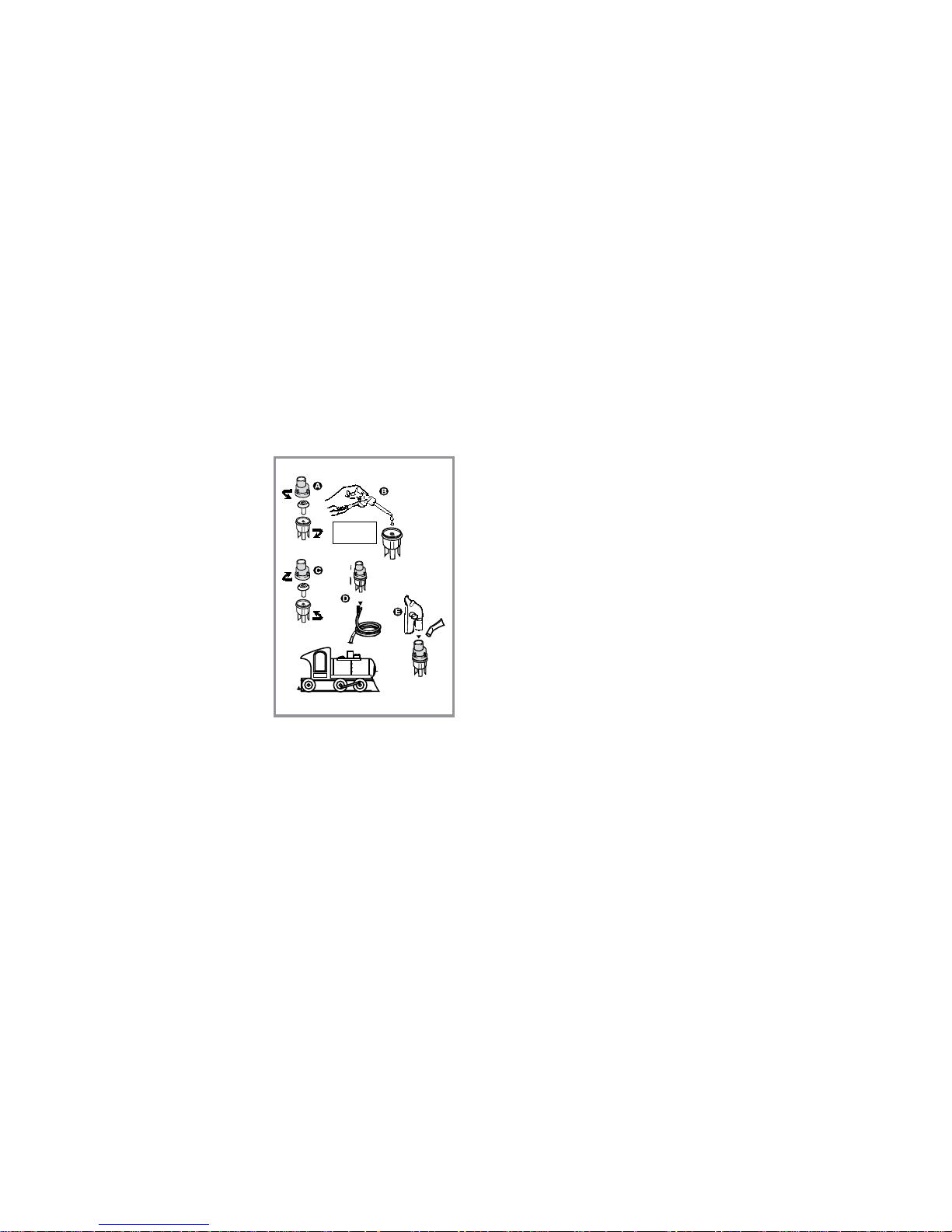

1. Take the unit out of the box.
2. Open the jet nebulizer (Fig. A) and pour the medication to nebulize into it.
Do not pour more than 10 ml (Fig. B).
Then twist both parts and close again. (Fig. C).
3. Connect the tubing to the jet nebulizer and the
other end to the nebulizer outlet. (Fig. D).
4. Put the mask or the mouth piece to be used into the
jet nebulizer (Fig. E).
5. Connect the unit to a suitable power receptacle.
Your nebulizer system is ready for work.
2.2. REPLAC EMENT OF THE FILTER
1. Filter should be changed every month or sooner if the lter turns completely
gray in color.
2. Remove lter cap by grasping it rmly and pulling out the unit.
3. Change the dirty lter of the cap with small, pointed object.
4. Insert a clean San Up lter. Extra lters are available.
5. Push the lter cap with new lter into position.
Caution:
Do not use cotton or any other material. Do not wash or clean the lter. Use only original lters. Do
not operate without a lter.
3. CARRYI NG OUT AEROSO L THE RAPY
1. Turn the unit by pressing the ON/OFF switch to start the treatment.
ATTENTION:
This device is for intermittent use: 30 min. ON/30 min. OFF.
2. Inhale the aerosol solution using the prescribed accessory in calm way. One should sit at the
table with one’s back upright, relaxed; otherwise you will constrict your respiratory passages and
impair the eect of inhalation.
3. Turn the unit o and unplug it once the treatment has nished.
4. Clean the jet nebulizer and the devices as indicated in Cleaning and disinfection section.
Store the jet nebulizer and the devices into the unit’s lodging.
4. CLEAN ING AND DISI NFECTION
Important:
1. Wash all the pieces, except for the air lter, with warm water and detergent. Rinse with warm tap
water to remove the detergent.
2. Dip the pieces into a clean bowl containing 3 parts of warm water and 1 part of vinegar during
30 minutes, disinfectant can also be used.
3. Wash your hands and take out the pieces from the disinfectant solution, rinse them with warm
tap water and leave them on an absorbent piece of paper.
4. Keep the pieces into a hermetic bag. Do not dry them with a towel.
5. Clean the outer surface with a dry piece of cloth.
• Do not use any volatile uid like alcohol or benzene.
• The jet nebulizer and the devices must NOT be boiled.
• The jet nebulizer has to be replaced if it is stuck by medication or other substances.
• Under no circumstances will the unit be opened.
8
www.gamma-medica.com.ua9www.gamma-medica.com.ua
5. POSSI BLE PROBLEM S AND HOW TO SOLVE THEM
If something wrong happens while the device is working, please check and correct the following
points:
Symptom Possible cause Suggested solutions
Although the device is on, it
does not work
1. Incorrectly plugged
2. No power
1. Check the plug is properly
connected
2. Check the power is not
gone out
The mist does not come out 1.There is no solution in the
jet nebulizer
2.There is too much solution
in the jet nebulizer
3.PVC tubing is disconnected
1. Add medication, maximum
10 ml
2. Remove excess medication
from cup.
3. Connect the PVC tubing.
Aerosol output reduced (low) 1. Air lter is clogged.
2.The jet nebulizer is dirty.
1. Replace for a clean air lter.
2. Replace for new one.
Should the device not start working properly again, please contact the Service Centre; the address
is stated in the Guarantee Card.
6. TE
CHNIC AL SPECIFIC ATIONS
Method of nebulization Dry piston compressor
Operating Voltage 220V, 50Hz
Class
Power consumption 0.6A
Jet nebulizer maximum capacity 10 ml
Sound noise level (at 1m distance) 60 dB
Mean Mass Aerodynamic Diameter
(microns)
less than 5 microns
Medication outlet* 0.33 ml/min. or greater; value measured with 0.9%
NaCl solution.
Weight 1.732 kg
Unit dimensions 240 x 140 x 124 mm
Operation Humidity and Temperature -5 to +400 C, 30% to 95%
Storage Humidity and Temperature -10 to +400 C, 10% to 95%
Atmospheric pressure range for
carriage and storage
50 - 106 kPa (500-1060 mbar)
*This specication may very with the kind of the medication being used and its viscousity.
The specications and the outer design are subject to change for improvement reasons without
previous notice.
Symb
ols Key
ON
OFF
Тype B
Read the instruction
AC
Class II
10
www.gamma-medica.com.ua11www.gamma-medica.com.ua
7. WARRANTY
The nebulizer system Chu-Chu-Train is covered by a 2-year warranty from date of purchase for any
defects in the design or in the materials used. The warranty does not cover the accessories supplied with the device and those parts subject to normal wear and tear.
The warranty does not apply to damage caused by improper handling, accidents, not following
the operating instructions or self-maintained alterations made to the device.
The manufacturer shall not be liable for any damages to people, property or pets, either
directly or indirectly, caused by the non-compliance with the instruction book.
The warrantee is only valid upon presentation of the warrantee card which was correctly lled in
and sealed.
8. WHAT IS NEBUL IZING THERAPY
What is a nebulizer?
The name of the device comes from the Latin word nebula that means fog, cloud. The nebulizer
system is a device that turns a liquid drug into a ne aerosol under the inuence of the compressed
air. Aerosol is a drug suspension. So, nebulizing therapy is an inhalation therapy with the help of
aerosols.
Inhalation therapy has been used for treatment of lung diseases for a long time. The ancient civilizations of Egypt, India, Chine, the Middle East, Greece are know to have used inhalations of evaporations from menthol, eucalyptus, dierent plants.
For patients with lung diseases nebulizing therapy seems to be the most rational one since big
drug doses come very fast to the respiratory tract directly.
How does the nebulizer system work?
Nebulizer directs an aerosol containing larger and smaller particles to the respiratory tract. The
gravity makes the larger particles accumulate on the walls of the upper respiratory passages while
the smaller particles have enough time to reach the lower bronchial branches. Therefore the drug
comes to all parts of the patient’s bronhial tree, including the smallest bronchi and alveole, and
gets into the blood vessels on the walls of the alveole in big therapeutic dozes with tiny or none
side eects. Some drugs are very slow to be absorbed from the alimentary canal or are aected
dramatically by the rst passage through the liver. In such cases the way out is to use inhalation
therapy. Nebulizing therapy can be used by patients of any age, it’s suitable for small children and
inrms.
What is nebulizing therapy used for?
Nebulizer systems are used by the patients with:
-acute respiratory diseases;
- obstructive pulmonary disease;
-chronic inammatory processes in respiratory passages such as chronic bronchitis, bronchial
asthma (incl. chronic or unstable ones, exacerbation of asthma), chronic pharyngitis;
-respiratory passages infections;
-abnormalities in secretion quality and secreting in bronchi;
-dierent types of coughing;
Nebulizing therapy helps to decrease the level of inammation activity, to improve respiratory
passage drain function, to lessen the bronchismus, to make the edema smaller and to protect the
mucous membrane, etc.
What are the advantages of nebulizing therapy compared to other means of drug delivery?
Nebulizing therapy gives a possibility to quickly eect the inammatory zone by big drug dozes
which increases the inuence of the treatment and reduces the risk of side eects to other organs.
Nebulizing therapy is the easiest way of inhalation treatment and it is also an economical means
of treatments from the point of view of purposeful use of drug. Aerosol treatment with the help of
nebulizing systems can be used for children, elderly and inrm patients.
Please use only those drugs that were prescribed to you by your doctor, DO NOT execute
self-treatment and DO NOT change the methods/frequency prescribed without consulting
your doctor.
