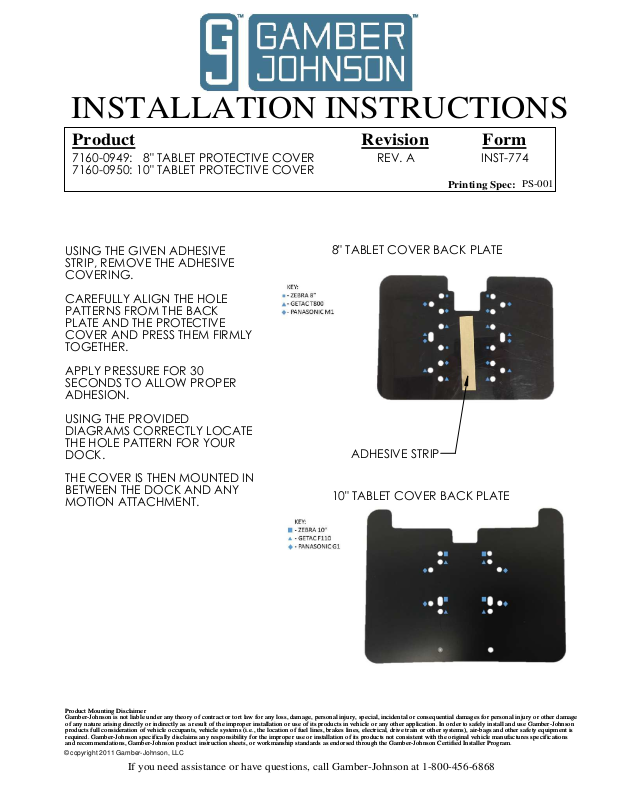

Gamber-Johnson 7160-0949 Quick Start Guide

INSTALLATION INSTRUCTIONS

Product

7160-0949: 8" TABLET PROTECTIVE COVER
7160-0950: 10" TABLET PROTECTIVE COVER

USING THE GIVEN ADHESIVE
STRIP, REMOVE THE ADHESIVE
COVERING.

CAREFULLY ALIGN THE HOLE
PATTERNS FROM THE BACK
PLATE AND THE PROTECTIVE
COVER AND PRESS THEM FIRMLY
TOGETHER.

APPLY PRESSURE FOR 30
SECONDS TO ALLOW PROPER
ADHESION.

USING THE PROVIDED
DIAGRAMS CORRECTLY LOCATE
THE HOLE PATTERN FOR YOUR
DOCK.

FormRevision

INST-774REV. A

Printing Spec:

8" TABLET COVER BACK PLATE

ADHESIVE STRIP

PS-001

THE COVER IS THEN MOUNTED IN
BETWEEN THE DOCK AND ANY
MOTION ATTACHMENT.

Product Mounting Disclaimer

Product Mounting Disclaimer
Gamber-John son is not liable under any theo ry of contra ct or tort law for any loss, da mage, personal injury, special, incidental or consequential damages for pe rsonal injury o r other damage

Gamber-John son is not liable under any theo ry of contra ct or tort law for any loss, da mage, personal injury, special, incidental or consequential damages for pe rsonal injury o r other damage
of any nature arising directly or indirectly as a result of the improper installation or use of its products in ve hicle or any other application. I n order to safely install and u se Gamber-J ohnson

of any nature arising directly or indirectly as a result of the improper installation or use of its products in ve hicle or any other application. I n order to safely install and u se Gamber-J ohnson
products full consideration of vehicle occupants, vehicle sy stems (i.e., the location of fuel lines, brakes lines, electrical, dr ive train or othe r systems), air-bags and other safety equipment is

products full consideration of vehicle occupants, vehicle sy stems (i.e., the location of fuel lines, brakes lines, electrical, dr ive train or othe r systems), air-bags and other safety equipment is
required. Gamber-Johnson specifically dis claims any res ponsibility for the improper use or installation of its products not c onsistent with the original vehicle manufactures specifications

required. Gamber-Johnson specifically dis claims any res ponsibility for the improper use or installation of its products not c onsistent with the original vehicle manufactures specifications
and recommen dations, Gamber-Johnson p roduct instruction sheets, or workmanship standards as endorsed through the Gambe r-Johnson Certified Installer Program.

and recommen dations, Gamber-Johnson p roduct instruction sheets, or workmanship standards as endorsed through the Gambe r-Johnson Certified Installer Program.

© copyright 2011 Gamber-Johnson, LLC

If you need assistance or have questions, call Gamber-Johnson at 1-800-456-6868

10" TABLET COVER BACK PLATE
