Gamber-Johnson 7160-0413 User Manual

INSTALLATION INSTRUCTIONS

Product Revision

7160-0413

Description

FORD NGPI LEG KIT, 2012+

Rev.B

Printing Spec:

Form

INST-566

PS-001

Remove the stock tunnel plate by removing the 6 bolts. Note that in the Utility
Intercepter the lower portion of the dash will need to be removed in order to access
the front mounting bolts.

Install the two brackets as shown in figure 1 with the hardware removed from the
stock tunnel plate. The rear bracket will be installed with the shorter bolts removed
from the center of the stock tunnel plate.

Once the leg kit is installed the top plate (not included) can be bolted to the supplied
PEM nuts

Top Plate
Mounting PEMS

Front of Vehicle

Front Bracket

Rear Bracket

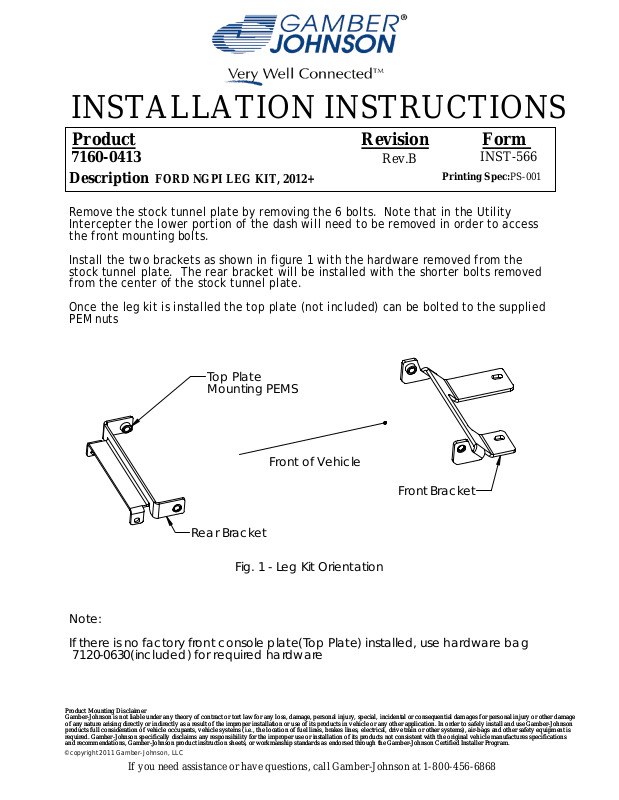

Fig. 1 - Leg Kit Orientation

Note:
If there is no factory front console plate(Top Plate) installed, use hardware bag

7120-0630(included) for required hardware

Product Mounting Disclaimer

Product Mounting Disclaimer
