6270A.sch-1 - Wed Apr 09 18:17:04 2003

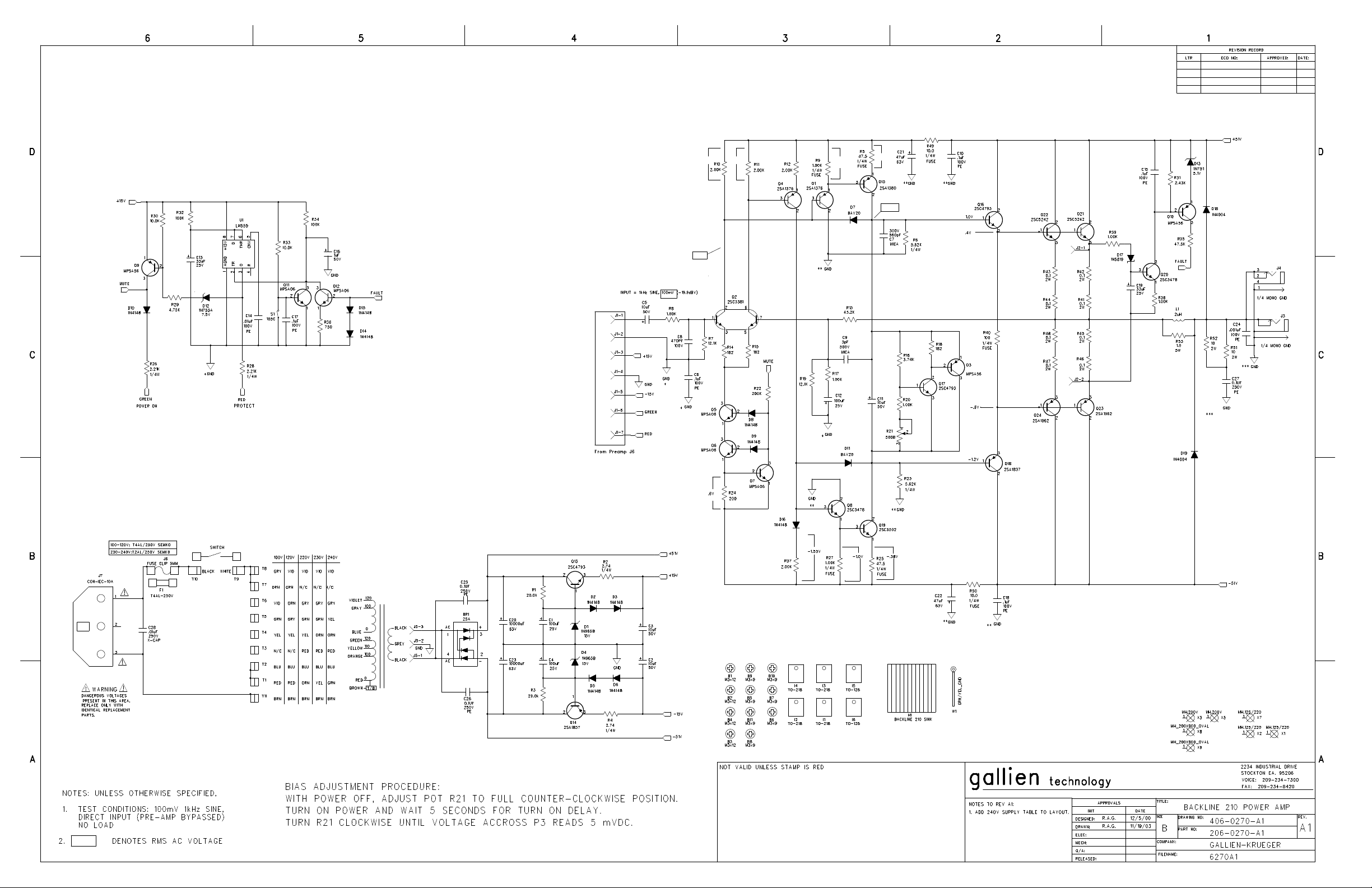

Backline 210 Power Amp 206-0270-A
Part No. Reference Description Manufacturer Mfr. Part No.
001-2060-0 U1 LM555, TIMER NATIONAL LM555CN
010-0000-0 Q2 2SC3381BL,NPNX2,80V,100MA,2-10M1B TOSHIBA 2SC3281BL
010-0001-0 Q8 Q20 2SC3478, NPN,180V,100MA,TO-92 NEC 2SC3478-K
010-0003-0 Q19 2SC3502-F,NPN,200V,100MA,TO-126 TOSHIBA 2SC3502
010-0012-0 Q5-7 Q11-12 MPSAO6, NPN,80V,500MA,TO-92 MOTOROLA MPS-A06
010-1002-0 Q1 Q4 2SA1376, PNP,180V,100MA,TO-92 NEC 2SA1376-K
010-1003-0 Q15 2SA1380-F,PNP,200V,100MA,TO-126 SANYO/TOSHIBA 2SA1380-F/E
010-1013-0 Q3 Q9-10 MPSA56 PNP 80V 500MA TO-92 MOTOROLA MPS-A56
012-0002-0 Q13 Q16-17 2SC4793,NPN,200V,1.5A,2-10R1A TOSHIBA 2SC4793
012-0003-0 Q21-22 2SC5242,NPN,230V,15A,2-16C1A TOSHIBA 2SC5242-O
012-1002-0 Q14 Q18 2SA1837,PNP,200V,1.5A,2-10R1A TOSHIBA 2SA1837
012-1003-0 Q23-24 2SA1962,PNP,230V,15A,2-16C1A TOSHIBA 2SA1962
020-0004-0 D12 1N755A, ZENER,7.5V,500MW ,D035 TAITRON 1N755A
020-0050-0 D13 1N751, ZENER,5.1V,10%,400MW,DO-35 NATIONAL 1N751
020-0150-0 D1 D4 1N965B, ZENER, 15V, 5%, 500mW, DO-35 TAITRON 1N965B
020-1000-0 D2,3,5,6,8-10,14-16 1N4148, RECT-FAST, 200MA, 100V MOTOROLA 1N4148
020-1022-0 D7 D11 BAV20, RECT, 200V, DO-35 NATIONAL BAV20
020-1104-0 D17 SHOTTKY, 1A, 40V, 10NS, DO-41 MOTOROLA 1N5819
020-2106-0 D18-19 1N4004,RECT,1A,400V,DO-41 TAITRON 1N4004
023-0112-0 BR1 BRIDGE, 25A, 200V, VERT, PC, MO25S-02 CHENG-YI MP25-02S
031-1107-0 C1 C4 C12 CAP,ELEC,RAD,107,20%,25V UNITED CHEMI-CON SMG25VB101M6X11LL
031-1336-0 C13 C19 CAP,ELEC,RAD,336,20%,25V UNITED CHEMI-CON SRG25VB33RM5X7LL
031-2105-0 C16 CAP,ELEC,RAD, 105, 20%, 50V UNITED CHEMI-CON C440C105M5U5CA
031-2106-0 C2-3 C5 C11 CAP,ELEC,RAD, 106, 20%, 50V UNITED CHEMI-CON SMG50VB10RM5X11LL
031-3109-0 C20 C23 CAP, ELEC, RADIAL, 10000UF, 20%, 63V UNITED CHEMI-CON SMH63VN103M30X50T2
031-3476-0 C21-22 CAP,ELEC,RAD,476,20%,63V UNITED CHEMI-CON SMG63VB47RM6X11LL
032-4102-0 C24 CAP,PE,102,5%,100V, PANASONIC ECQB1102JF
032-4103-0 C14 CAP,PE,103,5%,100V, PANASONIC ECQV1103JM
032-4104-0 C6 C10 C15 C17-18 CAP,PE,104,5%,100V, PANASONIC ECQV1104JM
032-7104-0 C25-27 CAP,PE,104,10%, 250V ILLINOIS CAPACITOR 104MSR250K
034-4471-0 C8 CAP,MCR,470pF,5%,100V, TAITRON TMRS471J100NPOB
034-7103-0 C28 CAP, CERMIC DISK, 103, 10%, X-250V PANASONIC ECK-DRS103ZV
035-8030-0 C9 CAP MICA AXIAL , 3pF, 10%, 500V CORNELL CD10CD030D03
035-8561-0 C7 CAP MICA RADIAL, 561, 5%, 300V CORNELL CD15FC561J103
052-2.74-0 R2 R4 RES,METAL FILM, 2.74, 1/4W, 1% ECI M2F1AJ002.74
052-2212-0 R26 R28 RES,METAL FILM, 2.21k, 1/4W,1% ECI M2F1AK002.21
052-5622-0 R6 R23 RES,METAL FILM,5.62K,1/4W,1% ECI M5F1AK005.62
055-.100-0 R41-48 RES, CERAMIC, 0.1, 2W,5% ECI MOM20J3AJ000.10
055-0101-0 R51-52 RES, METAL OXIDE, 10 OHM, 2W, 5% ECI MOM20J3AJ010.00
056-0100-0 R53 RES, CERAMIC WW, 1.0, 5W, 10% ECI WWC50J3AJ001.00
059-1000-0 R49-50 RES,MF,FUSE, 10.0, 1/4W, 1% JUKN.OHM FR25-10.0
059-1001-0 R40 RES,MF,FUSE, 100, 1/4W, 1% JUKN.OHM FR25-100
059-1002-0 R9 R27 RES,MF,FUSE, 1.00K, 1/4W, 1% JUKN.OHM FR25-1.00K
059-4750-0 R5 R25 RES,MF,FUSE, 47.5, 1/4W, 1% JUKN.OHM FR25-47.5
060-1002-0 R8 R17 R20 R38-39 RES,METAL FILM, 1.00K, 1/8W, 1% ECI M1F1AK001.00
060-1003-0 R30 R33 RES,METAL FILM, 10.0K, 1/8W,1% ECI M1F1AK010.00
060-1004-0 R32 R34 RES,METAL FILM, 100K, 1/8W, 1% ECI M1F1AK100.00
060-1213-0 R7 R19 RES,METAL FILM, 12.1K, 1/8W, 1% ECI M1F1AK012.10
060-1821-0 R14-15 R18 RES,METAL FILM, 182, 1/8W, 1% ECI M1F1AJ182.00
060-2001-0 R24 RES,METAL FILM, 200, 1/8W, 1% ECI M1F1AJ200.00
060-2002-0 R10-12 R37 RES,METAL FILM, 2.00K, 1/8W, 1% ECI M1F1AK002.00
060-2003-0 R1 R3 RES,METAL FILM, 20.0K, 1/8W, 1% ECI M1F1AK020.00
060-2004-0 R22 RES,METAL FILM, 200K, 1/8W, 1% ECI M1F1AK200.00
060-2432-0 R31 RES,METAL FILM, 2.43K, 1/8W, 1% ECI M1F1AK002.43
060-3742-0 R16 RES,METAL FILM, 3.74K, 1/8W, 1% ECI M1F1AK003.92
060-4323-0 R13 RES,METAL FILM, 43.2K, 1/8W, 1% ECI M1F1AK043.20
060-4752-0 R29 RES,METAL FILM, 4.75K, 1/8W, 1% ECI M1F1AK004.75
060-4753-0 R35 RES,METAL FILM, 47.5K, 1/8W, 1% ECI M1F1AK047.50
060-7501-0 R36 RES,METAL FILM, 750, 1/8W, 1% ECI M1F1AJ750.00
070-0520-0 R21 POT,500B TRIM, 200mW SONG HUEI SH-655MCL-500B
081-0055-0 L1 INDUCTOR,2UH,20A,AIR CORE SCHONBERG 081-0055-0
091-0024-0 F1 FUSE,5mm,T4AL,250V,SEMKO LITTLE FUSE 218-004
091-1002-0 S1 THRM BRKR, 105C +/-5,0-DIFF, PC KLIXON 7AM-028-A5
092-0001-0 J7 CON, IECX3, 10A, 250V, PC TERM DIHTAIN DTS-0045
092-0066-0 T1-11 FASTON, M, PC, .250" KEYSTONE 1021
6270A Bom-4/21/2004-Rev B
Costed Bill Of Material
Backline 210 Power Amp 206-0270-A
Part No. Reference Description Manufacturer Mfr. Part No.
092-0082-0 J3-4 JACK,1/4",MONO,PC, GROUNDING NEUTRIK S102-84G
093-0025-0 J2 HDR,.1X2,VERT,MALE,LOCK,GOLD AMP 641126-2
093-0080-0 J5 HDR,.156X3,VERT,MALE,LOCKING MOLEX 26-60-4030
093-2005-0 J1 HDR, 2MMX7, VERT, SHROUDED JST B7B-PH-K-S
094-0004-0 J6 FUSE CLIP, 5MM, 15A, P.C. MOUSER 44FH052
105-0005-0 I5-6 INSULATOR, TO-126, RUBBER BERQUIST 7403-09AC
105-0010-0 I1-4 INSULATOR, TO-218, GREASED MICA THERMALLOY 56-02-101AP
117-0097-0 B5-11 BOLT,M3x9,M2,PHP/SW/PW,CHROME LIQUAN SCREW
117-0127-0 B1-4 BOLT,M3x12,M2,PHP/SW/PW,CHROME LIQUAN SCREW
132-0272-A H1 BACKLINE 210 HEAT SINK ELITE 132-0272-A
202-6000-A W1 WIRE ASY,14GA,GRN/YEL,4",#4 TERM LEOCO 202-6000-A
145-0270-P1 BACKLINE 210 POWER AMP BOARD
6270A Bom-4/21/2004-Rev B
gallien
technology Engineering Change Order
Current Rev #:Customer Name:
Distribute To:
Originator:
Approved by:
Effective Date:
Document Update
Artwork
Assembly Dwg.
x
Board Artwork
x
BOM
Control Form
Model:
Assembly Description:
Assembly Numbers:
All in Process
All in Stock
Beginning Serial Number:
Gallien-Krueger
Backline 210
Power Amp Board
206-0270-A
145-0270-A
x
Next Buy
Next Production RunAll in Service
Reason For Change
Add 240V supply table to board and schematic. Costing
Fab Drawing
Inspection Proc.
x
Part Master File
x
Schematic
Service Manual
Test Procedure
Other Affected Assemblies
Continued on ECO Supplement Page
Description Of Change
Continued on Supplement Page
Part Number
Description
Drawing(s) attached
Parts Added
Qty Qty
Ref. Designator
Distribution
Accounting
Assembly
x
Engineering
x
Incoming Q.C.
x
Production Eng.
Purchasing
Q.A.
Service
Test
New ECO Rev #:
A A1
Page: Of:
RAG
DateEffective
Date Initials
Parts Deleted
Ref. Designator
Initials
206-0270 Power Amp, 4/21/2004
6270A1.sch-1 - Thu Nov 27 15:18:35 2003

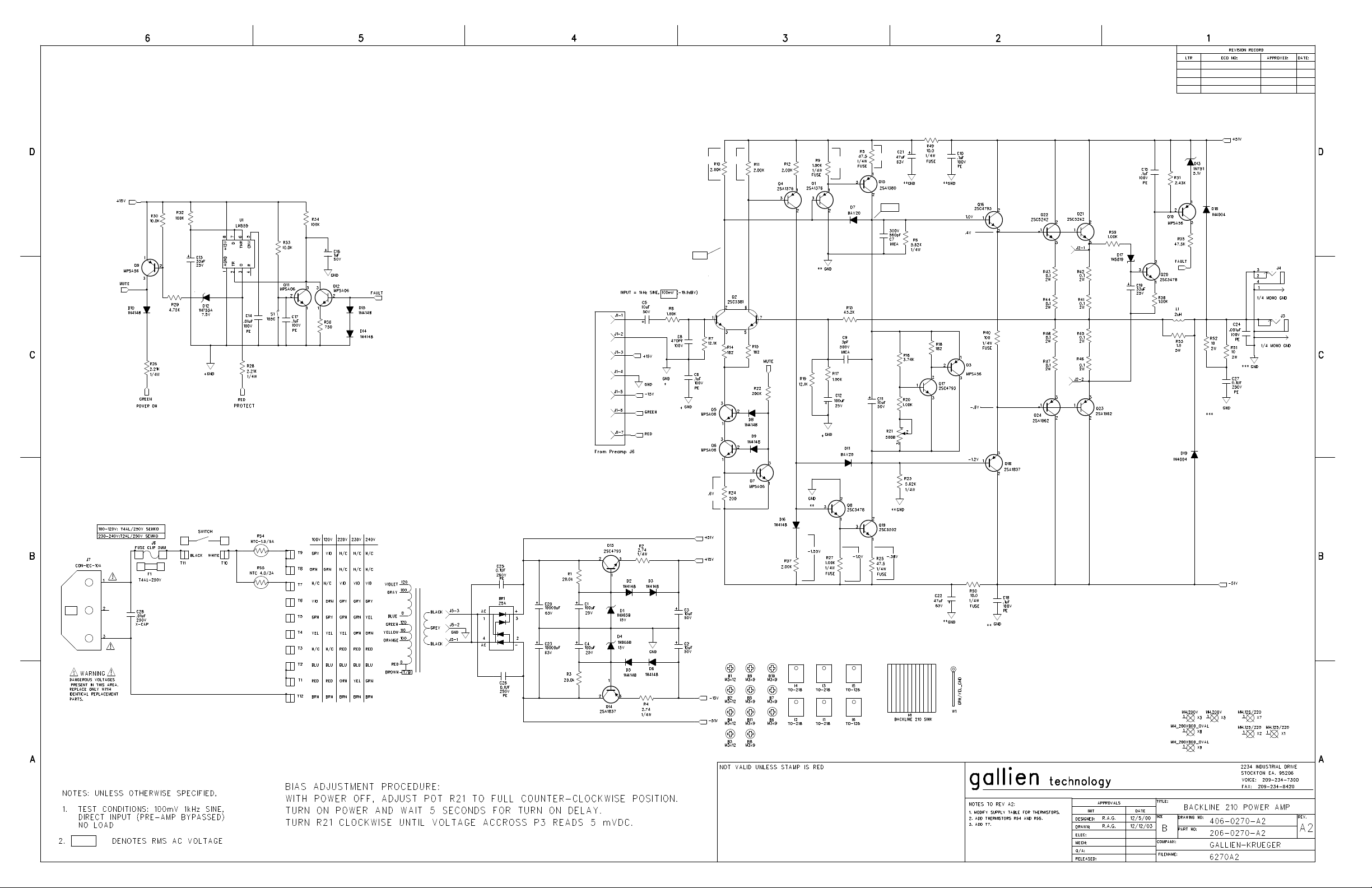

Backline 210 Power Amp 206-0270-A1
Part No. Reference Description Manufacturer Mfr. Part No.
001-2060-0 U1 LM555, TIMER NATIONAL LM555CN
010-0000-0 Q2 2SC3381BL,NPNX2,80V,100MA,2-10M1B TOSHIBA 2SC3281BL
010-0001-0 Q8 Q20 2SC3478, NPN,180V,100MA,TO-92 NEC 2SC3478-K
010-0003-0 Q19 2SC3502-F,NPN,200V,100MA,TO-126 TOSHIBA 2SC3502
010-0012-0 Q5-7 Q11-12 MPSAO6, NPN,80V,500MA,TO-92 MOTOROLA MPS-A06
010-1002-0 Q1 Q4 2SA1376, PNP,180V,100MA,TO-92 NEC 2SA1376-K
010-1003-0 Q15 2SA1380-F,PNP,200V,100MA,TO-126 SANYO/TOSHIBA 2SA1380-F/E
010-1013-0 Q3 Q9-10 MPSA56 PNP 80V 500MA TO-92 MOTOROLA MPS-A56
012-0002-0 Q13 Q16-17 2SC4793,NPN,200V,1.5A,2-10R1A TOSHIBA 2SC4793
012-0003-0 Q21-22 2SC5242,NPN,230V,15A,2-16C1A TOSHIBA 2SC5242-O
012-1002-0 Q14 Q18 2SA1837,PNP,200V,1.5A,2-10R1A TOSHIBA 2SA1837
012-1003-0 Q23-24 2SA1962,PNP,230V,15A,2-16C1A TOSHIBA 2SA1962
020-0004-0 D12 1N755A, ZENER,7.5V,500MW ,D035 TAITRON 1N755A
020-0050-0 D13 1N751, ZENER,5.1V,10%,400MW,DO-35 NATIONAL 1N751
020-0150-0 D1 D4 1N965B, ZENER, 15V, 5%, 500mW, DO-35 TAITRON 1N965B
020-1000-0 D2,3,5,6,8-10,14-16 1N4148, RECT-FAST, 200MA, 100V MOTOROLA 1N4148
020-1022-0 D7 D11 BAV20, RECT, 200V, DO-35 NATIONAL BAV20
020-1104-0 D17 SHOTTKY, 1A, 40V, 10NS, DO-41 MOTOROLA 1N5819
020-2106-0 D18-19 1N4004,RECT,1A,400V,DO-41 TAITRON 1N4004
023-0112-0 BR1 BRIDGE, 25A, 200V, VERT, PC, MO25S-02 CHENG-YI MP25-02S
031-1107-0 C1 C4 C12 CAP,ELEC,RAD,107,20%,25V UNITED CHEMI-CON SMG25VB101M6X11LL
031-1336-0 C13 C19 CAP,ELEC,RAD,336,20%,25V UNITED CHEMI-CON SRG25VB33RM5X7LL
031-2105-0 C16 CAP,ELEC,RAD, 105, 20%, 50V UNITED CHEMI-CON C440C105M5U5CA
031-2106-0 C2-3 C5 C11 CAP,ELEC,RAD, 106, 20%, 50V UNITED CHEMI-CON SMG50VB10RM5X11LL
031-3109-0 C20 C23 CAP, ELEC, RADIAL, 10000UF, 20%, 63V UNITED CHEMI-CON SMH63VN103M30X50T2
031-3476-0 C21-22 CAP,ELEC,RAD,476,20%,63V UNITED CHEMI-CON SMG63VB47RM6X11LL
032-4102-0 C24 CAP,PE,102,5%,100V, PANASONIC ECQB1102JF
032-4103-0 C14 CAP,PE,103,5%,100V, PANASONIC ECQV1103JM
032-4104-0 C6 C10 C15 C17-18 CAP,PE,104,5%,100V, PANASONIC ECQV1104JM
032-7104-0 C25-27 CAP,PE,104,10%, 250V ILLINOIS CAPACITOR 104MSR250K
034-4471-0 C8 CAP,MCR,470pF,5%,100V, TAITRON TMRS471J100NPOB
034-7103-0 C28 CAP, CERMIC DISK, 103, 10%, X-250V PANASONIC ECK-DRS103ZV
035-8030-0 C9 CAP MICA AXIAL , 3pF, 10%, 500V CORNELL CD10CD030D03
035-8561-0 C7 CAP MICA RADIAL, 561, 5%, 300V CORNELL CD15FC561J103
052-2.74-0 R2 R4 RES,METAL FILM, 2.74, 1/4W, 1% ECI M2F1AJ002.74
052-2212-0 R26 R28 RES,METAL FILM, 2.21k, 1/4W,1% ECI M2F1AK002.21
052-5622-0 R6 R23 RES,METAL FILM,5.62K,1/4W,1% ECI M5F1AK005.62
055-.100-0 R41-48 RES, CERAMIC, 0.1, 2W,5% ECI MOM20J3AJ000.10
055-0101-0 R51-52 RES, METAL OXIDE, 10 OHM, 2W, 5% ECI MOM20J3AJ010.00
056-0100-0 R53 RES, CERAMIC WW, 1.0, 5W, 10% ECI WWC50J3AJ001.00
059-1000-0 R49-50 RES,MF,FUSE, 10.0, 1/4W, 1% JUKN.OHM FR25-10.0
059-1001-0 R40 RES,MF,FUSE, 100, 1/4W, 1% JUKN.OHM FR25-100
059-1002-0 R9 R27 RES,MF,FUSE, 1.00K, 1/4W, 1% JUKN.OHM FR25-1.00K
059-4750-0 R5 R25 RES,MF,FUSE, 47.5, 1/4W, 1% JUKN.OHM FR25-47.5
060-1002-0 R8 R17 R20 R38-39 RES,METAL FILM, 1.00K, 1/8W, 1% ECI M1F1AK001.00
060-1003-0 R30 R33 RES,METAL FILM, 10.0K, 1/8W,1% ECI M1F1AK010.00
060-1004-0 R32 R34 RES,METAL FILM, 100K, 1/8W, 1% ECI M1F1AK100.00
060-1213-0 R7 R19 RES,METAL FILM, 12.1K, 1/8W, 1% ECI M1F1AK012.10
060-1821-0 R14-15 R18 RES,METAL FILM, 182, 1/8W, 1% ECI M1F1AJ182.00
060-2001-0 R24 RES,METAL FILM, 200, 1/8W, 1% ECI M1F1AJ200.00
060-2002-0 R10-12 R37 RES,METAL FILM, 2.00K, 1/8W, 1% ECI M1F1AK002.00
060-2003-0 R1 R3 RES,METAL FILM, 20.0K, 1/8W, 1% ECI M1F1AK020.00
060-2004-0 R22 RES,METAL FILM, 200K, 1/8W, 1% ECI M1F1AK200.00
060-2432-0 R31 RES,METAL FILM, 2.43K, 1/8W, 1% ECI M1F1AK002.43
060-3742-0 R16 RES,METAL FILM, 3.74K, 1/8W, 1% ECI M1F1AK003.92
060-4323-0 R13 RES,METAL FILM, 43.2K, 1/8W, 1% ECI M1F1AK043.20
060-4752-0 R29 RES,METAL FILM, 4.75K, 1/8W, 1% ECI M1F1AK004.75
060-4753-0 R35 RES,METAL FILM, 47.5K, 1/8W, 1% ECI M1F1AK047.50
060-7501-0 R36 RES,METAL FILM, 750, 1/8W, 1% ECI M1F1AJ750.00
070-0520-0 R21 POT,500B TRIM, 200mW SONG HUEI SH-655MCL-500B
081-0055-0 L1 INDUCTOR,2UH,20A,AIR CORE SCHONBERG 081-0055-0
091-0024-0 F1 FUSE,5mm,T4AL,250V,SEMKO LITTLE FUSE 218-004
091-1002-0 S1 THRM BRKR, 105C +/-5,0-DIFF, PC KLIXON 7AM-028-A5
092-0001-0 J7 CON, IECX3, 10A, 250V, PC TERM DIHTAIN DTS-0045
092-0066-0 T1-11 FASTON, M, PC, .250" KEYSTONE 1021
6270A1 Bom-4/21/2004-Rev B
Costed Bill Of Material
Backline 210 Power Amp 206-0270-A1
Part No. Reference Description Manufacturer Mfr. Part No.
092-0082-0 J3-4 JACK,1/4",MONO,PC, GROUNDING NEUTRIK S102-84G
093-0025-0 J2 HDR,.1X2,VERT,MALE,LOCK,GOLD AMP 641126-2
093-0080-0 J5 HDR,.156X3,VERT,MALE,LOCKING MOLEX 26-60-4030
093-2005-0 J1 HDR, 2MMX7, VERT, SHROUDED JST B7B-PH-K-S
094-0004-0 J6 FUSE CLIP, 5MM, 15A, P.C. MOUSER 44FH052
105-0005-0 I5-6 INSULATOR, TO-126, RUBBER BERQUIST 7403-09AC
105-0010-0 I1-4 INSULATOR, TO-218, GREASED MICA THERMALLOY 56-02-101AP
117-0097-0 B5-11 BOLT,M3x9,M2,PHP/SW/PW,CHROME LIQUAN SCREW
117-0127-0 B1-4 BOLT,M3x12,M2,PHP/SW/PW,CHROME LIQUAN SCREW
132-0272-A H1 BACKLINE 210 HEAT SINK ELITE 132-0272-A
202-6000-A W1 WIRE ASY,14GA,GRN/YEL,4",#4 TERM LEOCO 202-6000-A
145-0270-A1 BACKLINE 210 POWER AMP BOARD
6270A1 Bom-4/21/2004-Rev B
For current production a thermistor of the proper
gallien
technology Engineering Change Order
Customer Name:
Model:
Assembly Description:
Assembly Numbers:
X X
All in Process
All in Stock
Beginning Serial Number:
Gallien-Krueger
Backline 210/350
Power Amp Board
206-0270-A
145-0270-A
Next Buy
Next Production RunAll in Service
Reason For Change

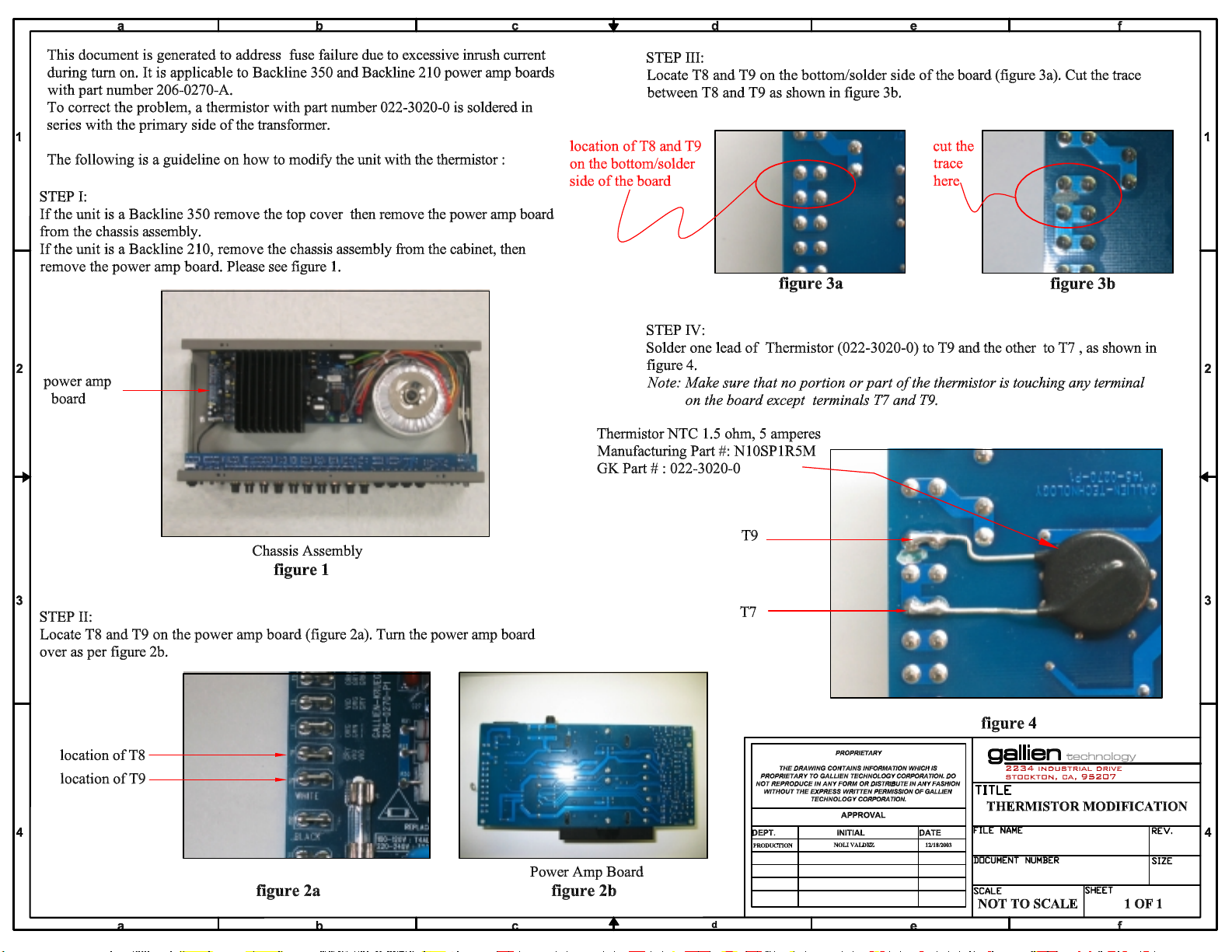

Prevent fuse failure due to inrush current at
turn on. An improvement to A1 which was not put
into production.
Continued on ECO Supplement Page
Description Of Change
Add NTC thermistors to the primary side of the
transformer. One for 120V and another for 230V.
An additional primary terminal is added to
accommodate the wiring.
value will be added to the bottom of the board.
For 220V-240V use NTC-4R/3A.
For 100V-120V use NTC-1R5/5A.
Continued on Supplement Page
Part Number
022-3011-0
022-3020-0
092-0066-0
Description
THER NTC-4R/3A
THER NTC-1R5/5A
Drawing(s) attached
Parts Added
Qty Qty
1
1
1
Ref. Designator
R55
R54
T12FASTON
Current Rev #:
Distribute To:
Originator:
Approved by:
Effective Date:
Document Update
Artwork
Assembly Dwg.
X
Board Artwork
X
BOM
Control Form
X
Costing
Fab Drawing
Inspection Proc.
X
Part Master File
X
Schematic
Service Manual
Test Procedure
New ECO Rev #:
A1 A2
Page:
RAG
12/14/2003
Other Affected Assemblies
302 Assembly, 303 Assembly
All Voltages
Distribution
Accounting
Assembly
X
Engineering
X
Incoming Q.C.
X
Production Eng.
X
Purchasing
Q.A.
Service
Test
Parts Deleted
Ref. Designator
Of:
1
DateEffective
Date Initials
Initials
1
206-0270 Power Amp, 4/21/2004
6270A2.sch-1 - Wed Apr 07 16:22:12 2004
Part No.
Reference
Description
Manufacturer
Mfr. Part No.

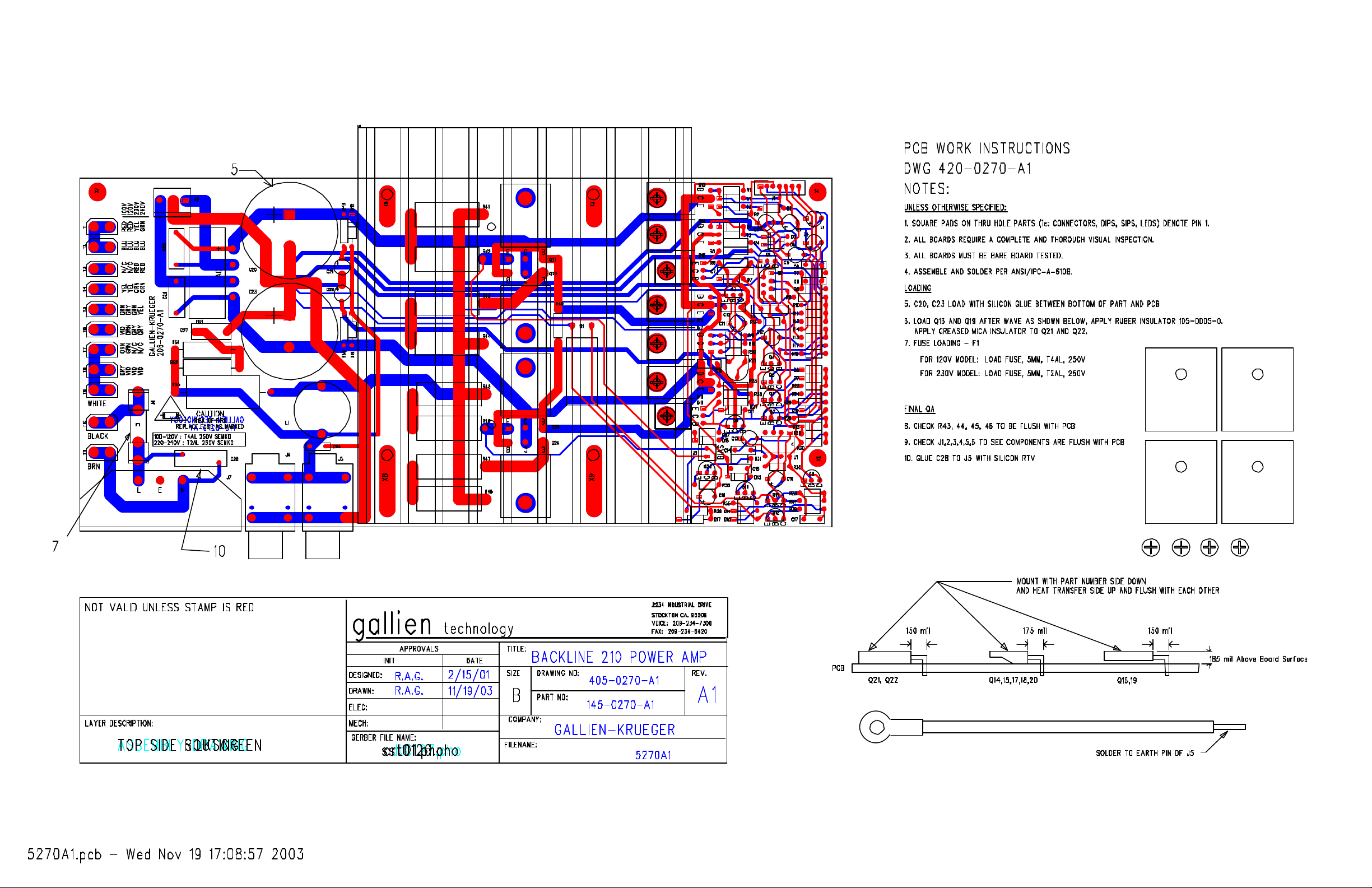

Backline 210 Power Amp 206-0270-A2
001-2060-0 U1 LM555, TIMER NATIONAL LM555CN
010-0000-0 Q2 2SC3381BL,NPNX2,80V,100MA,2-10M1B TOSHIBA 2SC3281BL
010-0001-0 Q8 Q20 2SC3478, NPN,180V,100MA,TO-92 NEC 2SC3478-K
010-0003-0 Q19 2SC3502-F,NPN,200V,100MA,TO-126 TOSHIBA 2SC3502
010-0012-0 Q5-7 Q11-12 MPSAO6, NPN,80V,500MA,TO-92 MOTOROLA MPS-A06
010-1002-0 Q1 Q4 2SA1376, PNP,180V,100MA,TO-92 NEC 2SA1376-K
010-1003-0 Q15 2SA1380-F,PNP,200V,100MA,TO-126 SANYO/TOSHIBA 2SA1380-F/E
010-1013-0 Q3 Q9-10 MPSA56 PNP 80V 500MA TO-92 MOTOROLA MPS-A56
012-0002-0 Q13 Q16-17 2SC4793,NPN,200V,1.5A,2-10R1A TOSHIBA 2SC4793
012-0003-0 Q21-22 2SC5242,NPN,230V,15A,2-16C1A TOSHIBA 2SC5242-O
012-1002-0 Q14 Q18 2SA1837,PNP,200V,1.5A,2-10R1A TOSHIBA 2SA1837
012-1003-0 Q23-24 2SA1962,PNP,230V,15A,2-16C1A TOSHIBA 2SA1962
020-0004-0 D12 1N755A, ZENER,7.5V,500MW ,D035 TAITRON 1N755A
020-0050-0 D13 1N751, ZENER,5.1V,10%,400MW,DO-35 NATIONAL 1N751
020-0150-0 D1 D4 1N965B, ZENER, 15V, 5%, 500mW, DO-35 TAITRON 1N965B
020-1000-0 D2,3,5,6,8-10,14-16 1N4148, RECT-FAST, 200MA, 100V MOTOROLA 1N4148
020-1022-0 D7 D11 BAV20, RECT, 200V, DO-35 NATIONAL BAV20
020-1104-0 D17 SHOTTKY, 1A, 40V, 10NS, DO-41 MOTOROLA 1N5819
020-2106-0 D18-19 1N4004,RECT,1A,400V,DO-41 TAITRON 1N4004
022-3011-0 R55 THERMISTOR, 4 OHM, 3 AMP UEI 08SP004M
022-3020-0 R54 THERMISTOR, 1.5 OHM, 5 AMP UEI N10SP1R5M
023-0112-0 BR1 BRIDGE, 25A, 200V, VERT, PC, MO25S-02 CHENG-YI MP25-02S
031-1107-0 C1 C4 C12 CAP,ELEC,RAD,107,20%,25V UNITED CHEMI-CON SMG25VB101M6X11LL
031-1336-0 C13 C19 CAP,ELEC,RAD,336,20%,25V UNITED CHEMI-CON SRG25VB33RM5X7LL
031-2105-0 C16 CAP,ELEC,RAD, 105, 20%, 50V UNITED CHEMI-CON C440C105M5U5CA
031-2106-0 C2-3 C5 C11 CAP,ELEC,RAD, 106, 20%, 50V UNITED CHEMI-CON SMG50VB10RM5X11LL
031-3109-0 C20 C23 CAP, ELEC, RADIAL, 10000UF, 20%, 63V UNITED CHEMI-CON SMH63VN103M30X50T2
031-3476-0 C21-22 CAP,ELEC,RAD,476,20%,63V UNITED CHEMI-CON SMG63VB47RM6X11LL
032-4102-0 C24 CAP,PE,102,5%,100V, PANASONIC ECQB1102JF
032-4103-0 C14 CAP,PE,103,5%,100V, PANASONIC ECQV1103JM
032-4104-0 C6 C10 C15 C17-18 CAP,PE,104,5%,100V, PANASONIC ECQV1104JM
032-7104-0 C25-27 CAP,PE,104,10%, 250V ILLINOIS CAPACITOR 104MSR250K
034-4471-0 C8 CAP,MCR,470pF,5%,100V, TAITRON TMRS471J100NPOB
034-7103-0 C28 CAP, CERMIC DISK, 103, 10%, X-250V PANASONIC ECK-DRS103ZV
035-8030-0 C9 CAP MICA AXIAL , 3pF, 10%, 500V CORNELL CD10CD030D03
035-8561-0 C7 CAP MICA RADIAL, 561, 5%, 300V CORNELL CD15FC561J103
052-2.74-0 R2 R4 RES,METAL FILM, 2.74, 1/4W, 1% ECI M2F1AJ002.74
052-2212-0 R26 R28 RES,METAL FILM, 2.21k, 1/4W,1% ECI M2F1AK002.21
052-5622-0 R6 R23 RES,METAL FILM,5.62K,1/4W,1% ECI M5F1AK005.62
055-.100-0 R41-48 RES, CERAMIC, 0.1, 2W,5% ECI MOM20J3AJ000.10
055-0101-0 R51-52 RES, METAL OXIDE, 10 OHM, 2W, 5% ECI MOM20J3AJ010.00
056-0100-0 R53 RES, CERAMIC WW, 1.0, 5W, 10% ECI WWC50J3AJ001.00
059-1000-0 R49-50 RES,MF,FUSE, 10.0, 1/4W, 1% JUKN.OHM FR25-10.0
059-1001-0 R40 RES,MF,FUSE, 100, 1/4W, 1% JUKN.OHM FR25-100
059-1002-0 R9 R27 RES,MF,FUSE, 1.00K, 1/4W, 1% JUKN.OHM FR25-1.00K
059-4750-0 R5 R25 RES,MF,FUSE, 47.5, 1/4W, 1% JUKN.OHM FR25-47.5
060-1002-0 R8 R17 R20 R38-39 RES,METAL FILM, 1.00K, 1/8W, 1% ECI M1F1AK001.00
060-1003-0 R30 R33 RES,METAL FILM, 10.0K, 1/8W,1% ECI M1F1AK010.00
060-1004-0 R32 R34 RES,METAL FILM, 100K, 1/8W, 1% ECI M1F1AK100.00
060-1213-0 R7 R19 RES,METAL FILM, 12.1K, 1/8W, 1% ECI M1F1AK012.10
060-1821-0 R14-15 R18 RES,METAL FILM, 182, 1/8W, 1% ECI M1F1AJ182.00
060-2001-0 R24 RES,METAL FILM, 200, 1/8W, 1% ECI M1F1AJ200.00
060-2002-0 R10-12 R37 RES,METAL FILM, 2.00K, 1/8W, 1% ECI M1F1AK002.00
060-2003-0 R1 R3 RES,METAL FILM, 20.0K, 1/8W, 1% ECI M1F1AK020.00
060-2004-0 R22 RES,METAL FILM, 200K, 1/8W, 1% ECI M1F1AK200.00
060-2432-0 R31 RES,METAL FILM, 2.43K, 1/8W, 1% ECI M1F1AK002.43
060-3742-0 R16 RES,METAL FILM, 3.74K, 1/8W, 1% ECI M1F1AK003.92
060-4323-0 R13 RES,METAL FILM, 43.2K, 1/8W, 1% ECI M1F1AK043.20
060-4752-0 R29 RES,METAL FILM, 4.75K, 1/8W, 1% ECI M1F1AK004.75
060-4753-0 R35 RES,METAL FILM, 47.5K, 1/8W, 1% ECI M1F1AK047.50
060-7501-0 R36 RES,METAL FILM, 750, 1/8W, 1% ECI M1F1AJ750.00
070-0520-0 R21 POT,500B TRIM, 200mW SONG HUEI SH-655MCL-500B
081-0055-0 L1 INDUCTOR,2UH,20A,AIR CORE SCHONBERG 081-0055-0
091-0024-0 F1 FUSE,5mm,T4AL,250V,SEMKO LITTLE FUSE 218-004
091-1002-0 S1 THRM BRKR, 105C +/-5,0-DIFF, PC KLIXON 7AM-028-A5
092-0001-0 J7 CON, IECX3, 10A, 250V, PC TERM DIHTAIN DTS-0045
092-0066-0 T1-12 FASTON, M, PC, .250" KEYSTONE 1021
6270A2 Bom-4/21/2004-Rev B
Costed Bill Of Material
Backline 210 Power Amp 206-0270-A2
Part No. Reference Description Manufacturer Mfr. Part No.
092-0082-0 J3-4 JACK,1/4",MONO,PC, GROUNDING NEUTRIK S102-84G
093-0025-0 J2 HDR,.1X2,VERT,MALE,LOCK,GOLD AMP 641126-2
093-0080-0 J5 HDR,.156X3,VERT,MALE,LOCKING MOLEX 26-60-4030
093-2005-0 J1 HDR, 2MMX7, VERT, SHROUDED JST B7B-PH-K-S
094-0004-0 J6 FUSE CLIP, 5MM, 15A, P.C. MOUSER 44FH052
105-0005-0 I5-6 INSULATOR, TO-126, RUBBER BERQUIST 7403-09AC
105-0010-0 I1-4 INSULATOR, TO-218, GREASED MICA THERMALLOY 56-02-101AP
117-0097-0 B5-11 BOLT,M3x9,M2,PHP/SW/PW,CHROME LIQUAN SCREW
117-0127-0 B1-4 BOLT,M3x12,M2,PHP/SW/PW,CHROME LIQUAN SCREW
132-0272-A H1 BACKLINE 210 HEAT SINK ELITE 132-0272-A
202-6000-A W1 WIRE ASY,14GA,GRN/YEL,4",#4 TERM LEOCO 202-6000-A
145-0270-A2 BACKLINE 210 POWER AMP BOARD
6270A2 Bom-4/21/2004-Rev B
Loading...
