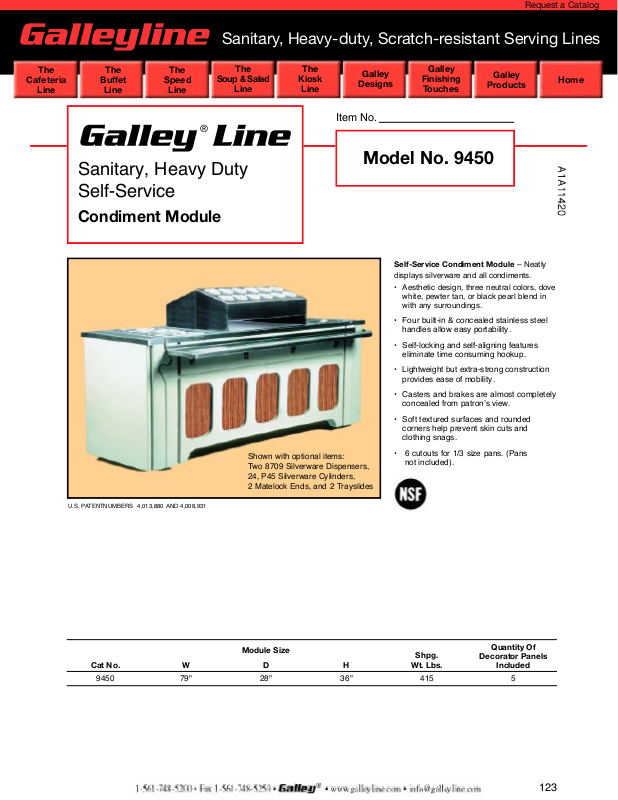

Galley 9450 User Manual
Request a Catalog
123
®
Sanitary, Heavy Duty
Self-Service
Condiment Module
Model No. 9450
Self-Service Condiment Module – Neatly
displays silverware and all condiments.
• Aesthetic design, three neutral colors, dove
white,
pewter tan, or black pearl blend in
with any surroundings.
• Four built-in & concealed stainless steel
handles allow easy portability
.
• Self-locking and self-aligning features
eliminate time consuming hookup.
• Lightweight but extra-strong construction
provides ease of mobility.
• Casters and brakes are almost completely
concealed from patronʼs view.
• Soft textured surfaces and rounded
corners help prevent skin cuts and
clothing snags.
• 6 cutouts for 1/3 size pans. (Pans
not included).
Item No.
Cat No. W D H
Shpg.
Wt. Lbs.
9450 79" 28" 36" 415 5
Quantity Of
Decorator Panels
Included
Module Size
Shown with optional items:
Two 8709 Silverware Dispensers,
24, P45 Silverware Cylinders,
2 Matelock Ends, and 2 Trayslides
U.S. PATENTNUMBERS 4,013,880 AND 4,008,931
Sanitary, Heavy-duty, Scratch-resistant Serving Lines
The
Cafeteria
Line
The
Buffet
Line
Speed
The
Line
The
Soup & Salad
Line
The
Kiosk
Line
Galley
Designs
Galley
Finishing
Touches
Galley
Products
Home
Galley®Line
Self-Service Condiment Module
Model No. 9450
To be Galley®Line Self-Service Condiment Module, Model
9450 with accessories as specified.
GENERAL: Module to be self-contained, mobile self-service
condiment module. Body material to be one of three neutral base
colors, dove white, pewter tan, or black pearl. “Matelock” selflocking and aligning end panels allow modules to be interconnected. To have recessed push handles at each end. Side skirt
to be recessed to accept decorator panels. To be listed by
National Sanitation Foundation.
CONSTRUCTION: Body material to be of flame retardant ABS
formed plastic fastened to a galvaneal undercarriage. 14 ga. 300
series stainless steel top to have not less than #4 finish. Plate
mounted 4" swivel casters with toe brakes to be provided.
ACCESSORIES:
A. Decorator panels, specify catalog number.
c
Catalog No. 8700 American Walnut.
c
Catalog No. 8701 Teakwood.
c
Catalog No. 8702 Custom Panel.
B. Folding Trayslides. All stainless steel with die-stamped
three-rib reinforcement.
c
Catalog No. 8775, *Short width.
c
Catalog No. 8776, 717/8" width.
c
Catalog No. 8777, 79" width.
c
Catalog No. 8778, 79" width.
*Note: A short trayslide must be used on the first module to the
right of Corner In-Fill Module for inside turns.
C. Folding Cutting Board. All plastic. Mounted flush on the
server’s side.
c
Catalog No. 8764. Short 641/2" width.
D. Extension shelf. Stainless steel. Mounted flush with top of
module. Self-mounting. 16" wide x 28" deep.
c
Catalog No. 8754.
E. Low End Shelf. Stainless steel. Self-mounting.
16" x 28" shelf.
c
Catalog No. 8725.
F. “Mateflat” Panel. (Makes any Galley unit compatible with any
other serving line equipment or for squaring unit to wall.)
Size 53/8"W x 28"D x 36"H.
c
Catalog No. 8761 Male Panel (Fits female end).
c
Catalog No. 8762 Female Panel (Fits male end).
G. Flat End Panel.
c
Catalog No. 8731. Replaces Female "Matelock".
c
Catalog No. 8732. Replaces Male "Matelock".
H. Low End Shelf.
c
Catalog No. 8725.
I. Silverware Cylinders.
c
Catalog No. P45.
J. Silverware Dispenser.
c Catalog No. 8709 (one or two).
Specifications subject to change without notice
Note: If unit is to be used independently, add 4" to width for
clearance on all specifications. Add 3 1/2" to depth for
folded trayslide or cutting board when applicable.
Corner Module & Tray Slide
9420, 8779
Deluxe Cashier Module &
Tray Slide
9402, 8774
Condiment Module – One Silverware
Dispenser & Tray Slide
9450, 8778, 8709, 12-P-45’s
