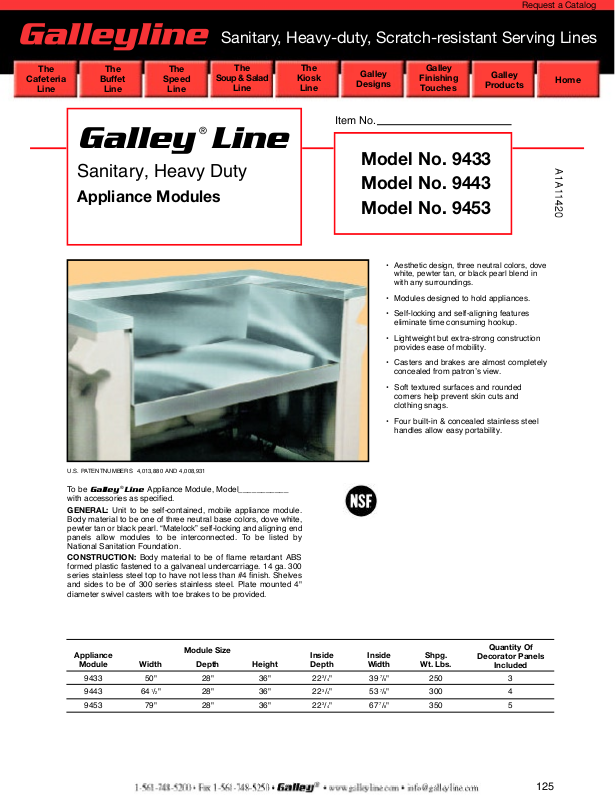

Galley 9433 User Manual
Request a Catalog
125
®
Sanitary, Heavy Duty
Appliance Modules
Model No. 9433
Model
No. 9443
Model
No. 9453
• Aesthetic design, three neutral colors, dove
white,
pewter tan, or black pearl blend in
with any surroundings.
• Modules designed to hold appliances.
• Self-locking and self-aligning features
eliminate time consuming hookup.
• Lightweight but extra-strong construction
provides ease of mobility.
• Casters and brakes are almost completely
concealed from patronʼs view.
• Soft textured surfaces and rounded
corners help prevent skin cuts and
clothing snags.
• Four built-in & concealed stainless steel
handles allow easy portability.
Item No.
Appliance
Module Width Depth Height
Inside
Depth
Inside
Width
Shpg.
Wt. Lbs.
9433
9443
9453
50"
64
1
/2"
79"
28"
28"
28"
36"
36"
36"
22
3
/4"
22
3
/4"
22
3
/4"
39
7
/8"
53
7
/8"
67
7
/8"
250
300
350
3
4
5
Quantity Of
Decorator Panels
Included
Module Size
To be Galley®Line Appliance Module, Model___________
with accessories as specified.
GENERAL: Unit
to be self-contained, mobile appliance module.
Body material to be one of three neutral base colors, dove white,
pewter tan or black pearl. “Matelock” self-locking and aligning end
panels allow modules to be interconnected. To be listed by
National Sanitation Foundation.
CONSTRUCTION: Body
material to be of flame retardant ABS
formed plastic fastened to a galvaneal undercarriage. 14 ga. 300
series stainless steel top to have not less than #4 finish. Shelves
and sides to be of 300 series stainless steel. Plate mounted 4"
diameter swivel casters with toe brakes to be provided.
U.S. PATENTNUMBERS 4,013,880 AND 4,008,931
Sanitary, Heavy-duty, Scratch-resistant Serving Lines
The
Cafeteria
Line
The
Buffet
Line
Speed
The
Line
The
Soup & Salad
Line
The
Kiosk
Line
Galley
Designs
Galley
Finishing
Touches
Galley
Products
Home
Galley®Line
Heavy Duty Appliance Modules
Model No’s. 9433, 9443, 9453
ACCESSORIES:
A. Extension shelf.
c Catalog No. 8754.
B. Low End Shelf.
c Catalog No. 8725.
C. “Mateflat” Panel. (Makes any Galley unit compatible with any
other serving line equipment or for squaring unit to wall.)
c Catalog No. 8761 Male Panel (Fits female end).
c Catalog No. 8762 Female Panel (Fits male end).
D. Flat End Panel. (Makes any Galley unit compatible with any
other serving line equipment or for squaring unit to wall.)
c Catalog No. 8731. Replaces Female "Matelock".
c Catalog No. 8732. Replaces Male "Matelock".
