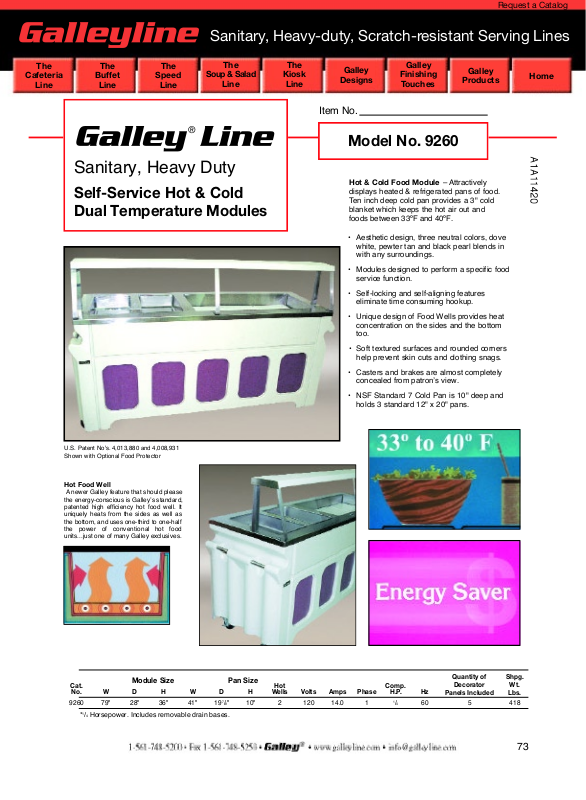

Model No. 9260

• Aesthetic design, three neutral colors, dove
white, pewter tan and black pearl blends in
with any surroundings.

• Modules designed to perform a specific food
service function.

• Self-locking and self-aligning features
eliminate time consuming hookup.

• Unique design of Food Wells provides heat
concentration on the sides and the bottom
too.

• Soft textured surfaces and rounded corners
help prevent skin cuts and clothing snags.

• Casters and brakes are almost completely
concealed from patronʼs view.

• NSF Standard 7 Cold Pan is 10" deep and
holds 3 standard 12" x 20" pans.

Item No.

Hot & Cold Food Module – Attractively
displays

heated & refrigerated pans of food.
Ten inch deep cold pan provides a 3" cold
blanket

which keeps the hot air out and

foods between 33ºF and 40ºF.

Hot Food Well

A newer Galley feature that should please
the energy-conscious is Galleyʼs standard,
patented

high efficiency hot food well. It

uniquely

heats from the sides as well as
the bottom, and uses one-third to one-half
the power of conven

tional hot food

units...just one of many Galley exclusives.

U.S. Patent No's. 4,013,880 and 4,008,931
Shown with Optional Food Protector

Cat.

No.

W D H W D H

Hot

Wells Volts Amps Phase

Comp.

H.P. Hz

Quantity of

Decorator

Panels Included

9260 79" 28" 36" 41" 197/8" 10" 2 120 14.0 1

1

/

4

60 5

Shpg.

Wt.

Lbs.

418

Module Size Pan Size

*1/4Horsepower. Includes removable drain bases.

Sanitary, Heavy-duty, Scratch-resistant Serving Lines

The

Cafeteria

Line

The

Buffet

Line

The

Speed

Line

The

Soup & Salad

Line

The

Kiosk

Line

Galley

Designs

Galley

Finishing

Touches

Galley

Products

Home

Galley®Line

Hot & Cold Dual Temp. Food Modules

Model No. 9260

To be Galley®Line Cafeteria Hot & Cold Dual Temperature Module,
Model 9260 with accessories as specified.

GENERAL: Unit to be self-contained, mobile cafeteria Hot & Cold Well
module for heated & refrigerated foods. Body material to be one of three neu­tral base colors, dove white, pewter tan or black pearl. “Matelock” self-locking
and aligning end panels allow modules to be interconnected. To have
recessed push handles at each end. Removable side panel on customer’s
side to be recessed to accept decorator panels. Server side to be open to
accept accessories. To be listed by The National Sanitation Foundation.

CONSTRUCTION: Body material to be of flame retardant ABS formed plastic
fastened to a galvanized steel undercarriage. 14 ga. 300 series stainless steel
top to have not less than No. 4 finish. To have a die-stamped openings with
raised edges to accept a 4" deep x 12 x 12 pans. Dry hot food well (500W
each) to be constructed to provide bottom and side heating to hold
hot food at serving temperature. Each Hot food well to be
individually controlled by means of an infinite switch. Plate to have removable
white low gloss ABS plastic drain base. Cold pan drain to include hose and
shut-off. Insulated cold pan to be constructed of 300 series stainless steel and
shall be 10" deep. The pans are to be set on a ledge 3" below the top surface
and surrounded with frost. The cold pan refrigeration system to be a 1/4 h.p.
hermetically sealed condensing unit. Condensing unit to be fully enclosed in a
corrosion resistant ventilated housing. Plate mounted 4" diameter swivel
casters with toe brakes to be provided. Power supply cord to be 6 feet in
length. NEMA plug configuration to be L5-30P. To be used with a branch
circuit rating of 30 amps, single pole. Power supply cord to be 12 AWG, 3
conductors.

ACCESSORIES:
A. Decorator panels, specify catalog number and quantity.

(See chart on front side.)

c

Catalog No. 8700 American Walnut, Quantity______ Included.

c

Catalog No. 8701 Teakwood, Quantity_______.

c

Catalog No. 8702 Plain Custom Panels, Quantity______.

B. Food Pan Adapters, specify quantity.

c

Catalog No. 8750 Hot Well Adapter for use with 6" deep
12 x 20 pans Quantity______.

C. Folding Trayslides. All stainless steel with die-stamped three-rib reinforcement.

c

Catalog No. 8777, (*Short 79") 71

7

/8" width.

c

Catalog No. 8778, 79" width.

*Note: A “Short Trayslide” must be used on the first module to the right of corner

In-Fill Module for inside turns.

D. Hot Food Protector with plastic shelf, breathguard and stainless steel upright sup-

ports. 14" high field mounted.

c

Catalog No. 8782, 79" width.

c

Catalog No. 8793, 79" width. Lighted. ULlisted.

E. Folding Cutting Board. All plastic. Mounted flush on server’

s

side.

c

Catalog No. 8765, 79" width.

F. Extension Shelf. Stainless steel. Mounted flush with top of module.

Self-mounting. 16" wide x 28" deep.

c

Catalog No. 8754 (Not for use with item I or N).

G. Undercounter Shelving System. Maximum: two per unit. All stainless steel.

Removable 18" depth with 1" front edge.

c

Catalog No. 8757 411/2" width.

H. Utility Drawer. Stainless steel. Has lock and removable liner. Outside dimensions:

2

5

1

/4"W x 23"D x 71/4"H. Mounted on server’s side.

c

Catalog No. 8760.

I. “Mateflat” Panel. (Makes any Galley unit compatible with any other serving line

equipment or for squaring unit to wall.) Size: 5

3/8"W x 28"D x 36"H.

c

Catalog No. 8761 Male Panel (fits female end).

c

Catalog No. 8762 Female Panel (fits male end).

J. Buffet Style Canopy.

c

Catalog No. 8742 use with 79" unit. ULlisted.

K. Low End Shelf.

c

Catalog No. 8725 (Not for use with item I or N).

L. Buffet Style Canopy with Heat Lamps.

c

Catalog No. 8745 use with 79" unit. ULlisted.

M. Close Off For Server’s Side.

c

Catalog No. 8736 use with 79" unit. ULlisted.

N. Flat End Panels. (Makes any Galley unit compatible with any other serving line
equipment or for squaring unit to wall).

c

Catalog No. 8731 Replaces Female "matelock".

c

Catalog No. 8732 Replaces Male "matelock".

O. ELECTRICALOUTLETS (Not ULListed).

c

Catalog No. 8696 Tombstone, Top Mounted, Duplex, 125V, 15 AMP.

c

Catalog No. 8697 Operator Side, Under Top Skirt, Duplex, 120V, 16 AMP.

c

Catalog No. 8698 Operator Side, Under Top Skirt, Duplex, 120V, 15 AMP

.

c

Catalog No. 8699 Operator Side, Under Top Skirt, Duplex, 120V, 15 AMP.

NOTE: #8696 and #8697 are part of the module wiring. #8698 and #8699 have

separate cord set.
