To be Galley®Line Under Counter Refrigerator
model____________ with accessories as specified.
GENERAL: Unit to be self-contained, mobile undercounter
refrigeration
module accessible from server side only.
Body material to be one of three neutral base colors, dove
white,
pewter tan or black pearl. “Matelock” self-locking
and aligning end panels allow modules to be interconnect
-
ed.
To have recessed push handles at each end. Side skirt (customer side) to be removable for access to electrical junction box and
refrigerator
base. Side skirt to be recessed to accept decorator panels. To be listed by the National Sanitation Foundation.
CONSTRUCTION: Body
material to be of flame retardant ABS formed plastic fastened to a galvaneal undercarriage. 14 ga. 300 series
stainless
steel top to have not less than No. 4 finish. Inner liner of refrigerator constructed of stainless steel. Refrigeration system to be 1/3
H.P.
hermetically sealed condensing unit with blower coil. System preset to maintain proper product temperature. Plate mounted 4" diame-
ter
swivel casters with toe brakes. Power supply cord to be 6 feet in length. NEMAplug configuration to be 5-15P. To be used with a branch
circuit
rating of 15 AMPS, single pole. Power supply cord to be 14 AWG, 3 conductors. Doors fully insulated with edge mount hinge and slam
action
latch. Complete with moisture proof door gasket, removable false bottom and removable pan slide rack for easy cleaning.
®

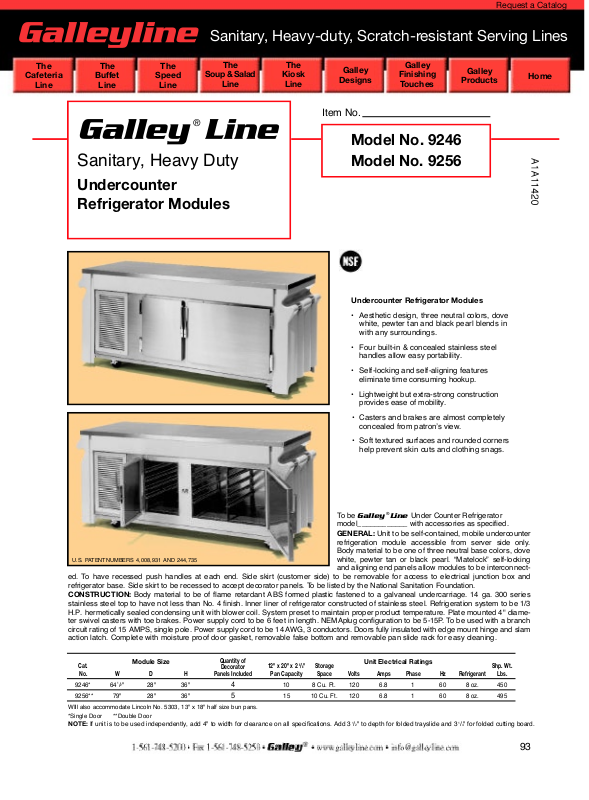

Sanitary, Heavy Duty
Undercounter
Refrigerator Modules
Model No. 9246
Model No. 9256
Undercounter Refrigerator Modules
• Aesthetic design, three neutral colors, dove
white, pewter tan and black pearl blends in
with any surroundings.
• Four built-in & concealed stainless steel
handles allow easy portability.
• Self-locking and self-aligning features
eliminate time consuming hookup.
• Lightweight but extra-strong construction
provides ease of mobility.
• Casters and brakes are almost completely
concealed from patronʼs view.
• Soft textured surfaces and rounded corners
help prevent skin cuts and clothing snags.
Item No.
U.S. PATENTNUMBERS 4,008,931 AND 244,735
159256** 79" 28" 36" 10 Cu. Ft. 120 6.8 1 60 8 oz. 495
5
10
Cat.
No.
W D H
Storage
Space
Volts Amps Phase Hz Refrigerant
Shp. Wt.
Lbs.
Quantity of
Decorator
Panels Included
9246* 641/2" 28" 36" 8 Cu. Ft. 120 6.8 1 60 8 oz. 450
4
12" x 20" x 25/8"
Pan Capacity
Module Size Unit Electrical Ratings
WIll also accommodate Lincoln No. 5303, 13" x 18" half size bun pans.
*Single
Door **Double Door
NOTE: If unit is to be used independently, add 4" to width for clearance on all specifications. Add 31/2" to depth for folded trayslide and 31/4" for folded cutting board.
Sanitary, Heavy-duty, Scratch-resistant Serving Lines
The
Cafeteria
Line
The
Buffet
Line
Speed
The
Line
The
Soup & Salad
Line
The
Kiosk
Line
Galley
Designs
Galley
Finishing
Touches
Galley
Products
Home
Galley®Line
Undercounter Refrigeration Modules
Model No. 9246 Model No. 9256
ACCESSORIES:
A. Decorator panels, specify catalog number and quantity.
(See chart on front side.)
c
Catalog No. 8700 American Walnut, Quantity______.
c
Catalog No. 8701 Teakwood, Quantity______.
c
Catalog No. 8702 Plain Custom Panel, Quantity______.
B. Folding Trayslides. All stainless steel with die-stamped
three-rib reinforcement.
c
Catalog No. 8775, (*Short 64
1
/2") 573/8" width.
c
Catalog No. 8776, 641/2" width.
c
Catalog No. 8777, (*Short 79") 717/8" width.
c
Catalog No. 8778, 79" width.
*Note: A“Short Trayslide” must be used on the first module to the
right of Corner In-Fill Module for inside turns.
C. Food Protector with plastic shelf, breathguard and stainless
steel upright supports. 14" high. Must be factory ordered with
the refrigeration module, assembled at customer site.
c
Catalog No. 8781, 64
1
/2" width. Unlighted.
c
Catalog No. 8792, 641/2" width. Lighted.
c
Catalog No. 8782, 79" width. Unlighted.
c
Catalog No. 8793, 79" width. Lighted.
D. Double Deck Display Stand with two plastic shelves, breath-
guard and stainless steel upright supports. 18" high. Must be
factory ordered with the refrigeration module, assembled at
customer site.
c
Catalog No. 8786, 64
1
/2" width. Unlighted.
c
Catalog No. 8789, 64
1
/2" width. Lighted.
c
Catalog No. 8787, 79" width. Unlighted.
c
Catalog No. 8790, 79" width. Lighted.
E. Folding Cutting Board. All plastic. Mounted flush on
server’s side.
c
Catalog No. 8764, 64
1
/2" width.
c
Catalog No. 8765, 79" width.
F. Extension shelf. Stainless steel. Mounted flush with top of
module. Self-mounting. 16" wide x 28" deep.
c
Catalog No. 8754.
G. “Mateflat” Panel. (Makes any Galley unit compatible with any
other serving line equipment or for squaring unit to wall.)
Size 5
3
/8"W x 28"D x 36"H.
c
Catalog No. 8761 Male Panel (Fits female end).
c
Catalog No. 8762 Female Panel (Fits male end).
H. Flat End Panels.
c
Catalog No. 8731 Replaces Female "matelock"
c
Catalog No. 8732 Replaces Male "matelock".
I. Merchandising Shelf.
c
Catalog No. 8713. Use with 64
1
/2" unit.
c
Catalog No. 8714. Use with 79" unit.
J. Low End Shelf.
c
Catalog No. 8725.
K. Bullet Feet.
c
Catalog No. 8783.
Specifications subject to change without notice.
