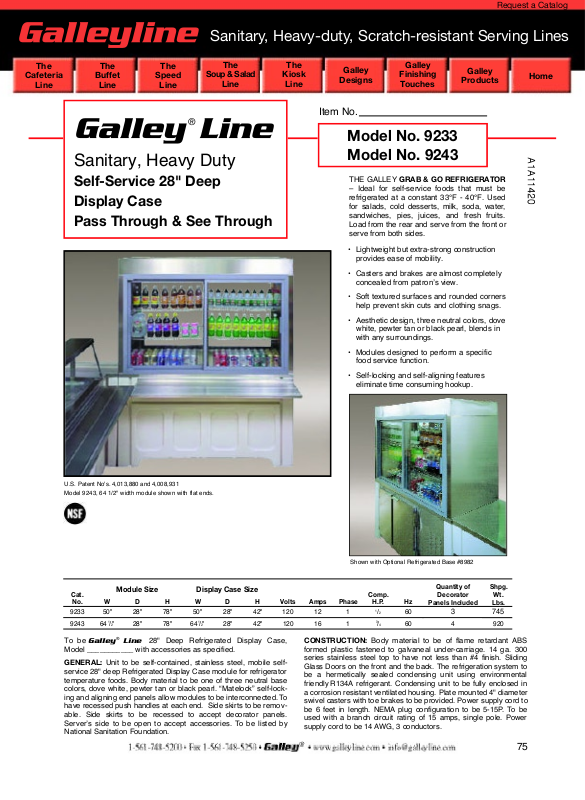

Sanitary, Heavy Duty

Self-Service 28" Deep
Display Case
Pass

Through & See Through

Model No. 9233
Model No. 9243

• Lightweight but extra-strong construction
provides ease of mobility.

• Casters and brakes are almost completely
concealed from patronʼs view.

• Soft textured surfaces and rounded corners
help prevent skin cuts and clothing snags.

• Aesthetic design, three neutral colors, dove
white, pewter tan or black pearl, blends in
with any surroundings.

• Modules designed to perform a specific
food service function.

• Self-locking and self-aligning features
eliminate time consuming hookup.

Item No.

Model 9243, 64 1/2" width module shown with flat ends.

To be G a l l ey®Line 28" Deep Refrigerated Display Case,
Model

___________ with accessories as specified.

GENERAL: Unit

to be self-contained, stainless steel, mobile self­service 28" deep Refrigerated Display Case module for refrigerator
temperature

foods. Body material to be one of three neutral base

colors,

dove white, pewter tan or black pearl. “Matelock” self-lock-

ing and aligning end panels allow modules to be interconnected.

To

have recessed push handles at each end. Side skirts to be remov

-

able.

Side skirts to be recessed to accept decorator panels.

Server

ʼs side to be open to accept accessories. To be listed by

National Sanitation Foundation.

CONSTRUCTION: Body

material to be of flame retardant ABS

formed

plastic fastened to galvaneal under-carriage. 14 ga. 300

series

stainless steel top to have not less than #4 finish. Sliding

Glass

Doors on the front and the back. The refrigeration system to

be

a hermetically sealed condensing unit using environmental

friendly R134A refrigerant.

Condensing unit to be fully enclosed in
a corrosion resistant ventilated housing. Plate mounted 4" diameter
swivel casters with toe brakes to be provided. Power supply cord to
be

6 feet in length. NEMA plug configuration to be 5-15P. To be

used

with a branch circuit rating of 15 amps, single pole. Power

supply

cord to be 14 AWG, 3 conductors.

THE GALLEY GRAB & GO REFRIGERATOR
– Ideal for self-service foods that must be
refrigerated

at a constant 33°F - 40°F. Used
for salads, cold desserts, milk, soda, water,
sandwiches,

pies, juices, and fresh fruits.
Load from the rear and serve from the front or
serve from both sides.

Cat.

No. W D H W D H Volts Amps Phase

Comp.

H.P. Hz

Quantity of

Decorator

Panels Included

9233 50" 28" 78" 50" 28" 42" 120 12 1

1

/

2

60

3

9243 641/2" 28" 78" 641/2" 28" 42" 120 16 1

3

/

4

60 4

Shpg.

Wt.

Lbs.

745

920

Module Size Display Case Size

U.S. Patent No's. 4,013,880 and 4,008,931

Shown with Optional Refrigerated Base #8982

75

Sanitary, Heavy-duty, Scratch-resistant Serving Lines

The

Cafeteria

Line

The

Buffet

Line

Speed

The

Line

The

Soup & Salad

Line

The

Kiosk

Line

Galley

Designs

Galley

Finishing

Touches

Galley

Products

Home

Galley®Line

28" Deep Refrigerated Display Case Module
Model No’s. 9233, 9243

ACCESSORIES:
A. Decorator panels, specify catalog number and quantity.

c

Catalog No. 8700 American Walnut, Quantity______ Included.

c

Catalog No. 8701 Teakwood, Quantity______.

c

Catalog No. 8702 Plain Custom Panel, Quantity______.

c

Catalog No. 87xx Custom Laminate, Quantity______.

B. Folding Trayslides. All stainless steel with die-stamped

three-rib reinforcement.

c

Catalog No. 8773, (*Short 50") 42

7

/8" width, used on 9231.

c

Catalog No. 8774, 50" width, used on model 9231.

c

Catalog No. 8775, (*Short 641/2") 573/8" width, used on 9241.

c

Catalog No. 8776, 641/2" width, used on model 9641.

c

Catalog No. 8777, (*Short 79") 71

7

/8" width, used on 9651.

c

Catalog No. 8778, 79" width, used on model 9651.

*Note: A short trayslide must be used on the first module to the

right of Corner In-Fill Module for inside turns.

D. Folding Cutting Board. All plastic. Mounted flush on

server’s side.

c

Catalog No. 8763, 50" width, used on model 9231.

c

Catalog No. 8764, 64

1

/2" width used on model 9241.

c

Catalog No. 8765, 79" width used on model 9251.

E. Extension shelf. Stainless steel. Mounted flush with top of

module. Self-mounting. 16" wide x 28" deep.

c

Catalog No. 8754.

F. “Mateflat” Panel. (Makes any Galley unit compatible with any

other serving line equipment or for squaring unit to wall.)
Size 5

3

/8"W x 28"D x 36"H.

c

Catalog No. 8761. Male panel (fits female end).

c

Catalog No. 8762. Female panel (fits male end).

Specifications subject to change without notice
