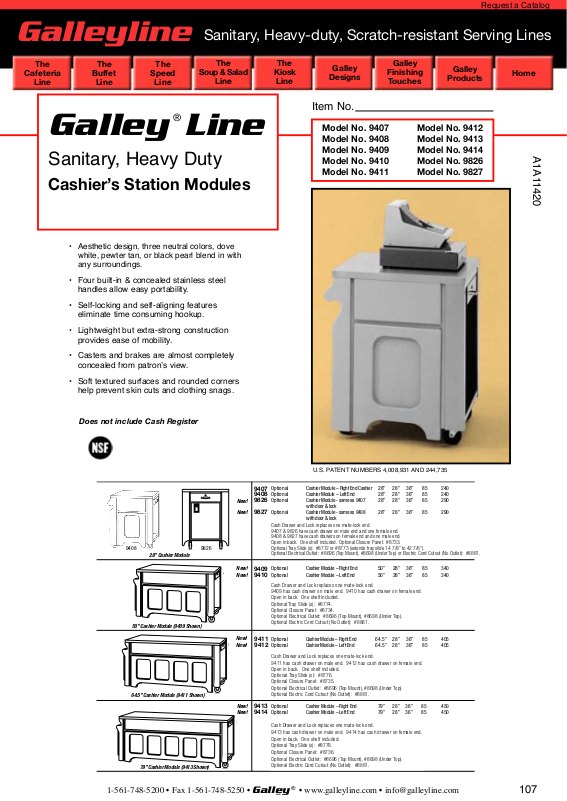

Galley 9047 User Manual

Request a Catalog

1-561-748-5200 • Fax [phone] •

Galley

®

• www.galleyline.com • [e-mail]

INC.

Sanitary, Heavy-duty, Scratch-resistant Serving Lines

The

Cafeteria

Line

The

Buffet

Line

The

Speed

Line

Soup & Salad

Galley®Line

Sanitary, Heavy Duty

Cashier’s Station Modules

• Aesthetic design, three neutral colors, dove
white,

pewter tan, or black pearl blend in with

any

surroundings.

• Four built-in & concealed stainless steel
handles allow easy portability.

• Self-locking and self-aligning features
eliminate time consuming hookup.

• Lightweight but extra-strong construction
provides ease of mobility.

The

Line

The

Kiosk

Line

Galley

Designs

Item No.

Model No. 9407
Model No. 9408
Model No. 9409
Model No. 9410
Model No. 9411

Galley

Finishing

Touches

Galley

Products

Model No. 9412
Model No. 9413
Model No. 9414
Model No. 9826
Model No. 9827

Home

A
A1

1
1
4
2
0

• Casters and brakes are almost completely
concealed from patronʼs view.

• Soft textured surfaces and rounded corners
help prevent skin cuts and clothing snags.

Does not include Cash Register

9408

28”Cashier Module

50”Cashier Module (9409 Shown)

64.5” Cashier Module (9411 Shown)

79”Cashier Module (9413 Shown)

9826

New!

New!

New!
New!

New!
New!

New!
New!

U.S. PATENT NUMBERS 4,008,931 AND 244,735

28”

Optional

9407

Optional

9408

Optional

9826

Optional

9827

Cash Drawer and Lock replaces one mate-lock end.
9407 & 9826 have cash drawer on male end and one female end.
9408 & 9827 have cash drawers on female end and one male end.
Open in back. One shelf included. Optional Closure Panel: #8733.
Optional Tray Slide (s): #8772 or #8773 (extends tray silde 14 7/8” to 42 7/8”).
Optional Electrical Outlet: #8696 (Top Mount), #8698 (Under Top) or Electric Cord Cutout (No Outlet): #8881.

Optional

9409

Optional

9410

Cash Drawer and Lock replaces one mate-lock end.
9409 has cash drawer on male end. 9410 has cash drawer on female end.
Open in back. One shelf included.
Optional Tray Slide (s): #8774.
Optional Closure Panel: #8734.
Optional Electrical Outlet: #8696 (Top Mount), #8698 (Under Top).
Optional Electric Cord Cutout (No Outlet): #8881.

Optional

9411

Optional

9412

Cash
9411 has cash drawer on male end. 9412 has cash drawer on female end.
Open in back. One shelf included.
Optional Tray Slide (s): #8776.
Optional Closure Panel: #8735.
Optional Electrical Outlet: #8696 (Top Mount), #8698 (Under Top).
Optional Electric Cord Cutout (No Outlet): #8881.

Optional

9413
9414

Optional

Cash Drawer and Lock replaces one mate-lock end.
9413
Open
Optional
Optional Closure Panel: #8736.
Optional
Optional

Cashier Module – Right End Cashier
Cashier Module – Left End
Cashier Module - same as 9407
with door & lock
Cashier Module - same as 9408
with door & lock

Cashier Module – Right End
Cashier

Module – Left End

Cashier Module – Right End
Cashier

Module – Left End

Drawer and Lock replaces one mate-lock end.

Cashier Module – Right End
Cashier

Module – Left End

has cash drawer on male end. 9414 has cash drawer on female end.
in back. One shelf included.

Tray Slide (s): #8778.

Electrical Outlet: #8696 (Top Mount), #8698 (Under Top).
Electric Cord Cutout (No Outlet): #8881.

28”
28”
28”

28”

50”
50”

64.5”

64.5”

79”
79”

28”
28”

28”

28”
28”

28”
28”

28”
28”

36”
36”
36”

36”

36”
36”8585

36”
36”8585

36”
36”8585

85
85
85

85

240
240
290

290

340
340

405
405

450
450

107

Galley®Line

Cashier’s Station Module

Model No. 9407, 9408, 9409, 9410, 9411, 9412, 9413, 9414, 9826, 9827

To be Galley®Line Economy Cashier Module, Model______
with accessories as specified.

GENERAL: Unit to be self-contained, mobile Cashier Module.
Body material to be one of three neutral base colors, dove white,
pewter tan or black pearl. “Matelock” self-locking and aligning
end panels allow modules to be interconnected. Unit to include
metal cash drawer and stainless steel under shelf. To have
recessed push handles at one end. Two removable side panels
to be recessed to accept decorator panels. To be listed by
National Sanitation Foundation and Underwriters’ Laboratories,
Inc.

C O N S T R U C T I O N : Body material to be of flame retardant
ABS formed plastic fastened to a galvaneal undercarriage. 14
ga. 300 series stainless steel top to have not less than #4 finish.
Unit to have bottom shelf for foot rest. Cash drawer to be mount­ed on the end of the line. Plate mounted 4" diameter swivel cast­ers with toe brakes to be provided.

Specifications subject to change without notice.

ACCESSORIES:
A. Decorator panels, specify catalog number and quantity.

(See chart on front side).

c

Catalog No. 8700 American Walnut, Quantity______
Included.

c

Catalog No. 8701 Teakwood, Quantity______.

c

Catalog No. 8702 Plain Custom Panel, Quantity______.

B. Folding Trayslides. All stainless steel with die-stamped

three-rib reinforcement.

c

Catalog No. 8771, (*Short 28") 207/8" width.

c

Catalog No. 8772, 28" width.

*Note: A short trayslide must be used on the first module to the

right of Corner In-Fill Module for inside turns.

C. Extension shelf. Stainless steel. Mounted flush with top of

module. Self-mounting. 16" wide x 28" deep.

c

Catalog No. 8754.

D. “Mateflat” Panel. (Makes any Galley unit compatible with any

other serving line equipment or for squaring unit to wall.)
Size 53/8"W x 28"D x 36"H.

c

Catalog No. 8761 Male Panel (Fits female end).

c

Catalog No. 8762 Female Panel (Fits male end).

E. Low End Shelf. Self-mounting. 16" wide x 28" deep.

c

Catalog No. 8725.

F. Flat End Panel.

c

Catalog No. 8731. Use on 9407.

c

Catalog No. 8732. Use on 9408.

SPECIFICATION DRAWING OF BASIC UNIT

NOTE: If unit is to be used independently, add 4" to width for

clearance on all specifications. Add 31/2" to depth for
folded trayslide.

Galley

®

50 South US Highway One
Jupiter,FL 33477-5107
Phone:[phone]
Fax:[phone]
Web Site:www.galleyline.com

Model

Model

108
