MPI DC

08 kW - 29 kW

R410A

eco

TECHNICAL MANUAL FOR CHILLERS AND HEAT PUMPS

CHILLERS AND HEAT PUMPS DC-INVERTER

Page 2

MPI DC

All copying, even partial, of this manual is strictly forbidden. RG66007970 - Rev 01

TABLE OF CONTENTS

1 The series .....................................................................................................................................................................................................................................4

2 Constructive features ....................................................................................................................................................................................................................5

3 Layout of components ...................................................................................................................................................................................................................6

4 Models and Configurations ...........................................................................................................................................................................................................9

5 Technical characteristics ............................................................................................................................................................................................................10

5.1 Rated technical data - cooling only ...............................................................................................................................................................................................10

5.2 Rated technical data - heat pump .................................................................................................................................................................................................11

6 Performances .............................................................................................................................................................................................................................12

6.1 Cooling capacities MPI DC C .......................................................................................................................................................................................................12

6.1 Cooling capacities MPI DC H .......................................................................................................................................................................................................15

6.1 Heating capacities MPI DC H .......................................................................................................................................................................................................18

6.4 Integrated capacities ....................................................................................................................................................................................................................20

7 Sound Levels ..............................................................................................................................................................................................................................20

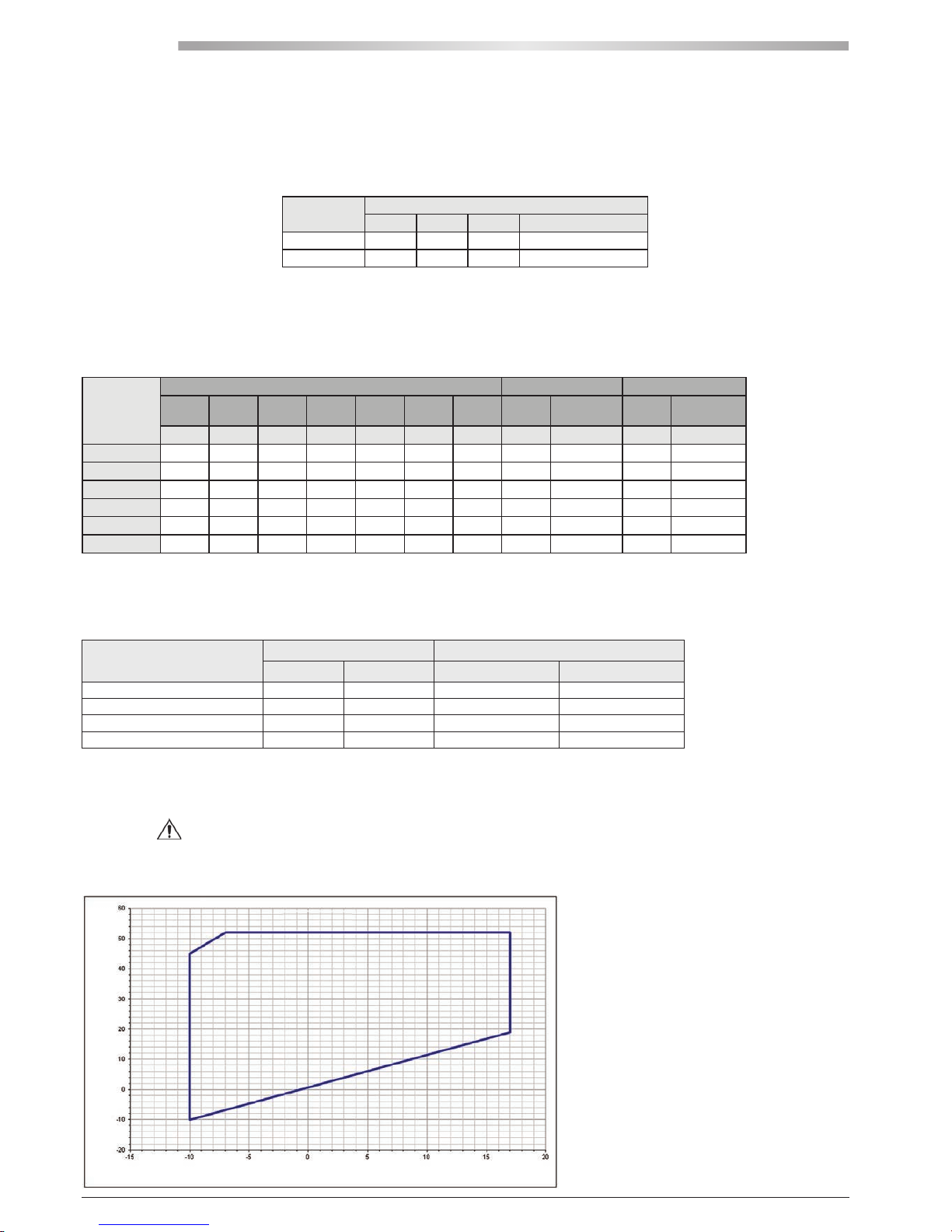

8 Operating limits ..........................................................................................................................................................................................................................20

8.1 Cooling mode ..............................................................................................................................................................................................................................20

8.2 Heating mode ..............................................................................................................................................................................................................................21

8.3 Thermal carrier fluid ..................................................................................................................................................................................................................... 21

9 Calculation Factors .....................................................................................................................................................................................................................21

9.1 Changeinoperatingparameterswith∆totherthan5°C ................................................................................................................................................................21

9.2 Water and glycol mixture ..............................................................................................................................................................................................................21

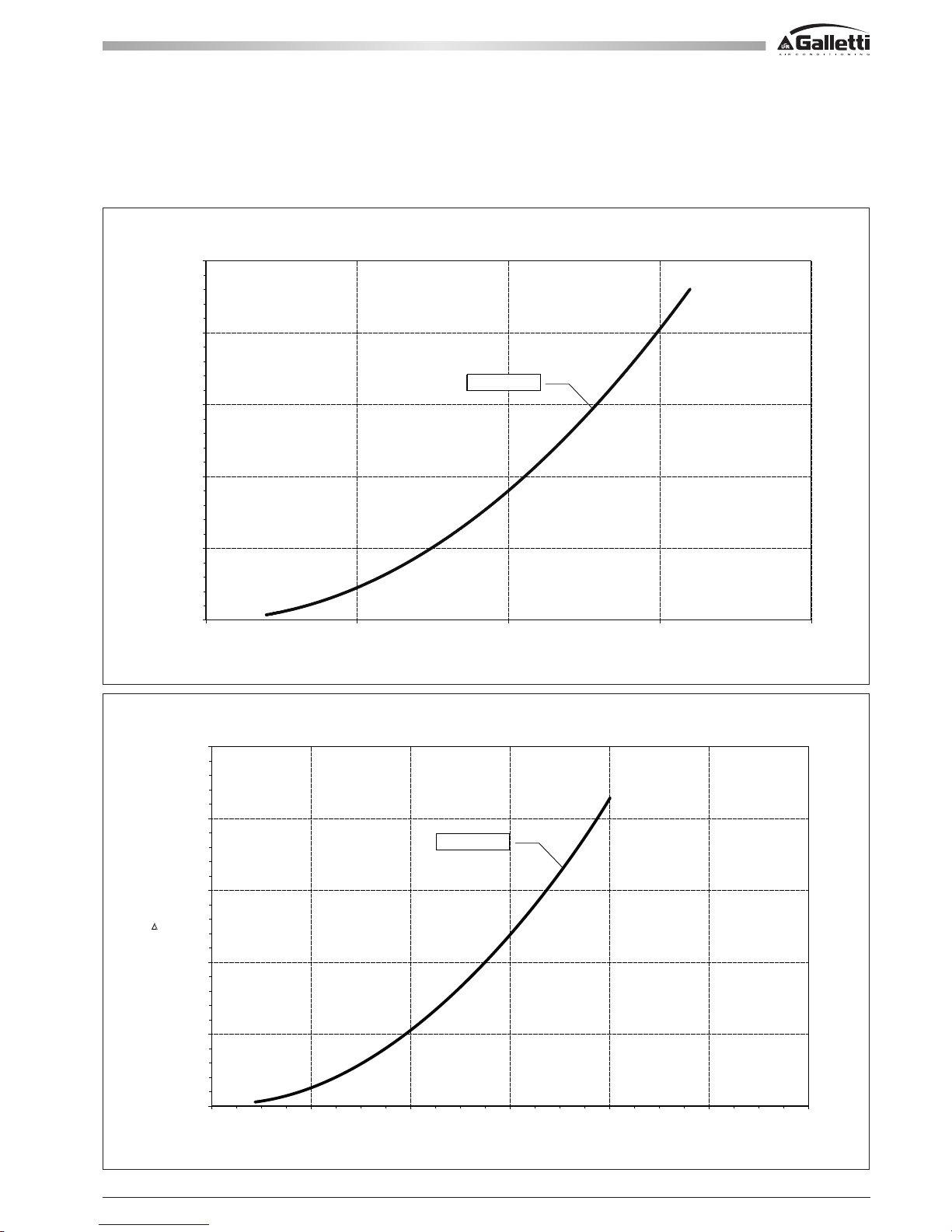

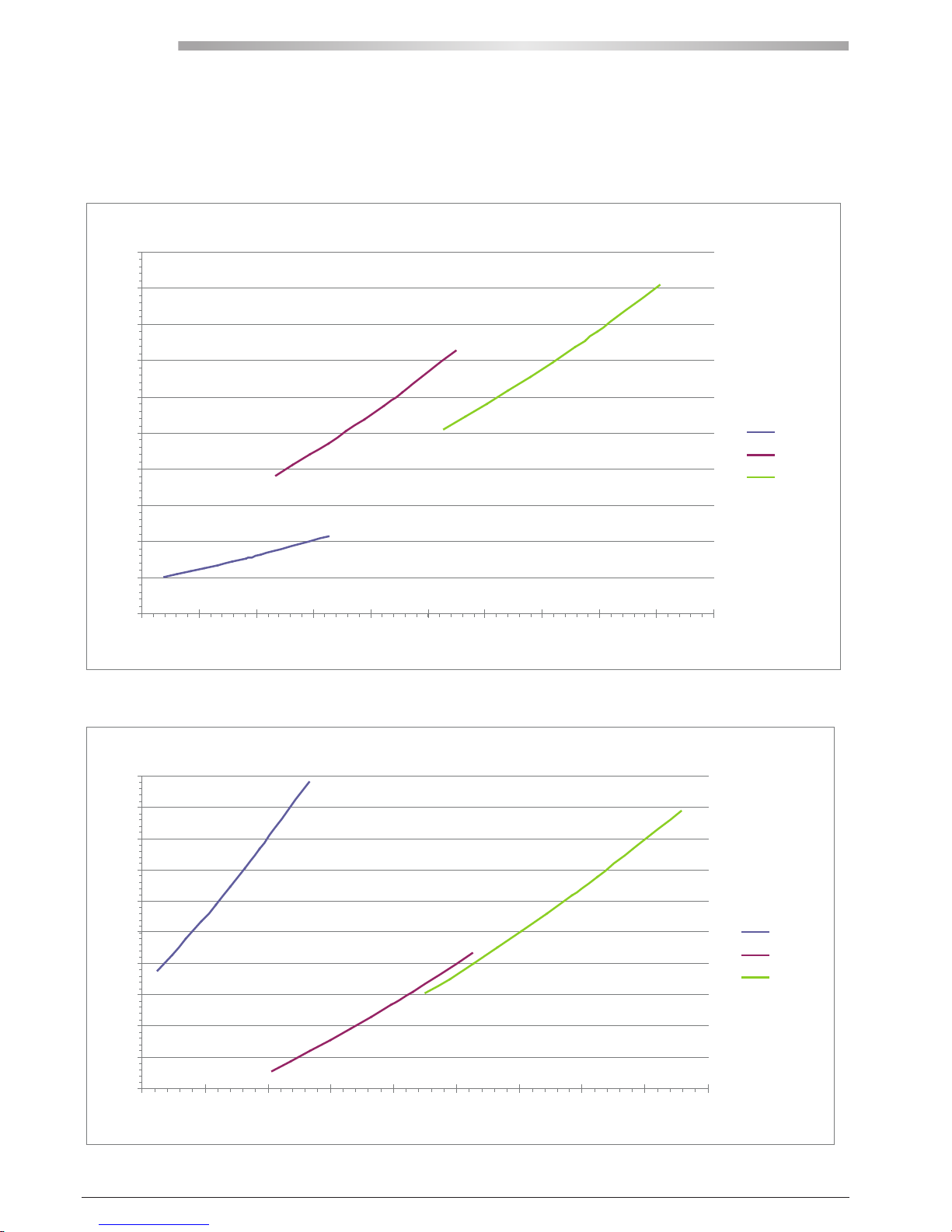

10 Pressure drops ...........................................................................................................................................................................................................................22

10.1 Pressure drops, water side ...........................................................................................................................................................................................................22

10.2 Pressure drops of Y filter .............................................................................................................................................................................................................23

11 Available head ............................................................................................................................................................................................................................24

12 Water circuit ...............................................................................................................................................................................................................................25

12.1 Water content within the system and charging of expansion tank ..................................................................................................................................................25

13 Electrical data and connections ..................................................................................................................................................................................................27

14 Overall dimensions .....................................................................................................................................................................................................................29

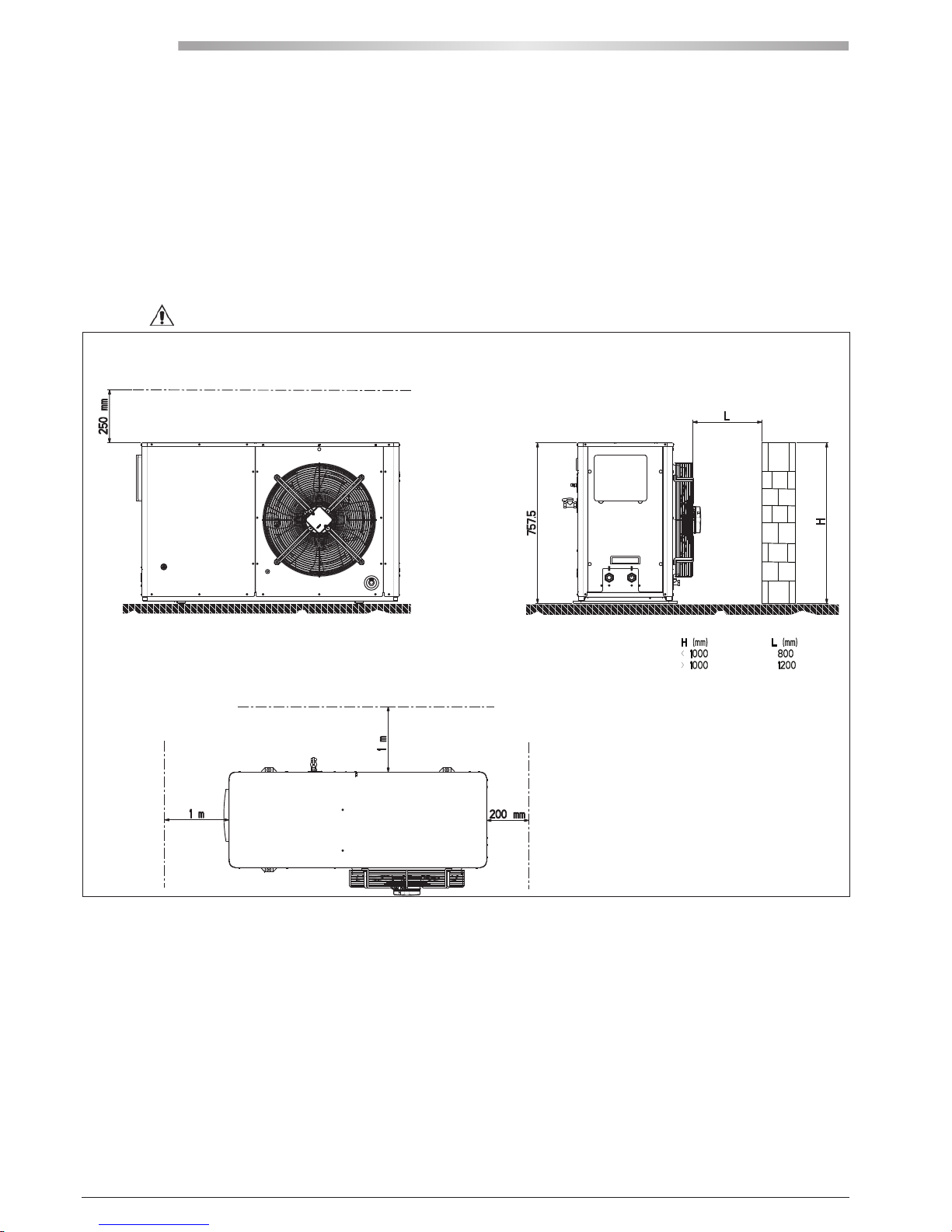

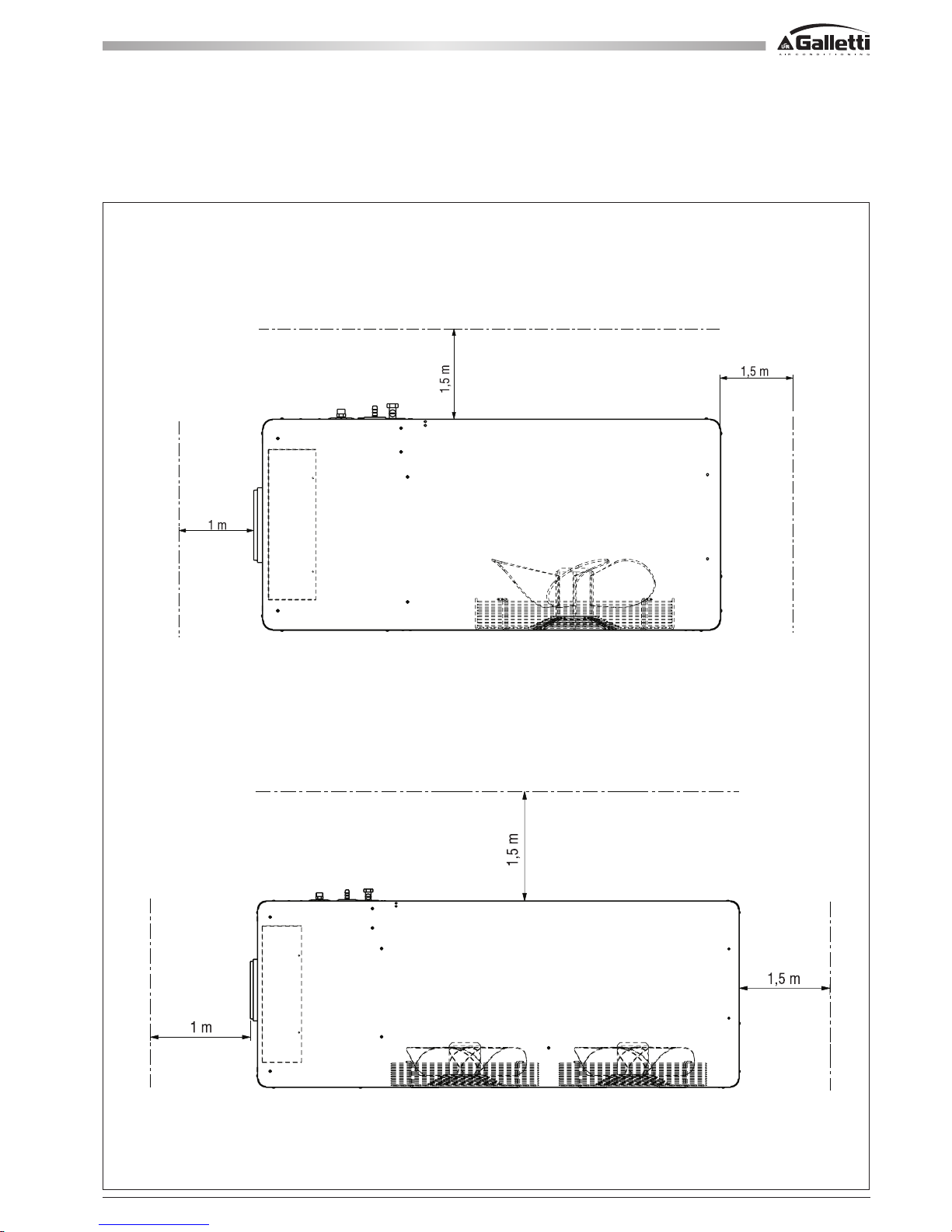

15 Installation clearance requirements ...........................................................................................................................................................................................32

16 Siting ..........................................................................................................................................................................................................................................34

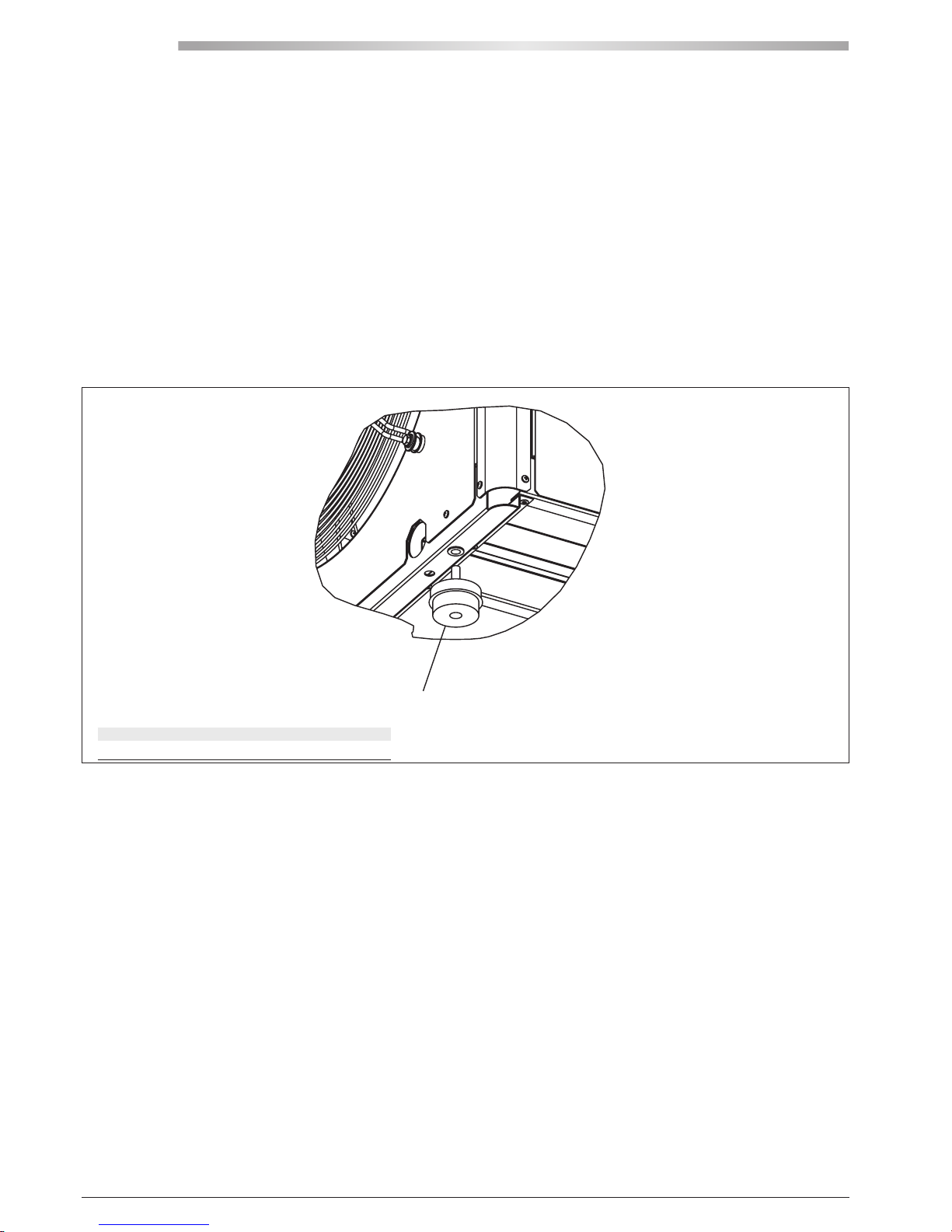

16.1 Positioning of vibration dampers...................................................................................................................................................................................................34

DECLARATION OF CONFORMITY

Galletti S.p.A., whose head office is located at 12/a Via Romagnoli 12/a Bentivoglio (Bologna) - Italy, hereby declares, under its own responsibility, that the water chillers and heat pumps belonging to the series: (see table below) units intended for applications in civil air conditioning systems, comply with the requirements of Directives: 2006/42/CE, 2004/108/CE, 2006/95/CE, 97/23/CE (PED). These units , working with fluids belonging to group 2, according to Directive 97/23/CE, are the result of an assembly of components [compressors, brazed plate heat exchangers, liquid receivers, pipes, control and safety valves] which are individually provided, where required, with certification in accordance with current directives: the category to which the machines belong is determined on the basis of an analysis of the components subject to the PED and corresponds to the highest category among the components used. For each series of machines, the conformity of the assembly has been assessed by notified bodies, applying the assessment procedures (forms) pursuant to annex II of the PED - Directive 97/23/CE, as shown in the following table:

Bentivoglio, 20/06/2013 Galletti S.p.A. Luca Galletti

Range Size Notified body certificate Conformity Compliance Module

PED

category

Marking

MCC - MCC H 6 - 7 - 9 - 12 - 15 0425

2422/0

Modulo D1

MCC - MCC H 18 - 22 - 25 - 33 - 37 0425 Modulo D1

CE + PED

MCW - MCW / H 5 - 7 - 10 - 12 - 15 0425 Modulo D1

MCW - MCW / H 18 - 20 - 22 - 27 - 31 - 39 0425 Modulo D1

CE + PED

MPE - MPEH MCE - MCEH

4 - 5 - 7 - 8 0425 Modulo D1

MPE - MPEH MCE - MCEH

9 - 10 - 11 - 13 - 15 - 18 0425 Modulo D1

MPE - MPEH MCE - MCEH

19-20-21-23-24-26-27-28-31-32-34-35-39-40

0425 Modulo D1

CE + PED

MPE - MPEH MCE - MCEH

T30 - T34 - T40 - T45 0425 Modulo D1

CE + PED

MPE - MPEH 54 - 66 0425 Modulo D1

CE + PED

MPI 15 0425 Modulo D1

MPI 27 0425 Modulo D1

CE + PED

MPI DC 8 - 10 - 14 - 15 - 18 0425 Modulo D1

MPI DC 23 - 27 - 29 0425 Modulo D1

CE + PED

MFE 5 - 6 - 8 - 12 -13 - 16 - 17 - 20 - 23 0425 Modulo D1

MXE - MXE E 9 - 11 - 14 - 16 0425 Modulo D1

MXE - MXE E 19 - 21 0425 Modulo D1

CE + PED

MCP 7 - 9 0425 Modulo D1

MCP

10-13-15-18-27-32-40-T18-T22-T24-T30

0425 Modulo D1

CE + PED

LCE - LCE H

42 - 52 - 62 - 72 - 82

0425 Modulo D1

CE + PED91/2/4 - 101/2/4 - 121/2/4

141/2/4 - 161/2/4 - 174 - 194 - 214

LEW

41-42-51-52-61-62-71-72-81-82-91-92-111-112-

0425 Modulo D1

CE + PED

131-132-141-142-144-161-162-164-181-182

Page 3

Serial number

Code

Date of production

Cooling capacity (W)

Heating capacity (W)

Power supply

Power input (kW)

Weight (kg)

Max power input (kW)

Max running amperage (A)

HP Power input (kW)

Refrigerant

Max refrigerant pressure (bar)

Max refrigerant temperature (°C)

Made in Italy

CATEGORIA 2

Galletti S.p.A. via L.Romagnoli 12/a

40010 Bentivoglio (BO) Italia

WATER CHILLERS AND HEAT PUMPS ARE IN ACORDARCE WITH THE LAW 97/23/CE (PED) FILLING IN D1 FORM, APPROVED BY THE THIRD NOTIFIED BODY ICIM N°0425.

All copying, even partial, of this manual is strictly forbidden.RG66007970 - Rev 01

UNIT IDENTIFICATION

The unit data are reported on the rating label in this page.

THE LABEL SHOWS THE FOLLOWING DATA:

- Series and size of the unit

- Date of manufacture

- Main technical data

- Manufacturer

- The label is applied on the unit, usually on the enclosing panels beside the condenser coil.

IMPORTANT: NEVER REMOVE THE LABEL

- Serial number of the unit

- The serial number permits to identify the technical characteristics and the components installed.

- Without this datum it will be impossible to identify the unit correctly.

The technical and dimensional data provided herein may undergo changes in connection with product improvements.

TRANSLATION OF ORIGINAL INSTRUCTIONS

- For any further information, contact the manufacturer:

[email protected]

- To get the weight of the unit, refer to the User Manual, Rated technical

data table.

Page 4

MPI DC

All copying, even partial, of this manual is strictly forbidden. RG66007970 - Rev 01

The actual thermal load of an air conditioning system is less than 60% of the rated load capacity 90% of the time. In case of low power installations with a low number of indoor units and low water content, operation under part load conditions is especially critical. In order to ensure that the unit functions correctly the variation of the power delivered by the unit is necessary. The inverter controller controls the compressor rpm through the modulation of the refrigerant rate, the cooling capacity and the electrical input. The operating logic of MPI DC units allows an accurate adjustment of the outlet water temperature according to the thermal load conditions: The PID control algorithm allows to adjust the water temperature within +/- 15%. The inverter controller allows to adjust the capacity and the input of the compressor to the actual thermal load and makes it possible to considerably reduce electrical intakes at the compressor start-up (reduction of star ting currents) and during the operation under partial loads. The spinning airtight scroll compressors (for models from MPI014 DC to MPI029 DC) or Twin Rotary compressors (for models from MPI08 DC to MPI010 DC) are equipped with motor protection against overheating and overcurrents. Mounted on anti-vibration supports, complete with oil charge, they are enclosed in a soundproofed compartment and equipped with an automatically controlled oil heating system to avoid oil dilution by the refrigerant when the compressor is stopped. The compressor motor is a permanent magnets, brushless, alternating current motor controlled by a trapezoidal wave driver operating in the frequency field ranging from 30 to 110 Hz (BLDC “Brushless Direct Current” Technology) The electronic control system allows the setpoint to be adjusted automatically according to the outdoor temperature in order to reduce consumption and broaden the working temperature range. The condensation control adapts the fan rpm to the actual working conditions

1 THE SERIES

This results in better working conditions, reduction of sound levels under partial load conditions and possibility of operating in cooling mode beyond

conventionalworkinglimits(uptoanoutdoorairtemperatureof-10°C).

In heat pump operation the exclusive defrost system can correctly identify an impairment of performance in the outdoor exchanger due to the formation of ice and minimise the process time in relation to normal operation of the unit.

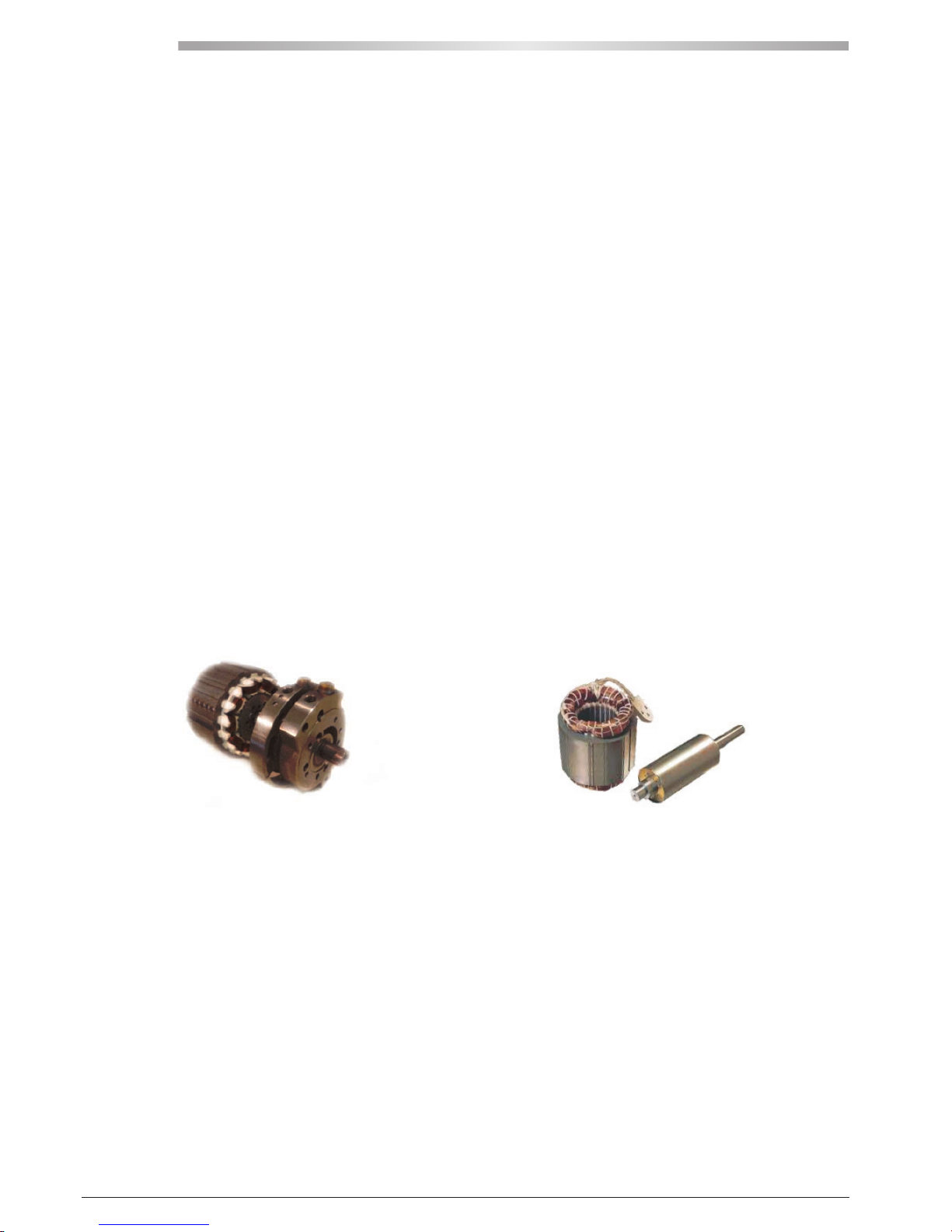

> PERMANENT MAGNETS ELECTRIC SYNCHRONOUS MOTOR

> LOWER MOTOR INERTIA EFFECT

> COMPACT DIMENSIONS

> LOWER NOISE EMISSIONS

> NO ROTOR LOSSES DUE TO CURRENTS AND INDUCTION -> HIGHER

EFFICIENCY AT PART LOAD

> HIGHER COMPRESSOR ISENTROPIC EFFICIENCY

The MPI DC series heat pump units can be also used in applications to produce domestic hot water, 365 days/year, when connected to "MYCHILLER DHW" (remote control/management panel). For general hydraulic schemes, see the control panel manual.

REMARK: this applications are not compatible with the option: water buffer tank (on board)

Page 5

All copying, even partial, of this manual is strictly forbidden.RG66007970 - Rev 01

STRUCTURE

Painted galvanised sheet steel structure (RAL9002) for an attractive look and effective resistance to corrosive agents. Fastening devices are made of non-oxidizable materials, or carbon steel that has undergone surface-passivating treatments. The compressor compartment is completely sealed and may be accessed on 3 sides thanks to easy-to-remove panels that greatly simplify maintenance and/or inspection. Sound insulation, available on request, can further reduce the noise emissions of the unit.

CUSTOMISED HYDRAULIC KIT

- High head pump made entirely of stainless steel, already configured for use with mixtures of water and ethylene glycol up to 35% and provided with internal thermal protection. It is housed in the compressor compartment and is easy to reach thanks to the removable perimeter panels.

- Expansion tank

- Safety valve.

- Filling cock (included).

- Automatic vent valve.

- Water differential pressure switch and outlet water temperature probe with anti-freeze thermostat function.

- Mechanical Y filter supplied as a standard feature on all models to protect the evaporator (included).

COOLING CIRCUIT

- BLDC-type compressor housed in a compartment that can be sound insulated.

- Brazed plate heat exchangers made of STAINLESS steel and optimised for use with R410A.

- Finned block condenser with 8 mm copper piping and aluminium fins, characterised by ample heat exchange surfaces.

- Dehydrating filter.

- Flow indicator with humidity indicator.

- Thermostatic valve with external equalization and integrated MOP function.

- Cycle-reversing valve (MPI DC H).

- Single-acting valves (MPI DC H).

- Liquid receiver (MPI DC H).

- High and low pressure switches.

- Safety valve.

- Schrader valves for checks and/or maintenance.

- Refrigerant pressure gauges (optional).

FAN DRIVE ASSEMBLY

Electric fan with 6-pole external rotor motor directly keyed to the axial fan, with internal thermal protection on the windings, complete with safety grille and dedicated supporting structure. The fan is housed in a special compartment having a profile designed to optimise ventilation. The use of finned block heat exchangers with 8mm diameter pipes reduces pressure drops on the air side, thus significantly improving the noise levels of the units. The condensation control system continuously and automatically regulates the fan speed, further limiting the noise emissions of the unit during nighttime operation and under partial load conditions.

FINNED BLOCK HEAT EXCHANGER

Made of 8mm diameter copper pipes and aluminium fins, generously sized. The special engineering of the heat exchangers allows defrost cycles to be carried out at maximum speed in the models with heat pump operation, which brings clear benefits in terms of the integrated efficiency of the whole cycle.

ELECTRONIC MICROPROCESSOR CONTROL

The electronic control enables the complete control of the MPI DC unit. It can be easily accessed through a polycarbonate flap with IP65 protection rating.

The modulation of capacity enables the unit to operate even in systems where the water content is low, without the use of an inertial water buffer tank. By reading the outdoor air temperature, it can automatically change the setpoint to adapt it to the outdoor load conditions or keep the unit running even in the harshest winter conditions. The basic controller comes complete with the MODBUS protocol and enables an immediate connection to ERGO networks.

Main functions:

- Continuous modulation of compressor capacity.

- Control of outlet temperature

- Control over the temperature of water entering the evaporator.

- Defrosting management (MPI DC-H)

- Control of fan speed (optional)

- Complete alarm management.

- Dynamic control of the setpoint according to the outdoor air temperature.

- Can be connected to an RS485 serial line for supervisory / teleassistance operation

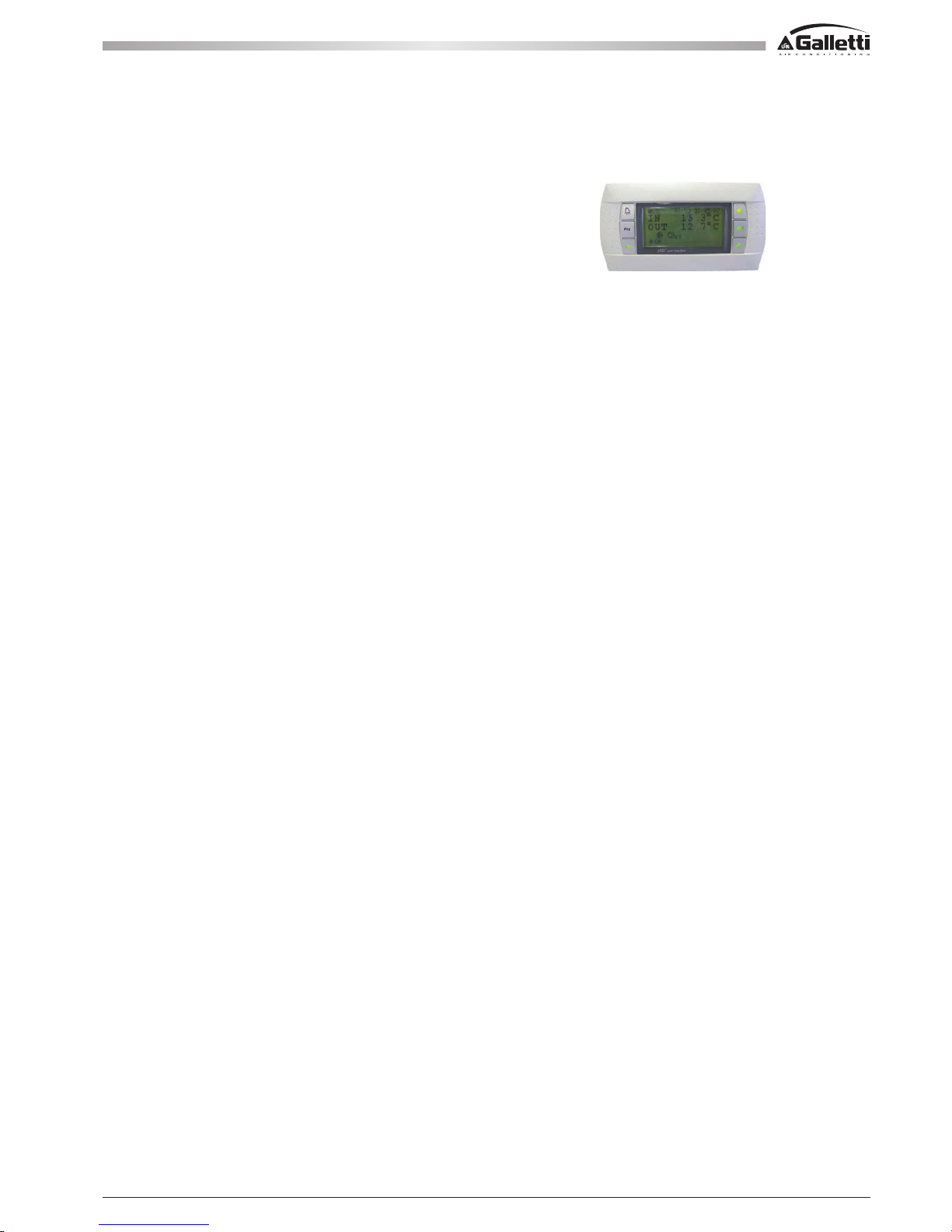

- Option of connecting a remote terminal that duplicates the control functions

Devices controlled:

- Compressor

- Fans

- Cycle-reversing valve (MPI DC-H).

- Water circulation pump

- Antifreeze heating elements (optional)

- Alarm signalling relay

On request, it is possible to install the advanced controller whose functions extend to:

- LAN networks

- Smart Defrost System

ELECTRIC CONTROL BOARD

Electric control board constructed and wired in accordance with the Directive on electromagnetic compatibility and related standards. Made of steel sheet, it is also protected by the enclosing panels of the unit.

OPTIONS

Incorporable hydronic kits Condensation control Low noise execution Refrigerant pressure gauges Antifreeze heating elements on the water circuit Electronic thermostatic valve Heat recovery 25% (chiller) Special exchangers (hydrophilic treatment, copper-copper, cataphoresis, anti-corrosion)

ACCESSORIES AVAILABLE

Remote control boards Base vibration dampers Metal grilles to protect exchangers MYCHILLER DHW

2 CONSTRUCTIVE FEATURES

Page 6

MPI DC

MPI DC 08

All copying, even partial, of this manual is strictly forbidden. RG66007970 - Rev 01

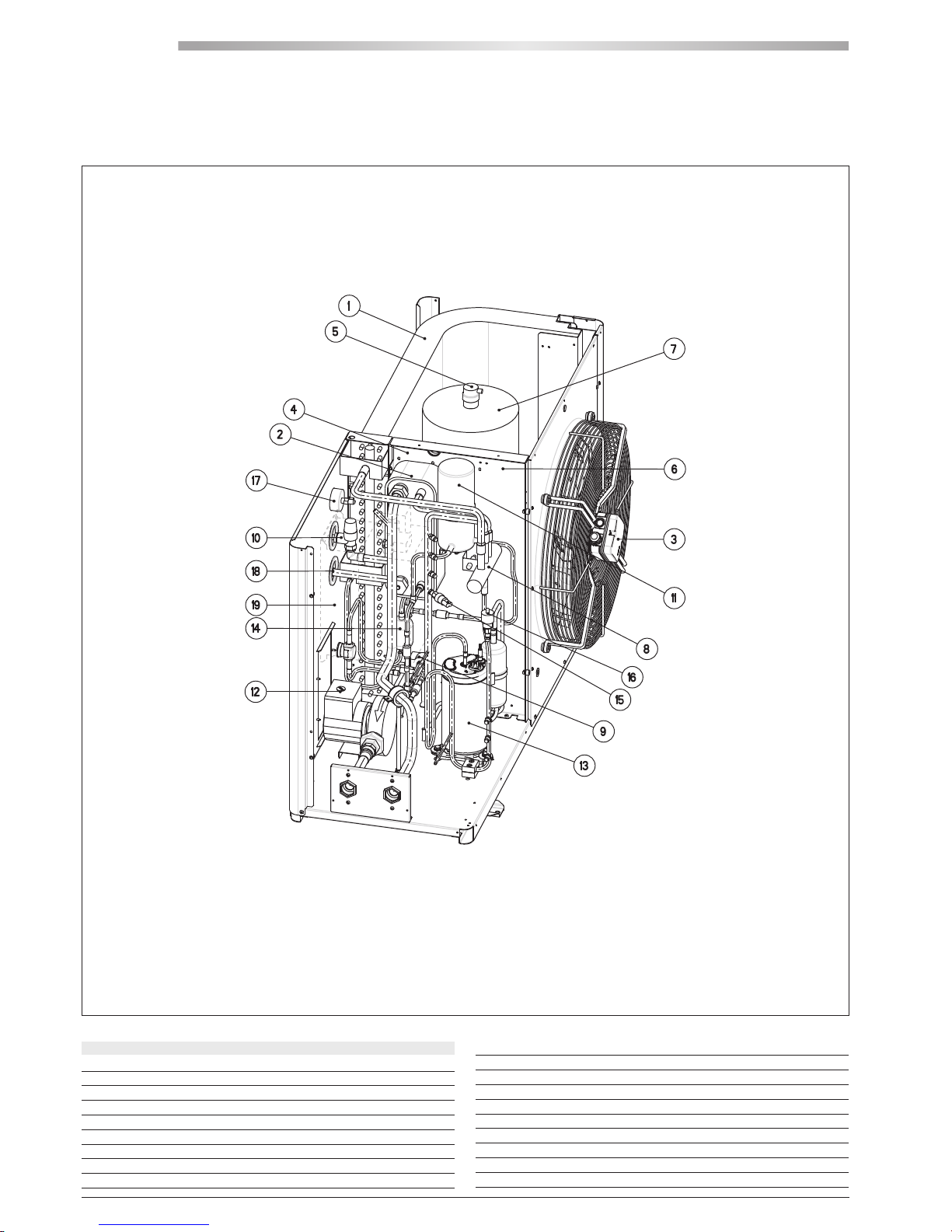

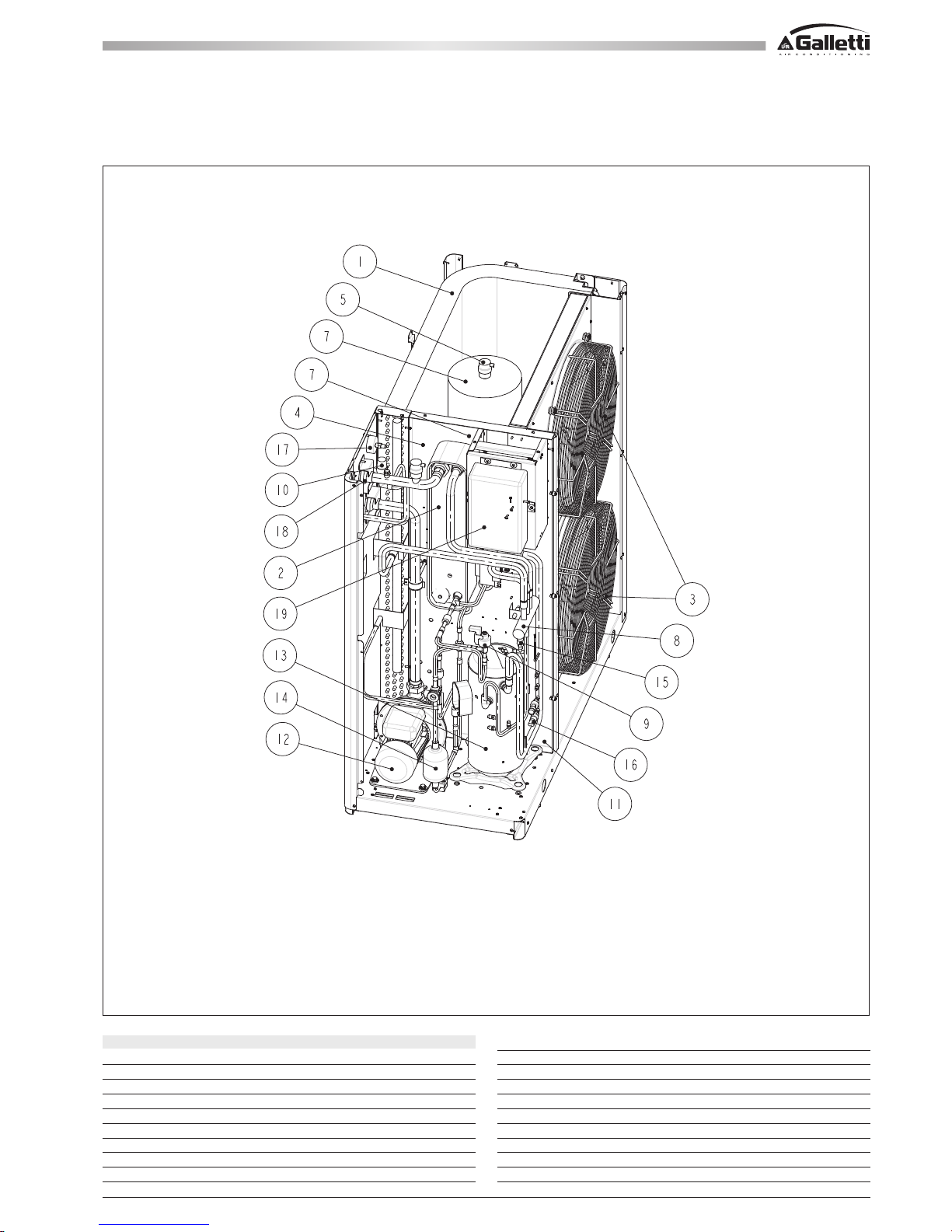

3 LAYOUT OF COMPONENTS

Description 1 R410A - air exchanger 2 R410A - water exchanger 3 Fans 4 Water differential pressure switch (fan compartment) 5 Automatic air vent valve 6 Expansion tank (fan compartment) 7 Buffer tank (accessory) 8 4-way valve (MPI DC H) 9 Electronic expansion valves

10 Water safety valve 11 Liquid receiver 12 Circulation pump 13 Compressor 14 Refrigerant filter 15 Low pressure switch and charge inlet 16 High pressure switch and charge inlet 17 Water pressure gauge 18 Water filling point 19 Inverter

Page 7

MPI DC 10 ÷ 18

All copying, even partial, of this manual is strictly forbidden.RG66007970 - Rev 01

3 LAYOUT OF COMPONENTS

DESCRIPTION

1 R410A - air exchanger 2 R410A - water exchanger 3 Fans 4 Water differential pressure switch (fan compartment) 5 Automatic air vent valve 6 Expansion tank (fan compartment) 7 Buffer tank (accessory) 8 4-way valve (MPI DC H) 9 Electronic expansion valves

10 Water safety valve 11 Liquid receiver (fan compartment) 12 Circulation pump 13 Compressor 14 Refrigerant filter 15 Low pressure switch and charge inlet 16 High pressure switch and charge inlet 17 Water pressure gauge 18 Water filling point 19 Inverter

Page 8

MPI DC

MPI DC 23 - 29

All copying, even partial, of this manual is strictly forbidden. RG66007970 - Rev 01

3 LAYOUT OF COMPONENTS

DESCRIPTION

Page 9

All copying, even partial, of this manual is strictly forbidden.RG66007970 - Rev 01

4 MODELS AND CONFIGURATIONS

FIELD OF APPLICATION

MPI DC air-condensed water chillers and heat pumps have been designed to cool and heat water for air conditioning and heating systems in residential or commercial buildings.

The MPI DC units are designed for outdoor installation (protection rating IP24), in a position not accessible to the public.

If protection grilles (accessory) are not provided or if the unit can be reached by unauthorized persons, special protection barriers should be provided in order to prevent access to the finned coil

Do not install the unit in places where inflammable gases or powders are present.

MODELS AND VERSIONS

All models are charged with R410A refrigerant. N.B. The choice of some options may preclude the choice of others or make some other fields become mandatory. Contact Galletti S.p.A. for verification

Complete unit code M P I D C 0 1 4 H 0 A A A 1 0 0 C 0 0 0 0 0 0 0 2

Version 0

Single compressor

Model (size) 1 4

Operation

ater chiller

Heat pump

Supply voltage 0

Standard 400 - 3

N - 50

Single-phase M

Refrigerant

R410A high efficiency

Revision A

Initial

xpansion valve

Electronic valve

Pump and accessories 1

Modulating pump – expansion tank – filling tap

LDC pump – expansion tank – filling tap 2

Inertial buffer tank 0

Absent

Present + expansion tank S

eat recovery 0

Absent

Condensation control C

With adjustment of air flow rate

BLDC fans

ntifreeze kit 0

Absent

For units with evaporator only

or units with evaporator, pump and expansion tank P

For units with evaporator, pump, expansion tank and tank S

Sound insulation 0

Absent

Compressor compartment soundproofing 1

Compressor hoods 2

ption 1 + option 2 3

Cooling accessories 0

None

Refrigerant pressure gauges M

Remote control / Communication 0

Absent

utput RS485 (Modbus or Carel protocol) 2

Simplified remote control (PCDS) S

PCOXS microprocessor remote control X

Clock board C

Special coils 0

Standard

Copper - copper R

Cataphoresis C

Corrosion-proof B

Hydrophilic I

Condenser protection grille 0

Absent

Present G

dditional options 0

Absent

Heating cable for heat exchanger (heat pump version only) 4

Control 2

pCOXS

Page 10

MPI DC

All copying, even partial, of this manual is strictly forbidden. RG66007970 - Rev 01

5 TECHNICAL FEATURES

5.1 RATED TECHNICAL DATA OF WATER CHILLERS

* Weights refer to model with pump and buffer tank

- Coolingcapacity:outdoorairtemperature35°C,watertemperature12°C-7°C

- Sound power measured according to standards ISO 3741 - ISO 3744 and EN 29614-1

- Sound pressure measured at a distance of 10 m and a height of 1.5 m above the ground in an open field (fan side).

- The maximum electrical input is the mains electricity that must be available in order for the unit to work.

- The maximum current absorption refers to the current that will trigger the internal safety devices of the unit. It is the maximum current allowed in the unit. This value may never be exceeded; it must be used as a reference for determining the size of the power supply line and the related safety devices (refer

to the wiring diagram supplied with the units).

MPI DC - C 010 M 014 018 023 029

Power supply

V - ph - Hz

230-1-50 400-3N-50 400-3N-50 400-3N-50 400-3N-50 Rated cooling capacity kW 10,6 14,3 18,2 22,9 29,1 Total power input kW 3,35 4,78 7,63 7,77 12,3 EER (rated capacity) 3,16 2,99 2,39 2,95 2,37 Total power input with pump kW 3,6 5,3 8,2 8,3 12,9 Maximum power input kW 5,6 7,1 10,7 10,8 21,9 Maximum electrical input A 26,6 20,0 22,0 28,5 43,0 Starting current A 10 10 10 10 10 No. of compressors / circuits 1 / 1 1 / 1 1 / 1 1 / 1 1 / 1 Refrigerant charge kg 3,5 4,1 4,1 5,7 5,7 Low / high pressure switch bar 42 / 2 42 / 2 42 / 2 42 / 2 42 / 2 No. of axial fans 2 2 2 4 4 Air flow rate m

/h 6.939 6.939 6.939 11.438 11.438 Water flow l/s 1826 2454 3132 3935 4992 Diameter of water connections “ 1 1/4 1 1/4 1 1/4 1 1/4 1 1/4 Pressure drop, water side kPa 23 35 35 36 36 Available head kPa 130 120 120 98 98 Water content, excluding optionals dm

3,0 3,0 3,0 5,0 5,0

Expansion tank dm

5 5 5 5 5

Buffer tank dm

30 30 30 50 50 Height mm 1250 1250 1250 1300 1300 Length mm 1220 1220 1220 1565 1565 Depth mm 560 560 560 600 600 Sound power level dB(A) 70 71 71 74 74 Sound pressure level dB(A) 42 43 43 46 46 Transport weight * kg 210 210 210 285 285 Operating weight * kg 235 235 235 335 335

Page 11

All copying, even partial, of this manual is strictly forbidden.RG66007970 - Rev 01

5 TECHNICAL FEATURES

5.2 RATED TECHNICAL DATA - HEAT PUMP

* Weights refer to model with pump and buffer tank

- Coolingcapacity:outdoorairtemperature35°C,watertemperature12°C-7°C

- Heatingcapacity:outdoorairtemperature7°Cdrybulband6.2°Cwetbulb,watertemperature40°C-45°C

- Sound power measured according to standards ISO 3741 - ISO 3744 and EN 29614-1

- Sound pressure measured at a distance of 10 m and a height of 1.5 m above the ground in an open field (fan side).

- The maximum electrical input is the mains electricity that must be available in order for the unit to work.

to the wiring diagram supplied with the units).

MPI DC - H 008 M 010 M 014 018 023 029

Power supply V-ph-Hz 230-1-50 230-1-50 400-3N-50 400-3N-50 400-3N-50 400-3N-50 Rated cooling capacity kW 7,96 10,4 14,0 17,9 22,5 28,5 Total power input kW 2,62 3,35 4,78 7,63 7,77 12,3 EER (rated capacity) 3,04 3,10 2,93 2,35 2,90 2,32 Total power input with pump kW 2,8 3,6 5,3 8,2 8,3 12,9 Rated heating capacity kW 8,89 11,5 15,7 21,6 24,6 33,7 Total power input in heating mode kW 2,81 3,56 4,96 7,48 7,86 11,7 COP ( rated power) 3,16 3,23 3,17 2,89 3,13 2,88 Total power input with pump in heating mode

kW 3,0 4,1 5,5 8,0 8,4 12,3 Maximum power input kW 4,1 5,6 7,1 10,7 10,8 21,9 Maximum electrical input A 16 26,6 20,0 22,0 28,5 43,0 Starting current A 10 10 10 10 10 10 No. of compressors / circuits 1 / 1 1 / 1 1 / 1 1 / 1 1 / 1 1 / 1 Refrigerant charge kg 2,1 4,1 4,4 4,4 6,0 6,0 Low / high pressure switch bar 42 / 2 42 / 2 42 / 2 42 / 2 42 / 2 42 / 2 No. of axial fans 1 2 2 2 4 4 Air flow rate m

/h 4680 6939 6.939 6.939 11.438 11.438 Water flow rate in cooling mode l/s 1367 1.789 2.407 3.072 3.861 4.898 Water flow rate in heating mode l/s 1545 1.974 2.727 3.752 4.273 5.853 Diameter of water connections “ 1 1/4 1 1/4 1 1/4 1 1/4 1 1/4 1 1/4 Water pressure drop (cooling) kPa 6 22 33 33 34 34 Water pressure drop (heating) kPa 7 23 36 36 40 40 Available head (cooling) kPa 93 130 120 120 98 98 Available head (heating) kPa 95 120 110 110 80 80 Water content, excluding optionals dm

2 3 3 3 5 5

Expansion tank dm

1 5 5 5 5 5

Buffer tank dm

19,5 30 30 30 50 50 Height mm 758 1250 1250 1250 1300 1300 Length mm 1241 1220 1220 1220 1565 1565 Depth mm 582 560 560 560 600 600 Sound power level dB(A) 68 70 71 71 74 74 Sound pressure level dB(A) 40 42 43 43 46 46 Transport weight * kg 144 220 220 220 300 300 Operating weight * kg 153 240 240 240 347 347

Page 12

MPI DC

All copying, even partial, of this manual is strictly forbidden. RG66007970 - Rev 01

6 PERFORMANCES

6.1 COOLING CAPACITIES MPI DC-C

Tbs

Air inlet temperature (dry bulb)

Tw in/out Water inlet/outlet temperature

PF Cooling capacity PA Total power input including pump

Tbs

20 25 30 35 40 45

Tw in Tw out PF PA PF PA PF PA PF PA PF PA PF PA

[°C] [°C] kW kW kW kW kW kW kW kW kW kW kW kW

MPI DC 08 C

Rated data at maximum frequency

10 5 9,01 2,19 8,52 2,39 8,07 2,60 7,58 2,83 7,09 3,08 6,62 3,35 11 6 9,31 2,19 8,82 2,40 8,33 2,61 7,84 2,85 7,34 3,11 6,84 3,39 12 7 9,62 2,19 9,12 2,40 8,61 2,63 8,12 2,87 7,61 3,13 7,09 3,41 13 8 9,92 2,19 9,44 2,41 8,91 2,64 8,39 2,89 7,86 3,16 7,34 3,44 14 9 10,30 2,20 9,73 2,42 9,21 2,66 8,68 2,91 8,13 3,18 7,59 3,47 15 10 10,61 2,19 10,06 2,42 9,52 2,67 8,96 2,93 8,42 3,20 7,86 3,49 16 11 10,91 2,20 10,40 2,43 9,82 2,68 9,26 2,95 8,69 3,22 8,12 3,52 17 12 11,22 2,19 10,71 2,43 10,14 2,69 9,57 2,96 8,98 3,25 8,38 3,54

MPI DC 08 C

Rated data at minimum frequency

10 5 5,93 1,43 5,61 1,55 5,30 1,68 4,99 1,81 4,68 1,96 4,38 2,11 11 6 6,12 1,43 5,81 1,55 5,50 1,68 5,17 1,82 4,86 1,97 4,54 2,13 12 7 6,32 1,42 6,01 1,55 5,68 1,68 5,36 1,82 5,03 1,98 4,70 2,14 13 8 6,54 1,42 6,21 1,55 5,88 1,68 5,54 1,83 5,21 1,99 4,87 2,15 14 9 6,75 1,41 6,42 1,55 6,08 1,69 5,73 1,84 5,39 2,00 5,04 2,16 15 10 6,98 1,41 6,63 1,54 6,28 1,69 5,94 1,84 5,58 2,01 5,22 2,18 16 11 7,20 1,40 6,84 1,54 6,49 1,69 6,13 1,85 5,76 2,01 5,41 2,18 17 12 7,43 1,39 7,06 1,54 6,70 1,69 6,34 1,85 5,97 2,02 5,59 2,19

MPI DC 08 C

Rated data at intermediate frequency

10 5 2,87 0,89 2,71 0,95 2,57 1,01 2,43 1,07 2,27 1,14 2,12 1,21 11 6 2,96 0,89 2,82 0,95 2,66 1,01 2,51 1,07 2,36 1,14 2,20 1,22 12 7 3,06 0,88 2,91 0,94 2,75 1,00 2,60 1,07 2,45 1,14 2,28 1,22 13 8 3,16 0,88 3,01 0,94 2,86 1,00 2,69 1,07 2,53 1,14 2,37 1,22 14 9 3,27 0,87 3,11 0,94 2,95 1,00 2,78 1,07 2,62 1,15 2,46 1,23 15 10 3,38 0,87 3,21 0,93 3,05 1,00 2,89 1,07 2,71 1,15 2,55 1,23 16 11 3,49 0,86 3,32 0,93 3,15 1,00 2,98 1,07 2,81 1,15 2,63 1,23 17 12 3,60 0,85 3,43 0,92 3,25 0,99 3,08 1,07 2,91 1,15 2,72 1,23

MPI DC 010 C

Rated data at maximum frequency

10 5 11,7 2,92 11,1 3,18 10,50 3,47 9,91 3,79 9,29 4,13 8,68 4,49 11 6 12,1 2,91 11,5 3,18

10,90 3,48 10,30 3,80 9,61 4,15 8,99 4,52 12 7 12,5 2,90 11,8 3,19 11,2 3,49 10,60 3,82 9,93 4,17 9,29 4,55 13 8 12,8 2,90 12,2 3,18 11,6 3,50 10,90 3,83 10,30 4,19 9,61 4,57 14 9 13,2 2,89 12,6 3,21 11,9 3,50 11,3 3,85 10,60 4,21 9,92 4,59 15 10 13,6 2,87 13,0 3,18 12,3 3,50 11,6 3,86 10,90 4,23 10,30 4,61 16 11 14,0 2,86 13,4 3,18 12,7 3,51 12,0 3,87 11,30 4,24 10,60 4,64 17 12 14,5 2,85 13,8 3,17 13,1 3,52 12,4 3,88 11,60 4,26 10,90 4,66

MPI DC 010 C

ated data at intermediate frequency

10 5 7,37 1,82 6,99 1,97 6,62 2,13 6,52 2,30 5,87 2,48 5,49 2,68 11 6 7,62 1,81 7,23 1,97 6,84 2,13 6,46 2,30 6,08 2,49 5,69 2,69 12 7 7,84 1,80 7,46 1,96 7,07 2,13 6,69 2,30 6,29 2,49 5,90 2,69 13 8 8,10 1,79 7,70 1,96 7,32 2,12 6,91 2,31 6,51 2,50 6,09 2,70 14 9 8,35 1,78 7,96 1,95 7,56 2,12 7,14 2,31 6,72 2,50 6,30 2,71 15 10 8,61 1,77 8,21 1,94 7,80 2,12 7,37 2,31 6,94 2,51 6,52 2,72 16 11 8,88 1,75 8,47 1,93 8,04 2,11 7,61 2,31 7,18 2,51 6,74 2,72 17 12 9,15 1,74 8,73 1,92 8,29 2,11 7,85 2,31 7,41 2,52 6,96 2,73

MPI DC 010 C

Rated data at minimum frequency

10 5 3,19 1,15 3,03 1,22 2,87 1,28 2,70 1,35 2,54 1,43 2,37 1,51 11 6 3,30 1,14 3,13 1,21 2,97 1,28 2,80 1,35 2,63 1,43 2,46 1,51 12 7 3,41 1,13 3,24 1,21 3,07 1,28 2,90 1,35 2,73 1,43 2,55 1,51 13 8 3,52 1,13 3,35 1,20 3,18 1,27 3,00 1,35 2,82 1,43 2,65 1,52 14 9 3,64 1,12 3,46 1,19 3,28 1,27 3,10 1,35 2,92 1,43 2,74 1,52 15 10 3,76 1,11 3,57 1,19 3,39 1,26 3,21 1,34 3,03 1,43 2,84 1,52 16 11 3,87 1,10 3,69 1,18 3,50 1,26 3,32 1,34 3,13 1,43 2,94 1,52 17 12 3,99 1,09 3,81 1,17 3,62 1,25 3,43 1,34 3,23 1,43 3,04 1,52

Page 13

All copying, even partial, of this manual is strictly forbidden.RG66007970 - Rev 01

6 PERFORMANCES

6.1 COOLING CAPACITIES MPI DC-C

Tbs

Air inlet temperature (dry bulb)

Tw in/out Water inlet/outlet temperature

PF Cooling capacity PA Total power input including pump

Tbs

20 25 30 35 40 45

Tw in Tw out PF PA PF PA PF PA PF PA PF PA PF PA

[°C] [°C] kW kW kW kW kW kW kW kW kW kW kW kW

MPI DC 014 C

Rated data at maximum frequency

10 5 15,7 4,10 15,0 4,44 14,30 4,83 13,40 5,26 12,50 5,75 11,50 6,26 11 6 16,2 4,11 15,5 4,46 14,70 4,85 13,90 5,29 12,90 5,77 11,90 6,30 12 7 16,7 4,11 16,0 4,48 15,2 4,87 14,30 5,31 13,30 5,81 12,30 6,33 13 8 17,3 4,12 16,5 4,48 15,7 4,90 14,70 5,34 13,80 5,84 12,70 6,36 14 9 17,8 4,12 17,0 4,50 16,1 4,92 15,2 5,36 14,20 5,86 13,10 6,41 15 10 18,4 4,13 17,6 4,52 16,6 4,93 15,6 5,39 14,60 5,90 13,50 6,43 16 11 19,0 4,14 18,1 4,53 17,1 4,95 16,1 5,42 15,10 5,93 13,90 6,47 17 12 19,5 4,14 18,6 4,54 17,6 4,97 16,6 5,45 15,50 5,95 14,40 6,51

MPI DC 014 C

Rated data at intermediate frequency

10 5 10,60 2,59 10,10 2,80 9,60 3,01 9,09 3,26 8,50 3,53 7,89 3,82 11 6 10,90 2,59 10,40 2,80 9,91 3,02 9,39 3,27 8,80 3,53 8,16 3,83 12 7 11,30 2,59 10,80 2,80 10,20 3,02 9,68 3,27 9,09 3,55 8,43 3,84 13 8 11,60 2,59 11,10 2,80 10,60 3,03 10,00 3,28 9,38 3,56 8,71 3,86 14 9 12,00 2,58 11,50 2,80 10,90 3,03 10,30 3,29 9,70 3,57 9,00 3,87 15 10 12,40 2,58 11,80 2,80 11,30 3,03 10,70 3,29 10,00 3,58 9,30 3,88 16 11 12,80 2,58 12,20 2,80 11,60 3,04 11,00 3,30 10,30 3,59 9,60 3,90 17 12 13,20 2,58 12,60 2,80 12,00 3,04 11,30 3,31 10,60 3,60 9,90 3,92

MPI DC 014 C

Rated data at minimum frequency

10 5 4,02 1,45 3,84 1,54 3,66 1,63 3,47 1,72 3,26 1,83 3,03 1,94 11 6 4,16 1,45 3,97 1,54 3,79 1,63 3,59 1,72 3,38 1,83 3,14 1,94 12 7 4,31 1,44 4,11 1,53 3,92 1,62 3,72 1,72 3,50 1,83 3,26 1,95 13 8 4,47 1,44 4,26 1,53 4,06 1,62 3,85 1,72 3,62 1,83 3,37 1,95 14 9 4,62 1,43 4,41 1,53 4,20 1,62 3,98 1,72 3,75 1,83 3,49 1,95 15 10 4,79 1,43 4,56 1,52 4,35 1,62 4,12 1,72 3,88 1,83 3,61 1,95 16 11 4,95 1,42 4,72 1,52 4,50 1,61 4,26 1,71 4,01 1,83 3,74 1,95 17 12 5,12 1,42 4,88 1,52 4,65 1,61 4,41 1,71 4,14 1,83 3,86 1,95

MPI DC 018 C

Rated data at maximum frequency

10 5 20,40 6,19 19,40 6,74 18,40 7,36 17,20 8,05 15,90 8,82 14,50 9,64 11 6 21,00 6,21 20,00 6,77

18,90 7,40 17,70 8,10 16,40 8,87 15,00 9,72 12 7 21,60 6,24 20,70 6,81 19,50 7,44 18,20 8,16 16,90 8,93 15,40 9,76 13 8 22,30 6,26 21,30 6,84 20,10 7,49 18,80 8,21 17,40 8,99 15,90 9,83 14 9 23,00 6,28 21,90 6,88 20,70 7,54 19,30 8,27 17,90 9,05 16,40 9,91 15 10 23,70 6,31 22,50 6,91 21,30 7,58 19,90 8,32 18,50 9,12 16,90 9,98 16 11 24,30 6,33 23,20 6,94 21,90 7,62 20,50 8,38 19,00 9,18 17,40 10,04 17 12 25,10 6,35 23,90 6,97 22,40 7,68 21,00 8,44 19,60 9,24 19,70 10,10

MPI DC 018 C

ated data at intermediate frequency

10 5 13,30 3,36 12,70 3,61 12,10 3,91 11,40 4,24 10,70 4,61 9,88 5,01 11 6 13,70 3,36 13,10 3,62 12,50 3,92 11,80 4,26 11,00 4,63 10,20 5,03 12 7 14,20 3,35 13,60 3,62 12,90 3,93 12,20 4,27 11,40 4,65 10,50 5,06 13 8 14,60 3,35 14,00 3,62 13,30 3,94 12,60 4,28 11,80 4,67 10,90 5,08 14 9 15,10 3,34 14,50 3,63 13,70 3,94 13,00 4,30 12,10 4,69 11,20 5,10 15 10 15,60 3,33 14,90 3,63 14,10 3,96 13,40 4,32 12,50 4,70 11,60 5,13 16 11 16,10 3,32 15,40 3,63 14,60 3,96 13,,8 4,33 12,90 4,72 11,90 5,15 17 12 16,60 3,31 15,80 3,62 15,00 3,97 14,20 4,34 13,20 4,74 12,30 5,18

MPI DC 018 C

Rated data at minimum frequency

10 5 3,98 1,45 3,80 1,53 3,63 1,62 3,44 1,72 3,24 1,82 3,01 1,93 11 6 4,13 1,44 3,94 1,53 3,76 1,62 3,56 1,71 3,35 1,82 3,12 1,93 12 7 4,28 1,43 4,09 1,53 3,88 1,62 3,69 1,71 3,47 1,82 3,23 1,94 13 8 4,45 1,42 4,24 1,52 4,03 1,61 3,82 1,71 3,59 1,82 3,34 1,94 14 9 4,61 1,41 4,39 1,51 4,17 1,61 3,95 1,71 3,71 1,82 3,46 1,94 15 10 4,79 1,40 4,55 1,50 4,32 1,60 4,08 1,70 3,83 1,82 3,57 1,94 16 11 4,96 1,39 4,72 1,49 4,48 1,59 4,22 1,70 3,96 1,82 3,69 1,94 17 12 5,16 1,37 4,89 1,48 4,63 1,59 4,36 1,70 4,09 1,82 3,81 1,94

Page 14

MPI DC

All copying, even partial, of this manual is strictly forbidden. RG66007970 - Rev 01

6 PERFORMANCES

6.1 COOLING CAPACITIES MPI DC-C

Tbs

Air inlet temperature (dry bulb)

Tw in/out Water inlet/outlet temperature

PF Cooling capacity PA Total power input including pump

Tbs

20 25 30 35 40 45

Tw in Tw out PF PA PF PA PF PA PF PA PF PA PF PA

[°C] [°C] kW kW kW kW kW kW kW kW kW kW kW kW

MPI DC 023 C

Rated data at maximum frequency

10 5 24,80 6,47 23,80 7,00 22,70 7,59 21,50 8,26 20,30 9,01 19,00 9,84 11 6 25,60 6,49 24,50 7,01 23,40 7,62 22,20 8,30 21,00 9,07 19,60 9,89 12 7 26,30 6,49 25,30 7,04 24,10 7,65 22,90 8,34 21,60 9,11 20,30 9,93 13 8 27,10 6,50 26,00 7,06 24,90 7,69 23,60 8,37 22,30 9,16 20,90 10,00 14 9 28,00 6,52 26,90 7,08 25,60 7,72 24,40 8,41 23,00 9,20 21,60 10,03 15 10 28,80 6,54 27,70 7,10 26,40 7,75 25,10 8,47 23,80 9,24 22,20 10,10 16 11 29,70 6,54 28,50 7,13 27,20 7,77 25,80 8,50 24,50 9,29 23,00 10,13 17 12 30,60 6,57 29,40 7,14 28,00 7,80 26,60 8,54 25,20 9,35 23,60 10,20

MPI DC 023 C

Rated data at intermediate frequency

10 5 16,70 4,09 16,00 4,39 15,30 4,73 14,60 5,10 13,80 5,53 13,00 5,99 11 6 17,30 4,09 16,50 4,40 15,80 4,73 15,10 5,12 14,30 5,54 13,40 6,01 12 7 17,80 4,09 17,10 4,40 16,40 4,74 15,60 5,13 14,70 5,56 13,90 6,03 13 8 18,40 4,09 17,60 4,40 16,90 4,75 16,10 5,14 15,20 5,57 14,30 6,05 14 9 19,00 4,09 18,20 4,41 17,40 4,76 16,60 5,16 15,70 5,59 14,80 6,07 15 10 19,50 4,09 18,80 4,41 18,00 4,76 17,10 5,16 16,20 5,61 15,30 6,09 16 11 20,10 4,09 19,40 4,41 18,50 4,78 17,70 5,18 16,80 5,63 15,80 6,12 17 12 20,70 4,10 20,00 4,42 19,10 4,78 18,20 5,19 17,30 5,65 16,30 6,13

MPI DC 023 C

Rated data at minimum frequency

10 5 6,24 2,17 5,98 2,31 5,73 2,43 5,46 2,57 5,18 2,73 4,88 2,90 11 6 6,46 2,17 6,19 2,30 5,93 2,43 5,65 2,57 5,36 2,73 5,05 2,91 12 7 6,68 2,16 6,40 2,30 6,13 2,43 5,85 2,57 5,55 2,73 5,23 2,91 13 8 6,91 2,16 6,62 2,30 6,34 2,43 6,05 2,57 5,74 2,73 5,42 2,91 14 9 7,13 2,16 6,84 2,30 6,56 2,43 6,26 2,57 5,94 2,74 5,61 2,92 15 10 7,37 2,15 7,07 2,29 6,78 2,42 6,47 2,57 6,15 2,74 5,81 2,92 16 11 7,62 2,15 7,31 2,29 7,01 2,42 6,69 2,57 6,36 2,74 6,01 2,92 17 12 7,86 2,15 7,55 2,29 7,24 2,42 6,91 2,57 6,57 2,74 6,22 2,92

MPI DC 029 C

Rated data at maximum frequency

10 5 31,90 9,71 30,40 10,57 29,00 11,57 27,30 12,67 25,70 13,87 23,90 15,27 11 6 32,80 9,75 31,50 10,67 29,80 11,67 28,20 12,77 26,40 13,97 24,60 15,37 12 7 33,90 9,79 32,40 10,67 30,70 11,67 29,10 12,87 27,20 14,07 25,40 15,47 13 8 34,90 9,80 33,30 10,77 31,70 11,77 30,00 12,97 28,10 14,17 26,20 15,57 14 9 35,90 9,85 34,20 10,77 32,60 11,87 30,90 12,97 28,90 14,27 27,00 15,67 15 10 36,90 9,89 35,30 10,87 33,60 11,97 31,70 13,07 29,80 14,37 27,70 15,77 16 11 38,00 9,94 36,40 10,87 34,60 11,97 32,60 13,17 30,70 14,47 28,60 15,87 17 12 39,10 9,99 37,40 10,97 35,50 12,07 33,70 13,27 31,60 14,57 29,50 15,87

MPI DC 029 C

ated data at intermediate frequency

10 5 21,3 5,27 20,4 5,67 19,50 6,14 18,50 6,68 17,40 7,28 16,30 7,94 11 6 21,9 5,27 21,0 5,68 20,10 6,17 19,10 6,70 18,00 7,31 16,90 7,97 12 7 22,7 5,26 21,7 5,70 20,7 6,18 19,70 6,73 18,60 7,34 17,40 8,01 13 8 23,3 5,26 22,4 5,70 21,4 6,20 20,30 6,76 19,20 7,37 18,00 8,03 14 9 24,0 5,26 23,1 5,72 22,0 6,22 21,0 6,77 19,80 7,40 18,60 8,07 15 10 24,8 5,26 23,8 5,72 22,7 6,23 21,6 6,80 20,40 7,42 19,20 8,10 16 11 25,5 5,26 24,5 5,73 23,4 6,26 22,3 6,82 21,10 7,45 19,80 8,13 17 12 26,2 5,27 25,2 5,74 24,1 6,28 22,9 6,85 21,70 7,49 20,40 8,17

MPI DC 029 C

Rated data at minimum frequency

10 5 6,26 2,15 6,00 2,28 5,74 2,41 5,46 2,55 5,17 2,71 4,87 2,89 11 6 6,48 2,14 6,20 2,28 5,93 2,41 5,65 2,55 5,36 2,71 5,04 2,89 12 7 6,69 2,13 6,41 2,27 6,13 2,40 5,84 2,55 5,54 2,71 5,22 2,89 13 8 6,91 2,13 6,62 2,27 6,34 2,40 6,04 2,55 5,73 2,71 5,41 2,89 14 9 7,13 2,12 6,84 2,26 6,55 2,40 6,25 2,55 5,93 2,71 5,60 2,89 15 10 7,36 2,11 7,06 2,26 6,77 2,39 6,46 2,54 6,13 2,71 5,78 2,90 16 11 7,60 2,10 7,29 2,25 6,99 2,39 6,67 2,55 6,34 2,71 5,98 2,90 17 12 7,84 2,10 7,53 2,25 7,22 2,39 6,89 2,54 6,54 2,72 6,18 2,90

Page 15

All copying, even partial, of this manual is strictly forbidden.RG66007970 - Rev 01

6 PERFORMANCES

6.1 COOLING CAPACITIES MPI DC-H

Tbs

Air inlet temperature (dry bulb)

Tw in/out Water inlet/outlet temperature

PF Cooling capacity PA Total power input including pump

Tbs

20 25 30 35 40 45

Tw in Tw out PF PA PF PA PF PA PF PA PF PA PF PA

[°C] [°C] kW kW kW kW kW kW kW kW kW kW kW kW

MPI DC 08 H

Rated data at maximum frequency

10 5 8,83 2,19 8,35 2,39 7,91 2,60 7,43 2,83 6,95 3,08 6,49 3,35 11 6 9,13 2,19 8,65 2,40 8,17 2,61 7,69 2,85 7,20 3,11 6,71 3,39 12 7 9,43 2,19 8,94 2,40 8,44 2,63 7,96 2,87 7,46 3,13 6,95 3,41 13 8 9,73 2,19 9,25 2,41 8,74 2,64 8,23 2,89 7,71 3,16 7,20 3,44 14 9 10,10 2,20 9,54 2,42 9,03 2,66 8,51 2,91 7,97 3,18 7,44 3,47 15 10 10,40 2,19 9,86 2,42 9,33 2,67 8,78 2,93 8,25 3,20 7,71 3,49 16 11 10,70 2,20 10,20 2,43 9,63 2,68 9,08 2,95 8,52 3,22 7,96 3,52 17 12 11,00 2,19 10,50 2,43 9,94 2,69 9,38 2,96 8,80 3,25 8,22 3,54

MPI DC 08 H

Rated data at intermediate frequency

10 5 5,81 1,43 5,50 1,55 5,20 1,68 4,89 1,81 4,59 1,96 4,29 2,11 11 6 6,00 1,43 5,70 1,55 5,39 1,68 5,07 1,82 4,76 1,97 4,45 2,13 12 7 6,20 1,42 5,89 1,55 5,57 1,68 5,25 1,82 4,93 1,98 4,61 2,14 13 8 6,41 1,42 6,09 1,55 5,76 1,68 5,43 1,83 5,11 1,99 4,77 2,15 14 9 6,62 1,41 6,29 1,55 5,96 1,69 5,62 1,84 5,28 2,00 4,94 2,16 15 10 6,84 1,41 6,50 1,54 6,16 1,69 5,82 1,84 5,47 2,01 5,12 2,18 16 11 7,06 1,40 6,71 1,54 6,36 1,69 6,01 1,85 5,65 2,01 5,30 2,18 17 12 7,28 1,39 6,92 1,54 6,57 1,69 6,22 1,85 5,85 2,02 5,48 2,19

MPI DC 08 H

Rated data at minimum frequency

10 5 2,81 0,89 2,66 0,95 2,52 1,01 2,38 1,07 2,23 1,14 2,08 1,21 11 6 2,90 0,89 2,76 0,95 2,61 1,01 2,46 1,07 2,31 1,14 2,16 1,22 12 7 3,00 0,88 2,85 0,94 2,70 1,00 2,55 1,07 2,40 1,14 2,24 1,22 13 8 3,10 0,88 2,95 0,94 2,80 1,00 2,64 1,07 2,48 1,14 2,32 1,22 14 9 3,21 0,87 3,05 0,94 2,89 1,00 2,73 1,07 2,57 1,15 2,41 1,23 15 10 3,31 0,87 3,15 0,93 2,99 1,00 2,83 1,07 2,66 1,15 2,50 1,23 16 11 3,42 0,86 3,25 0,93 3,09 1,00 2,92 1,07 2,75 1,15 2,58 1,23 17 12 3,53 0,85 3,36 0,92 3,19 0,99 3,02 1,07 2,85 1,15 2,67 1,23

MPI DC 010 H

Rated data at maximum frequency

10 5 11,50 2,92 10,90 3,18 10,30 3,47 9,72 3,79 9,12 4,13 8,52 4,49 11 6 11,80 2,91 11,20 3,18

10,60 3,48 10,10 3,80 9,43 4,15 8,82 4,52 12 7 12,20 2,90 11,60 3,19 11,00 3,49 10,40 3,82 9,74 4,17 9,11 4,55 13 8 12,60 2,90 12,00 3,18 11,30 3,50 10,70 3,83 10,10 4,19 9,43 4,57 14 9 13,00 2,89 12,40 3,21 11,70 3,50 11,10 3,85 10,40 4,21 9,74 4,59 15 10 13,40 2,87 12,70 3,18 12,10 3,50 11,40 3,86 10,70 4,23 10,10 4,61 16 11 13,80 2,86 13,10 3,18 12,40 3,51 11,80 3,87 11,10 4,24 10,40 4,64 17 12 14,20 2,85 13,50 3,17 12,80 3,52 12,10 3,88 11,40 4,26 10,70 4,66

MPI DC 010

Rated data at intermediate frequency

10 5 7,23 1,82 6,86 1,97 6,49 2,13 6,13 2,30 5,76 2,48 5,39 2,68 11 6 7,47 1,81 7,09 1,97 6,72 2,13 6,34 2,30 5,96 2,49 5,58 2,69 12 7 7,69 1,80 7,32 1,96 6,94 2,13 6,56 2,30 6,17 2,49 5,78 2,69 13 8 7,94 1,79 7,56 1,96 7,18 2,12 6,78 2,31 6,39 2,50 5,98 2,70 14 9 8,19 1,78 7,81 1,95 7,41 2,12 7,01 2,31 6,60 2,50 6,18 2,71 15 10 8,45 1,77 8,05 1,94 7,65 2,12 7,23 2,31 6,81 2,51 6,39 2,72 16 11 8,71 1,75 8,31 1,93 7,89 2,11 7,46 2,31 7,04 2,51 6,61 2,72 17 12 8,98 1,74 8,56 1,92 8,13 2,11 7,71 2,31 7,27 2,52 6,83 2,73

MPI DC 010 H

Rated data at minimum frequency

10 5 3,13 1,15 2,97 1,22 2,81 1,28 2,65 1,35 2,49 1,43 2,33 1,51 11 6 3,24 1,14 3,07 1,21 2,91 1,28 2,75 1,35 2,58 1,43 2,42 1,51 12 7 3,35 1,13 3,18 1,21 3,01 1,28 2,84 1,35 2,68 1,43 2,50 1,51 13 8 3,46 1,13 3,29 1,20 3,12 1,27 2,95 1,35 2,77 1,43 2,60 1,52 14 9 3,57 1,12 3,39 1,19 3,22 1,27 3,05 1,35 2,87 1,43 2,69 1,52 15 10 3,68 1,11 3,50 1,19 3,33 1,26 3,15 1,34 2,97 1,43 2,78 1,52 16 11 3,80 1,10 3,62 1,18 3,44 1,26 3,26 1,34 3,07 1,43 2,88 1,52 17 12 3,92 1,09 3,74 1,17 3,55 1,25 3,36 1,34 3,17 1,43 2,98 1,52

Page 16

MPI DC

All copying, even partial, of this manual is strictly forbidden. RG66007970 - Rev 01

6 PERFORMANCES

6.1 COOLING CAPACITIES MPI DC-H

Tbs

Air inlet temperature (dry bulb)

Tw in/out Water inlet/outlet temperature

PF Cooling capacity PA Total power input including pump

Tbs

20 25 30 35 40 45

Tw in Tw out PF PA PF PA PF PA PF PA PF PA PF PA

[°C] [°C] kW kW kW kW kW kW kW kW kW kW kW kW

MPI DC 014 H

Rated data at maximum frequency

10 5 15,40 4,10 14,70 4,44 14,00 4,83 13,20 5,26 12,30 5,75 11,30 6,26 11 6 15,90 4,11 15,20 4,46 14,40 4,85 13,60 5,29 12,70 5,77 11,70 6,30 12 7 16,40 4,11 15,70 4,48 14,90 4,87 14,00 5,31 13,10 5,81 12,00 6,33 13 8 16,90 4,12 16,20 4,48 15,40 4,90 14,40 5,34 13,50 5,84 12,50 6,36 14 9 17,50 4,12 16,70 4,50 15,80 4,92 14,90 5,36 13,90 5,86 12,80 6,41 15 10 18,00 4,13 17,20 4,52 16,30 4,93 15,30 5,39 14,30 5,90 13,20 6,43 16 11 18,60 4,14 17,70 4,53 16,80 4,95 15,80 5,42 14,80 5,93 13,70 6,47 17 12 19,20 4,14 18,30 4,54 17,30 4,97 16,30 5,45 15,20 5,95 14,10 6,51

MPI DC 014 H

Rated data at intermediate frequency

10 5 10,40 2,59 9,88 2,80 9,41 3,01 8,91 3,26 8,34 3,53 7,74 3,82 11 6 10,70 2,59 10,20 2,80 9,72 3,02 9,21 3,27 8,63 3,53 8,00 3,83 12 7 11,00 2,59 10,50 2,80 10,00 3,02 9,50 3,27 8,91 3,55 8,27 3,84 13 8 11,40 2,59 10,90 2,80 10,40 3,03 9,81 3,28 9,20 3,56 8,54 3,86 14 9 11,80 2,58 11,20 2,80 10,70 3,03 10,10 3,29 9,51 3,57 8,83 3,87 15 10 12,10 2,58 11,60 2,80 11,10 3,03 10,40 3,29 9,80 3,58 9,12 3,88 16 11 12,50 2,58 12,00 2,80 11,40 3,04 10,80 3,30 10,10 3,59 9,42 3,90 17 12 12,90 2,58 12,40 2,80 11,80 3,04 11,10 3,31 10,40 3,60 9,71 3,92

MPI DC 014 H

Rated data at minimum frequency

10 5 3,94 1,45 3,76 1,54 3,59 1,63 3,40 1,72 3,20 1,83 2,98 1,94 11 6 4,08 1,45 3,90 1,54 3,72 1,63 3,52 1,72 3,31 1,83 3,08 1,94 12 7 4,23 1,44 4,03 1,53 3,85 1,62 3,65 1,72 3,43 1,83 3,20 1,95 13 8 4,38 1,44 4,18 1,53 3,98 1,62 3,78 1,72 3,55 1,83 3,31 1,95 14 9 4,53 1,43 4,33 1,53 4,12 1,62 3,91 1,72 3,67 1,83 3,42 1,95 15 10 4,69 1,43 4,47 1,52 4,27 1,62 4,04 1,72 3,80 1,83 3,54 1,95 16 11 4,85 1,42 4,63 1,52 4,41 1,61 4,18 1,71 3,93 1,83 3,67 1,95 17 12 5,03 1,42 4,79 1,52 4,56 1,61 4,32 1,71 4,06 1,83 3,79 1,95

MPI DC 018 H

Rated data at maximum frequency

10 5 20,00 6,19 19,10 6,74 18,00 7,36 16,80 8,05 15,60 8,82 14,20 9,64 11 6 20,60 6,21 19,60 6,77

18,60 7,40 17,40 8,10 16,10 8,87 14,70 9,72 12 7 21,20 6,24 20,30 6,81 19,10 7,44 17,90 8,16 16,60 8,93 15,20 9,76 13 8 21,90 6,26 20,90 6,84 19,70 7,49 18,40 8,21 17,10 8,99 15,60 9,83 14 9 22,60 6,28 21,40 6,88 20,30 7,54 19,00 8,27 17,50 9,05 16,10 9,91 15 10 23,20 6,31 22,00 6,91 20,90 7,58 19,50 8,32 18,10 9,12 16,60 9,98 16 11 23,90 6,33 22,80 6,94 21,40 7,62 20,10 8,38 18,60 9,18 17,10 10,04 17 12 24,60 6,35 23,40 6,97 22,00 7,68 20,60 8,44 19,20 9,24 17,60 10,10

MPI DC 018

Rated data at intermediate frequency

10 5 13,00 3,36 12,50 3,61 11,90 3,91 11,20 4,24 10,50 4,61 9,69 5,01 11 6 13,40 3,36 12,90 3,62 12,30 3,92 11,60 4,26 10,80 4,63 10,00 5,03 12 7 13,90 3,35 13,30 3,62 12,70 3,93 11,90 4,27 11,20 4,65 10,30 5,06 13 8 14,30 3,35 13,70 3,62 13,10 3,94 12,30 4,28 11,50 4,67 10,70 5,08 14 9 14,80 3,34 14,20 3,63 13,50 3,94 12,70 4,30 11,90 4,69 11,00 5,10 15 10 15,30 3,33 14,60 3,63 13,90 3,96 13,10 4,32 12,20 4,70 11,30 5,13 16 11 15,80 3,32 15,10 3,63 14,30 3,96 13,50 4,33 12,60 4,72 11,70 5,15 17 12 16,30 3,31 15,50 3,62 14,70 3,97 13,90 4,34 13,00 4,74 12,10 5,18

MPI DC 018 H

Rated data at minimum frequency

10 5 3,91 1,45 3,73 1,53 3,56 1,62 3,37 1,72 3,18 1,82 2,96 1,93 11 6 4,05 1,44 3,87 1,53 3,69 1,62 3,49 1,71 3,29 1,82 3,06 1,93 12 7 4,20 1,43 4,01 1,53 3,80 1,62 3,62 1,71 3,40 1,82 3,17 1,94 13 8 4,36 1,42 4,15 1,52 3,96 1,61 3,74 1,71 3,52 1,82 3,28 1,94 14 9 4,52 1,41 4,31 1,51 4,09 1,61 3,87 1,71 3,64 1,82 3,39 1,94 15 10 4,69 1,40 4,46 1,50 4,24 1,60 4,01 1,70 3,76 1,82 3,50 1,94 16 11 4,87 1,39 4,63 1,49 4,39 1,59 4,14 1,70 3,88 1,82 3,62 1,94 17 12 5,06 1,37 4,80 1,48 4,54 1,59 4,28 1,70 4,01 1,82 3,74 1,94

Page 17

All copying, even partial, of this manual is strictly forbidden.RG66007970 - Rev 01

6 PERFORMANCES

6.1 COOLING CAPACITIES MPI DC-H

Tbs

Air inlet temperature (dry bulb)

Tw in/out Water inlet/outlet temperature

PF Cooling capacity PA Total power input including pump

Tbs

20 25 30 35 40 45

Tw in Tw out PF PA PF PA PF PA PF PA PF PA PF PA

[°C] [°C] kW kW kW kW kW kW kW kW kW kW kW kW

MPI DC 023 H

Rated data at maximum frequency

10 5 24,40 6,47 23,30 7,00 22,20 7,59 21,10 8,26 19,90 9,01 18,60 9,84 11 6 25,10 6,49 24,10 7,01 22,90 7,62 21,80 8,30 20,60 9,07 19,20 9,89 12 7 25,90 6,49 24,80 7,04 23,60 7,65 22,50 8,34 21,20 9,11 19,90 9,93 13 8 26,60 6,50 25,50 7,06 24,40 7,69 23,20 8,37 21,90 9,16 20,50 10,00 14 9 27,40 6,52 26,30 7,08 25,52 7,72 23,90 8,41 22,60 9,20 21,20 10,03 15 10 28,30 6,54 27,20 7,10 25,90 7,75 24,60 8,47 23,30 9,24 21,80 10,10 16 11 29,20 6,54 28,00 7,13 26,70 7,77 25,40 8,50 24,00 9,29 22,50 10,13 17 12 30,00 6,57 28,80 7,14 27,50 7,80 26,10 8,54 24,70 9,35 23,20 10,20

MPI DC 023 H

Rated data at intermediate frequency

10 5 16,40 4,09 15,70 4,39 15,10 4,73 14,30 5,10 13,50 5,53 12,70 5,99 11 6 16,90 4,09 16,20 4,40 15,60 4,73 14,80 5,12 14,00 5,54 13,20 6,01 12 7 17,50 4,09 16,80 4,40 16,10 4,74 15,30 5,13 14,40 5,56 13,60 6,03 13 8 18,00 4,09 17,30 4,40 16,60 4,75 15,80 5,14 14,90 5,57 14,10 6,05 14 9 18,60 4,09 17,80 4,41 17,10 4,76 16,30 5,16 15,40 5,59 14,50 6,07 15 10 19,10 4,09 18,40 4,41 17,70 4,76 16,80 5,16 15,90 5,61 15,00 6,09 16 11 19,70 4,09 19,00 4,41 18,20 4,78 17,30 5,18 16,40 5,63 15,50 6,12 17 12 20,40 4,10 19,60 4,42 18,70 4,78 17,90 5,19 17,00 5,65 16,00 6,13

MPI DC 023 H

Rated data at minimum frequency

10 5 6,13 2,17 5,87 2,31 5,62 2,43 5,35 2,57 5,08 2,73 4,78 2,90 11 6 6,34 2,17 6,07 2,30 5,82 2,43 5,54 2,57 5,26 2,73 4,96 2,91 12 7 6,55 2,16 6,28 2,30 6,02 2,43 5,74 2,57 5,45 2,73 5,13 2,91 13 8 6,78 2,16 6,49 2,30 6,22 2,43 5,94 2,57 5,64 2,73 5,32 2,91 14 9 7,00 2,16 6,72 2,30 6,44 2,43 6,14 2,57 5,83 2,74 5,51 2,92 15 10 7,23 2,15 6,94 2,29 6,65 2,42 6,35 2,57 6,03 2,74 5,70 2,92 16 11 7,48 2,15 7,17 2,29 6,87 2,42 6,56 2,57 6,24 2,74 5,90 2,92 17 12 7,72 2,15 7,41 2,29 7,11 2,42 6,78 2,57 6,45 2,74 6,10 2,92

MPI DC 029 H

Rated data at maximum frequency

10 5 31,30 9,71 29,90 10,57 28,40 11,57 26,80 12,67 25,20 13,87 23,40 15,27 11 6 32,20 9,75 30,90 10,67

29,30 11,67 27,70 12,77 25,90 13,97 24,10 15,37 12 7 33,30 9,79 31,80 10,67 30,10 11,67 28,50 12,87 26,70 14,07 24,90 15,47 13 8 34,30 9,80 32,70 10,77 31,10 11,77 29,40 12,97 27,60 14,17 25,70 15,57 14 9 35,20 9,85 33,60 10,77 32,00 11,87 30,30 12,97 28,40 14,27 26,40 15,67 15 10 36,20 9,89 34,60 10,87 33,00 11,97 31,10 13,07 29,20 14,37 27,20 15,77 16 11 37,30 9,94 35,70 10,87 33,90 11,97 32,00 13,17 30,20 14,47 28,10 15,87 17 12 38,40 9,99 36,70 10,97 34,80 12,07 33,00 13,27 31,00 14,57 29,00 15,87

MPI DC 029

Rated data at intermediate frequency

10 5 20,90 5,27 20,00 5,67 19,10 6,14 18,10 6,68 17,10 7,28 16,00 7,94 11 6 21,50 5,27 20,60 5,68 19,70 6,17 18,70 6,70 17,70 7,31 16,60 7,97 12 7 22,20 5,26 21,30 5,70 20,30 6,18 19,30 6,73 18,20 7,34 17,10 8,01 13 8 22,90 5,26 22,00 5,70 21,00 6,20 19,90 6,76 18,80 7,37 17,70 8,03 14 9 23,60 5,26 22,60 5,72 21,60 6,22 20,60 6,77 19,40 7,40 18,20 8,07 15 10 24,30 5,26 23,30 5,72 22,30 6,23 21,20 6,80 20,00 7,42 18,80 8,10 16 11 25,00 5,26 24,00 5,73 23,00 6,26 21,80 6,82 20,70 7,45 19,40 8,13 17 12 25,70 5,27 24,70 5,74 23,60 6,28 22,50 6,85 21,30 7,49 20,00 8,17

MPI DC 029 H

Rated data at minimum frequency

10 5 6,15 2,15 5,89 2,28 5,63 2,41 5,36 2,55 5,08 2,71 4,78 2,89 11 6 6,35 2,14 6,08 2,28 5,82 2,41 5,55 2,55 5,25 2,71 4,95 2,89 12 7 6,56 2,13 6,29 2,27 6,02 2,40 5,73 2,55 5,44 2,71 5,12 2,89 13 8 6,78 2,13 6,50 2,27 6,22 2,40 5,93 2,55 5,63 2,71 5,31 2,89 14 9 7,00 2,12 6,71 2,26 6,43 2,40 6,13 2,55 5,82 2,71 5,49 2,89 15 10 7,22 2,11 6,93 2,26 6,64 2,39 6,34 2,54 6,01 2,71 5,68 2,90 16 11 7,46 2,10 7,15 2,25 6,86 2,39 6,54 2,55 6,22 2,71 5,87 2,90 17 12 7,69 2,10 7,38 2,25 7,08 2,39 6,76 2,54 6,42 2,72 6,06 2,90

Page 18

MPI DC

All copying, even partial, of this manual is strictly forbidden. RG66007970 - Rev 01

6 PERFORMANCES

6.3 HEATING CAPACITIES MPI DC-H

Tbs

Air inlet temperature (dry bulb)

Tw in/out Water inlet/outlet temperature

PT Heating capacity PA Total power input including pump RH Relative humidity

Tbs1 / RH -5 °C / 90 % 0 °C / 90 % 7 °C / 88 % 15 °C / 80 % 20°C / 70 %

Tw in Tw out PT PA PT PA PT PA PT PA PT PA

[°C] [°C] kW kW kW kW kW kW kW kW kW kW

MPI DC 08 H

Rated data at maximum frequency

25 30 6,73 2,31 7,78 2,36 9,22 2,40 11,50 2,46 12,70 2,46 30 35 6,63 2,46 7,60 2,52 8,99 2,60 11,20 2,69 12,40 2,71 35 40 6,46 2,62 7,45 2,71 9,07 2,84 11,00 2,95 12,10 2,98 40 45 6,32 2,80 7,29 2,91 10,80 3,21 11,80 3,27 11,80 3,27 45 50 6,26 3,03 7,20 3,16 8,71 3,35 10,50 3,50 11,50 3,57

MPI DC 08 H

Rated data at intermediate frequency

25 30 4,41 1,55 5,07 1,57 6,14 1,59 7,57 1,59 8,30 1,58 30 35 4,29 1,64 4,94 1,67 5,99 1,71 7,37 1,73 8,10 1,73 35 40 4,17 1,74 4,81 1,78 5,86 1,84 7,17 1,89 7,91 1,90 40 45 4,06 1,85 4,69 1,91 5,69 1,98 7,01 2,06 7,69 2,07 45 50 3,98 1,97 4,62 2,05 5,57 2,14 6,81 2,23 7,52 2,25

MPI DC 08 H

Rated data at minimum frequency

25 30 2,10 0,97 2,46 0,97 3,01 0,97 3,69 0,96 4,22 0,93 30 35 2,04 1,01 2,39 1,02 2,92 1,03 3,58 1,03 4,12 1,01 35 40 1,98 1,06 2,32 1,08 2,84 1,09 3,48 1,10 4,02 1,10 40 45 1,93 1,11 2,25 1,13 2,76 1,16 3,39 1,18 3,93 1,18 45 50 1,89 1,17 2,19 1,20 2,68 1,23 3,29 1,26 3,82 1,27

MPI DC 010 H

Rated data at maximum frequency

25 30 8,66 3,05 10,00 3,12 12,30 3,14 15,00 3,09 16,40 3,03 30 35 8,47 3,29 9,80 3,36 11,90 3,41 14,60 3,40 16,10 3,38 35 40 8,28 3,53 9,58 3,62 11,70 3,71 14,20 3,75 15,70 3,74 40 45 8,11 3,78 9,37 3,90 11,40 4,03 13,80 4,11 15,30 4,12 45 50 7,94 4,03 9,19 4,19 11,20 4,37 13,50 4,48 14,90 4,51

MPI DC 010 H

Rated data at intermediate frequency

25 30 5,17 1,98 6,01 2,01 7,39 2,01 9,02 1,96 10,00 1,92 30 35 5,03 2,11 5,84 2,14 7,16 2,16 8,78 2,14 9,74 2,11 35 40 4,90 2,24 5,73 2,29 6,95 2,32 8,57 2,32 9,46 2,32 40 45 4,77 2,38 5,57 2,44 6,75 2,50 8,30 2,53 9,20 2,53 45 50 4,66 2,53 5,42 2,60 6,64 2,69 8,06 2,73 8,91 2,75

MPI DC 010 H

Rated data at minimum frequency

25 30 2,16 1,25 2,53 1,26 3,11 1,26 3,82 1,22 4,05 1,48 30 35 2,10 1,31 2,46 1,32 3,02 1,32 3,71 1,30 3,98 1,53 35 40 2,04 1,36 2,39 1,38 2,93 1,39 3,39 1,58 3,91 1,58 40 45 1,99 1,42 2,32 1,45 2,85 1,46 3,33 1,63 3,84 1,63 45 50 1,94 1,48 2,26 1,51 2,77 1,54

2,77 1,67 3,77 1,68

MPI DC 014 H

Rated data at maximum frequency

25 30 12,40 4,15 14,20 4,24 16,6 4,29 20,5 4,28 22,7 4,25 30 35 12,10 4,49 13,80 4,57 16,4 4,64 20,2 4,66 22,2 4,65 35 40 11,80 4,87 13,50 4,96 16,2 5,04 19,6 5,10 21,6 5,10 40 45 11,50 5,30 13,30 5,39 15,8 5,49 19,1 5,58 21,3 5,60 45 50 11,40 5,80 13,00 5,89 15,4 6,00 18,5 6,10 20,5 6,15

MPI DC 014 H

Rated data at intermediate frequency

25 30 7,91 2,75 9,02 2,80 10,90 2,81 13,30 2,78 14,80 2,76 30 35 7,68 2,95 8,81 2,99 10,60 3,02 13,00 3,02 14,40 3,00 35 40 7,48 3,17 8,57 3,21 10,40 3,25 12,70 3,28 14,00 3,27 40 45 7,30 3,42 8,39 3,47 10,10 3,52 12,30 3,55 13,60 3,57 45 50 7,15 3,71 8,16 3,75 9,82 3,81 12,00 3,86 13,10 3,88

MPI DC 014 H

Rated data at minimum frequency

25 30 2,97 1,59 3,40 1,60 4,11 1,59 5,06 1,57 5,35 1,93 30 35 2,89 1,66 3,32 1,68 4,03 1,68 4,94 1,66 5,25 2,00 35 40 2,82 1,75 3,24 1,77 3,93 1,77 4,81 1,77 5,15 2,07 40 45 2,76 1,85 3,17 1,87 3,83 1,88 4,66 1,89 5,05 2,15 45 50 2,71 1,97 3,09 1,99 3,72 2,00 4,52 2,02 4,96 2,23

Page 19

All copying, even partial, of this manual is strictly forbidden.RG66007970 - Rev 01

6 PERFORMANCES

6.3 HEATING CAPACITIES MPI DC-H

Tbs

Air inlet temperature (dry bulb)

Tw in/out Water inlet/outlet temperature

PT Heating capacity PA Total power input including pump RH Relative humidity

Tbs1 / RH -5 °C / 90 % 0 °C / 90 % 7 °C / 88 % 15 °C / 80 % 20°C / 70 %

Tw in Tw out PT PA PT PA PT PA PT PA PT PA

[°C] [°C] kW kW kW kW kW kW kW kW kW kW

MPI DC 018 H

Rated data at maximum frequency

25 30 17,00 5,90 18,80 6,05 22,6 6,21 27,4 6,22 30,4 6,15 30 35 16,60 6,43 18,50 6,56 22,3 6,71 25,9 8,35 29,7 6,77 35 40 16,40 7,04 18,30 7,15 21,9 7,30 26,5 7,42 29,0 7,44 40 45 16,10 7,71 18,00 7,83 21,4 7,98 25,9 8,35 28,3 8,19 45 50 16,00 8,46 17,70 8,57 21,1 8,76 25,3 8,94 27,6 9,01

MPI DC 018 H

Rated data at intermediate frequency

25 30 10,20 3,44 11,70 3,53 14,00 3,57 17,10 3,53 19,10 3,46 30 35 9,93 3,71 11,40 3,78 13,70 3,84 16,70 3,84 18,60 3,80 35 40 9,67 4,01 11,20 4,08 13,40 4,15 16,40 4,18 18,00 4,18 40 45 9,54 4,36 11,00 4,43 13,20 4,50 16,00 4,56 17,50 4,57 45 50 9,36 4,76 10,70 4,82 12,80 4,91 15,40 4,98 16,90 5,01

MPI DC 018 H

Rated data at minimum frequency

25 30 2,95 1,58 3,37 1,60 4,07 1,60 5,03 1,55 5,26 1,92 30 35 2,87 1,66 3,30 1,67 4,00 1,68 4,90 1,65 5,16 1,99 35 40 2,80 1,75 3,22 1,76 3,91 1,77 4,76 1,76 5,07 2,06 40 45 2,74 1,85 3,15 1,86 3,80 1,88 4,61 1,88 4,98 2,14 45 50 2,69 1,96 3,08 1,98 3,70 1,99 4,47 2,01 4,89 2,22

MPI DC 023 H

Rated data at maximum frequency

25 30 20,00 6,84 22,30 6,74 25,80 6,69 31,50 6,63 34,80 6,60 30 35 19,40 7,11 21,90 7,15 25,40 7,18 31,10 7,18 34,30 7,18 35 40 19,00 7,58 21,50 7,68 25,00 7,68 30,60 7,77 34,00 7,84 40 45 18,60 8,17 21,10 8,31 25,10 8,44 30,20 8,55 33,20 8,58 45 50 18,40 8,91 20,80 9,05 24,70 9,21 29,70 9,33 32,60 9,39

MPI DC 023 H

Rated data at intermediate frequency

25 30 12,80 4,47 14,50 4,42 17,20 4,37 21,00 4,32 23,00 4,30 30 35 12,50 4,66 14,10 4,66 16,70 4,66 20,50 4,66 22,50 4,64 35 40 12,20 4,94 13,90 4,98 16,40 5,02 20,10 5,04 23,00 5,04 40 45 12,00 5,29 13,50 5,35 16,20 5,41 19,60 5,47 21,70 5,48 45 50 11,80 5,72 13,30 5,79 15,80 5,88 19,30 5,94 21,20 5,96

MPI DC 023 H

Rated data at minimum frequency

25 30 4,74 2,43 5,34 2,40 6,38 2,37 7,78 2,34 9,11 2,32 30 35 4,62 2,51 5,23 2,50 6,26 2,49 7,63 2,47 8,39 2,96 35 40 4,51 2,61 5,12 2,62 6,13 2,63 7,49 2,62 8,27 3,07 40 45 4,42 2,75 5,03 2,77 6,02 2,79 7,32 2,79 8,15 3,18 45 50 4,35 2,92 4,95 2,95 5,91 2,97

7,16 2,98 8,02 3,29

MPI DC 029 H

Rated data at maximum frequency

25 30 27,20 9,73 29,60 9,67 34,90 9,62 36,90 9,60 46,50 9,51 30 35 26,40 10,22 29,80 10,32 34,40 10,36 40,70 12,87 45,90 10,43 35 40 26,00 10,97 29,40 11,07 33,90 11,27 41,70 11,37 45,30 11,47 40 45 25,60 11,87 29,00 12,07 33,40 12,27 40,70 12,87 44,40 12,57 45 50 25,60 13,07 28,80 13,27 33,00 13,47 40,20 13,67 43,80 13,77

MPI DC 029 H

Rated data at intermediate frequency

25 30 16,80 5,62 18,70 5,58 22,20 5,52 26,90 5,45 29,70 5,41 30 35 16,30 5,89 18,30 5,92 21,80 5,93 26,50 5,91 29,10 5,90 35 40 15,90 6,28 17,90 6,35 21,40 6,42 25,90 6,45 28,50 6,45 40 45 15,50 6,77 17,60 6,86 21,00 6,96 25,30 7,03 27,80 7,05 45 50 15,30 7,37 17,30 7,47 20,60 7,59 24,80 7,68 27,30 7,72

MPI DC 029 H

Rated data at minimum frequency

25 30 4,72 2,40 5,33 2,38 6,39 2,34 7,75 2,30 9,02 2,27 30 35 4,60 2,48 5,21 2,48 6,25 2,47 7,60 2,44 8,32 2,94 35 40 4,49 2,59 5,11 2,60 6,12 2,61 7,46 2,60 8,19 3,04 40 45 4,40 2,74 5,01 2,75 6,00 2,77 7,29 2,77 8,06 3,15 45 50 4,33 2,91 4,93 2,93 5,89 2,95 7,12 2,96 7,93 3,26

Page 20

MPI DC

All copying, even partial, of this manual is strictly forbidden. RG66007970 - Rev 01

7 SOUND LEVELS

LEGEND Lp

Total sound pressure level, weighted A, measured at a distance of 10 m, with a directivity factor of 2.

Lw Sound power level by octave band, not weighted Lw

Total sound power level, weighted A

8 OPERATING LIMITS

The graphs below illustrate the operating limits of MPI DC units (in the case of continuous operation) in relation to the outlet water temperature and outdoor air temperature.

Operating limits

Chiller Heat pump

min max min max

Inletwatertemperature(°C) 8 20

25 42

Outletwatertemperature(°C) 5 15 28 58

Watertemperaturedifferential(°C) 3 8 3 8 Outdoorairtemperature(°C) -10

48 -10 35

1 Fortransitoryperiods(e.g.equipmentstar tup)valuesupto25°Careallowed 2 Valuethatmaybereachedonlyforoutdoorairtemperaturesexceeding0°C. 3 Withcondensationcontrol:outdoorairTmin-15°C

Warning!: The units are designed to work with water and air temperatures falling within the range defined by the operating limits.

Attempting to operate the units beyond these limits could cause irreparable damage to the units themselves.

8.1 OPERATING LIMITS IN CHILLER MODE

Outlet water temperature (°C)

Air temperature (°C)

6 PERFORMANCES

6.4 INTEGRATED CAPACITIES

In the heat pump operation (heating mode), the actual heating capacities of units may be lower than the values shown in the table, due to defrosting cycles. To obtain the actual heating capacity, multiply the capacity values by the corrective coefficients given below.

Control

Air temperature dry bulb (°C)

-5 0 5 >5

µchiller2 0,89 0,88 0,94 1

PCO XS 0,91 0,9 0,94 1

Modell

Lw Lw

125 Hz 250 Hz 500 Hz 1000 Hz 2000 Hz 4000 Hz 8000 Hz Total

Low-noise

version

Total

Low-noise

version

dB dB dB dB dB dB dB dB (A) dB (A) dB (A) dB (A)

MPI DC 08 74,1 67,8 67,2 63,1 55,9 50,9 47,1 68,0 66,0 40,0 38,0

MPI DC 010 79,1 71,2 66,1 61,2 58,9 58,4 57,0 70,0 68,0 42,0 40,0

MPI DC 014 76,6 70,2 69,6 65,6 58,3 53,3 49,6 71,0 69,0 43,0 41,0

MPI DC 018 76,6 70,2 69,6 65,6 58,3 53,3 49,6 71,0 69,0 43,0 41,0

MPI DC 023 77,9 72,0 70,3 67,7 67,8 59,7 58,3 74,0 72,0 46,0 44,0

MPI DC 029 77,9 72,0 70,3 67,7 67,8 59,7 58,3 74,0 72,0 46,0 44,0

Page 21

∆TW C

PF/PT

CPA C

∆pw1

3 0,975 1 1,63 2,64

4 0,99 1 1,24 1,53 5 1 1 1 1 6 1,015 1 0,85 0,72 7 1,03 1 0,74 0,54 8 1,04 1 0,65 0,42

All copying, even partial, of this manual is strictly forbidden.RG66007970 - Rev 01

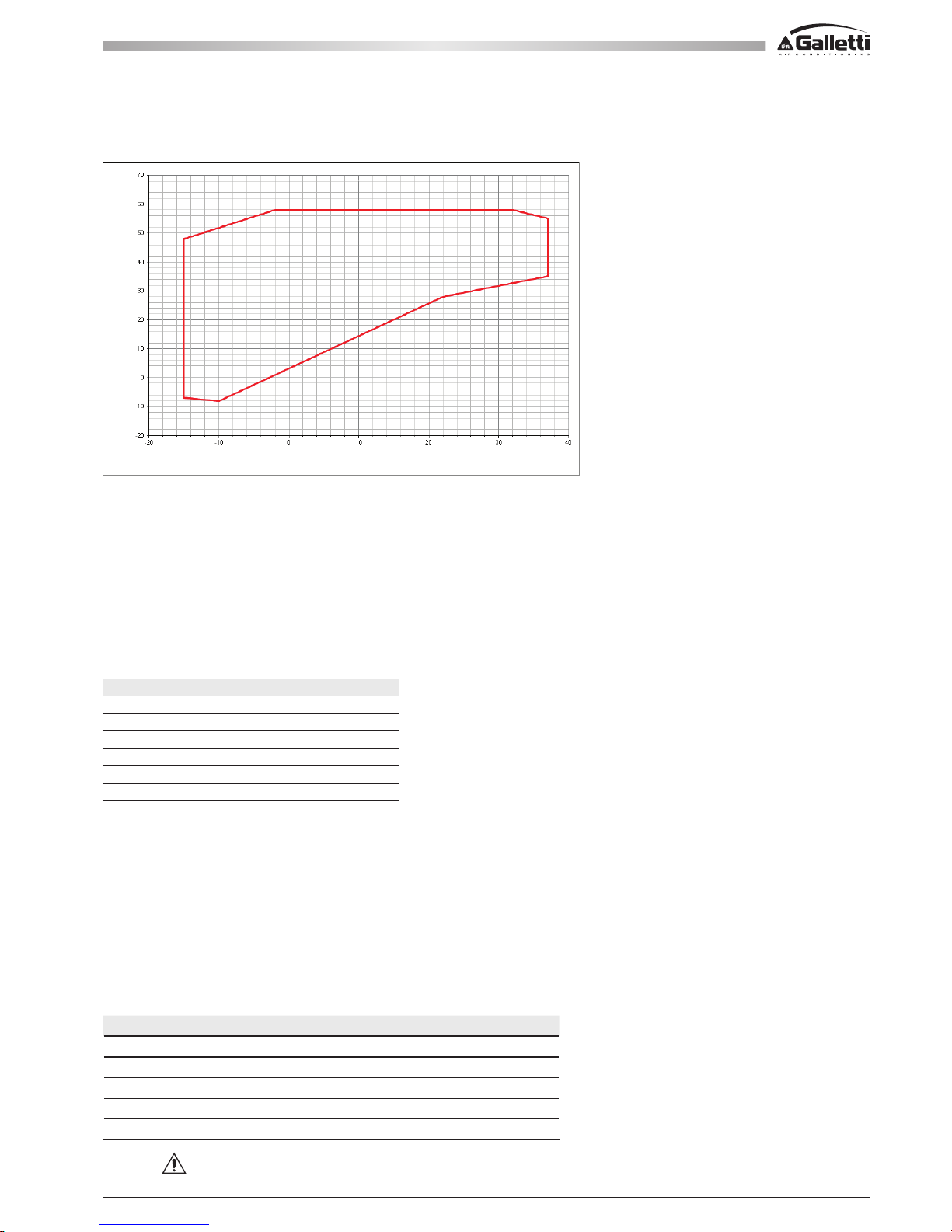

8.2 OPERATING LIMITS IN HEATING MODE

8.3 THERMAL CARRIER FLUID The units belonging to the MPI DC series can work with mixtures of water and up to 30% ethylene glycol.

8 OPERATING LIMITS

9 CALCULATION FACTORS

 

After identifying the unit's performance in the terms of the desired outlet water temperature, correct the value by multiplying it by the following corrective coefficients.

W Difference between water inlet temperature and water outlet temperature

PF/PT

Corrective coefficient of cooling/heating capacity

CPA Correction coefficient of electrical input CQw Correction coefficient of water flow rate C



Correction coefficient of pressure drop

9.2 WATER AND GLYCOL MIXTURE

Based on the minimum outlet water temperature, you can derive the percentage of ethylene glycol and the corrective coefficient using the table below.

PERCENTAGE OF ETHYLENE GLYCOL 0% 10% 20% 30% 40%

Minimum temp. of water produced 5°C 2°C -5°C -10°C -15°C

Mixturefreezingtemp.(°C) 0°C -4°C -14°C -18°C -24°C

Capacity correction factor 1,000 0,998 0,994 0,989 0,983

Water flow rate correction factor 1,000 1,047 1,094 1,140 1,199

Pressure drop correction factor 1,000 1,157 1,352 1,585 1,860

Warning The use of propylene glycol is not admitted with standard pumps. For further information, contact the manufacturer.

Air temperature (°C)

Outlet water temperature (°C)

Page 22

MPI DC

PERDITE IN FREDDO

1200 1400 1600 1800 2000 2200 2400 2600 2800 3000 3200

PORTATA (l/ h)

PERDITE (kPa)

MPIDC08

MPIDC010

MPIDC014

PERDITE IN FREDDO

2800 3200 3600 4000 4400 4800 5200 5600 6000 6400

PORTATA (l/ h)

PERDITE (kPa)

MPIDC018

MPIDC023

MPIDC029

MPI DC 08 ÷ 014

MPI DC 018 ÷ 029

All copying, even partial, of this manual is strictly forbidden. RG66007970 - Rev 01

10 PRESSURE DROPS

10.1 PRESSURE DROPS, WATER SIDE

The diagram shows the evaporator pressure drops () as a function of the water flow rate (Qw),assuminganaveragewatertemperatureof10°C.

PRESSURE DROP - COOLING

WATER FLOW RATE (l/h)

PRESSURE DROP (kPa)

Page 23

MPI DC 08

MPI DC 010-029

0 500 1000 1500 2000

∆p [kPa]

Qw [l/h]

MPE 004 - 008

0 2000 4000 6000 8000 10000 12000

∆

p [kPa]

Qw [l/h]

MPI DC 010-029

MPI DC 08

All copying, even partial, of this manual is strictly forbidden.RG66007970 - Rev 01

10 PRESSURE DROPS

10.2 PRESSURE DROPS OF Y FILTER The diagram shows the evaporator pressure drops () as a function of the water flow rate (Qw),assuminganaveragewatertemperatureof10°C.

Page 24

MPI DC

PREVALENZA UTILE IN FREDDO

100

110

120

130

140

150

160

1200 1400 1600 1800 2000 2200 2400 2600 2800 3000 3200

PORTATA (l/ h)

PREVALENZA (kPa)

MPIDC08

MPIDC010

MPIDC014

MPI DC 08 ÷ 014

PREVALENZA UTILE IN FREDDO

40,0

50,0

60,0

70,0

80,0

90,0

100,0

110,0

120,0

130,0

140,0

150,0

2800 3200 3600 4000 4400 4800 5200 5600 6000 6400

PORTATA (l/ h)

PREVALENZA (kPa)

MPIDC018

MPIDC023

MPIDC029

MPI DC 018 ÷ 029

All copying, even partial, of this manual is strictly forbidden. RG66007970 - Rev 01

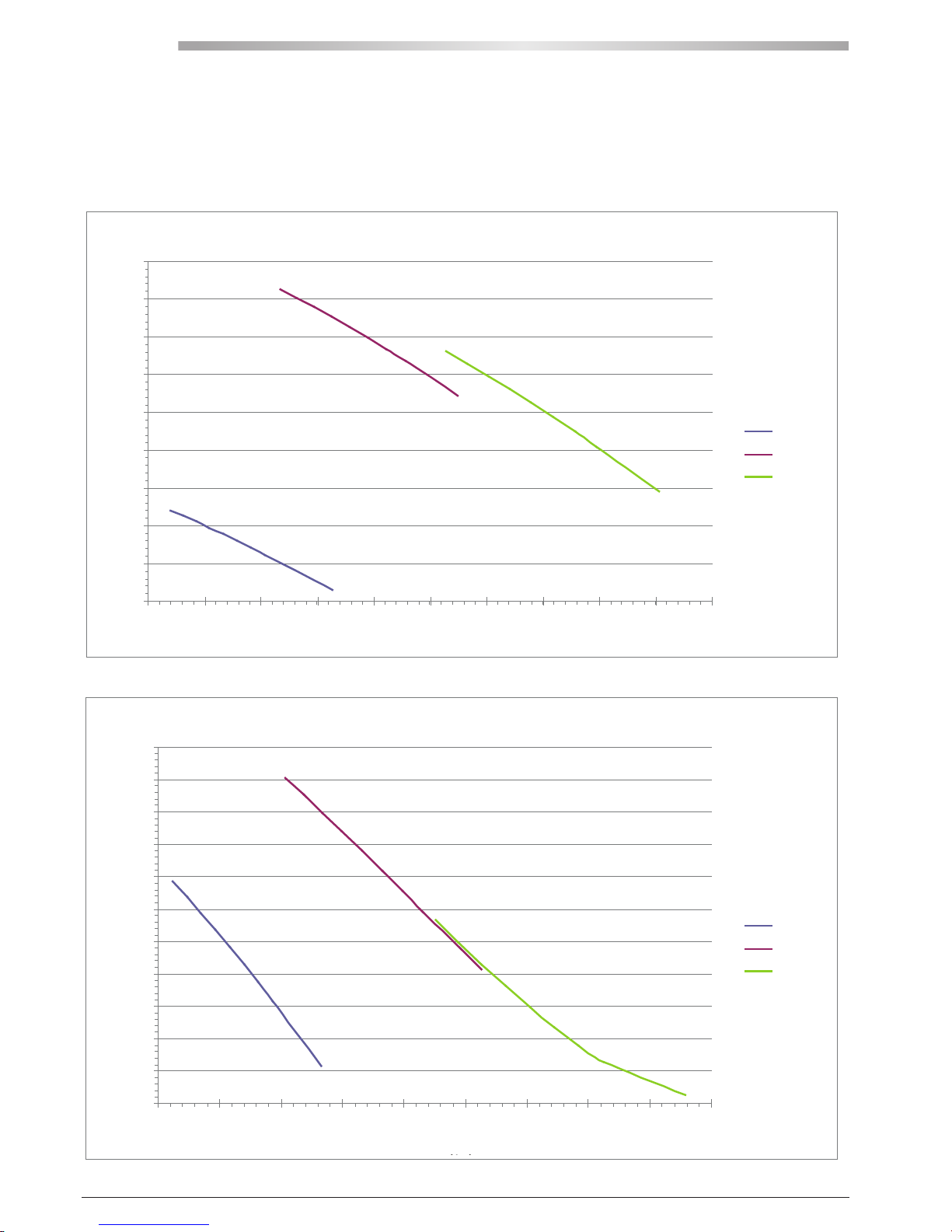

11 AVAILABLE HEAD OF THE UNIT

The diagram below shows the available head (Pu) of the unit as a function of the water flow rate (Qw),assuminganaveragewatertemperatureof10°C,net

of pressure drops. Pressure drops of the Y filter are not counted.

AVAILABLE HEAD - COOLING

WATER FLOW RATE (l/h)

AVAILABLE HEAD (kPa)

Page 25



All copying, even partial, of this manual is strictly forbidden.RG66007970 - Rev 01

12 WATER CIRCUIT

When setting up the water circuit of the unit, it is advisable to follow the directions below and in any case comply with local or national regulations. Connect the pipes to the chiller using flexible couplings to prevent the transmission of vibrations and to compensate thermal expansions.

It is recommended to install the following components on the pipes:

- temperature and pressure indicators for routine maintenance and monitoring of the unit. Checking the pressure on the water side will enable you to verify whether the expansion tank is working efficiently and to promptly detect any water leaks within the equipment.

Traps on incoming and outgoing pipes for temperature measurements, which can provide a direct reading of the operating temperatures.

- Regulating valves (gate valves) for isolating the unit from the water circuit.

Metal mesh filter (supplied), with a mesh size no greater than 1 mm, to be fitted on the inlet pipe to protect the exchanger from scale or impurities

present in the pipes.

Air vent valves, to be placed at the highest points of the water circuit for the purpose of bleeding air. The internal pipes of the unit are fitted with small

air vent valves for bleeding the unit itself. This operation may only be carried out when the unit is disconnected from the power supply.

- Drainage valve and, where necessary, a drainage tank for emptying out the equipment for maintenance purposes or when the unit is taken out of serv-

ice at the end of the season. A 1” drainage valve is provided on the optional water buffer tank: this operation may only be carried out when the unit is disconnected from the power supply.

It is of fundamental importance that the incoming water supply is hooked up to the connection marked “Water Inlet”. Otherwise the evaporator would be exposed to the risk of freezing since the antifreeze thermostat would not be able to perform its function; moreover the reverse cycle would not be respected in the cooling mode, resulting in additional risks of malfunctioning.

The dimensions and position of plumbing connections are shown in the dimension tables at the end of the manual.

The water circuit must be set up in such a way as to guarantee that the nominal flow rate of the water supplied to the evaporator remains constant (+/- 15%) in all operating conditions. A standard feature of MPI DC units is a device for controlling the flow rate (flow switch or differential pressure switch) in the water circuit in the immediate vicinity of the evaporator.

12.1 WATER CONTENT WITHIN THE SYSTEM AND CHARGING OF EXPANSION TANK

In models without buffer tank it is necessary to assure that the content of water within the system does not fall below 4.5 litres/kW in the case of heat pump models. This level is necessary to prevent the water temperature from falling below the indoor unit enabling threshold during defrost cycles.

N.B. kW in reference to rated capacity

The expansion tank is pre-charged to a pressure of 1.5 bars, sufficient for systems with a maximum height difference (H in the figure at the side) of 13 metres. For greater height differences, refer to the table below in order to adjust the charging pressure of the expansion tank accordingly. In no case should you exceed the maximum height difference Hmax = 35 m.

LEGEND

H Height difference of system pi Charging pressure of expansion tank C

max

Maximum system water content

Models

(m)

(bar)

max

(l)

MPI DC 08-029

<13 1,5 145

15 1,7 133

20 2,2 105

25 2,7 77

30 3,1 49

Page 26

MPI DC

All copying, even partial, of this manual is strictly forbidden. RG66007970 - Rev 01

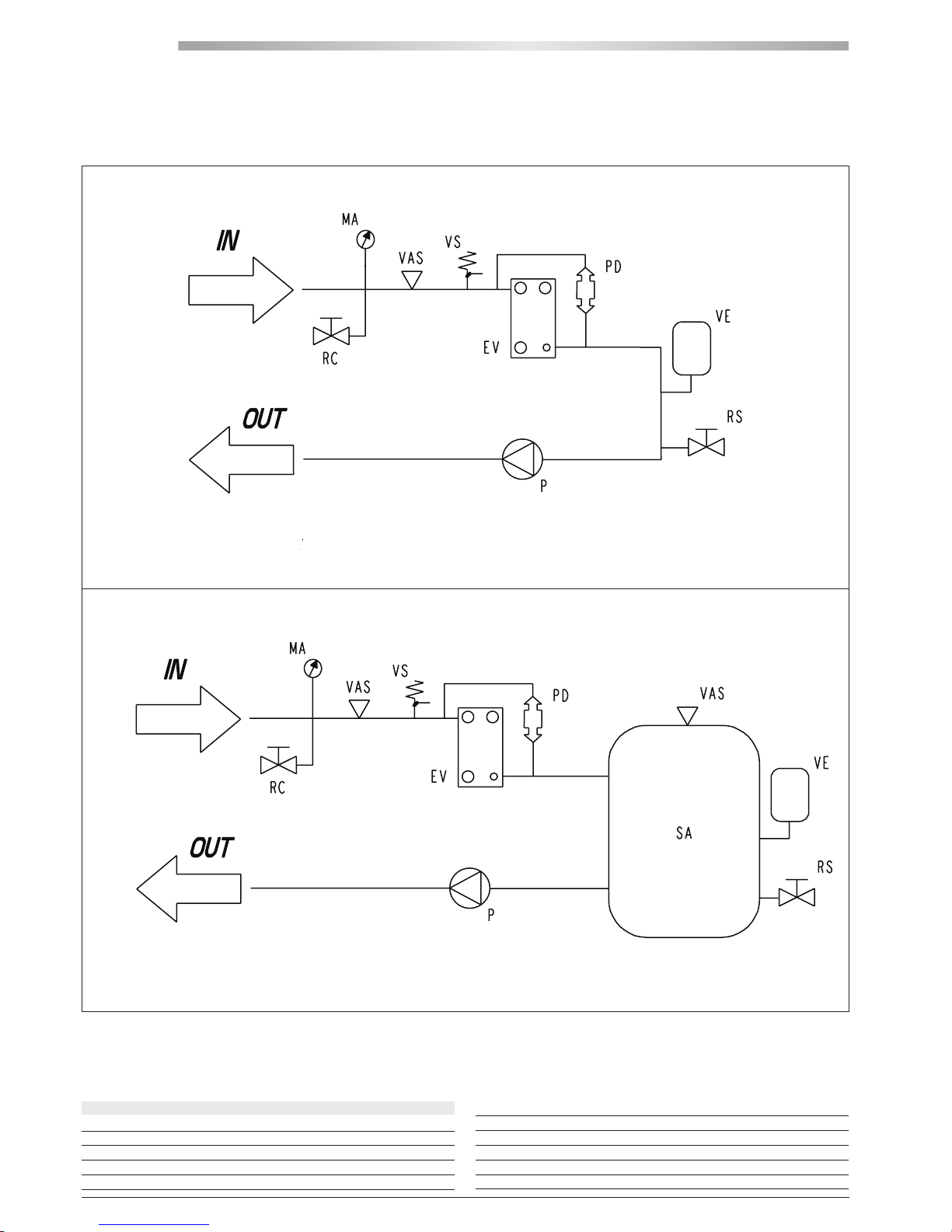

12 WATER CIRCUIT PLUMBING DIAGRAMS)

MPI DC (EVAPORATOR AND PUMP)MPI DC (EVAPORATOR, PUMP AND TANK)

LEGEND VS Safety valve EV Evaporator PD Differential pressure switch MA Water pressure gauge VAS Air vent valve

VE Expansion tank P Pump RS Drainage valve

RC Water filling cock VU Check valve SA Buffer tank

Page 27

All copying, even partial, of this manual is strictly forbidden.RG66007970 - Rev 01

13 ELECTRICAL DATA AND CONNECTIONS

- The maximum electrical input is the mains electricity that must be available in order for the unit to work.

- The maximum current absorption refers to the current that will trigger the internal safety devices of the unit.

It is the maximum current allowed in the unit. This value may never be exceeded; it must be used as a reference for determining the size of the

power supply line and the related safety devices (refer to the wiring diagram supplied with the units).

MPI DC 08 M 010 M 014 018 023 029

Maximum power input kW 4,1 5,6 7,1 10,7 10,8 21,9 Maximum current absorption A 16 26,6 20 22 28,5 43 Starting absorbed current A 10 10 10 10 10 10 Fan motor rated power kW 0,24 0,14 0,14 0,14 0,14 0,14 Fan motor rated current A 1,03 0,64 0,64 0,64 0,64 0,64 Pump motor rated power kW 0,14 0,48 0,65 0,65 0,65 0,65 Pump motor rated current A 0,58 2,7 3 3 3 3 Power supply V/f/Hz 230/1/50 400/3N/50 Auxiliary power supply V/f/Hz 230/1/50 Power cables mm

4 4 6 6 10 10 PCD connecting cables mm2AWG22 AWG22 AWG22 AWG22 AWG22 AWG22 PCDS connecting cables mm

1 1 1 1 1 1 Safety fuse F A 20 20 25 25 32 32 Circuit breaker IL A 20 20 25 25 40 40

Page 28

MPI DC

-IL

-FL

L1L2

T1T2

L1 L2 L3 N

L2L3N

-FL

-IG

1 3 5

2 4 6

230

L N PE

1 50

S T N P

-IG

All copying, even partial, of this manual is strictly forbidden. RG66007970 - Rev 01

13 ELECTRICAL DATA AND CONNECTIONS

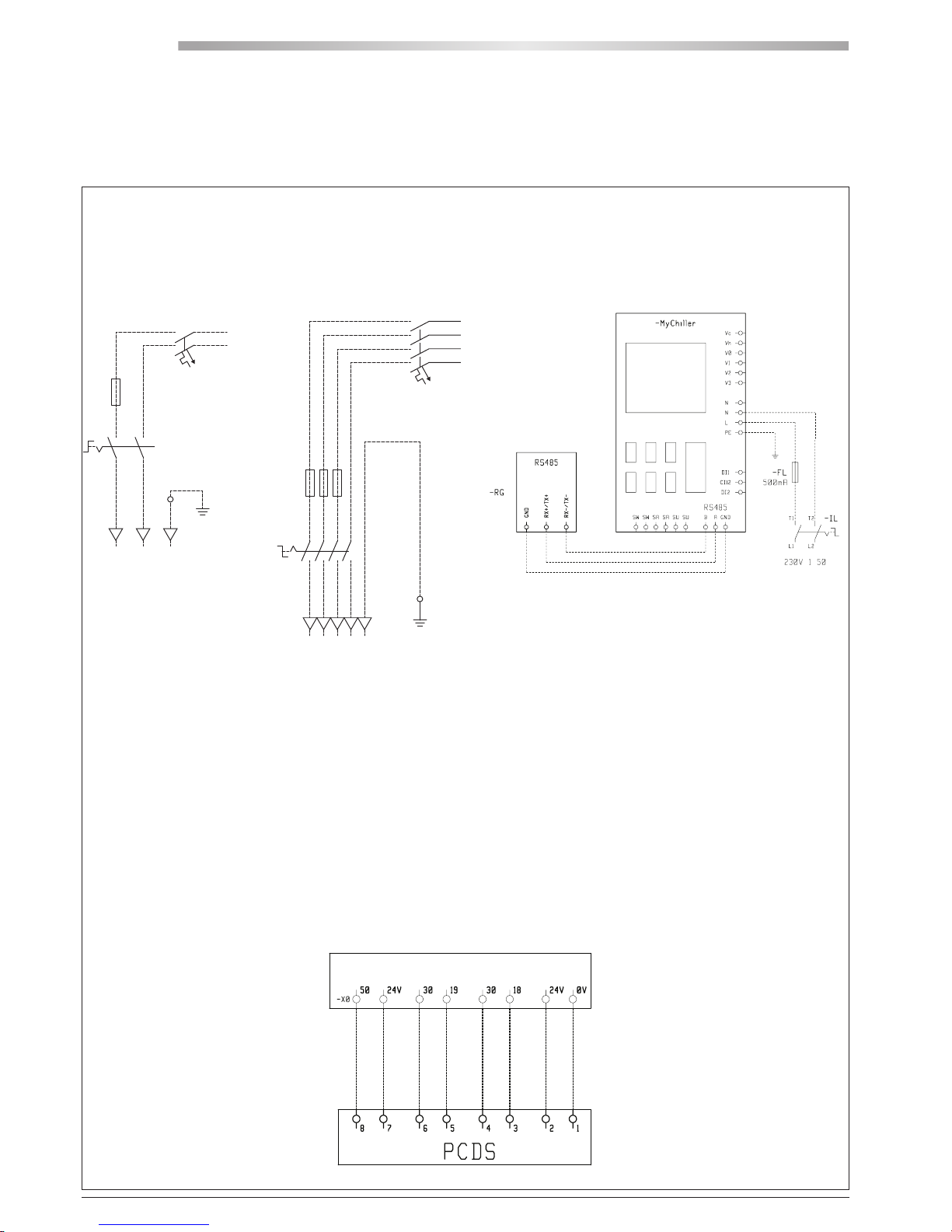

DIAGRAM SHOWING ELECTRICAL CONNECTIONS BETWEEN MPI DC AND PCDS REMOTE CONTROL PANEL

Note: Should the unit go into an alarm status, a voltage of 24V will be present on the terminals of the electric control panel; where an interface with a voltage-free contact is desired, a relay must be fitted by the installer.

ALARM TRIGGERED SIGNALLING

REMOTE SUMMER/WINTER SELECTION

ON/OFF SWITCH

PCDS POWER SUPPLY

ELECTRIC CONTROL BOARD TERMINAL BLOCK

MAIN ELECTRIC CONNECTION OF SINGLE-PHASE AND THREE-

PHASE UNITS

MPI DC WIRING DIAGRAM WITH MYCHILLER REMOTE

CONTROL

Page 29

All copying, even partial, of this manual is strictly forbidden.RG66007970 - Rev 01

14 OVERALL DIMENSIONS

MPI DC 08

Legend:

1 Water inlet 1" female 2 Water outlet 1" female 3 Safety valve discharge outlet provided with rubber ring holder 4 Water supply ½" male (optional tap) 5 Water drainage ½" female 6 Power supply Ø 28 mm 7 Electric control board 8 Fastening points for vibration dampers (accessory)

Page 30

MPI DC

All copying, even partial, of this manual is strictly forbidden. RG66007970 - Rev 01

14 OVERALL DIMENSIONS

MPI DC 10 - 18

Legend:

1 Water inlet 1" ¼ female 2 Water outlet 1" ¼ female 3 Safety valve discharge outlet provided with rubber ring holder 4 Water supply ½" male (optional tap) 5 Water drainage ½" female 6 Power supply Ø 28 mm 7 Electric control board 8 Fastening points for vibration dampers (accessory)

Page 31



All copying, even partial, of this manual is strictly forbidden.RG66007970 - Rev 01

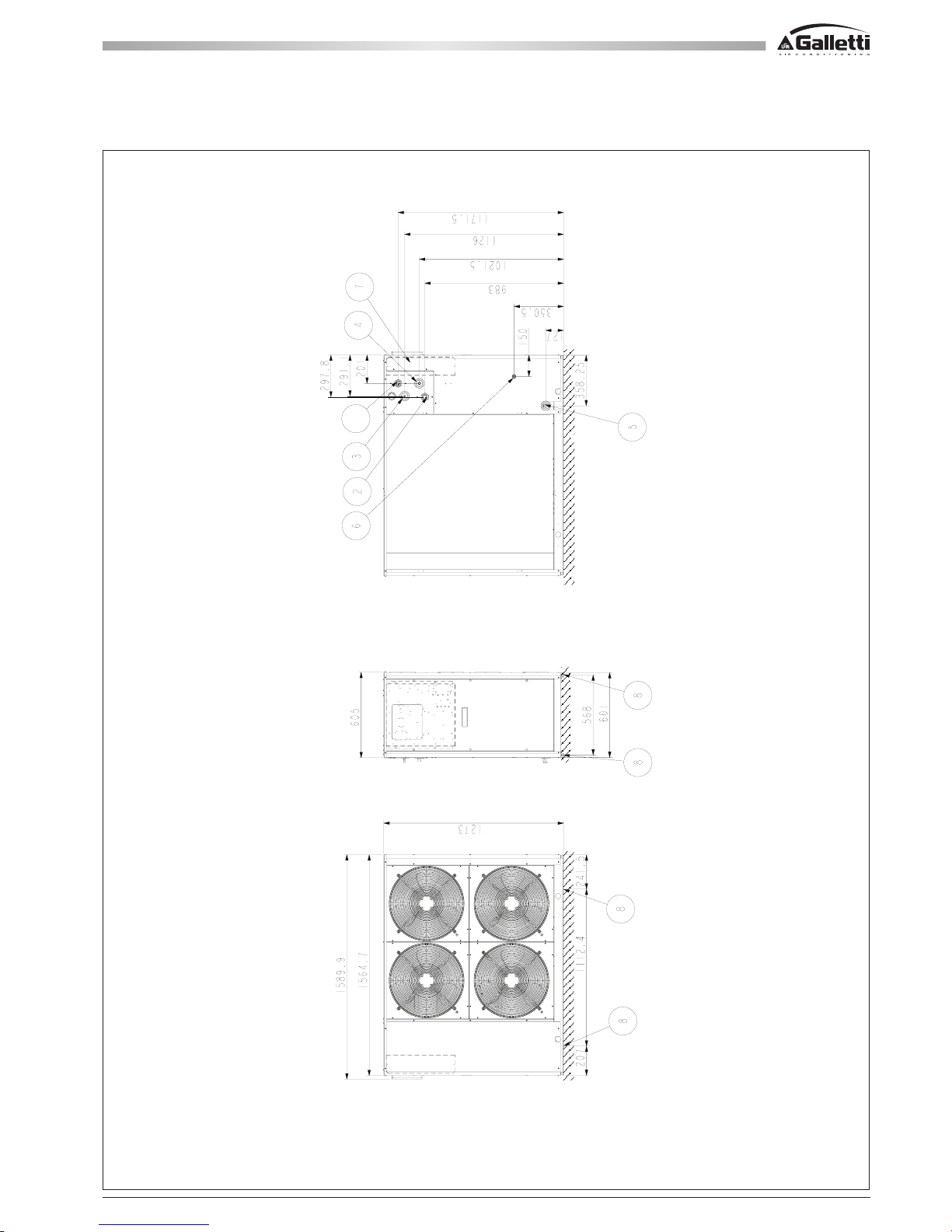

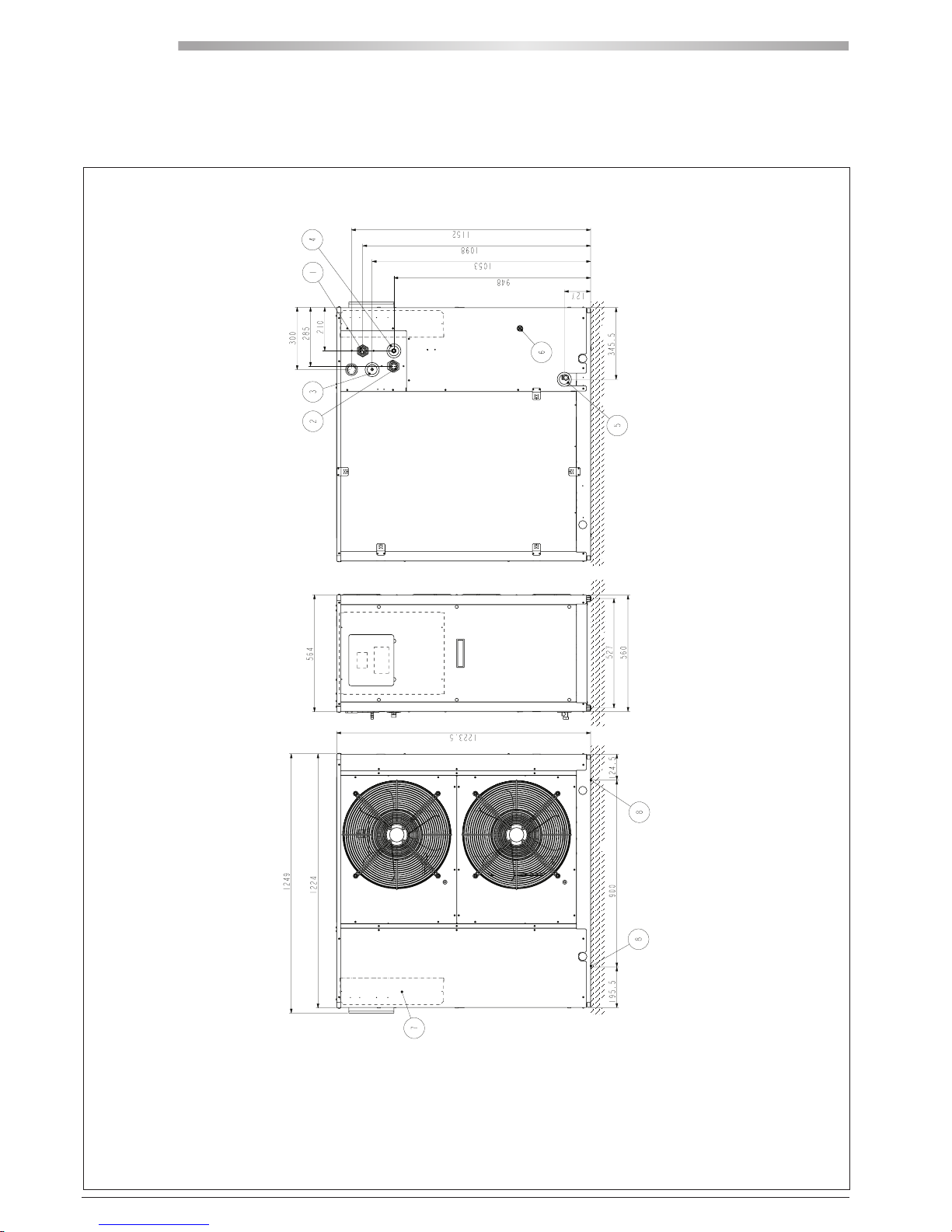

14 OVERALL DIMENSIONS

MPI DC 23 - 29

Legend:

1 Water inlet 1" ¼ female 2 Water outlet 1" ¼ female 3 Safety valve discharge outlet provided with rubber ring holder 4 Water supply ½" male (optional tap) 5 Water drainage ½" female 6 Power supply Ø 28 mm 7 Electric control board 8 Fastening points for vibration dampers (accessory)

Page 32

MPI DC

All copying, even partial, of this manual is strictly forbidden. RG66007970 - Rev 01

15 INSTALLATION CLEARANCE REQUIREMENTS

To guarantee the proper functioning of the unit and access for maintenance purposes, it is necessary to comply with the minimum installation clearance requirements shown in figures 1 and 2. There must be no obstacles blocking the path of the air flow from the fans. Avoid any and all situations of backflow of hot air between air outlet and inlet of the unit. If even only one of the above conditions is not fulfilled, please contact the manufacturer to check for feasibility.

In the design of the MPI DC series, special care has been taken to minimise noise and vibrations transmitted to the ground. Even greater insulation may be obtained, however, by using vibration damping base supports (available as optional accessories). If vibration damping base supports are adopted, it is strongly recommended also to use vibration damping couplings on the water pipes. Whenever the unit is to be sited on unstable ground (various types of soil, gardens, etc.) it is a good idea to provide a supporting base of adequate dimensions.

Warning

heat pump units produce condensation while operating in the heating mode.

MPI DC 08

COIL PLUMBING CONNECTION SIDE

ELECTRIC CONTROL BOARD

COIL SIDE

Page 33

All copying, even partial, of this manual is strictly forbidden.RG66007970 - Rev 01

15 INSTALLATION CLEARANCE REQUIREMENTS

MPI DC 10 - 18

MPI DC 23 - 29

COIL PLUMBING CONNECTION SIDE

ELECTRIC CONTROL BOARD

COIL SIDE

COIL PLUMBING CONNECTION SIDE

ELECTRIC CONTROL BOARD

COIL SIDE

Page 34

MPI DC

All copying, even partial, of this manual is strictly forbidden. RG66007970 - Rev 01

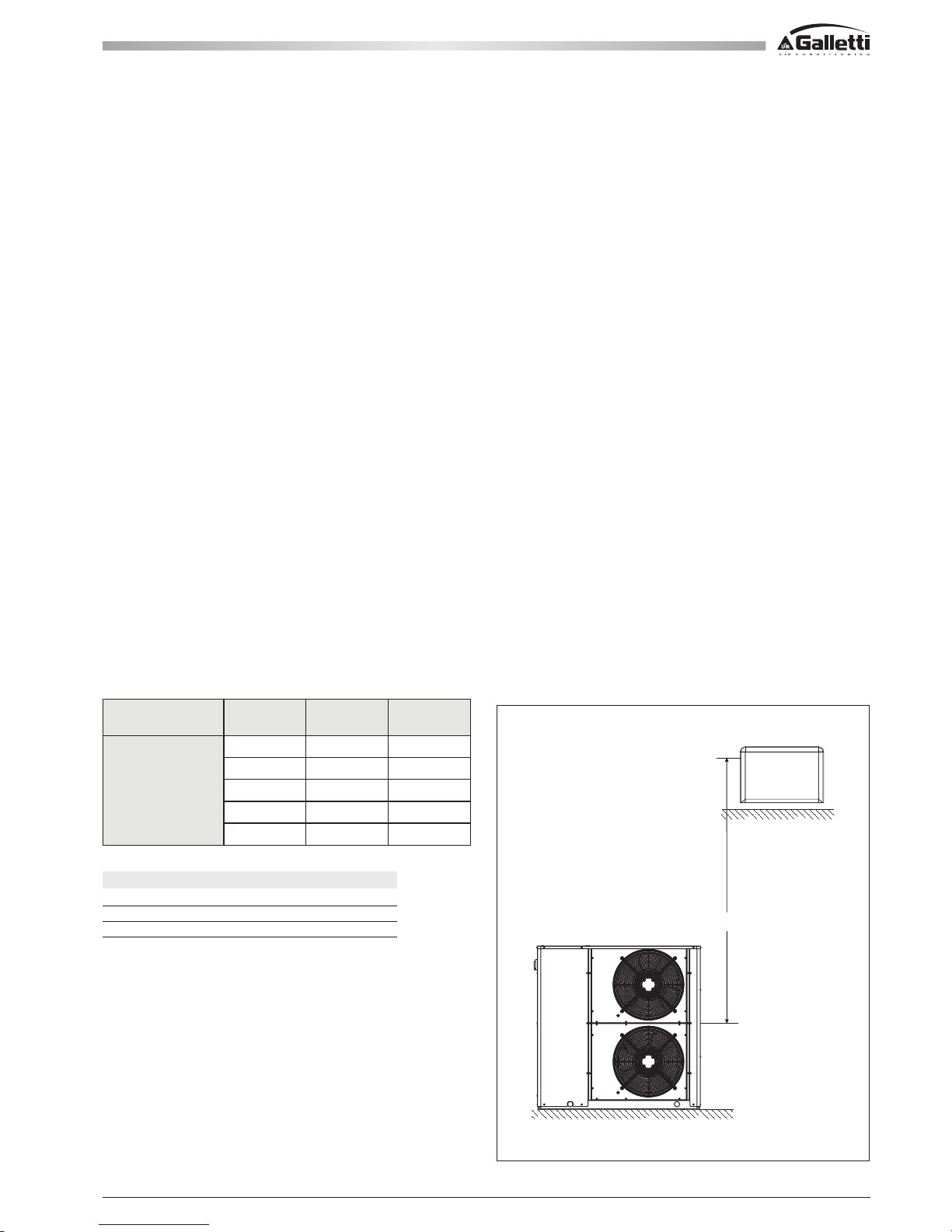

16.1 POSITIONING OF VIBRATION DAMPERS (ACCESSORY)

16 SITING

MPI DC NO. OF VIBRATION DAMPERS

08 - 29 4

Vibration dampers

It is important to bear in mind the following aspects when choosing the best site for installing the unit:

- Size and origin of water pipes;

- Location of the power supply;

- Solidity of the supporting sur face;

- Avoid obstacles to the outflow of air from the fan which could cause back suction (see section on “installation clearance requirements”);

- Direction of prevalent winds: (position the unit so that prevalent winds do not alter the fan air flow). A prevalent wind blowing from a direction opposite to the fan air flow will reduce the maximum air temperature to a lower value than specified in the

operating limits, A wind blowing in the same direction as the fan air flow will increase the minimum air temperature to a higher value than specified in the operating limits. Also in the heat pump mode, wind may have the effect of reducing the unit's operating range.

- Avoid the possible reverberation of sound waves; do not install the unit in narrow or cramped spaces;

- Ensure adequate accessibility for maintenance or repairs (see section on “installation clearance requirements”).

This device is not intended to be used by children or by people with physical, sensory or mental impairments, except under supervision. Make sure that children do not have access to the device.

Page 35

All copying, even partial, of this manual is strictly forbidden.RG66007970 - Rev 01

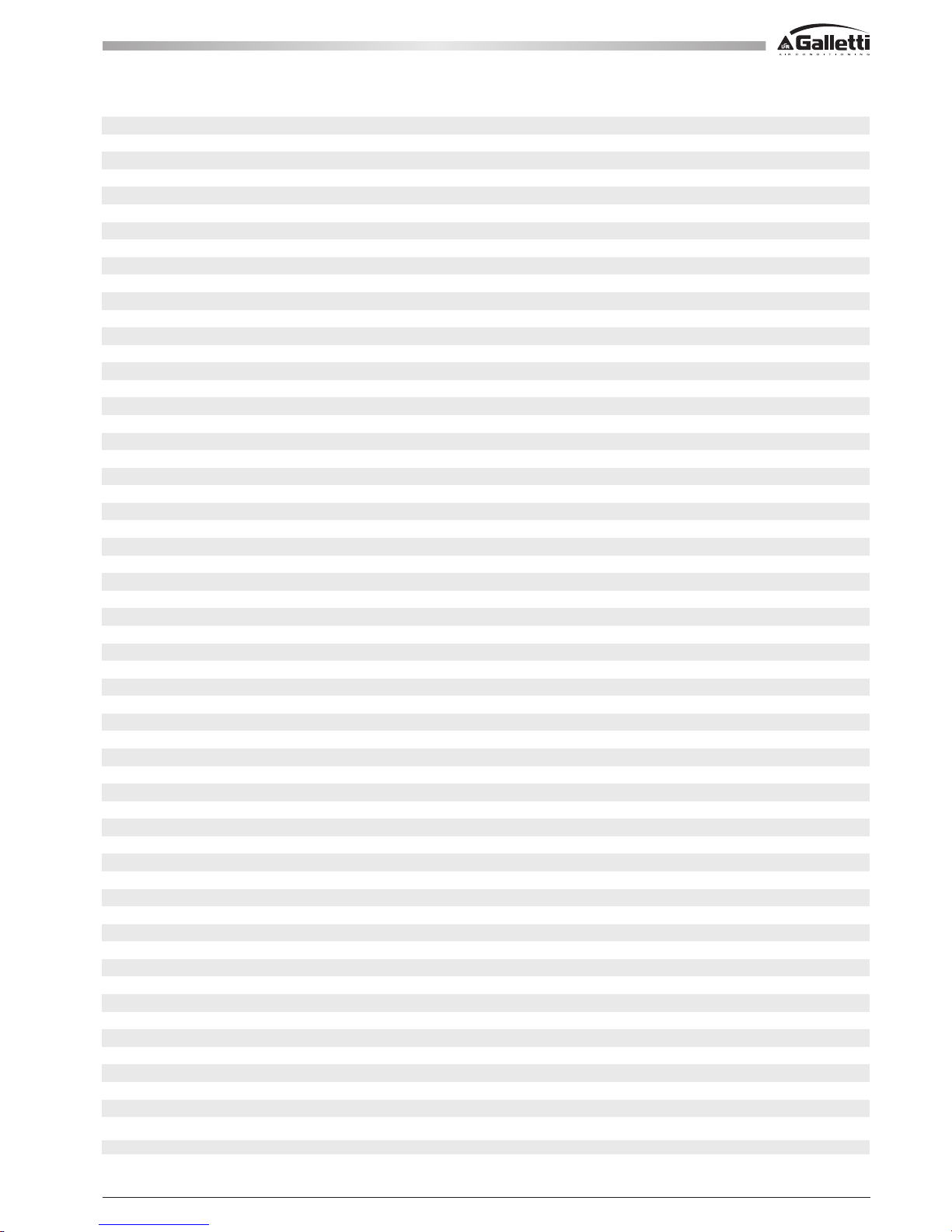

NOTES

Page 36

Wolf (Schweiz) AG

Dorfstrasse 147 CH-8802 Kilchberg Telefon +41 43 500 48 00 Fax +41 43 500 48 19 [email protected] www.wolf-klimatechnik.ch
