Galaxy Audio RM2 User Manual

Please visit for the latest updates.
This manual covers the setup and operation of the Galaxy

Audio RM2-Rack Chassis and the following optional Modules:
RM-DIGIREC-Digital Recorder

RM-DIGIPLY-Digital Player
RM-TUNER-Digital AM/FM Tuner
RM-CD-CD/MP3 Player
RM-CDM-CD/MP3/SD/USB Player w/Remote
RM-CDMV-CD/MP3/SD/USB Player w/Remote and Video Out
RM-CASSP-Cassette Player
RM-CASS-Cassette Player/Recorder

www.galaxyaudio.com

CONTENTS Page

Introduction....... ............1

RM2 Front and Rear Panels.........................................2

RM2 Setup, Connections, and Specs..........................3

RM-DIGIREC................................................................4

RM-DIGIREC Specifications........................................9

RM-DIGIMP.................................................................9

RM-TUNER................................................................10

RM-TUNER Specifications.........................................12

RM-CD.......................................................................12

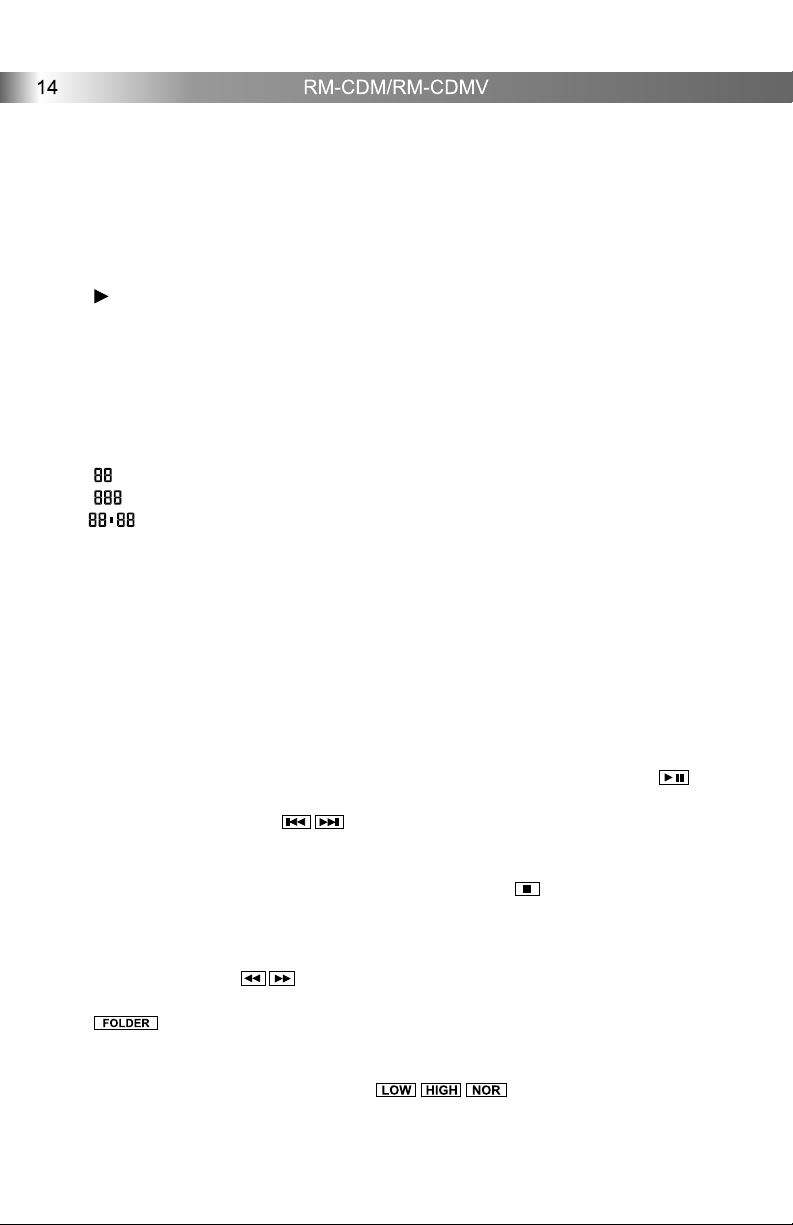

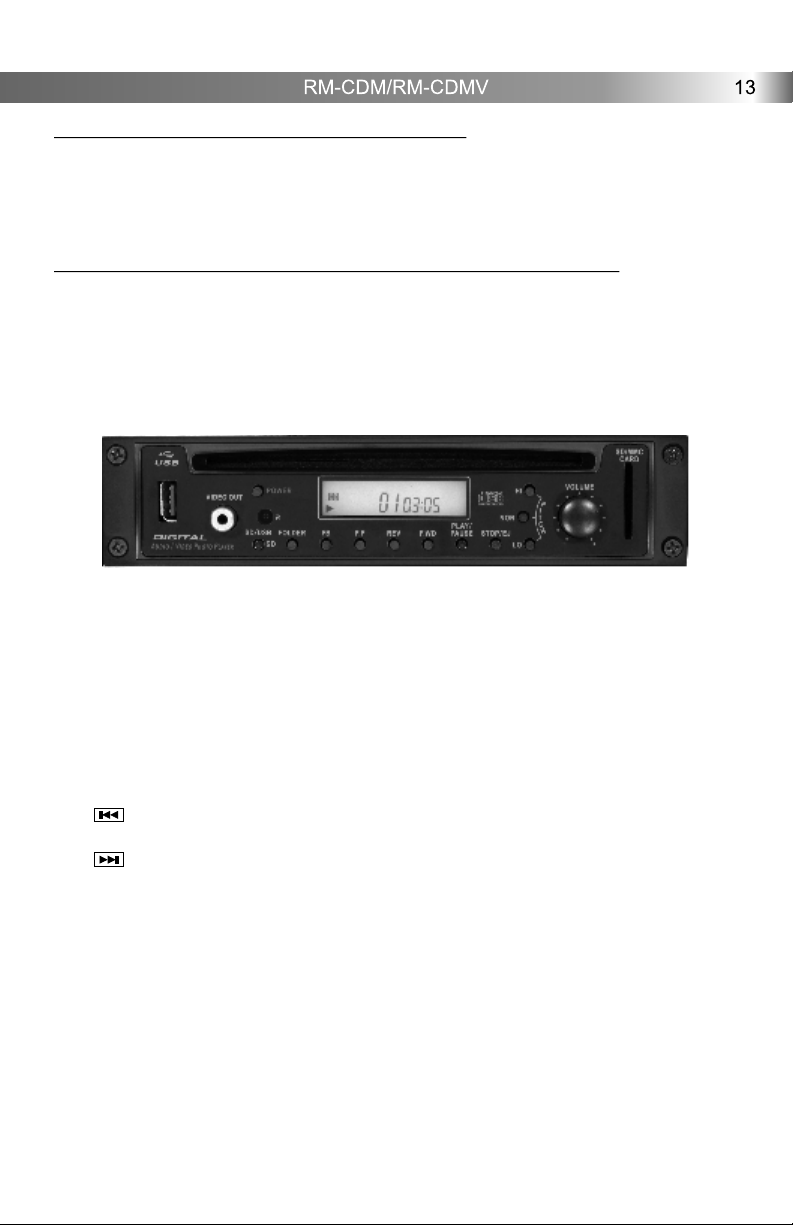

RM-CDM/CDMV.........................................................13

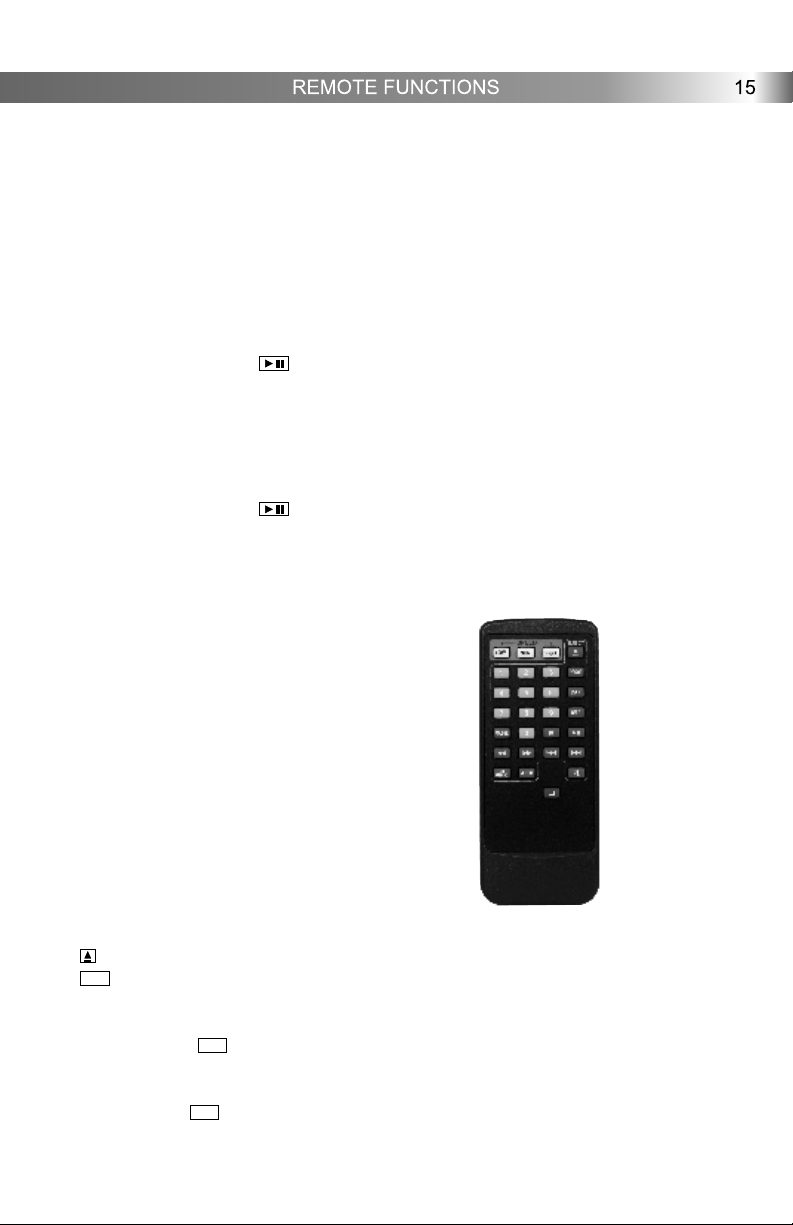

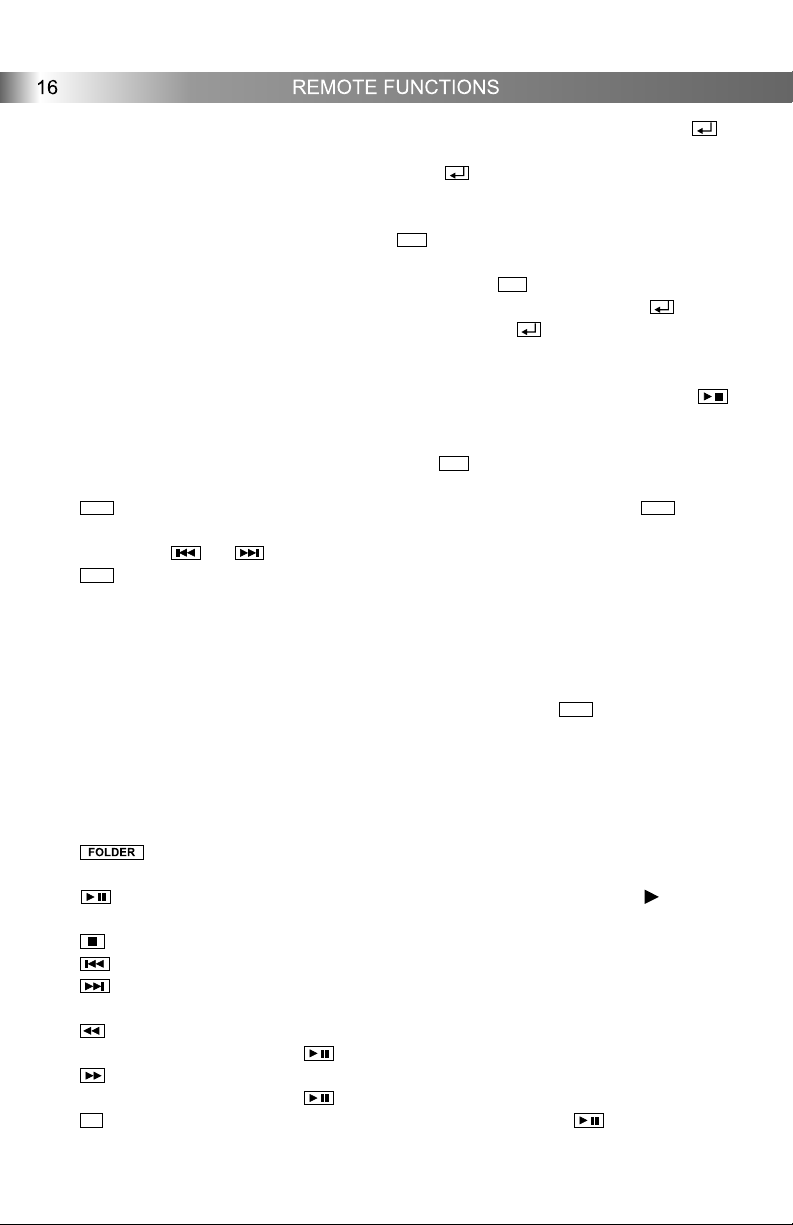

REMOTE FUNCTIONS..............................................15

RM-CASSP.................................................................18

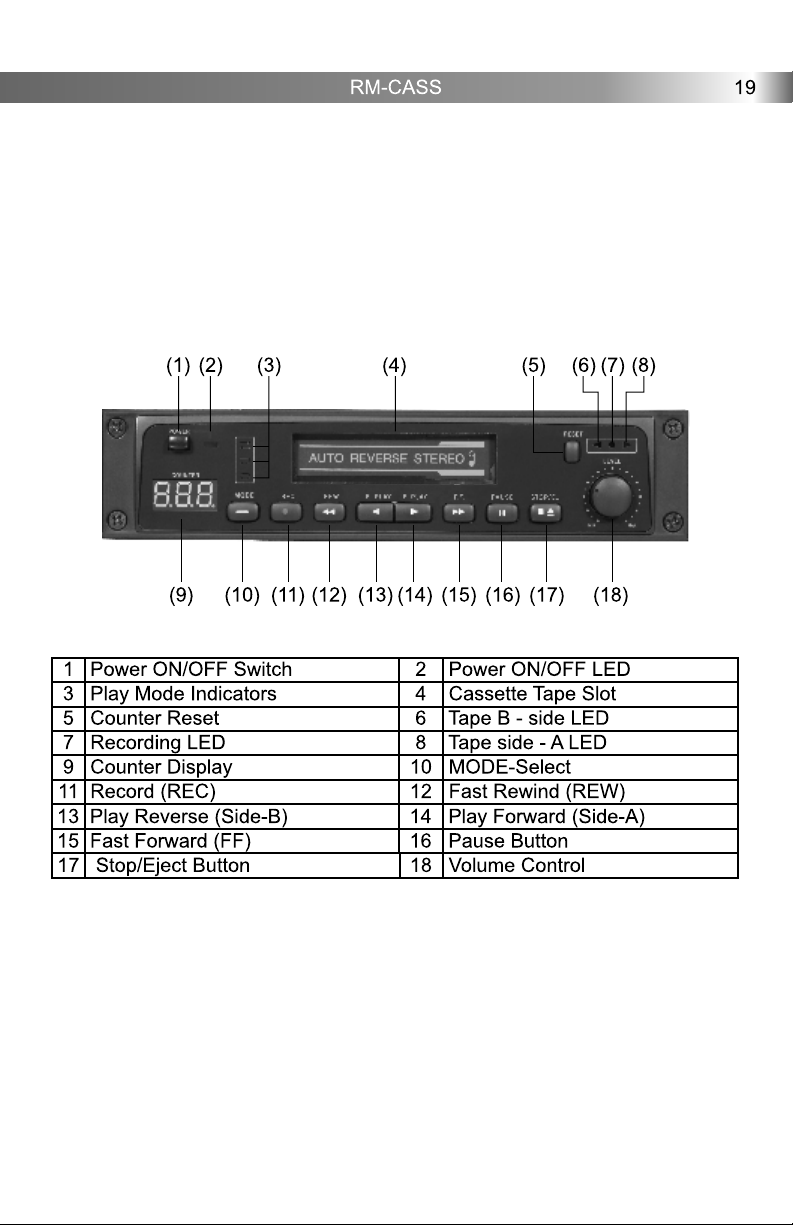

RM-CASS...................................................................19

................................................

INTRODUCTION

Thank you for purchasing the RM2 and optional function
Modules. The Rack Mount Players & Recorders from Galaxy
Audio is a diverse line of CD Players, Digital Players/Recorders,
Cassette Players/Recorders, and AM/FM tuners. Various
combinations of two modules can be installed into the single
space RM2 rack chassis. The RM2 supplies power and provides
rear panel inputs and outputs for the modules. The RM2
features dedicated Stereo RCA Outputs for each Module, a
Priority Stereo RCA Output, a Stereo RCA Input for recording,
and AM and FM antenna terminals.

The RM2 features two dedicated stereo outputs, allowing the
installed modules to be used as two separate devices in a single
rack space. Applications include having the RM2 equipped with
two different modules to service 2 different zones or rooms,
such as in a restaurant, school, church, etc. This configuration
also allows separate control of each module at the mixer. By
contrast, the stereo priority output allows program material from
both modules to appear at a single stereo output. This feature is
useful when continuous automatic playing of various media is
desired. One module is assigned as the priority unit As soon as
that particular unit produces a signal it will override the other
unit, and only it's signal will be present at the priority output
jacks. As soon as the priority device is no longer producing a
signal, the signal from the secondary unit will be fed to the
priority output jacks. Since the two devices feed a single stereo
output, the priority feature also helps conserve mixer input
channels. (NOTE: The priority feature only functions with the
RM-CDM as the priority device.)

.

RM2 SETUP AND CONNECTIONS

The RM2 setup and connection procedure will always
depend on which modules are installed into the unit and the
peripheral devices connected to it. As a general rule, make sure
all the power switches of all devices are in the off position before
making the power and audio/video connections. Plug the
included AC Adapter into an AC outlet of the specified voltage
and connect it to the DC In Jack on the rear panel. Alternatively
you may supply 12-13.5VDC, 1.5A to the DC In Screw Terminals
on the rear panel. Be sure to observe the correct polarity. Once
all connections are made, make sure all volume controls are set
to the minimum before switching on the devices. Power up the
equipment in the order of signal flow, with the source devices
first (including the RM2), then the mixer and processors, and
finally the power amps last. This will prevent any loud switching
“pops” in the system. The preferred power down order would be
the reverse of this.

RM2 Rack Chassis Specifications

Size: Single full rack space
Capacity: Holds up to 2 Modules
Power Supply: Included AC Adapter

Input: 120 VAC, Output: 12-13.5 VDC, 1.5A

I/O:

RCA Stereo Line Inputs for Recording
Module 1 RCA Stereo Line Output
Module 2 RCA Stereo Line Output
Priority RCA Stereo Line Output
AM/FM Antenna Terminals

Alternate 12-13.5 VDC Power Input (Screw Terminals)

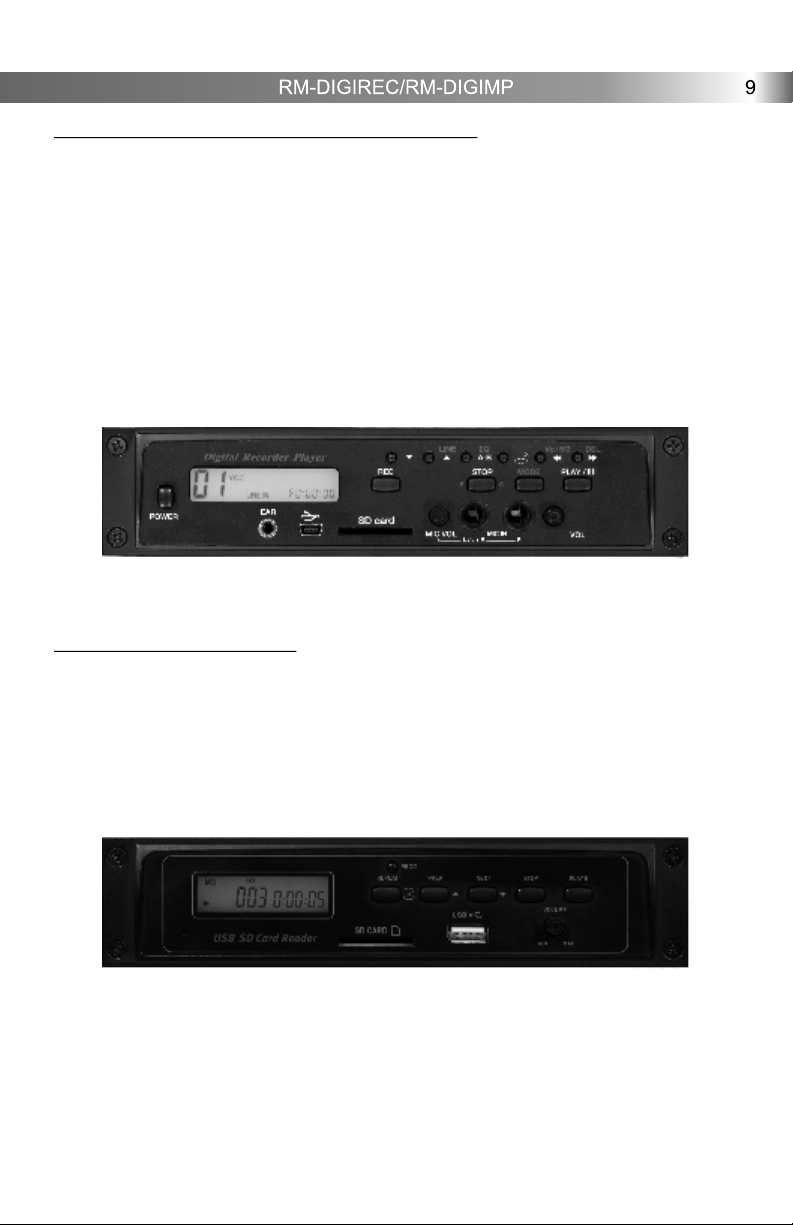

RM-DIGIREC-Digital Recorder

One Galaxy Audio RM-DIGIREC, digital recorder, may be installed into
the RM2, rack mount chassis along with one of the other modules. The
RM-DIGIREC records to 44.1KHz MP3 format. The unit has an internal
Flash memory, which will record about 2 hours of Stereo audio. An SD
card can also be inserted (up to a 1 GB) for longer record time (about 16
hours of stereo audio). The front panel of the unit features a pair of ¼" Mic
Level Input Jacks and a corresponding Record Level Control. Also located
on the front panel are all function selection buttons (play, pause, stop,
repeat, etc.) Recording may also be accomplished using the Stereo RCA
Line (REC IN) jacks on the back panel.
The RM-DIGIREC is great for many applications including: recording a
church service and then downloading to a computer for posting on the
web, recording live music, recording corporate or government meetings,
or simply for playback in PA systems.

DIGIREC Controls and Functions

1. Keys--Power, REC, PLAY ( ), ¦ , MODE, ▼, ▲(/LINE IN), A-B (/EQ),

( ), << (/VOC/MP3), >> (/DEL.)

2. Tracks----1~99 tracks.
* 99 tracks in flash memory, VOC mode. * 99 tracks in flash memory,
MP3 mode. * 99 tracks in SD card, VOC mode. * 99 tracks in SD card,
MP3 mode. The total storage time for the internal flash memory is
approximately 120 minutes.

3. LCD

3.1 MODE key

3.2 EQ select: CLASSIC, POP, ROCK, JAZZ, or NORMAL (No EQ).

3.3 VOC mode

3.4 MP3 mode

3.5 =Recording

3.6 Playing

3.7 ;Pause

3.8 DEL.: Delete file

3.9 A-B: A-B repeat

3.10 Repeat

3.11 Repeat All

3.12 LINE IN: Line in audio source available

3.13 Connecting to PC through USB

3.14 Track number

3.15 Time counter

3.16 F: Using flash memory

3.17 C: Using SD card

4. Key control

4.1 Power key

4.2 Up key: Press the Up key to advance track selection. Track number

will advance quickly when the key is held for at least two seconds
(this function will not work in MP3 mode).

4.3 Down key: Press the Down key to reverse track selection. Track
number will reverse quickly when the key is held for at least two
seconds (this function will not work in MP3 mode).

4.4 REC key: Record key. First push MODE + STOP to select C (Card)
or F (Flash) as the recording media. You may use the Mic Inputs or
LINE IN jacks, or both sources simultaneously for recording. (See 5.1,

6.1, and 7.1 below.) Then select the track number in VOC mode, push
the REC key to record, then push the < key to stop recording. If the

track you want to record is occupied, the LCD will show ”? ? ”, you must

delete the content of the track before you can re-record on that track.
When the memory reaches 30 seconds remaining, the LCD will start to
count from 30 down to1 second.

4.5 Play/; key: Select the track number you want to play, then press the
PLAY key. Pressing the PLAY key during playback will pause play, then
pressing the PLAY key again will resume play. Press the STOP Key to
stop play.

4.6 < Key: STOP key. Press the key to stop all operations: recording,
playing, or track selection.

4.7 8Key (Forward): Forward key. The track will fast forward when you
press and hold the key. Playback resumes to normal speed when the
key is released.

4.8 7Key (Rewind): The track will rewind when you press and hold the
key. Playback resumes to normal when the key is released.

4.9 A-B repeat key: During playback, press this key to assign any point as
the start point (A point) and then press again to assign the end point (B
point) on a track. The unit will repeatedly play from points A to B until
you press the key again to release the function, and continue normal
play.

4.10 Repeat key: In MP3 mode during playback, press the
REPEAT key once to “repeat the track”, the LCD will show Press
the REPEAT key twice to “repeat all the tracks”, the LCD will show.
Press the key a third time to cancel the repeat function. The “Repeat
all” function cannot be used in VOC mode.

5. MODE key: Pressing the MODE key activates the special function
options shown in RED on the front panel. The LCD will show “MODE”
when the MODE key is pressed. Then press the desired function key. If
the function key is not pressed within 5 seconds, the unit will return to
normal mode. The following is a description of special function keys:

5.1 MODE key + 5 (/LINE IN): Activates the Line In Jacks (rear panel) for

recording. The LCD will show “LINE IN”. (Note: The Mic Inputs always
remain active.)

5.2 MODE key + A-B (/EQ): Press repeatedly for EQ select function. The
EQ sequence is Classic, Pop, Rock, Jazz or Normal. (Normal EQ will
not be shown on the LCD)

5.3 MODE key + 7(/VOC,/MP3): Used to select the VOC mode (to Record
from microphone or LINE IN source), or MP3 mode (to Download *.mp3
files from PC).

5.4 MODE key + 8(/Del.): Delete key. The LCD will show “DEL”. You must
push the (/Del.) key again to delete the track. The LCD will show “DEL”
until the delete process is finished.

5.5 MODE key + key: Press to select Flash or SD Card when in PLAY or
Idle modes.

¦
