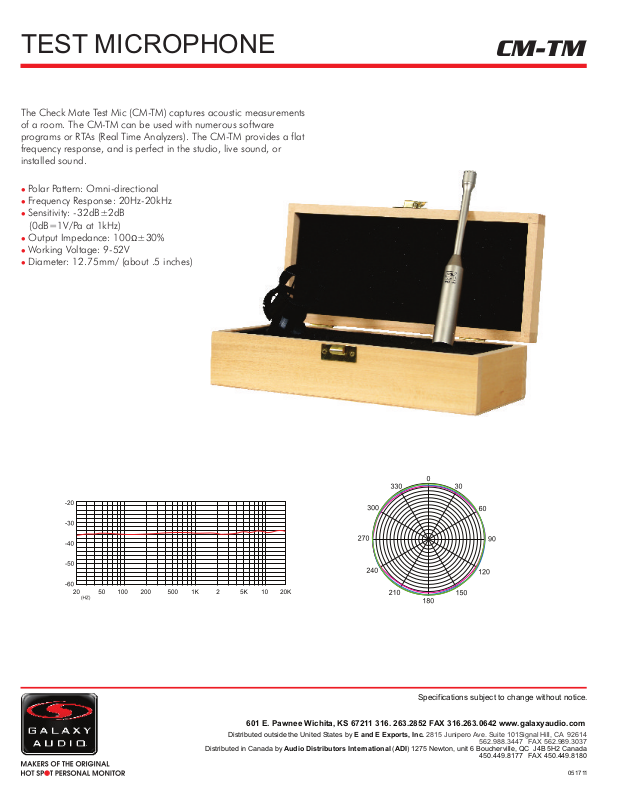

Galaxy Audio CM-TM User Manual

TEST MICROPHONE

The Check Mate Test Mic (CM-TM) captures acoustic measurements
of a room. The CM-TM can be used with numerous software
programs or RTAs (Real Time Analyzers). The CM-TM provides a flat
frequency response, and is perfect in the studio, live sound, or
installed sound.

Polar Pattern: Omni-directional

l

Frequency Response: 20Hz-20kHz

l

Sensitivity: -32dB±2dB

l

(0dB=1V/Pa at 1kHz)

Output Impedance: 100Ω±30%

l

Working Voltage: 9-52V

l

Diameter: 12.75mm/ (about .5 inches)

l

CM-TM

Specifications subject to change without notice.
