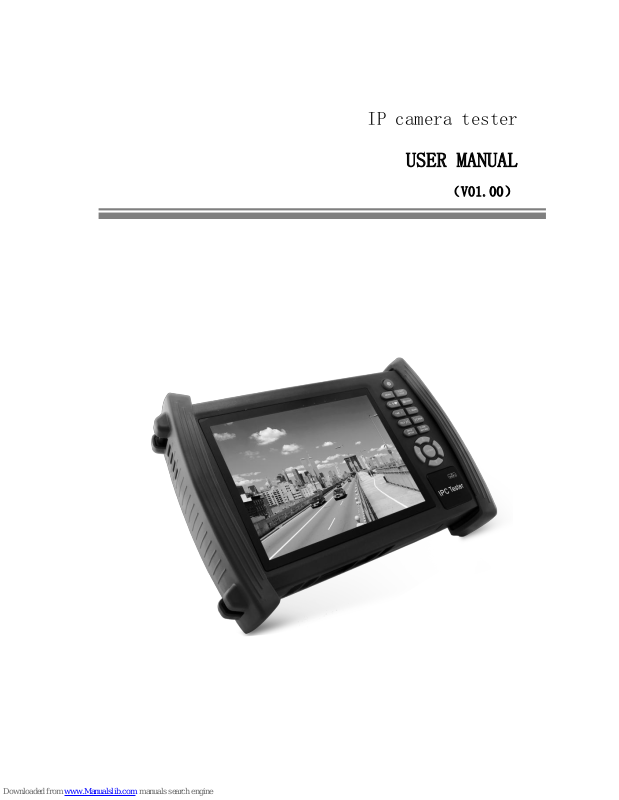

IP camera tester

USER MANUAL

（V01.00）

Thank you for purchasing the IP camera tester. Please read the manual before using the IP camera

tester and use properly.

For using the IP camera tester safely, please first read the「Safety Information」carefully in the

manual.

The manual should be kept well in case of reference. Keep the S/N label for after-sale service within warranty period. Product without S/N label will

be charged for repair service.

If there is any question or problem while using the IP camera tester, or damages occurred on the

product, please contact our technical Department.

Content

1 .Safety information ........................................................................................................................1

2. IP Camera Tester Introduction ......................................................................................................2

2.1 General ......................................................................................................................................2

2.2 Features......................................................................................................................................3

2.3 Function ................................................................................................................................ .....4

2.3.1 Touch screen and OSD menu ..........................................................................................4

2.3.2 IP camera test ..................................................................................................................5

2.3.3 Analog camera test ..........................................................................................................5

2.3.4 Video level meter ............................................................................................................5

2.3.5 PTZ controller .................................................................................................................6

2.3.6 Enhanced Color bar generator .........................................................................................6

2.3.7 DC12V 2A/DC 5V 2A output power ..............................................................................7

2.3.8 Audio testing ...................................................................................................................7

2.3.9 Cable tester......................................................................................................................7

2.3.10 PTZ data analysis ..........................................................................................................7

2.3.11 Image magnification ......................................................................................................7

2.3.12 Video screenshot, record and playback .........................................................................8

2.3.13 DHCP dynamic address assignment ..............................................................................8

2.3.14 Access the dynamic IP address ......................................................................................8

2.3.15 Multi- segments IP Cameras Test ..................................................................................8

2.3.16 IP address scan ..............................................................................................................8

2.3.17 PING Test .....................................................................................................................8

2.3.18 Port Finder ....................................................................................................................8

2.3.19 PoE Test ........................................................................................................................9

2.3.20 Digital Multi-meter (Optional) ......................................................................................9

2.3.21 Visual fault locator (Optional) .......................................................................................9

2.3.22 Optical Power Meter (Optional) ....................................................................................9

2.3.23 LED lamp ......................................................................................................................9

2.3.24 TDR cable open circuit and short circuit measurement (Optional) ................................9

2.3.25 WIFI ............................................................................................................................10

2.3.26 SDI camera test （*optional） ...................................................................................10

2.3.27 PoE power supply .......................................................................................................10

2.3.28 HDMI signal output ....................................................................................................10

2.3.29 Network bandwidth testing ..........................................................................................10

2.3.30 Cable Tracer ..............................................................................................................10

2.3.31 Screen display rotates in 180 angle..............................................................................10

2.3.32 FTP Server ..................................................................................................................11

2.4 Packing list ..............................................................................................................................11

2.5 Function ................................................................................................................................ ...12

3. Operation ....................................................................................................................................15

3.1 Installing the Battery ................................................................................................ ................ 15

3.2 Instrument connection ..............................................................................................................16

3.2.1 IP camera connection ............................................................................................................16

3.3.2 Analog camera test ................................................................................................................17

3.3 OSD menu ................................................................ ................................ ...............................18

3.3.1 Video monitor test .........................................................................................................20

3.3.2 Color-bar generator (TV OUT) .....................................................................................29

3.3.3 ONVIF ..........................................................................................................................30

3.3.4 IP camera test ................................................................................................................38

3.3.5 SDI Camera Test(*optional) ..........................................................................................41

3.3.6 IP address scan ..............................................................................................................42

3.3.7 PING Test .....................................................................................................................43

3.3.8 Cable test.......................................................................................................................44

3.3.9 Cable tracer ...................................................................................................................44

3.3.10 Port finder ...................................................................................................................46

3.3.11 Data monitor ...............................................................................................................47

3.3.12 Optical power meter （Optional ） ...........................................................................47

3.3.13 Visual Fault Locator（optional） ...............................................................................49

3.3.14 Digital Multi-meter （optional ） .............................................................................50

3.3.15 Video Player ................................................................................................................58

3.3.16 Music player ................................................................................................................59

3.3.17 LED lamp (Flashlight).................................................................................................60

3.3.18 PoE Voltage test ..........................................................................................................61

3.3.19 TDR cable test （optional） ...................................................................................61

3.3.20 Calculator ....................................................................................................................64

3.3.21 Browser .......................................................................................................................64

3.3.22 IP camera viewer .........................................................................................................65

3.3.23 PoE power / DC12V 2A and DC 5V 2A USB power output .......................................67

3.3.24 Application tools .........................................................................................................68

3.3.25 APPS Tools ................................ ................................................................ .................75

3.3.26 System Set ...................................................................................................................76

3.3.27 Update .........................................................................................................................78

3.4 Audio test .................................................................................................................................79

3.5 HDMI output ...........................................................................................................................79

3.6 PoE power output .....................................................................................................................80

3.7 DC12V 2A power output .........................................................................................................80

4. Specifications .............................................................................................................................82

4.1 General Specifications .............................................................................................................82

4.2 Multi-meter specifications .......................................................................................................84

4.3 Optical power meter specifications ..........................................................................................87

4.4 Visual fault locator specifications ............................................................................................87

Page.1.

1 .Safety information

◆ The tester is intended to use in compliance with the local rules of the electrical usage and avoid to apply at the places which are inapplicable for the use of electrics such as hospital, gas station etc.

◆ To prevent the functional decline or failure, the product should not be sprinkled or damped.

◆ The exposed part of the tester should not be touched by the dust and liquid.

◆ During transportation and use, it is highly recommended to avoid the violent collision and vibration

of the tester, lest damaging components and causing failure.

◆Don‘t leave the tester alone while charging and recharging. If the battery is found severely hot, the

tester should be powered off from the electric source at once. The tester should not be charged over 8 hours.

◆ Don‘t use the tester where the humidity is high. Once the tester is damp, power off immediately and

move away other connected cables.

◆ The tester should not be used in the environment with the flammable gas.

◆ Do not disassemble the instrument since no component inside can be repaired by the user. If the

disassembly is necessary indeed, please contact with the technician of our company.

◆ The instrument should not be used under the environment with strong electromagnetic interference.

◆ Don‘t touch the tester with wet hands or waterish things.

◆ Don‘t use the detergent to clean and the dry cloth is suggested to use. If the dirt is not easy to remove,

the soft cloth with water or neutral detergent can be used. But the cloth should be tweaked sufficiently.

About Digital Multi-meter

◆ Before using, you must select the right input jack, function and range.

◆ Never exceed the protection limit values indicated in specifications for each range of measurement.

◆When the tester is linked to a measurement circuit, do not touch unused terminals.

◆Do not measure voltage if the voltage on the terminals exceeds 660V above earth ground.

◆At the manual range, when the value scale to be measured is unknown beforehand, set the range

selector at the highest position.

◆Always be careful when working with voltages above 60V DC or 40V AC, keep fingers behind the probe barriers while measuring.

Page.2.

◆Never connect the meter with any voltage source while the function switch is in the current, resistance, capacitance, diode, continuity, otherwise it will damage the meter.

◆Never perform capacitance measurements unless the capacitor to be measured has been discharged fully.

◆Never measure any of resistance, capacitance, diode or continuity measurements on live circuits.

Visual laser sources

When you turn on visual laser sources, please don‘t stare at it, or will damage to eyes When not using it，Please turn it off and cover the protective cap .

2. IP Camera Tester Introduction

2.1 General

The 7 inch touch screen IP camera tester is designed for maintenance and installation of both IP camera and analog camera as well as other security equipments . 800x600 resolution, enable it to display network HD camera and analog camera image in top quality. Support both ONVIF PTZ and analog PTZ control. The combination of touch screen and key buttons make the IP camera tester very userfriendly. Meanwhile the tester is also a very great tool for Ethernet network, cabling system and fiber optic communication etc. It can test PoE power voltage, PING, IP address searching etc. It can diagnose the location of the BNC and network cable‘s short circuit and open circuit. By sending the audio signal, use the blue cable tracer tester to find the connected cable from messy cables. Test LAN cable or telephone

cable‘s type and the sequence of wires. Optical power meter and visual fault detector function, effective

to solve the fiber optical transmission problem. Other functions include 24W PoE power supply, digital multimeter, LED Lamp, DC 12V 2A power output etc. Its portability, user-friendly design and multi-functions make the IP camera tester become an essential tool for the installers or technicians, greatly improving the working efficiency and simplifying the installing and maintenance.

Page.3.

2.2 Features

 7 inch 800×600 touch screen, easy to operate  ONVIF IP camera test

 Test some customized brands‘s H.264/MPEG4/MJPEG IP cameras, such as Dahua,

HIKVISION,ACTI, etc. Customized service is available.

 Built in Wi-Fi ,can receive image from wireless camera, as well as ONVIF and customized IP

cameras.

 SDI Digital camera image display, record and screen snapshot * (Optional)  HDMI signal output，support 1080P

 Analog camera image display, Auto adapt and display the video format of NTSC/PAL  Support more than 30 protocols ,such as PELCO-P、PELCO-D、SAMSUNG etc  Video image magnification, to view the details, easy to use  Snapshot and save the current image as JPG file in the SD card, video record and playback  LED Lamp, easy to operate at night  Micro SD card moveable  LCD screen brightness/contrast/color Saturation adjustable  Visual fault locator , to test fiber‘s bending and breakage(Optional)  Optical power meter ,test fiber loss and value (Optional)  Digital Multi-meter , DC and AC voltage measurement, Resistance measurement

Continuity test, Diode measurements, Capacitance measurement(Optional)

 Enhanced Color bar generator, Video Generating, the PAL/NTSC multi-system color bar video

generator (Eight-system switchable, transmit/receive eight-system colorful images).

 PEAK video signal level, SYNC signal level, Color burst chroma level measurement，test video

signal attenuation

 Cable tracer, by sending the audio signal, enables the blue cable tracer tester to find the

connected cable from messy cables.

 Ping test, PING is the most conventional network debugging tools; it is used for testing if the

connected IP camera or other network equipment‘s Ethernet port is working normally and the IP

Page.4.

address is correct.

 In digital IP surveillance applications, if IP camera‘s IP address is not clear or forgotten; the

device cannot be used .IP address scan can quickly search the connected IP camera or other network device‘s IP address.

 PoE voltage test，it can test the PoE voltage when the POE switch is supplying the POE power to

IP camera ,wireless AP etc

 TDR cable test，test cable open circuit and short-circuit (Optional)  Cable test , Test LAN cable or telephone cable,UTP cable etc ,cable type and the sequence of

wires will be displayed

 Support RS232/RS485,Rate 600 ～ 115200bps adjustable  PTZ protocol analysis, control protocol command displays to check RS485 transmission

whether is normal, easy to find the fault device  PTZ control. Pan/tilts the P/T unit, zooms in/out the lens, adjusts the focus, aperture and

sets and the preset position

 DC12V 2A output power for camera

 PoE power output，supply temporary power for PoE camera  DC5V 2A power output，as a power bank

 Audio input and output, test and output the audio signal  7.4V 48.1Wh Battery energy display, Lithium Ion Polymer Battery can last 16 hours for normal

use after charging for 8 hours

2.3 Function

2.3.1 Touch screen and OSD menu

The IP camera tester combines with capacitive touch screen and key buttons. The combination make the tester very user- friendly, greatly improving the working efficiency and simplifying the installation and maintenance.. It is user-friendly to move the function icons from the tester‘s main menu to APPS tool file or move them back, to make the main menu look simple and clear.

Page.5.

2.3.2 IP camera test

The device is designed with ONVIF test, IP camera test, browser functions etc. It can display the image from the ip camera and change the IP address etc. 7 inch 800×600 screen display, allows the user to view the image at larger angle. This is very helpful and convenient for the users to install the ip cameras at site. In ONVIF TOOL, it can display the image from ip camera and control the PTZ. Currently the IP camera tester only supports more than 30 brands‘ IP cameras, such as ACTi、Dahua IPC-HFW2100P、Hikvision, DS-2CD864-E13、Samsung SNZ-5200、Tiandy TD-NC9200S2、Kodak IPC120L、Honeywell HICC-2300T etc.

OEM service is available. Users can send us the IP camera for our engineers try to add the protocols to the tester, or send us the video management software (Android version. APK files) to installl in the tester.

2.3.3 Analog camera test

Display analog camera image ,7 inch 800×600 LCD screen display ,larger viewing angle ,more intuitively and easily to display the camera image quality. Support PAL/NTSC format. LCD screen backlight brightness adjustable, and analog video image brightness/contrast/color Saturation adjustable.

2.3.4 Video level meter

The IP camera tester has adopted hardware high-speed sampling and processing technology, enables it

to achieve more accurate measurements in the video signal PEAK, SYNC level,

COLOR BURST chroma level

Video signal PEAK level: For PAL format , the video signal level is 1000±200mV

For NTSC format, the video signal level is 140±15IRE

If the level is too low, it will cause the image to dim and reduce dynamic range, but if the level is

too high, it will lead to virtual shadow and reduce the definition of the image.

Page.6.

SYNC level: by testing the amplitude of the video sync pulse to verify if the video level is correct and

the coaxial cable connectivity is good.

For PAL format, the SYNC level is 300 ± 35mV

For NTSC format, the SYNC level is 40 ± 5IRE

If the level is too low, it will cause the image to fracture or scroll, but if the level is too high, it will lead

to reduce the image‘s color levels and dynamic range.

COLOR BURST chroma level: by testing the color burst level to estimate whether the coaxial cable is

the best to transmit the details and color.

For PAL format, the Chroma standard level is 280mV

For NTSC format, the Chroma standard level is 40 IRE

If the Chroma level is low or too low, the color will not bright, and some details on the iamge will lost

or get dark or white when the monitor receives the iamge.

If the Chroma level is too high, there will be spots on the image. If this occurs, it cannot get the clear

image with all the details. If the coaxial cable is too long, it will reduce the chroma level

2.3.5 PTZ controller

Display the input video images. Pan/tilt the P/T unit and zoom in/ out the image. Setup the controlling parameters like protocol, communication port, baud rate, PTZ ID, pan/tilt speed; set and call preset position.

2.3.6 Enhanced Color bar generator

The tester sends out the color bar by its BNC output to the monitor at the monitoring center. If the monitor receive the color bar, it means the video transmit channel works normally. Meanwhile on the basis of the received color bar, the monitoring center can judge if transmission has loss or interference. The tester can also send out the color bar by its BNC output, then receive and display the color bar by

Page.7.

its BNC input to test on-site video transmission, such as video optical transmitter and receiver, video cables. The new function of sending the testing image can judge if the monitor receives the image well. The new color bar (red, green, blue, white, black) can test the monitor whether have white or black dot etc.

2.3.7 DC12V 2A/DC 5V 2A output power

Power the camera with DC12V (2A) power output from the tester. It is helpful for demo and testing when the power supply is not available. Built in DC5V2A power output，used as a power bank .

2.3.8 Audio testing

Test the audio input from pickup devices. Connect the tester and pickup device with the audio cable. Supports audio recording and audio output.

2.3.9 Cable tester

Test LAN cable or telephone cable. Connect LAN cable or telephone cable with the CCTV tester and cable tester. And then the connecting status, cable type and the sequence of wires will be displayed, as well as display the serial number of the cable tester kit.

2.3.10 PTZ data analysis

Search the Control protocol code from Multifunction keyboard or DVR by RS485 /RS232 interface, test the PTZ control command data whether received anomaly and RS485/RS232 data transmission.

Screen displays 16 hexadecimal codes such as PELCO-P：A0 00（Add） xx xxxxxx AF xx PELCO-D：FF 01（Add）xx xxxxxxxx

2.3.11 Image magnification

Set image zoom, by x1, x2, x3, x4 times ,can view and display the details .Support analog camera, ONVIF ,as well as some brands‘ specified models, such as DaHua、Hikvision、ACTi、Samsung camera

Page.8.

2.3.12 Video screenshot, record and playback

Capture the video image and save the current video frames as JPEG file, record and save the current video in the SD card, video image and record files are saved in the SD card. Storage file directory can be created according to the date.

2.3.13 DHCP dynamic address assignment

Built in DHCP server, dynamic assign IP address for the IP camera or network device, meanwhile inquire and display the assigned IP address.

2.3.14 Access the dynamic IP address

The IP tester can directly access the dynamic IP address assigned from its DHCP server and used it as the tester‘s IP address. It don‘t need to manually setup.

2.3.15 Multi- segments IP Cameras Test

Support Multi- segments Static IP address setting,，can simultaneously test different segments IP network cameras

2.3.16 IP address scan

In digital IP surveillance applications, if IP camera‘s IP address is not clear or forgotten; the device

cannot be used .IP address scan can quickly search the connected IP camera or other network device‘s IP address.

2.3.17 PING Test

PING is the most conventional network debugging tools; It is used for testing if the connected IP camera or other network equipment‘s Ethernet port is working normally and the IP address is correct.

2.3.18 Port Finder

The tester will send special signals to make the connected POE port flicker at special frequency, which will enable the installers to easily and quickly find the connected ethernet cable. This function can prevent mistakenly insertion or disconnection non-corresponding cable to artificially interrupt network connection.

Page.9.

2.3.19 PoE Test

It can test the PoE voltage when the POE switch is supplying the POE power to IP camera. It can clearly display the power+ and power- on the Ethernet cable pins, each cable pin‘s voltage and the failure connection of cable pin series numbers.

2.3.20 Digital Multi-meter (Optional)

The tester has built in highly stable and reliable 33/4 digit (6600) digital multi-meter. It is used for the DC and AC voltage measurement, AC and DC current measurement, Resistance measurement, Continuity test, Diode measurements, Capacitance measurement, Auto/Manual measuring range switching, relative value measurement and locking. It is easy operation and professionally accurate.

2.3.21 Visual fault locator (Optional)

Visual Fault Locator with 650nm wavelength can emit red laser sources to test multi-mode and single mode fiber‘s bending and breakage, and Continuous light-emitting and 1HZ, 2Hz modulating light

output. It is indispensable tool in fiber project constructing, fiber net-work maintaining, optical

component manufacture and research.

2.3.22 Optical Power Meter (Optional)

The IP camera tester adopts the most advanced handheld instrument specific integrated chip , achieve ultra-low power operation, with the 7 TFT-LCD High-definition screen display ，five wavelength calibration points 1625nm,1550nm ,1490nm , 1310nm , 1300nm , 850nm.Linear or nonlinear optical power display, it can measure the optical power value, and also be used for Relative measurement of optical fiber link loss. It is necessary tool for fibre-optic communication, cable television system and security system maintenance.

2.3.23 LED lamp

It is useful for the user to install and maintain security system at night. Press button LED On/Off, easy operation.

2.3.24 TDR cable open circuit and short circuit measurement (Optional)

TDR cable testing, accurately measure BNC cable, network cable, controls cable‘s open circuit and

Page.10.

short-circuits location. It greatly improves working efficiency.

2.3.25 WIFI

Built in WIFI, can receive the image from wireless camera (ONVIF and customized camera) or network

data etc.

2.3.26 SDI camera test （*optional）

SDI digital video surveillance testing, support 720p 60fps / 1080p 30fps / 1080i 60fps digital camera image test and video image zoom, record, snapshot, photo viewer and video playback .

2.3.27 PoE power supply

Support PoE power 24W，high capacity 48.1Wh Lithium polymer battery, provides temporary power for the PoE network camera .

2.3.28 HDMI signal output

With HDMI output port, support 1080p 60fps resolution output,Output the recording and media files to HD TV monitor. Meanwhile, the HDMI output can be used as SDI-HDMI convertor to output the SDI video to the HD TV monitor.

2.3.29 Network bandwidth testing

Network channel bandwidth test, need two IP camera testers to test, one as a transmitter, the other as a receiver. Or install the testing software in the PC firstly, then work with one IP camera tester to test the network channel bandwidth.

2.3.30 Cable Tracer

Send the specific signal, easy to find the connected cable from messy cables.

2.3.31 Screen display rotates in 180 angle

The LAN slot, PSE IN slot, UTP/SCAN slot etc, are on the downside of the IPC tester. Before upward the downside, screen display can be rotated in 180 angle by manual setting. This function is very convenient for the user to upward the downside to connect the LAN cable and do the testing.

Page.11.

2.3.32 FTP Server

Start the tester‘s Wifi or connect the tester‘s Lan port to network. After the tester is online, start its FTP Server, the PC can directly access files from the tester‘s SD card without the use of the SD card reader. It does not need to pull out the SD card or use the SD card reader. This is greatly convenient for the user to upgrade tester software and access files.

2.4 Packing list

1). Tester

2). Adaptor DC12V 2A

3) Network cable tester

4) Polymer lithium ion battery (7.4V DC 6500mAh)

5). BNC cable

6). RS485 cable

7).SC,ST connector（Only for optical power meter）

8).Multi-meter test leads one pair of red and black (only for the Multi-meter models)

9). Output Power cable

10). Audio cable

11). TDR alligator clamp (only for TDR models)

12). Safety cord

13). Tool bag

14). Manual

15) 4G SD card

Page.12.

2.5 Function

Page.13.

Press more than 2 seconds, turn on or off the device ,short press to turn on or off the menu display

2 Menu key

3 4xzoom the image display. OTDR start or stop.

4 Video record

5 Snapshot

6 Far focus: Focus the image faraway

7 Near focus: Focus the image nearby

8 TELE: zoom in the image

9 WIDE: zoom out the image

10 Open/set ,Confirm the setting of parameters, open or enlarge the aperture

Return/Close : Return or cancel while setting parameters of the menu, close or decrease the aperture

12 Confirm key

13 Upward, set function or add parameter. Tilt the PTZ upward

Downward, set function or reduce the value of the parameter. Tilt the PTZ downward

15 Leftward, select the parameter whose value will be changed

Rightward, select the parameter whose value will be changed. Add the value of the parameter. Pan the PTZ right

Page.14.

Top interface

Bottom interface

Multimeter interface (Optional)

The charge indicator: it lights red while the battery is being charged. As the charging is

complete, the indicator turns off automatically

The RS485/RS232 data transmission indicator: it lights red while the data is being transmitted

The data received indicator: it lights red while the data is being received

The power indicator: it lights green while the tester is powered on by the adapter

Visible red laser source emits Interface(Optional)

DC12V2A power output , for provisional DC power supply

SDI input (BNC interface)

Video image signal input（BNC interface）

Video image signal output（BNC interface）/cable tracer interface

Optical power meter interface (Optional)

RS485 Interface: RS485communication for the PTZ

Page.15.

RS232 Interface: RS232 communication for the PTZ

LED lamp

TDR cable test interface

HDMI output interface

Micro SD card moveable，default 4G, support Micro SD card up to 16G.

UTP cable port: UTP cable tester port/ Cable tracer port

Audio output and earphone interface

Audio input

PSE power supply input interface

PoE power supply output/Lan test interface,

USB 5V 2A power output ，only as a power bank ,not transmit data

DC12V2A charging interface

DC12V2A power output , for provisional DC power supply

3. Operation

3.1 Installing the Battery

The tester has built-in lithium ion polymer rechargeable battery. The battery cable inside battery

cabin should be disconnected for safety during transportation! Prior to the use of the instrument, the battery cables inside the battery cabin should be well connected.

Usually it doesn‘t need to disconnect the cable at the normal use

Pressing the key continuously can power on or off the tester.

Notice：Pls use the original adaptor and connected cable of the device!

When the battery icon is full or the charge indicator turns off automatically, indicate the battery

charging is completed

Page.16.

Notice: When the Charge Indicator turns off, the battery is approximately 90%

charged. The charging time can be extended for about 1 hour and the charging time within 12 hours will not damage the battery.

Notice ：Press the key several seconds to restore the default settings when the

instrument works abnormally.

Multi-meter: the red and black multi-meter pen must insert the corresponding port.

Warnings：Instrument communication port is not permitted access circuit voltage over 6V,

otherwise damage the tester.

Warnings：Not allow insert multi-meter pen in the current

terminal to measure voltag

3.2 Instrument connection

3.2.1 IP camera connection

Power the IP camera by outter power source, then connect the IP camera to the IPC tester‘s LAN port, if the link indicator of the tester‘s LAN port is green and the data indicator flickers, it means the IP camera and the IPC tester are well connected. If the two indicators don‘t work, it needs to check if the IP camera is powered on or the network cable is ok.

Page.17.

Note：1)If the IP camera does not support external power supply, but only supports PoE power, then connect the IP camera to IPC tester‘s LAN port , the tester will supply PoE Power for IP camera. Before connecting, the PoE switch and tester must be disconnected. It means tester‘s PSE port cannot be connected to any network cable when its LAN port is supplying the PoE power to the IP camera.

2)If use the tester‘s menu to turn off the tester‘s PoE power supply, the PoE switch and the power sourcing equipment are allowed to connect to the tester‘s PSE port, and the PoE power will be supplied to the IP camera by the tester‘s LAN port. On this condition, the tester cannot receive data from IP camera, but the computer connected to the PoE switch can receive the data via the the tester.

Warning：PoE switch or PSE power sourcing equipment only can be connected to tester ―PSE

IN‖ port, otherwise will damage the tester.

3.3.2 Analog camera test

Page.18.

(1) The camera or dome video output is connected to CCTV Tester VIDEO IN，the image display on the tester . (2) CCTV Tester ―VIDEO OUT‖ interface connect to the Video input of monitor and optical video transmitter and receiver, the image display on the tester and monitor (3) Connect the camera or the speed dome RS485 controller cable to the tester RS485 interface ,(Note positive and negative connection of the cable).Support RS232 PTZ controller ,connect the RS232cable to RS232 interface of the tester

3.3 OSD menu

Press the key 2 seconds to turn on Press the key again to turn off short press the key to enter sleep mode，press it again to test. If tester works abnormally and cannot be turned off , Press the key several seconds to turn off, the tester reset.

Select Icons to enter, if quit, please click

Page.19.

Click SD card, install or remove SD card .

Press function icon seconds, tip: whether move this icon to APPS file, if some function not be often used, can move these function icons to APPS.

Page.20.

Click icon ―APPS‖ tool, to show all collected function icons, Click CLOSE, back to the tester‘s main menu.

In APPS file, Select icon and press it for seconds, tip: whether move the file to the desktop?

3.3.1 Video monitor test

Analog camera test and PTZ control, click icon to enter

Page.21.

Display the input video image, click the top menu bar icon to enter video level meter, (PEAK level, SYNC level, COLOR BURST measurement) Select relative function on the right side Toolbar to operate , functions including ―Photos‖, ―Snapshot‖ , ―Record‖ , ―Playback‖ , ―PTZ‖ , ―Set‖ , Click , or press to quit. Click the screen twice quickly, can be full zoom in on the touch screen.

(1) PTZ controller parameter setting

Select and click icon ―PTZ‖，to enter PTZ setting：

Page.22.

A. Protocol Use the up and down arrow keys to move the yellow cursor to the ―protocol ‖, set corresponding Protocol and support more than thirty PTZ protocols. Such as Pelco-D、Samsung、Yaan、LiLin、 CSR600、Panasonic、Sony-EVI etc.

B. Port

Click and move, to ―port‖ Select the communication port for the PTZ camera controlling (RS232/485) C. Baud Move the yellow cursor to ―Baud‖， Select the baud rate according to baud rate of the PTZ camera.(150/300/600/1200/2400/4800/9600/19200/57600/115200)

D. Address

Set the ID according the ID of PTZ camera (0~254), the setting address data must be consistent the speed dome address.

E. Pan speed: Set the pan speed of PTZ camera (0~63) F. Tilt speed: Set the tilt speed of PTZ camera (0~63) G. Set preset position (Set PS) Click and select ―Set PS‖, set and save preset position number(1~128), H. Call the preset position (Go ps)

Click and select ―Set PS‖, set and save preset position number (1~128), click ―sure‖ to save, Call some special preset number，can call the dome camera menu

Check and set the protocols, address, interface and baud, all must be consistent with the dome camera,

then the IPC tester can test .After setting the parameter, the tester can control the PTZ and lens To control PTZ by screen touch: Tap left, right, upward and downward on the touch screen to control the PTZ rotation direction. By two fingers move outward and inward on the touch screen to zoom in and out the PTZ.

Page.23.

PTZ Control：

Press the key control the PTZ direction of rotation Press the key or to switch on or turn off the aperture.

Press the key or , adjust the focus manually Press the key or , manually adjust the zoom (2) Video and storage setting Click icon ―set‖，to enter and set analog video image brightness , contrast, color saturation, as well as the file storage way after snapshot and recording, support auto-storage and manual storage. When select manual storage, user can name and store the files.

Page.24.

(3) 4 x zoom image display and Video out

when image input，press to enter ―zoom‖，press it again to quit. By two fingers move outward and inward on the touch screen to zoom in and out the image. When the image is enlarged, click left, right, upward and downward the image to view every detail.

if not by touch screen to operate ,press the key to zoom out , press the key to zoom in, press upward and downward key to move the image

For analog video input, as the resolution is 720*480, it is normal that the zoom in image is not

clear. But for network digital video input, as it supports resolution up to 1280*960, the zoom in image is still very clear. This is very helpful for IP camera installation.

(4) Snapshot

Click the icon ―Snapshot ―, when the video in, to snapshot and save the current video frame in the SD card as JPEG file.

Page.25.

if select manual storage ,appears dialog box ―Input Name‖ , user-defined the files name(by Chinese

character, English letter , or digit ) to save in SD card, if select ―Auto-storage, tester auto stores the files after snapshot.

(5) Video record

Click icon ―Record‖, when video in, the tester starts to record, the red recording icon appear on the screen and begin to flash and count, if click the icon ―Record ― again, stop recording and save it in the SD card . if select manual storage, before recording begins ,appears dialog box ―Input Name‖ ,user-defined the files name(by Chinese character, English letter ,or digit) to store in SD card , tester will hereby store the files in SD card after recording . , if select ―Auto-storage ， tester will auto store the files in SD card after recording .

(6)Photo

Click the icon ―photo‖ to enter，click the selected thumbnail photo to display it on the screen.

Page.26.

Double-click the photo to make it full display. Double-click again the photo to return.

Press the photo several seconds, rename or delete the files.

Click to close and return to PTZ controller.

(7) Record playback

Click icon ―playback‖to enter

Page.27.

Double –click the files to play，Click on the top right icon to close and return to PTZ controller.

In the video "Playback‖ interface, Press the recording for several seconds, rename or delete the files.

Video files also can play in the main menu ―Video Player".

(8) Video level meter

Click the icon to enter, the IP camera tester has adopted hardware high-speed sampling and

processing technology, enable it to achieve more accurate measurements in the video signal PEAK,

Page.28.

SYNC level, COLOR BURST chroma level. When the video signal is input, the tester auto test and

display the measurement on the left bottom corner of the screen.

While in PAL format, the unit will be mV, While in NTSC format, it will be IRE.

NTSC

Video signal level

140±15IRE

Chroma level( COLOR BURST)

40±5IRE

SYNC signal level

40±5IRE

PAL

Video signal level

1000±200mV

Chroma level( COLOR BURST)

300±35mV

SYNC signal level

300±35mV

Page.29.

Video signal PEAK level: For PAL format , the video signal level is 1000±200mV For NTSC format, the video signal level is 140±15IRE If the level is too low, it will cause the image to dim and reduce dynamic range, but if the level is too high, it will lead to virtual shadow and reduce the definition of the image . SYNC level: by testing the amplitude of the video sync pulse to verify if the video level is correct and the coaxial cable connectivity is good. For PAL format, the SYNC level is 300 ± 35mV For NTSC format, the SYNC level is 40 ± 5IRE If the level is too low, it will cause the image to fracture or scroll, but if the level is too high, it will lead to reduce the image‘s color levels and dynamic range. COLOR BURST chroma level: by testing the color burst level to estimate whether the coaxial cable is the best to transmit the details and color. For PAL format, the Chroma standard level is 300mV For NTSC format, the Chroma standard level is 40 IRE If the Chroma level is low or too low, the color will not bright, and some details on the iamge will lost or get dark or white when the monitor receives the image. If the Chroma level is too high, there will be spots on the image. If this occurs, it cannot get the clear image with all the details. If the coaxial cable is too long, it will reduce the chroma level

Image loop test：Test video optical transmitter and receiver and video cable , connect one end to the

tester ―VIDEO OUT‖ port ,and the other end connected to ―VIDEO IN‖ port, the signal send via ―VIDEO OUT‖ port ，and received via ―VIDEO IN‖ port , If the testing is ok, the tester displays

several gradually dwindling photos on the desktop.

3.3.2 Color-bar generator (TV OUT)

Click to enter，the tester sends the color bars from the ―Video out‖ port ,Click the icon ―PAL‖, select ―PAL/NTSC‖ output formats

Page.30.

Click the selected color-bars, testing image or single bar ( red, green, blue, white or black). Double click to full display on the screen and output, click to return main menu. Application A. When maintaining the dome camera, the tester sends out the color bar by its BNC output to the monitor at the monitoring center. If the monitor receive the color bar, it means the video transmit channel works normally. Meanwhile on the basis of the received color bar, the monitoring center can judge if transmission has loss or interference. B. The tester sends out the pure color bar (such as white and black color), to test the monitor whether

has bright or black dots

C. The tester sends out video signal image to test if the image received by the monitor has excursion.

3.3.3 ONVIF

ONVIF tools support HD and LD two test modes .When IP camera stream is MPEG4, please select LD mode display, HD mode cannot support MPEG4. While in LD mode, if the network camera resolution

is 720P or higher 720P, the image display may be delayed. While in HD mode, if the network camera

stream is H.264, the tester can fluently display the image up to 1080P.

Page.31.

Click icon to enter ONVIF，the icon ―ONVIF‖ is LD mode ,the icon HD ONVIF is HD mode

Click icon to enter, the tester Auto-Scan different network segments ONVIF cameras, and list the camera name and address on the screen left. Some cameras not need user name and password to login, please select ―Non- verification‖ to login the camera.

If some IP cameras cannot be auto scanned by the tester , click left bottom ―Add‖, users can add camera manually, but URL address should be identical to the ONVIF camera service address.

Page.32.

Click the button ―Refresh‖, tester will scan the ONVIF camera again. Click the new displayed ONVIF camera below ―Device List―, the tester will show the IP camera relative information and setting.

Input IP camera user name and password to login，click ONVIF camera below ―Device List― to

operate( Device Set, Time Set, Maintenance, Network Set, User Set, Live Video, Video Streaming, Image Set,etc).Some functions can only operate with the IP camera authorization.

Page.33.

Live Video: click ―Live Video‖ to enter, show the IP camera image. Double click on the image, image can be full displayed on the screen. Double click again to return. By two fingers move outward on the touch screen to zoom in the image. When the image is enlarged, click left, right, upward and downward the image to view every detail.

ONVIF PTZ control: click the image to slip left, right, upward, downward, or zoom in or zoom out, IP dome camera rotates correspondingly, PTZ rotation direction is displayed on the image‘s left upper

conner.

Page.34.

Zoom in image :press the key to enter, press it again to quit. By two fingers move outward and inward on the touch screen to zoom in and out the image. When the image is enlarged, click left, right, upward and downward the image to view every detail.

When the image is enlarged, if not operate on touch screen, it can operate by the keyboard ,press the key to zoon in , press the key to zoom out ,press upward and downward key to move image .

If it is network video input to the tester, as the tester supports resolution up to 1080p, the input

image will be very clear after it is enlarged. This is greatly helpful for the installers to ensure the IP camera‘s video coverage and decide the IP camera‘s install site. Image can only be enlarged on LD mode (The icon ―ONVIF‖is LD mode.)

Video Streaming: Click ―Video Set‖ to enter, set the IP camera decoding resolution, click ―OK ―to save.

Page.35.

Image setting: Click ―Image Set‖, adjust image brightness, saturation and contrast , etc.

Network setting：Click ―Network Set ―to change the IP address. Some cameras cannot support change

IP address, so there is no change after saving.

Page.36.

On the interface of ―Live Video‖, click ―Video Menu‖, appears toolbar: Snapshot, Record, Photo, Playback, PTZ, Set, etc.

Snapshot：Click ―snapshot‖ to screenshot the image and store it to SD card.

if select manual storage, appears dialog box ―Input Name‖ , user-defined the files name(by Chinese

character, English letter ,or digit ) to save in SD card, if select ―Auto- storage‖，the tester auto stores the files after snapshot. Record：click ―Record‖ to start, when video in，the tester starts to record, the red recording icon appear on the screen and begin to flash and count, if click the icon ―Record” again, stop recording and save it

Page.37.

in the SD card . If select manual storage , before recording begins, appears dialog box ―Input name‖ ,

user-defined the files name(by Chinese character, English letter, or digit ) to save in SD card, the tester will hereby store the files in SD card after recording is finished; if select ―Auto- storage, the tester will auto store the files in SD card after recording.

Set：Click icon ―Set‖, auto/manual store the snapshot image and video recording.Auto store by file format, manual store by user-defined name.

Playback：Click icon ―Playback‖ to display video files, double click to play, click to return to

upper menu.

Page.38.

Press the video files seconds to delete or rename.

Video files can play in the Video player on the main menu.

3.3.4 IP camera test

IP camera Tester supports HD and LD test two modes .When IP camera stream is MPEG4 , please select LD mode display , HD mode can not support MPEG4. While in LD mode, if the network camera

Page.39.

resolution is 720P or higher 720P, the image display may be delayed.While in HD mode, if the network

camera stream is H.264, the tester can fluently display the image up to 1080P.

Click icon to enter IP camera test

Display high-definition images, support snapshot, video record and playback. Currently, the IPC tester only support some brands‘ specified IP cameras, the brands include Dahua , Hikvision, Kodak , Samsung, etc. OEM service is available. Clients can send us the IP camera for our engineers to try to add the protocols to the IPC tester, or send us the video management software (Android version. APK files) to installl in the tester.

Note：This function can only be used for the specified IP cameras, for example Dahua, Hikvision,

etc, but please be noticed if the IP cameras come from the same brand but have different network communication, will result in incompatible with the tester.

Page.40.

Local IP：it means tester‘s IP address, support Multi- network segments‘ IP cameras test , click ―Deploy

― to enter ―IP setting ― and set the tester ‗s IP address, can add IP address of the Different network segments, click ―set‖ to save , click icon to close it and return IPC test interface.

IP camera type :Click IP camera type, list Honeywell , Kodak,Tiandy, Aipu-waton, ACTi、WoshiDA

IP camera etc. If the brand has offered official original protocols, pls select camera type, input IP

camera address ,user name and password ,click‖ official‖ to enter the camera image display interface(Currently, only support DAHUA official protocols )

IPC Camera's address: Enter IP camera‘s IP address , click “deploy”to add IP address of the different

network segments, support multi- network segments‘ IP camera test . Click ―Search‖ to auto-scan the IP camera‘s IP address and display. It is better to directly connect IP camera to the tester so that the tester will search out only one IP address. If the tester is connected to PoE switch, it will search out several IP address.

IPC User Name: Enter IP camera‘s user name

IPC Password: Enter IP camera‘s login password, if default enter password, not show relevant letters,

click ―display‖ to show the passord

IPC Port No.：Select IP camera type, it defaults relative camera port number, and not need change. After setting, click ―Enter‖ to enter image interface.

Page.41.

If IP address setting has error or IP camera is not connected.. The tester prompts ―Network Error‖ Click to quit from image display and return to IP camera test interface.

Under the IPC Test , on the IP camera image display, there is ―Video Menu‖ icon, click ―Video

Menu‖, appears toolbar: Snapshot, Record, Photo, Playback, PTZ, Set, etc. Please refer to ONVIF to use these functions.

3.3.5 SDI Camera Test(*optional)

SDI camera test, Dome camera test and PTZ control, click icon to enter.

When tester receives SDI camera image, it will display the image data . Double click on the image, image can be full displayed on the screen. The tester supports resolution as follows: 1280x720P 25Hz 1280x720P 30Hz 1280x720P 50Hz 1280x720P 60Hz 1920x1080P 25Hz 1920x1080P 30Hz 1920x1080I 50Hz

Page.42.

1920x1080I 60Hz When SDI tester detects the camera input image resolution is 1080p 60Hz or1080p 50Hz, the tester‘s screen will display ―Does not support playing 1920*1080p 60Hz". If no SDI camera image input, the tester‘s screen display ―NO video signal input!‖.

IPC tester‘s HDMI output port can be use as SDI to HDMI converter, output HD SDI image to HD TV monitor. Select relative function on the right side Toolbar to operate , ―Snapshot― , ―Record‖, ―Photos ‖, ―Video playback‖, ―PTZ control‖, ―Video Brightness and Storage set‖, the operation is the same to the video monitor function, please refer to the relevant instructions ―3.3.1‖ in the manual.

Click , or press to quit.

3.3.6 IP address scan

Connect the cable to the LAN port, click icon to enter, set initial IP and destination IP address， the tester‘s IP address network segment can be the same or different to the scanned network device‘s network segment, then click the key ―Start‖ to scan, quickly to search the IP address, also can input the IP address in the Port Number Scan to scan ,check the tested device‘s supporting port number and how many ports can support the device‘s network communication..

Page.43.

3.3.7 PING Test

Connect the cable to the LAN port, click icon to enter, set local IP, Remote Host IP, Packet Size, Packet time, Timeout etc, press ―Start ―to test. If IP camera or other network equipment is not connected to the tester, show sending and receiving packet ‗s quantity inconsistency，Error rate 100%， if connect well, to start Ping test ,if the tested device‘s IP address is correct, sending and receiving packet ‗s quantity consistency.

Page.44.

Application：PING testing is the most conventional network debugging tools. It is used for testing if the

connected IP camera or other network equipment‘s Ethernet port is working normally and the IP

address is correct. It‘s normal that the first data packet will be lost when test start.

3.3.8 Cable Test

Click icon to enter

Test LAN cable or telephone cable. Connect LAN cable or telephone cable with the CCTV tester and cable tester. And then the connecting status, cable type and the sequence of wires as well as the serial number of the cable tester kit will be displayed. The number of the cable tester is 255 If need several different number other types cable testers, should pay the additional cost.

3.3.9 Cable Tracer

Connect test cable or BNC cable to the UTP port or the CABLE SCAN (VIDEO OUT) port on the bottom. Click icon to enter, click the Number on the screen to adjust audio type.

Page.45.

Turn on the cable scan; use the copper pin to search, the cable with loudest voice means it is connected with the tester. Four Audio types can choose. LED lamp is convenient to work in dark or at night. Press

the button (+ - ) to adjust the volume,

use two batteries (size AAA)

Application

It‘s convenient for people to find out the other end of the cable from the messy cables in security maintenance and network engineering. While searching BNC cable, connect one port of the alligator clips to the copper core or copper net of the BNC cable, the other one to connect the earth wire (barred windows).

Note：The battery of the cable tracer must according to corresponding positive pole + and

negative pole -, otherwise will damage the tester.

Page.46.

Note：While the cable tracer tester is receiving the audio signal from the tester, it may be

influenced by other signals and make some noise.

3.3.10 Port Finder

Connect the cable to the tester ―LAN‖ port，click icon to enter. Click ―Start‖ to test, tester send signal to make the connected LAN port of switch flicker at special frequency.

If the tester and PoE switch are connected well, the LAN port of POE switch flash at special frequency, If not, no any changes on the LAN port

Page.47.

Application：

The tester will send special signals to make the connected LAN port flicker at special frequency, which will enable the installers to easily and quickly find the connected Ethernet cable. This function can prevent mistakenly insertion or disconnection non-corresponding cable to artificially interrupt network connection.

3.3.11 Data monitor

Pls click icon to enter

Click ―Setting‖ to choose the baud rate of RS485/RS232; it must be the same as the DVR or the Control

keyboard .The DVR or Control keyboard send the code to the tester, if it can be read, the protocol will

shown on the upper right, like Pelco D, if not, like P:---

While the tester receives the code, press the key to empty.

Though the RS485 port, display the PTZ control code of the multifunctional keyboard or the DVR. Controller can check the status of the RS485 transmission through the code on the display. (The RS485 communication rate must be the same.) Application：Check the RS485 communication states of the video optical transmitter whether normal. Engineer can analyze the protocol and check the data through the displayed code.

3.3.12 Optical power meter （Optional ）

Click icon to enter ,with five wavelength 1625nm、1550nm 、 1490nm 、 1310nm 、 1300nm 、 850nm ,linear or nonlinear optical power display, both for optical power testing and Fiber link loss relative measurement . It is necessary tool for installation and maintenance optical fiber

Page.48.

communication, cable television and CCTV security system.

Note：Please keep the fiber connector and the dust cap be clean, and clean the detector with the special alcohol.

Data hold

While testing, click ―Hold‖ to data hold, the data will not change. It‘s convenient to read. Press again to quit.

Relative power value (optical link loss) measurement

While testing, set the wavelength for measurement. Click ―relative‖(difference) to test, the tester Auto save current fiber power value as the base reference value. Input another optical fiber to be measured, the displayed new measurement and relative value is red color. Press it again to quit.

Page.49.

Data hold and Relative measuring use together, the data is yellow while the function is effect.

3.3.13 Visual Fault Locator（optional）

Click icon to enter

VFL four status can select——―Steady mode‖, ―Evasive 1Hz‖,―Evasive 2Hz‖and―Time off‖. Click button ―Steady mode‖ to enter steady status, click button ―Evasive 1Hz‖ and ―Evasive 2Hz, to enter pulse mode, click button ―Time off‖, VFL is turned off. Timed turn off can select (5 mins, 10 mins, 30

Page.50.

mins, 60 mins and 120 mins).

Click‖ Steady mode‖, red laser source emits steady, click again to quit.

Click icons ―Evasive 1Hz‖or―Evasive 2Hz‖to enter pulse mode, the red laser source is emitted by a

certain frequency, press it again to quit

3.3.14 Digital Multi-meter （optional ）

Page.51.

Click icon to enter

1) SYMBOLS：

U：DC Voltage Measuring A：DC Current Measuring Ω：Resistance Measuring ：Diode Testing

U~：AC Voltage Measuring A~：AC Current Measuring

：Continuity Testing ：Capacitance Measuring

AC/DC

Voltage and current measurement state display

Auto- range

The Multimeter auto adjust the range by input signal or tested components

Data hold

Hold data

Relative

measurement

Display the relative measurement value Press the key to change display state

10A socket

In 10A current measurement state ,indicate use 10A socket

Over range

The current measurement value over the range, if in the Auto range state, to switch Auto.

Page.52.

2) OPERATING INSTRUCTION A. DC Voltage Measuring

a. Connect the black test lead to the ―COM ‖ jack and the red test lead to the ―V/Ω‖ jack. b.Select U, enter the DC voltage measurement.

c. the tester default Auto range status ,by click ―DC auto range‖ , press the key can select manual range and restore auto range . Manual range： 0.000V  6.600V range

00.00V  66.00V range

000.0V  660.0V range

000.0mV  660.0mV rang

B. AC Voltage Measuring

a. Connect the black test lead to the ―COM‖ jack and the red test lead to the ―V/Ω‖ jack. b. select U ~ , enter the AC voltage measurement.

C.the tester default Auto range status, by click ―AC auto range‖ d. Manual range can be select , press the key ―NEAR‖ to restore Auto range

WARNING!

You can‘t input the voltage which more than 660V DC, it‘s possible to show higher voltage, but it‘s

may destroy the inner circuit. Pay attention not to get an electric shock when measuring high voltage.

WARNING!

You can‘t input the voltage which more than 660V AC, it‘s possible to show higher voltage, but it‘s

may destroy the inner circuit. Pay attention not to get an electric shock when measuring high voltage.

Page.53.

e．Manual range： 0.000V  6.600V range

00.00V  66.00V range

000.0V  660.0V range

000.0mV  660.0mV range

C. DC Current Measuring (only manual range )

a. Connect the black test lead to the ―COM ‖ jack and the red test lead to the ―mA‖ jack for a maximum of 660mA current. For a maximum of 10A, move the red lead to the 10A jack. b．select A, enter the DC current measurement，the screen display―DC current ‖，can select manual range；

c．Manual range： 0.000mA  6.6mA range

00.00mA  66.00mA range

000.0mA  660.0mA range

00.00A  10.00A range（use 10A socket）

d. Select the range to enter current measurement

NOTE:

 When only the figure ―OL‖ is displayed, it indicates over range situation and the higher range has to

be selected.

 When the value scale to be measured is unknown beforehand, set the range selector at the highest

position.

 The maximum current of mA socket is 660mA, over-current will destroy the fuse, and will damage

the meter.

WARNING!

Shut down the power of the tested circuit, and then connect the meter with the circuit for measurement.

Page.54.

 The maximum current of 10A socket is 10A, over-current will destroy the meter, and will damage

the operator.

D. AC Current Measuring (Only Manual range)

a. Connect the black test lead to the ―COM‖ jack and the red test lead to the―mA‖ jack for a maximum

of 660mA current. For a maximum of 10A, move the red lead to the 10A jack.

b. select A~ , enter the AC current measurement, manually select the range

c. Manual range： 0.000mA  6.600mA range

00.00mA  66.00mA range

000.0mA  660.0mA range

00.00A  10.00A range（use 10A socket）

Note：

 When only the figure ―OL‖ is displayed, it indicates over range situation and the higher range has to

be selected.

 When the value scale to be measured is unknown beforehand, set the range selector at the highest

position.

 The maximum current of mA socket is 660mA; over-current will destroy the fuse, and will damage

the meter.

 The maximum current of 10A socket is 10A, over-current will destroy the meter, and will damage

the operator.

 In― AC ‖ mode, only can input ―AC ‖, if not, will damage the meter.

WARNING!

Shut down the power of the tested circuit, and then connect the meter with the circuit for measurement.

Page.55.

E. Resistance Measuring

a. Connect the black test lead to the ―COM ‖ jack and the red test lead to the ―V/Ω‖ jack. b. to select Ω, enter the Ω measurement

the tester default Auto range status, Press the key manually select

range ,Press ―NEAR‖ to restore ―Auto range‖ Manual range：(Connect the red lead to black leads, will display the measure range)

000.0Ω  660Ω range

0.000 KΩ  6.600KΩ range

00.00 KΩ  66.00KΩ range

000.0 KΩ  660.0KΩ range

0.000 MΩ  6.600MΩ range

00.00 MΩ  66.00MΩ range

F. Continuity Testing

a. Connect the black test lead to the ―COM‖ jack and the red test lead to the ―V/Ω‖ jack. b.to select , enter the continuity test, Connect test leads across two point of the circuit under testing. c. If continuity exists (i.e., resistance less than about 50Ω), built-in buzzer

will sound.

WARNING!

When measuring in-circuit resistance, be sure the circuit under test has all power removed and that all capacitors have discharged fully.

WARNING!

When testing the circuit continuity, be sure that the power of the circuit has been shut down and all capacitors have been discharged fully.

Page.56.

G. Diode Testing

a. Connect the black test lead to the ―COM‖ jack and the red test

lead to the ―V/Ω‖ jack. (the red lead anode ―+‖ )

b. to select , enter the diode testing.

c. Connect test red lead across to the anode, the black lead to the

cathode of the diode under testing. d. Connect test red lead across to the cathode, the black lead to the anode of the diode under testing. e .Tested diode，forward voltage low 30mv，there is sound indication ,then can finish the testing quickly without view the screen.

H. Capacitance Measuring

a. Connect the black test lead to the― COM ‖ jack and the red test lead to the ―V/Ω ‖ jack. b. Select ― ‖ to enter, enter the capacitance measurement.

c. The tester default auto range status, and manual range by press upward and downward key, Auto rang by press the key ―NEAR‖ Manual range：0.000nF  6.600nF range

00.00nF  66.00nF range

000.0nF  660.0nF range

0.000uF  6.600μF range

WARNING!

The capacitance of a capacitor should be tested separately, should not test in the installation

of circuit.

WARNING!

To avoid electric shock, be sure the capacitors have been discharged fully before measuring the capacitance of a capacitor.

Page.57.

00.00uF  66.00μF range

000.0uF  660.0μF range

0.000mF  6.600mF range

00.00mF  66.00mF range d. Before connect test leads across two sides of the capacitor under measurement, be sure that the

capacitor has been discharged fully.

Note:

a. The capacitance of a capacitor should be tested separately, should not test in

the installation of circuit.

b. To avoid electric shock, be sure the capacitors have been discharged fully before measuring the ca

pacitance of a capacitor.

c. While testing the capacitance of a capacitor to

660uF, the Max time will be 6.6 seconds, if the capacitor is leaked or damaged, the data can‘t be read. The tester will be normal after disconnecting the capacitor.

Manual range and Auto range

When testing, click ―Range select " to change the value，click ―Auto range ―to enter Auto

measurement

Page.58.

Data hold

Click ―Hold data‖ to enter, the data be hold, the value is green. Press it again to quit.

Relative value measurement

Click ―Relative ―to enter ，the tester Auto-save the data, the displayed new measurement and relative value is red color. Press it again to quit

The hold function and the relative value be combined use, the display value is yellow

The meter protection  Voltage protection

You can‘t input the voltage which more than 660V AC, it‘s possible to show higher voltage, but it‘s may destroy the inner circuit.

 Resistance、Continuity、Diode、PTC component Protection

Wrong input voltage，will Auto enter protection state , It only suitable for short and limit time work.

If input voltage over 600V, will damage the meter.

 mA current fuse range ：250V 1A

if the current over the rated range ，fuse will melt to protect the meter .Pls use the same model when

change the fuse, Pls opens the battery cover to change.

Note: 10A socket without fuse protection, if over the current range

Wrong using the 10A socket to measure the voltage, will damage the meter.

3.3.15 Video Player

Click the icon to enter

Page.59.

Video file player, can browse image files, also supports play formats MP4, H. 264, MPEG4, MKV,etc

ONVIF tool, IP camera Test and video monitoring test‘s video recording can play directly via video player. Video player auto-search the video files on SD card，click the display list to play directly，and click RETURN to quit Click the files for several seconds，delete or rename the files

3.3.16 Music player

Click the icon to enter

Page.60.

Only support MP3 format Audio files

3.3.17 LED lamp (Flashlight)

It is convenient for the installation or maintenance in the evening or in the dark. Click icon to enter

Page.61.

While in flashlight interface, click the red button, to turn on the LED lamp. Press again to turn off. If not turn off the light but click icon to quit, the LED lamp is still on. Lighting model or Time setting can be selected.

3.3.18 PoE Voltage test

Click icon to enter PoE voltage measurement

Connect the cable to the power supply equipment‘s POE port and the tester‘s PSE IN port. Connect IP camera or wireless AP equipment to tester‘s LAN port, the POE voltage and the cable‘s pin connection status show on the screen.

Note : The PoE power supply equipment( POE Switch, PSE power supply equipment) must be connected to the PSE IN port, the powered device such as IP camera or wireless AP must be connected to the LAN port, then it measure the voltage correctly. Please do not connect PoE power supply equipments (such as PSE, PoE switch. ) to the tester‘s UTP/SCAN port; otherwise it will damage the tester.

3.3.19 TDR cable test （optional）

Note：The testing cable can’t be connected to any equipment, otherwise it will damage the

tester!

Page.62.

Connect Alligator clip cable to the TDR port, and the cable must connect well before testing, otherwise it will influence the accuracy. Click to enter, and click ―Start‖ to test

Built-in BNC cable, network cable, RVV control cable, Telephone line and TVVB cable etc can test. 11 groups user-defined cable can be set.

Click ―Cable‖ ―Type‖ to select cable and start testing. One tap on ―Start‖ , do one testing. If select built in cable type for testing, click ―+‖ and―-‖ to adjust cable‘s wave speed .

User-defined calibration：Choose the cable 100 meters to 200 meters (more than 50 meters) , click ―Cable‖ , ―Type‖ to select user-defined 1 for calibration, 11 groups user-defined can be set.

Page.63.

1.Select user-defined and click ―Calibration ―to enter test , click ―user-defined 1‖can define cable

name，such as：AiPu BNC-5。

2. Click ―Cable‖ , ―Type‖ to select cable, and corresponding type, for example, if testing BNC cable, select ―BNC‖, if testing communiction cable 75-2, select SYV 75-2.

Page.64.

3.Click ―+‖or―-‖ to adjust wave speed ,while display length is the same with the actual Length ,click

―Save―to save calibration data . It can be used for the same cable testing next time.

Application：TDR test is the use of pulse reflection method, to transmit pulse signal for tested cable, when cable is open circuit or short-circuit, reflected pulse is generated, the tester receives and deals with

the reflected wave, measurement results displayed on the screen. TDR can test cable open circuit and

short circuit, help engineer quickly find the cable‘s problem location. It is more convenient and efficient to repair the faulty cable.

Note：The TDR reflect signal could be affected by the cable quality/ cable’s not well

connected etc to cause the different TDR measurement. The TDR measurement is for reference only.

3.3.20 Calculator

Click icon to enter

3.3.21 Browser

Click icon to enter

Input the IP camera‘s IP address, or click ―Scan IP‖ to scan, browser can be used to log IP camera and change IP camera‘s address.

Page.65.

The IP camera and IP tester must be in the same network segment so that the browser can login IP camera successfully，if they are not in the same segment after the IP camera‘s IP address is changed by browser ,click or press ―RETRUN‖ to exit , click main menu ―SET ‖ to change and make the tester and IP camera in the same segment，then can test IP camera .

As the Browser cannot install the IP camera‘s plug-in, it cannot view IP camera‘s image.

3.3.22 IP camera viewer

If the IP camera neither supports the customized IP camera protocols nor supports ONVIF，but IP camera manufacturers can offer Video Management Software(Android version. APK files) that compatible with mobile phone or tablet PC for us to intall the Video Management Software in the tester, the tester will be able to display IP camera image by IP camera viewer. .

Click icon ―IP camera viewer‖ to enter，run the Video Management Software of the corresponding IP camera , then can view the image after setting that Video Management Software.

Video Management Software displays IP camera‘s image by software decompression, hereby the image

may be not clear or fluent.

Note：Video Management Software is not our product，it is from the Internet or other companies ,it is not for commercial profit purposes, our company does not assume any legal and joint and several liability , if not use , please promptly delete .

Page.66.

Click desktop icon several seconds, to uninstall this application

Click icon ―update ― in the IPC viewer interface，to update Video Management Software.

Page.67.

3.3.23 PoE power / DC12V 2A and DC 5V 2A USB power output

When the tester is turned on, DC12V output power function Auto-turn on. 5V USB power output,adopts ultra-low power consumption design, when the tester is turned off , also can be used as a power bank ,to supply power for the external USB device To turn on and turn off PoE power output must by click the switch , to choose ―on‖ or ―off‖. Click icon to enter and turn on PoE power supply out interface. The tester detects the connected IP camera whether support PoE power via Lan port . If the IP camera supports PoE function, the PoE power is delivered to IP camera via the tester‘s 1236 pins in the Lan port. The top menu bar display icon“48V ON”, the icon can be moved.

Note:

1. Don‘t input any power into the ―DC12/2A OUTPUT‖ port of the tester to avoid destroy.

Page.68.

2. Don‘t output this DC12V/2A power to the DC12V/IN port of the IP camera tester to avoid destroy

3. The IPC tester power output is close to 2A, if the IP camera‘s power is over 2V, the tester will auto

enter protection mode. Disconnect all the connections of the tester and then connect the tester with power adaptor to resume the tester.

4. Before turn on the PoE power output, please make sure the IP camera supports PoE powered. Otherwise may damage IP camera.

5. When PoE power output, UTP cable must be Straight-through, and cannot be short circuit, otherwise it will damage the tester .

6. Make sure the tester is full charged or more than 80% charged, otherwise the tester will shows ―low power ‖ , ―not able to supply power‖ .

3.3.24 Application tools

It contains Audio record, Network Bandwidth test ,DHCP, Notepad, Link Monitor, etc. Other application tools can be customized according to customer‘s requirements.

Click icon to enter

Audio Record：Recording and play the received audio. Connect the audio devices to tester‘s Audio input port，click icon to enter and record ,click the red button to stop, and prompt to save the recording.

Page.69.

Network test (Ethernet bandwidth test)

Built in Ethernet bandwidth test tools, need two testers mutual –testing, one as a Server, the other as a

Client，then test Network bandwidth, also can download test software on a computer ,combine with a

tester to test .

Note：Network test results are only used as a reference，for more accurate test , please use a professional

Ethernet tester .

Click icon to enter

When test , need a a tester or a computer installed Network Test Software as the Server, the other tester

Page.70.

sends packet test。The two testers must be in the same network segment.

a).Start the server：Click ―Start the server‖, the tester as Server, display its IP address

b).Start send packet test：Input Server's IP address in the other tester , used as a Client, to send packet

test ,click button ―start test‖

Network bandwidth testing, can be tested by a tester and a computer. Install network bandwidth testing software on a computer, as a test Client or Server, to do the mutual testing with the tester. If use computer as the server，the computer IP address is :192.168.0.89

Page.71.

Tester as Client, tester‘s IP address is:192.168.0.230. The Server and the Client are at the same network segment, but with different IP address. Input Server‘s IP address 192.168.0.89 in the tester and click ―Start‖ to test network bandwidth.

Or use tester as a Server, computer as test Client（select Client,input tester‘s IP address to test）

Page.72.

when use tester as Server，shows results：

DHCP server： Start ―DHCP‖ Server, dynamic assign IP address for the IP camera, not need to set IP camera‘s static IP address before start the testing . Select ―Start‖ , set assigned addresses segment, click “save”to assign dynamic IP addresses. Click

―Refresh‖ to check received IP address.

Page.73.

Notepad：

Notepad can be used to record the important testing results, click the key ―Save‖ to save the contents.

Notepad can auto record the storage date and time. .

pls click to view the notepad , all saving contents display. Click each record bar to show the details. Press the record bar for several seconds, prompt whether delete it

Page.74.

Link monitor ：

Click icon to enter, check the new IP address whether has been occupied by other network

device. Avoid the new address conflict with other network devices.

Click ―Add‖ to display the testing IP addresses, can add multiple IP addresses. For different network segments‘ IP test , click the tester‘s ―Set‖ on the main menu to enter its interface, click ―IP Settings‖ to check, make sure the network segments in Link Monitor and in ―IP Settings‖ are the same .Click ―start‖ to test. Check the device‘s IP address whether is occupied by other device. If the status is ―√‖, means the IP address is occupied, if the status is―×‖, means the IP address is available

Page.75.

Application：

Add an IP camera or other network device to the current network group, the new IP address must not be occupied, otherwise it will cause IP conflicts and stop the equipment normal working. Link monitor can check if the new setting IP address is occupied.

3.3.25 APPS Tools

Click icon to enter User can move desktop icons into APP Tool, click icon several seconds，prompt whether move the icon to APPS tool .

Click icon ―APPS‖ to show all icons, if tap on the screen outside the APPS interface, return to main menu Click icon for several seconds, prompt whether move the icon to the main menu.

Page.76.

3.3.26 System Set

Click icon to enter

Language：Simplified Chinese, Traditional Chinese, English and others Date/Time：Set the Date/time IP setting： Set the IP address, Subnet Mask, Default Gateway, DNS address

Test multiple network segments‘IP, click ―Advance‖, to display IP setting interface, then click ―Add‖ to add new IP address as tester‘s address to test .

After setting IP address (refer to above photos), the tester can test two network segments IP cameras (192.168.0.0) and (192.168.1.0).

Page.77.

WLAN：Turn on /off WIFI. After connecting WIFI, double click WIFI to check the connected IP address.

Brightness：Set brightness、sleep time Volume：Set volume SD Card：Show SD Card Capacity, remove SD card FTP server：IP camera tester connect to network by WIFI or network port ,PC can read SD card files via network.

Start FTP server，input the tester‘s ftp address in the PC‘s computer bar . This will enable PC to read, copy and stick the files from tester‘s SD card without the use of SD card reader.

Page.78.

Version information：Check version information for each application Screen display rotation：The LAN slot, PSE IN slot, UTP/SCAN slot etc, are on the downside of the

IPC tester. Before upward the downside, screen display can be rotated in 180 angle by manual setting. This function is very convenient for the user to upward the downside to connect the LAN cable and do the testing.

PTZ address scan ：Turn on / off. Before enter ―PTZ controller‖ interface, it need to turn on ―PTZ

address scan‖, otherwise the PTZ controller cannot operate PTZ address scan. Once users

stop operation on ―PTZ controller‖ interface, the tester auto shut down ―PTZ address scan‖

to prevent users operate PTZ controller by mistake.

Turn off option：Fast turn off . If select it, the tester will run fast and enter the interface before some

data is refreshed or deleted. To avoid unnecessary problems, it is better not to shut off the tester by ―Fast turn off‖.

3.3.27 Update

Click to enter

Page.79.

If there are applications for updating, the applications will be displayed on the interface. Click the relevant applications to update to the latest version.

3.4 Audio test

Test the audio input from pickup devices. Connect the tester and pickup device with the audio cable. Support audio record and storage

3.5 HDMI output

Built in HDMI output port, output recording files, media files and image to HD TV monitors, support

Page.80.

resolution up to 1080p. Also can output the live image of analog camera, IP camera, SDI digital

camera to HD TV monitors.

3.6 PoE power output

The tester supports PoE (Power over Ethernet) output to IP camera via RJ45 cable from LAN port. Data transmission and DC 48V power supply are using the same cable‘s PIN 1, 2, 3, 6 to deliver. The IP camera with PoE support, can directly connect to tester without external power adapter.

Notice

a. Please make sure the cable connected to the tester‘s Lan port is straight-line cable and has no short circuit, otherwise will damage the tester b. Before using PoE power output, pls check the IP camera whether supports POE powered. Otherwise it will damage the IP camera. c.The instrument‘s PoE maximum power output is 24W. If Ultra- high-power load happens, the tester will enter protection mode .

3.7 DC12V 2A power output

When the tester is turned on, DC12V power output default ―ON‖ status. Do not need to click the switch, to choose ―ON‖ or ―OFF‖. The top and the bottom of the ―DC12V/2A OUT ‖is power output interface， it must use tester‘s power convert cable ,the smaller end of the convert cable connect to DC12V/2A OUTPUT, the other end

Page.81.

connect to camera power input interface.

Application

Power output function is mainly used in the camera field demonstration and testing, meanwhile, for some camera installation sites, if there is no power outlet, the tester can offer temporary power for the camera.

Notice:

a. Don‘t input any power into the ―DC12/2A OUTPUT‖ port of the tester to avoid destroy.

Man-made damage is not within our company‘s warranty

b. Don‘t output this DC12V/2A power to DC12V/ IN port to avoid destroy. otherwise the tester will

damage, and man-made damage is not within our company‘s warranty.

c. The IPC tester power output is close to 2A, if the IP camera‘s power is over 2V, the tester will

auto enter protection mode. Disconnect all the connections of the tester and then connect the tester with power adaptor to resume the tester.

Page.82.

d. Make sure the tester is full charged or the battery icon shows more than 3 bars; otherwise the

tester will show battery power is low, not able to offer power output.

3.8 USB 5V 2A power output

5V USB power output， adopts ultra-low power consumption design, when tester is turned off , this interface still can output power (Provide temporary emergency power for the mobile phone or other devices).

4. Specifications

4.1 General Specifications

Model

IP Camera Tester【*】models optional

Display

7 inch capacitive touch screen , resolution 800（RGB）x 600

Network port

10/100M auto adjust，RJ45

WIFI

Built in WIFI，speeds150M，receive wireless camera image etc

IP camera type

ONVIF，ONVIF PTZ, ACTi、Dahua IPC-HFW2100P、Hikvision,DS-2CD864-E13、

Samsung SNZ-5200、Tiandy TD-NC9200S2、Kodak IPC120L、Honeywell

HICC-2300T、fine-Tida IPC、FSJ BY-1080Q、etc. Customized protocols are available

SDI camera test

(Optional)*

1 channel SDI in（BNC interface） , resolution max : 720p 60fps / 1080p 30fps /1080i

60fps

Page.83.

Analog Video test

1 channel BNC Input & 1 channel BNC Output , NTSC/PAL (Auto adapt)

Video level meter

PEAK video signal level, SYNC signal level, COLOR BURST chroma level

measurement for cvbs camera.

Zoom Image

Support Analog camera and IP camera image zoom /move

Snapshot, Video record

and playback

Image screenshot and photos review, video record and playback,

HDMI output

1 channel HDMI output，support 1920*1080p

12V/2A power output

Output DC12V/2A power for camera

USB 5V power output

5V 2A power output，as mobile phone power bank

PoE power output

48V PoE power output，Max power 24W

Audio test

1 channel audio signal input to test pickup device, 1 channel audio signal output to

connect headphone

PTZ control

Support RS232/RS485 control, Baud 600-115200bps, Compatible with more than 30

protocols such as PELCO-D/P, Samsung, Panasonic, Lilin, Yaan, etc

Color bar generator

Output one channel PAL/NTSC color bar video signal for testing monitor or video

cable.(red, green ,blue, white and black color )

UTP Cable tester

Test UTP cable connection status and display on the screen. Read the number on the

screen

Data monitor

Captures and analyzes the command data from controlling device，also can send

hexadecimal

Network test

IP address scan, link scan, Ping test, Quickly search the connection IP camera and other

device‘s IP address

Cable tracer

Search the connected cable from messy cables by the audio signal

PoE /PSE voltage test

Measurement POE switch or PSE power supply voltage and display cable connection

status

Digital Multi-meter

(optional)*

AC/DC Voltage，AC/DC current、Resistance、Capacitance、Data hold、Relative

measurement、Continuity testing . Testing speed: 3 times/ seconds，Data range -6600～

+6600.

Page.84.

Optical power meter

(Optional)*

Calibrated Wavelength(nm) ：850/1300/1310/1490/1550/1625nm

Power range(dBm) ：-70～+10dBm

Visual fault locator

(optional)*

Test fiber‘s bending and breakage ( SM and MM fiber)

TDR cable test

(optional) *

Cable‘s open circuit (Breakpoint) and short circuit measurement(BNC cable, telephone

cable)

POWER

External power supply

DC 12V 2A

Battery

Built-in 7.4V Lithium polymer battery ,6500mAh

Rechargeable

After charging 7~8 hours, normal working time 16 hours

Parameter

Operation setting

Capacitive touch screen, OSD menu，Chinese/English

Auto off

1-30 (mins)

General

Working Temperature

-10℃---+50℃

Working Humidity

30%-90%

Dimension/Weight

231mm x 172mm x 52mm / 1.26Kg

4.2 Multi-meter specifications

Counts：-6600～+6600 Conversion rate: 3times/s Current modes for clamp meter with ZERO function Isolation: the Multi-meter connector must be isolated with the other connector.

DC voltage

Range

Accuracy

Resolution

660mV (Manual range)

±（0.3%+4）

0.1mV

Page.85.

6.600V

1mV

66.00V

10mV

660.0V

100mV

AC voltage

Range

Accuracy

Resolution

660.0mV (Manual range)

±（1.5%+6）

0.1mV

6.600V

±（0.8%+6）

1mV

66.00V

10mV

660.0V

100mV

DC current

Range

Accuracy

Resolution

6.600mA

±（0.5%+3）

1uA

66.00mA

10uA

660.0mA

100uA

10.00A

±（1%+5）

10mA

AC current

Range

Accuracy

Resolution

6.600mA

±（0.5%+3）

1uA

66.00mA

10uA

660.0mA

100uA

10.00A

±（1%+5）

10mA

Resistance

Range

Accuracy

Resolution

Page.86.

660.0Ω

±（0.8%+5）

0.1Ω

6.600KΩ

±（0.8%+2）

1Ω

66.00KΩ

10Ω

660.0KΩ

100Ω

6.600MΩ

1KΩ

66MΩ

±（1.2%+5）

10KΩ

Continuity

Range

Resolution

Function

660.0Ω

0.1Ω

The measurement value less 30Ω±3Ω,the tester will

sound

Diode

Range

Resolution

Function

2.0V 1mV

Schottky diode：0.15~0.25V

rectifier diode：0.6~1.0V triode PN junction:0.5~0.8V

Capacitance

Range

Accuracy

Resolution

6.600nF

±（0.5%+20）

1pF

66.00nF

±（3.5%+8）

10pF

660.0nF

100pF

6.600μF

1nF

66.00μF

10nF

660.0μF

±（5%+8）

100nF

6.600mF

1μF

Page.87.

66.00mF

10μF

4.3 Optical power meter specifications

Measure Range(dBm)

-70～+10dBm

Wavelength(nm)

850nm、1300nm、1310nm、1490nm、1550nm、1625nm

Detector

InGaAs

Uncertainly

＜±3%dB(-10dBm，22℃)

＜±5%dB(full range，22℃)

Display Resolution

Linear：0.1% ; Nonlinear：0.01dBm

Operating Temperature(℃)

-10～+50

Storage Temperature (℃)

-20～+70

Connector type

FC/PC

4.4 Visual fault locator specifications

Laser type

Wavelength Calibration

650nm

Output power

5mW（optional 10mW，20mW）

Modulation mode

CW/1Hz/2Hz

Measurement Range

5KM（optional 10-20KM）

Connector

FC/PC exchangeable

Working Temperature

－10℃～+50℃

Operating Temperature

-20℃～+70℃

The data above is only for reference and any change of them will not be informed in advance. For more detailed

technical inquiries, please feel free to call the Technical Department of our company.

Galaxy SED-MON-IT-860 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
