GAI-Tronics XCP0050A User Manual

Pub. 43003-016B

GAI-TRONICS® CORPORATION

A HUBBELL COMPANY

Model XCP0050A Supervisory Control Kit

Field Installation Kit Instructions

Confidentiality Notice

This manual is provided solely as an operational, installation, and maintenance guide and contains
sensitive business and technical information that is confidential and proprietary to GAI-Tronics.
GAI-Tronics retains all intellectual property and other rights in or to the information contained herein,
and such information may only be used in connection with the operation of your GAI-Tronics product or
system. This manual may not be disclosed in any form, in whole or in part, directly or indirectly, to any
third party.

General Information

The Model XCP0050A Supervisory Control Kit is for the ICP9000 Series Desktop Console or the
ICP9000 Navigator Series MCU. It gives the ability to disconnect the transmit audio lines from one or
more parallel-connected console channels. The kit includes the following components:

Qty Description

1 Assembled Supervisory Control Unit
4
1 Ground cable

#6-32 × 1.625-inch Phillips screw

Installation

ICP9000 Series Desktop Console

1. Disconnect power from the ICP9000 Series Desktop Console and remove all attached cables from the

rear cover.

2. Remove the 4 screws securing the rear panel. Gently pull the rear cover from the housing and

disconnect the ribbon cables (SLV-CBL-P) attached to the surge suppression PCBA. Lay the rear
panel flat.

3. Remove the black rectangular hole plug from the center of the rear cover.

GAI-Tronics Corporation P.O. Box 1060, Reading, PA 19607-1060 USA

610-777-1374 n 800-492-1212 n Fax: [phone]

VISIT WWW.GAI-TRONICS.COM FOR PRODUCT LITERATURE AND MANUALS

Pub. 43003-016B

Model XCP0050A Supervisory Control Kit Page: 2 of 3

4. Attach the supplied ground cable to the quick-disconnect on the rear of the Supervisory unit. Attach

the other end to the ground screw on the rear cover of the base unit. Bend the tab on the quick­disconnect on the rear of the Supervisory unit to allow it to sit flush when seated on the connectors.

5. Pull the supervisory cable through the rectangular cut-out on the rear cover, and connect it to P17 on

the main control PCBA in the ICP9000 Series Desktop Console.

6. Reattach the ribbon cables (SLV-CBL-P) to their matching connectors, and reattach the rear cover.

7. Assemble the Supervisory unit by inserting the two locating tabs into their matching slots on the rear

cover, and attaching it with the four supplied #6-32 pan head machine screws.

8. Reattach all cables and reconnect the power.

9. Refer to the CARD Suite software (XAC1000A) for specific programming instructions for

reconfiguration.

11/02

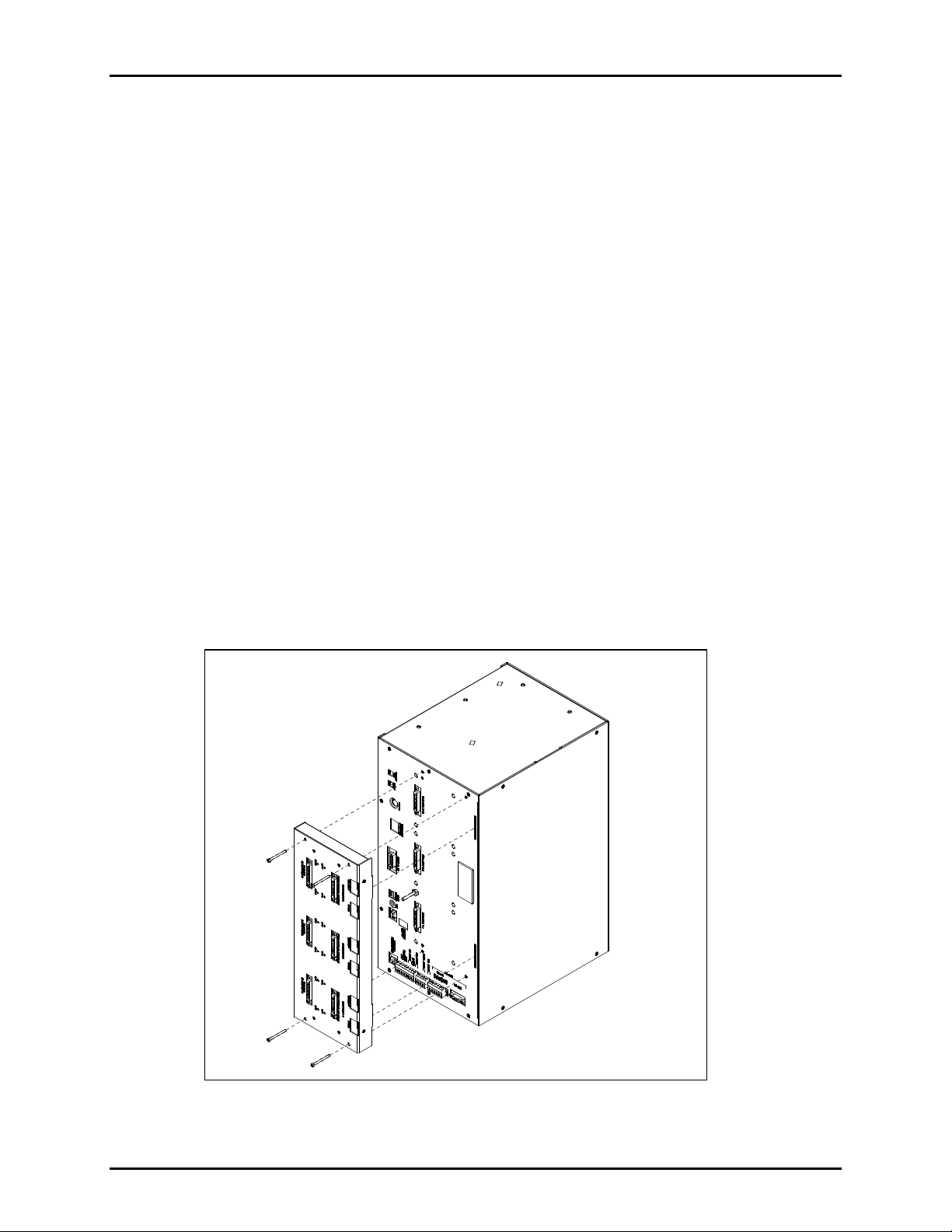

Exploded View of the ICP9000 Series Console Rear Panel
