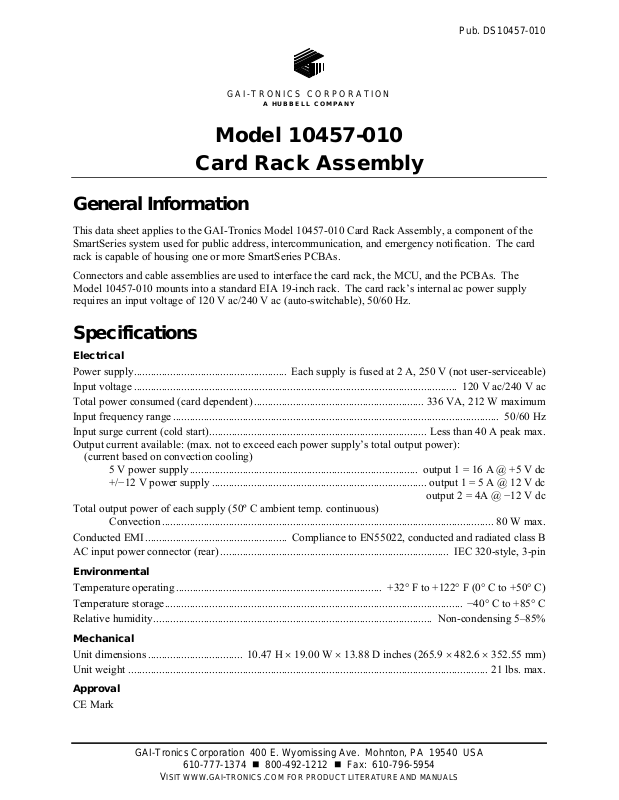

Pub. DS10457-010

GAI-TRONICS CORPORATION

A HUBBELL COMPANY

Model 10457-010

Card Rack Assembly

General Information

This data sheet applies to the GAI-Tronics Model 10457-010 Card Rack Assembly, a component of the
SmartSeries system used for public address, intercommunication, and emergency notification. The card
rack is capable of housing one or more SmartSeries PCBAs.

Connectors and cable assemblies are used to interface the card rack, the MCU, and the PCBAs. The
Model 10457-010 mounts into a standard EIA 19-inch rack. The card rack’s internal ac power supply
requires an input voltage of 120 V ac/240 V ac (auto-switchable), 50/60 Hz.

Specifications

Electrical

Power supply....................................................... Each supply is fused at 2 A, 250 V (not user-serviceable)

Input voltage .................................................................................................................... 120 V ac/240 V ac

Total power consumed (card dependent)............................................................. 336 VA, 212 W maximum

Input frequency range ..................................................................................................................... 50/60 Hz

Input surge current (cold start).............................................................................. Less than 40 A peak max.

Output current available: (max. not to exceed each power supply’s total output power):
(current based on convection cooling)

5 V power supply.................................................................................. output 1 = 16 A @ +5 V dc

+/−12 V power supply ............................................................................. output 1 = 5 A @ 12 V dc

output 2 = 4A @ −12 V dc
Total output power of each supply (50º C ambient temp. continuous)

Convection ....................................................................................................................... 80 W max.

Conducted EMI................................................... Compliance to EN55022, conducted and radiated class B

AC input power connector (rear) .................................................................................. IEC 320-style, 3-pin

Environmental

Temperature operating .......................................................................... +32° F to +122° F (0° C to +50° C)

Temperature storage........................................................................................................... −40° C to +85° C

Relative humidity.................................................................................................... Non-condensing 5–85%

Mechanical

Unit dimensions .................................. 10.47 H × 19.00 W × 13.88 D inches (265.9 × 482.6 × 352.55 mm)

Unit weight ................................................................................................................................. 21 lbs. max.

Approval

CE Mark

GAI-Tronics Corporation 400 E. Wyomissing Ave. Mohnton, PA 19540 USA

610-777-1374  800-492-1212  Fax: [phone]

V

ISIT WWW.GAI-TRONICS.COM FOR PRODUCT LITERATURE AND MANUALS

Pub. DS10457-010

MODEL 10457-010 CARD RACK ASSEMBLY Page 2 of 2

Figure 1. Model 10457-010 Card Rack Assembly
