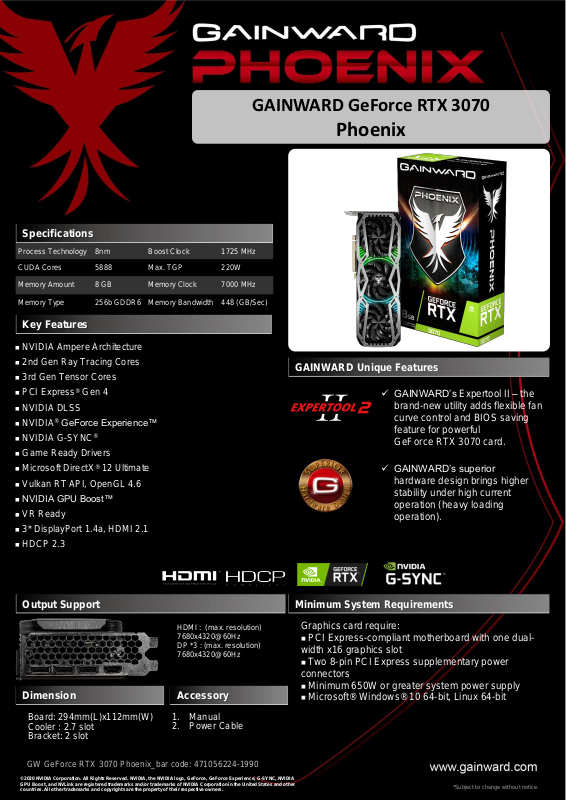

Gainward RTX 3070 Phoenix User Manual

GAINWARD GeForce RTX 3070

Phoenix

Board: 294mm(L)x112mm(W)
Cooler : 2.7 slot
Bracket: 2 slot

1. Manual

2. Power Cable

GW GeForce RTX 3070 Phoenix_bar code: 471056224-1990

© 2020 NVIDIA Corporation. All Rights Reserved. NVIDIA, the NVIDIA logo, GeForce, GeForce Experience, G-SYNC, NVIDIA
GPU Boost, and NVLink are registered trademarks and/or trademarks of NVIDIA Corporation in the United States and other
countries. All other trademarks and copyrights are the property of their respective owners.

✓ GAINWARD’s Expertool II – the

brand-new utility adds flexible fan
curve control and BIOS saving
feature for powerful
GeForce RTX 3070 card.

HDMI : (max. resolution)
7680x4320@60Hz
DP *3 : (max. resolution)
7680x4320@60Hz

Graphics card require:

◼ PCI Express-compliant motherboard with one dual-

width x16 graphics slot

◼ Two 8-pin PCI Express supplementary power

connectors

◼ Minimum 650W or greater system power supply
◼ Microsoft® Windows® 10 64-bit, Linux 64-bit

◼ NVIDIA Ampere Architecture
◼ 2nd Gen Ray Tracing Cores
◼ 3rd Gen Tensor Cores
◼ PCI Express

®

Gen 4

◼ NVIDIA DLSS
◼ NVIDIA

®

GeForce Experience™

◼ NVIDIA G-SYNC

®

◼ Game Ready Drivers
◼ Microsoft DirectX

®

12 Ultimate

◼ Vulkan RT API, OpenGL 4.6

◼ NVIDIA GPU Boost™

◼ VR Ready
◼ 3* DisplayPort 1.4a, HDMI 2.1
◼ HDCP 2.3

Specifications

Process Technology

8nm

Boost

Clock

1725

MHz

CUDA Cores

5888

Max.

TGP

2

20W

Memory

Amount

8 GBMemory Clock

7000

MHz

Memory Type

256b GDDR6

Memory Bandwidth

448

(GB/Sec)

Key Features

GAINWARD Unique Features

Output Support Minimum System Requirements

Dimension Accessory

*Subject to change without notice.

✓ GAINWARD’s superior

hardware design brings higher
stability under high current
operation (heavy loading
operation).
