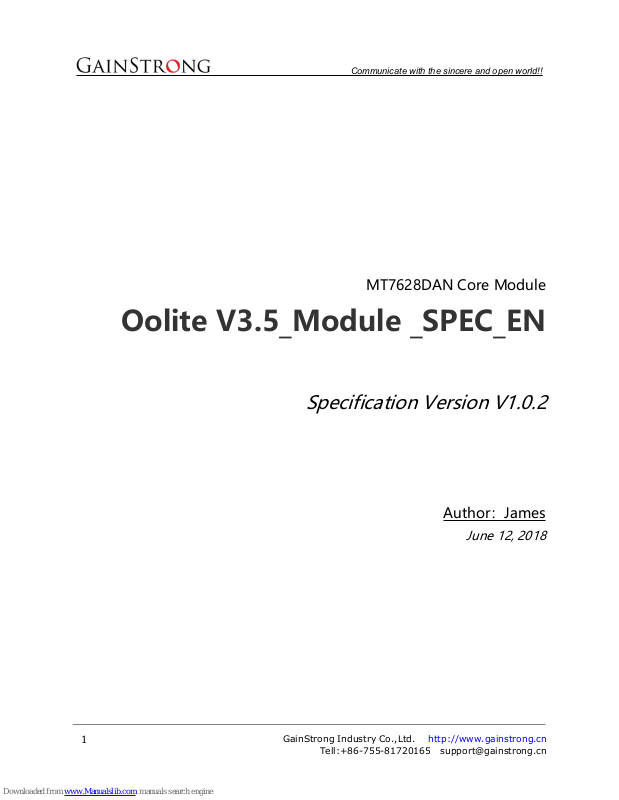

Gainstrong Oolite V3.5 User Manual

Communicate with the sincere and open world!!

1

MT7628DAN Core Module

Oolite V3.5_Module _SPEC_EN

Specification Version V1.0.2

Author：James

June 12, 2018

GainStrong Industry Co.,Ltd. http://www.gainstrong.cn

Tell:[phone] [e-mail]

Communicate with the sincere and open world!!

2

Revision

Date

Contents of Revision Change

Remark

1.0.0

2018-03-28

First release

James

1.0.1

2018-03-28

Update pictures

James

1.0.2

2018-03-28

Add Pins Map

James

GainStrong Industry Co.,Ltd. http://www.gainstrong.cn

Tell:[phone] [e-mail]

Communicate with the sincere and open world!!

3

Oolite V3.5 is powerful, reliable,easy to use and with

extremely small size(23.7mm x 23.7mm x 2.7mm).Low

power consumption so can use on IOT device.

MT7628DAN with 580/575 MHz MIPS 24KEc with 64

KB I-Cache and 32 KB D-Cache. WiFi: 2T2R 2.4 GHz With

300Mbps 802.11 b/g/n. MCM 64 Mbytes DDR2 KGD(Build in

MT7628DAN Chipset) .16MB SPI NOR Flash

ROM(8MB/16MB/32MB/64MB optional).

INTRODUCTION

The MT7628DAN router-on-a-chip includes an 802.11n MAC and baseband, a 2.4 GHz

radio and FEM, a 575/580 MHz MIPS® 24K™ CPU core, a 5-port 10/100 fast ethernet switch.

The MT7628DAN includes everything needed to build an AP router from a single chip. The

embedded high performance CPU can process advanced applications effortlessly, such as

routing, security and VoIP. The MT7628DAN also includes a selection of interfaces to support

a variety of applications, such as a USB port for accessing external storage.

GainStrong Industry Co.,Ltd. http://www.gainstrong.cn

Tell:[phone] [e-mail]

4

FEATURES:

 CPU: MT7628DAN with 580/575 MHz MIPS 24KEc

 RAM: MCM 64 Mbytes DDR2 KGD(Build in MT7628DAN Chipset)

 Flash: 16MBytes SPI NOR Flash ROM(8MB/16MB/32MB/64MB optional)



 GPIO: 37(total and share with), High-speed UART for console support

 USB: 1 x USB 2.0 master interface, support USB hub extension



Ethernet Port : 5-port 10/100 FE PHY in Gateway Mode



Ethernet Port : 1-port 10/100 FE PHY in IOT Mode



Mini-Pcie: 1×Mini-PCIE interface

 Antenna: 2 × IPEX external antenna(default) or use the stamp hole pins interface

 UART(Debug): serial debugging interface has lead out.

 Power supply voltage: 3.3V

 Size: 23.7mm x 23.7mm x 2.7mm (without shield)

WiFi: SISO for 802.11b/g, MIMO for 802.11n20/n40.

Communicate with the sincere and open world!!

GainStrong Industry Co.,Ltd. http://www.gainstrong.cn

Tell:[phone] [e-mail]

Communicate with the sincere and open world!!

5

FUNCTIONAL BLOCK DIAGRAM(MT7628DAN)

GainStrong Industry Co.,Ltd. http://www.gainstrong.cn

Tell:[phone] [e-mail]

6

PICTURES

Communicate with the sincere and open world!!

GainStrong Industry Co.,Ltd. http://www.gainstrong.cn

Tell:[phone] [e-mail]

8

MECHANICAL

Length

Width

Height (without shield)

23.7mm

(Tolerance:±0.2mm)

23.7mm

(Tolerance:±0.2mm)

2.7mm

(Tolerance:±0.2mm)

Communicate with the sincere and open world!!

GainStrong Industry Co.,Ltd. http://www.gainstrong.cn

Tell:[phone] [e-mail]

9

PIN DEFINITION

Pin

Name

Type

Description

1

GND

-

Exposed ground pad

2

SPI_CS1

O,IPD

SPI chip select1/GPIO#6

3

SPI_CLK

O,IPD

SPI clock/GPIO#7

4

SPI_MISO

I/O

SPI Master input/Slave output GPIO#9

5

SPI_MOSI

I/O,IPD

SPI Master output/Slave input GPIO#8

6

SPI_CS0OSPI chip select0/GPIO#10

7

GPIO#11

I/O,IPD

GPIO#11

8

UART_TXD0

O,IPD

UART0 Lite TXD/GPIO#12

9

UART_RXD0IUART0 Lite RXD/GPIO#13

10

3.3V-Supply voltage for digital blocks

11

MDI_RP_P0A10/100 PHY Port #0 RXN

12

MDI_RN_P0A10/100 PHY Port #0 RXP

13

MDI_TP_P0A10/100 PHY Port #0 TXN

14

MDI_TN_P0A10/100 PHY Port #0 TXP

15

GND

-

Exposed ground pad

16

MDI_TP_P1ASD-XC/eMMC/GPIO#14

17

MDI_TN_P1ASD-XC/eMMC/GPIO#15



IPD : Internal pull-down



IPU : Internal pull-up



I : Input

 O : Output

 IO : Bi-directional

Communicate with the sincere and open world!!

Note:

GainStrong Industry Co.,Ltd. http://www.gainstrong.cn

Tell:[phone] [e-mail]

Communicate with the sincere and open world!!

10

Pin

Name

Type

Description

18

MDI_RP_P1ASD-XC/eMMC/GPIO#16

19

MDI_RN_P1ASD-XC/eMMC/GPIO#17

20

GND

-

Exposed ground pad

21

MDI_RP_P2ASD-XC/eMMC/GPIO#18

22

MDI_RN_P2

A

SD-XC/eMMC/GPIO#19

23

MDI_TP_P2ASD-XC/eMMC/GPIO#20

24

MDI_TN_P2ASD-XC/eMMC/GPIO#21

25

MDI_TP_P3ASD-XC/eMMC/GPIO#22

26

MDI_TN_P3ASD-XC/eMMC/GPIO#23

27

MDI_RP_P3ASD-XC/eMMC/GPIO#24

28

MDI_RN_P3ASD-XC/eMMC/GPIO#25

29

MDI_RP_P4ASD-XC/eMMC/GPIO#26

30

MDI_RN_P4ASD-XC/eMMC/GPIO#27

31

MDI_TP_P4ASD-XC/eMMC/GPIO#28

32

MDI_TN_P4ASD-XC/eMMC/GPIO#29

33

GND

-

Exposed ground pad

34

USP_DP

I/O

USB port0 data pin Data+

GainStrong Industry Co.,Ltd. http://www.gainstrong.cn

Tell:[phone] [e-mail]

Communicate with the sincere and open world!!

11

Pin

Name

Type

Description

35

USB_DN

I/O

USB port0 data pin Data-

36

GND-Exposed ground pad

37

3.3V

-

Supply voltage for digital blocks

38

3.3V

-

Supply voltage for digital blocks

39

3.3V

-

Supply voltage for digital blocks

40

GND-Exposed ground pad

41

WLED_N

O

WLAN Activity LED/GPIO#44

42

EPHY_LED0_N_JTDO

I/O

Port#0 activity LED/GPIO#43/JTAG_TDO

43

EPHY_LED1_N_JTDI

I/O

Port#1 activity LED/GPIO#42/JTAG_TDI

44

EPHY_LED2_N_JTMS

I/O

Port#2 activity LED/GPIO#41/JTAG_TMS

45

EPHY_LED3_N_JTCLK

I/O

Port#3 activity LED/GPIO#40/JTAG_CLK

46

EPHY_LED4_N_JTRST_N

I/O

Port#4 activity LED//GPIO#39/JTAG_TRST_N

47

GND-Exposed ground pads

48

PCIE_TXN0

I/O

PCIe0 differential transmit TX -

49

PCIE_TXP0

I/O

PCIe0 differential transmit TX +

50

PCIE_RXP0

I/O

PCIe0 differential transmit RX +

51

PCIE_RXN0

I/O

PCIe0 differential transmit TX -

GainStrong Industry Co.,Ltd. http://www.gainstrong.cn

Tell:[phone] [e-mail]

Communicate with the sincere and open world!!

12

Pin

Name

Type

Description

52

PCIE_CKN0

O

External reference clock output (negative)

53

PCIE_CKP0

O

External reference clock output (positive)

54

PERST_N

O,IPD

PCIe device reset/GPIO#36

55

REF_CLK0

O,IPD

Reference Clock Ouptut/GPIO#37

56

WDT_RST_N

O

Watchdog Reset/GPIO#38/SW Reset

57

PORST_N

O,IPU

CPURST_N/Power on reset/HW Reset

58

UART_TXD1

O,IPU

UART1 Lite TXD/GPIO#45

59

UART_RXD1IUART1 Lite RXD/GPIO#46

60

I2S_SDIOI2S data input/GPIO#0

61

I2S_SDO

I/O,IPD

I2S data output/GPIO#1

62

I2S_WSOI2S word select/GPIO#2

63

I2S_CLK

I/O

I2S clock/GPIO#3

64

I2C_CLK

I/O

I2C clock/GPIO#4

65

I2S_SD

I/O

I2C Data/GPIO#5

66

WiFi ANT1

A

WiFi ANT1

67

GND-Exposed ground pad

68

WiFi ANT1

A

WiFi ANT2

GainStrong Industry Co.,Ltd. http://www.gainstrong.cn

Tell:[phone] [e-mail]

13

ENVIRONAMENT

Power Supply

3.3V (2.97V-3.63V)

Operating Temperature

-20℃ ~ 55℃

Operating Humidity

<60% non-condensing

Storage Temperature

0℃ ~ 50℃

Storage Humidity

Storage Humidity: <90% non-condensing in sealed

REFLOW PROFILE GUIDELINE

Communicate with the sincere and open world!!

Notes:

1. Reflow profile guideline is designed for SnAgCulead-free solder paste.

2. Reflow temperature is defined at the solder ball of package/or the lead of package.

3. MTK would recommend customer following the solder paste vendor’s guideline to design a profile

appropriate your line and products.

4. Appropriate N2 atmosphere is recommended since it would widen the process window and mitigate

the risk for having solder open issues.

GainStrong Industry Co.,Ltd. http://www.gainstrong.cn

Tell:[phone] [e-mail]

Modular installation instrucations

WIFI Module -OoliteV3.5 Integrates high-speed GPIO and peripheral interface.Please pay
attention to the installation direction (pin direction).

FCC Caution: Any changes or modifications not expressly approved by the party
responsible for compliance could void the user's authority to operate this equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions:

(1) This device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause
undesired operation.
This device and its antenna(s) must not be co-located or operating in conjunction with any
other antenna or transmitter.
NOTE:
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against harmful interference
in a residential installation. This equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or television reception, which can
be determined by turning the equipment off and on, the user is encouraged to
try to correct the interference by one or more of the followingmeasures:

-- Reorient or relocate the receiving antenna.

-- Increase the separation between the equipment and receiver.

-- Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.

-- Consult the dealer or an experienced radio/TV technician for help.

FCC ID: 2AB5EOOLITE

ATTENTION
This device is intended only for OEM integrators under the following conditions:

1) The antenna must be installed such that 20 cm is maintained between the antenna and
users

2) This device and its antenna(s) must not be co‐located with any other transmitters except
in accordance with FCC multi‐transmitter product procedures. Referring to the multi‐
transmitter policy, multiple‐transmitter(s) and module(s) can be operated simultaneously
without C2P.

3) For all products market in US, OEM has to limit the operation channels in CH1 to CH11
for 2.4G band by supplied firmware programming tool. OEM shall not supply any tool or info
to the end‐user regarding to Regulatory Domain change.

USERS MANUAL OF THE END PRODUCT:
In the users manual of the end product, the end user has to be informed to keep at
least 20cm separation with the antenna while this end product is installed and operated.

The end user has to be informed that the FCC radio‐frequency exposure guidelines for an
uncontrolled environment can be satisfied. The end user has to also be informed that any

changes or modifications not expressly approved by the manufacturer could void the user's
authority to operate this equipment.

If the size of the end product is smaller than 8x10cm, then additional FCC part 15.19
statement is required to be available in the users manual: This device complies with Part 15
of FCC rules. Operation is subject to the following two conditions:
(1) this device may not cause harmful interference and
(2) this device must accept any interference received, including interference that may
cause undesired operation.

LABEL OF THE END PRODUCT:
The final end product must be labeled in a visible area with the following " Contains FCC
ID: 2AB5EOOLITE". If the size of the end product is larger than 8x10cm, then the following
FCC part 15.19 statement has to also be available on the label: This device complies with
Part 15 of FCC rules. Operation is subject to the following two conditions:
(1) this device may not cause harmful interference and
(2) this device must accept any interference received, including interference that may cause
undesired operation.
