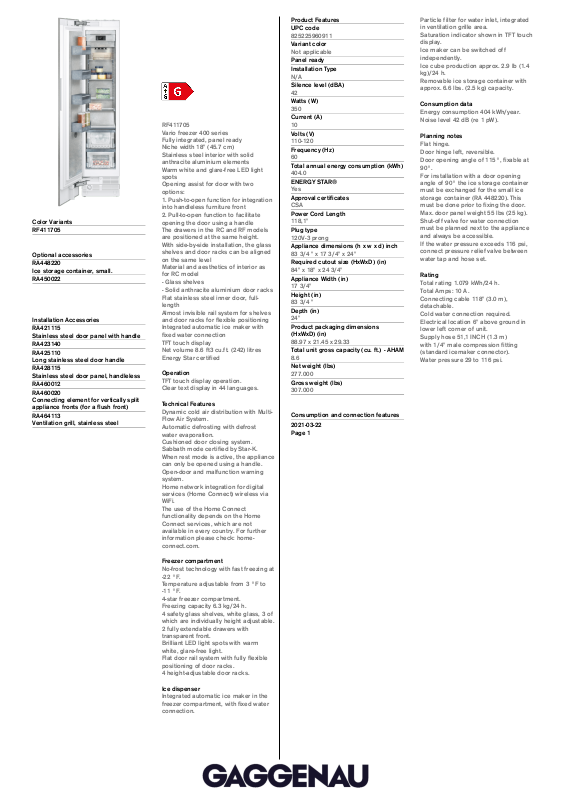

Gaggenau RF411705 Specification Sheet

Color Variants
RF411705

Optional accessories
RA448220

Ice storage container, small.
RA450022

Installation Accessories
RA421115

Stainless steel door panel with handle
RA423140
RA425110

Long stainless steel door handle
RA428115

Stainless steel door panel, handleless
RA460012
RA460020

Connecting element for vertically split
appliance fronts (for a flush front)

RA464113
Ventilation grill, stainless steel

Product Features
UPC code

825225960911

Variant color

Not applicable

Panel ready
Installation Type

N/A

Silence level (dBA)

42

Watts (W)

350

Current (A)

10

Volts (V)

110-120

Frequency (Hz)

60

Total annual energy consumption (kWh)

404.0

ENERGY STAR®

Yes

Approval certificates

CSA

Power Cord Length

118,1"

Plug type

120V-3 prong

Appliance dimensions (h x w x d) inch

83 3/4 " x 17 3/4" x 24"

Required cutout size (HxWxD) (in)

84" x 18" x 24 3/4"

Appliance Width (in)

17 3/4"

Height (in)

83 3/4 "

Depth (in)

24"

Product packaging dimensions
(HxWxD) (in)

88.97 x 21.45 x 29.33

Total unit gross capacity (cu. ft.) - AHAM

8.6

Net weight (lbs)

277.000

Gross weight (lbs)

307.000

Consumption and connection features

2021-03-22
Page 1

RF411705
Vario freezer 400 series
Fully integrated, panel ready
Niche width 18" (45.7 cm)
Stainless steel interior with solid
anthracite aluminium elements
Warm white and glare-free LED light
spots
Opening assist for door with two
options:

1. Push-to-open function for integration
into handleless furniture front

2. Pull-to-open function to facilitate
opening the door using a handle
The drawers in the RC and RF models
are positioned at the same height.
With side-by-side installation, the glass
shelves and door racks can be aligned
on the same level
Material and aesthetics of interior as
for RC model

- Glass shelves

- Solid anthracite aluminium door racks
Flat stainless steel inner door, full­length
Almost invisible rail system for shelves
and door racks for flexible positioning
Integrated automatic ice maker with
fixed water connection
TFT touch display
Net volume 8.6 ft3 cu.ft. (242) litres
Energy Star certified

Operation

TFT touch display operation.
Clear text display in 44 languages.

Technical Features

Dynamic cold air distribution with Multi­Flow Air System.
Automatic defrosting with defrost
water evaporation.
Cushioned door closing system.
Sabbath mode certified by Star-K.
When rest mode is active, the appliance
can only be opened using a handle.
Open-door and malfunction warning
system.
Home network integration for digital
services (Home Connect) wireless via
WiFi.
The use of the Home Connect
functionality depends on the Home
Connect services, which are not
available in every country. For further
information please check: home­connect.com.

Freezer compartment

No-frost technology with fast freezing at

-22 °F.
Temperature adjustable from 3 °F to

-11 °F.
4-star freezer compartment.
Freezing capacity 6.3 kg/24 h.
4 safety glass shelves, white glass, 3 of
which are individually height adjustable.
2 fully extendable drawers with
transparent front.
Brilliant LED light spots with warm
white, glare-free light.
Flat door rail system with fully flexible
positioning of door racks.
4 height-adjustable door racks.

Ice dispenser

Integrated automatic ice maker in the
freezer compartment, with fixed water
connection.

Particle filter for water inlet, integrated
in ventilation grille area.
Saturation indicator shown in TFT touch
display.
Ice maker can be switched off
independently.
Ice cube production approx. 2.9 lb (1.4
kg)/24 h.
Removable ice storage container with
approx. 6.6 lbs. (2.5 kg) capacity.

Consumption data

Energy consumption 404 kWh/year.
Noise level 42 dB (re 1 pW).

Planning notes

Flat hinge.
Door hinge left, reversible.
Door opening angle of 115°, fixable at
90°.
For installation with a door opening
angle of 90° the ice storage container
must be exchanged for the small ice
storage container (RA 448220). This
must be done prior to fixing the door.
Max. door panel weight 55 lbs (25 kg).
Shut-off valve for water connection
must be planned next to the appliance
and always be accessible.
If the water pressure exceeds 116 psi,
connect pressure relief valve between
water tap and hose set.

Rating

Total rating 1.079 kWh/24 h.
Total Amps: 10 A.
Connecting cable 118" (3.0 m),
detachable.
Cold water connection required.
Electrical location 6" above ground in
lower left corner of unit.
Supply hose 51,1 INCH (1.3 m)
with 1/4" male compression fitting
(standard icemaker connector).
Water pressure 29 to 116 psi.
